  1. Crash Course on Control Karl-Erik Årzén

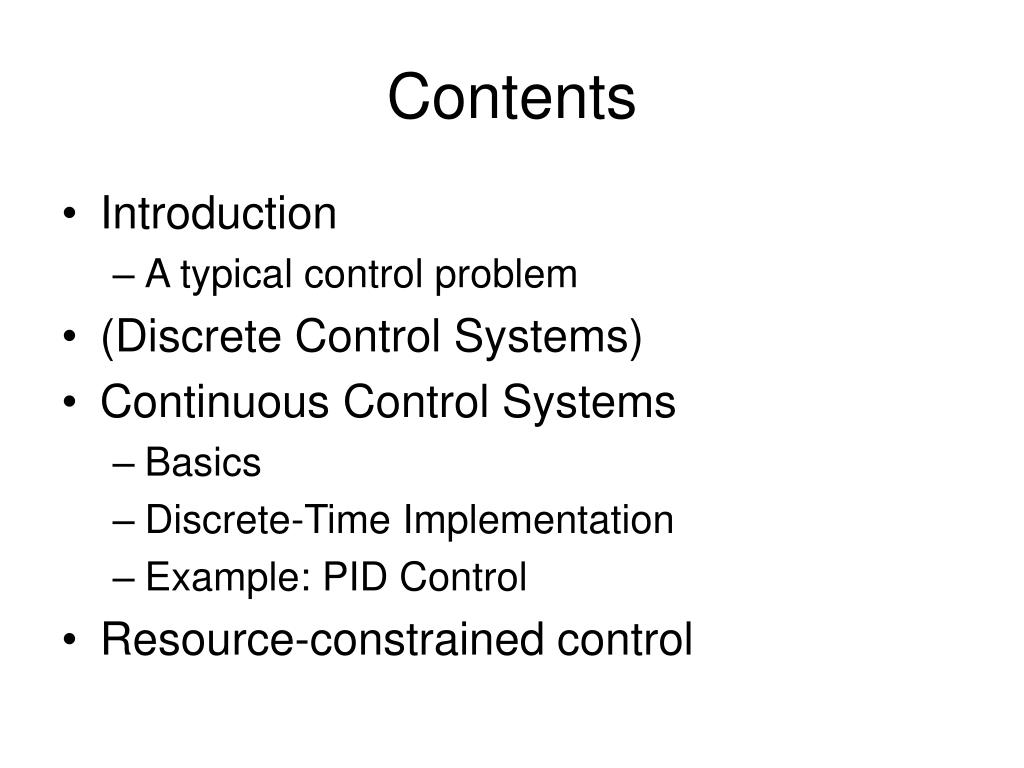

  2. Contents • Introduction • A typical control problem • (Discrete Control Systems) • Continuous Control Systems • Basics • Discrete-Time Implementation • Example: PID Control • Resource-constrained control

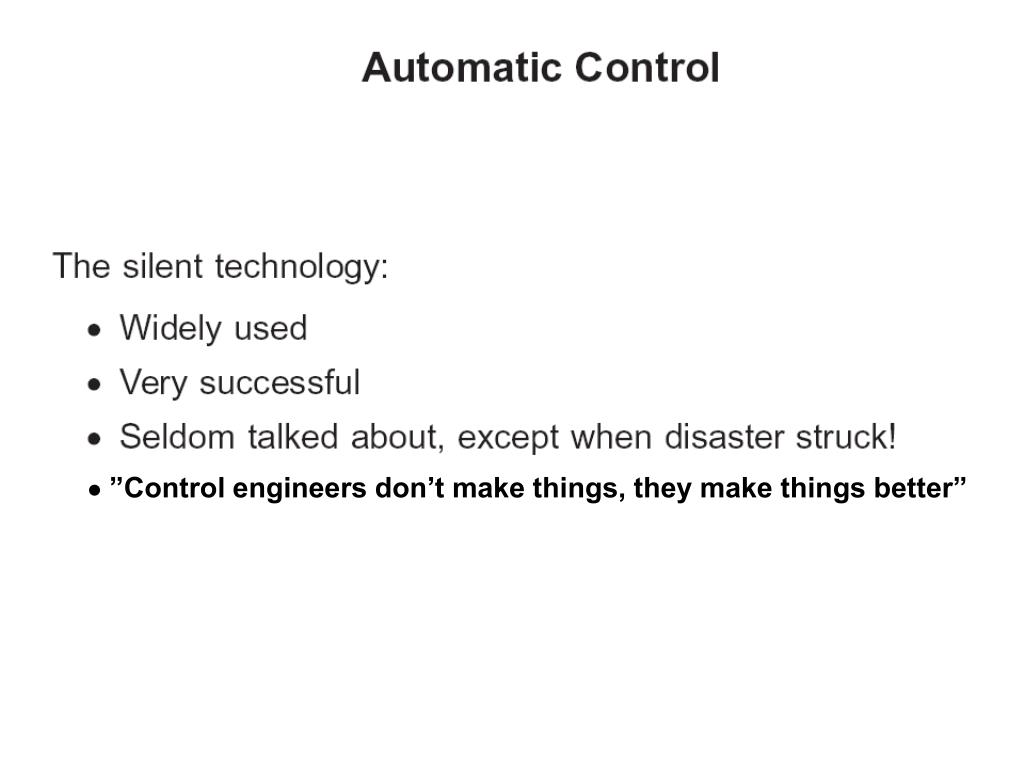

  3. ”Control engineers don’t make things, they make things better”

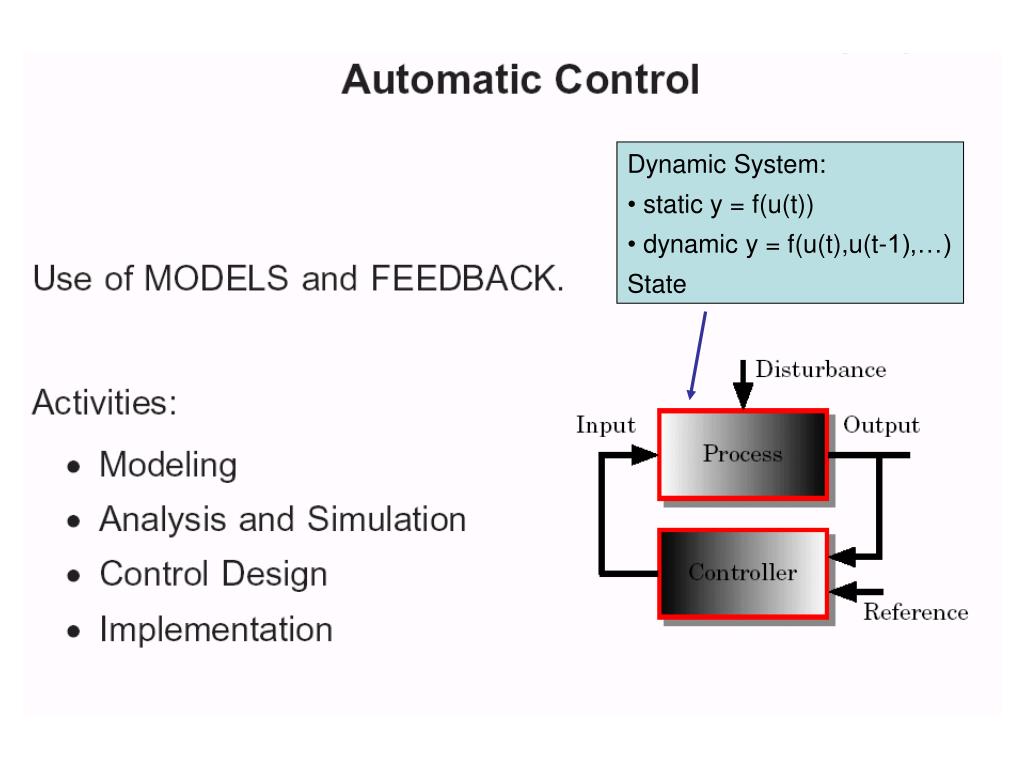

  4. Dynamic System: • static y = f(u(t)) • dynamic y = f(u(t),u(t-1),…) • State

  5. Contents • Introduction • A typical control problem • (Discrete Control Systems) • Continuous Control Systems • Basics • Discrete-Time Implementation • Example: PID Control • Resource-constrained control

  6. Discrete Control Systems

  7. Contents • Introduction • A typical control problem • (Discrete Control Systems) • Continuous Control Systems • Basics • Discrete-Time Implementation • Example: PID Control • Resource-constrained control

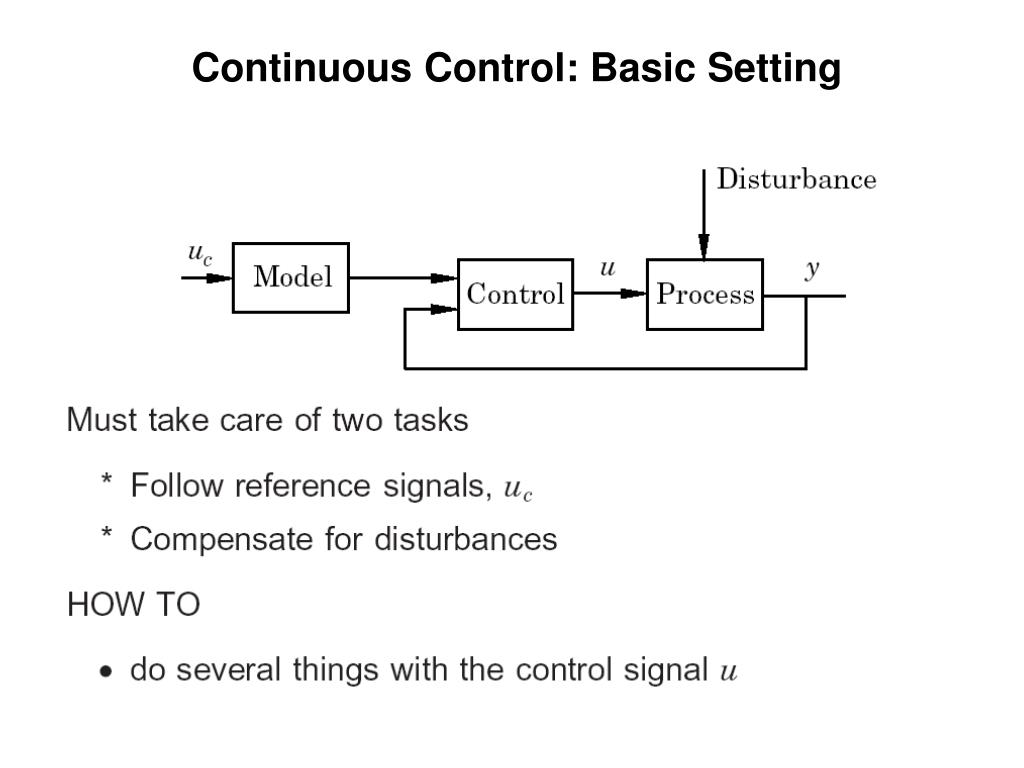

  8. Continuous Control: Basic Setting

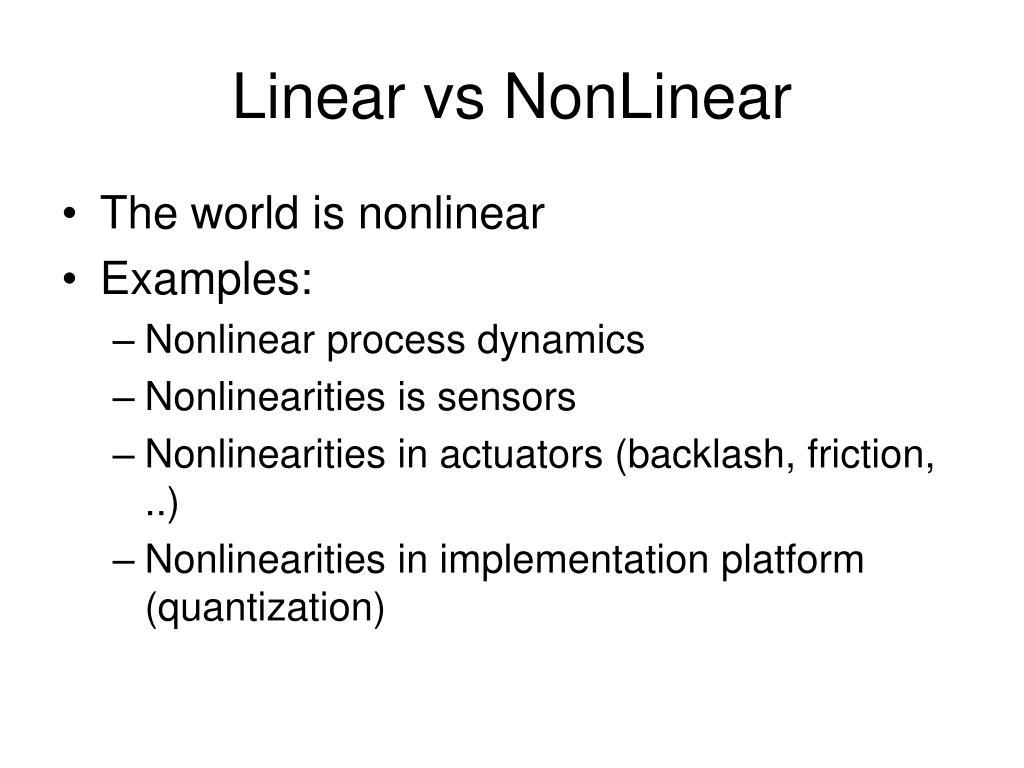

  9. Linear vs NonLinear • The world is nonlinear • Examples: • Nonlinear process dynamics • Nonlinearities is sensors • Nonlinearities in actuators (backlash, friction, ..) • Nonlinearities in implementation platform (quantization)

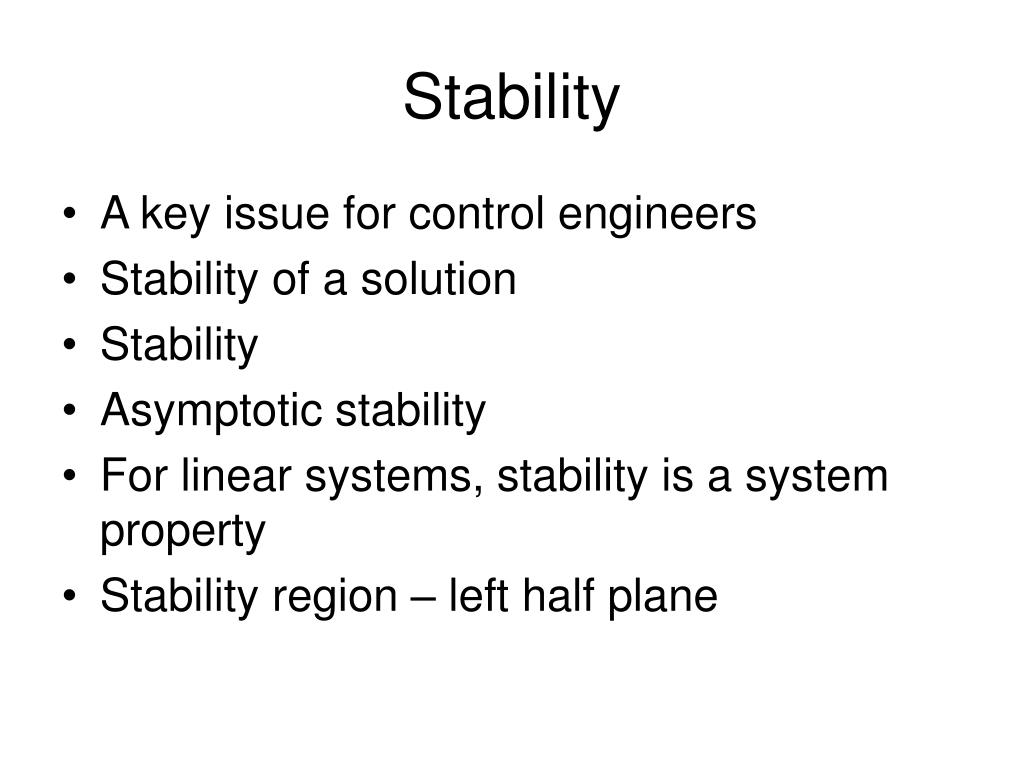

  10. Stability • A key issue for control engineers • Stability of a solution • Stability • Asymptotic stability • For linear systems, stability is a system property • Stability region – left half plane

  11. Contents • Introduction • A typical control problem • (Discrete Control Systems) • Continuous Control Systems • Basics • Discrete-Time Implementation • Example: PID Control • Resource-constrained control
