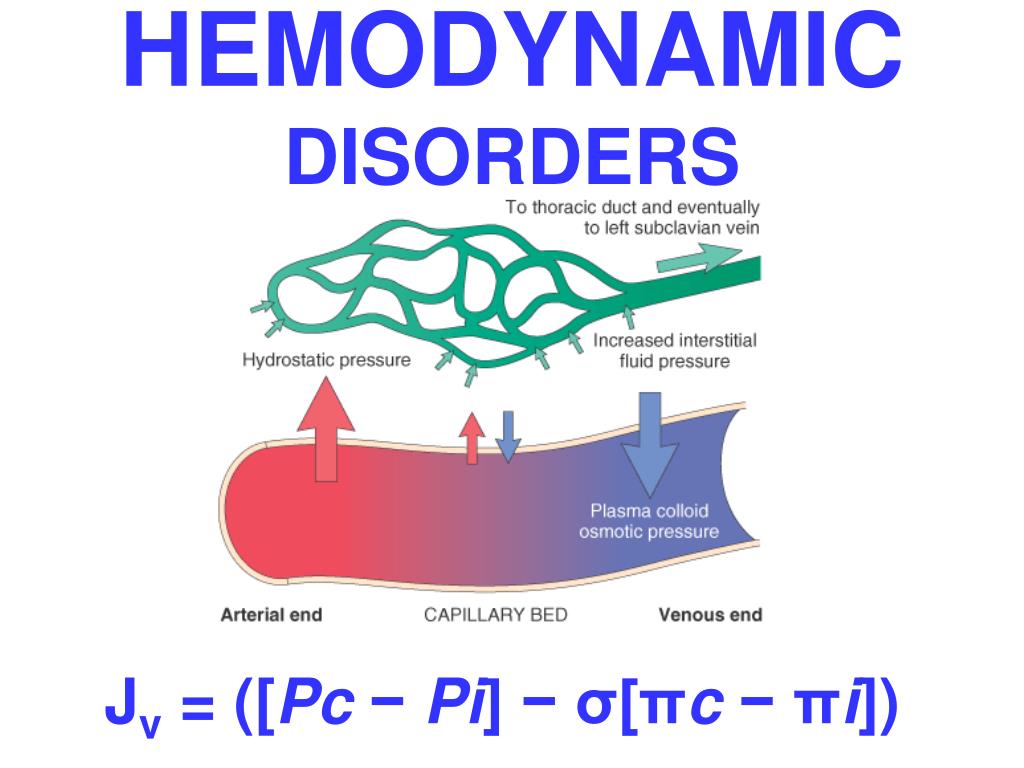

  1. HEMODYNAMIC DISORDERS Jv = ([Pc − Pi] − σ[πc − πi])

  2. Hemodynamic Disorders • Thromboembolic Disease • Shock

  3. Overview • Edema (increased fluid in the ECF) • Hyperemia (INCREASED flow) • Congestion (INCREASED backup) • Hemorrhage (extravasation) • Thrombosis (clotting blood) • Embolism (downstream travel of a clot) • Infarction (death of tissues w/o blood) • Shock (circulatory failure/collapse)

  4. EDEMA • ONLY 4 POSSIBILITIES!!! • Increased Hydrostatic Pressure • Reduced Oncotic Pressure • Lymphatic Obstruction • Sodium/Water Retention

  5. WATER • 60% of body • 2/3 of body water is INTRA-cellular • The rest is INTERSTITIAL • Only 5% is INTRA-vascular • EDEMA is SHIFT to the INTERSTITIAL SPACE • HYDRO- • -THORAX, -PERICARDIUM, -PERITONEAL • EFFUSIONS, ASCITES, ANASARCA

  6. INCREASED HYDROSTATIC PRESSURE • Impaired venous return • Congestive heart failure   • Constrictive pericarditis   • Ascites (liver cirrhosis)   • Venous obstruction or compression • Thrombosis     • External pressure (e.g., mass) • Lower extremity inactivity with prolonged dependency • Arteriolar dilation • Heat   • Neurohumoral dysregulation

  7. REDUCED PLASMA ONCOTICPRESSURE (HYPOPROTEINEMIA) • Protein-losing glomerulopathies (nephrotic syndrome) • Liver cirrhosis (ascites) • Malnutrition • Protein-losing gastroenteropathy

  8. LYMPHATIC OBSTRUCTION(LYMPHEDEMA) • Inflammatory • Neoplastic • Postsurgical • Postirradiation

  9. Na+ RETENTION • Excessive salt intake with renal insufficiency • Increased tubular reabsorption of sodium • Renal hypoperfusion Increased renin-angiotensin-aldosterone secretion

  10. INFLAMMATION • Acute inflammation • Chronic inflammation • Angiogenesis

  11. Jv = ([Pc − Pi] − σ[πc − πi])

  12. CHF EDEMA • INCREASED VENOUS PRESSURE DUE TO FAILURE • DECREASED RENAL PERFUSION, triggering of RENIN-ANGIOTENSION-ALDOSTERONE complex, resulting ultimately in SODIUM RETENTION

  13. HEPATIC ASCITES • PORTAL HYPERTENSION • HYPOALBUMINEMIA

  14. ASCITES

  15. RENAL EDEMA • SODIUM RETENTION • PROTEIN LOSING GLOMERULOPATHIES (NEPHROTIC SYNDROME)

  16. EDEMA • SUBCUTANEOUS (“PITTING”) • “DEPENDENT” • ANASARCA • LEFT vs RIGHT HEART • PERIORBITAL • PULMONARY • CEREBRAL (closed cavity, no expansion) • HERNIATION of cerebellar tonsils • HERNIATION of hippocampal uncus over tentorium • HERNIATION, subfalcine

  17. “Pitting” Edema

  18. Transudate vs Exudate • Transudate • results from disturbance of Starling forces • specific gravity < 1.012 • protein content < 3 g/dl, LDH LOW • Exudate • results from damage to the capillary wall • specific gravity > 1.012 • protein content > 3 g/dl, LDH HIGH

  19. HYPEREMIA/(CONGESTION)

  20. HYPEREMIA Active Process CONGESTION Passive Process Acute or Chronic

  21. CONGESTION • LUNG • ACUTE • CHRONIC • LIVER • ACUTE • CHRONIC • CEREBRAL

  22. ACUTE PASSIVE HYPEREMIA/CONGESTION, LUNG

  23. Kerley B Air Bronch-ogram

  24. CHRONIC PASSIVE HYPEREMIA/CONGESTION, LUNG

  25. Acute Passive Congestion, Liver

  26. Acute Passive Congestion, Liver

  27. CHRONIC PASSIVE HYPEREMIA/CONGESTION, LIVER

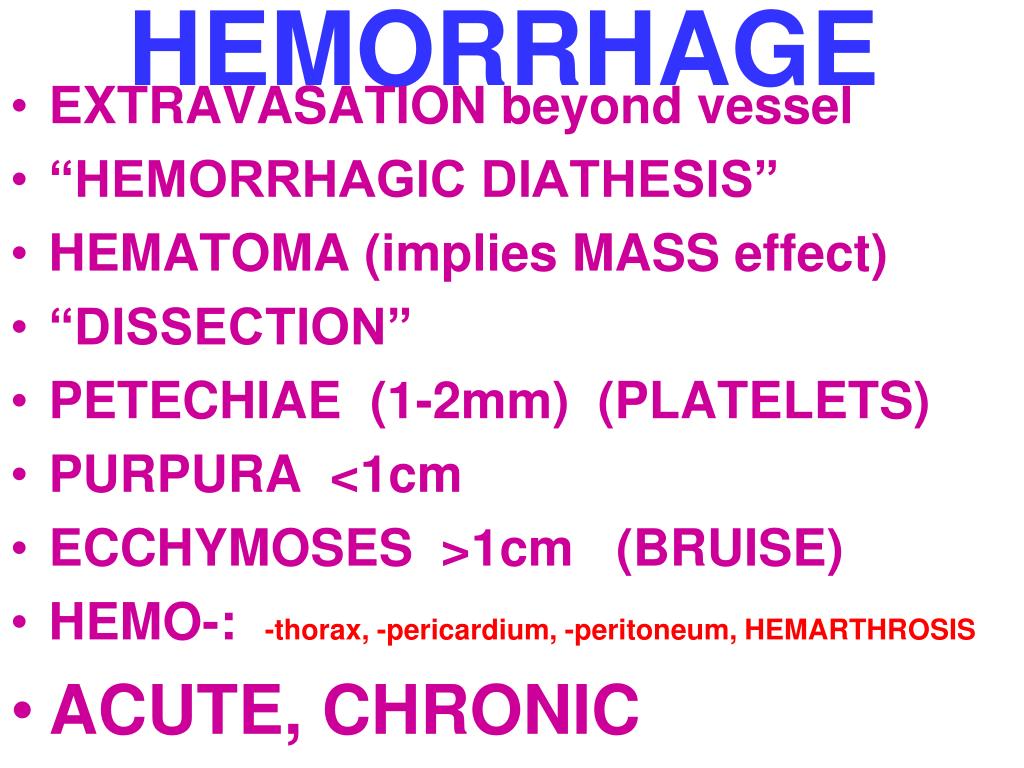

  28. HEMORRHAGE • EXTRAVASATION beyond vessel • “HEMORRHAGIC DIATHESIS” • HEMATOMA (implies MASS effect) • “DISSECTION” • PETECHIAE (1-2mm) (PLATELETS) • PURPURA <1cm • ECCHYMOSES >1cm (BRUISE) • HEMO-: -thorax, -pericardium, -peritoneum, HEMARTHROSIS • ACUTE, CHRONIC

  29. EVOLUTION of HEMORRHAGE • ACUTE CHRONIC • PURPLE GREEN BROWN • HGB BILIRUBIN HEMOSIDERIN

  30. HEMATOMAvs.“CLOT”

  31. “HEMOSTASIS” • OPPOSITE of THROMBOSIS • PRESERVE LIQUIDITY OF BLOOD • “PLUG” sites of vascular injury • THREE COMPONENTS • VASCULAR WALL, i.e., endoth/ECM • PLATELETS • COAGULATION CASCADE

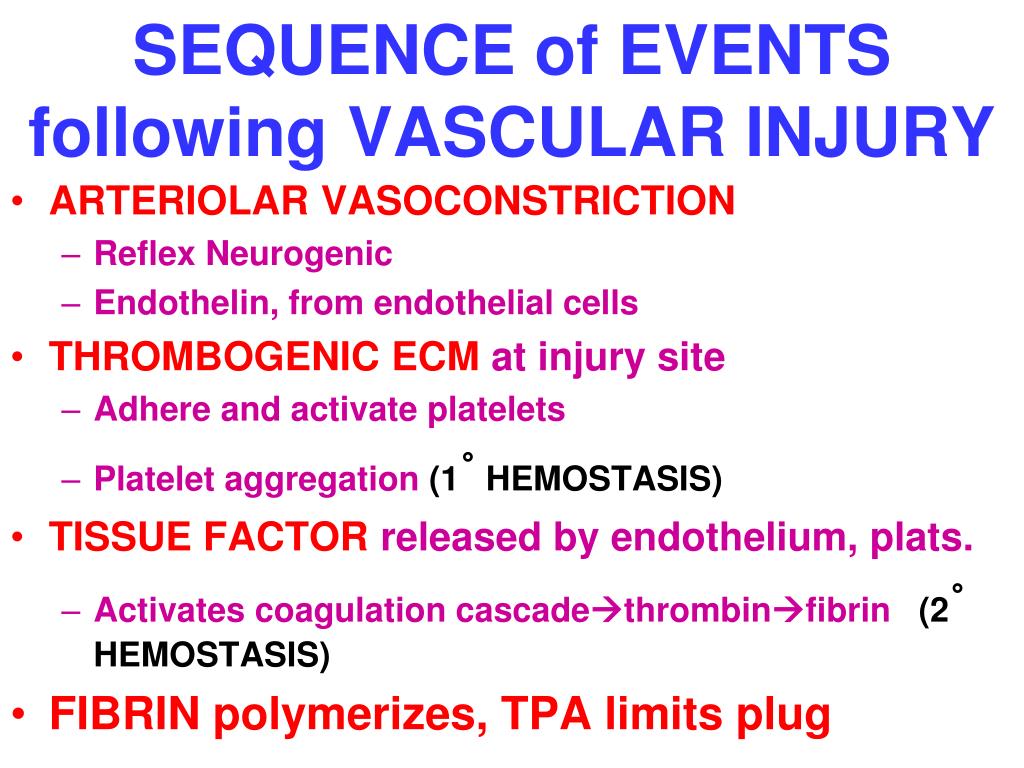

  32. SEQUENCE of EVENTSfollowing VASCULAR INJURY • ARTERIOLAR VASOCONSTRICTION • Reflex Neurogenic • Endothelin, from endothelial cells • THROMBOGENIC ECM at injury site • Adhere and activate platelets • Platelet aggregation (1˚ HEMOSTASIS) • TISSUE FACTOR released by endothelium, plats. • Activates coagulation cascadethrombinfibrin (2˚ HEMOSTASIS) • FIBRIN polymerizes, TPA limits plug

  33. PLAYERS • ENDOTHELIUM • PLATELETS • COAGULATION “CASCADE”

  34. ENDOTHELIUM • NORMALLY • ANTIPLATELET PROPERTIES • ANTICOAGULANT PROPERTIES • FIBRINOLYTIC PROPERTIES • IN INJURY • PRO-COAGULANT PROPERTIES

  35. ENDOTHELIUM • ANTI-Platelet PROPERTIES • Protection from the subendothelial ECM • Degrades ADP (inhib. Aggregation) • ANTI-Coagulant PROPERTIES • Membrane HEPARIN-like molecules • Makes THROMBOMODULIN Protein-C • TISSUE FACTOR PATHWAY INHIBITOR • FIBRINOLYTIC PROPERTIES (TPA)

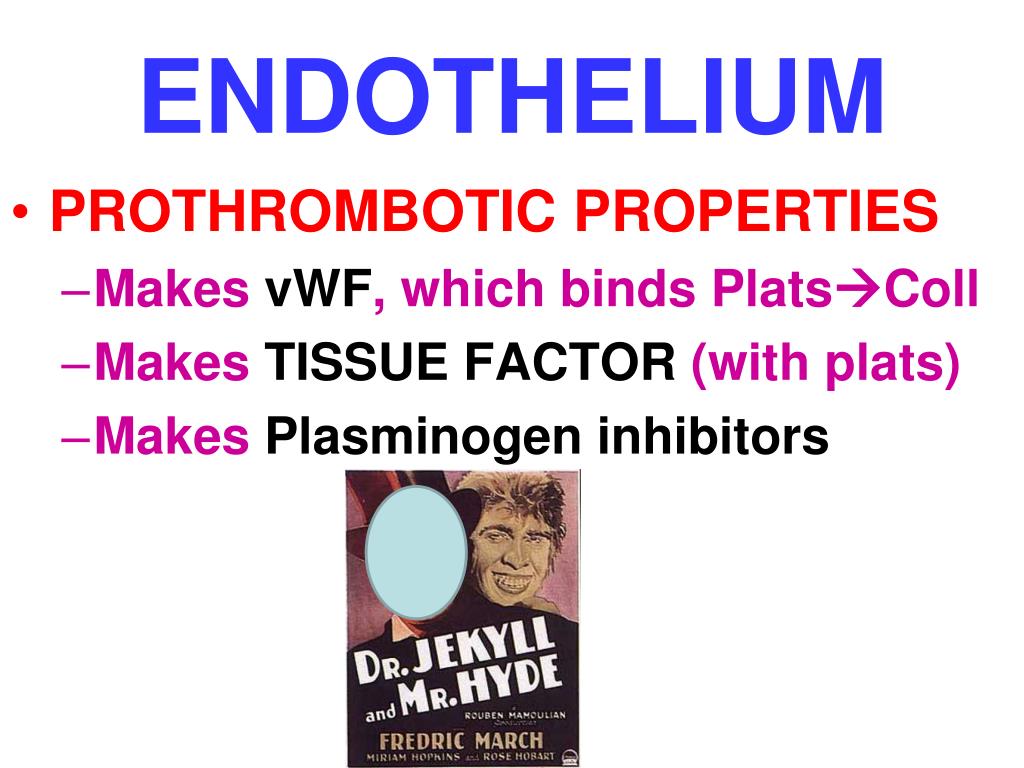

  36. ENDOTHELIUM • PROTHROMBOTIC PROPERTIES • Makes vWF, which binds PlatsColl • Makes TISSUE FACTOR (with plats) • Makes Plasminogen inhibitors

  37. ENDOTHELIUM • ACTIVATED by INFECTIOUSAGENTS • ACTIVATED by HEMODYNAMICS • ACTIVATED by PLASMA, IL-1, TNF • ACTIVATED by ANYTHING which disrupts it

  38. PLATELETS • ALPHA GRANULES • Fibrinogen • Fibronectins (precursors to integrins) • Factor-V, Factor-VIII • Platelet factor 4, TGF-beta • DELTA GRANULES (DENSE BODIES) • ADP/ATP, Ca+, Histamine, Serotonin, Epineph. • With endothelium, form TISSUE FACTOR

  39. NORMAL platelet on LEFT, “DEGRANULATING” ALPHA GRANULE ON RIGHT AT OPEN WHITE ARROW
