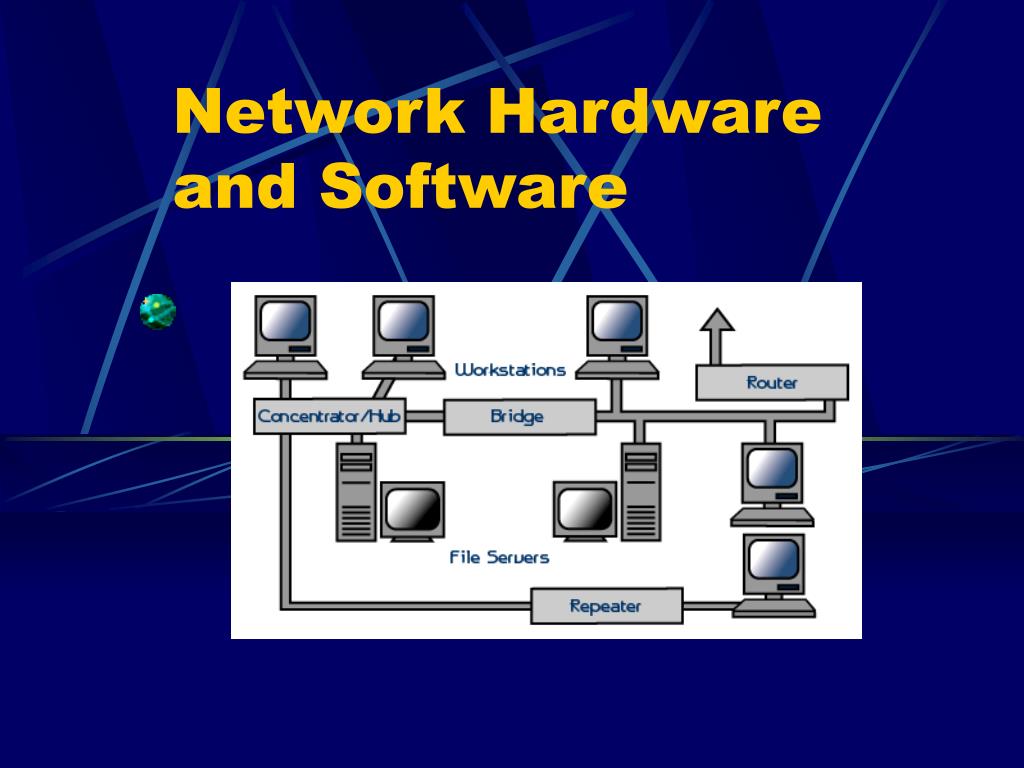

  1. Network Hardware and Software

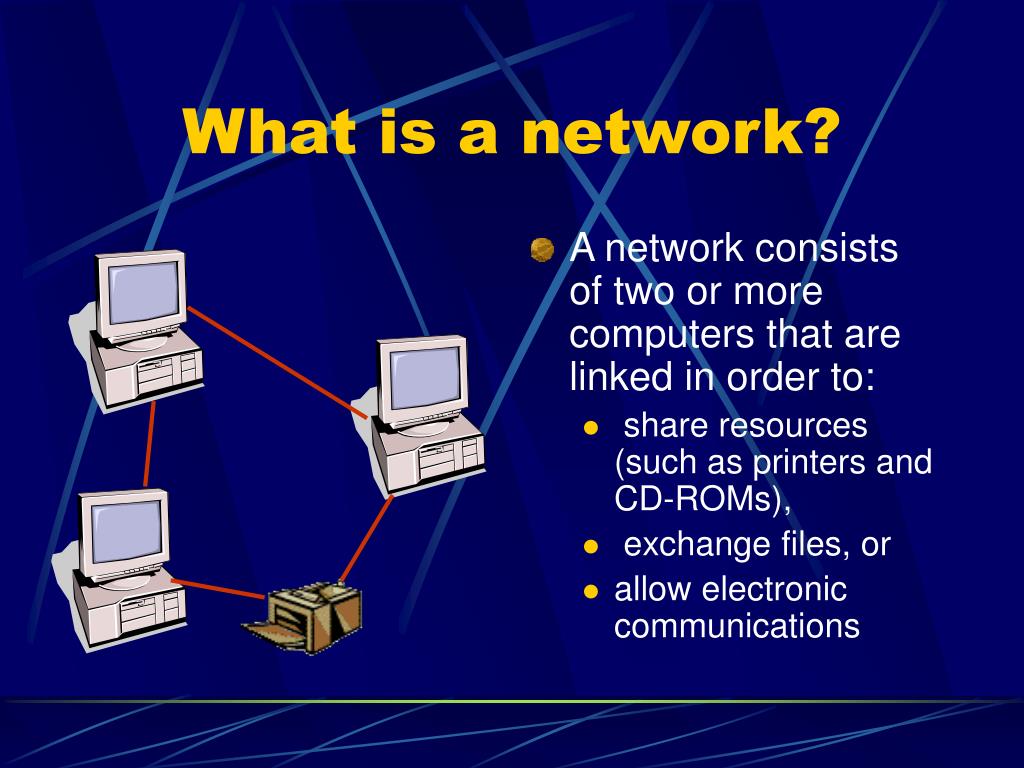

  2. What is a network? • A network consists of two or more computers that are linked in order to: • share resources (such as printers and CD-ROMs), • exchange files, or • allow electronic communications

  3. How are they linked? • Computers on a network may be linked through: • cables, • telephone lines, • radio waves, satellites or • wireless technologies

  4. The two basic types of networks include: • Local Area Networks (LAN) • Wide Area Networks (WAN) LAN WAN

  5. Local area networks • LANs are confined to a relatively small area such as a school or a building • LANs usually have one computer designated as the file server • Other computers are connected to the network by cables connecting network interface cards in each computer

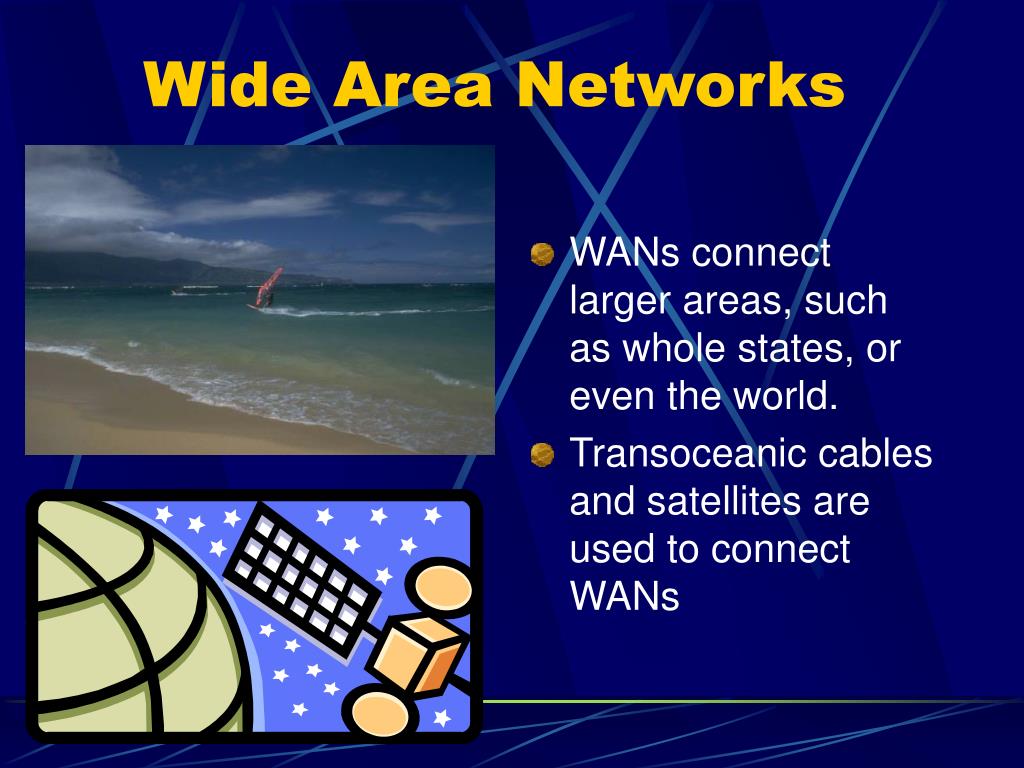

  6. Wide Area Networks • WANs connect larger areas, such as whole states, or even the world. • Transoceanic cables and satellites are used to connect WANs

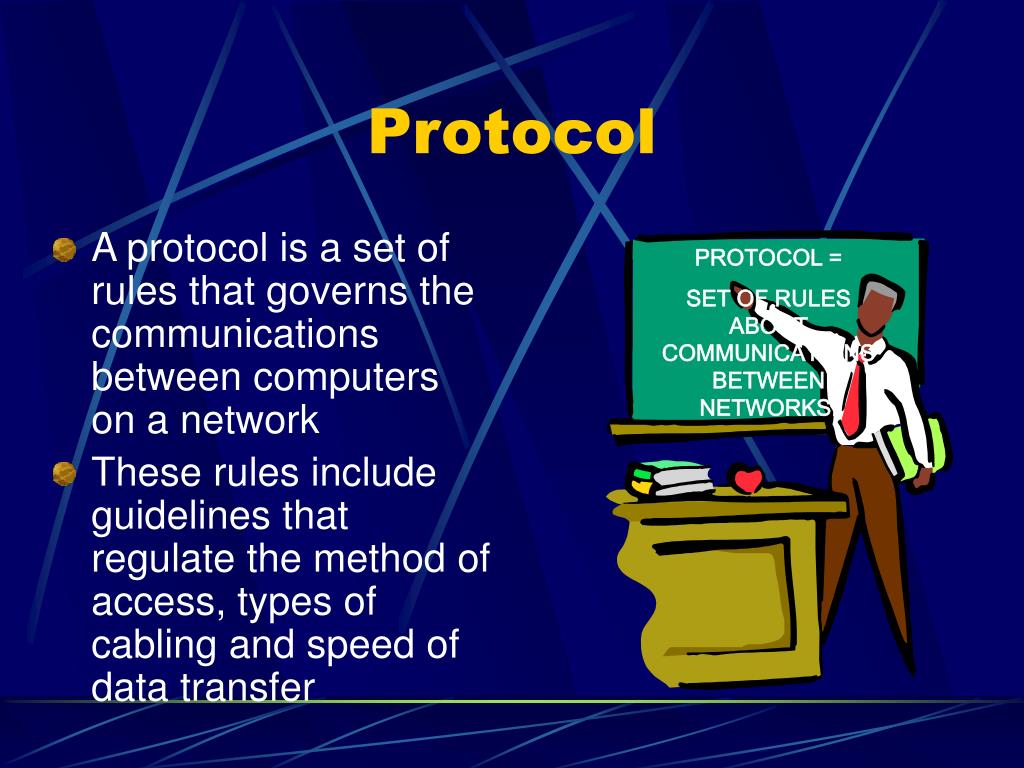

  7. PROTOCOL = SET OF RULES ABOUT COMMUNICATIONS BETWEEN NETWORKS! Protocol • A protocol is a set of rules that governs the communications between computers on a network • These rules include guidelines that regulate the method of access, types of cabling and speed of data transfer

  8. The most common protocols are: • Ethernet • Local Talk • Token Ring • FDDI • ATM Protocol = a formal description of a set of rules and conventions that govern how devices on a network exchange information Did you ever wonder what HTTP in web addresses was about? It stands for HyperText Transfer Protocol

  9. Ethernet • Most widely used • Uses an access method called CSMA/CD (Carrier Sense Multiple Access/Collision Detection

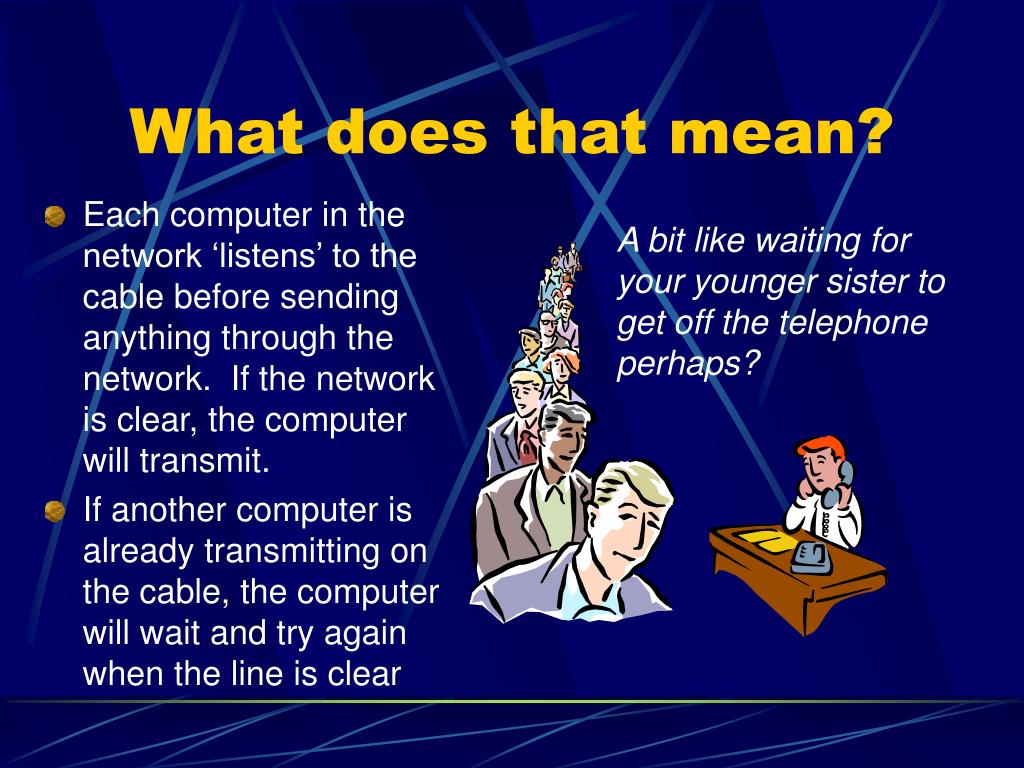

  10. What does that mean? A bit like waiting for your younger sister to get off the telephone perhaps? • Each computer in the network ‘listens’ to the cable before sending anything through the network. If the network is clear, the computer will transmit. • If another computer is already transmitting on the cable, the computer will wait and try again when the line is clear

  11. Ethernet (continued) • Sometimes, two computers attempt to transmit at the same instant. When this happens, a collision occurs. Each computer then backs off and waits a random amount of time before attempting to retransmit.It is normal to have collisions using this method, but the delays caused by collisions and transmissions is small, and does not effect speed of transmission on the network CSMA/CD =Carrier Sense Multiple Access /Collision Detection

  12. Ethernet (continued) • Ethernet protocol allows for data to be transmitted over twisted pair, coaxial or fiber optic cable at a speed of 10 Mbps • (more on that later)

  13. Fast Ethernet • To allow for faster transmission, the Ethernet protocol has developed a new standard that supports 100 Mbps • Fast Ethernet requires the use of more expensive equipment and network cards

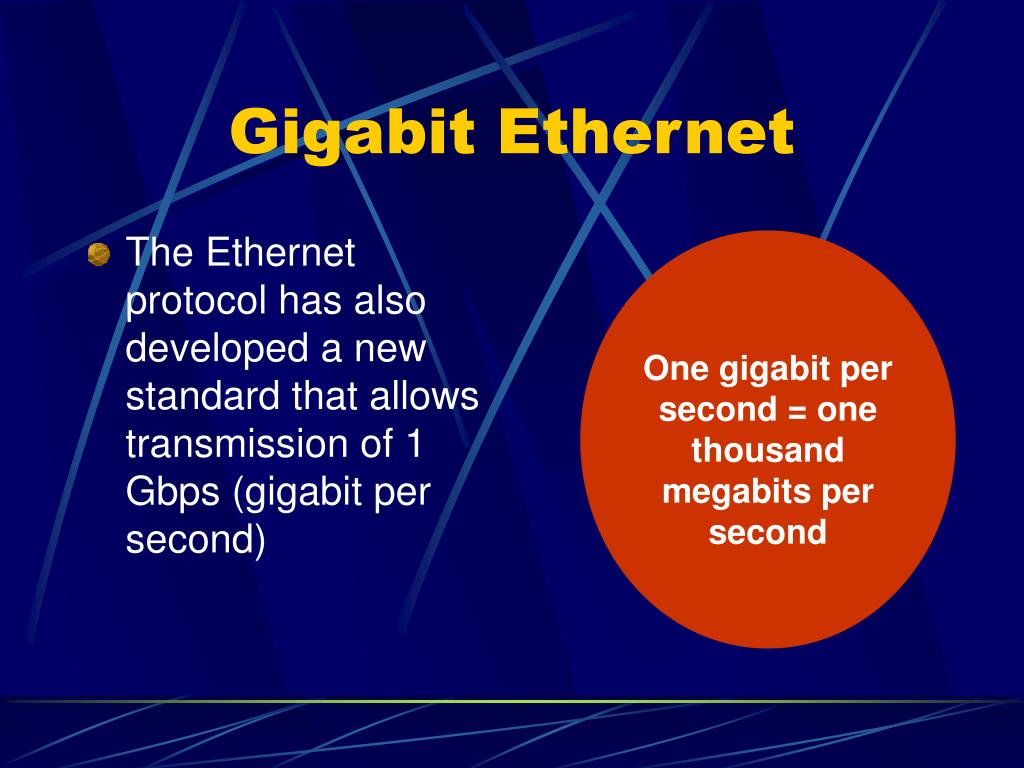

  14. Gigabit Ethernet • The Ethernet protocol has also developed a new standard that allows transmission of 1 Gbps (gigabit per second) One gigabit per second = one thousand megabits per second

  15. Local Talk • Local Talk is a network protocol that was developed by Apple for Macintosh computers • Local Talk uses the CSMA/CA method (Carrier Sense Multiple Access with Collision Avoidance) which works in a similar way to CSMA/CD • It is a lot slower than Ethernet (only 230 Kbps)

  16. Token Ring • Token ring protocol involves ‘token-passing’. • It is not as popular as Ethernet protocol A single electronic ‘token’ moves around the ring from one computer to the next. If a computer wishes to transit and receives an empty token, it attaches data to the token which then proceeds around the ring until it comes to the computer the data is meant for.

  17. FDDI • Stands for Fiber Distributed Data Interface • Is used mainly to connect two or more LANs, often over large distances • Can operate over fiber optic cable at 100 Mbps

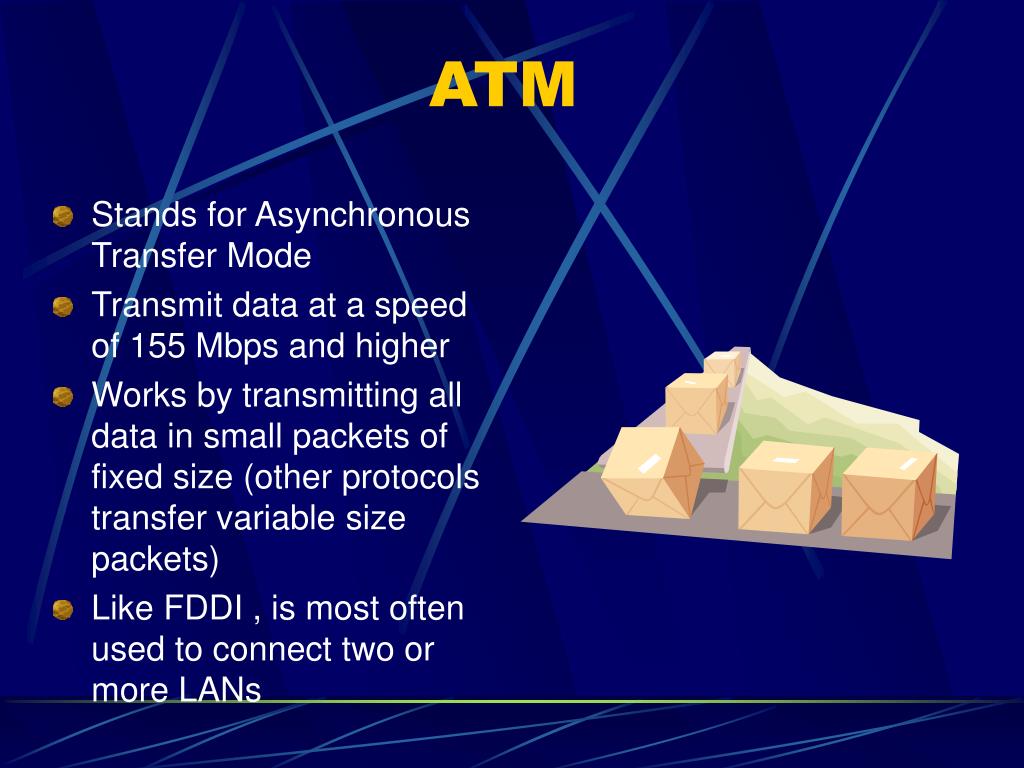

  18. ATM • Stands for Asynchronous Transfer Mode • Transmit data at a speed of 155 Mbps and higher • Works by transmitting all data in small packets of fixed size (other protocols transfer variable size packets) • Like FDDI , is most often used to connect two or more LANs

  19. Where does TCP/IP fit into all this??? • TCP/IP is the protocol that is used for the transmission of information over the Internet • IP (Internet Protocol) - the main delivery system for information over the Internet • TCP (Transport Control Protocol) - used to break apart and rebuild information that travels over the Internet

  20. Network Hardware • Network hardware includes: • Computers • Peripherals • Interface cards and • Other equipment needed to perform data processing and communications within the network

  21. File servers • A very fast computer with a large amount of RAM and storage space along with a fast network interface card • The network operating system software resides on this computer

  22. Workstations • All computers connected to the file server on a network are called workstations

  23. Network interface cards • The network interface card (NIC) provides the physical connection between the network and the computer workstation. • Most NICs are internal with the card fitting into an expansion slot in the computer. • Three common network interface connections are Ethernet cards, Local Talk connectors and Token Ring cards

  24. Ethernet cards • The most common Network Interface Cards are Ethernet cards • They contain connections for either coaxial or twisted pair cables, or both Co-axial cable Twisted pair cable

  25. Concentrators / Hubs • A concentrator is a device that provides a central connection point for cables from workstations, servers and peripherals • Hubs are multi-slot concentrators

  26. Switches • While hubs provide an easy way to scale up and shorten the distance that the packets must travel to get from one node to another, they do not break up the actual network into discrete segments. That is where switches come in.

  27. Switches (continued) • A vital difference between a hub and a switch is that all the nodes connected to a hub share the bandwidth among themselves, while a device connected to a switch port has the full bandwidth all to itself. • Think of a switch as a ‘clever’ hub

  28. Repeaters • A signal loses strength as it passes along a cable, so it is often necessary to boost the signal with a device called a repeater • A repeater might be a separate device, or might be part of a concentrator

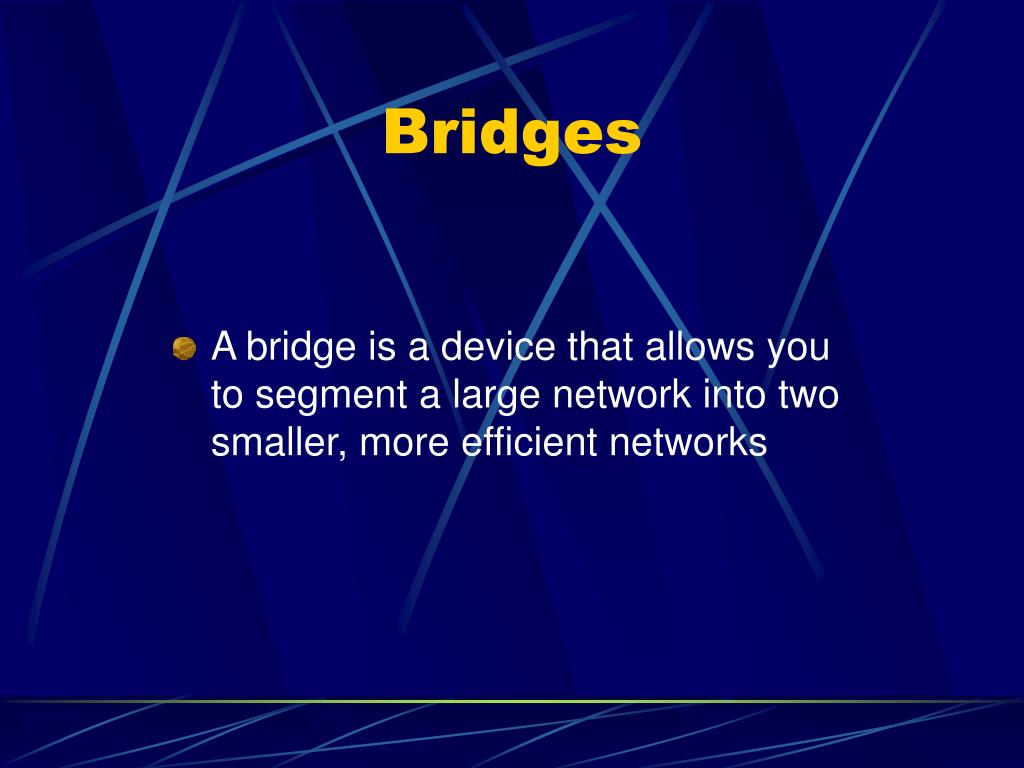

  29. Bridges • A bridge is a device that allows you to segment a large network into two smaller, more efficient networks

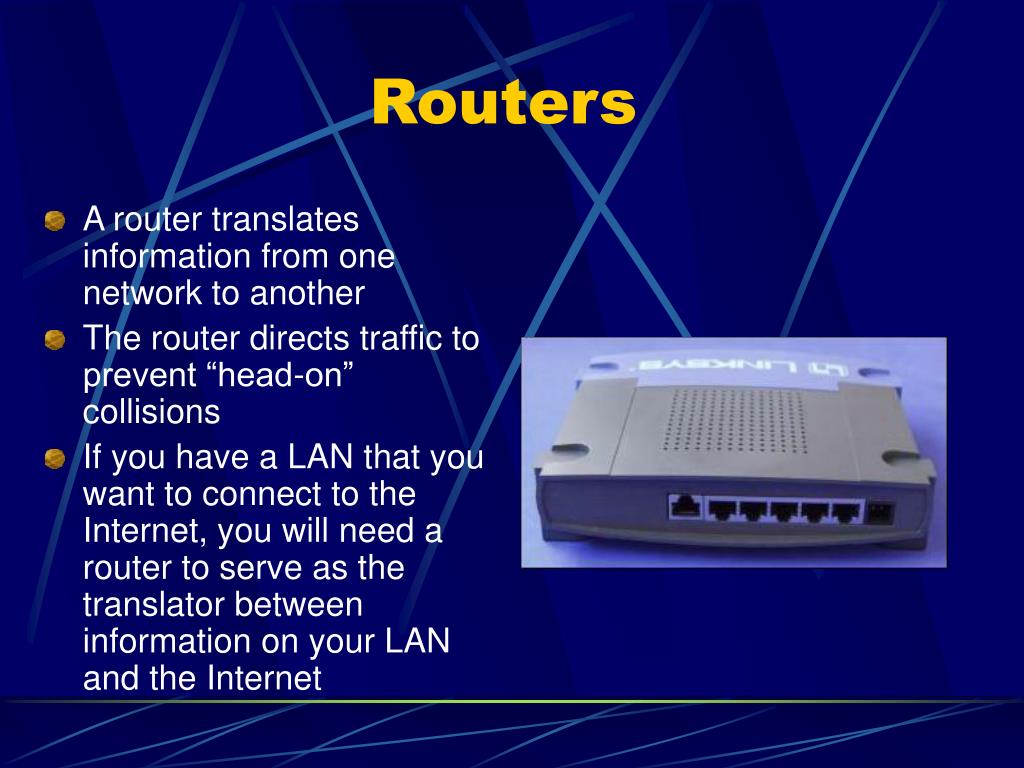

  30. Routers • A router translates information from one network to another • The router directs traffic to prevent “head-on” collisions • If you have a LAN that you want to connect to the Internet, you will need a router to serve as the translator between information on your LAN and the Internet

  31. Routers (continued)

  32. Cabling • Network cabling is the medium through which information usually moves from one network device to another • There are several different types of cable commonly used in LANS • Some networks use a variety of cable types within the one network

  33. Unshielded Twisted Pair (UTP) Cable • Twisted pair cables come in two varieties: shielded and unshielded. Unshielded (UTP) is the most popular • Shielded twisted pair is used only in environments where there may be electrical interference

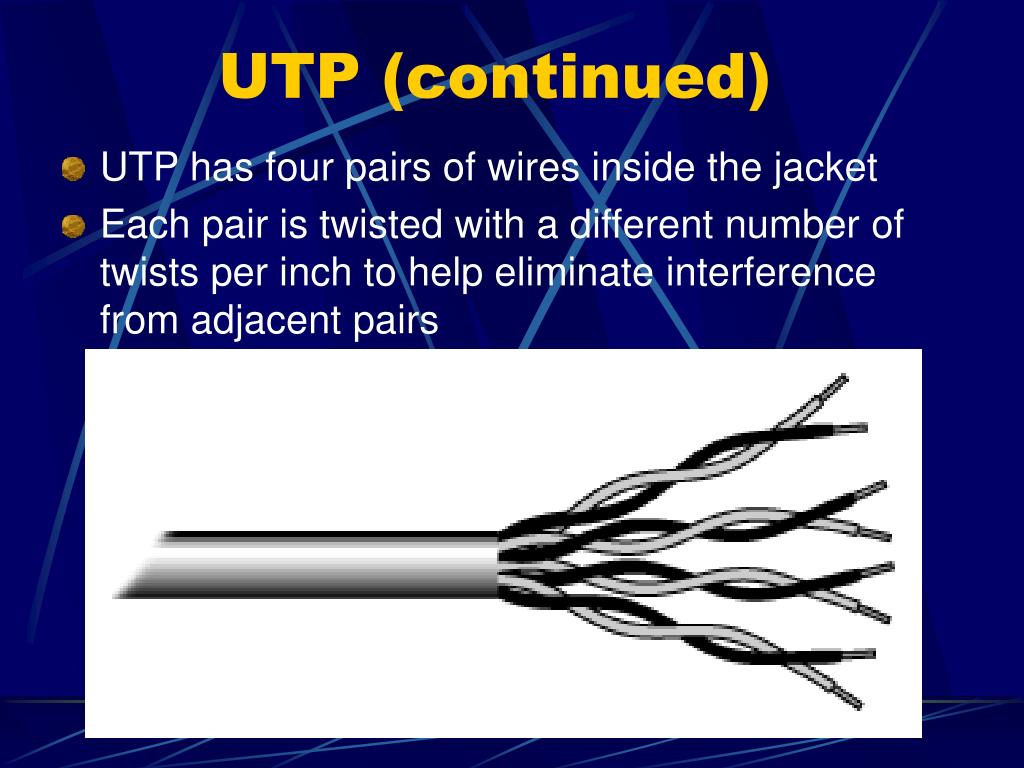

  34. UTP (continued) • UTP has four pairs of wires inside the jacket • Each pair is twisted with a different number of twists per inch to help eliminate interference from adjacent pairs

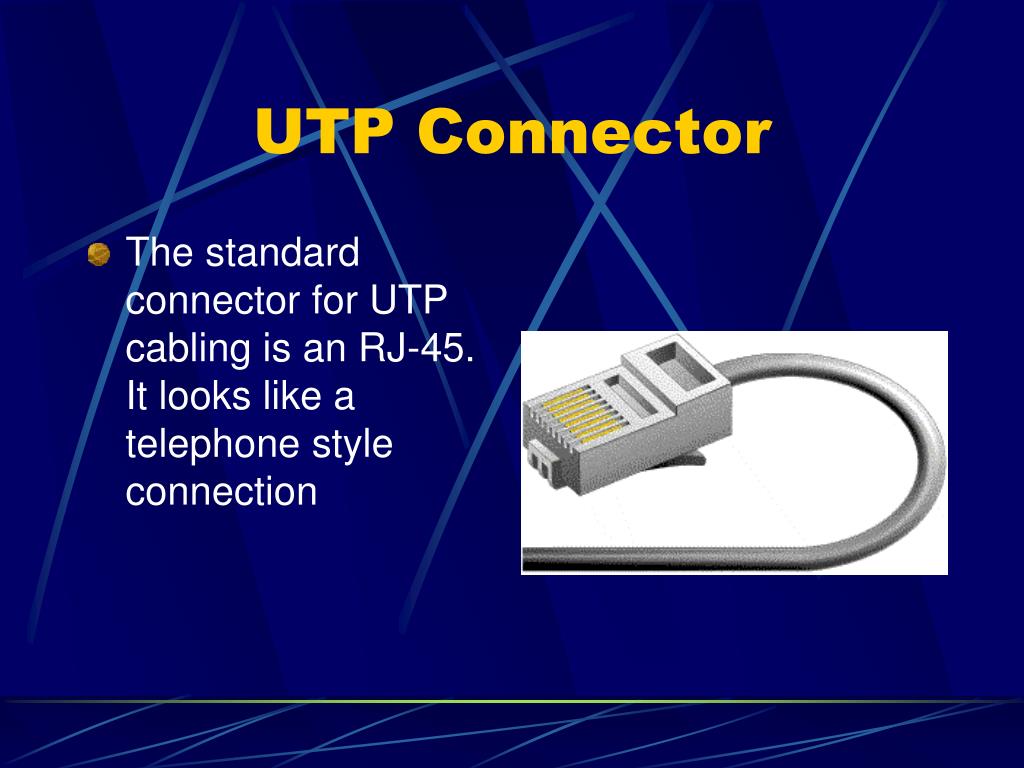

  35. UTP Connector • The standard connector for UTP cabling is an RJ-45. It looks like a telephone style connection

  36. Coaxial cable • Coaxial cable has a single copper conductor at its centre with a plastic layer between the centre conductor and the braided metal shield • Although coaxial cabling is difficult to install, it is highly resistant to signal interference

  37. Coaxial cable connectors • The most common type of connector used with coaxial cables is the BNC connector

  38. Fiber Optic Cable • Fiber optic cabling consists of a center glass core surrounded by several layers of protective materials • It transmits light rather than electronic signals • It is the standard for connecting networks between buildings, due to its immunity to the effects of moisture and light

  39. Fiber Optic (continued) • Fiber optic cable has the ability to transmit signals over much longer distances than coaxial or twisted pair • It can also carry information at vastly greater speeds • Fiber optic cable is more difficult to install than other cabling

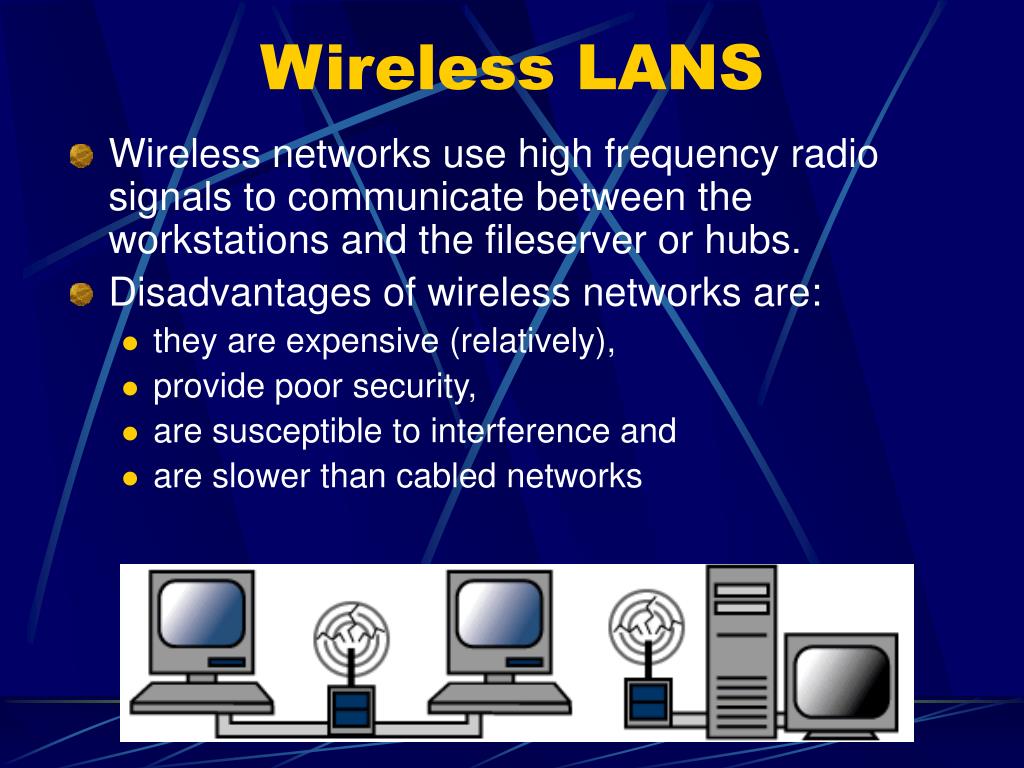

  40. Wireless LANS • Wireless networks use high frequency radio signals to communicate between the workstations and the fileserver or hubs. • Disadvantages of wireless networks are: • they are expensive (relatively), • provide poor security, • are susceptible to interference and • are slower than cabled networks

  41. Network Operating Software • Network operating systems co-ordinate the activities of multiple computers across a network • The two major types of network OS are: • Peer-to-peer • Client/server

  42. Peer to peer network OS • In peer to peer network OS, there is no file server or central management source; all computers are considered equal • Peer to peer networks are design primarily for small to medium LANS • AppleShare and Windows for Workgroups are examples of programs that can function as peer to peer

  43. Client/Server network OS • Client/server network OS centralise functions and applications in one or more dedicated file servers. • The file server provides access to resources and provides security • Novelle Netware and Windows NT Server are examples of client/server network operating systems

  44. Topology • The physical topology of a network refers to the configuration of cables, computers and other peripherals. • The main types of network topologies are: • Linear Bus • Star • Ring • Tree or Hybrid

  45. Linear Bus • A linear bus topology consists of a main run of cable with a terminator at each end. All servers workstations and peripherals are connected to the linear cable

  46. Star • A star network is designed with each node (file server, workstation, peripheral) connected directly to a central network hub or server

  47. Ring • A ring network is one where all workstations and other devices are connected in a continuous loop. There is no central server

  48. Tree or hybrid • A tree or hybrid topology combines characteristics of linear bus and star and/or ring topologies. • It consists of groups of star-configured workstations connected to a linear bus backbone cable
