Special Gates Combinational Logic Gates. Lecture 2. DeMorgan's Law. Converting AND to OR (with some help from NOT) Consider the following gate:. To convert AND to OR (or vice versa), invert inputs and output. Same as A+B!. More than 2 Inputs?. AND/OR can take any number of inputs.

Télécharger la présentation
## Special Gates Combinational Logic Gates

**An Image/Link below is provided (as is) to download presentation**
Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.
Content is provided to you AS IS for your information and personal use only.
Download presentation by click this link.
While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.
During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

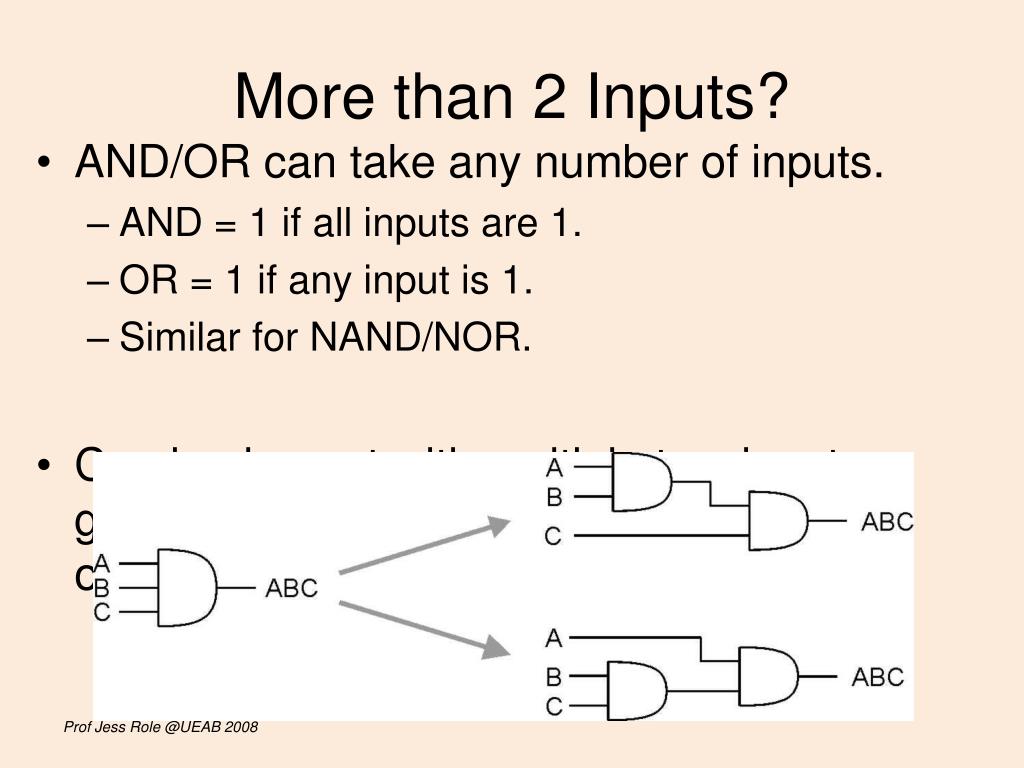

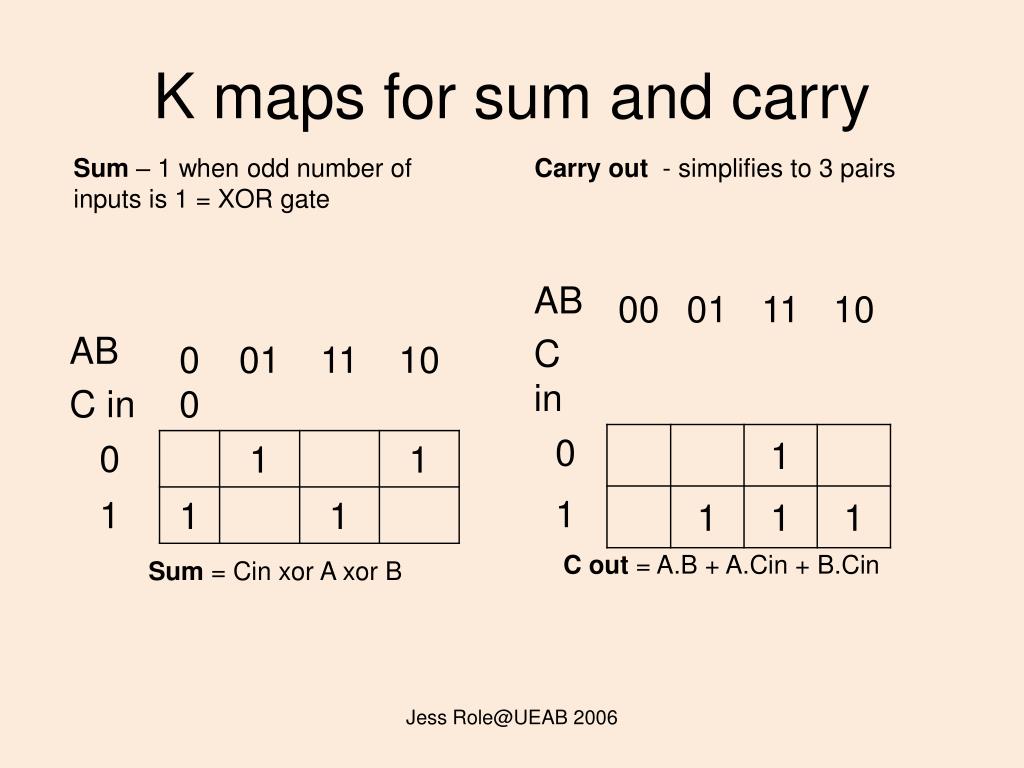

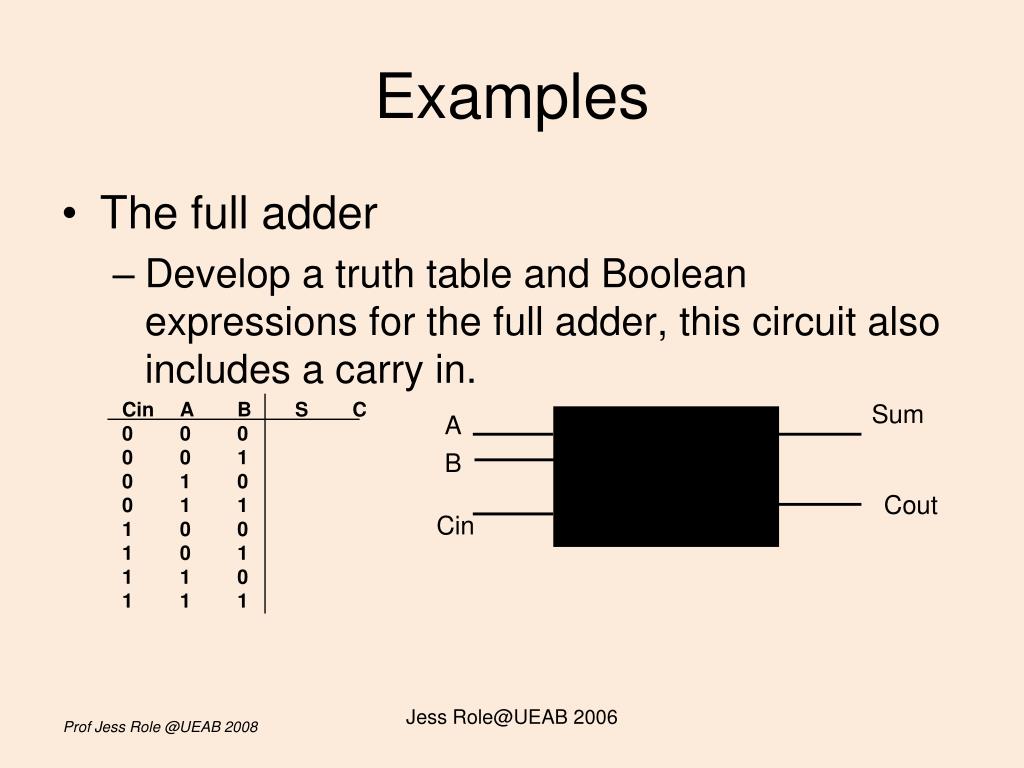

**Special GatesCombinational Logic Gates**Lecture 2**DeMorgan's Law**• Converting AND to OR (with some help from NOT) • Consider the following gate: To convert AND to OR (or vice versa), invert inputs and output. Same as A+B!**More than 2 Inputs?**• AND/OR can take any number of inputs. • AND = 1 if all inputs are 1. • OR = 1 if any input is 1. • Similar for NAND/NOR. • Can implement with multiple two-input gates,or with single CMOS circuit.**C**A B S Half adder • The sum is XOR operation and the carry an AND: Jess Role@UEAB 2006**Examples**• The half adder • The half adder is a circuit for adding two single bit numbers • Develop a truth table and Boolean expressions for the half adder S and C are the Sum and Carry Jess Role@UEAB 2006**Cin A B S C**0 0 0 0 0 1 0 1 0 0 1 1 1 0 0 1 0 1 1 1 0 1 1 1 Examples • The full adder • Develop a truth table and Boolean expressions for the full adder, this circuit also includes a carry in. Sum A full adder B Cout Cin Jess Role@UEAB 2006**Truth table for full adder**Exercise: Complete the Karnaugh maps for the Sum and the Carry out columns Jess Role@UEAB 2006**K maps for sum and carry**Sum – 1 when odd number of inputs is 1 = XOR gate Carry out - simplifies to 3 pairs C out = A.B + A.Cin + B.Cin Sum = Cin xor A xor B Jess Role@UEAB 2006**Full adder circuit**A B Sum Count C in Sum = Cin xor A xor B Cout = A.B + A.Cin + B.Cin Jess Role@UEAB 2006**sel a b out**0 0 0 0 0 1 0 1 0 0 1 1 1 0 0 1 0 1 1 1 0 1 1 1 Examples • The Multiplexer • Selects one of 2n inputs and copies it to a single output • The selected line is determined from the bit combination (address) on the n selection lines • e.g. 1 from 2 mutiplexer n = 1 out a 0 b 1 sel selab 00 01 11 10 0 1 out = Jess Role@UEAB 2006**2:1 Multiplexer**if a is selected, don’t care about b. Jess Role@UEAB 2006**K map for 2:1 Multiplexer**output = sel.a + sel.b data Principal can be extended to 4:1 – 2 select lines and 4 data lines 8:1 – 3 select lines and 8 data lines and so on… out sel Jess Role@UEAB 2006**What you should be able to do:**• Change circuits using one set of gates (eg AND, OR, NOT) to their equivalent using NAND or NOR gates only (and vice versa). • Be familiar with half-, full- adders and multiplexer circuits. • Be able to construct and interpret Karnaugh maps with up to 4 input variables. Jess Role@UEAB 2006
