  1. Natural 6Tips ‘n’ Techniques Chad Scott C.Scott@FCL.ca Ralph Zbrog RGZbrog@ZZUtils.com • Natural Conference 2006

  2. Program Editor • Avoiding long source lines • Lines up to 250 characters • Set ruler position to 72 for mainframe compatibility • Tools  Options...  Program Editor  Ruler Position

  3. Program Editor • Font size • Coding vs presentation • Tools  Options...  Program Editor  Font...  Size • Coding: Courier New, 10 • Presentation: Lucida Console, 16 • Output window, editors (not Dialogs)

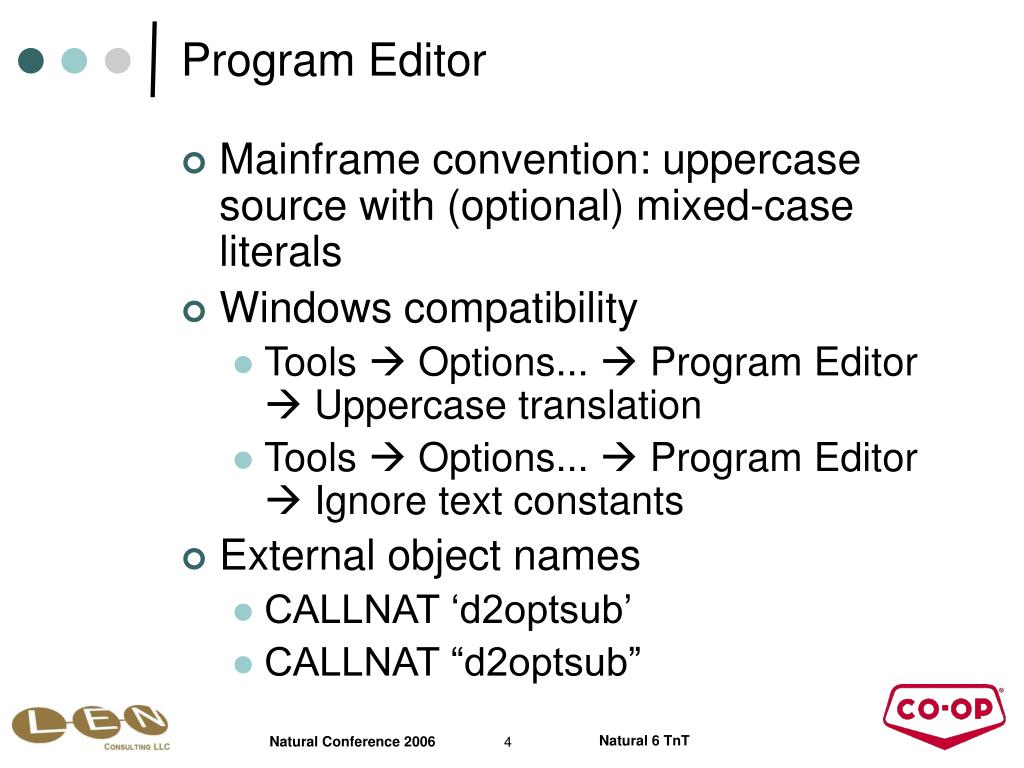

  4. Program Editor • Mainframe convention: uppercase source with (optional) mixed-case literals • Windows compatibility • Tools  Options...  Program Editor  Uppercase translation • Tools  Options...  Program Editor  Ignore text constants • External object names • CALLNAT ‘d2optsub’ • CALLNAT “d2optsub”

  5. Program Editor • List or edit external object via context menu • Left-click object name  ctrl-o • Right-click object name  Open • Right-click object name  List

  6. Shortcut Keys • ctrl-m – convert block to comments • shift-ctrl-m – reverse ctrl-m • Help  Contents  Getting Started: Using Natural Studio  Shortcut Keys

  7. Screen Images • Program editor • Line numbers • Program Editor Options toolbar • Tools  Options...  Program Editor  Line numbers • ctrl-c to copy • ctrl-v to insert • Output window • %c  program editor • %h  select target

  8. Folders • Filters • Limit library display within FUSER/FNAT • Limit module display within library • Right-click folder  Display Filter...  specify wildcards • + indicates active filters

  9. Folders • Module transfer (without Object Handler) • Source and/or object • Export module • Drag-n-drop module from Library workspace to directory or desktop • Faster than copy/paste • edit  ctrl-a  ctrl-c  ctrl-v  save as • Import module • Drag-n-drop module from directory or desktop to Library workspace

  10. Folders • Upload to mainframe • Change NSx extension to TXT for upload/FTP //LOAD EXEC NATBT,SYSOUT=*,TIME=50,PRM='AUTO=ON,SL=80,MAINPR=1,PS=65' //CMSYNIN DD *,BLKSIZE=27948 %L LOGON natlib EDT /* // DD DSN=ZBROG.PUNCH(########),DISP=SHR FB/102 // DD * .E SA ######## FIN /* //

  11. Folders • Download from mainframe • Extract from mainframe FUSER (ZZPUNCH) • Set file extension to TXT for download/FTP to directory • Set file extension to NSx, where x represents module type

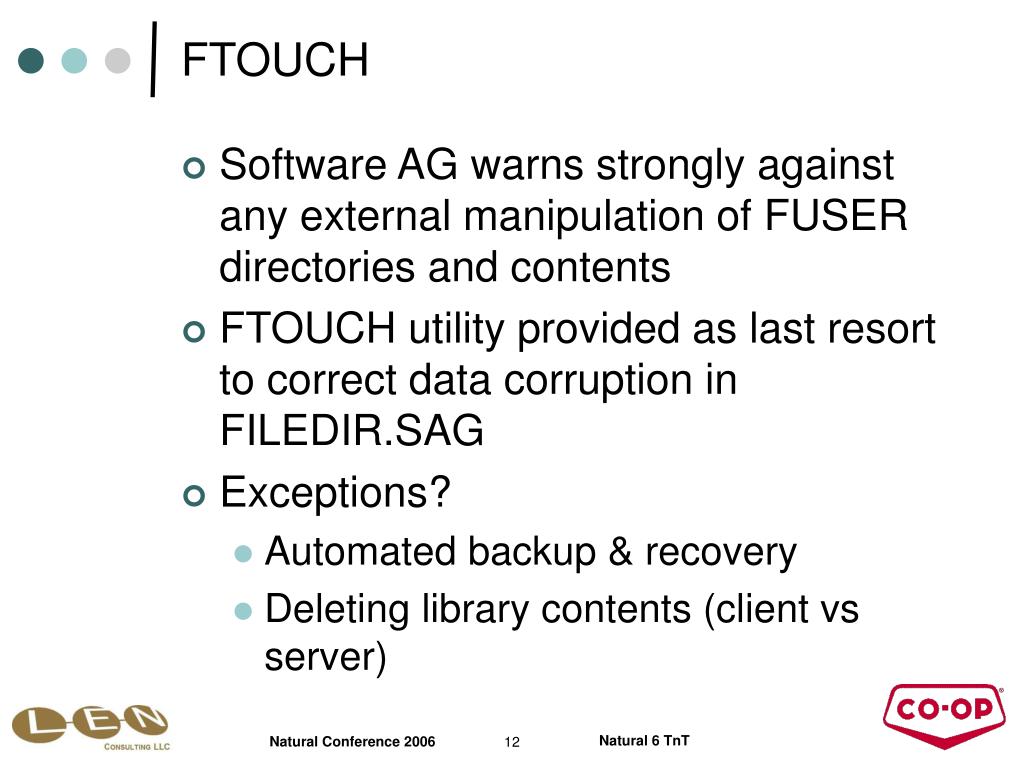

  12. FTOUCH • Software AG warns strongly against any external manipulation of FUSER directories and contents • FTOUCH utility provided as last resort to correct data corruption in FILEDIR.SAG • Exceptions? • Automated backup & recovery • Deleting library contents (client vs server)

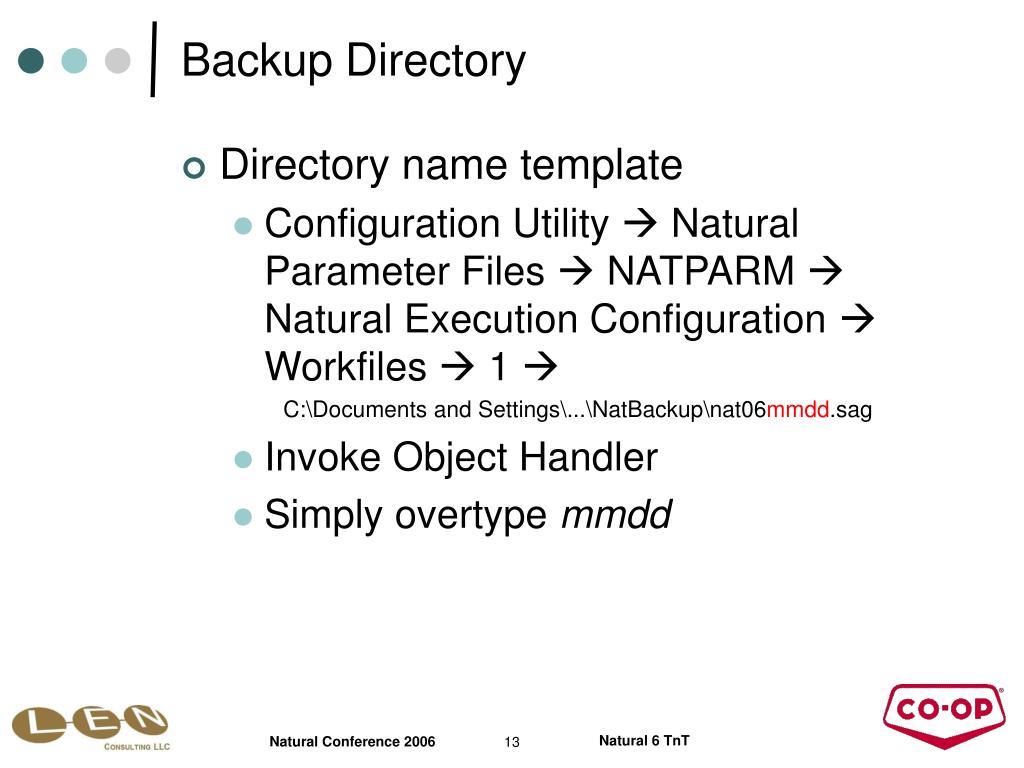

  13. Backup Directory • Directory name template • Configuration Utility  Natural Parameter Files  NATPARM  Natural Execution Configuration  Workfiles  1  C:\Documents and Settings\...\NatBackup\nat06mmdd.sag • Invoke Object Handler • Simply overtype mmdd

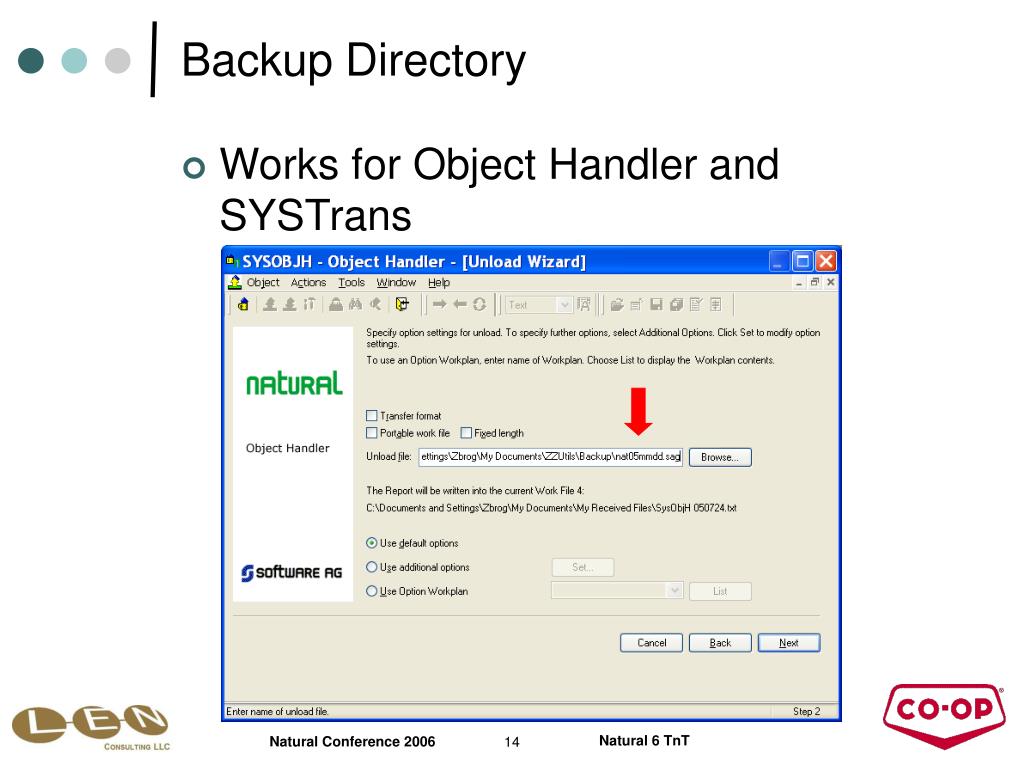

  14. Backup Directory • Works for Object Handler and SYSTrans

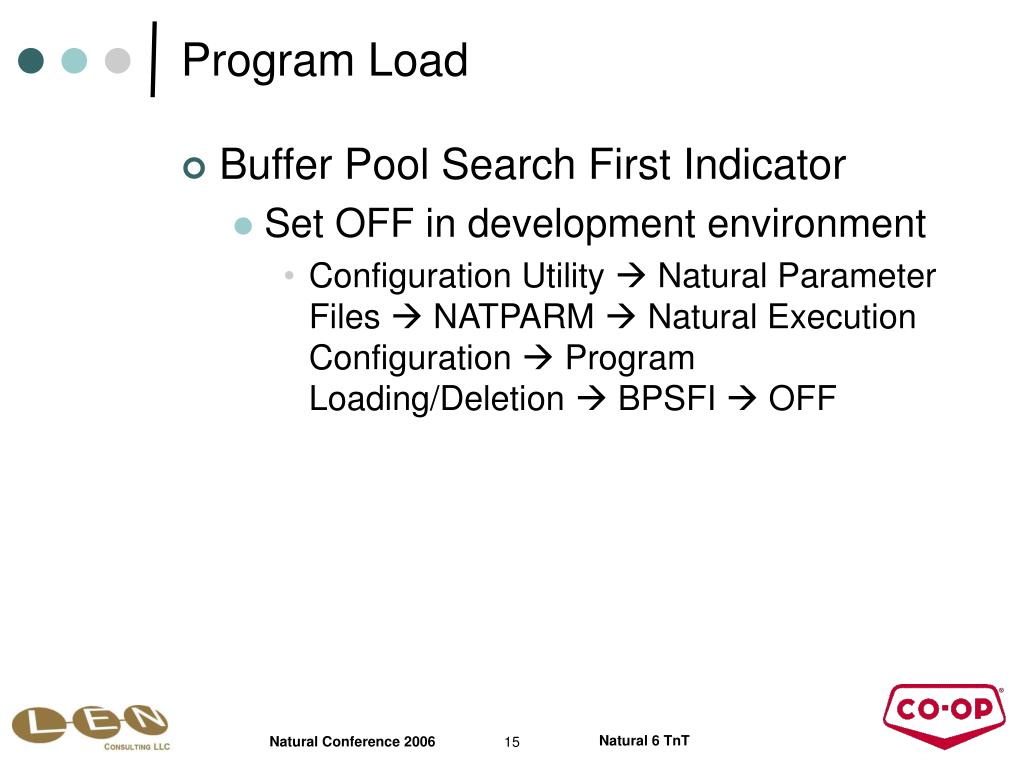

  15. Program Load • Buffer Pool Search First Indicator • Set OFF in development environment • Configuration Utility  Natural Parameter Files  NATPARM  Natural Execution Configuration  Program Loading/Deletion  BPSFI  OFF

  16. Start-up Program • At Natural initiation (one-time) • Configuration Utility  Natural Parameter Files  NATPARM  Natural Execution Configuration  Program Loading/Deletion  STACK  HELLO • In place of NEXT prompt • Configuration Utility  Natural Parameter Files  NATPARM  Natural Execution Configuration  System Variables  STARTUP  HELLO

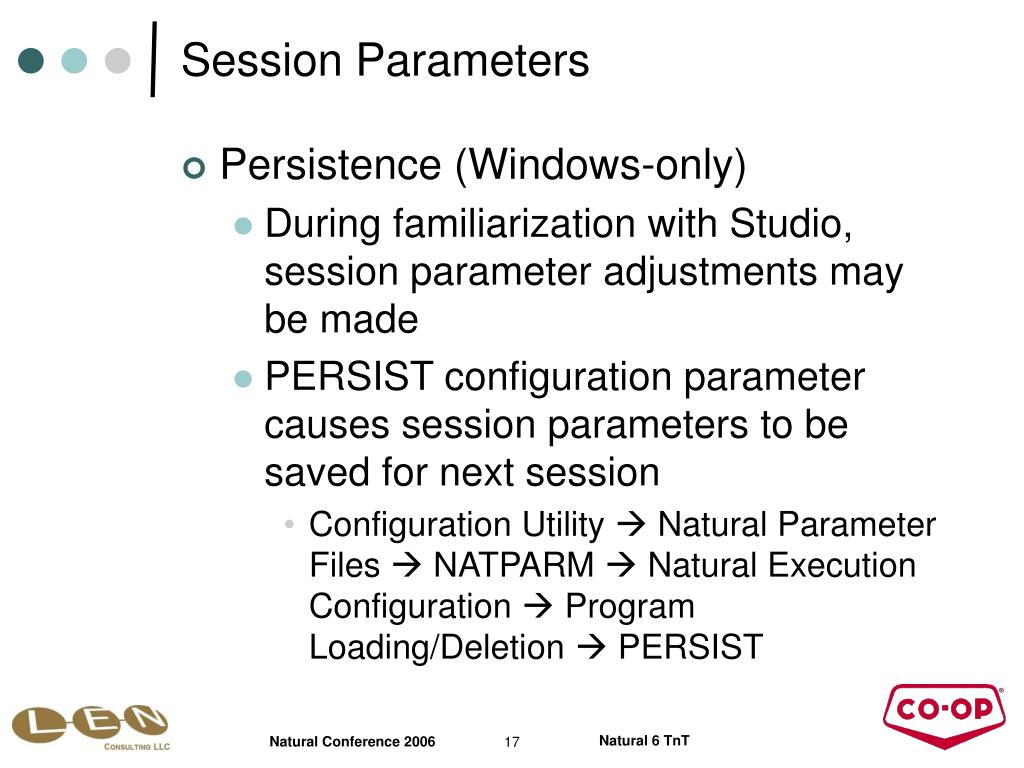

  17. Session Parameters • Persistence (Windows-only) • During familiarization with Studio, session parameter adjustments may be made • PERSIST configuration parameter causes session parameters to be saved for next session • Configuration Utility  Natural Parameter Files  NATPARM  Natural Execution Configuration  Program Loading/Deletion  PERSIST

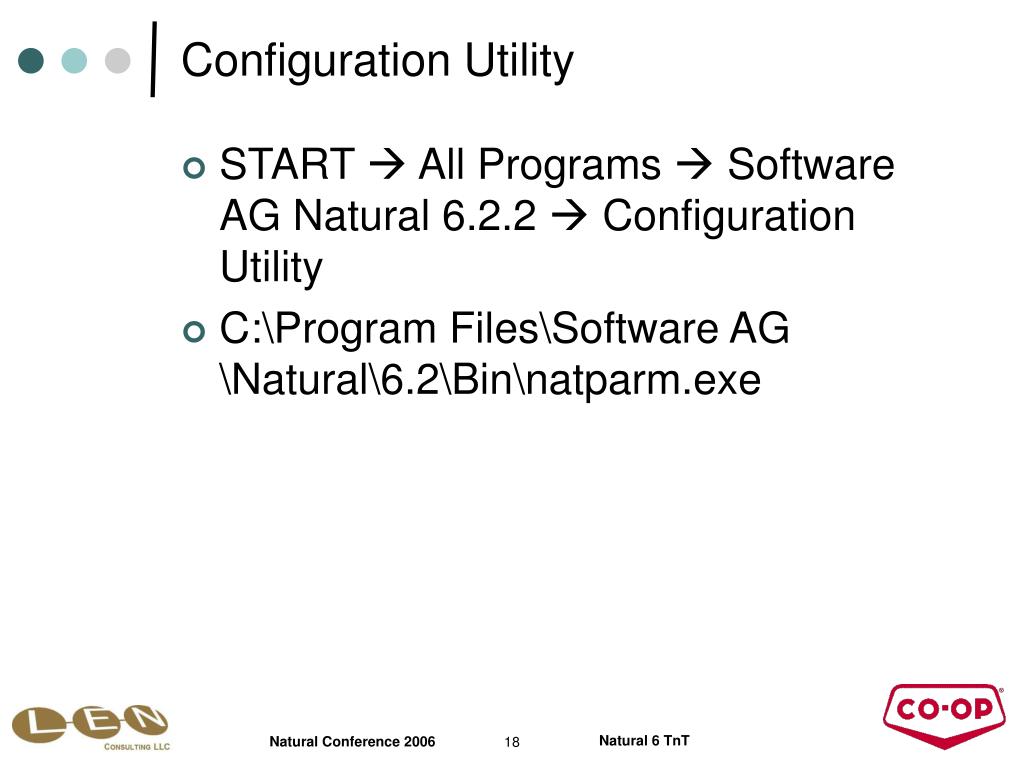

  18. Configuration Utility • START  All Programs  Software AG Natural 6.2.2  Configuration Utility • C:\Program Files\Software AG \Natural\6.2\Bin\natparm.exe

  19. Date & Time Initialization • Corrected in 6.2

  20. Questions

  21. Fin

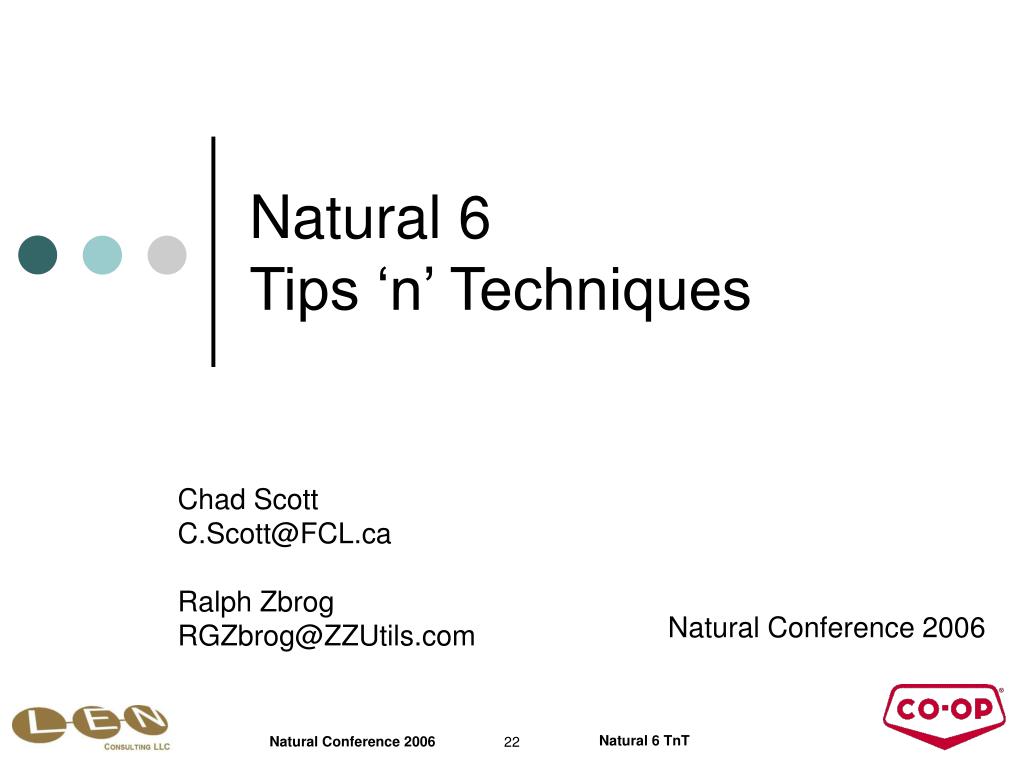

  22. Natural 6Tips ‘n’ Techniques Chad Scott C.Scott@FCL.ca Ralph Zbrog RGZbrog@ZZUtils.com • Natural Conference 2006
