The ULTRA-2: Enhanced Sanitation, Performance & Versatility for Your Business Needs

unity avatar
unity
17 diapositives · 286 Views · Mar 15, 2014

The ULTRA-2's leading-edge performance with reduced cleaning and enhanced sanitation. This innovative unit features a greaseless double ribbed rear drum seal and a simple 4-piece slide-gate faucet design for quick installation and easy maintenance. Its patent-pending reversing auger speeds up freeze time and ensures product consistency. With an advanced refrigeration system that monitors temperature and protects your compressor, the ULTRA-2 is perfect for high-volume use. Enjoy user-friendly digital controls, large capacity, and options for both liquid and powdered autofill.

#labor cost reduction #enhanced sanitation #leadingedge performance #userfriendly controls #easy cleaning
The ULTRA-2: Enhanced Sanitation, Performance & Versatility for Your Business Needs - slide 1
01 / 17The ULTRA-2: Enhanced Sanitation, Performance & Versatility for Your Business Needs
1 / 17

Télécharger la présentation

The ULTRA-2: Enhanced Sanitation, Performance & Versatility for Your Business Needs
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

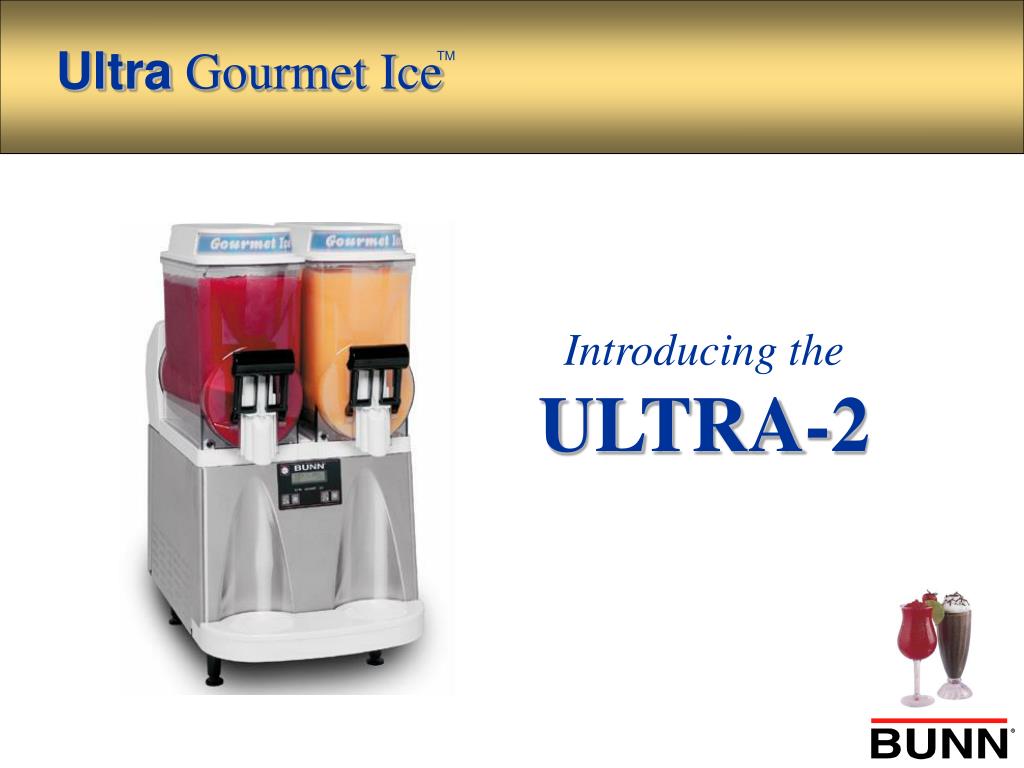

  1. Introducing the ULTRA-2

  2. Key Benefits • Reduced Cleaning and Enhanced Sanitation • Leading Edge Performance • Mechanical • Digital • Unit Versatility • Improved Value Pricing

  3. Reduced Cleaning and Enhanced Sanitation àFeatures: • Double ribbed rear drum seal with greaseless design. • No silicone nose seal àBenefits: • Quick installation (15 Minutes) • No lubrication required

  4. Reduced Cleaning and Enhanced Sanitation àFeatures: • Simple 4 piece slide-gate faucet design with Teflon seal • Two-piece drip tray àBenefits: • Simple and fast cleaning

  5. Reduced Cleaning and Enhanced Sanitation àFeatures: • Easy-access condenser filter àBenefits: • Reduced labor costs and increased efficiency • Easily removed and cleaned for extending life of condenser

  6. The motor turns the auger clockwise àFeatures: àBenefits: • Patent-pending reversing auger • Speeds up freeze time and eliminates product “hump” in the hopper • Improved product consistency Once every hour the motor reverses, turning the auger counter-clockwise for 2 minutes Leading Edge Performance Mechanical

  7. Leading Edge Performance Mechanical àFeatures: • Refrigeration system is actively monitored • Unit automatically shuts down if temperature problem is not resolved Advanced Refrigeration System àBenefits: • Protects the compressor and alerts if excessive temperatures occur • Saves and prolongs life of compressor

  8. Leading Edge Performance Mechanical àFeatures: • Electronic torque sensing system • Heavy-duty compressor, auger motor àBenefits: • Allows more accurate control of ice particle size. Preventing freeze ups • Cools quickly for high volume use runs at lower temperature, increasing life

  9. Leading Edge Performance Mechanical àFeatures: • Front-discharging condenser fan • Small profile and footprint • Dimensions: 31.83”H x 16.05”W x 24.78”D àBenefits: • Allows for side-to-side machine placement • Saves valuable counter space

  10. Leading Edge Performance Digital àFeatures: • Easy-to-use touchpad and LCD display • Front-of-machine controls • Visible and adjustable thickness settings àBenefit: • Quick and easy calibration *A sampling of the various LCD messages

  11. Leading Edge Performance Digital àFeatures: • Monthly reminder to clean the air filter • Preventive maintenance prompts • Step-by-step cleaning instructions àBenefit: • Longer machine life • Increased productivity *Only a sampling of the various LCD messages

  12. Leading Edge Performance Digital àFeatures: • Digital clock for night mode (10 year memory) àBenefit: • Consistency of product • Longer product life *Only a sampling of the various LCD messages

  13. Leading Edge Performance Digital àFeatures: • Diagnostic functions àBenefit: • Defines problems – quicker service • Less downtime *Only a sampling of the various LCD messages

  14. Leading Edge Performance Digital àFeature: • Password protected settings àBenefits: • Consistency • Safety • Self-serve applications *Only a sampling of the various LCD messages

  15. Unit Versatility àFeatures: • Lighted merchandising headers on PAF or standard unit • Large 3 gallon hoppers àBenefits: • Brand recognition and merchandising • Large serving capacity for 2 flavors

  16. Unit Versatility àFeatures: • Powdered and liquid autofill capability àBenefits: • Reduce labor costs and increase efficiency Ultra-2 PAF Powder Autofill Ultra-2 Liquid AFPO-2

  17. Global Agency Listings Additional Customer Value Voltage Options • 120V • 230V Available Colors • White and stainless • Black and stainless • All black
