  1. LIVE INSTALLATION

  2. Machine Configuration for Live Server • Operating System for installing Live Application should be Windows 2000 Server or Windows 2003 Server . • Internet Connection must be there. • Port should be open among of these 8080,8085,1467 • Check JAVA application is installed or not. ( e.g. Go to Start >> Settings >> Control Panel >> Add/Remove Program >> search J2SE Development Kit or J2SE Runtime Environment ) • If this is installed, then removed it .

  3. Corporate web installation steps: Part 1: Installation on live Server System Part 2: Installation on webdata server System

  4. Part 1: Installation on Live Server Machine • Step1 : Download corporate.zip and setup.exe from http://www.shilpisoft.com under download option on the desktop and extract there . • Download setup_full.zip form www.shilpisoft.com\sunil\setup_full.zipon the desktop and extract it. Extracted files from Corporate.zip

  5. All Extracted files are here

  6. Run jdk.exe. • For running JDK , Following steps have to follow : Tick here

  7. Change the path here as C:\jdk1.5.0_09 Click here to change the path

  8. Changed path Click on Next

  9. For Setting the path of J2SE Runtime Environment ; path change To as C:\jre1.5.0_09 Click here to change the path Default Path Changed Path Click on Next

  10. To Complete the Installation Process of JDK Setup , Click on finish. Click on Finish

  11. Run Tomcat.exe from corporate folder , following steps have to do : (here you have to uncheck the Documentation ). Un-tick Documentation Click on Finish

  12. Destination folder path should be C:\Tomcat 5.5 Change this path as c:\tomcat 5.5 Changed path Click on Next

  13. To Configure the Apache Tomcat , give the port no: 8085 or 1467 User Name : admin Password : 12345 Enter port Enter user name Password Click on next NOTE : While installing tomcat, enter the port 8085 or 1467.

  14. Here, the path of JREL.5.0_09, which has already installed in the system, should come automatically as : C :\jre1.5.0_09. If this path is showing , click on Install : Click on Install

  15. Click on Finish to complete the Process. Click on next

  16. Step6 : Run setup.exe of full setup then a folder named capexweb will be created in C: Drive. 1. Run setup

  17. 2. Click on next

  18. 3. Click on Install

  19. 4. Click on Finish

  20. Note: After running setup_full delete four files from lib folder that are capexweb.jar, commexonline.jar, dponline.jar and fxfuture.jar Delete these files

  21. Step7: Now run setup.exe, which was downloaded from site on the desktop. 1. Click on run

  22. 2. Click on next

  23. Click here to change the path if installing on other drive (other than c drive) 3. Click on next

  24. 4. Click on install

  25. 5. Click on finish

  26. After Successfully Installation of Jdk & Tomcat , 3 Folders i.e. jre1.5.0_09, jdk1.5.0_09 And Tomcat 5.5 will be created in C: Drive. • Insert web.xml file in c:\tomcat5.5\conf \ and capexweb.xml file in c:\tomcat5.5\conf\Catalina\localhost, copied from xml folder .

  27. Change some entry in C:\capexweb\capexweb\capexmain_middle.htm. Open this file with notepad >> <input type="hidden" value=“SHILPI" name="dfcode"> <input type="hidden" name="dfparentdb" value="WEBDATA"> <input type="hidden" name="dfparentip" value="111.111.111.100"> • Here, in place of dfcode value i.e. “SHILPI” give the Comp. ID given in license file . • In place of dfparentdb value i.e. “WEBDATA” give the database name which is created as parent type in Database Server . • And in place of IP : Put IP address of Database Server in which Parent DataBase has been configured. • Inform to license Dept. to get License File of configured Database with Order No, Company Name and Database Name. • Insert License File in C:\capexweb i.e. shilpi_capexweb.lic

  28. Part 2: Installation on webdata server System Create a Parent Database • Step1: Create a Parent Database • Case 1: If only single database exist : • Configure exiting database as parent database as system utilities >> web live setup >> database configuration.

  29. Step 4: Connect parent database as: system utilities >> web live setup >> database attach (Parent). Here Connect and add.

  30. Step5: Create a Branch as “Admin” in Master >> Branch Maintenance and active that branch.

  31. Step7: Now update branch in Parent Database as: utilities >> system utilities >> weblivesetup >> Auto update common user (For branch ,Sub Branch, client & RM/TL). • Select branch and Database name then Proceed.

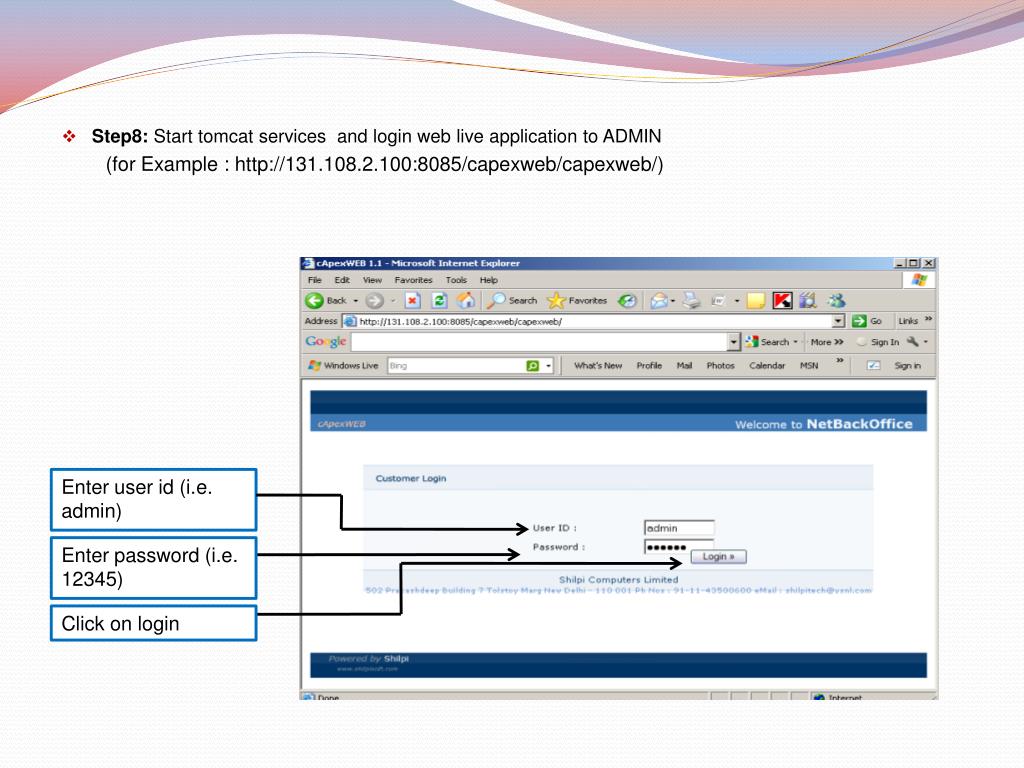

  32. Step8: Start tomcat services and login web live application to ADMIN (for Example : http://131.108.2.100:8085/capexweb/capexweb/) Enter user id (i.e. admin) Enter password (i.e. 12345) Click on login

  33. Click here

  34. Step9: Run 'DbMaintenance' as shown below: Click on admin Click on DB-Maintenance

  35. Case2: If more than one databases exist : • Create a new database i.e. Webdata. • Follow the following Steps to create “webdata” as a parent database • Step1: Create a parent database "webdata“. • Go to start. • Select Program. • Select Oracle-OraHome92. • Select Configuration and Migration Tool. • Select Database Configuration Assistant.

  36. Following window will open: 1. Click on Next.

  37. 1. Tick on Create a Database 2. Click on next

  38. 3. Select General purpose. 4. Click on Next.

  39. 5. Enter Database name. 6. Click on Next.

  40. 7. Select Share Server Mode. 8. Click on Finish.

  41. 9. Click On OK

  42. 10. Database creation in progress.

  43. 11. Enter password in each field (e.g. s). It is mandatory. 12. Click on Exit .

  44. Step2: Import Blank Database • Download (Blank database) from licclient.exe. 1. Click on Downloads
