  1. What exactly does each part of the circuit do? • Measures current • Circuit control • Source of Electrical Supply • Circuit protection • Measures electrical pressure • Circuit load • Conductor

  2. What exactly does each part of the circuit do? • Measures current • Circuit control • Source of Electrical Supply • Circuit protection • Measures electrical pressure • Circuit load • Conductor

  3. What exactly does each part of the circuit do? • Measures current • Circuit control • Source of Electrical Supply • Circuit protection • Measures electrical pressure • Circuit load • Conductor

  4. What exactly does each part of the circuit do? • Measures current • Circuit control • Source of Electrical Supply • Circuit protection • Measures electrical pressure • Circuit load • Conductor

  5. What exactly does each part of the circuit do? • Measures current • Circuit control • Source of Electrical Supply • Circuit protection • Measures electrical pressure • Circuit load • Conductor

  6. What exactly does each part of the circuit do? • Measures current • Circuit control • Source of Electrical Supply • Circuit protection • Measures electrical pressure • Circuit load • Conductor

  7. What exactly does each part of the circuit do? • Measures current • Circuit control • Source of Electrical Supply • Circuit protection • Measures electrical pressure • Circuit load • Conductor

  8. What is: • Open Circuit • Closed Circuit • Short Circuit

  9. How to decode a resistor.

  10. What is a resistor? • All components of an electrical circuit have resistance (including the conductors). • A resistor is a component that is specifically designed to oppose current flow. • Resistors are generally made from alloys of metal or carbon based compounds • A few are made from semi-conductor type material (like silicon)

  11. Linear resistors – wire wound

  12. Linear resistors – carbon compound

  13. Power ratings of res • The power rating of a resistor is the amount of heat (I2R – in watts) that a resistor can dissipate before the losses are too great or the resistor is destroyed. • For large power ratings resistance wire is used whereas for low (and physically small) power ratings carbon based resistors are used.

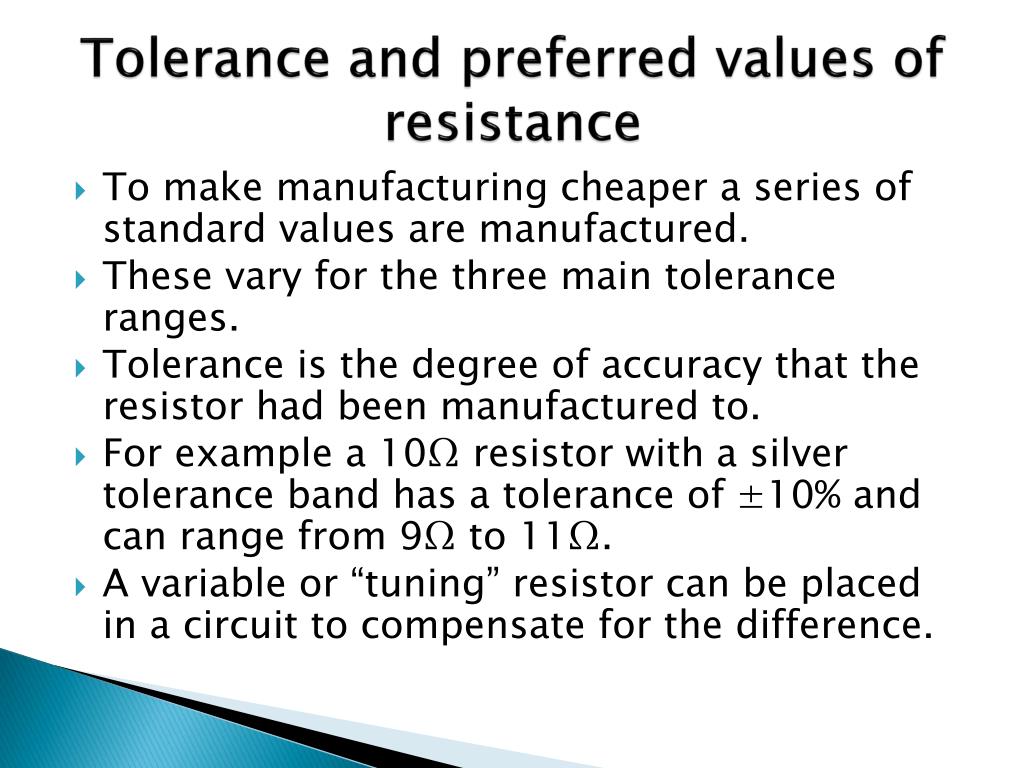

  14. Tolerance and preferred values of resistance • To make manufacturing cheaper a series of standard values are manufactured. • These vary for the three main tolerance ranges. • Tolerance is the degree of accuracy that the resistor had been manufactured to. • For example a 10Ω resistor with a silver tolerance band has a tolerance of ±10% and can range from 9Ω to 11Ω. • A variable or “tuning” resistor can be placed in a circuit to compensate for the difference.

  15. Non-linear resistors - Thermistors • Temperature sensitive resistors • 2 types • Positive temperature coefficient (PTC) • Negative temperaturecoefficient (NTC) • PTC – resistance increases with an increase of temperature. Made from metallic oxide or silicon. • NTC – resistance decreases with a decrease of temperature. Made from chromium or nickel with small amounts of semi-conductor material.

  16. Non-linear resistors – Voltage dependant resistors (VDRs) • Resistance varies as the voltage varies • Used for lightning protection where under normal circumstances the do not conduct but when the voltage reaches a certain level the resistance drops. • Uses also include over voltage protection and signal compensation.

  17. Non-linear resistors – Light dependant resistors (LDRs) • Resistance varies as the light varies • Usually made from cadmium sulphide mounted on a plate and covered with a vacuum-deposited metallic grid

  18. Resistor circuit symbols • Resistor (general) • Variable resistor (rheostat) • Variable resistor (potentionometer) • Adjustable resistor • PTC thermistor • NTC thermistor • Voltage dependant resistor • Light dependant resistor + to C - to C

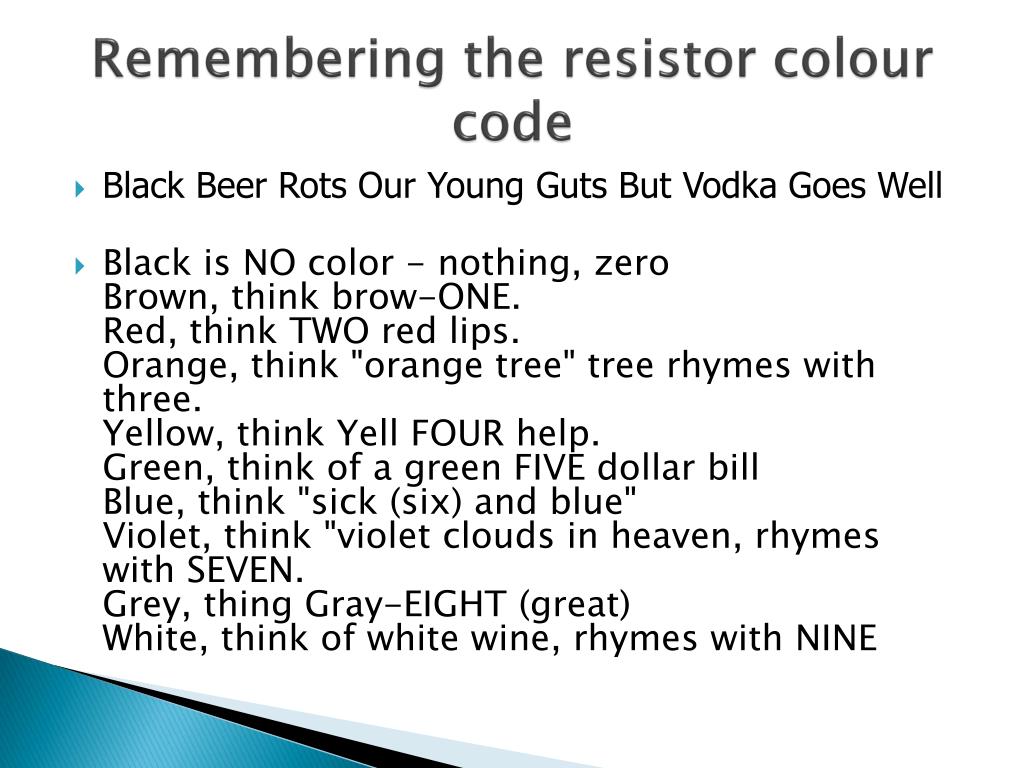

  19. Remembering the resistor colour code • Black Beer Rots Our Young Guts But Vodka Goes Well • Black is NO color - nothing, zeroBrown, think brow-ONE. Red, think TWO red lips.Orange, think "orange tree" tree rhymes with three.Yellow, think Yell FOUR help.Green, think of a green FIVE dollar billBlue, think "sick (six) and blue"Violet, think "violet clouds in heaven, rhymes with SEVEN.Grey, thing Gray-EIGHT (great)White, think of white wine, rhymes with NINE

  20. How does length affect resistance? • Longer conductor =

  21. How does length affect resistance? • Longer conductor = more resistance • Shorter conductor =

  22. How does length affect resistance? • Longer conductor = more resistance • Shorter conductor = less resistance

  23. How does length affect resistance? • Longer conductor = more resistance • Shorter conductor = less resistance • Resistance α Length

  24. Conductor cross sectional area

  25. How does c.s.a. affect resistance? • Larger conductor =

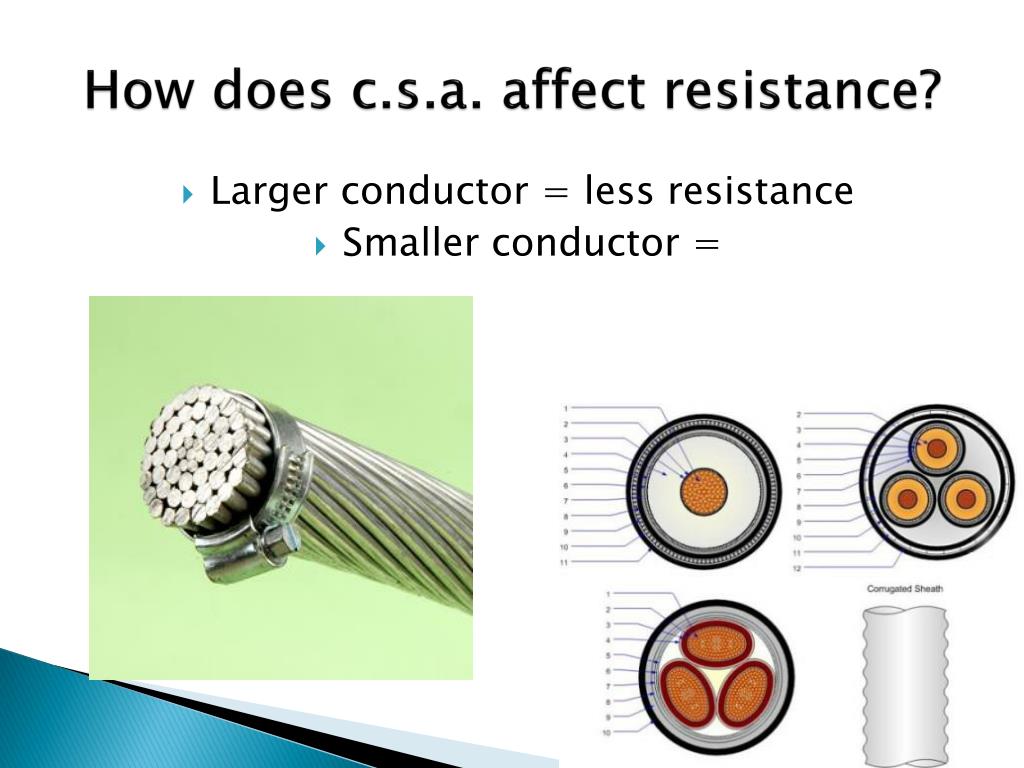

  26. How does c.s.a. affect resistance? • Larger conductor = less resistance • Smaller conductor =

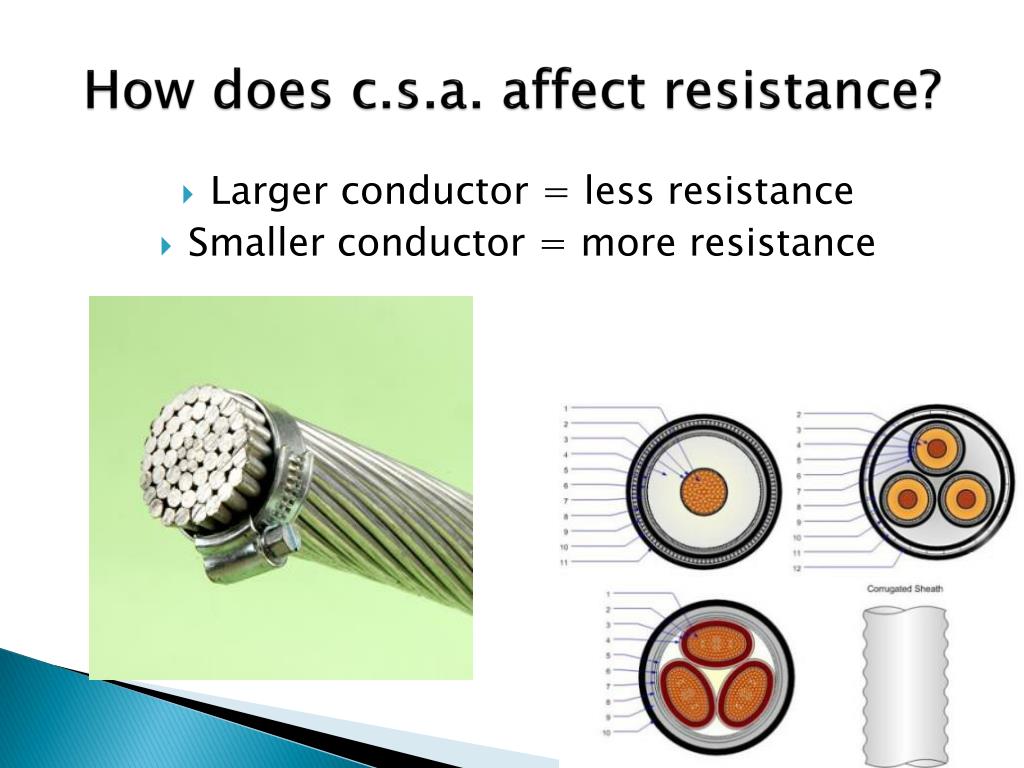

  27. How does c.s.a. affect resistance? • Larger conductor = less resistance • Smaller conductor = more resistance

  28. How does c.s.a. affect resistance? • Larger conductor = less resistance • Smaller conductor = more resistance • Resistance α 1 c.s.a

  29. How does the conductor material affect resistance? • The measure of how resistive a material is, is called resistivity. Ω 1 m 1 m 1 m

  30. Sooo…If we put all of them together….. R = ρ x ℓ A Where: R = resistance of conductor in ohms ρ = resistivity of conductors in ohm meters ℓ = length of conductor in meters A = c.s.a. of conductor in meters2

  31. How does temperature affect resistance? • When current flows through a conductor it heats up • The amount of change in resistance is known as the temperature coefficient of resistance • If the resistance goes up – positive temperature coefficient (conductors) • If the resistance goes down – negative temperature coefficient (insulators and semiconductors)

  32. Equation for resistance and temperature Rh = Rc [1 + (α x Δt)] Where: Rh= Final (hot) resistance in ohms Rc= Initial (cold) resistance in ohms α = Temperature coefficient of resistance in omhs per ohms per degrees celcius Δt = difference in temperature in degrees celcius

  33. Effects of temperature on a circuit • Most electrical components are made with a certain amount of smoke and if they get too hot it all gets let out! • Heat increases the resistance in conductors thereby increasing the voltage drop across the cable, also there is a risk of insulation meltdown – resulting in short circuit • Motors, transformers, alternators and lamp filaments all start up with a lower resistance – leading to high starting currents.

  34. But wait…..There’s more! R1 = ℓ1 hence R2 = R1 ℓ2 R2 ℓ2 ℓ1 R1 = A2 hence R2 = R1 A1 R2 A1 A2 R1 = d22 hence R2 = R1 d12 R2 d12 d2 R2 = R1A1ℓ2 A2ℓ1

  35. Series circuits
