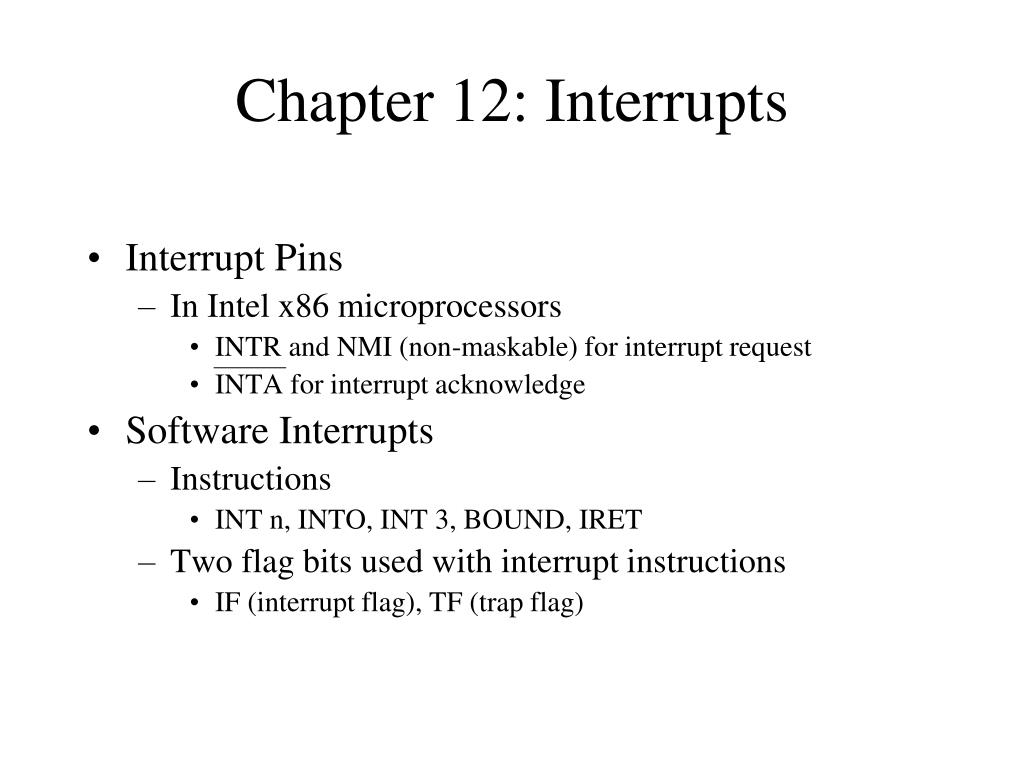

  1. Chapter 12: Interrupts • Interrupt Pins • In Intel x86 microprocessors • INTR and NMI (non-maskable) for interrupt request • INTA for interrupt acknowledge • Software Interrupts • Instructions • INT n, INTO, INT 3, BOUND, IRET • Two flag bits used with interrupt instructions • IF (interrupt flag), TF (trap flag)

  2. Interrupt Vectors • Interrupt vector table located at addresses 000000H to 0003FFH Interrupt vector contains segment and offset address of interrupt service routine (ISR)

  3. PUSH and POP PUSH BX : SP <- SP-2 POP CX : SP <- SP+2

  4. Cyclic Nature in PUSH/POP • PUSH CX ; cyclic address calculation

  5. Interrupt Activation • From external source • Set INTR pin or a positive edge (0-to-1) on the NMI pin • Checked once (at the beginning or at the end) during the CPU’s instruction execution cycle • Cannot be checked during the “middle” of the execution of another instruction – wait until before fetch of next instruction • From internal source • Execution of INT, INTO, INT 3, or BOUND instruction • E.g., INT 3 calls the interrupt service routine at 00CH (=3*4) in the interrupt vector table

  6. Operation of Real Mode Interrupt • Disable interrupts • Clear IF and TF bits in the flag register • Disables the INTR pin and trap (single-step) • Save the current state • Push flag register onto the stack • Push CS onto the stack • Push IP onto the stack • If the processor has more state registers, e.g., register file, they are also stored in the stack • Far call to interrupt service routine (ISR) • Fetch interrupt vector contents and store into IP and CS • Next instruction executes from the ISR • Return from ISR • IRET instruction restores the stored state in the stack

  7. Near CALL

  8. Normal Far CALL vs. ISR Execution Flag is stored Destination address comes from interrupt vector table

  9. Flag Register C(carry) : holds the carry after addition or the borrow after subtraction P(parity) : 0 for odd, 1 for even parity A(auxiliary carry) : holds the carry or borrow between bit 3 and 4 Z(zero) : 1(result is 0), 0(result is not zero) S(sign) : 0(positive), 1(negative) T(trap) : enables trapping after each instruction for on-chip debugging I(interrupt) : enables(1) or disables(0) interrupt request from INTR pin D(direction) : increment(0) or decrement(1) of DI/SI for string instructions O(overflow) : out of range(1) of signed numbers operation

  10. Examples of Flag Bits • Overflow V = C4 XOR C5 Scheme of Parallel Adder

  11. Interrupt Flag Bits • FLAG register includes I (bit 9) and T (bit 8) flag bits • When I bit is set, interrupts through the INTR pin are accepted • Set using “STI” assembly instruction • Reset using “CLI” assembly instruction • When TF bit is set, it causes a trap interrupt (type number 1) to occur after each instruction executes • Single-stepping • Useful for debugging • Set or reset by setting/resetting that bit in the FLAG register directly

  12. Identifying Interrupt Vector • The device which caused the interrupt gives the interrupt vector to the processor via data bus • Timing shown • INTR  INTA  vector number on D7-D0

  13. Simple Generation of Interrupt Vector 16 D15-D0 D7-D0 8 uP tri-state buffer O7-O0 G INTA I7-I0 VCC

  14. Interrupt Priority Control • Software Polling • Single interrupt vector (ISR) • Easy to change by program • Slow response • Daisy Chain • Connected in series • Simple hardware connection • Lowest-priority I/O may have to wait too long. • Simple logic gates • Equivalent to daisy chain method • Can be used for small system • Multiple Interrupt Lines • Fast response • Complicated hardware • Limited number of I/O

  15. Polling CPU polls the status register of I/O by a program. CPU ADDR DATA INTR IR IR IR IR I/O Controler1 I/O Controler2 I/O Controler3 I/O Controler4

  16. Daisy Chain CPU ADDR DATA INTR INTA IR IR IR IR INTA GRNT INTA GRNT INTA GRNT INTA GRNT I/O Controler1 I/O Controler2 I/O Controler3 I/O Controler4

  17. Daisy Chain with Logic Gates CPU D7-D0 DATA 8 Two Interrupt vectors 00000001 : higher priority 00000000 : lower priority O7-O0 G INTA I7-I0 GND IR0 INTR IR1

  18. Multiple Interrupt Lines CPU ADDR DATA IR1 IA1 IR2 IA2 IR3 IA3 IR4 IA4 IR IR IR IR INTA INTA INTA INTA I/O Controller1 I/O Controller2 I/O Controller3 I/O Controller4

  19. I/O Interface with I/O Controller ADDR DATA CPU Control I/O Controller 1 I/O Controller 2 I/O Controller 3 Status Ctrl Data Status Ctrl Data Status Ctrl Data I/O 1 I/O 2 I/O 3 I/O controller - Communicates with general CPU(fast) and dedicated I/O device(slow). - Adjusts timing by handshaking. - Performs as a temporary data buffer.
