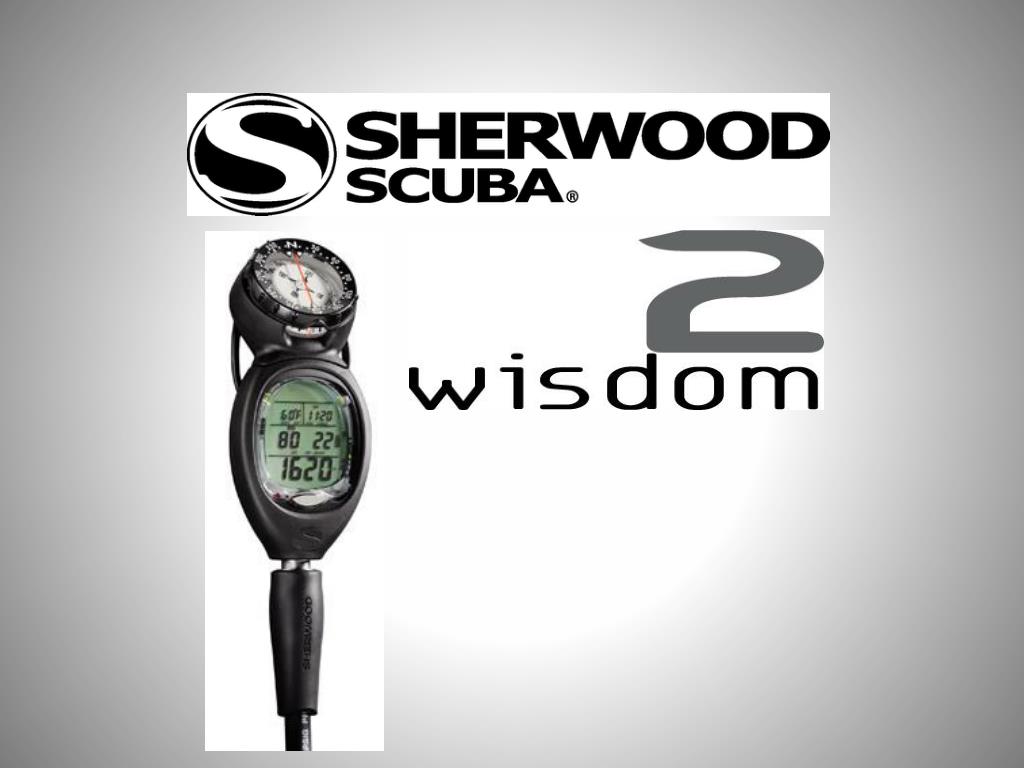

Sherwood Scuba Wisdom2 Dive Computer - Navigate, Monitor, and Plan Your Dives Effortlessly

vail avatar
vail
107 diapositives · 1.2K Views · Sep 15, 2014

Explore the advanced features of the Sherwood Scuba Wisdom2 Dive Computer, such as air integration, audible alarms, dive simulator, and more for a safe diving experience. Plan your dives, monitor key data, and navigate with intuitive controls. It also offers a large screen with clear alpha/numeric characters and PC downloadable capabilities. Enhance your diving journey with this reliable companion.

#sherwood scuba wisdom2 dive computer - navigate, monitor, and plan your dives effortlessly #sherwood scuba wisdom2 dive computer - navigate, monitor, and plan your dives effortlessly ppt #powerpoint #presentation
Sherwood Scuba Wisdom2 Dive Computer - Navigate, Monitor, and Plan Your Dives Effortlessly - slide 1
01 / 107Sherwood Scuba Wisdom2 Dive Computer - Navigate, Monitor, and Plan Your Dives Effortlessly
1 / 17

Télécharger la présentation

Sherwood Scuba Wisdom2 Dive Computer - Navigate, Monitor, and Plan Your Dives Effortlessly
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

  1. Sherwood Scuba’s Wisdom2 Key Features • Large screen with easy to read alpha/numeric characters • Air Integrated Dive Computer • Displays air pressure in your tank • Air or Nitrox • Audible and visual alarms • Dive Time Remaining • Calculates and displays dive time remaining based on current consumption rate or available no deco time remaining • Dive simulator • Walk yourself through any dive beforehand, and see your limits without getting wet • PC Downloadable • Requires Cable and Software

  2. Wisdom2 Navigation Navigating the Computer

  3. Wisdom2 Navigation Navigating the Computer • Two Buttons to navigate through the computers

  4. Wisdom2 Navigation Navigating the Computer • Two Buttons to navigate through the computers • Front Button • Also known as the “Advance Button”

  5. Wisdom2 Navigation Navigating the Computer • Two Buttons to navigate through the computers • Front Button • Also known as the “Advance Button” • Side Button • Also known as the “Select Button”

  6. Wisdom2 Navigation Navigating the Computer • TIME/WET • Basic information

  7. Wisdom2 Navigation Navigating the Computer • TIME/WET • Basic information • DATA • Basic information

  8. Wisdom2 Navigation Navigating the Computer • TIME/WET • Basic information • DATA • Basic information • PLAN • Planning your next dive

  9. Wisdom2 Navigation Navigating the Computer • TIME/WET • Basic information • DATA • Basic information • PLAN • Planning your next dive • LAST • Stats from last dive

  10. Wisdom2 Navigation Navigating the Computer • TIME/WET • Basic information • DATA • Basic information • PLAN • Planning your next dive • LAST • Stats from last dive • LOG • Information on most recent 50 dives

  11. Wisdom2 Navigation Navigating the Computer • TIME/WET • Basic information • DATA • Basic information • PLAN • Planning your next dive • LAST • Stats from last dive • LOG • Information on most recent 50 dives • HIST • Accumulated Dive Information

  12. Wisdom2 Navigation Navigating the Computer • TIME/WET • Basic information • DATA • Basic information • PLAN • Planning your next dive • LAST • Stats from last dive • LOG • Information on most recent 50 dives • HIST • Accumulated Dive Information • SIMU • Diving Simulator

  13. Wisdom2 Navigation Navigating the Computer • TIME/WET • Basic information • DATA • Basic information • PLAN • Planning your next dive • LAST • Stats from last dive • LOG • Information on most recent 50 dives • HIST • Accumulated Dive Information • SIMU • Diving Simulator • SET • Computer Settings

  14. Wisdom2 Navigation Navigating the Computer • TIME/WET • Basic information • DATA • Basic information • PLAN • Planning your next dive • LAST • Stats from last dive • LOG • Information on most recent 50 dives • HIST • Accumulated Dive Information • SIMU • Diving Simulator • SET • Computer Settings • FLY/SAT • Fly Safe

  15. Wisdom2 Intuitive Display • Four easy rows of displays and graphic icons

  16. Wisdom2 Bar Graphs Nitrogen Bar The Nitrogen Bar Graph represents tissue loading of nitrogen, showing you relative no decompression or decompression status

  17. Wisdom2 Bar Graphs Oxygen Accumulation Bar Graph (when diving Nitrox) The O2 Bar Graph represents oxygen loading

  18. Wisdom2 Bar Graphs Variable Ascent Rate Indicator The Variable Ascent Rate Indicator provides a visual representation of Ascent speed. An ascent speedometer

  19. Wisdom2 Activation To activate computer momentarily press the front (Advance) button

  20. TIME SCREEN

  21. Wisdom2 TIME/WET • Time/Wet Screen • Alpha graphic Time or Wet

  22. Wisdom2 TIME/WET • Time/Wet Screen • Alpha graphic Time or Wet • Date

  23. Wisdom2 TIME/WET • Time/Wet Screen • Alpha graphic Time or Wet • Date • Elapsed Surface Time

  24. Wisdom2 TIME/WET • Time/Wet Screen • Alpha graphic Time or Wet • Date • Elapsed Surface Time • Operating Mode (Air, Nitrox, Gauge)

  25. Wisdom2 TIME/WET • Time/Wet Screen • Alpha graphic Time or Wet • Date • Elapsed Surface Time • Operating Mode (Air, Nitrox, Gauge) • Time

  26. Wisdom2 TIME/WET • Time/Wet Screen • Alpha graphic Time or Wet • Date • Elapsed Surface Time • Operating Mode (Air, Nitrox, Gauge) • Time • Cylinder Pressure

  27. Wisdom2 TIME/WET • Time/Wet Screen • Alpha graphic Time or Wet • Date • Elapsed Surface Time • Operating Mode (Air, Nitrox, Gauge) • Time • Cylinder Pressure • NiBG (Nitrogen) and O2BG (Oxygen Accumulation) if any

  28. DATA Screen

  29. Wisdom2 Data Screens From Time or Wet screen pressing the front button 1 time accesses Data screen

  30. Wisdom2 DATA • Alpha graphic DATA

  31. Wisdom2 DATA • Data screen in Air Mode

  32. Wisdom2 DATA • Data screen in Air Mode • Alarm icon (if all alarms are set)

  33. Wisdom2 DATA • Data screen in Air Mode • Alarm icon (if all alarms are set) • Temperature and F or C

  34. Wisdom2 DATA • Data screen in Air Mode • Alarm icon (if all alarms are set) • Temperature and F or C • DeSat time and graphic

  35. Wisdom2 DATA • Data screen in Air Mode • Alarm icon (if all alarms are set) • Temperature and F or C • DeSat time and graphic • Altitude level graphic

  36. Wisdom2 DATA NITROX • Data screen in Nitrox Mode

  37. Wisdom2 DATA NITROX • Data screen in Nitrox Mode • Alarm icon (if all alarms are set)

  38. Wisdom2 DATA NITROX • Data screen in Nitrox Mode • Alarm icon (if all alarms are set) • Temperature and F or C

  39. Wisdom2 DATA NITROX • Data screen in Nitrox Mode • Alarm icon (if all alarms are set) • Temperature and F or C • DeSat time and graphic

  40. Wisdom2 DATA NITROX • Data screen in Nitrox Mode • Alarm icon (if all alarms are set) • Temperature and F or C • DeSat time and graphic • PO2 and FO2 set points and FO2 graphic

  41. PLAN Screen

  42. Wisdom2 Data Screens From Data screen pressing the front button 1 time accesses PLAN screen

  43. Wisdom2 PLAN • The PLAN screen is accessible only • When first activated • 10 minutes after a dive

  44. Wisdom2 PLAN • The PLAN screen is accessible only • When first activated • 10 minutes after a dive • Alpha graphic PLAN

  45. Wisdom2 PLAN • The PLAN screen is accessible only • When first activated • 10 minutes after a dive • Alpha graphic PLAN • AIR graphic ICON

  46. Wisdom2 PLAN • While viewing PLAN screen pressing and releasing Side button increases the planned depth in increments of 10 feet • Information provided includes depth and allowable no-decompression dives times (NDL) • With each dive; allowable no-decompression dive times (NDL) adjust according to your nitrogen loading

  47. Wisdom2 PLAN *At Sea Level and no previous dives

  48. Wisdom2 PLAN PLAN screen while diving NITROX

  49. Wisdom2 PLAN • The PLAN screen is accessible only • When first activated • 10 minutes after a dive
