  1. GRNETGreek Research & Education NetworkGRNET Simple Storage – GSSIoannisLiabotis, PanosLouridas http://www.grnet.gr Amsterdam, June 2007

  2. Outline • An introduction to GSS • Authorisation & Authentication • GSS Functionality • GUI Access • API Access • Storage Architecture • Future steps

  3. What is GSS? • GSS will provide free storage for the Greek research & academic community; initially 5 Gbytes for each person • Users will be able to upload, share, and index their files • Thin & Thick GUI access will be provided • Direct API access will be provided, enabling third parties to build functionality on top • Inspired by Amazon S2, but going beyond…

  4. Authentication & Authorisation (AA) • GSS will use Shibboleth for AA • GRNET has prepared a Shibboleth infrastructure for all institutions in Greece • At the current stage, three universities have Shibbolethised their AA process: NTUA, AUTH, UoPatras (total number of users > 50,000) • GSS will not offer other AA means (e.g., direct LDAP), but will be a carrot for other institutes to Shibbolethise their processes. • Initially, all users will be equals

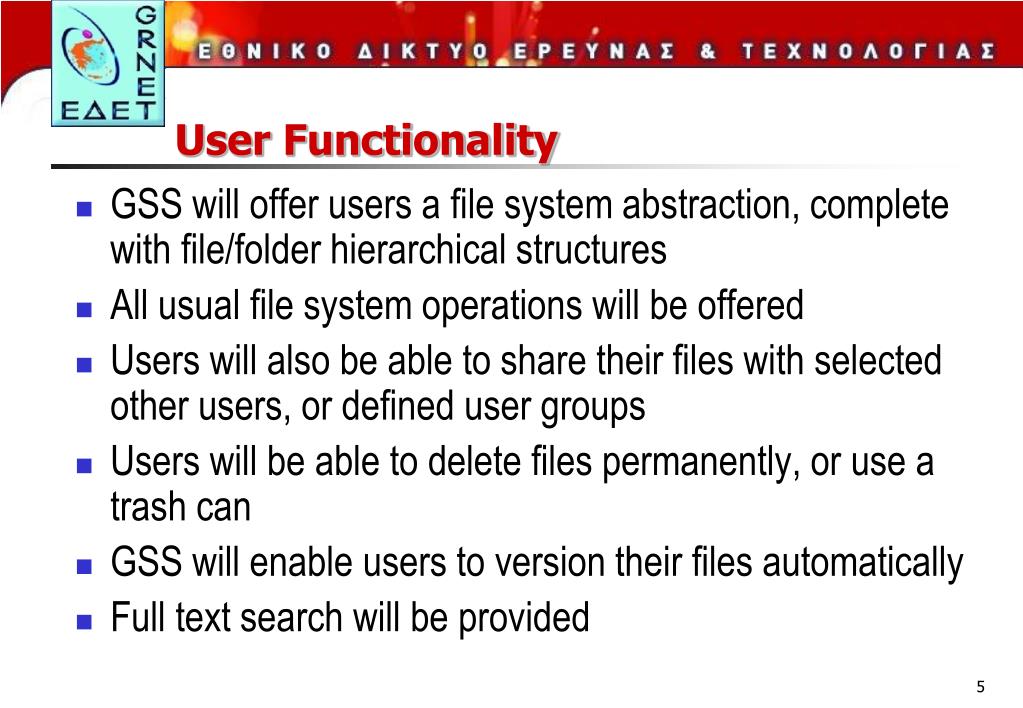

  5. User Functionality • GSS will offer users a file system abstraction, complete with file/folder hierarchical structures • All usual file system operations will be offered • Users will also be able to share their files with selected other users, or defined user groups • Users will be able to delete files permanently, or use a trash can • GSS will enable users to version their files automatically • Full text search will be provided

  6. GUI Access • Thin web client using AJAX • Thick client using Java • WebDAV access to enable integration with window managers • All user interfaces will offer about the same set of functionality

  7. GUI Preview

  8. API Access • GSS will offer two APIs: REST and SOAP • Both APIs will offer the same set of functionality • Both APIs will be published • GSS will encourage third parties to write applications on top of the provided APIs

  9. Architecture • SATA disks on a SAN – around 140 TBytes • GPFS for data transfer • All GSS functionality provided on the application layer via application server farms • Application layer implemented in Java

  10. Shibboleth (GRNET) Logical Topology

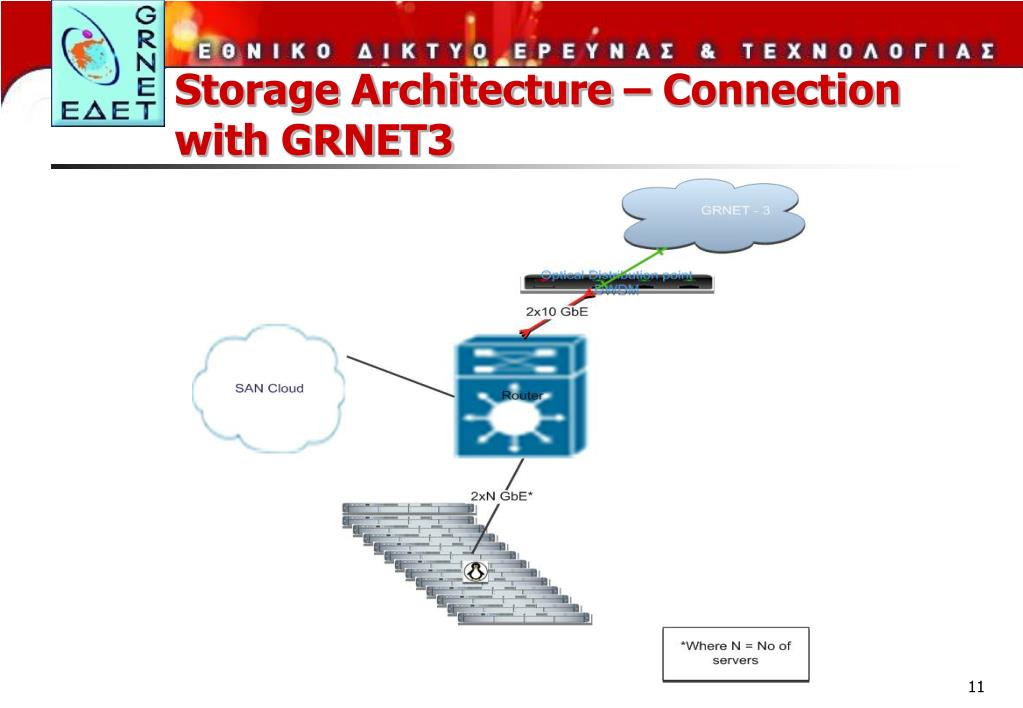

  11. Storage Architecture – Connection with GRNET3

  12. Storage Architecture – SAN

  13. Future Steps • Rollout complete application – currently at the prototype level • Allow extra functionality on top of the initial one: • offering the capability to upload virtual machines so as to move from hosting storage to hosting computation elements • Increase infrastructure depending on use • Open to suggestions 
