Linear motion graph problems

DESCRIPTION

Linear motion graph problems. Example of v – t graph. v / ms -1 10 5. v O = 0 ms -1 v P = 10 ms -1 v Q = 10 ms -1 v R = 0 ms -1 t OP = 4 s t PQ = 4 s t QR = 2 s. P. Q. O. R. 0 2 4 6 8 10 t / s. Solution. a OP =. 10 - 0. = 2.5 ms -2. 4.

1 / 5

Télécharger la présentation

Linear motion graph problems

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Linear motion graph problems Example of v – t graph v / ms-1 10 5 vO = 0 ms-1 vP = 10 ms-1 vQ = 10 ms-1 vR = 0 ms-1 tOP = 4 s tPQ = 4 s tQR = 2 s P Q O R 0 2 4 6 8 10 t / s

  2. Solution aOP = 10 - 0 = 2.5 ms-2 4 vO = 0 ms-1 vP = 10 ms-1 vQ = 10 ms-1 vR = 0 ms-1 tOP = 4 s tPQ = 4 s tQR = 2 s aPQ = 0 (vconstant) aQR = 0 - 10 =-5.0 ms-2 2 dOR = ½ (10) (4+10) = 70.0 m

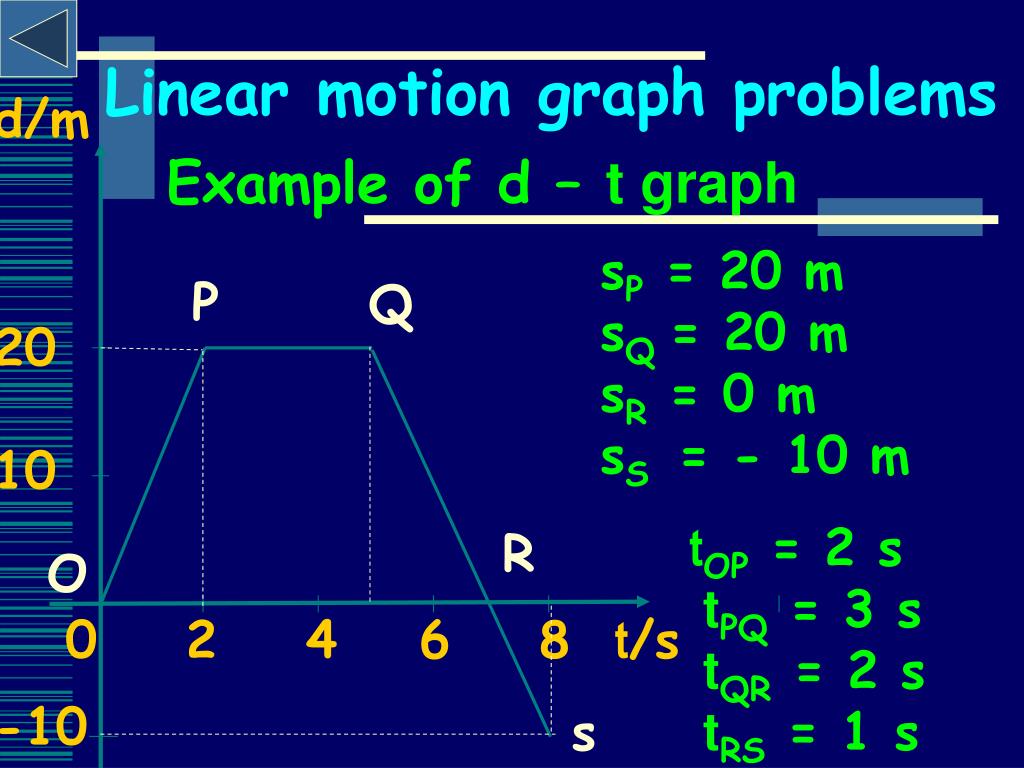

  3. Linear motion graph problems d/m 20 10 -10 Example of d – t graph sP = 20 m sQ = 20 m sR = 0 m sS = - 10 m tOP = 2 s tPQ = 3 s tQR = 2 s tRS = 1 s P Q R O 0 2 4 6 8 t/s s

  4. dP = 20 m dQ = 20 m dR = 0 m dS = - 10 m tOP = 2 s tPQ = 3 s tQR = 2 s tRS = 1 s vOP = Solution 20 =10.0 ms-1 2 vPQ = 0 (dconstant) vQR = 0 - 20 =-10.0ms-1 2 vRS = -10 - 0 = -10 ms-1 1

  5. Explanation of displacement vOP = 10 ms-1 stop, t = 3 s d = 20 m, t = 2 s O P,Q vPQ = 0 ms-1 d = 10 m, t = 1 s d = 20 m, t = 2 s s R vQR = -10 ms-1 vRS = -10 ms-1
