  1. Distributed Processingof Future Radio Astronomical ObservationsGer van Diepen ASTRON, Dwingeloo ATNF, Sydney

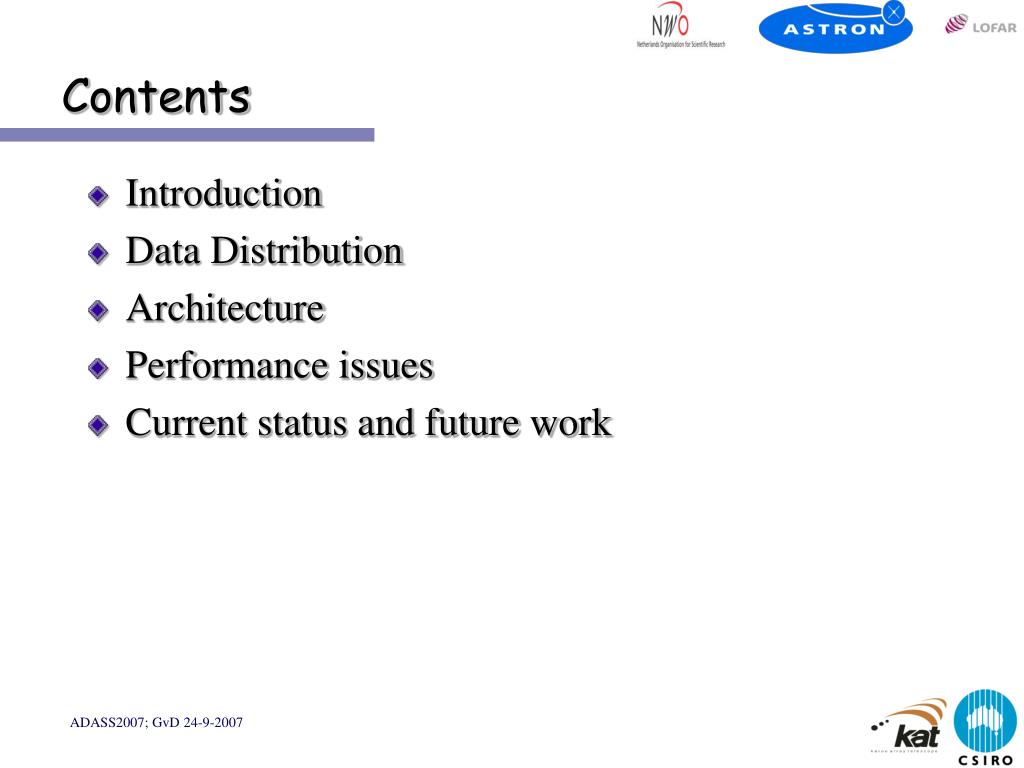

  2. Contents • Introduction • Data Distribution • Architecture • Performance issues • Current status and future work

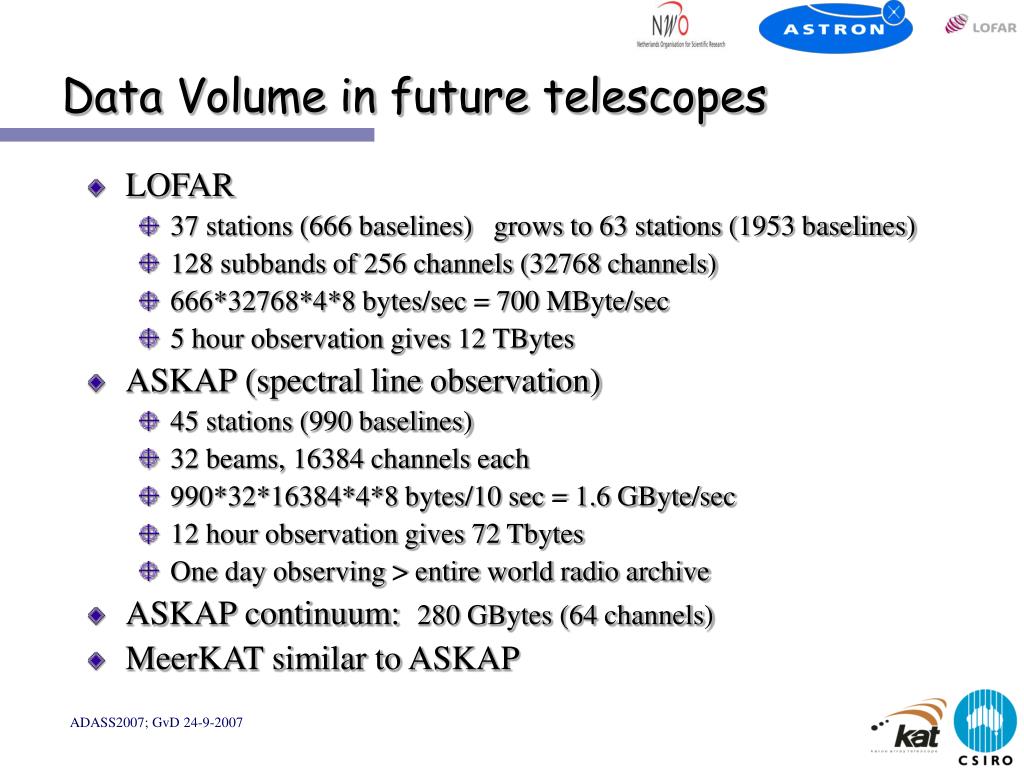

  3. Data Volume in future telescopes • LOFAR • 37 stations (666 baselines) grows to 63 stations (1953 baselines) • 128 subbands of 256 channels (32768 channels) • 666*32768*4*8 bytes/sec = 700 MByte/sec • 5 hour observation gives 12 TBytes • ASKAP (spectral line observation) • 45 stations (990 baselines) • 32 beams, 16384 channels each • 990*32*16384*4*8 bytes/10 sec = 1.6 GByte/sec • 12 hour observation gives 72 Tbytes • One day observing > entire world radio archive • ASKAP continuum: 280 GBytes (64 channels) • MeerKAT similar to ASKAP

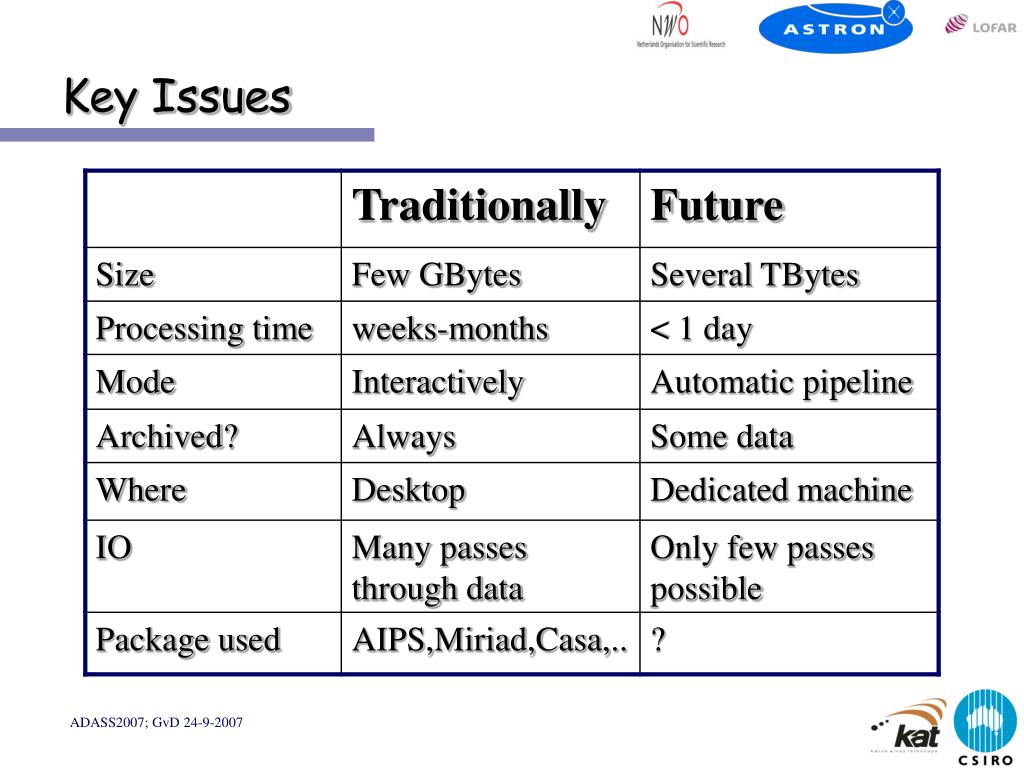

  4. Key Issues

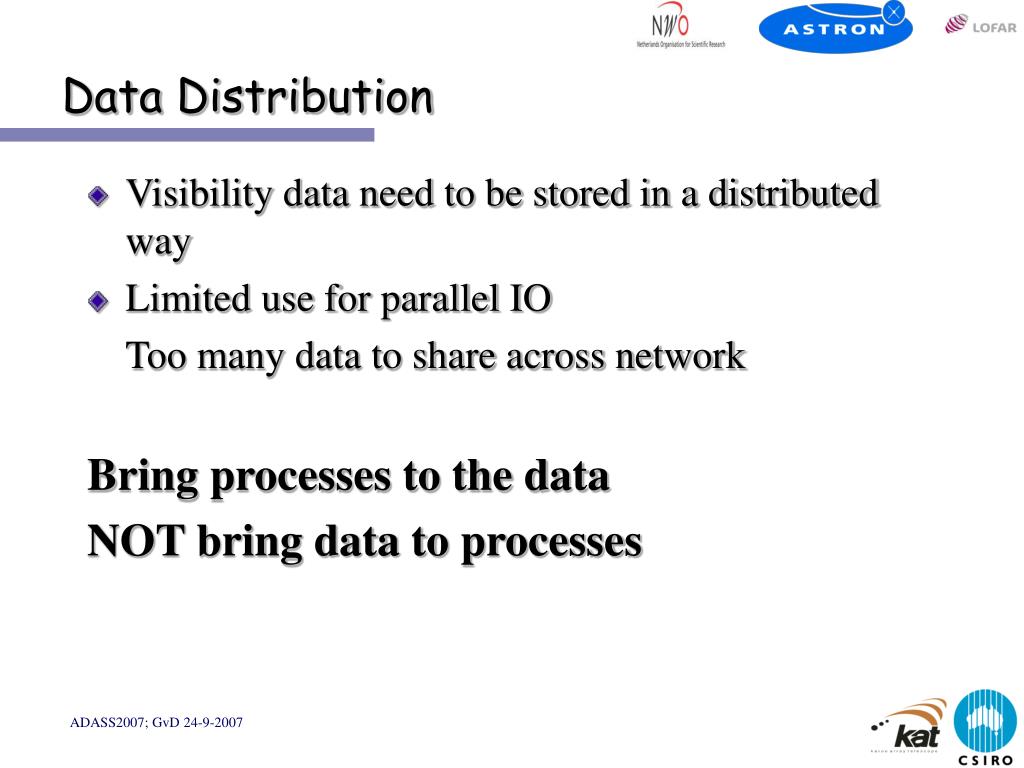

  5. Data Distribution • Visibility data need to be stored in a distributed way • Limited use for parallel IO Too many data to share across network Bring processes to the data NOT bring data to processes

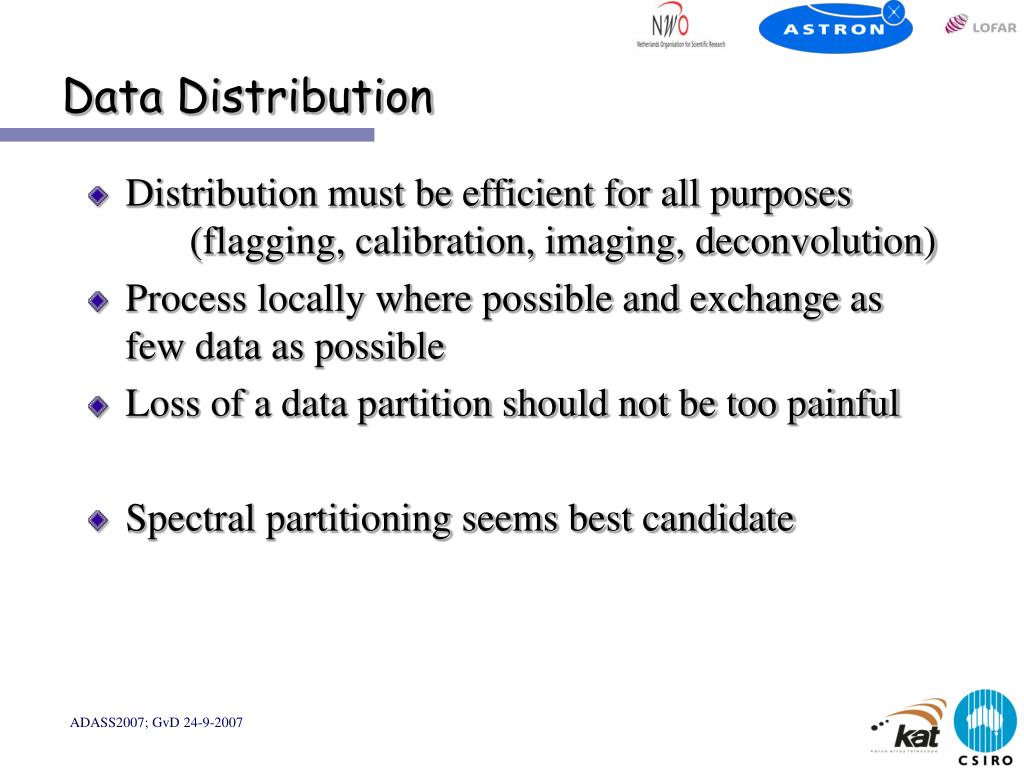

  6. Data Distribution • Distribution must be efficient for all purposes (flagging, calibration, imaging, deconvolution) • Process locally where possible and exchange as few data as possible • Loss of a data partition should not be too painful • Spectral partitioning seems best candidate

  7. Architecture Connection types: • Socket • MPI • Memory • DB

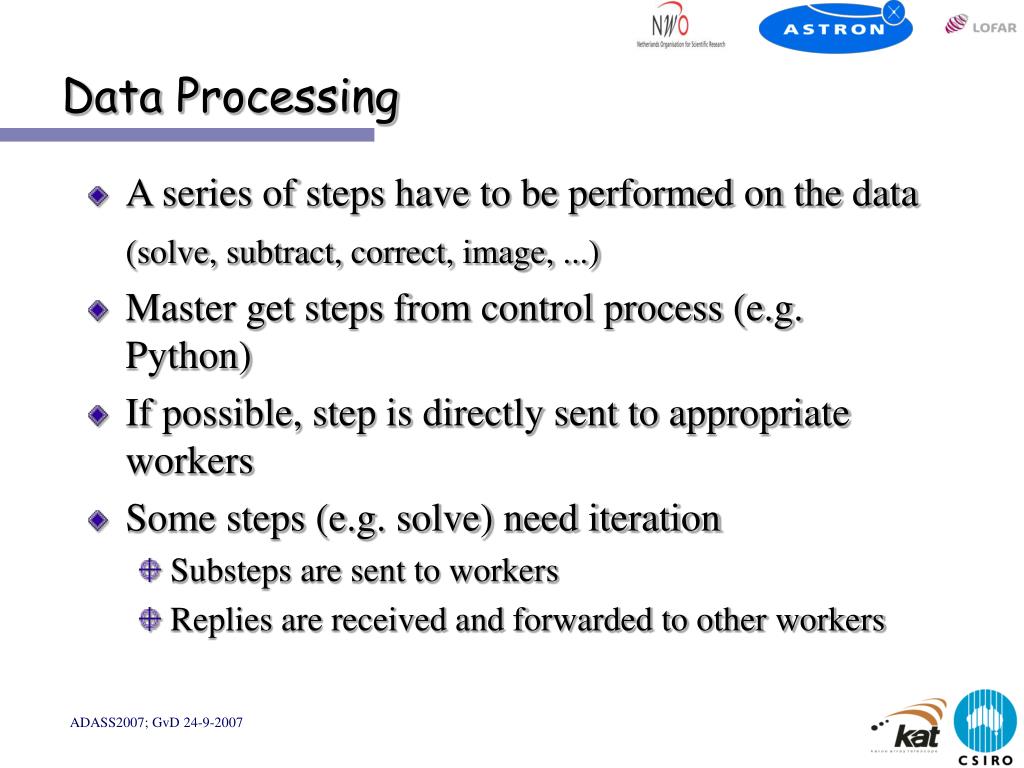

  8. Data Processing • A series of steps have to be performed on the data (solve, subtract, correct, image, ...) • Master get steps from control process (e.g. Python) • If possible, step is directly sent to appropriate workers • Some steps (e.g. solve) need iteration • Substeps are sent to workers • Replies are received and forwarded to other workers

  9. Calibration Processing Solving non-linearly do { 1: get normal equations 2: send eq to solver 3: get solution 4: send solution } while (!converged)

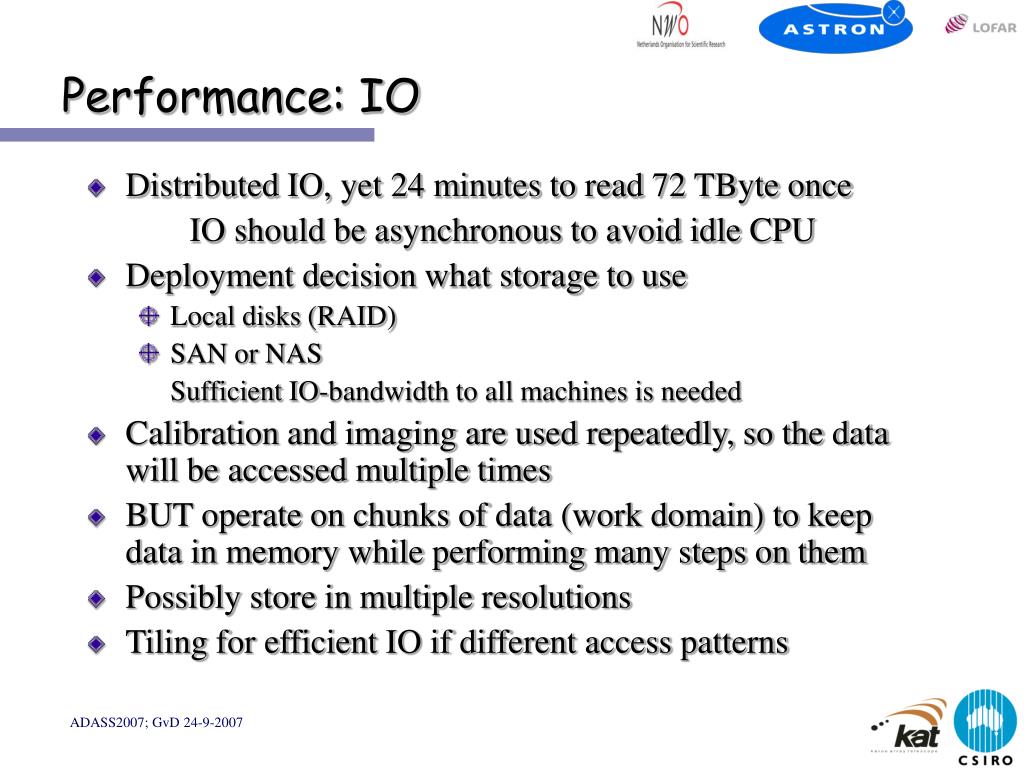

  10. Performance: IO • Distributed IO, yet 24 minutes to read 72 TByte once IO should be asynchronous to avoid idle CPU • Deployment decision what storage to use • Local disks (RAID) • SAN or NAS Sufficient IO-bandwidth to all machines is needed • Calibration and imaging are used repeatedly, so the data will be accessed multiple times • BUT operate on chunks of data (work domain) to keep data in memory while performing many steps on them • Possibly store in multiple resolutions • Tiling for efficient IO if different access patterns

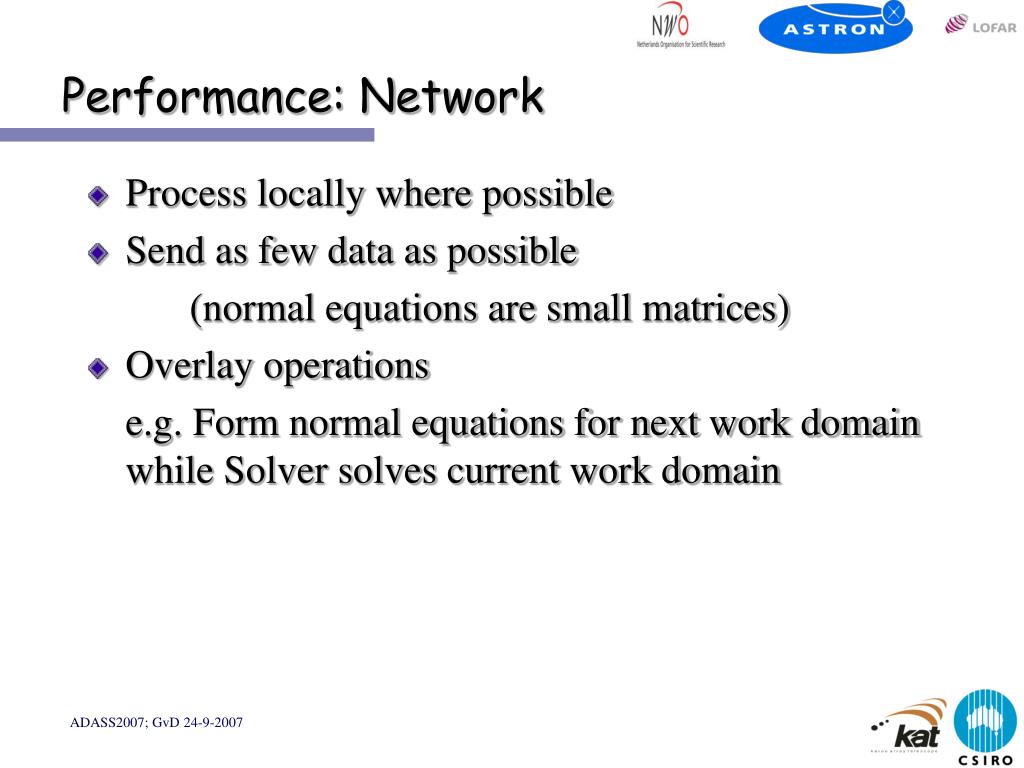

  11. Performance: Network • Process locally where possible • Send as few data as possible (normal equations are small matrices) • Overlay operations e.g. Form normal equations for next work domain while Solver solves current work domain

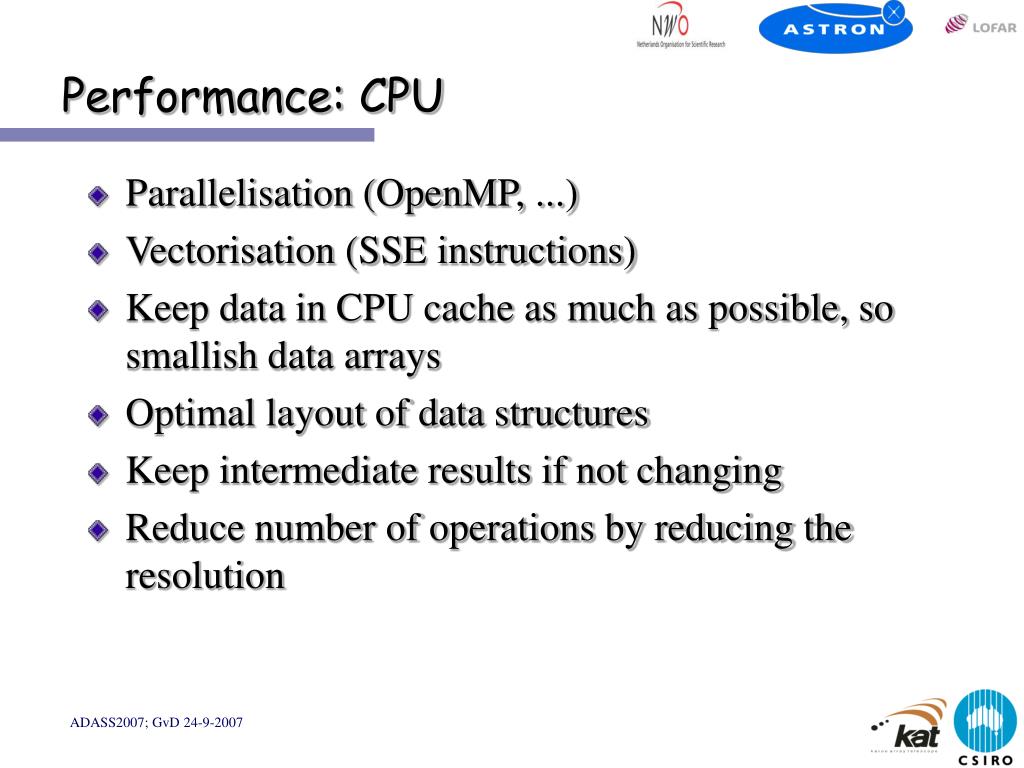

  12. Performance: CPU • Parallelisation (OpenMP, ...) • Vectorisation (SSE instructions) • Keep data in CPU cache as much as possible, so smallish data arrays • Optimal layout of data structures • Keep intermediate results if not changing • Reduce number of operations by reducing the resolution

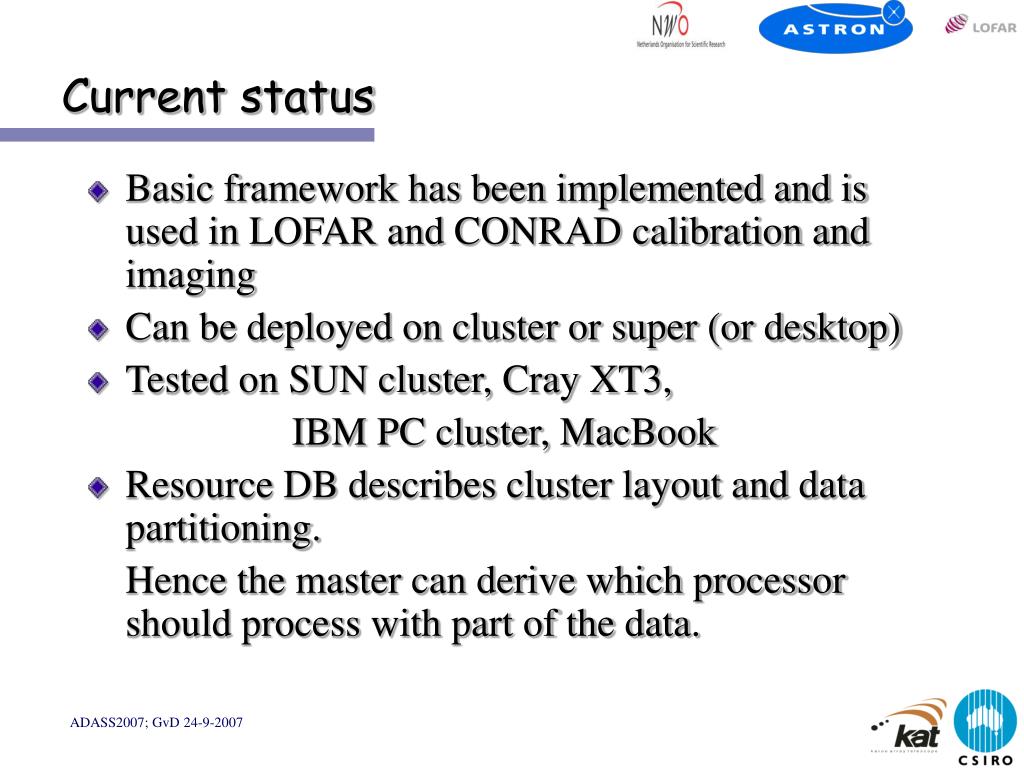

  13. Current status • Basic framework has been implemented and is used in LOFAR and CONRAD calibration and imaging • Can be deployed on cluster or super (or desktop) • Tested on SUN cluster, Cray XT3, IBM PC cluster, MacBook • Resource DB describes cluster layout and data partitioning. Hence the master can derive which processor should process with part of the data.

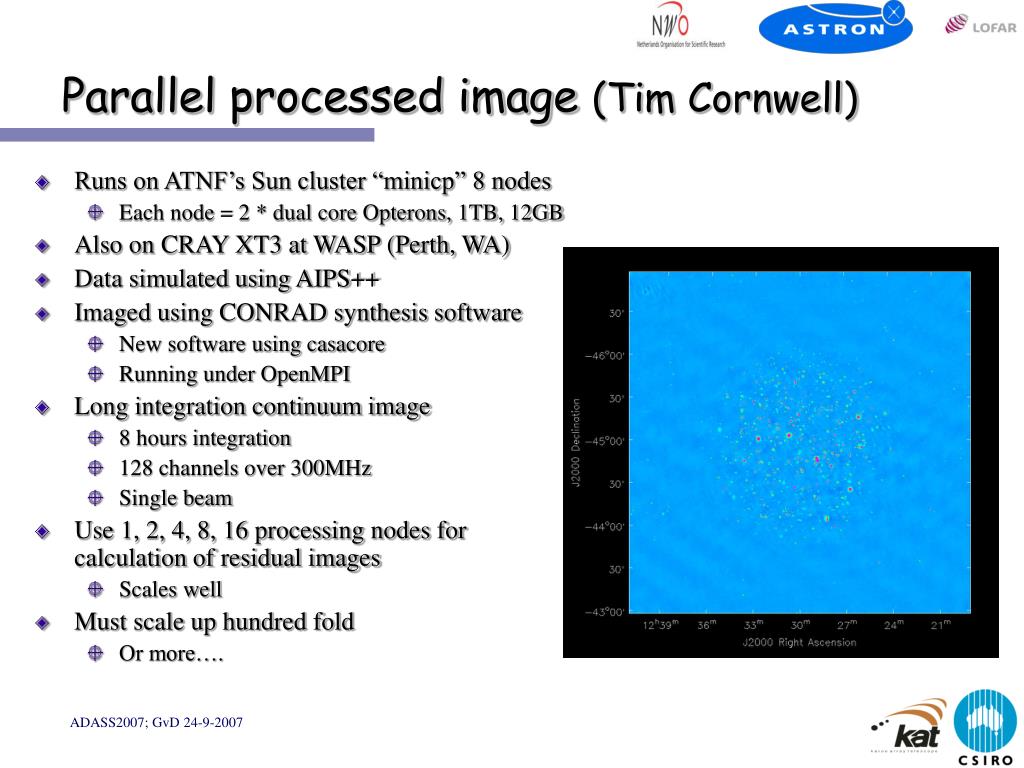

  14. Parallel processed image (Tim Cornwell) • Runs on ATNF’s Sun cluster “minicp” 8 nodes • Each node = 2 * dual core Opterons, 1TB, 12GB • Also on CRAY XT3 at WASP (Perth, WA) • Data simulated using AIPS++ • Imaged using CONRAD synthesis software • New software using casacore • Running under OpenMPI • Long integration continuum image • 8 hours integration • 128 channels over 300MHz • Single beam • Use 1, 2, 4, 8, 16 processing nodes for calculation of residual images • Scales well • Must scale up hundred fold • Or more….

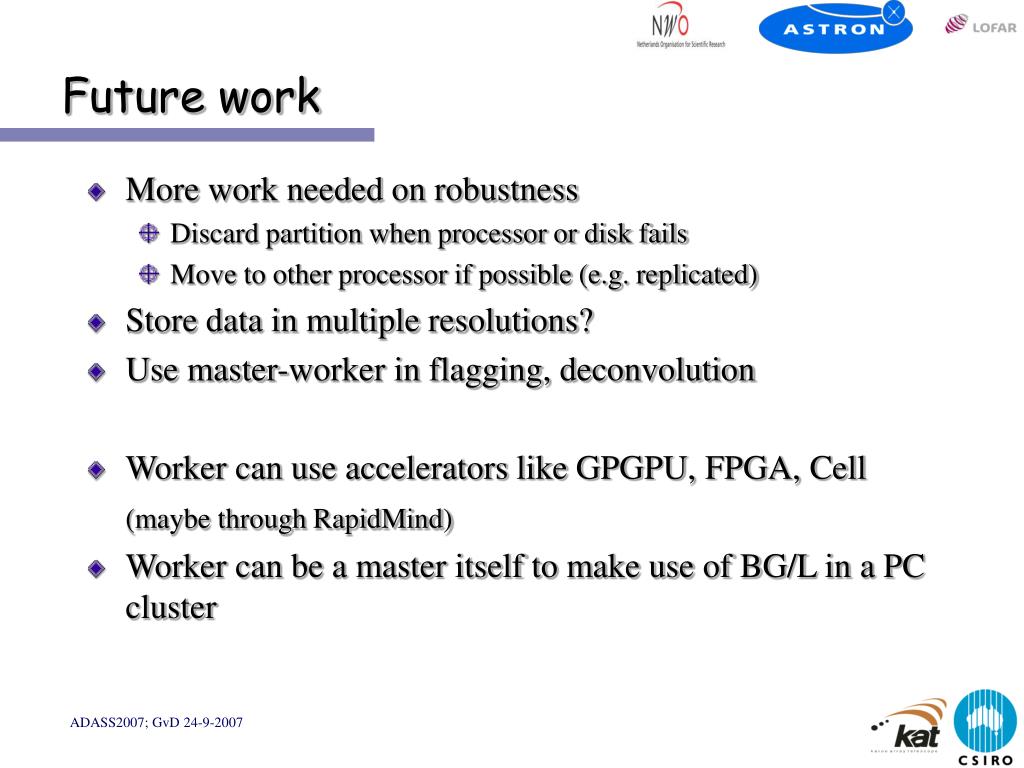

  15. Future work • More work needed on robustness • Discard partition when processor or disk fails • Move to other processor if possible (e.g. replicated) • Store data in multiple resolutions? • Use master-worker in flagging, deconvolution • Worker can use accelerators like GPGPU, FPGA, Cell (maybe through RapidMind) • Worker can be a master itself to make use of BG/L in a PC cluster

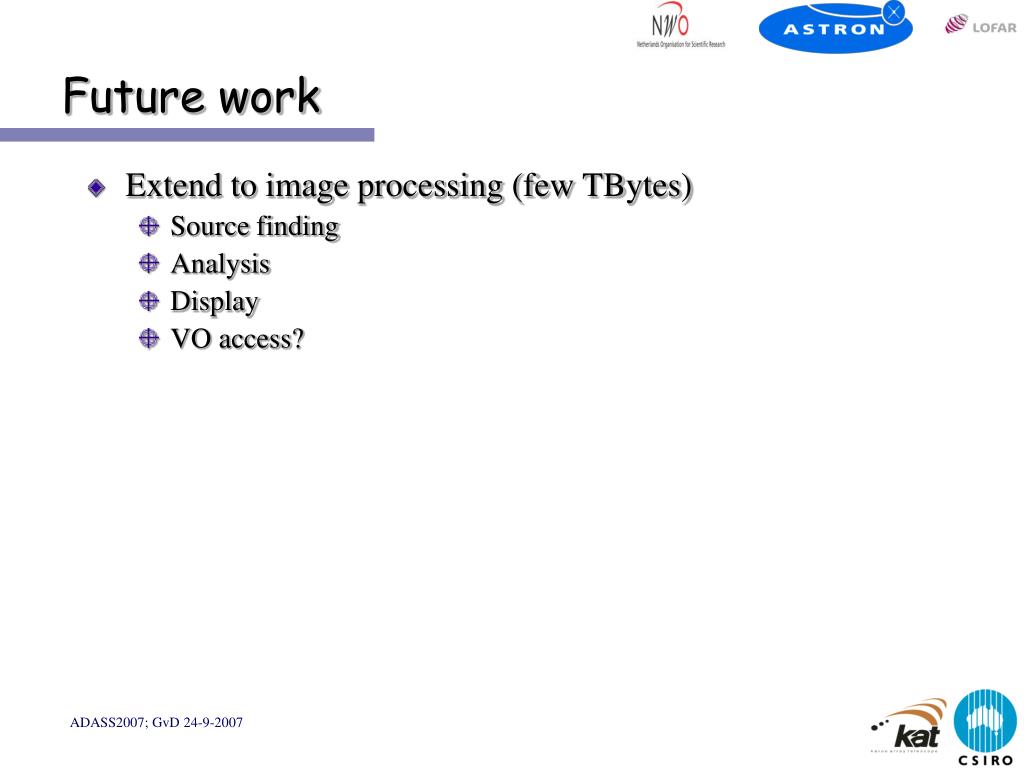

  16. Future work • Extend to image processing (few TBytes) • Source finding • Analysis • Display • VO access?

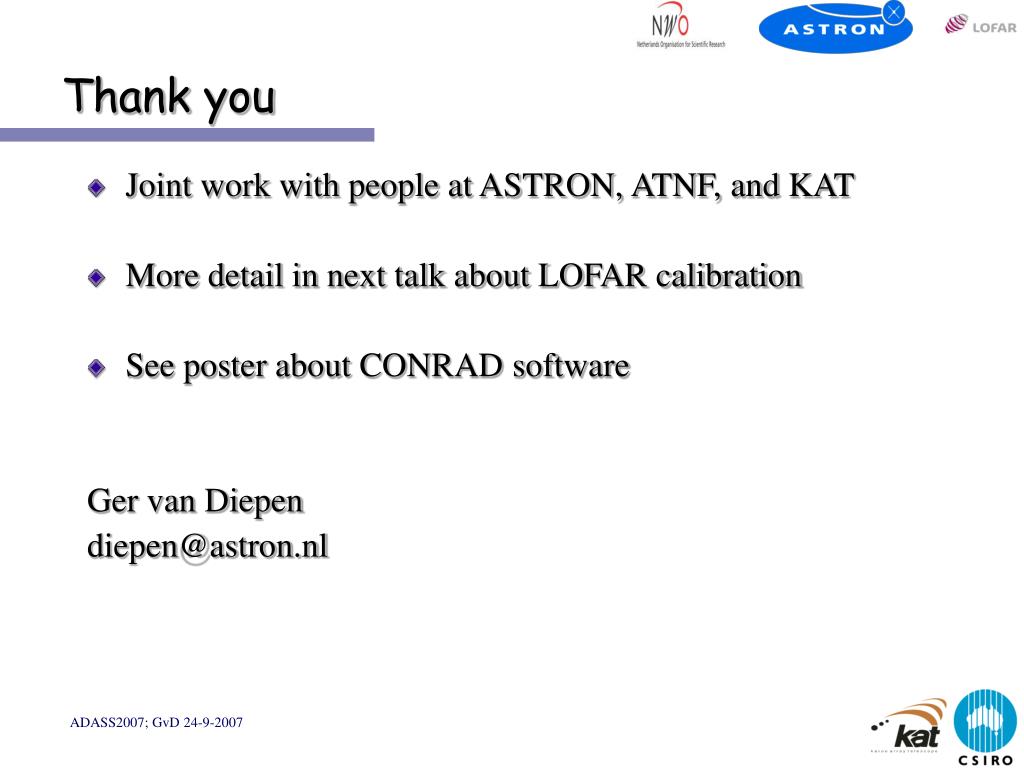

  17. Thank you • Joint work with people at ASTRON, ATNF, and KAT • More detail in next talk about LOFAR calibration • See poster about CONRAD software Ger van Diepen diepen@astron.nl
