  1. Computer Design Julie Hiles

  2. Motherboard • IDE Headers: None • FDD Headers: None • ATX Power Connectors: 1x24-Pins ATX Main Power Connectors • PC Power Connectors: 1-8 pins • 3 GB/s Serial ATA Headers: 4 • 6 GB/s Serial ATA Headers: 2 • Built in Sound Card: Yes • Built in Network Card(LAN): No • USB 3.0: Yes • Price: $114.99 • Model: Intel LGA155 • Supported Processor’s: Celeron, Pentium, Intel 3rd generation core i3 processor, Intel 3rd generation core i5 processor, Intel 3rd generation core i7 processor • Processor Interface: LGA155 • Memory Supported: DDR3,2400MHz, (OC) • Number of Memory Slots: 4 • Maximum Memory Supported: 32 GB- 64 bits • Form Factor: ATX • Expansion Slots (Number): • PCI: 3 • PCIe x 1: 2 • PCIe x 16: 4

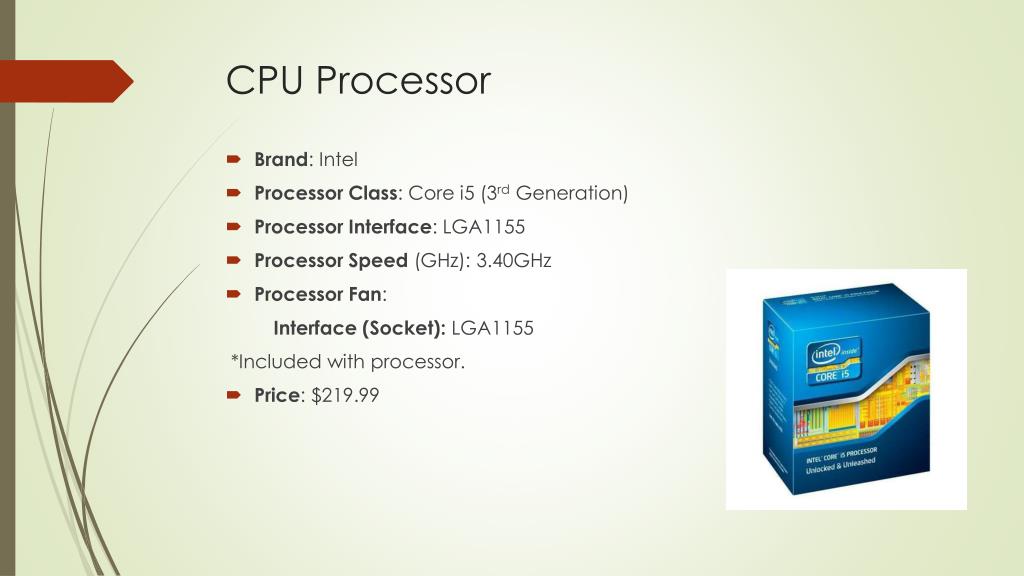

  3. CPU Processor • Brand: Intel • Processor Class: Core i5 (3rd Generation) • Processor Interface: LGA1155 • Processor Speed (GHz): 3.40GHz • Processor Fan: Interface (Socket): LGA1155 *Included with processor. • Price: $219.99

  4. Memory (RAM) • Type: DDR3 • Size: 2x8192MB • Speed: 1600MHz • Quantity: 2 • Price: $99.99

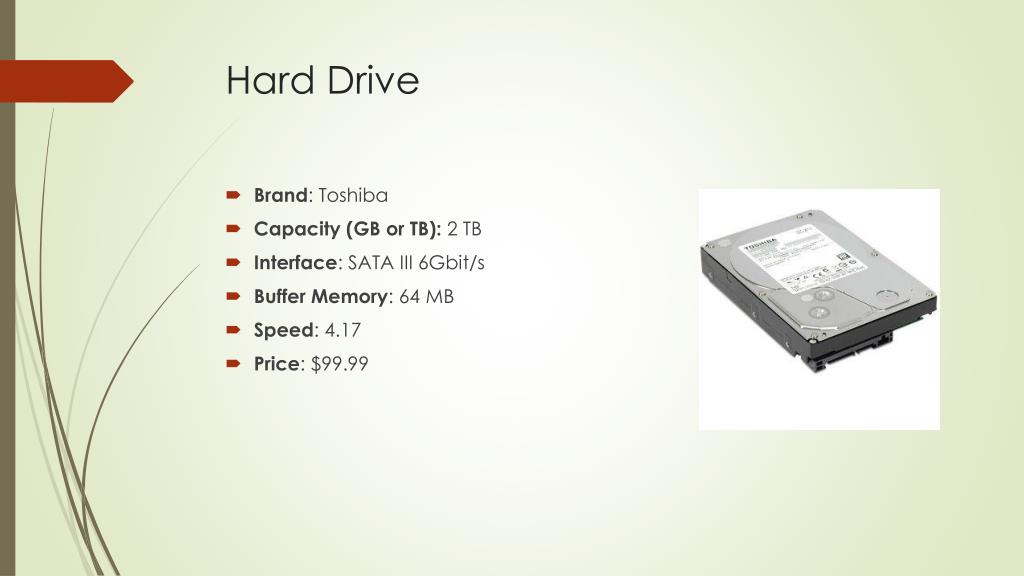

  5. Hard Drive • Brand: Toshiba • Capacity (GB or TB): 2 TB • Interface: SATA III 6Gbit/s • Buffer Memory: 64 MB • Speed: 4.17 • Price: $99.99

  6. CD/DVD/Blue Ray Drive • Type and Description: Blue-Ray Burner • Interface: SATA • Read/Record/Rewrite Speeds: Read 12x, Write 14x, DVD- Read 16x, Rewrite 8x, CD- Read 16x, Rewrite 24x • Price: $59.99

  7. Video Card • Brand/Type: ZotacGeforce • GPU: GeForce GT 600 • Video Memory: 4096 MB • Memory Type: GDDR5 • Interface: PCI Express 3.0 • Connectors: 1xHDMI, 1xDisplay Port, 1xDual Link DVI-I, 1xDual Link DVI-D, • Price: $469.99

  8. Computer Case • Brand/Type: Thermatake • Form Factor: ATX Full Tower • External 5.25” Bays: 3 • External 3.5” Bays: None • Internal 3.5” Bays: 5 • Price: $199.99

  9. Power Supply • Power (Watts): 750w • SATA Connectors: 9 • 4-Pin Peripheral Connectors: 6 • 6-Pin PCI-E Connectors: 4 • 8-Pin PCI-E Connectors: 4 • Motherboard Connector: 20+4 Pin • 4-Pin P4 Connector: 2 • 8-Pin EPS Connector: None • Price: $99.99

  10. Monitor • Brand/Type: Samsung Series 9 • Size: 29 Inch • Interface/Connectors: DVI,HDMI, Display Port • Maximum Resolution: 2560x1440 • Price: $999.99

  11. Other Components • Keyboard and Mouse: Microsoft wireless keyboard and laser mouse • Price: $79.99

  12. Other Components • Brand/Type: StarTechGigabit Ethernet PCIe Network Adapter Card • Form Factor: Plug-in Module • RJ-45 Ports: 4 • Number of Port: 4 • Price: $259.99

  13. Other Components Printer • Type: Epson WorkForce 2540 C11CC36201 All-In-One Inkjet Printer • Wirelessly print, fax, copy and scan • Price: $89.99

  14. Other Components Ink Cartilages • Type: Epson 200 T200520-S Multi-Pack Color DURABrite Ultra Ink Cartridges • Price: $24.99 • Type: Epson 200 T200120-S Black Ink Cartridge • Price: $12.99

  15. Total Price • Total Price: 2732.87

  16. Work Cited • "TigerDirect.com - Electronics, Tablets, Phones, Office Supplies & Video Games." Official TigerDirectcom RSS. N.p., n.d. Web. 18 Mar. 2013. <http://www.tigerdirect.com/>.
