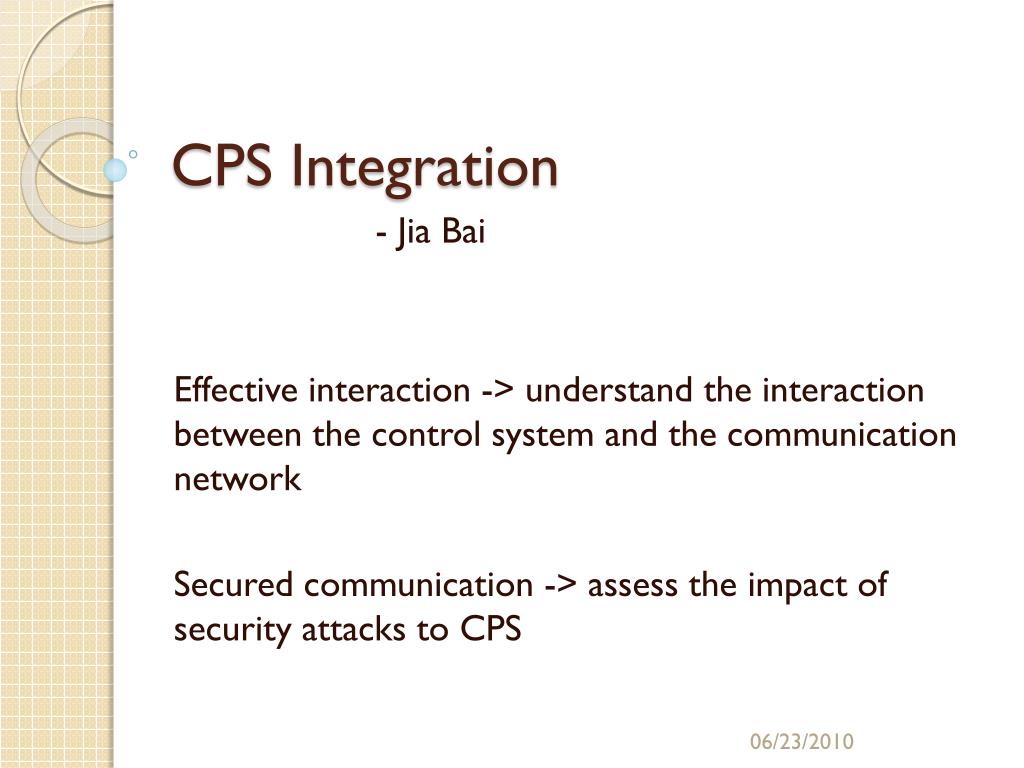

  1. CPS Integration - JiaBai Effective interaction -> understand the interaction between the control system and the communication network Secured communication -> assess the impact of security attacks to CPS 06/23/2010

  2. Examples Systems CPS Interaction

  3. Research Focus • How to make the overall system work better? • System-aware network adjustment • Track system performance • Parameters adjust, e.g. Retx number, • Network-aware physical system adaptation • Feedback network status CPS Interaction

  4. Tool Development PC2 (Linux) NS2 Scheduler • NCSWT (Networked Control System Wind Tunnel) - gateway to synchronize MATLAB & ns-2 Traffic Traffic Traffic NCSWT RTI PC1 (Windows) CPS Interaction

  5. Six UAVs Demo CPS Interaction

  6. Security Concerns • Impossible to guarantee performance • Impossible to achieve goals CPS Security

  7. Research Focus • Performance assessment • System behavior • Stability • Attack detection • Network profiling • Control System monitoring CPS Security

  8. Tool Under Development • Deterlab – testbed for computer security experiments extensible Java GUI interface CPS Security

  9. CPS Integration Thanks 06.23/2010
