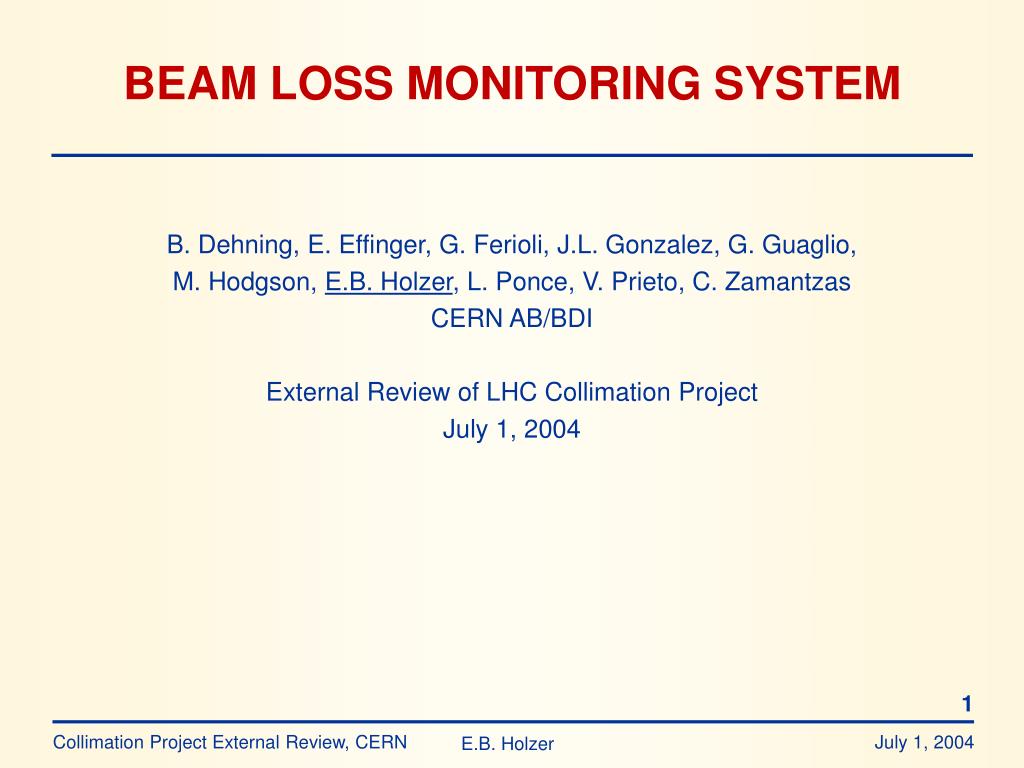

  1. BEAM LOSS MONITORING SYSTEM • B. Dehning, E. Effinger, G. Ferioli, J.L. Gonzalez, G. Guaglio, • M. Hodgson, E.B. Holzer, L. Ponce, V. Prieto, C. Zamantzas • CERN AB/BDI • External Review of LHC Collimation Project • July 1, 2004

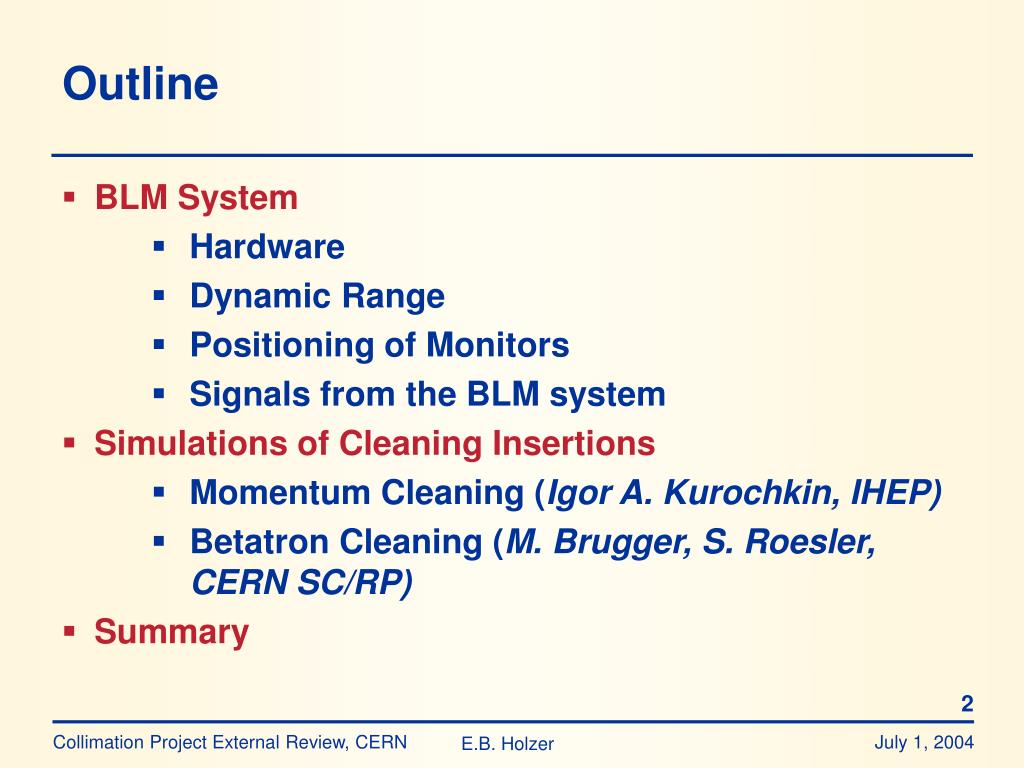

  2. Outline • BLM System • Hardware • Dynamic Range • Positioning of Monitors • Signals from the BLM system • Simulations of Cleaning Insertions • Momentum Cleaning (Igor A. Kurochkin, IHEP) • Betatron Cleaning (M. Brugger, S. Roesler, CERN SC/RP) • Summary

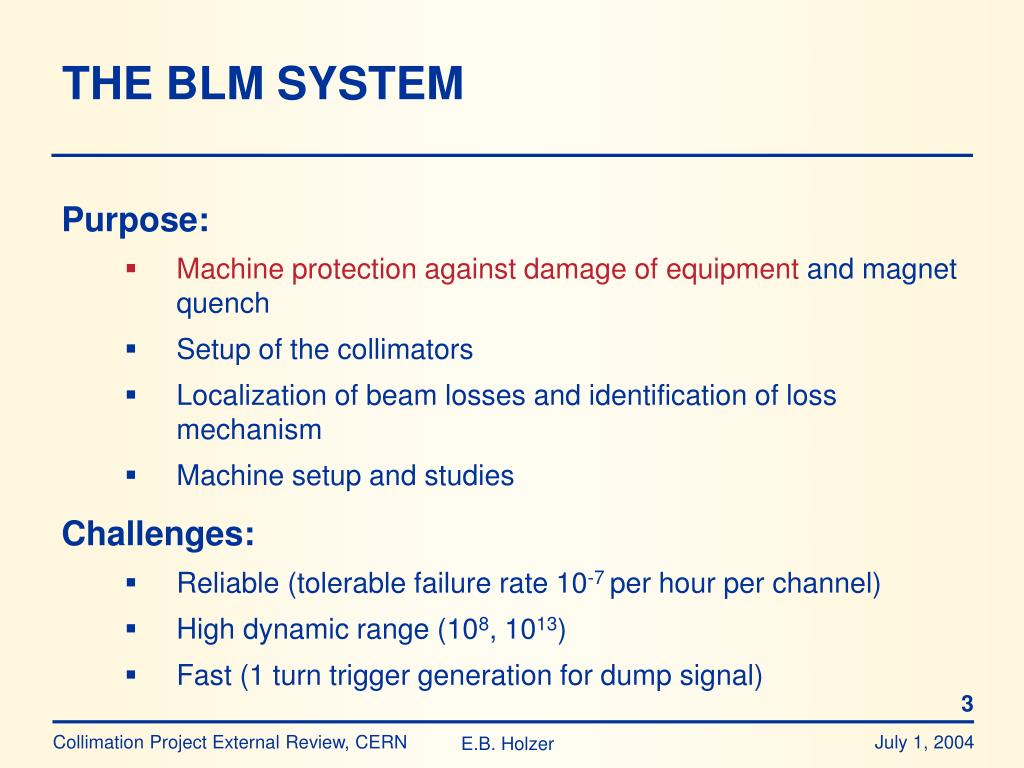

  3. THE BLM SYSTEM • Purpose: • Machine protection against damage of equipment and magnet quench • Setup of the collimators • Localization of beam losses and identification of loss mechanism • Machine setup and studies • Challenges: • Reliable (tolerable failure rate 10-7 per hour per channel) • High dynamic range (108, 1013) • Fast (1 turn trigger generation for dump signal)

  4. Families of BLM’s • BLMC & BLMS: In case of a non working monitor this monitor has to be repaired before the next injection

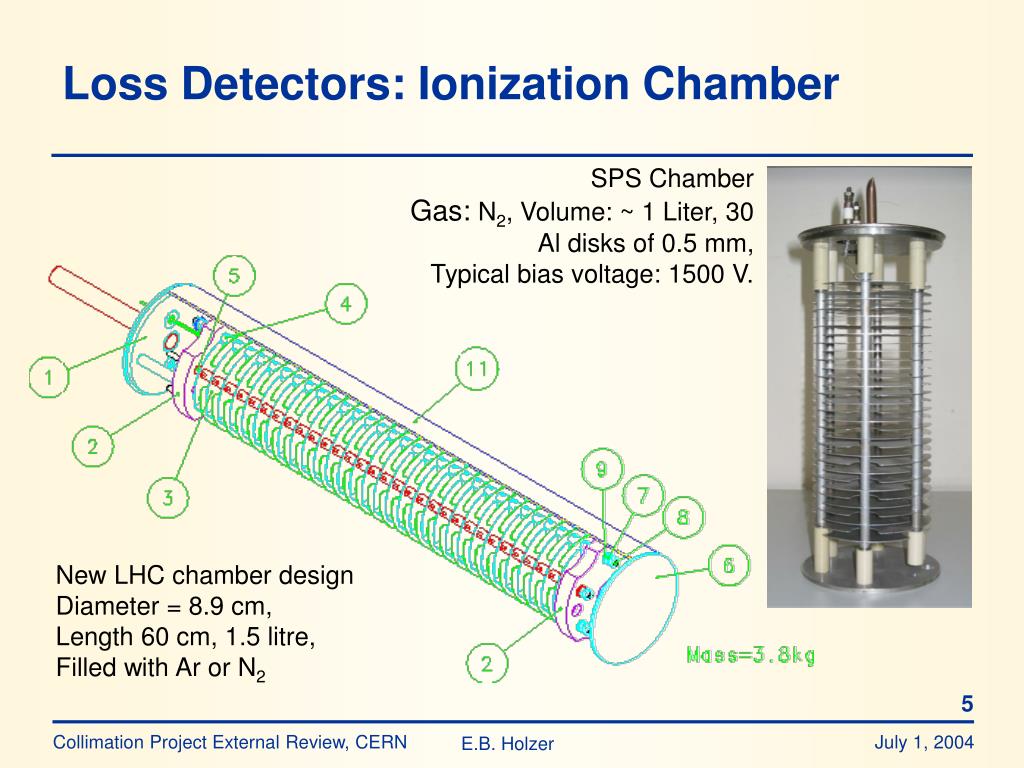

  5. Loss Detectors: Ionization Chamber SPS Chamber Gas:N2, Volume: ~ 1 Liter, 30 Al disks of 0.5 mm, Typical bias voltage: 1500 V. New LHC chamber design Diameter = 8.9 cm, Length 60 cm, 1.5 litre, Filled with Ar or N2

  6. Secondary Emission Monitor Diameter = 8.9 cm Length 15 cm

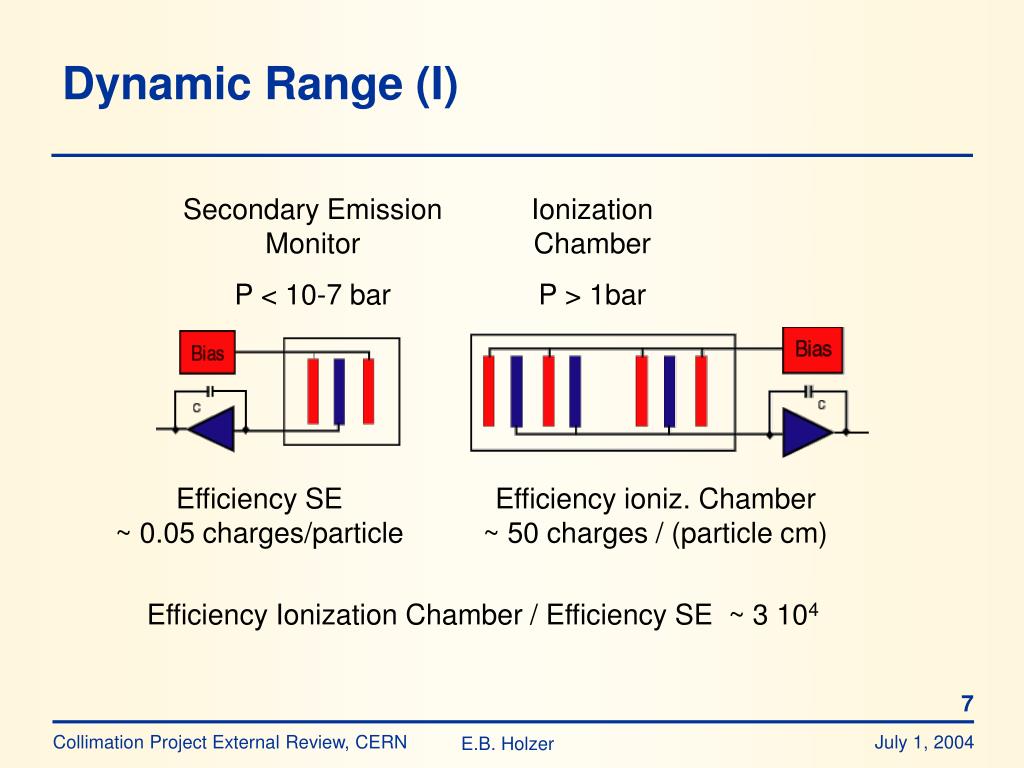

  7. Dynamic Range (I) Secondary Emission Monitor P < 10-7 bar Ionization Chamber P > 1bar Efficiency SE ~ 0.05 charges/particle Efficiency ioniz. Chamber ~ 50 charges / (particle cm) Efficiency Ionization Chamber / Efficiency SE ~ 3 104

  8. Dynamic Range (II) Beam Loss Current BLMC and BLMS*

  9. System Layout Threshold Comparator: Losses integrated in 12 time intervals to approximate quench level curve.

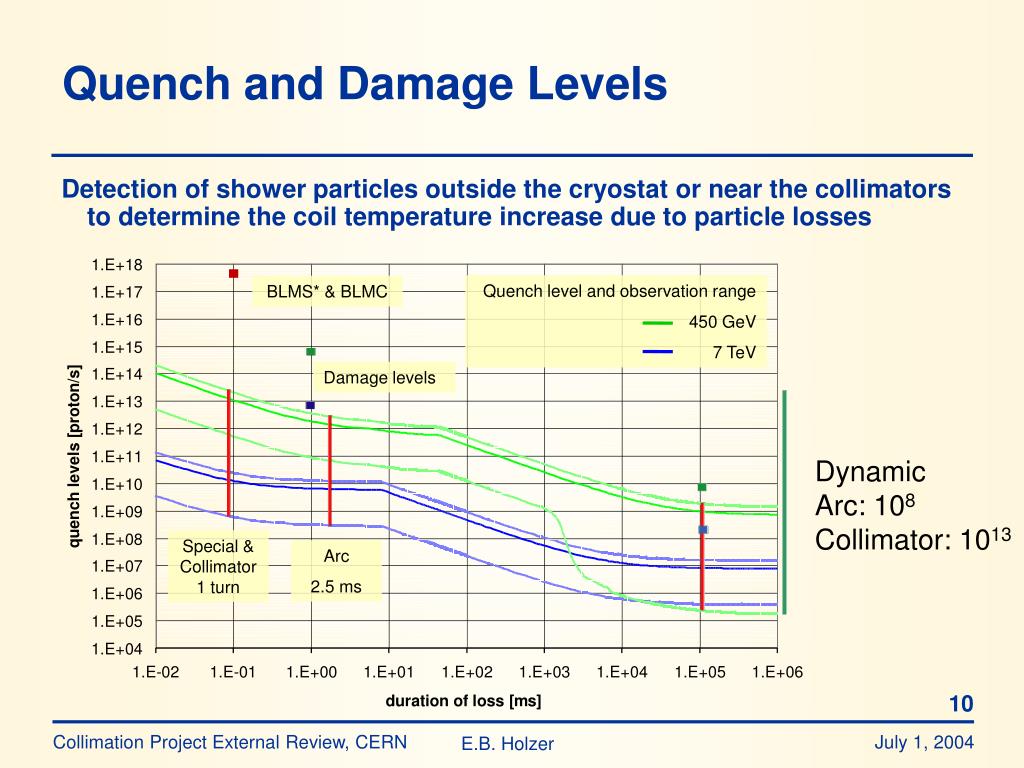

  10. Quench and Damage Levels • Detection of shower particles outside the cryostat or near the collimators to determine the coil temperature increase due to particle losses Quench level and observation range 450 GeV 7 TeV BLMS* & BLMC Damage levels Dynamic Arc: 108 Collimator: 1013 Special & Collimator1 turn Arc 2.5 ms

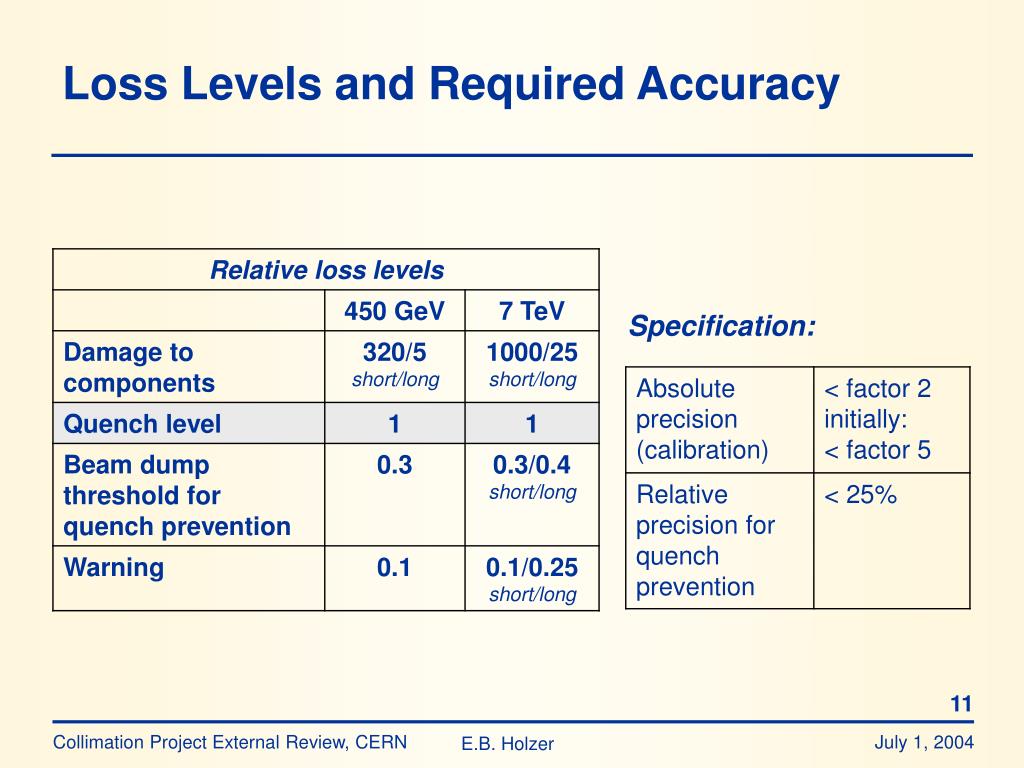

  11. Loss Levels and Required Accuracy Specification:

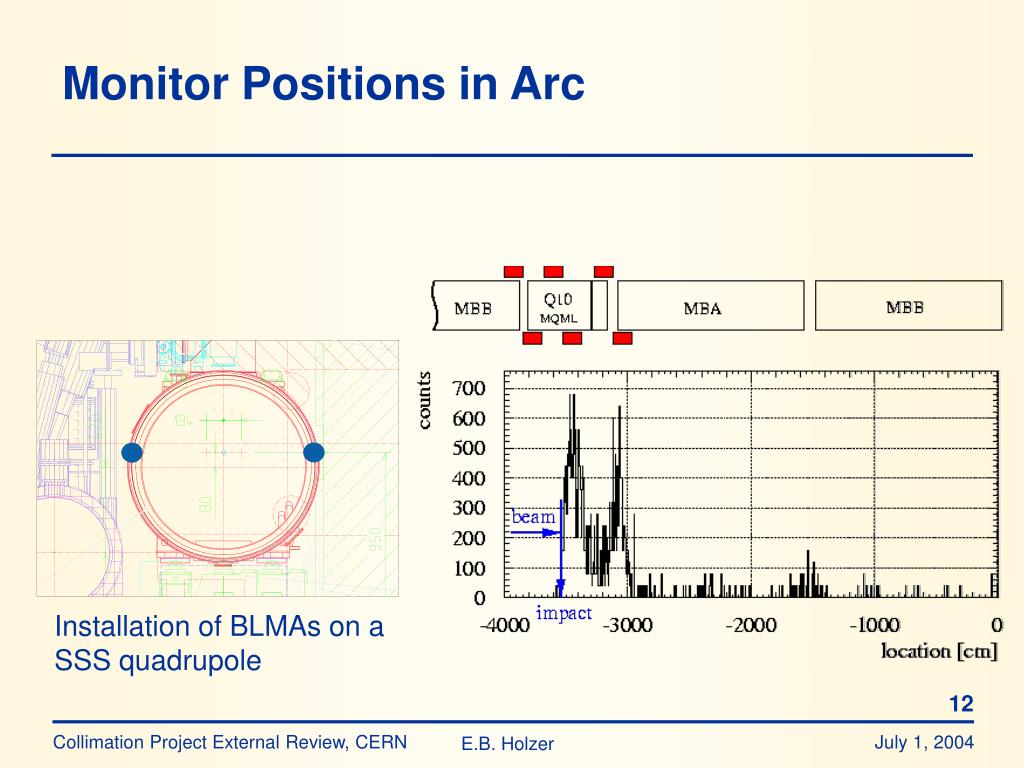

  12. Monitor Positions in Arc Installation of BLMAs on a SSS quadrupole

  13. Monitor Positions in Collimation Collimator interconnect with ion pump and BLM (possible positions)

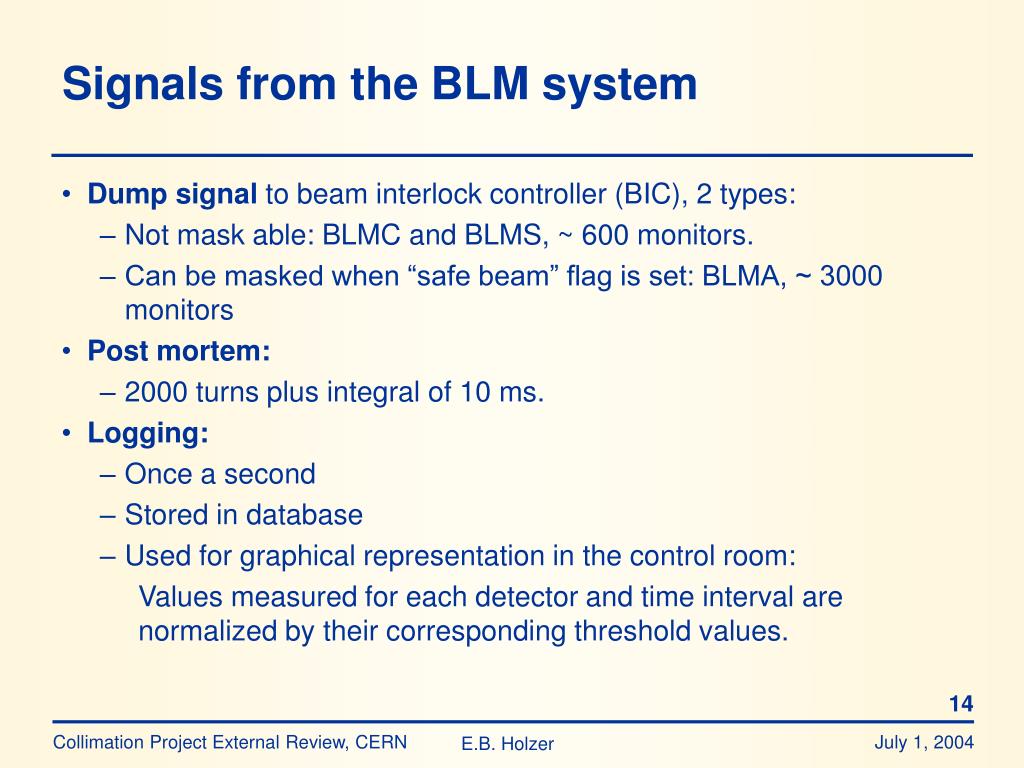

  14. Signals from the BLM system • Dump signal to beam interlock controller (BIC), 2 types: • Not mask able: BLMC and BLMS, ~ 600 monitors. • Can be masked when “safe beam” flag is set: BLMA, ~ 3000 monitors • Post mortem: • 2000 turns plus integral of 10 ms. • Logging: • Once a second • Stored in database • Used for graphical representation in the control room: Values measured for each detector and time interval are normalized by their corresponding threshold values.

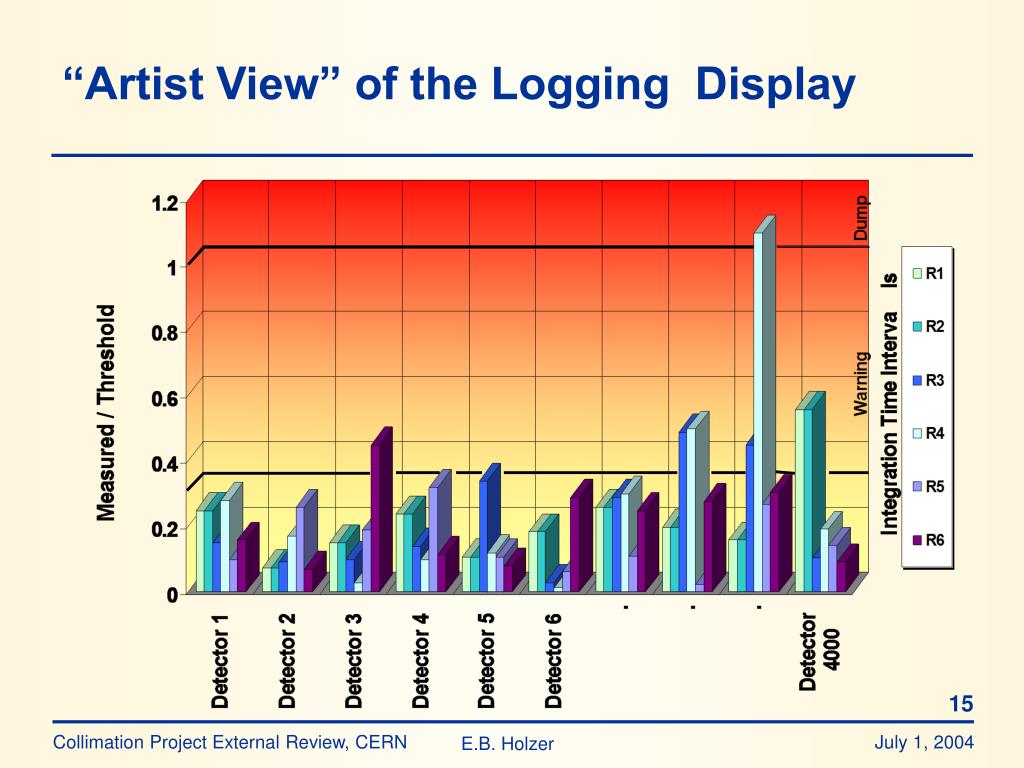

  15. “Artist View” of the Logging Display

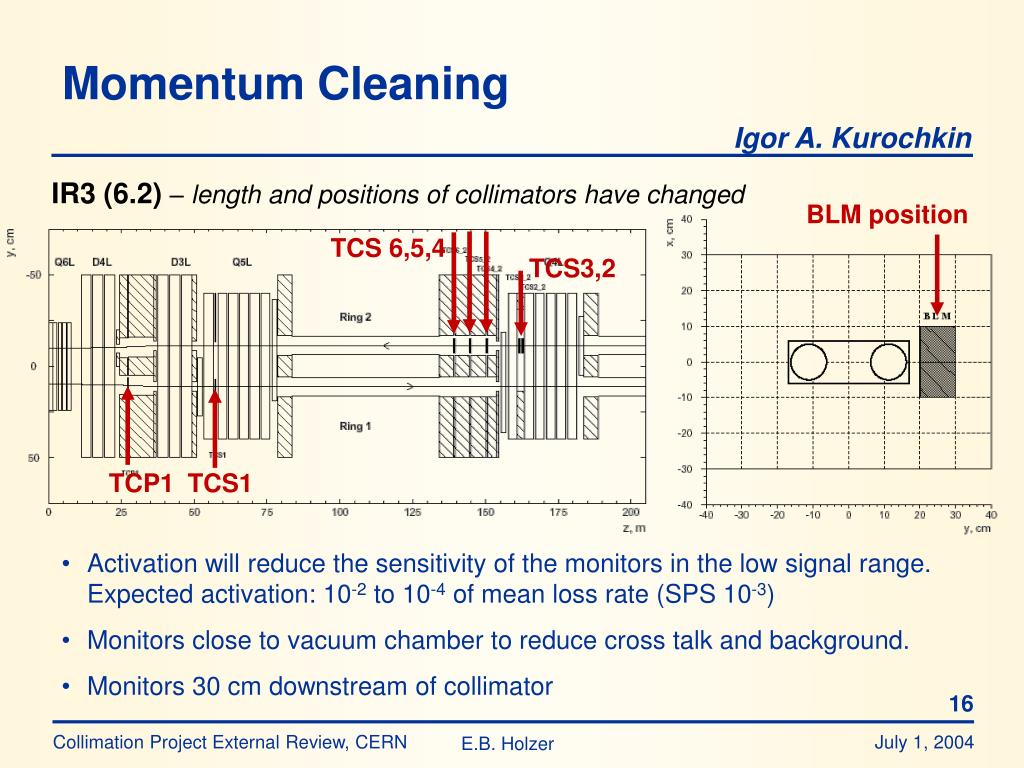

  16. Momentum Cleaning Igor A. Kurochkin IR3 (6.2) – length and positions of collimators have changed BLM position TCS 6,5,4 TCS3,2 TCS1 TCP1 • Activation will reduce the sensitivity of the monitors in the low signal range. Expected activation: 10-2 to 10-4 of mean loss rate (SPS 10-3) • Monitors close to vacuum chamber to reduce cross talk and background. • Monitors 30 cm downstream of collimator

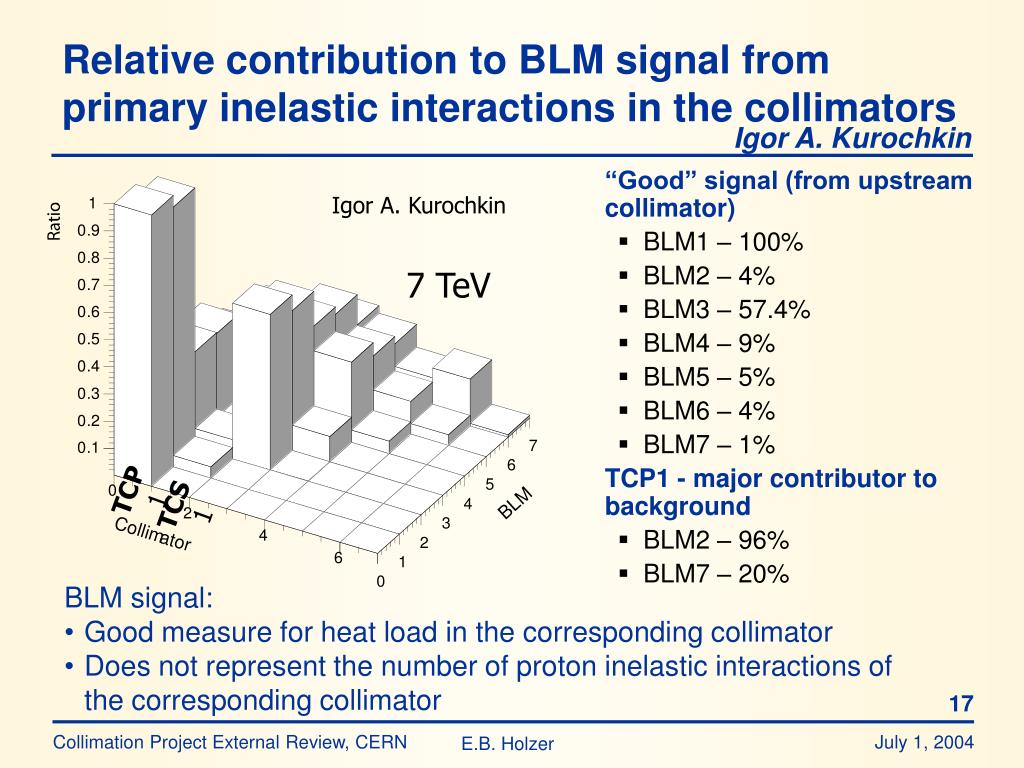

  17. Igor A. Kurochkin 7 TeV TCP 1 TCS 1 Relative contribution to BLM signal from primary inelastic interactions in the collimators Igor A. Kurochkin • “Good” signal (from upstream collimator) • BLM1 – 100% • BLM2 – 4% • BLM3 – 57.4% • BLM4 – 9% • BLM5 – 5% • BLM6 – 4% • BLM7 – 1% • TCP1 - major contributor to background • BLM2 – 96% • BLM7 – 20% • BLM signal: • Good measure for heat load in the corresponding collimator • Does not represent the number of proton inelastic interactions of the corresponding collimator

  18. Best signal to background and signal to cross talk at position near to the beam Transversal Variation of Monitor Location Igor A. Kurochkin Igor A. Kurochkin TCS1 • Total energy deposition. The contribution from beam 2 (crosstalk) is small (<1%) due to longitudinal distance.

  19. Betatron Cleaning M. Brugger, S. Roesler • Primary interactions • Inelastic interaction rate (star), threshold 20MeV Comparison of energy deposition [GeV] to inelastic interaction rate in IP3: • They scale for the downstream secondary collimators (2 – 3 GeV per inelastic interaction) • Primary collimator: 0.4 GeV • First secondary collimator: 3.3 GeV

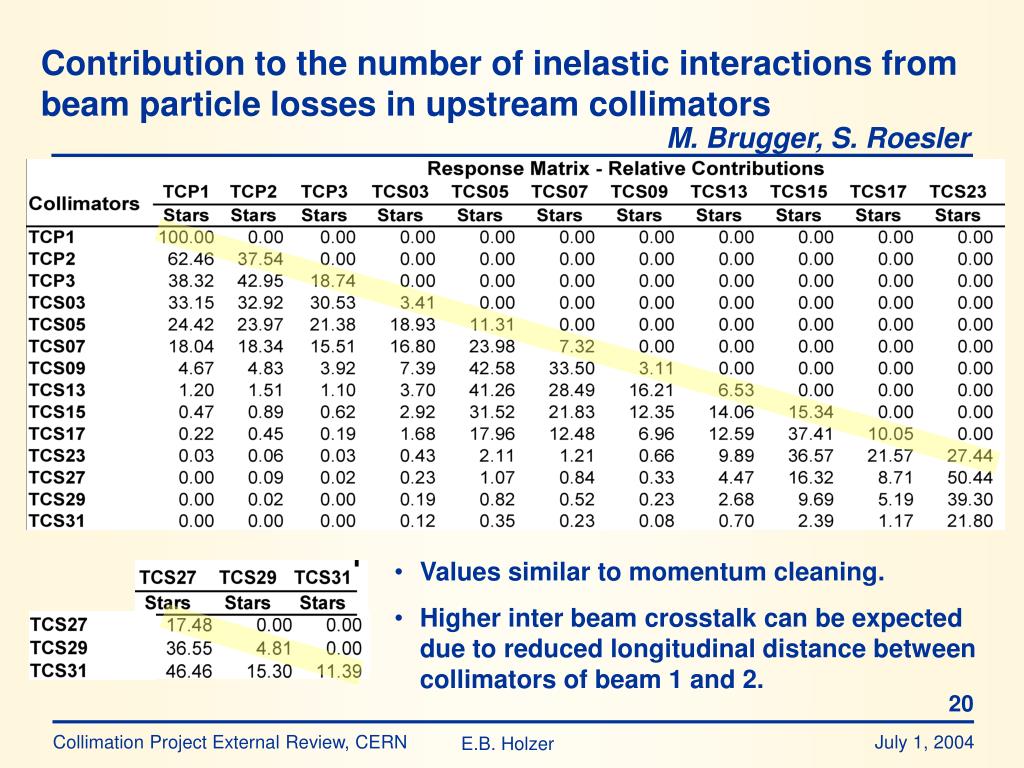

  20. Contribution to the number of inelastic interactions from beam particle losses in upstream collimators M. Brugger, S. Roesler • Values similar to momentum cleaning. • Higher inter beam crosstalk can be expected due to reduced longitudinal distance between collimators of beam 1 and 2.

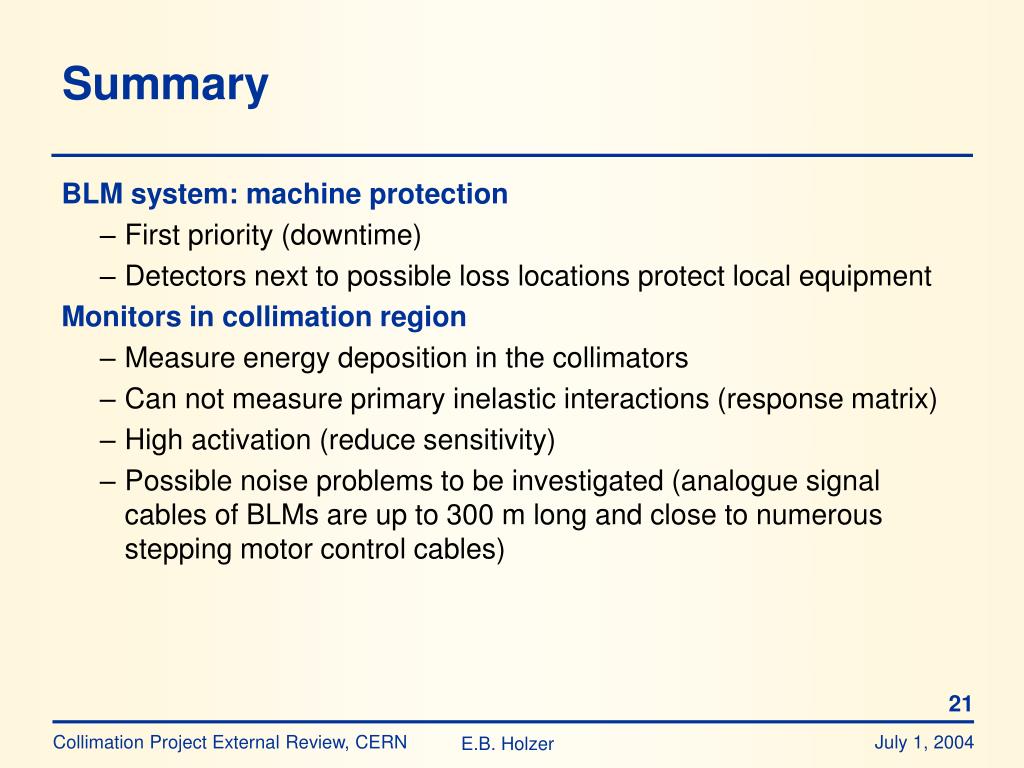

  21. Summary • BLM system: machine protection • First priority (downtime) • Detectors next to possible loss locations protect local equipment • Monitors in collimation region • Measure energy deposition in the collimators • Can not measure primary inelastic interactions (response matrix) • High activation (reduce sensitivity) • Possible noise problems to be investigated (analogue signal cables of BLMs are up to 300 m long and close to numerous stepping motor control cables)
