Aqueous Two-Phase Extraction: Techniques and Applications in Bioprocessing

virote avatar
13 diapositives · 662 Views · Jul 23, 2014

Aqueous two-phase extraction (ATPE) is a valuable technique for separating biomolecules like proteins, cells, and nucleic acids through the use of water-soluble polymers or salts. By combining two polymers, such as polyethylene glycol (PEG) and dextran, or a polymer and a salt like ammonium sulfate, distinct immiscible phases form above a critical concentration. This technique facilitates the targeted enrichment of desired biomolecules based on their physical and chemical properties, making it a powerful tool in various bioprocessing applications, including protein purification and analysis.

Aqueous Two-Phase Extraction: Techniques and Applications in Bioprocessing - slide 1
01 / 13Aqueous Two-Phase Extraction: Techniques and Applications in Bioprocessing
1 / 17

Télécharger la présentation

Aqueous Two-Phase Extraction: Techniques and Applications in Bioprocessing
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation
  1. Downstream Processes BIE/CEE 5930/6930Spring 2010

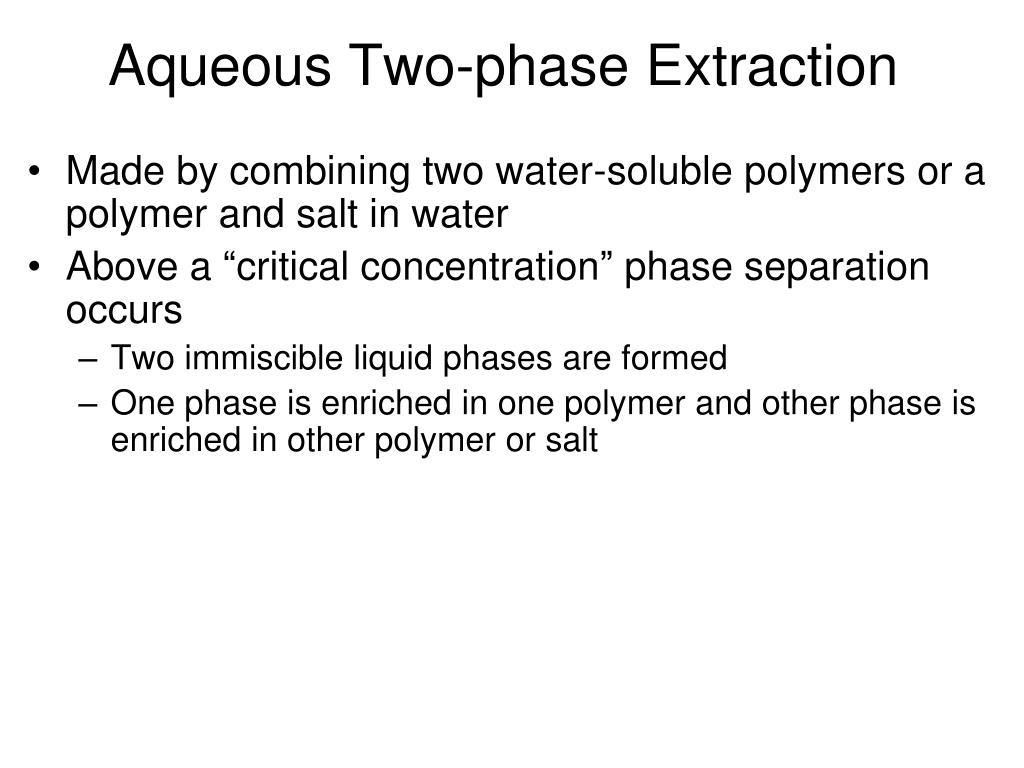

  2. Aqueous Two-phase Extraction • Made by combining two water-soluble polymers or a polymer and salt in water • Above a “critical concentration” phase separation occurs • Two immiscible liquid phases are formed • One phase is enriched in one polymer and other phase is enriched in other polymer or salt

  3. Can be used to separate proteins, cells, cell organelles, nucleic acids, polysaccharides. • Examples • Polymer/polymer: Poly-ethylene glycol (PEG)/Dextran • Polymer/salt: PEG/(NH4)2SO4(ammonium sulfate)

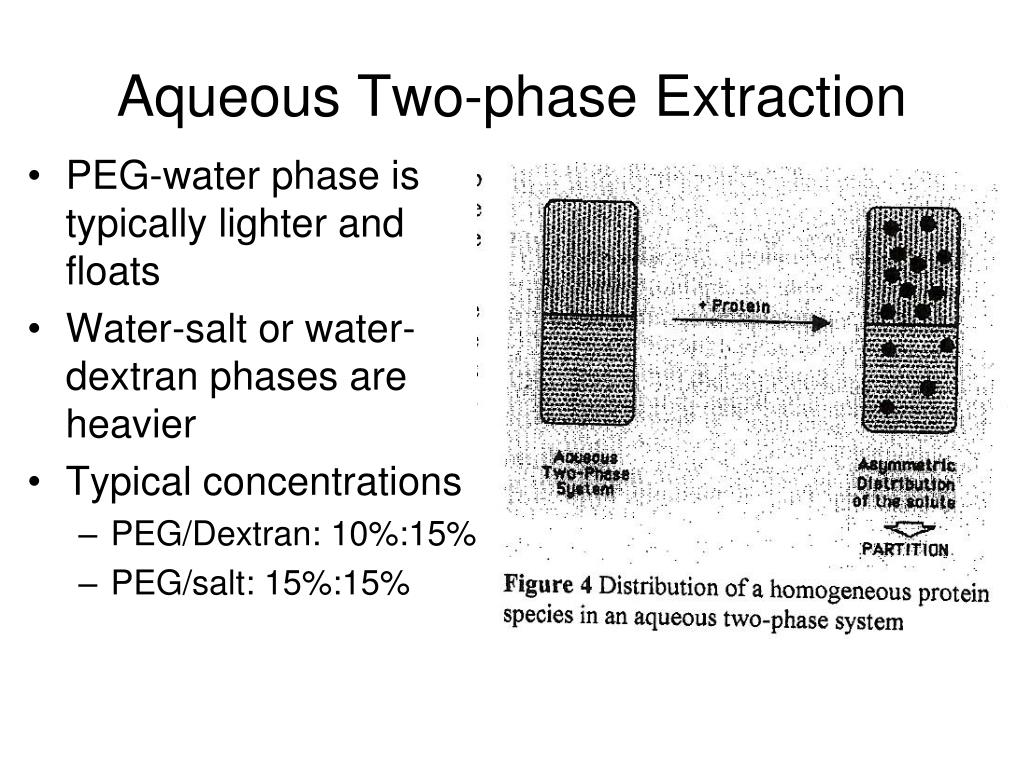

  4. Aqueous Two-phase Extraction • PEG-water phase is typically lighter and floats • Water-salt or water-dextran phases are heavier • Typical concentrations • PEG/Dextran: 10%:15% • PEG/salt: 15%:15%

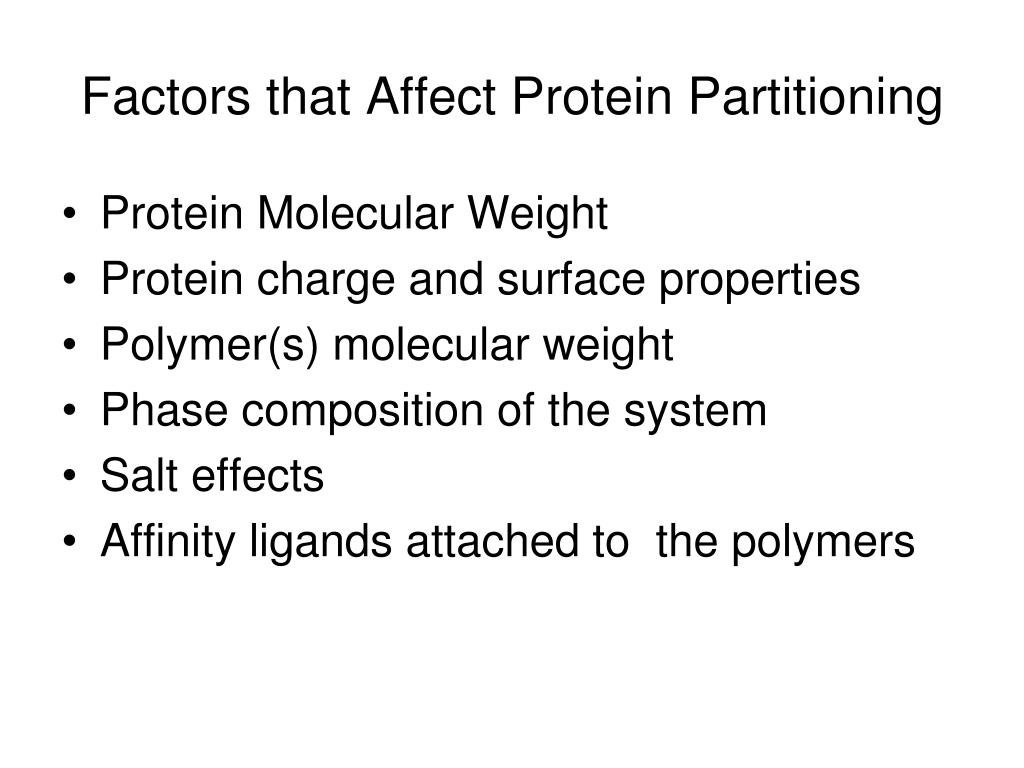

  5. Factors that Affect Protein Partitioning • Protein Molecular Weight • Protein charge and surface properties • Polymer(s) molecular weight • Phase composition of the system • Salt effects • Affinity ligands attached to the polymers

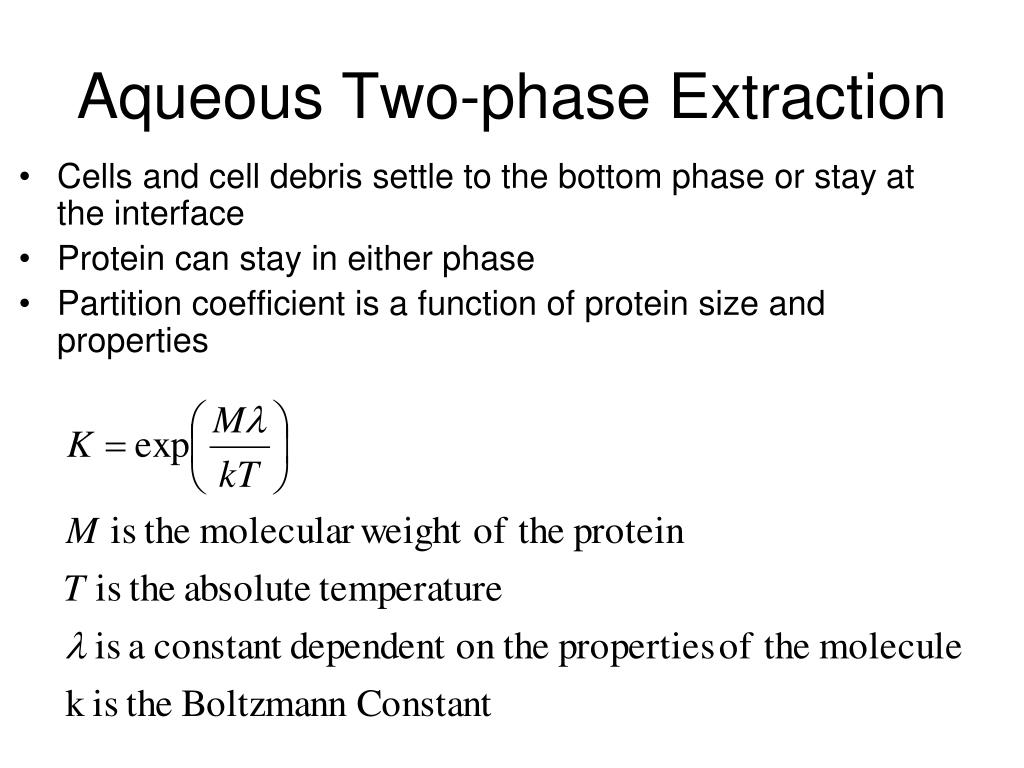

  6. Aqueous Two-phase Extraction • Cells and cell debris settle to the bottom phase or stay at the interface • Protein can stay in either phase • Partition coefficient is a function of protein size and properties

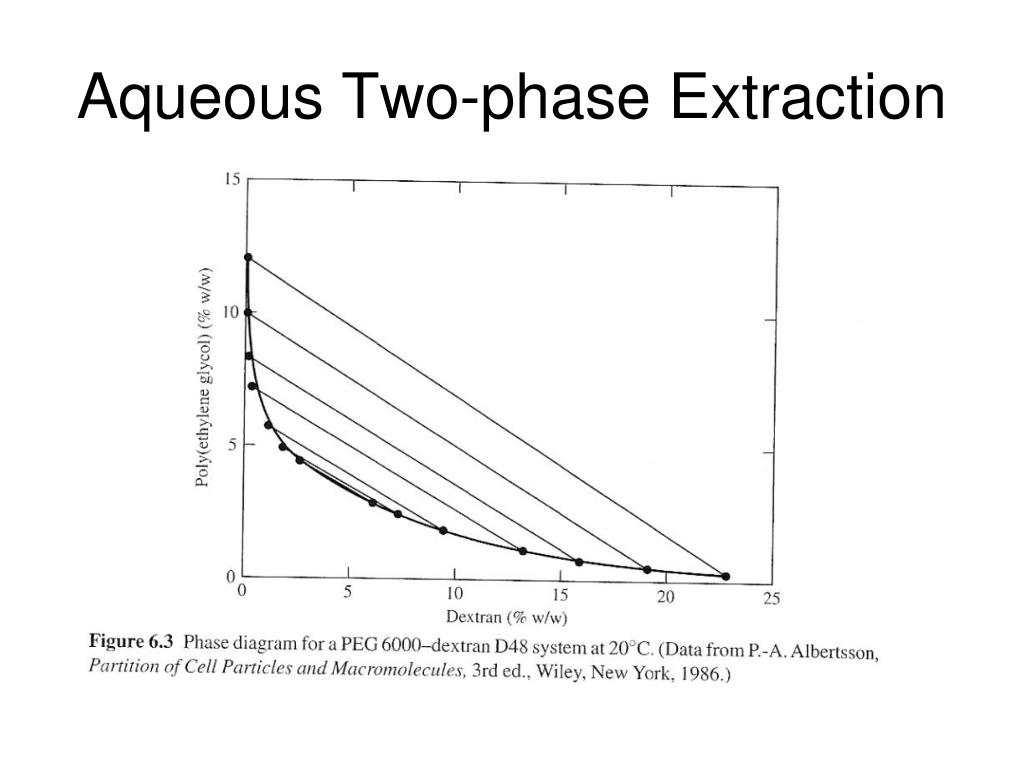

  7. Aqueous Two-phase Extraction

  8. Below the line is a single phase • On the line is two phases • The tie-line connect compositions that are in equilibrium

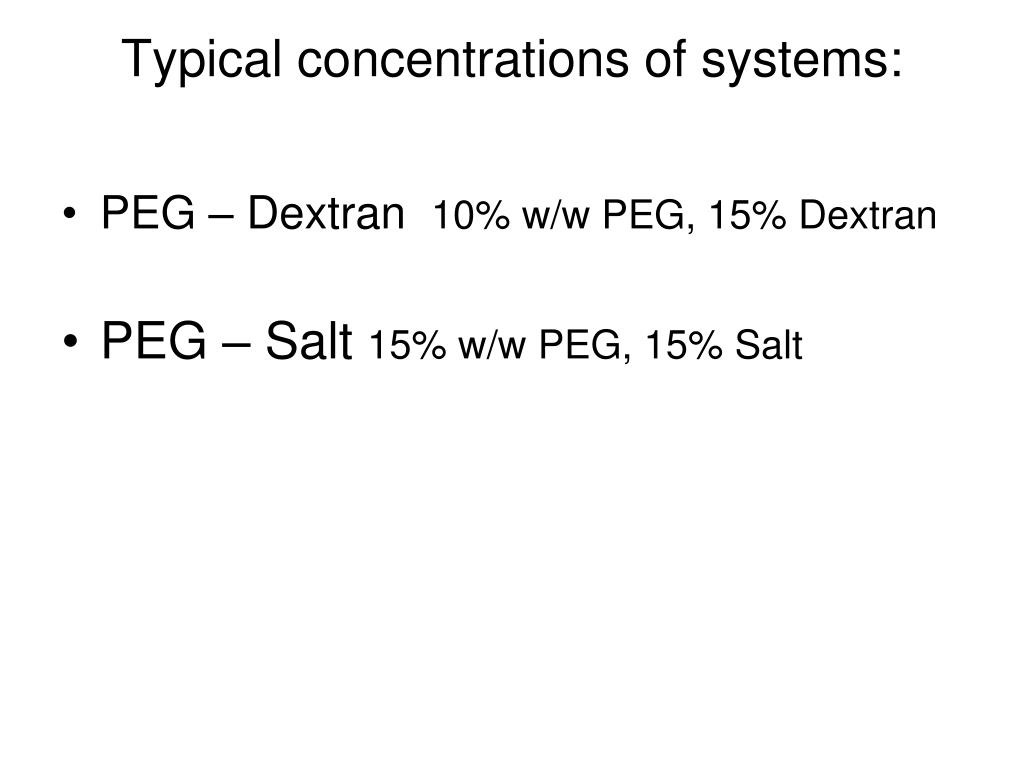

  9. Typical concentrations of systems: • PEG – Dextran10% w/w PEG, 15% Dextran • PEG – Salt 15% w/w PEG, 15% Salt

  10. Effect of Salt Concentration

  11. Effect of protein molecular weight

  12. Typical process flow diagram
