Parent Functions & Transformations

Parent Functions & Transformations. Objective: identify common types of functions; describe transformations given an equation. How does adding/subtracting/multiplying affect the shape or position of a graph?. Linear. f (x)=x. f (x)= a (x – h )+ k. Quadratic. f (x)=x 2.

vita
Télécharger la présentation

Parent Functions & Transformations

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

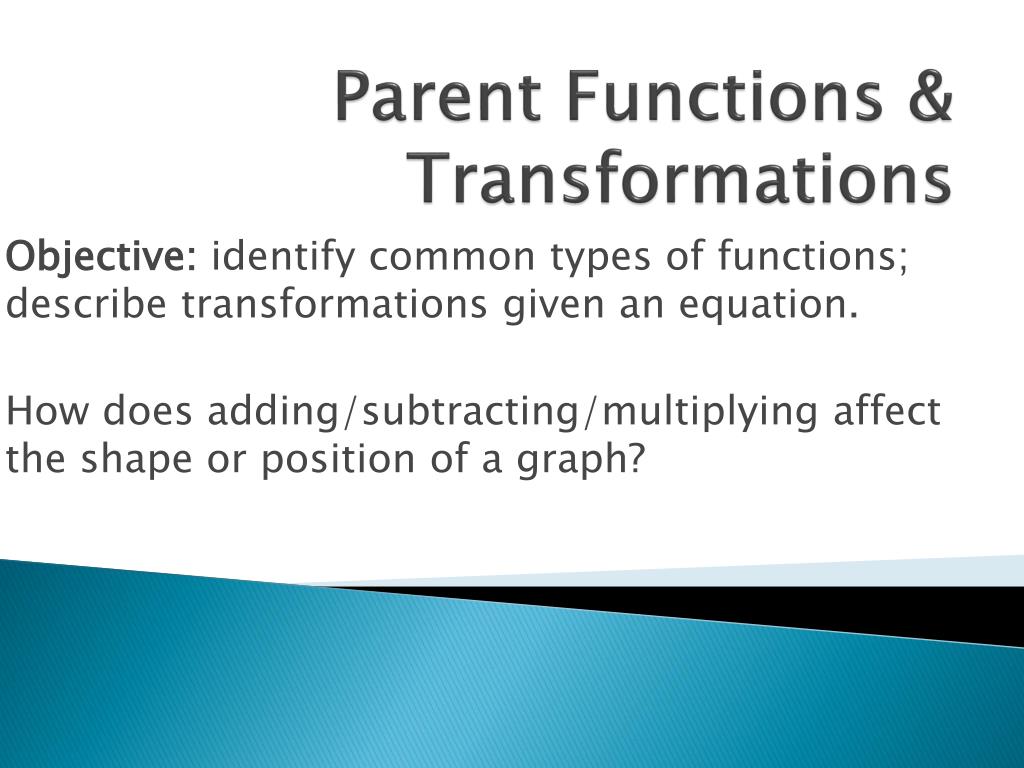

  1. Parent Functions & Transformations Objective: identify common types of functions; describe transformations given an equation. How does adding/subtracting/multiplying affect the shape or position of a graph?

  2. Linear f(x)=x f(x)=a(x – h)+k

  3. Quadratic f(x)=x2 f(x)=a(x – h)2+k

  4. Cubic f(x)=x3 f(x)=a(x – h)3+k

  5. Absolute Value f(x)=|x| f(x)=a|x – h|+ k

  6. Square Root f(x)=√x

  7. Exponential f(x)= ex f(x)= ab(x – h) + k

  8. Logarithm f(x)= log(x) f(x)= alog(x – h) + k

  9. Reciprocal

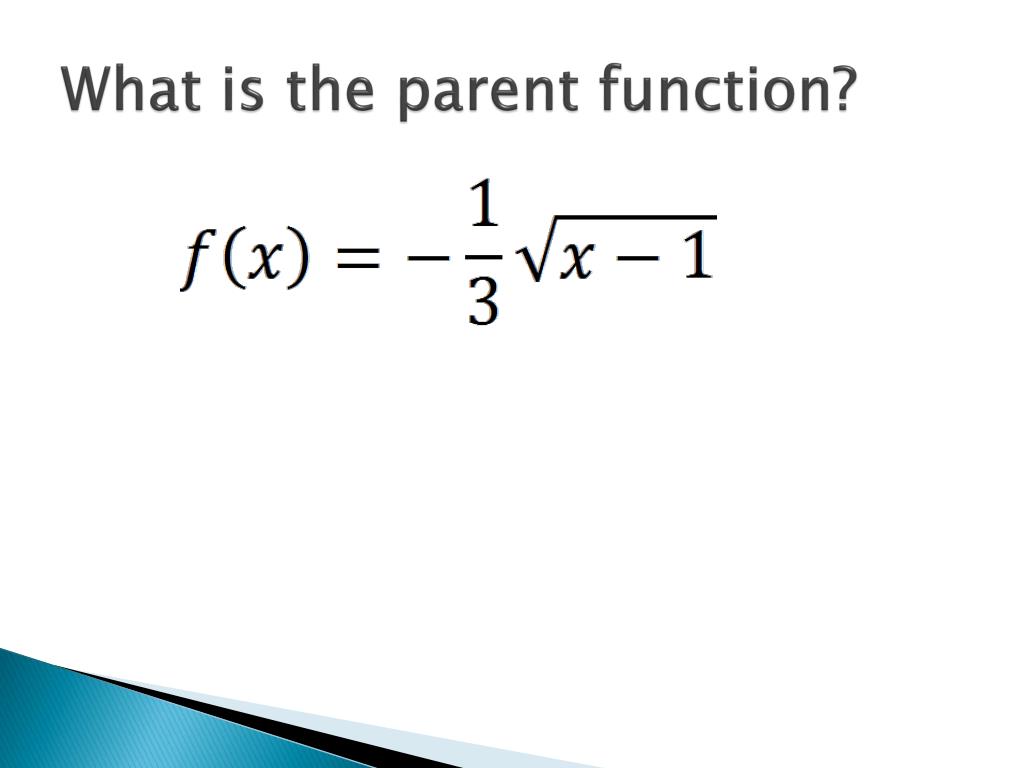

  10. What is the parent function?

  11. What is the parent function?

  12. What is the parent function?

  13. What is the parent function?

  14. What is the parent function?

  15. What is the parent function?

  16. What is the parent function?

  17. What is the parent function?

  18. What is the parent function?

  19. What is the parent function?

  20. Transformation • A change in the size/shape of the graph • TRANSLATION = Move (slide) • REFLECTION = Flip • STRETCH • COMPRESSION

  21. OUTISDE Transformations • Affect the Y values • Change the graph VERTICALLY • (INSIDE) Transformations • Affect the X values • Change the graph HORIZONTALLY • ACT “OPPOSITE”

  22. Reflects over x-axis y = -a(x–h) +k Vertical stretch or compression Move up/down Move right/left

  23. Ex 1.)f(x) = (x + 5)2 Parent: Inside/outside?: Transformation:

  24. Ex 2.) Parent: Inside/outside?: Transformation:

  25. Ex 3.) Parent: Inside/outside?: Transformation:

  26. Ex 4) f(x) = 3(x – 5)2 + 1 Parent: Transformations:

  27. Ex 5) Parent: Transformations:

  28. Ex 6) Parent: Transformations:

  29. Sketch New Graph Parent: y = x2 y = x2 – 3

  30. Sketch New Graph Parent: y = x2 y = (x – 3)2

  31. Sketch New Graph Parent: y = x2 y = 2x2

  32. Sketch New Graph Parent: y = x2 y = -2(x + 6)2 + 1

  33. Sketch New Graph Parent: y = x2 y = 3x2 – 4

  34. Sketch New Graph Parent: y = √x

  35. Sketch New Graph Parent: y = √x

  36. Sketch New Graph Parent: f(x) = |x|

  37. Sketch New Graph Parent: f(x) = |x|

  38. Write the equation of an absolute value graph that has been translated 2 units to the right y = |x – 2|

  39. Write the equation of an absolute value graph that has been moved 4 units down y = |x| – 4

  40. Write the equation of an absolute value graph that has been stretched by 2 and moved up 7 y = 2|x| + 7

  41. Write the equation of an absolute value graph that has been flipped over the x-axis and moved to the left 1 y = -|x+1|

  42. Write the equation of an absolute value graph that has been translated 5 units to the left and 2 units down y = |x + 5| - 2
