Digital Highways What are they? Why do we need them? How do we get there?

1. Digital HighwaysWhat are they? Why do we need them?How do we get there? Ron Singh, PLS Chief of Surveys/Geometronics Manager Oregon Department of Transportation ODOT Surveyors Conference Salem, Oregon 1 April, 2014

2. Maps • Purpose - Visualize a representation of a (physical) real world area • Evolution • Crude sketches (2D) • 1:x Scale drawings (2D) • 1:1 Scale drawings (2D and 2 ½D) • True 3D (varying levels) • Virtual world

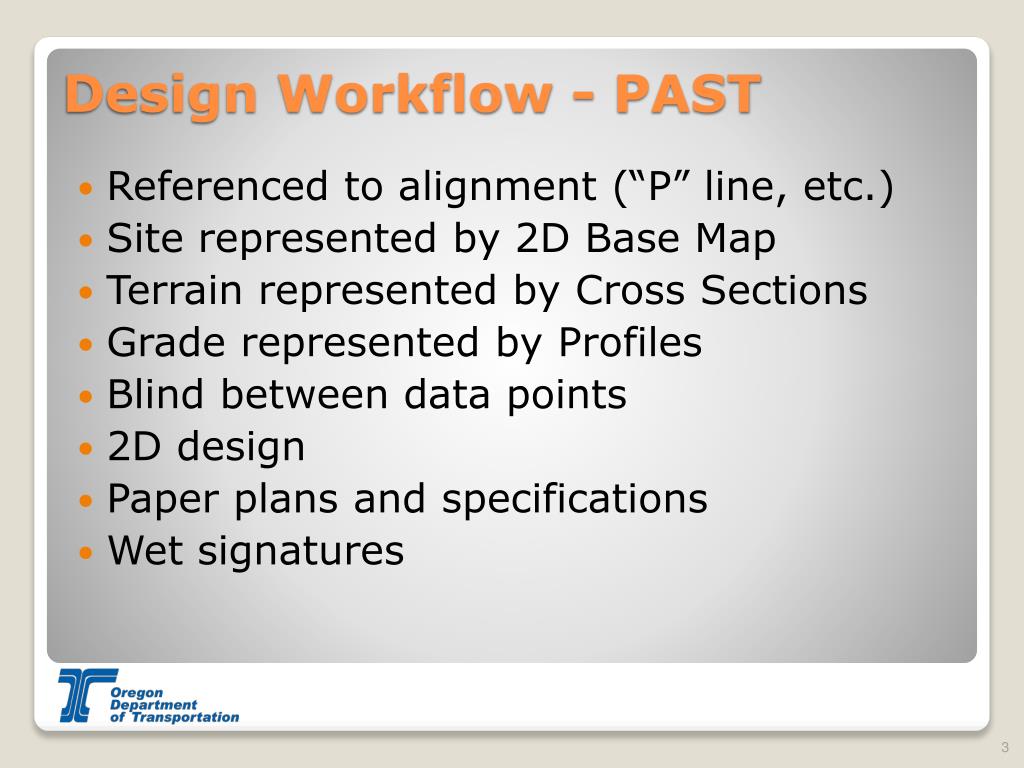

3. Design Workflow - PAST • Referenced to alignment (“P” line, etc.) • Site represented by 2D Base Map • Terrain represented by Cross Sections • Grade represented by Profiles • Blind between data points • 2D design • Paper plans and specifications • Wet signatures

4. Design Workflow - TODAY • Geospatially referenced • Coordinates projected to plane • Site represented by 2 ½ D Base Map • Terrain represented by Digital Terrain Model (DTM) • Blind between data points – albeit closer • 3D roadway prism design flattened to 2D • Paper plans and specifications • Wet or Digital signatures

5. Design Workflow - FUTURE • Truly Geospatially referenced • 3D coordinate system – No projections • Site/Terrain represented by virtual world • Full 3D design • Digital signatures • 3D data utilized for construction • Hierarchy – Data primary, plans secondary

6. Traditional As-built Plans • Documents changes to plans • Red lines on hardcopy plans • Now on CAD drawings • Low priority compared to construction • Very dependent on inspector • Made from rough measurements • Not sealed by engineer or surveyor

7. Traditional As-built Plans • 2D • Unreliable • Not useful for subsequent engineering

8. Future • Engineering data life cycle • As-built 3D model • Utilize for maintenance, operation, asset management and future engineering • Engineering accuracy • Low distortion coordinates • Post Construction Survey • Sealed by licensed surveyor

9. Post Construction Survey • Performed during and post construction • Final Horizontal and Vertical Control • Right-of-Way boundary • Roadway prism information and DTM • Underground utilities and features • On-ground features • Above ground features

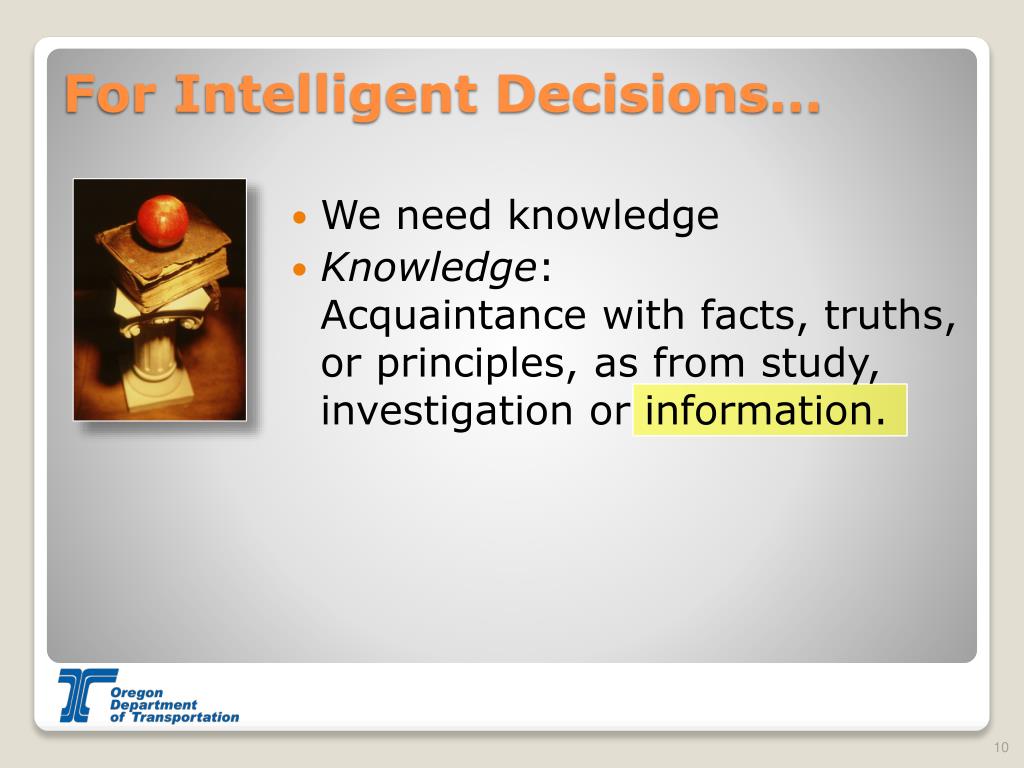

10. For Intelligent Decisions… • We need knowledge • Knowledge: Acquaintance with facts, truths, or principles, as from study, investigation or information.

11. Knowledge of… • Our transportation system -- what we have • It’s condition • The load on it • Areas of concern • Public’s need • Gaps • Priorities • Resources • Funding VISION for the future PLAN for the future!

12. Digital Highways Future backbone of highway information system enabling: • Safer, smarter, less disruptive surveying • 3D Design – advanced visualization, clash and problem detection • Automated machine guidance and intelligent construction systems • Sophisticated asset management for informed decisions • Efficient operation of our highway system … and the inevitable transition to partial and fully autonomous vehicles.

13. Highway Lifecycle Data • Digital Highways – entire state system • Visual – image based, solid models • Created by existing feature data capture • Interspersed by 3D Engineered Models • Engineering centerline alignment • Right-of-way boundary • Design/As-built • Asset inventory w/attributes • Performance data

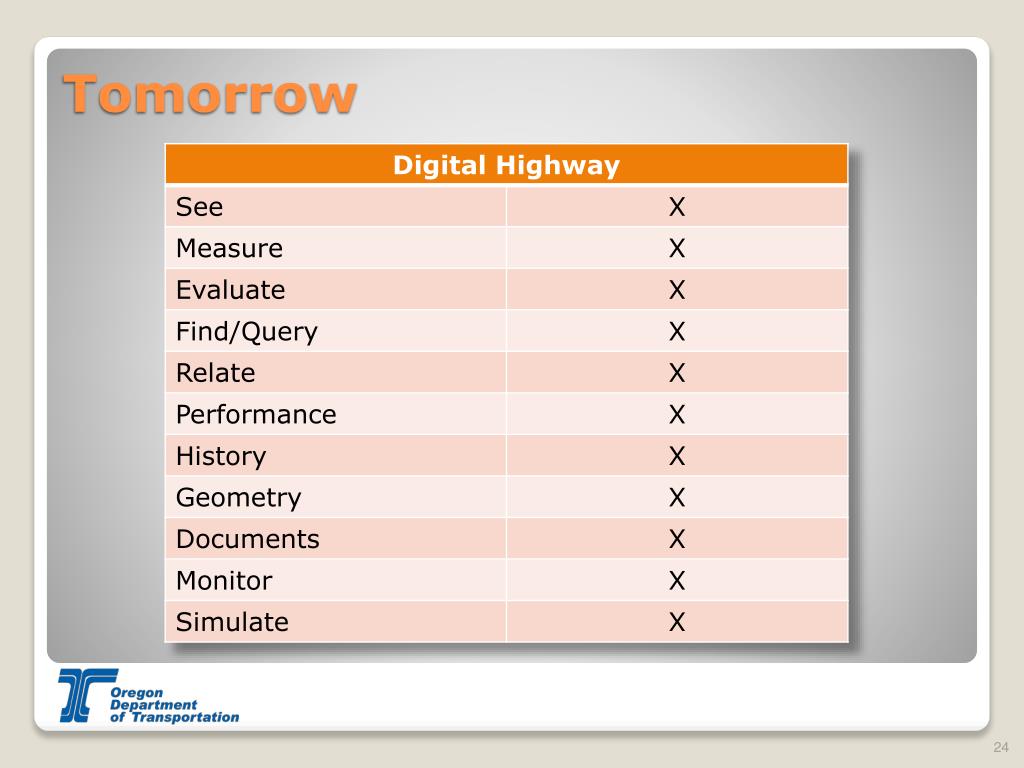

14. Operational Needs • See • Above, on and below the surface • Measure • Location (geospatial), distance, area, volume • Evaluate • Age, condition, performance • Find/Query • Locate, tally, report • Relate • Planer, Linear Referencing, adjoiners

15. Operational Needs • Manage Performance • Safety, traffic volume, weather impacts, • Track History • Design, construction, documents • Understand Geometry • Design, as-built, survey, professionals of record • Retrieve Documents • Contracts, inter-governmental agreements, plan sets, technical reports

16. Operational Needs • Monitor • Movement, deformation, degradation • Simulate • Traffic, oversize routing • Overlay • Live traffic, micro weather

17. Today

18. Point Clouds • Enables the development of Digital Highways • A means to an end • Created, certified, and managed by expert qualified personnel • Black Box • Simplified for end user

19. Point Clouds (for projects) • Full Utilization of Information Rich Point Clouds • From “2½D BaseMap” to “Virtual World” • No Traditional (Triangulated) DTM • Critical 3D Objects: • Mathematically Modeled (geometric solid object) • Mesh Modeled (reality, imperfect, discreet objects) • 3D Feature Extraction ONLY Where Necessary for Design • Certified by Professional of Record

20. Point Clouds (as an asset) • Virtual Highway Corridors • Information Rich Point Clouds • Aerial and Oblique Imagery • Accuracy • Low for entire system • Engineering/Quality in certain areas • Programmatic Approach (statewide, cyclic) • Updated by Project As-Built Post Construction Surveys

21. Point Clouds (as an asset) • Integrated w/GIS • Engineering Alignments • Right-of-Way Boundaries • Asset Inventory • Pavement Conditions • Replacement for Digital Video Log • Safety Analysis • Accident Reconstruction Survey (streamline) • Oversize Vehicle Routing

22. Proactive Data-centric Approach Construct Maintain Design Survey

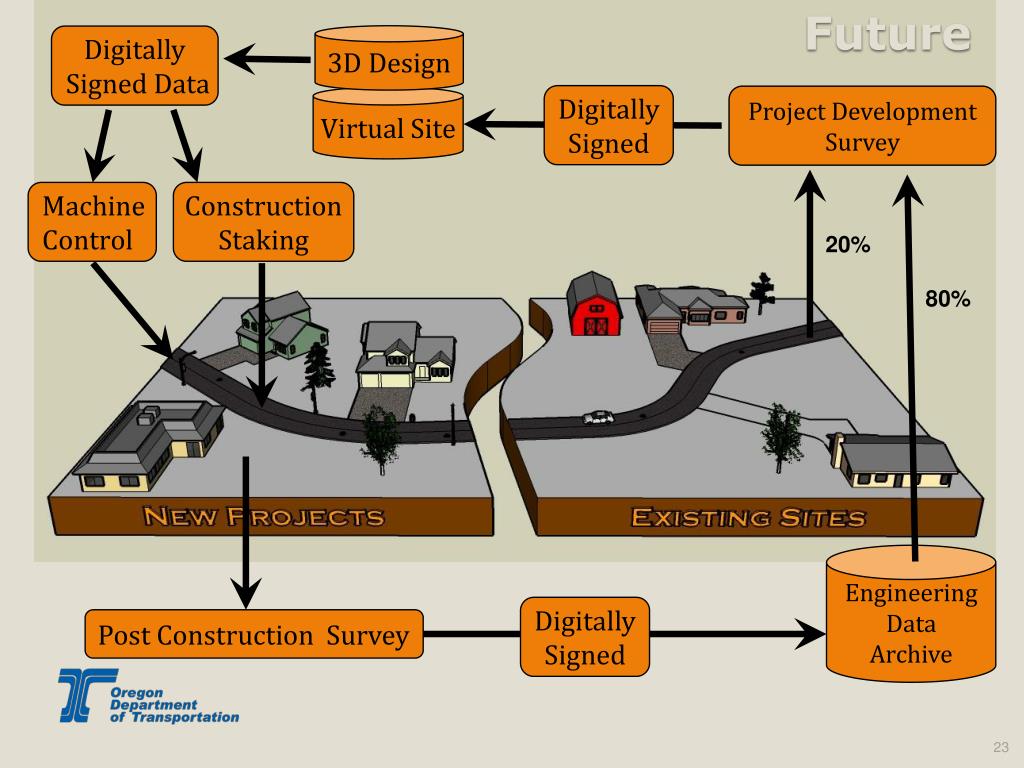

23. 3D Design Digitally Signed Data Future Digitally Signed Project Development Survey Virtual Site Machine Control Construction Staking 20% 80% Engineering Data Archive Digitally Signed Post Construction Survey

24. Tomorrow

25. Recent Example of Operational Useof LiDAR

26. Sanpoil

35. Ron Singh, PLS Chief of Surveys/Geometronics Manager Oregon Department of Transportation Thank You!
