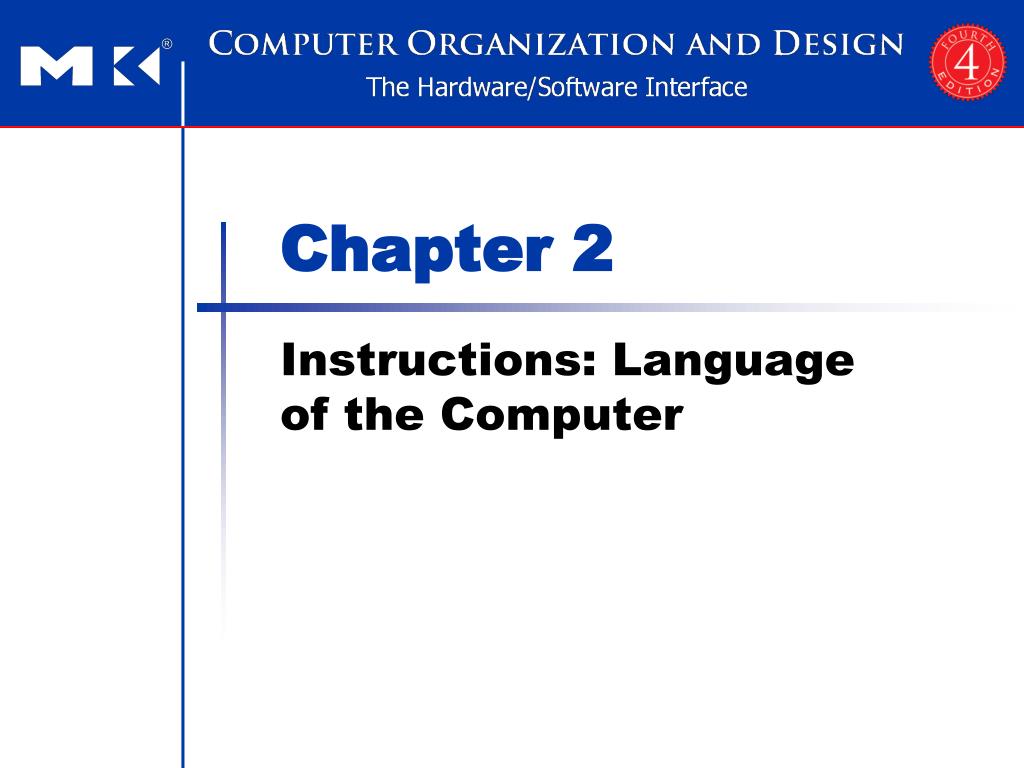

Chapter 2. Instructions: Language of the Computer. Instruction Set. §2.1 Introduction. The repertoire of instructions of a computer Different computers have different instruction sets But with many aspects in common Early computers had very simple instruction sets Simplified implementation

vivian-kirkland
Télécharger la présentation

Chapter 2

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Chapter 2 Instructions: Language of the Computer

  2. Instruction Set §2.1 Introduction • The repertoire of instructions of a computer • Different computers have different instruction sets • But with many aspects in common • Early computers had very simple instruction sets • Simplified implementation • Many modern computers also have simple instruction sets Chapter 2 — Instructions: Language of the Computer — 2

  3. The MIPS Instruction Set • Used as the example throughout the book • Stanford MIPS commercialized by MIPS Technologies (www.mips.com) • Large share of embedded core market • Applications in consumer electronics, network/storage equipment, cameras, printers, … • Typical of many modern ISAs • See MIPS Reference Data tear-out card, and Appendixes B and E Chapter 2 — Instructions: Language of the Computer — 3

  4. The ARM Instruction Set • Used as the example in chapters 2 and 3 • Most popular 32-bit instruction set in the world (www.arm.com) • 4 Billion shipped in 2008 • Large share of embedded core market • Applications include mobile phones, consumer electronics, network/storage equipment, cameras, printers, … • Typical of many modern RISC ISAs • See ARM Assembler instructions, their encoding and instruction cycle timings in appendixes B1,B2 and B3 (CD-ROM) Chapter 2 — Instructions: Language of the Computer — 4

  5. SW in high level language SW in assembly language (instruction set) HW implementation Why study instruction sets? • Interface of hardware and software • Efficient mapping: • Software in high level language  software in assembly language (instruction set) (Chapter 2) • Impact SW cost/performance • Instruction set  hardware implementation (Chapter 3&4) • Impact HW cost/performance

  6. C, C++, SystemC, etc. Assembly programming Verilog/VHDL Electronic System Design Laboratory • GOAL: • Training of students who are able to master the hardware/software co-design, co-simulation, co-verification.

  7. What is “Computer Architecture”? Application • Coordination of many levels of abstraction • Under a rapidly changing set of forces • Design, Measurement, andEvaluation Operating System Compiler Firmware Instruction Set Architecture Instr. Set Proc. I/O system Datapath & Control Digital Design Circuit Design Layout

  8. Instructions: • Language of the Machine • We’ll be working with the MIPS instruction set architecture • similar to other architectures developed since the 1980's • Almost 100 million MIPS processors manufactured in 2002 • used by NEC, Nintendo, Cisco, Silicon Graphics, Sony, …

  9. Arithmetic Operations • Add and subtract, three operands • Two sources and one destination add a, b, c # a gets b + c • All arithmetic operations have this form • Design Principle 1: Simplicity favours regularity • Regularity makes implementation simpler • Simplicity enables higher performance at lower cost §2.2 Operations of the Computer Hardware Chapter 2 — Instructions: Language of the Computer — 9

  10. Arithmetic Example (MIPS) • C code: f = (g + h) - (i + j); • Compiled MIPS code: add t0, g, h # temp t0 = g + hadd t1, i, j # temp t1 = i + jsub f, t0, t1 # f = t0 - t1 Chapter 2 — Instructions: Language of the Computer — 10

  11. Arithmetic Example (ARM) • C code: f = (g + h) - (i + j); • Compiled ARM code: ADD t0, g, h ; temp t0 = g + hADD t1, i, j ; temp t1 = i + jSUB f, t0, t1 ; f = t0 - t1 Chapter 2 — Instructions: Language of the Computer — 11

  12. Register Operands (MIPS) • Arithmetic instructions use registeroperands • MIPS has a 32 × 32-bit register file • Use for frequently accessed data • Numbered 0 to 31 • 32-bit data called a “word” • Assembler names • $t0, $t1, …, $t9 for temporary values • $s0, $s1, …, $s7 for saved variables • Design Principle 2: Smaller is faster • c.f. main memory: millions of locations §2.3 Operands of the Computer Hardware Chapter 2 — Instructions: Language of the Computer — 12

  13. Register Operands (ARM) • Arithmetic instructions use registeroperands • ARM has a 16 × 32-bit register file • Use for frequently accessed data • Registers numbered 0 to 15 (r0 to r15) • 32-bit data called a “word” • Design Principle 2: Smaller is faster • c.f. main memory: millions of locations §2.3 Operands of the Computer Hardware Chapter 2 — Instructions: Language of the Computer — 13

  14. Control Input Memory Datapath Output Processor I/O Registers vs. Memory • Arithmetic instructions operands must be registers, — only 32 (MIPS) or 16 (ARM) registers provided • Compiler associates variables with registers • What about programs with lots of variables? Registers

  15. Register Operand Example (MIPS) • C code: f = (g + h) - (i + j); • f, …, j in $s0, …, $s4 • Compiled MIPS code: add $t0, $s1, $s2add $t1, $s3, $s4sub $s0, $t0, $t1 Chapter 2 — Instructions: Language of the Computer — 15

  16. Register Operand Example (ARM) • C code: f = (g + h) - (i + j); • f, …, j in registers r0, …,r4 • r5 and r6 are temporary registers • Compiled ARM code: ADD r5,r0,r1 ;register r5 contains g + h ADD r6,r2,r3 ;register r6 contains i + j SUB r4,r5,r6 ;r4 gets r5-r6 Chapter 2 — Instructions: Language of the Computer — 16

  17. Memory Organization • Viewed as a large, single-dimension array, with an address. • A memory address is an index into the array • "Byte addressing" means that the index points to a byte of memory. 0 8 bits of data 1 8 bits of data 2 8 bits of data 3 8 bits of data 4 8 bits of data 5 8 bits of data 6 8 bits of data ...

  18. Memory Organization • Bytes are nice, but most data items use larger "words" • For MIPS, a word is 32 bits or 4 bytes. • 232 bytes with byte addresses from 0 to 232-1 • 230 words with byte addresses 0, 4, 8, ... 232-4 • Words are aligned i.e., what are the least 2 significant bits of a word address? 0 32 bits of data 4 32 bits of data Registers hold 32 bits of data 8 32 bits of data 12 32 bits of data ...

  19. Memory Operands • Main memory used for composite data • Arrays, structures, dynamic data • To apply arithmetic operations • Load values from memory into registers • Store result from register to memory • Memory is byte addressed • Each address identifies an 8-bit byte • Words are aligned in memory • Address must be a multiple of 4 • MIPS is Big Endian • Most-significant byte at least address of a word • c.f. Little Endian: least-significant byte at least address Chapter 2 — Instructions: Language of the Computer — 19

  20. Placing a 32-bit word into memory in bytes • Big Endian • Little Endian 0 0 Least significant Most significant 1 1 : : 2 2 : : 3 3 Least significant Most significant 4 4 5 5 6 6 ... ... Chapter 2 — Instructions: Language of the Computer — 20

  21. Memory Operand Example 1 (MIPS) • C code: g = h + A[8]; • g in $s1, h in $s2, base address of A in $s3 • Compiled MIPS code: • Index 8 requires offset of 32 • 4 bytes per word lw $t0, 32($s3) # $t0 <-m[$s3+32]add $s1, $s2, $t0 offset base register Chapter 2 — Instructions: Language of the Computer — 21

  22. Memory Operand Example 1 (ARM) • C code: g = h + A[8]; • g in r1, h in r2, base address of A in r3 • r5 is temporary register • Compiled ARM code: • Index 8 requires offset of 32 • 4 bytes per word LDR r5,[r3,#32] ; reg r5 gets A[8]ADD r1, r2, r5 ; g = h + A[8] base register offset Chapter 2 — Instructions: Language of the Computer — 22

  23. Memory Operand Example 2 (MIPS) • C code: A[12] = h + A[8]; • h in $s2, base address of A in $s3 • Compiled MIPS code: • Index 8 requires offset of 32 lw $t0, 32($s3) # load wordadd $t0, $s2, $t0sw $t0, 48($s3) # store word Chapter 2 — Instructions: Language of the Computer — 23

  24. Memory Operand Example 2 (ARM) • C code: A[12] = h + A[8]; • h in r2, base address of A in r3 • r5 is temporary register • Compiled ARM code: • Index 8 requires offset of 32 LDR r5,[r3,#32] ; reg r5 gets A[8]ADD r5, r2, r5 ; reg r5 gets h+A[8] STR r5,[r3,#48] ; Stores h+A[8]into A[12] Chapter 2 — Instructions: Language of the Computer — 24

  25. Instructions (MIPS) • Load and store instructions • Example: C code: A[12] = h + A[8]; MIPS code: lw $t0, 32($s3) ; $s3=A, 32=8*4 add $t0, $s2, $t0 sw $t0, 48($s3) • Store word has destination last • Remember: • Operands of arithmetic/logic instructions are registers, not memory! • Load/store instructions have one memory operand. • Note: • Temporary register: $t0; • Array name: a register $s3; • Displacement: 32, not 8! 48, not 12!

  26. Our First Example (MIPS) • Can we figure out the code? swap(int v[], int k); { int temp; temp = v[k] v[k] = v[k+1]; v[k+1] = temp; } swap: muli $2, $5, 4 add $2, $4, $2 ; $s2= addr.of v[k] lw $15, 0($2) lw $16, 4($2) sw $16, 0($2) sw $15, 4($2) jr $31 ; Return addr. is saved in $s31

  27. Our First Example (ARM) • Can we figure out the code? swap(int v[], int k); { int temp; temp = v[k] v[k] = v[k+1]; v[k+1] = temp; } swap: ; ARM assembly ADD r5, r0, r1, LSL #2 ; r5=addr. of v[k] ; r5 = r0 + r1<<2 ; r0 = v; r1 = k LDR r4, [r5, #0] ; r4 = v[k] LDR r6, [r5, #4] ; r6 = v[k+1] STR r6, [r5, #0] ; v[k] = r6 STR r4, [r5, #4] ; v[k=1] = r5 MOV pc, lr ; return to caller swap: ; MIPS assembly muli $2, $5, 4 add $2, $4, $2 ; $s2= addr.of v[k] lw $15, 0($2) lw $16, 4($2) sw $16, 0($2) sw $15, 4($2) jr $31 ; Return addr. is saved in $s31

  28. Registers vs. Memory • Registers are faster to access than memory • Operating on memory data requires loads and stores • More instructions to be executed • Compiler must use registers for variables as much as possible • Only spill to memory for less frequently used variables • Register optimization is important! Chapter 2 — Instructions: Language of the Computer — 28

  29. Immediate Operands (MIPS) • Constant data specified in an instruction addi $s3, $s3, 4 • No subtract immediate instruction • Just use a negative constant addi $s2, $s1, -1 • Design Principle 3: Make the common case fast • Small constants are common • Immediate operand avoids a load instruction Chapter 2 — Instructions: Language of the Computer — 29

  30. Immediate Operands (ARM) • Constant data specified in an instruction ADD r3,r3,#4 ; r3 = r3 + 4 • Design Principle 3: Make the common case fast • Small constants are common • Immediate operand avoids a load instruction Chapter 2 — Instructions: Language of the Computer — 30

  31. The Constant Zero • MIPS register 0 ($zero) is the constant 0 • Cannot be overwritten • Useful for common operations • E.g., move between registers add $t2, $s1, $zero Chapter 2 — Instructions: Language of the Computer — 31

  32. Unsigned Binary Integers • Given an n-bit number §2.4 Signed and Unsigned Numbers • Range: 0 to +2n – 1 • Example • 0000 0000 0000 0000 0000 0000 0000 10112= 0 + … + 1×23 + 0×22 +1×21 +1×20= 0 + … + 8 + 0 + 2 + 1 = 1110 • Using 32 bits • 0 to +4,294,967,295 Chapter 2 — Instructions: Language of the Computer — 32

  33. 2s-Complement Signed Integers • Given an n-bit number • Range: –2n – 1 to +2n – 1 – 1 • Example • 1111 1111 1111 1111 1111 1111 1111 11002= –1×231 + 1×230 + … + 1×22 +0×21 +0×20= –2,147,483,648 + 2,147,483,644 = –410 • Using 32 bits • –2,147,483,648 to +2,147,483,647 Chapter 2 — Instructions: Language of the Computer — 33

  34. 2s-Complement Signed Integers • Bit 31 is sign bit • 1 for negative numbers • 0 for non-negative numbers • –(–2n – 1) can’t be represented • Non-negative numbers have the same unsigned and 2s-complement representation • Some specific numbers • 0: 0000 0000 … 0000 • –1: 1111 1111 … 1111 • Most-negative: 1000 0000 … 0000 • Most-positive: 0111 1111 … 1111 Chapter 2 — Instructions: Language of the Computer — 34

  35. Signed Negation • Complement and add 1 • Complement means 1 → 0, 0 → 1 • Example: negate +2 • +2 = 0000 0000 … 00102 • –2 = 1111 1111 … 11012 + 1 = 1111 1111 … 11102 Chapter 2 — Instructions: Language of the Computer — 35

  36. Sign Extension (MIPS) • Representing a number using more bits • Preserve the numeric value • In MIPS instruction set • addi: extend immediate value • lb, lh: extend loaded byte/halfword • beq, bne: extend the displacement • Replicate the sign bit to the left • c.f. unsigned values: extend with 0s • Examples: 8-bit to 16-bit • +2: 0000 0010 => 0000 00000000 0010 • –2: 1111 1110 => 1111 11111111 1110 Chapter 2 — Instructions: Language of the Computer — 36

  37. Sign Extension (ARM) • Representing a number using more bits • Preserve the numeric value • In ARM instruction set • LDRSB,LDRSH: extend loaded byte/halfword • Replicate the sign bit to the left • c.f. unsigned values: extend with 0s • Examples: 8-bit to 16-bit • +2: 0000 0010 => 0000 00000000 0010 • –2: 1111 1110 => 1111 11111111 1110 Chapter 2 — Instructions: Language of the Computer — 37

  38. Representing Instructions (MIPS) • Instructions are encoded in binary • Called machine code • MIPS instructions • Encoded as 32-bit instruction words • Small number of formats encoding operation code (opcode), register numbers, … • Regularity! • Register numbers • $t0 – $t7 are reg’s 8 – 15 • $t8 – $t9 are reg’s 24 – 25 • $s0 – $s7 are reg’s 16 – 23 §2.5 Representing Instructions in the Computer Chapter 2 — Instructions: Language of the Computer — 38

  39. Representing Instructions (ARM) • Instructions are encoded in binary • Called machine code • ARM instructions • Encoded as 32-bit instruction words • Small number of formats encoding operation code (opcode), register numbers, … • Regularity! • Register numbers – r0 to r15 §2.5 Representing Instructions in the Computer Chapter 2 — Instructions: Language of the Computer — 39

  40. op rs rt rd shamt funct 6 bits 5 bits 5 bits 5 bits 5 bits 6 bits R-format Instructions (MIPS) • Instruction fields • op: operation code (opcode) • rs: first source register number • rt: second source register number • rd: destination register number • shamt: shift amount (00000 for now) • funct: function code (extends opcode) Chapter 2 — Instructions: Language of the Computer — 40

  41. op rs rt rd shamt funct 6 bits 5 bits 5 bits 5 bits 5 bits 6 bits R-format Example (MIPS) add $t0, $s1, $s2 special $s1 $s2 $t0 0 add 0 17 18 8 0 32 000000 10001 10010 01000 00000 100000 000000100011001001000000001000002 = 0232402016 Chapter 2 — Instructions: Language of the Computer — 41

  42. Cond F I Opcode S Rn Rd Operand2 4 bits 2 bits 1 bits 4 bits 1 bits 4 bits 4 bits 12 bits Data Processing (DP) Instructions (ARM) • Instruction fields • Opcode : Basic operation of the instruction • Rd: The destination register operand • Rn: The first register source operand • Operand2: The second source operand • I:Immediate. If I is 0, the second source operand is a register, else the second source is a 12-bit immediate. • S: Set Condition Code • Cond: Condition • F: Instruction Format. Chapter 2 — Instructions: Language of the Computer — 42

  43. Cond 14 0 F I 0 Opcode 4 S 0 Rn 1 Rd 5 Operand2 2 4 bits 4 bits 2 bits 2 bits 1 bits 1 bits 4 bits 4 bits 1 bits 1 bits 4 bits 4 bits 4 bits 4 bits 12 bits 12 bits DP Instruction Example (ARM) ADD r5,r1,r2 ; r5 = r1 + r2 111000001000000101010000000000102 Chapter 2 — Instructions: Language of the Computer — 43

  44. Machine Language: load/store instructions (MIPS) • Consider the load-word and store-word instructions, • What would the regularity principle have us do? • New principle: Good design demands a compromise • Introduce a new type of instruction format • I-type for data transfer instructions • other format was R-type for register • Example: lw $t0, 32($s2) 35 18 2 32 op rs rt 16 bit number • Where's the compromise?

  45. Machine Language PROBLEM: How to access an array element with displacement > 2^16? • Displacement > 2^16? X=A[100000]+……. Assume t1 is a temporary 32-bit register . m[1024] the memory location which has a large value. Its address is calculated by 0($s). t3 is a register contain the base address of array A. t4 is a temporary 32 bits register . lw $t1 , 0($s2); //load immediate to $t1. add $t4 , $t3 , $t1; //calculate the displacement. lw $t5 , 0($t4); //load the displacement to t5. t1 → ← m[1024] t3 → ﹜ Displacement>2^16 t5 → ← A[100000]

  46. Machine Language (corrected) PROBLEM: How to access an array element with displacement > 2^16? Displacement > 2^16? X=A[100000]+……. Assume t1 is a temporary 32-bit register . m[1024] the memory location which has a large value. Its address is calculated by 0($s). t3 is a register contain the base address of array A. t4 is a temporary 32 bits register . lw $t1 , 0($s2); //load immediate to $t1. add $t4 , $t3 , $t1; //calculate the displacement. lw $t5 , 0($t4); //load the displacement to t5. t1 → ← m[1024] t3 → ﹜ Displacement>2^16 t5 → ← A[100000]

  47. Hexadecimal • Base 16 • Compact representation of bit strings • 4 bits per hex digit • Example: eca8 6420 • 1110 1100 1010 1000 0110 0100 0010 0000 Chapter 2 — Instructions: Language of the Computer — 49

  48. op rs rt constant or address 6 bits 5 bits 5 bits 16 bits I-format Instructions (MIPS) • Immediate arithmetic and load/store instructions • rt: destination or source register number • Constant: –215 to +215 – 1 • Address: offset added to base address in rs • Design Principle 4: Good design demands good compromises • Different formats complicate decoding, but allow 32-bit instructions uniformly • Keep formats as similar as possible Chapter 2 — Instructions: Language of the Computer — 50

  49. Cond 14 F 1 24 Opcode Rn 3 5 Rd Offset12 32 4 bits 4 bits 2 bits 2 bits 6 bits 6 bits 4 bits 4 bits 4 bits 4 bits 12 bits 12 bits Data Transfer (DT) Instruction (ARM) • Design Principle 4: Good design demands good compromises • Different formats complicate decoding, but allow 32-bit instructions uniformly • Keep formats as similar as possible LDR r5, [r3, #32] ; Temporary reg r5 gets A[8] Chapter 2 — Instructions: Language of the Computer — 51

  50. Stored Program Computers • Instructions represented in binary, just like data • Instructions and data stored in memory • Programs can operate on programs • e.g., compilers, linkers, … • Binary compatibility allows compiled programs to work on different computers • Standardized ISAs The BIG Picture Chapter 2 — Instructions: Language of the Computer — 52
