  1. Early Program Optimizations Chapter 12 Mooly Sagiv

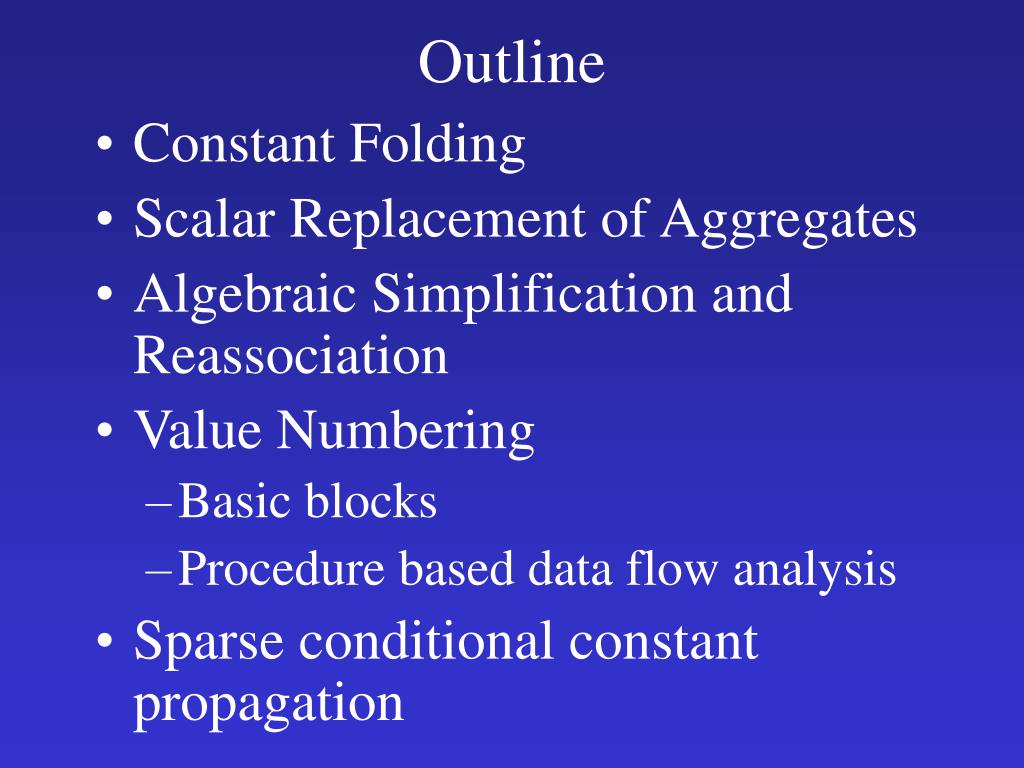

  2. Outline • Constant Folding • Scalar Replacement of Aggregates • Algebraic Simplification and Reassociation • Value Numbering • Basic blocks • Procedure based data flow analysis • Sparse conditional constant propagation

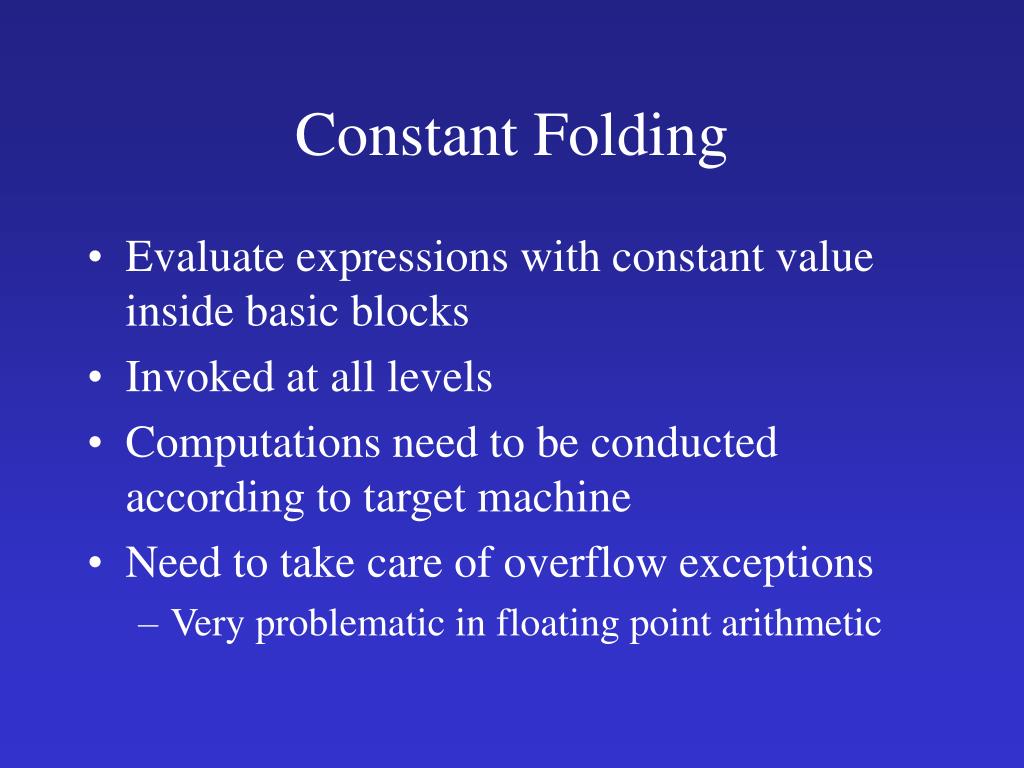

  3. Constant Folding • Evaluate expressions with constant value inside basic blocks • Invoked at all levels • Computations need to be conducted according to target machine • Need to take care of overflow exceptions • Very problematic in floating point arithmetic

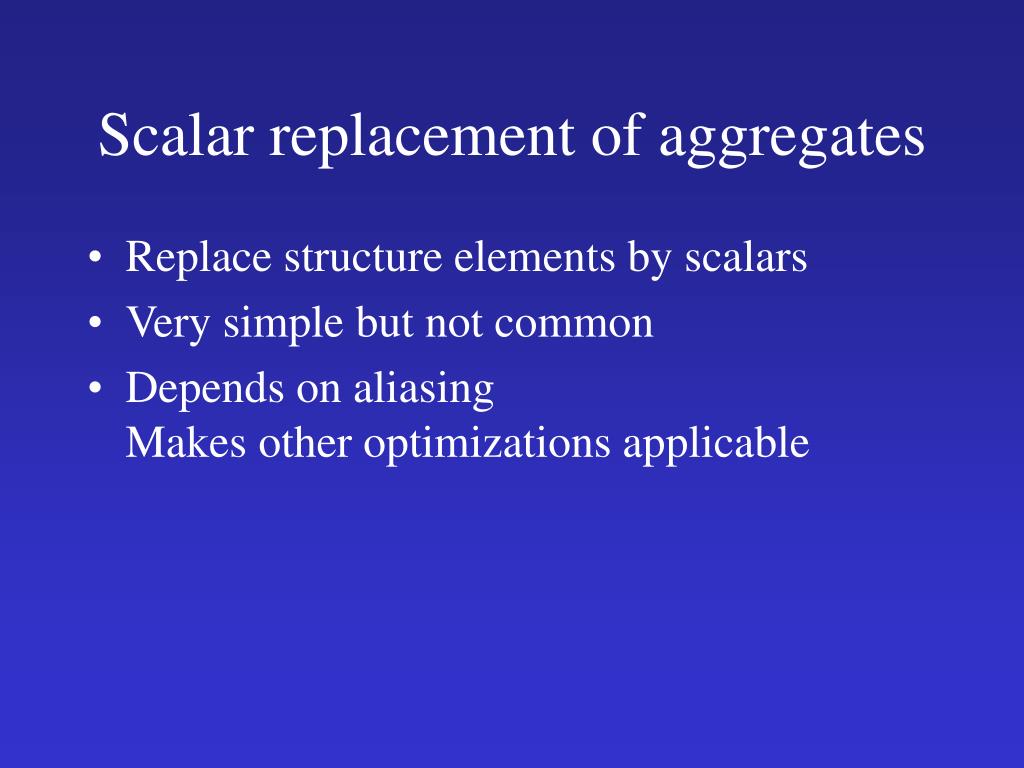

  4. Scalar replacement of aggregates • Replace structure elements by scalars • Very simple but not common • Depends on aliasingMakes other optimizations applicable

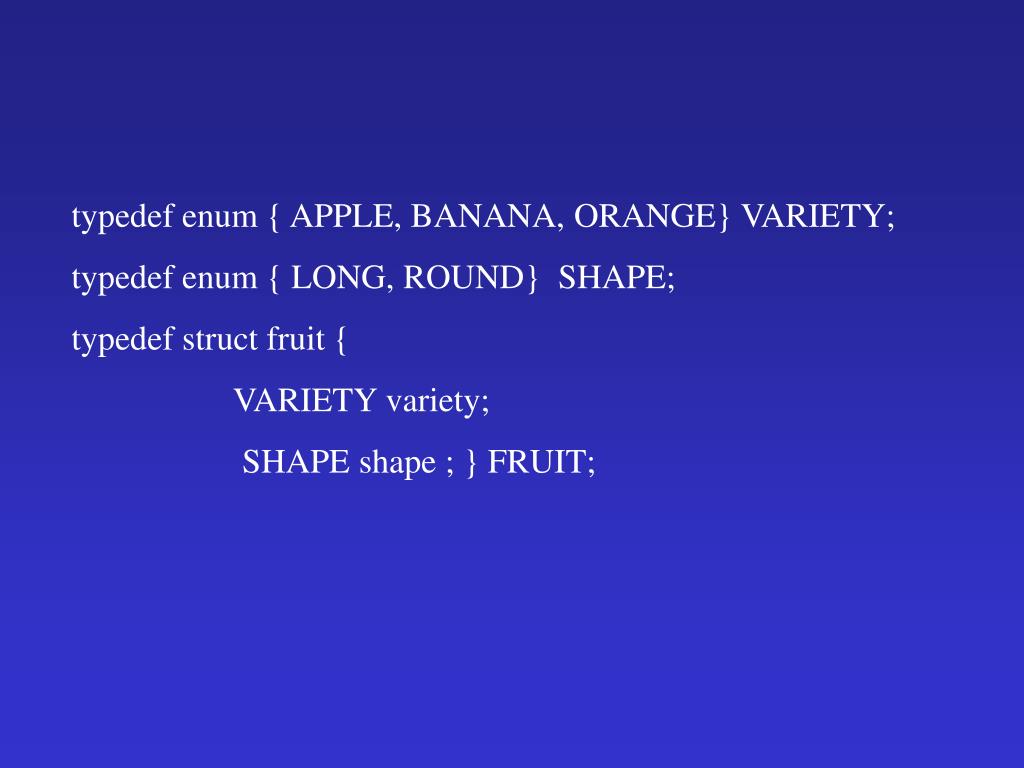

  5. typedef enum { APPLE, BANANA, ORANGE} VARIETY; typedef enum { LONG, ROUND} SHAPE; typedef struct fruit { VARIETY variety; SHAPE shape ; } FRUIT;

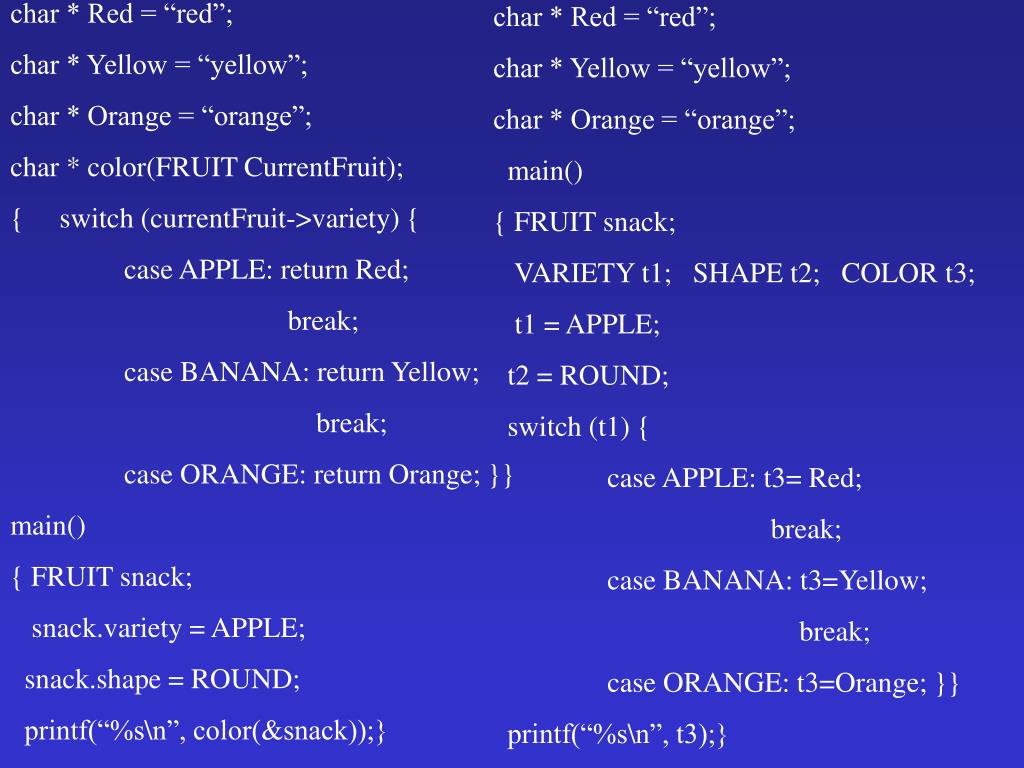

  6. char * Red = “red”; char * Yellow = “yellow”; char * Orange = “orange”; char * color(FRUIT CurrentFruit); { switch (currentFruit->variety) { case APPLE: return Red; break; case BANANA: return Yellow; break; case ORANGE: return Orange; }} main() { FRUIT snack; snack.variety = APPLE; snack.shape = ROUND; printf(“%s\n”, color(&snack));} char * Red = “red”; char * Yellow = “yellow”; char * Orange = “orange”; main() { FRUIT snack; VARIETY t1; SHAPE t2; COLOR t3; t1 = APPLE; t2 = ROUND; switch (t1) { case APPLE: t3= Red; break; case BANANA: t3=Yellow; break; case ORANGE: t3=Orange; }} printf(“%s\n”, t3);}

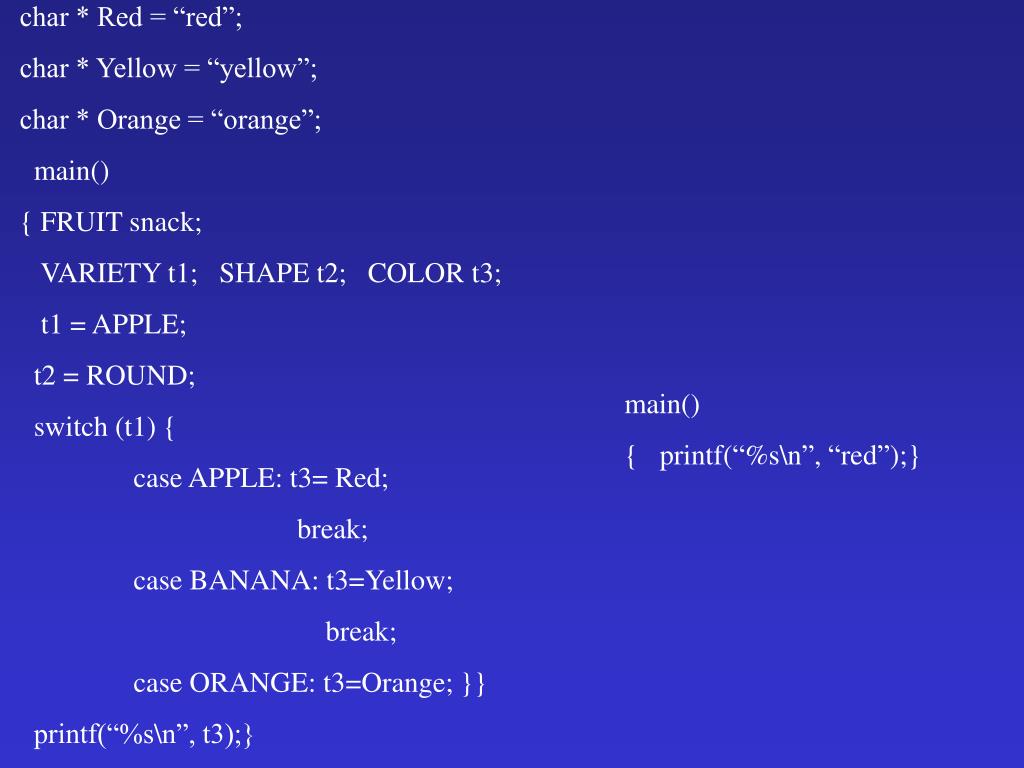

  7. char * Red = “red”; char * Yellow = “yellow”; char * Orange = “orange”; main() { FRUIT snack; VARIETY t1; SHAPE t2; COLOR t3; t1 = APPLE; t2 = ROUND; switch (t1) { case APPLE: t3= Red; break; case BANANA: t3=Yellow; break; case ORANGE: t3=Orange; }} printf(“%s\n”, t3);} main() { printf(“%s\n”, “red”);}

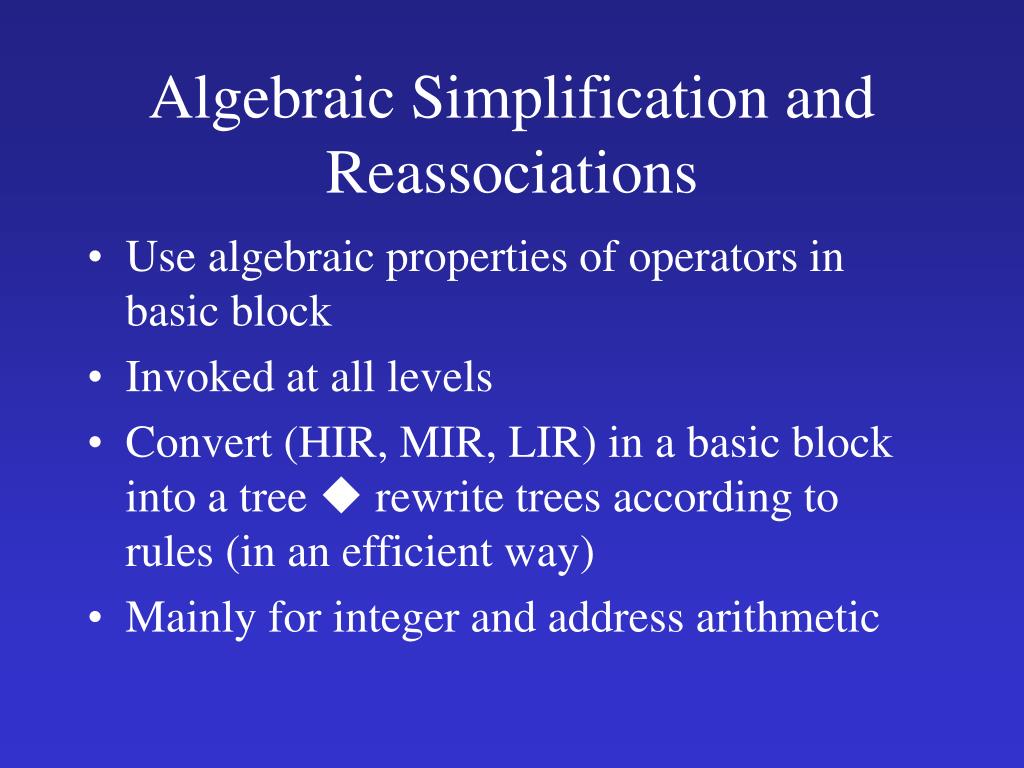

  8. Algebraic Simplification and Reassociations • Use algebraic properties of operators in basic block • Invoked at all levels • Convert (HIR, MIR, LIR) in a basic block into a tree  rewrite trees according to rules (in an efficient way) • Mainly for integer and address arithmetic

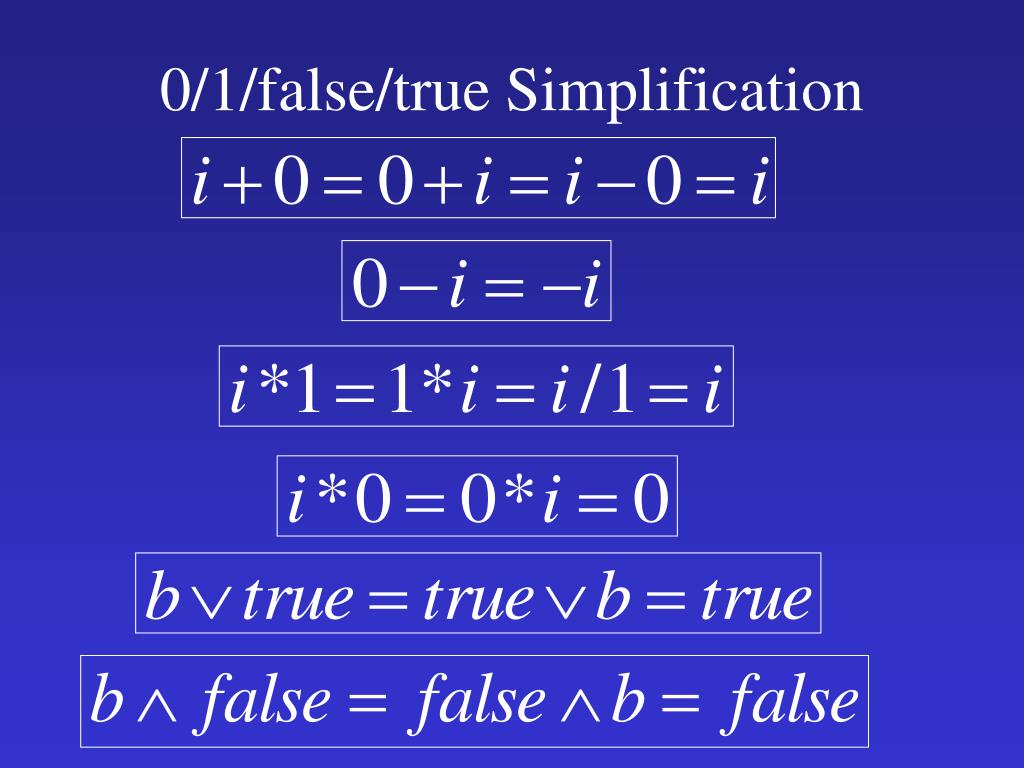

  9. 0/1/false/true Simplification

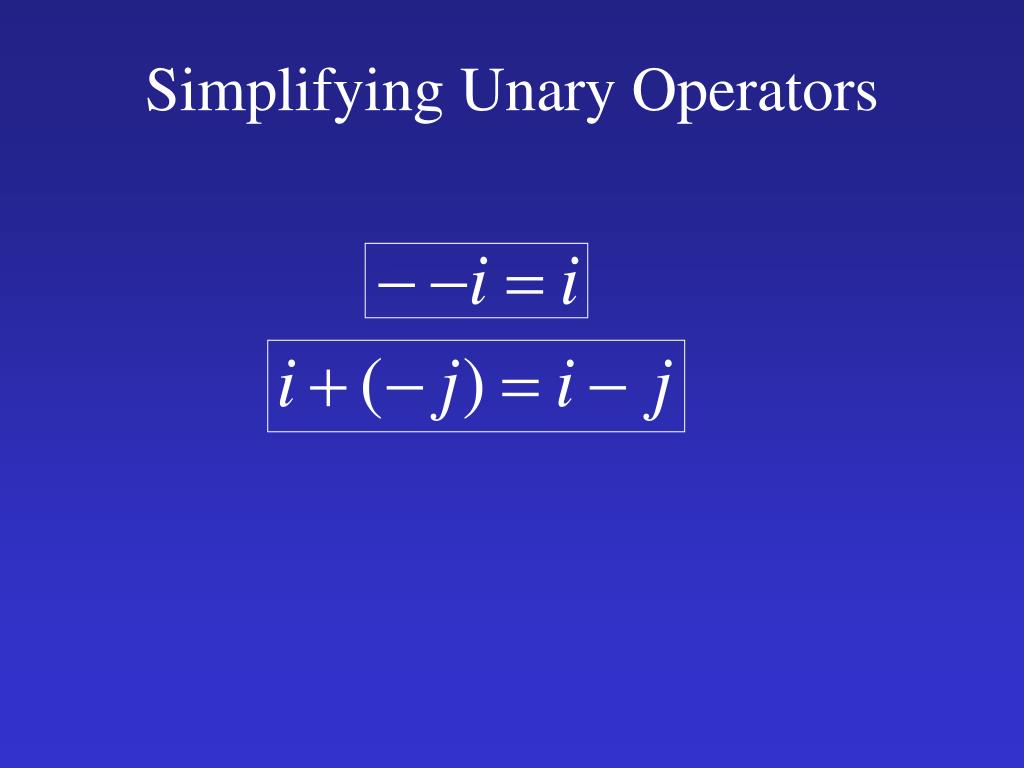

  10. Simplifying Unary Operators

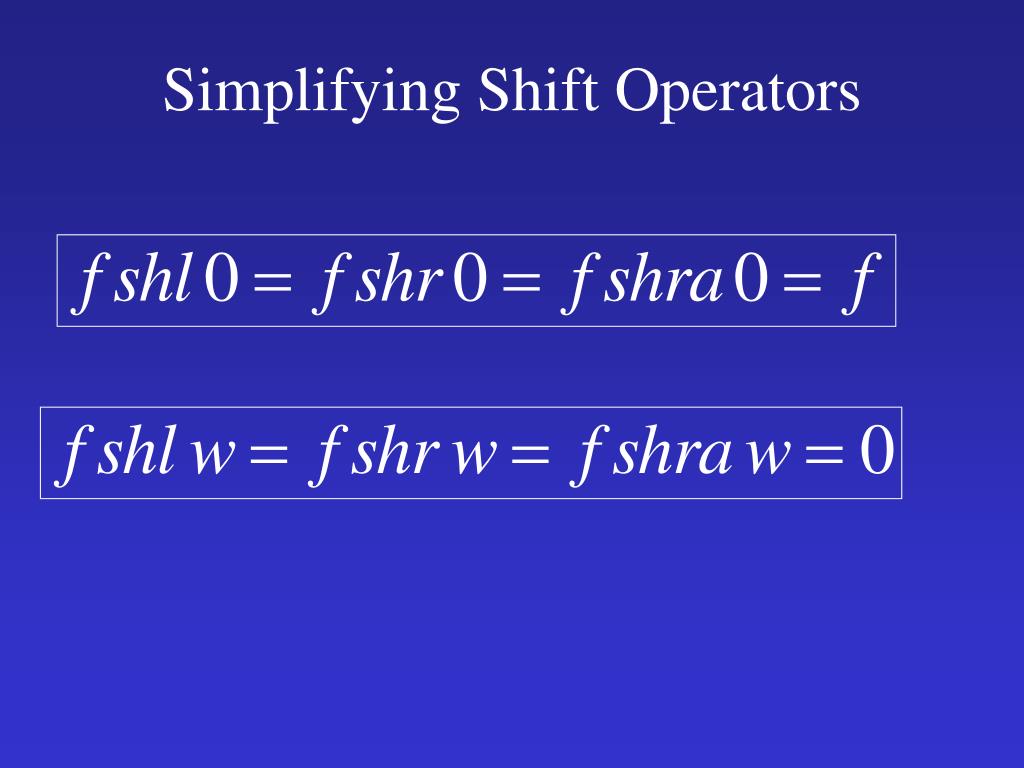

  11. Simplifying Shift Operators

  12. Strength Reduction in Operators ti shl 2 t  t +i ti *5 ti shl 3 t  t - i ti *7

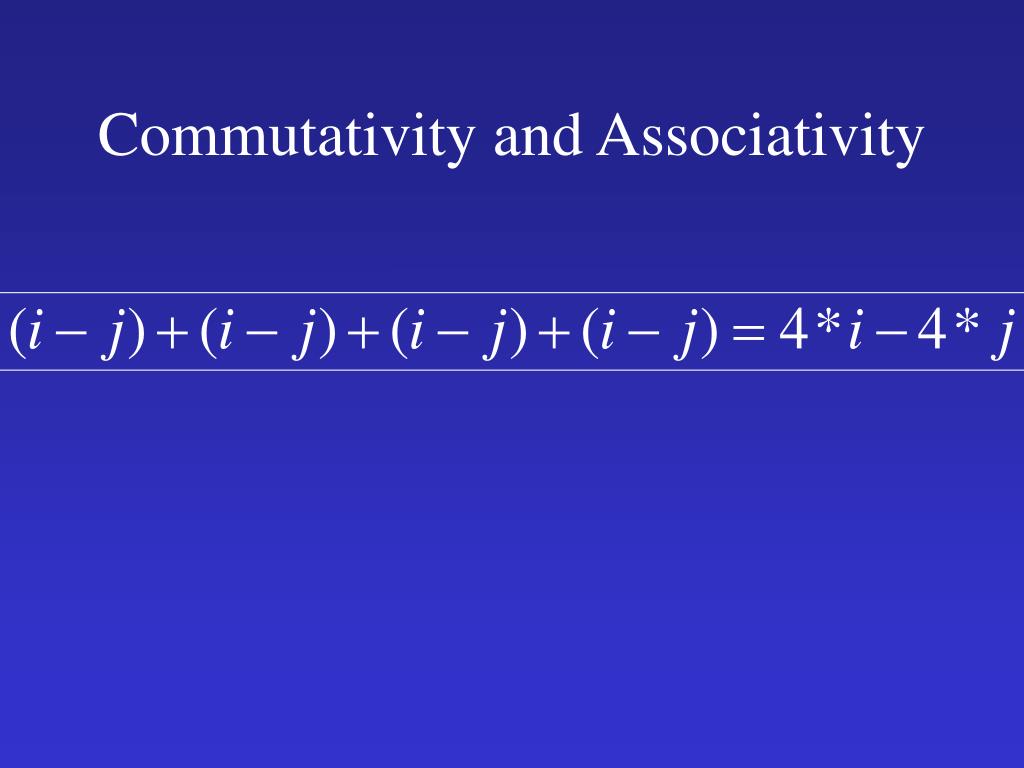

  13. Commutativity and Associativity

  14. Algebraic Simplifications of Addressing Expressions • Cannot raise overflow • Important for array references • Use canonizations • Integrate with other optimizations

  15. var a:array[lo1..hi1, lo2..hi2] of eltype; i, j: integer; ... for j :=lo2 to hi2 do a[i,j] := b+a[i, j]; end

  16. Algebraic Simplifications of Floating Point Expressions • Almost always impossible • Removal of type coercions can be done eps:=1.0 ; while eps+1.0>1.0 do oldeps := eps; eps := 0.5*eps; od

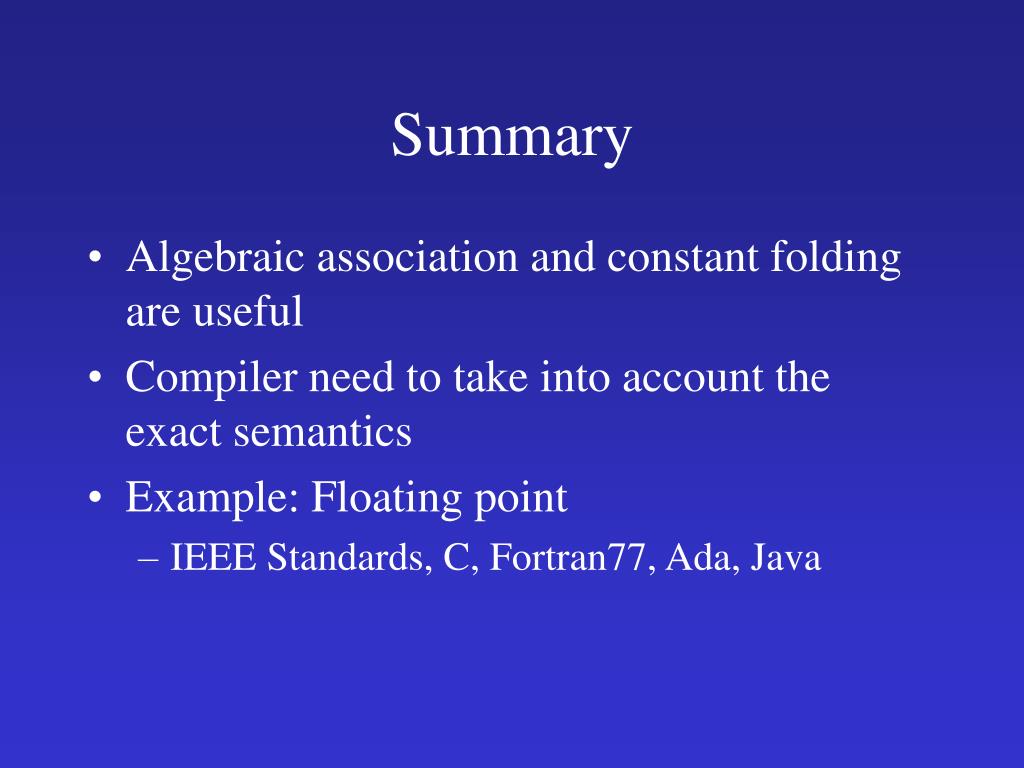

  17. Summary • Algebraic association and constant folding are useful • Compiler need to take into account the exact semantics • Example: Floating point • IEEE Standards, C, Fortran77, Ada, Java
