Comprehensive Monitoring and Analysis of the Computing Center Management System (CCMS) for SAP

wauna avatar
wauna
12 diapositives · 283 Views · Aug 31, 2014

The Computing Center Management System (CCMS) offers essential tools to monitor, control, and configure your SAP System. Key monitoring components include application servers, databases, and operating systems, ensuring the system runs smoothly while enhancing performance. Administrators can periodically use the Alert Monitor (RZ20) to track and analyze alerts from various monitoring objects. By summarizing system alerts and presenting historical data, CCMS facilitates effective workload analysis, ensuring optimal performance of R/3 servers and instances while managing critical tasks and user activities.

#comprehensive monitoring and analysis of the computing center management system (ccms) for sap #comprehensive monitoring and analysis of the computing center management system (ccms) for sap ppt #powerpoint #presentation
Comprehensive Monitoring and Analysis of the Computing Center Management System (CCMS) for SAP - slide 1
01 / 12Comprehensive Monitoring and Analysis of the Computing Center Management System (CCMS) for SAP
1 / 17

Télécharger la présentation

Comprehensive Monitoring and Analysis of the Computing Center Management System (CCMS) for SAP
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

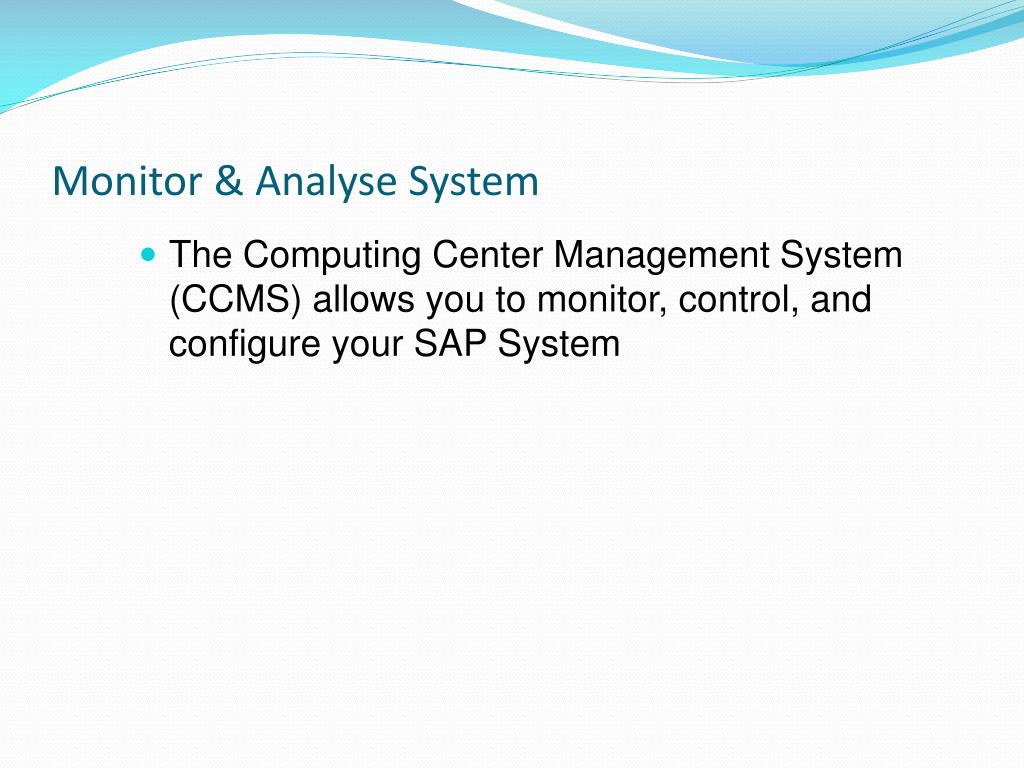

  1. Monitor & Analyse System • The Computing Center Management System (CCMS) allows you to monitor, control, and configure your SAP System

  2. 12 11 1 10 2 9 3 8 4 7 5 6 Monitoring: What, Why, Who, When • What - Components in R/3: • R/3 (application servers, buffers, applications, …) • Database: (performance, backup, …) • Operating system: (CPU, file system, …) • Why - Keep the system running Improve performance • Who - Administrators • When - Periodically

  3. The Alert Monitor (RZ20) View All tree nodes Monitoring Tree Elements • Represent one physical or logical object • Summarize alerts andpropagate to higher nodes Monitoring Objects • Receive data and may create alerts • Use data for analysisalerts Monitoring Attributes

  4. CPU idle % CPU idle % Monitoring Concept and Alert Monitor <SID> <SID> SD Transport Database <host>_<SID>_<No> Performance Backup Monitoring Objects Operating Syst. Disk CPU Buffers • All objects summarized in monitoring tree • Display history and present state, especially alerts • Method assignment for: • Analyzing alerts • Reaction and notification • Data collection Monitoring Attributes

  5. Data Consumer: RZ20 Monitor Data Consumer A P I FM Analyze R/3 Syslog DB OS R/3 Monitoring Architecture Terminology Monitoring Architecture Performance DB Monitoring object Monitoring object Monitoring object Data supplier Data supplier Data supplier Data supplier

  6. Monitoring: R/3 Servers and Instances • Information: • Instance names • Hostname • Types of work processes • Release Notes • Work process overview • User overview Application server 1 Application server 2 SM51 • Action: • Remote Logon . . . Application server x R/3 System

  7. Monitoring: R/3 Users Application Server 1 • Information: • User • Client • Terminal • Transaction SM04 / AL08 SM04 . . . AL08 • Actions: • Start and stop WPs • Debugging • Trace • End session Application Server x SM04

  8. 12 11 1 10 2 9 3 8 4 7 5 6 Monitoring: Workload Analysis • Information: • Response time • DB request time • Load time • Wait time • CPU time • ... • Different task types: • Dialog • Update • Background • RFC • Total Application server 1 ST03 Dispatcher Task handler Dynpro Processor Application server 2 ABAP Processor DB-SS . . . Application server x

  9. Monitoring: Buffers • Information (buffers): • Hit ratio • Free space • Swaps • ... Information (SAP memory): • Current in use • Max. used • On disk • In memory • ... ST02 Application server 1 Table Buffer Application server 2 ... Name- tab PXA Buffer . . . Application server x

  10. St t Database Monitoring Use the database analysis tools to look in more detail at alerts shown in RZ20 Database (view in RZ20) <DB System> space management performance backup/restore R/3 consistency running jobs health DB02 ST04 DB12 DB13 Backup logs

  11. CRITICAL TASKS • Checkup that the R/3 System is up • Check daily backup (DB12) • Check all A/s is Up (SM51) • Check the CCMS Alert Monitor (RZ20) • Check for any failed Updates (SM13) • Check System Log (SM21) • Reviewing cancelled Jobs (SM37) • Checking Locks (SM12) • Check for Users on the System (SM04/AL08) • contd…

  12. CRITICAL TASKS • Check for Spool Problems (SP01) • Check Job Log (SM35) • Review and Resolve dumps (ST22) • Review Workload Statistics (ST03) • Review buffer statistics (ST02) • Review of DB error logs (AL02/ST04) • Review of O/S logs (AL16/OS06)
