Constructing an Equivalent PDA for a Given Context-Free Grammar

This guide demonstrates the process of designing a pushdown automaton (PDA) for a specified context-free grammar (CFG). The CFG in question generates strings with certain character relationships, specifically where the number of 'a's and 'b's are distinct. We will derive an equivalent PDA, exploring the states involved and the transitions that allow for the generation of balanced and unbalanced strings. The PDA utilizes an infinite stack to manage memory, highlighting the notion of "divide and conquer" in automata theory. The result is a comprehensive understanding of how different states affect string generation.

waylon
Télécharger la présentation

Constructing an Equivalent PDA for a Given Context-Free Grammar

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

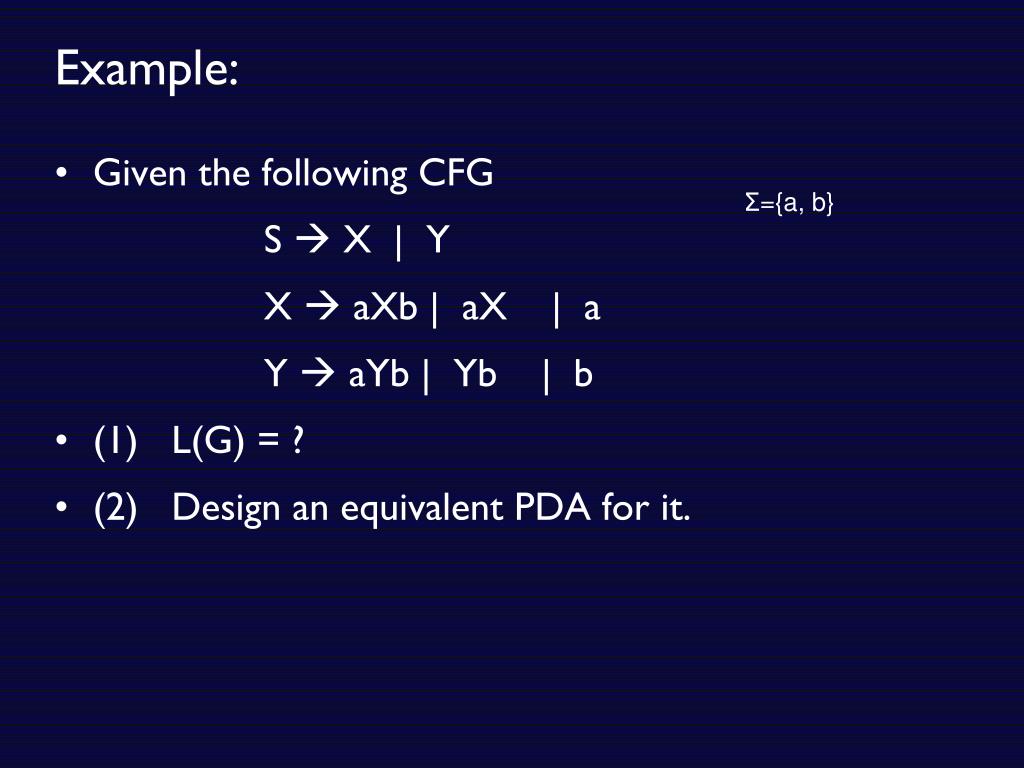

  1. Example: • Given the following CFG S  X | Y X  aXb | aX | a Y  aYb | Yb | b • (1) L(G) = ? • (2) Design an equivalent PDA for it. Σ={a, b}

  2. Solution: L(S) S  X |Y X aXb | aX | a Y aYb | Yb | b Try to write some strings generated by it: SXaXbaaXbbaaaXbbaaaabb SYaYbaYbbaaYbbbaabbbb more a’s than b’s more b’s than a’s • Observations: • Start from S, we can enter two States X & Y, and X, Y are “independent”; • In X state, always more a are generated; • In Y state, always more b are generated. Ls = Lx U Ly L(S) = { aibj; i≠j } Lx = { aibj; i>j } Lx = { aibj; i<j }

  3. a,e/A b,A/e b,$/$ a,e/A b,A/e e,A/e e,$/e e,$/e e,e/e e,e/$ e,e/$ e,e/e e,A/e b,$/$ q0 q’0 q1 q’1 q2 q’2 q3 q’3 Solution: PDA L(S) = { aibj; i≠j } S  X | Y X aXb | aX | a Y aYb | Yb | b = { aibj; i>j } U { aibj; i<j } PDA = NFA + a stack (infinite memory) A possible way: “divide and conquer” Lx = { aibj; i>j } LY = { aibj; i<j } e, e /e Combine both …
