  1. Reliability and Safety Analysis Team 3 ATV Daniel Barrett Sebastian Hening Sandunmalee Abeyratne Anthony Myers

  2. High Criticality • A failure that has the potential to injure the user or others • Medium Criticality • A failure that can permanently damage components of the device • Low Criticality • A failure that would change the functionality of the device or affect its performance

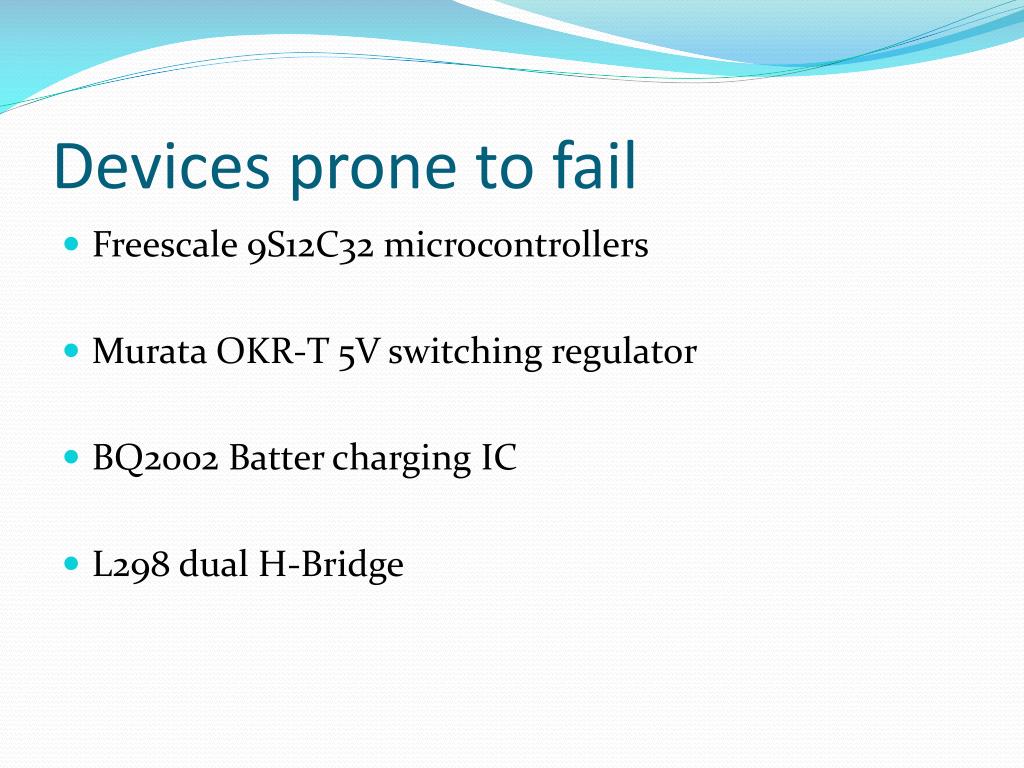

  3. Devices prone to fail • Freescale 9S12C32 microcontrollers • Murata OKR-T 5V switching regulator • BQ2002 Batter charging IC • L298 dual H-Bridge

  4. μController 1

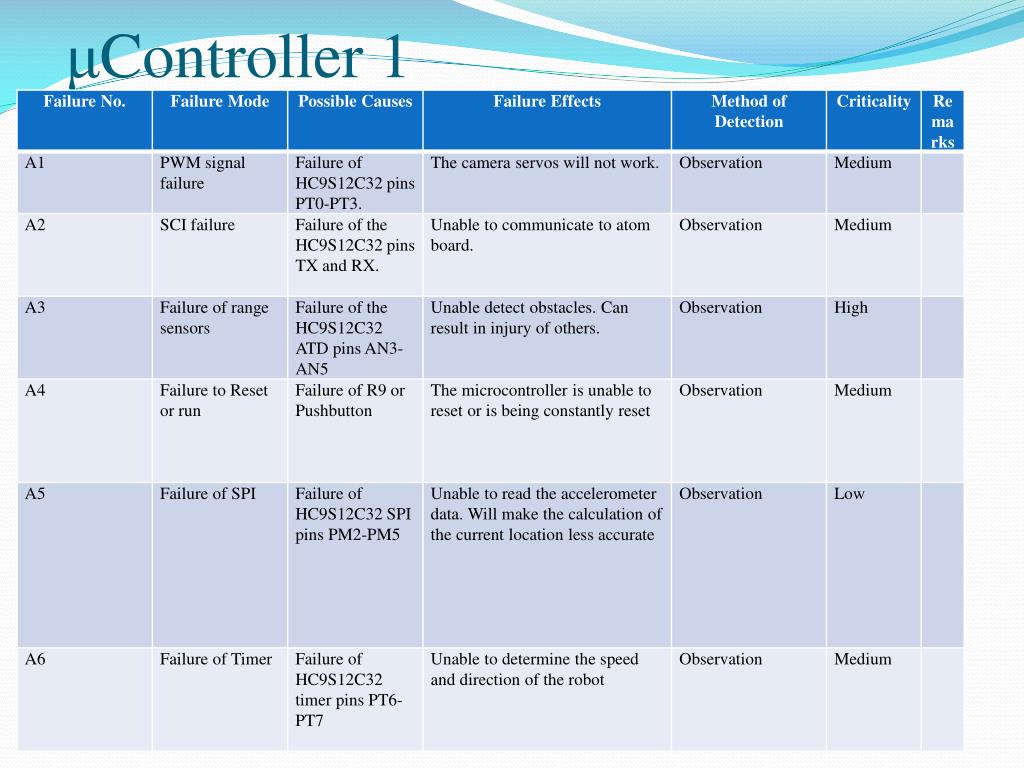

  5. μController 2

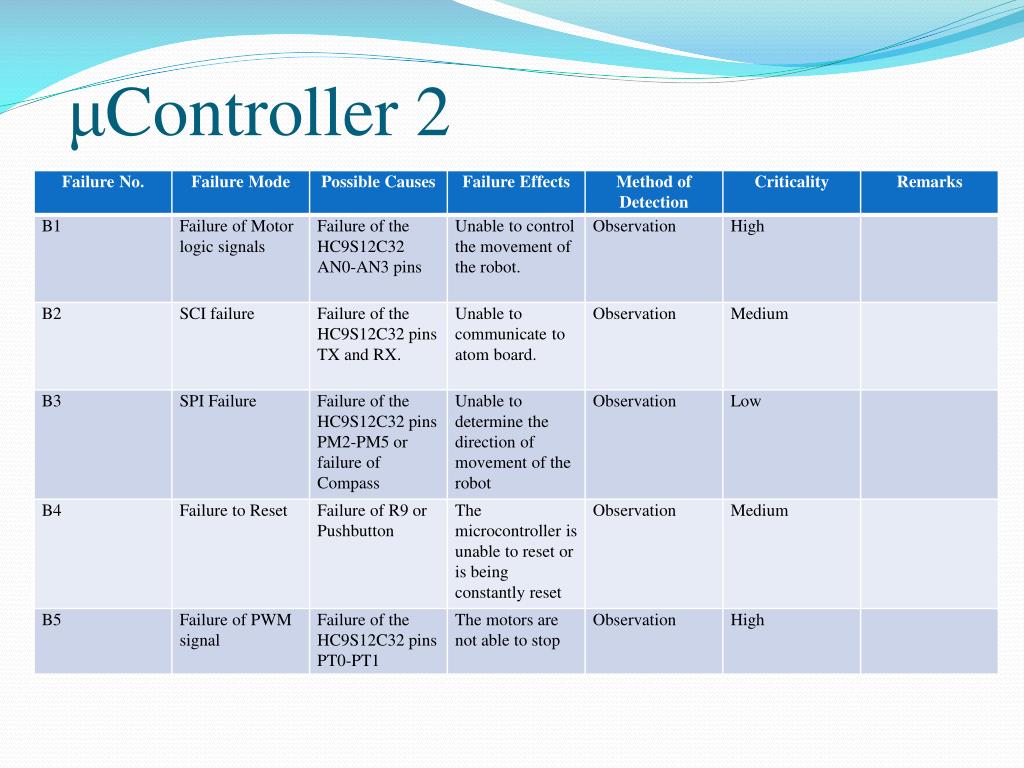

  6. μController

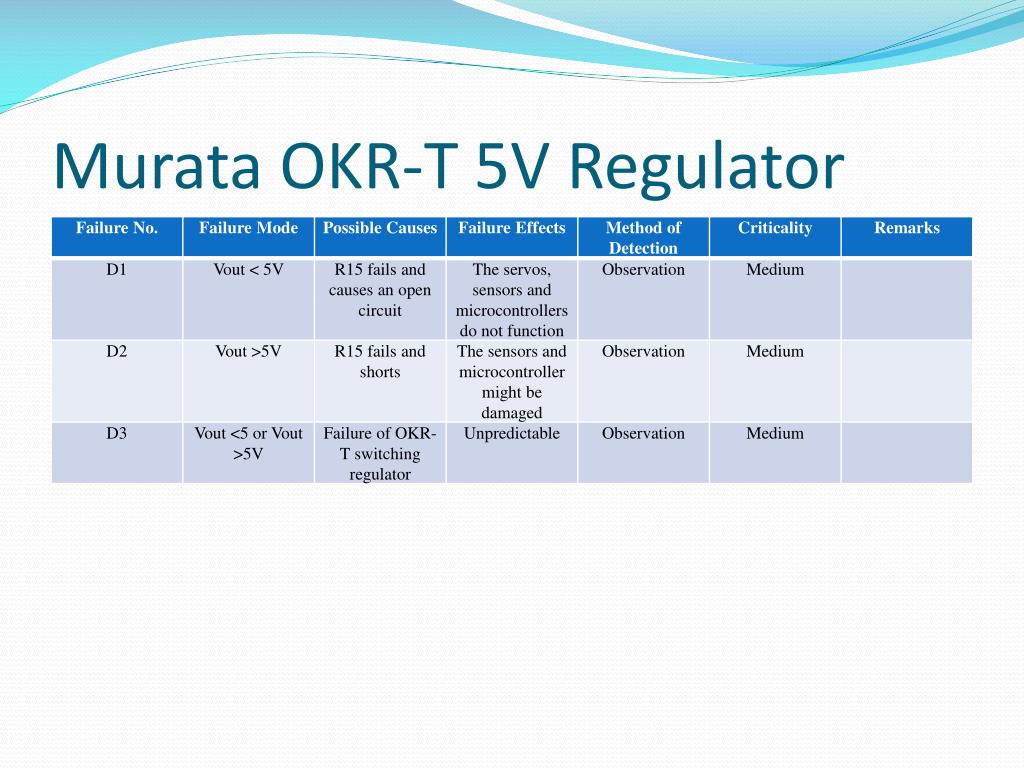

  7. Murata OKR-T 5V Regulator

  8. Murata OKR-T

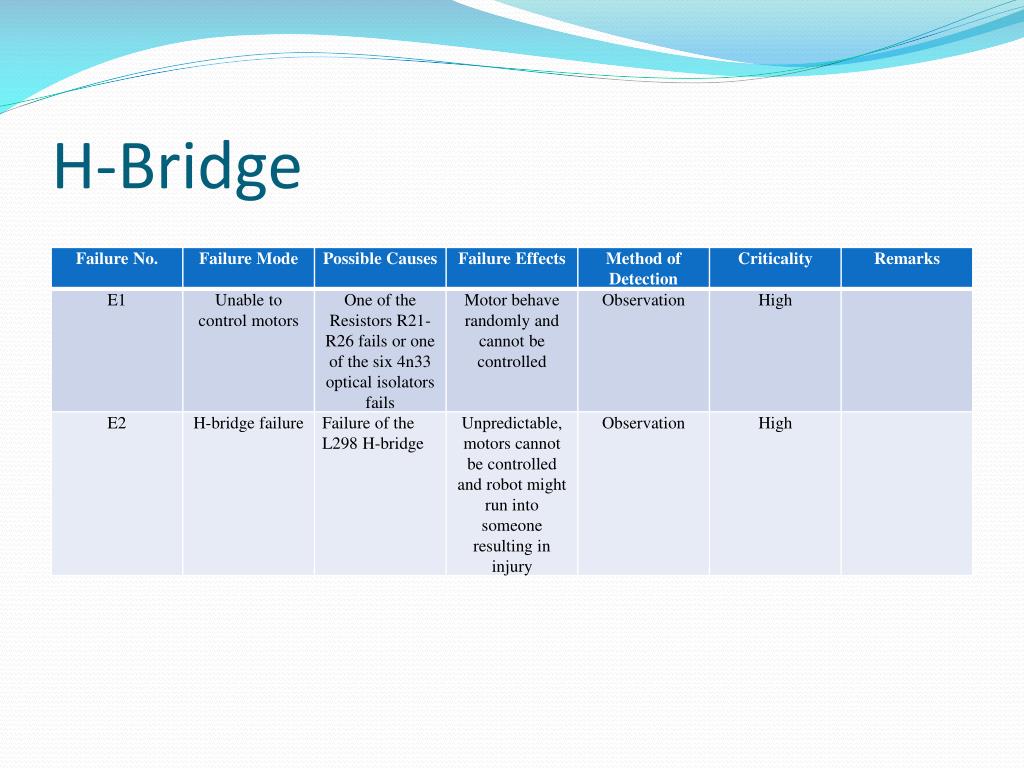

  9. H-Bridge

  10. L298 dual H-Bridge

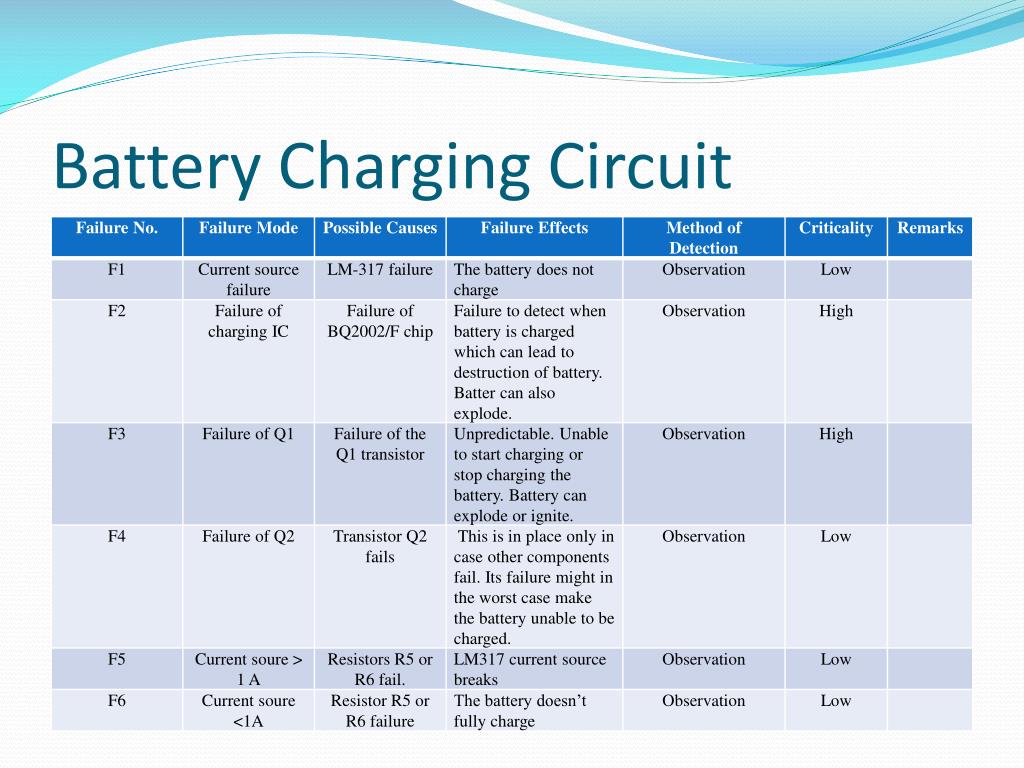

  11. Battery Charging Circuit

  12. BQ2002
