  1. ISP Services Working at a Small-to-Medium Business or ISP – Chapter 7

  2. Objectives • Network services provided by an ISP • Protocols that support the network services • Purpose, function, and hierarchical nature of the Domain Name System (DNS) • Common services and their protocols

  3. Introducing ISP Services Critical services for small-to-medium businesses: • Email • Web hosting • Media streaming • IP telephony • File transfer

  4. Introducing ISP Services Možné vztahy mezi zákazníkem a ISP 1. Zákazník má veškeré zařízení u sebe. Všechno vlastní a provozuje sám. Od ISP žádá jen rychlé připojení k internetu.

  5. Introducing ISP Services Možné vztahy mezi zákazníkem a ISP 2. Zařízení je umístěno u zákazníka, ale patří ISP, který se o všechno stará.

  6. Introducing ISP Services Možné vztahy mezi zákazníkem a ISP 3. Zařízení patří zákazníkovi. Důležité servery jsou umístěny u ISP. Ten se o ně stará a provozuje na nich zákazníkovy aplikace. Zákazník kromě toho žádá od ISP rychlé připojení k internetu.

  7. Introducing ISP Services Zdvojování, zálohování zařízení a cest Spolehlivé technologie Meeting customer requirements: • Reliability • Availability • Co chtějí zákazníci: • Spolehlivost • Dostupnost Náhradní díly stále po ruce

  8. Introducing ISP Services Meeting customer requirements: • Reliability MTBF = Mean Time Between Failure MTTR = Mean Time To Repair Fault tolerance = measure of equipment robustness The longer the MTBF, the greater the fault tolerance. MTTR is established by warranty or service agreements. MTBF = střední doba mezi poruchami MTTR = střední doba do opravy Fault tolerance = míra odolnosti proti poruchám Čím delší MTBF, tím větší odolnost proti poruchám. MTTR je zaručován záručními podmínkami nebo smlouvami o servisu.

  9. Introducing ISP Services • Availability is the percentage of time that a resource is accessible. • Ideal availability percentage is 100%, that is the system is never down. • Telephone services are expected to be available 99.999% of the time. • ISPs must meet even higher conditions. • Availabilityis ensured by • doubling up on network devices • using reliable technologies Meeting customer requirements: • Availability • Dostupnost je procento času, kdy je zařízení použitelné. • Ideální dostupnost je 100%, tj. systém není nikdy mimo provoz. • U telefonních služeb se očekává dostupnost po 99.999% času. • ISP musí splňovat ještě náročnější podmínky. • Dostupnost se zajišťuje • zdvojováním, zálohováním síťových zařízení • použitím spolehlivých technologií

  10. Protocols That Support ISP Services Teď budeme chvíli používat čtyřvrstvý TCP/IP model místo sedmivrstvého. Prostřední vrstvy si odpovídají, jen Network se jmenuje Internet. Co je nad tím, shrne se do Aplication, .... ... co je pod tím, shrne se do Network Access.

  11. Protocols That Support ISP Services Víme, že v aplikační vrstvě jsou věci blízké člověku. Proč tam tedy jsou např. DNS, DHCP, které s člověkem nijak nepřicházejí do styku? • The TCP/IP suite of protocols supports reliability • Sada protokolů TCP/IP podporuje spolehlivost Protože využívají služeb protokolu TCP, aby si zajistily spolehlivost. Proto jsou ve vrstvě nad ním, tj. ve vrstvě aplikační. Celý systém je totiž vystavěn tak, že ti nahoře využívají služeb těch dole.

  12. Protocols That Support ISP Services • Transport needs determine the choice of Transport Layer Protocol

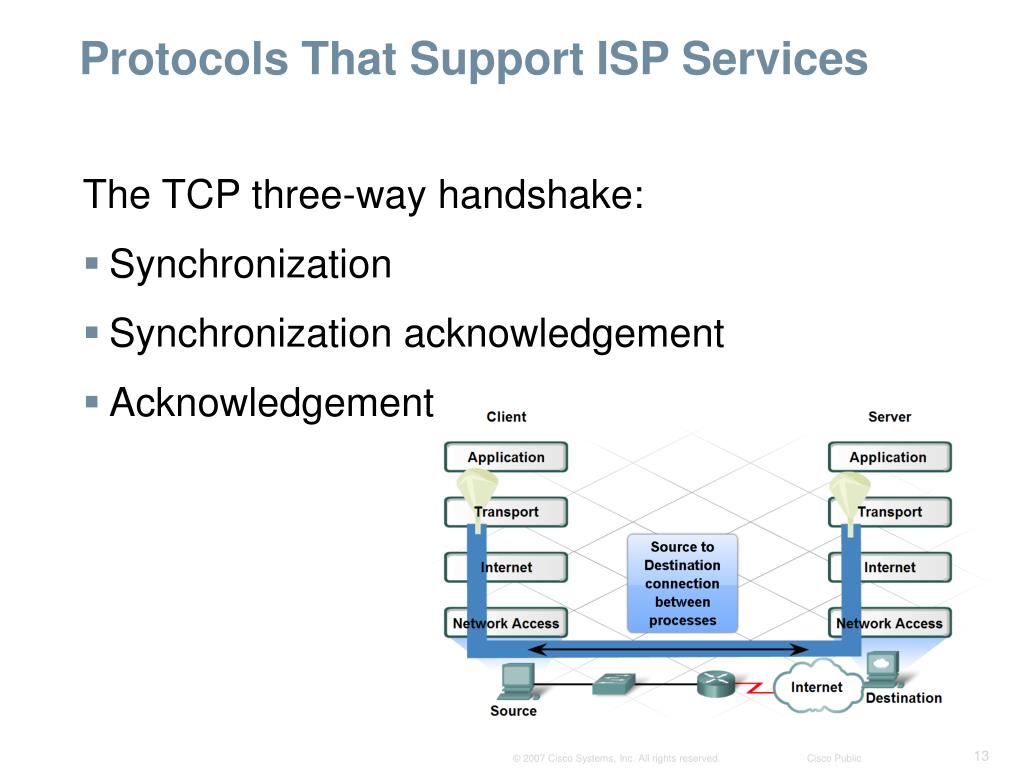

  13. Protocols That Support ISP Services The TCP three-way handshake: • Synchronization • Synchronization acknowledgement • Acknowledgement

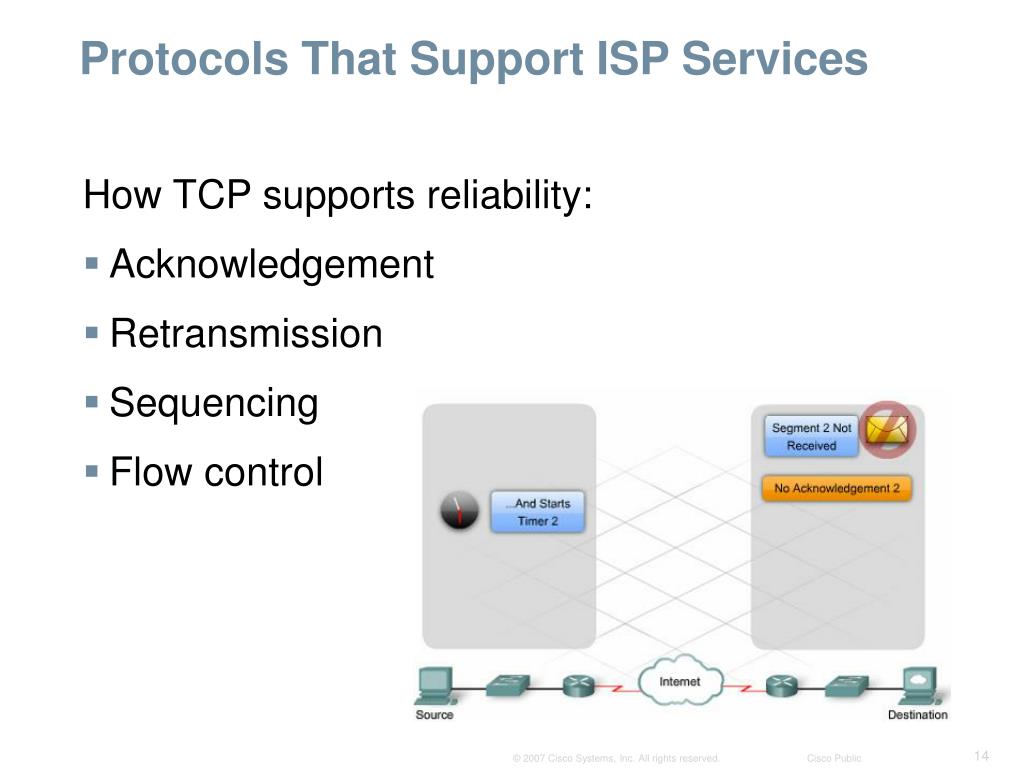

  14. Protocols That Support ISP Services How TCP supports reliability: • Acknowledgement • Retransmission • Sequencing • Flow control

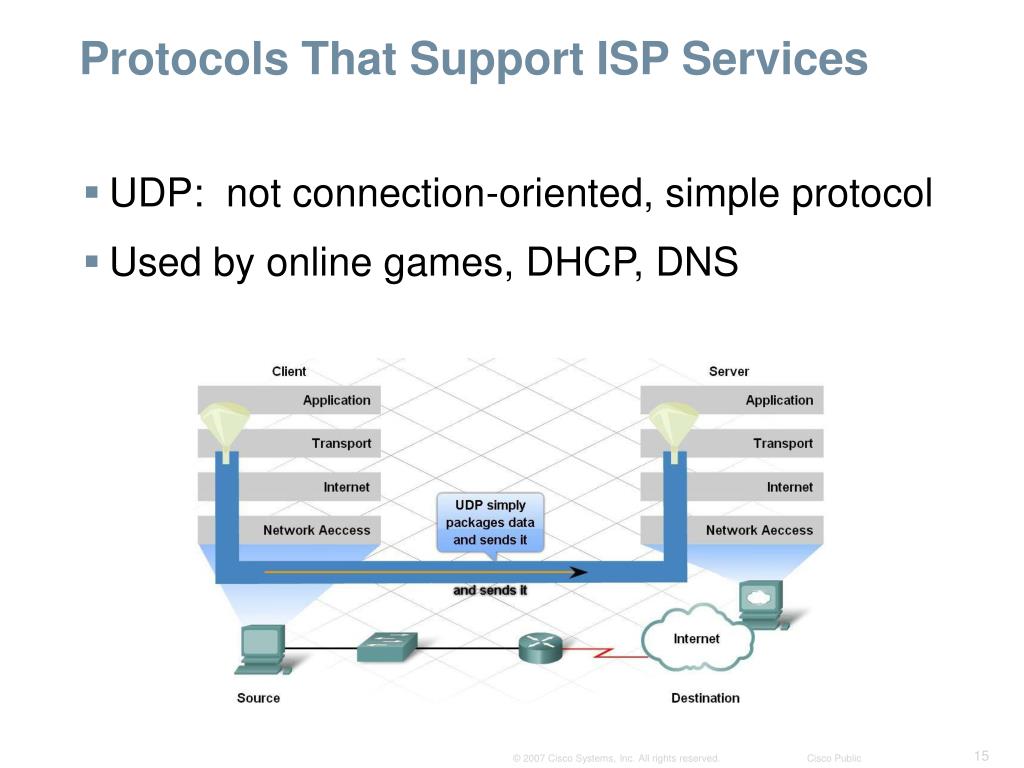

  15. Protocols That Support ISP Services • UDP: not connection-oriented, simple protocol • Used by online games, DHCP, DNS

  16. Protocols That Support ISP Services • TCP and UDP use ports to support multiple services

  17. Protocols That Support ISP Services • Socket: combination of Transport Layer port number and Network Layer IP address of host • Socket pair: source and destination IPs and port numbers identify each conversation

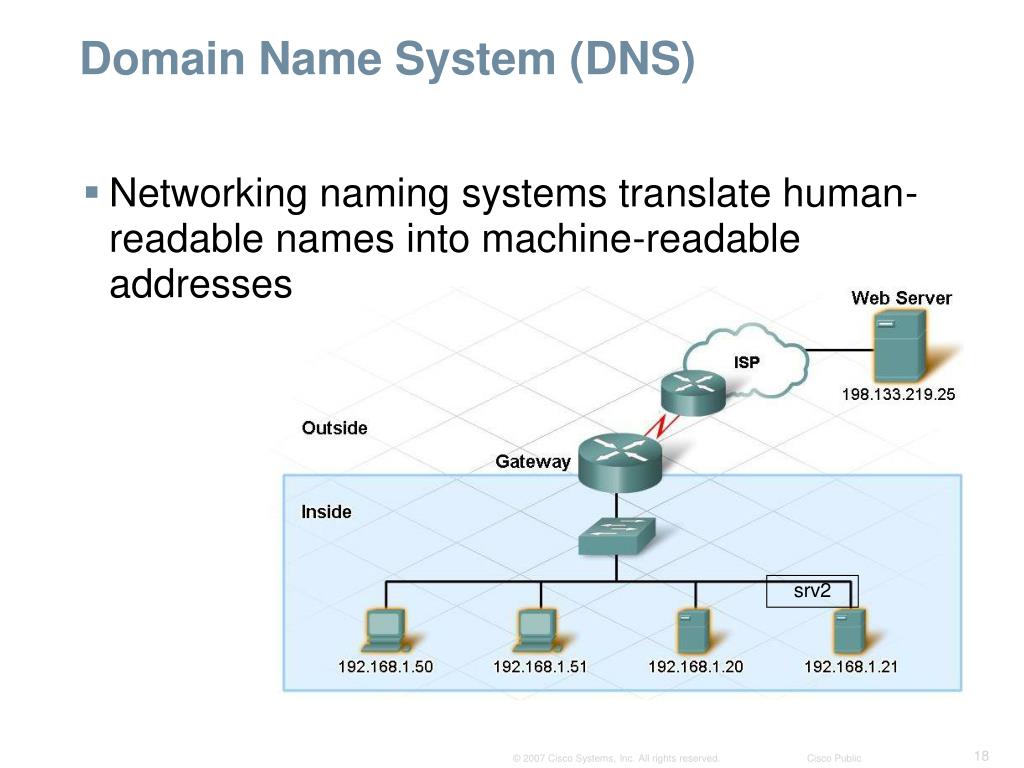

  18. Domain Name System (DNS) • Networking naming systems translate human-readable names into machine-readable addresses srv2

  19. Domain Name System (DNS) Advantages of DNS: • Hierarchical structure • Small, manageable zones • Scalable

  20. Domain Name System (DNS) Components of DNS: • Resource records and domain namespace • Domain name system servers • Resolvers

  21. Domain Name System (DNS) DNS name resolution: • Dynamic updates • Forward lookup zones • Reverse lookup zones • Primary zones • Secondary zones

  22. Domain Name System (DNS) Implementing DNS solutions: • ISP DNS servers • Local DNS servers

  23. Services and Protocols • ISPs provide many business-oriented services • Secure versions of Application Layer protocols support customer security requirements

  24. Services and Protocols • HTTP is a request-response protocol • HTTPS adds authentication and encryption

  25. Services and Protocols • FTP uses a protocol interpreter (PI) and data transfer process (DTP) • Two connections: one to send commands, one for actual file data transfer

  26. Services and Protocols • SMTP: specific message format and processes running on both client and server • POP3: mail is downloaded from server to client and then deleted • IMAP4: keeps messages on server

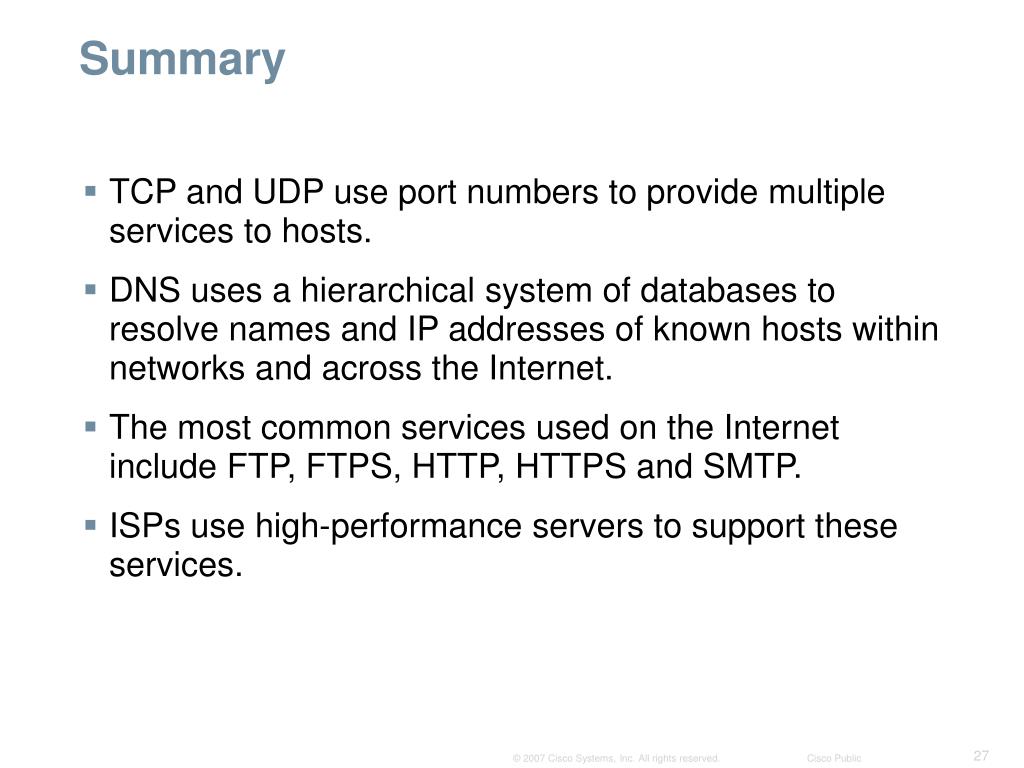

  27. Summary • TCP and UDP use port numbers to provide multiple services to hosts. • DNS uses a hierarchical system of databases to resolve names and IP addresses of known hosts within networks and across the Internet. • The most common services used on the Internet include FTP, FTPS, HTTP, HTTPS and SMTP. • ISPs use high-performance servers to support these services.
