Development of Nanowire Array Device Layouts for Advanced Electronics

DESCRIPTION

This project explores the design and functionality of Type 1 nanowire arrays with a focus on optimized device layouts. The proposed configuration features single wires with terminal pairs per chip and arrangements designed for efficiency at scales of 10μm and 1μm pitch. Targeting minimization, the width is to be under 5μm while accommodating multiple arrays per chip. The emphasis is on enhancing electronic performance through precise nanowire dimensions, including 3μm, 50nm, and 10nm specifications. This innovative approach aims to achieve scalable and high-performance electronic components.

Download

1 / 4

May 12, 2026

Download Presentation

Télécharger la présentation

Development of Nanowire Array Device Layouts for Advanced Electronics

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

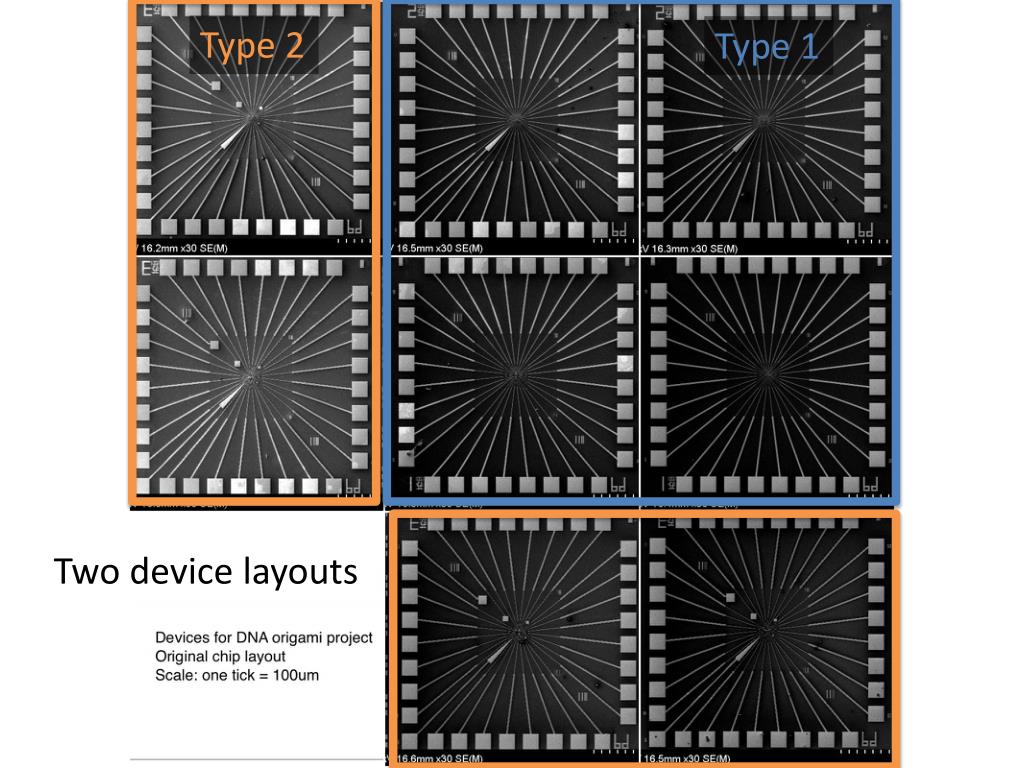

Type 2 Type 1 Two device layouts

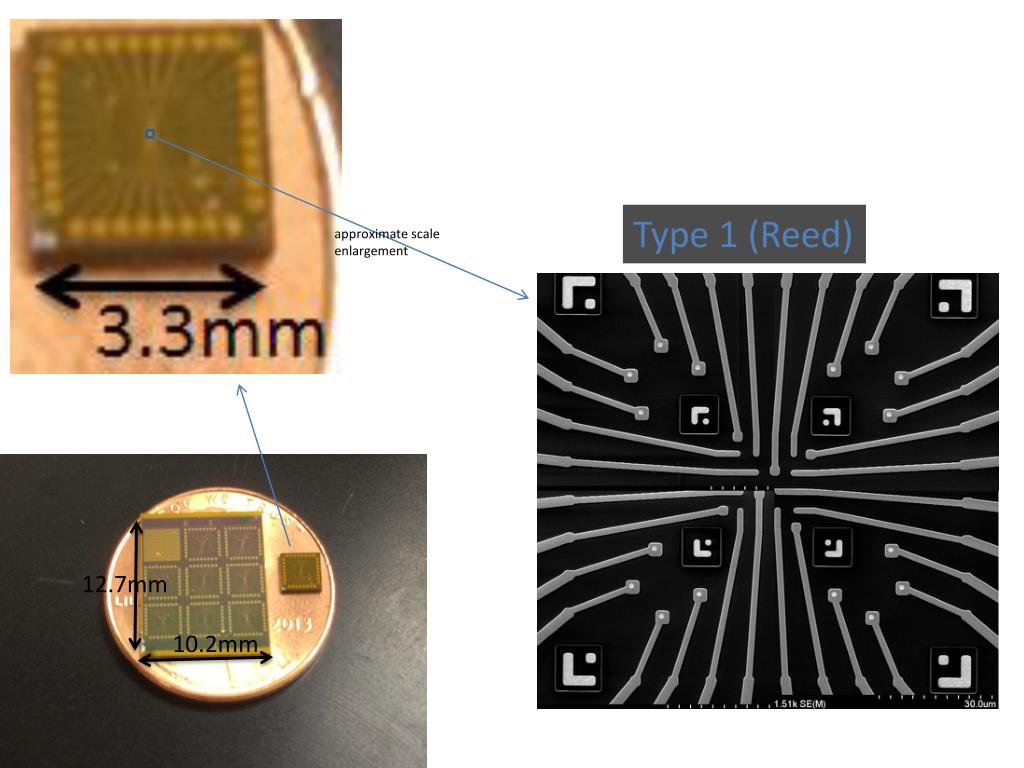

Type 1 (Reed) approximate scale enlargement 12.7mm 10.2mm

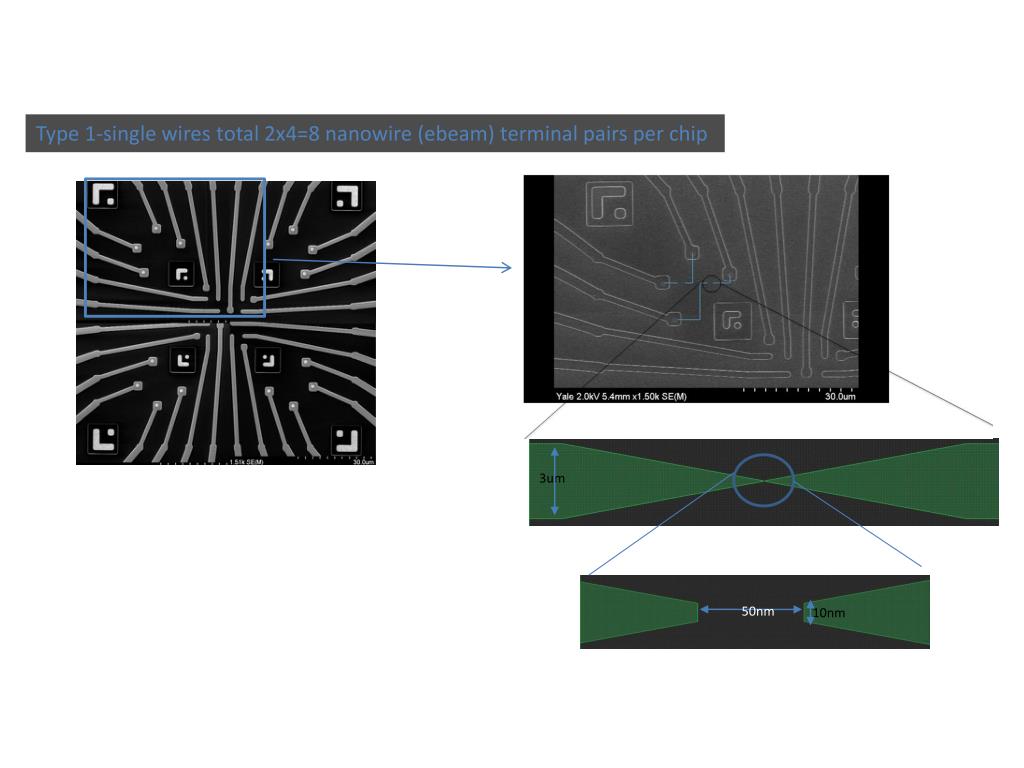

Type 1-single wires total 2x4=8 nanowire (ebeam) terminal pairs per chip 3um 50nm 10nm

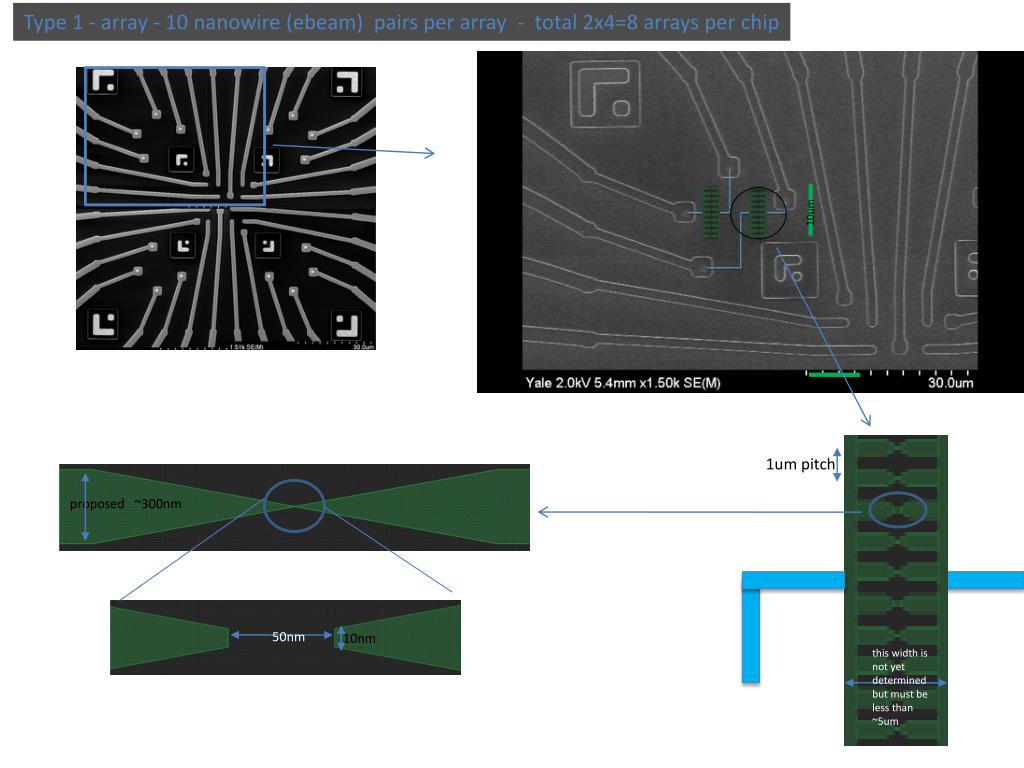

Type 1 - array - 10 nanowire (ebeam) pairs per array - total 2x4=8 arrays per chip 10um 1um pitch proposed ~300nm 50nm 10nm this width is not yet determined but must be less than ~5um
