Presentation Transcript

  1. Day 4 • Section 7 - Simulation Control • User Interface Forms • Efficiency • Monitoring • User-Defined Distributions • Interrupting and Suspending Processes • Exercise 7 • Section 8 - Process Activation • Externally Activated Processes • Exercise 8 F —————————— CACI Products Company ———————————————————————————— SimScript II.5 —————————————— 7-1

  2. Section 7 - Simulation Control Part 1 - User Interface Forms —————————— CACI Products Company ———————————————————————————— SimScript II.5 —————————————— 7-2

  3. User Interface Forms • In SIMLAB, SELECT PROBLEMD and run the model. Stop when the user interface form appears. • In order to display user interface forms, first build the form with the SIMDRAW editor and save the form to a graphics.sg2 file with an appropriate name (e.g. “FORMNAME.FRM"). • To display the form, load “FORMNAME.FRM" and initialize a pointer variable to its address. i.e. Define .FORM.PTR as a pointer variable Show .FORM.PTR with “FORMNAME.FRM" • Now the variable .FORM.PTR contains the address of the form displayed on the screen. —————————— CACI Products Company ———————————————————————————— SimScript II.5 —————————————— 7-3

  4. Interacting with Forms • To initiate an interaction with a form, use the system function accept.f • Accept.f requires two arguments • address of the form (e.g. .FORM.PTR) • control routine (e.g. 'FORM.CTRL') • Since accept.f is a function, it returns a text value equal to the last terminating button Reference Name selected by the user in the form. (Note: When the form is built, each field within the form has a Reference Name.) Define .FIELD.ID as a text variable .FIELD.ID = accept.f (.FORM.PTR, 'FORM.CTRL') • The control routine, FORM.CTRL is called by the function accept.f, not the user. The control routine may be 0. —————————— CACI Products Company ———————————————————————————— SimScript II.5 —————————————— 7-4

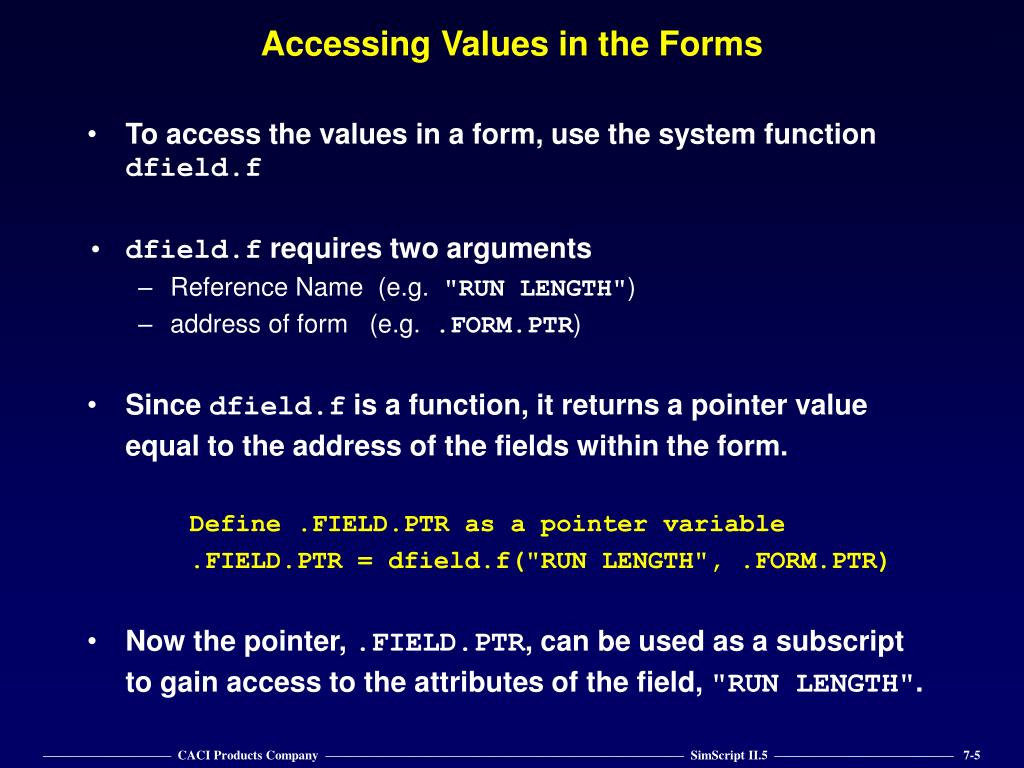

  5. Accessing Values in the Forms • To access the values in a form, use the system function dfield.f • dfield.f requires two arguments • Reference Name (e.g. "RUN LENGTH") • address of form (e.g. .FORM.PTR) • Since dfield.f is a function, it returns a pointer value equal to the address of the fields within the form. Define .FIELD.PTR as a pointer variable .FIELD.PTR = dfield.f("RUN LENGTH", .FORM.PTR) • Now the pointer, .FIELD.PTR, can be used as a subscript to gain access to the attributes of the field, "RUN LENGTH". —————————— CACI Products Company ———————————————————————————— SimScript II.5 —————————————— 7-5

  6. Field Attributes • To access the field values, use the field attributes: ddval.a: numeric value associated with .FIELD.PTR dtval.a: text value associated with .FIELD.PTR dary.a: array pointer associated with .FIELD.PTR • For example: .FIELD.PTR = dfield.f("RUN LENGTH", .FORM.PTR) RUN.LENGTH = ddval.a(.FIELD.PTR) or RUN.LENGTH = ddval.a(dfield.f("RUN LENGTH", .FORM.PTR)) —————————— CACI Products Company ———————————————————————————— SimScript II.5 —————————————— 7-6

  7. 1 Routine INITIALIZE 2 3 Define .FORM as a pointer variable 4 Define .FIELD as a text variable 5 6 '' Display the form and get run data from the user 7 8 Show .FORM with "INPUT.FRM" 9 Let .FIELD = accept.f(.FORM, 'FORM.CTRL') 10 11 '' Create the tug and docks 12 13 Create every TUG(1) 14 Let U.TUG(1) = NBR.TUGS 15 Create every DOCK(1) 16 Let U.DOCK(1) = NBR.DOCKS 17 18 '' Warning elimination 19 20 Let .FIELD = .FIELD 21 22 End ''INITIALIZE —————————— CACI Products Company ———————————————————————————— SimScript II.5 —————————————— 7-7

  8. 1 Routine FORM.CTRL 2 3 Given 4 .FIELD, 5 .FORM 6 Yielding 7 .STATUS 8 9 '' Control routine for the input form 10 11 Define .FORM as a pointer variable 12 Define .FIELD as a text variable 13 Define .STATUS as an integer variable 14 15 Select case .FIELD 16 17 Case "RUN" 18 Let RUN.LENGTH = ddval.a(dfield.f("RUN LENGTH", .FORM)) 19 Let NBR.DOCKS = 3 20 Let NBR.TUGS = 1 21 Return 22 23 Case "QUIT" 24 Stop 25 26 Default 27 28 Endselect ''.FIELD 29 30 '' Warning elimination 31 Let .STATUS = .STATUS 32 33 End ''FORM.CTRL —————————— CACI Products Company ———————————————————————————— SimScript II.5 —————————————— 7-8

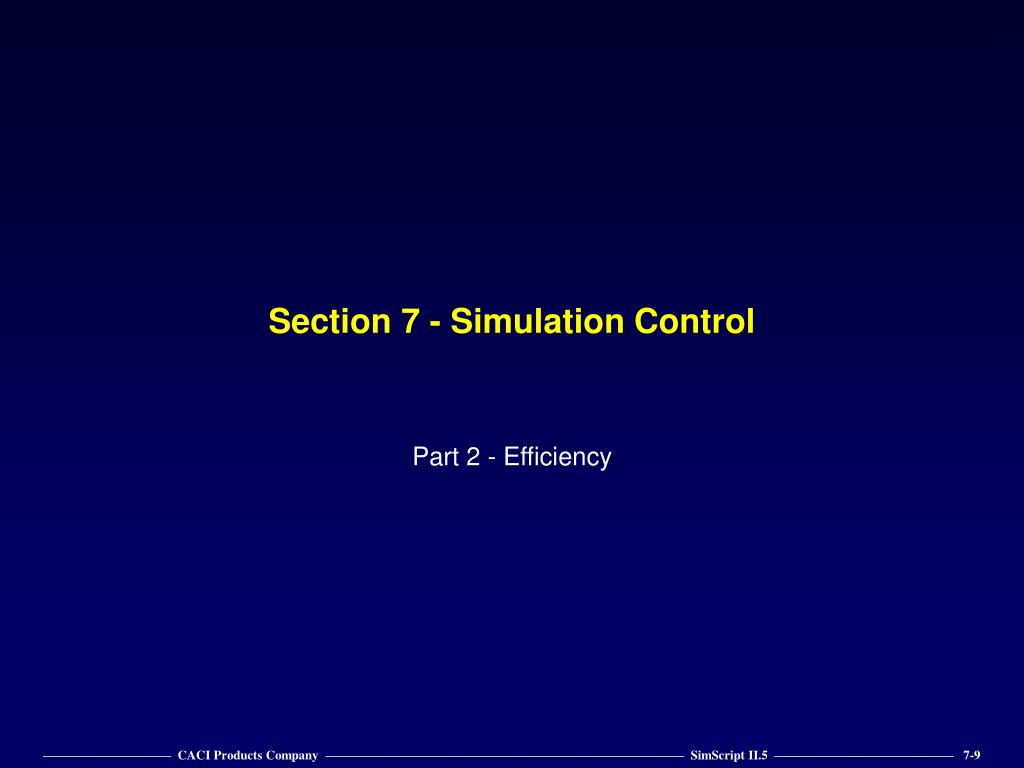

  9. Section 7 - Simulation Control Part 2 - Efficiency —————————— CACI Products Company ———————————————————————————— SimScript II.5 —————————————— 7-9

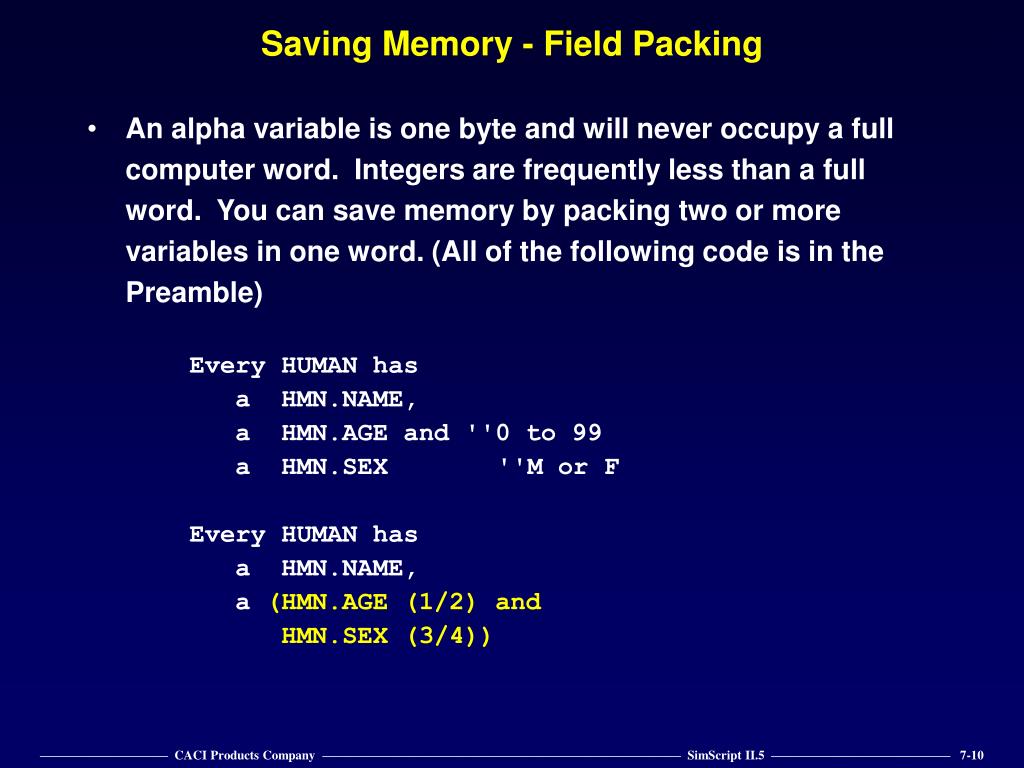

  10. Saving Memory - Field Packing • An alpha variable is one byte and will never occupy a full computer word. Integers are frequently less than a full word. You can save memory by packing two or more variables in one word. (All of the following code is in the Preamble) Every HUMAN has a HMN.NAME, a HMN.AGE and ''0 to 99 a HMN.SEX ''M or F Every HUMAN has a HMN.NAME, a (HMN.AGE (1/2) and HMN.SEX (3/4)) —————————— CACI Products Company ———————————————————————————— SimScript II.5 —————————————— 7-10

  11. Saving Memory - Field Packing (continued) Every HUMAN has a HMN.NAME, a HMN.AGE (1/2) in word 1, a HMN.SSN, a HMN.SEX (3/4) in word 1 • Works only for attributes of temporary entities —————————— CACI Products Company ———————————————————————————— SimScript II.5 —————————————— 7-11

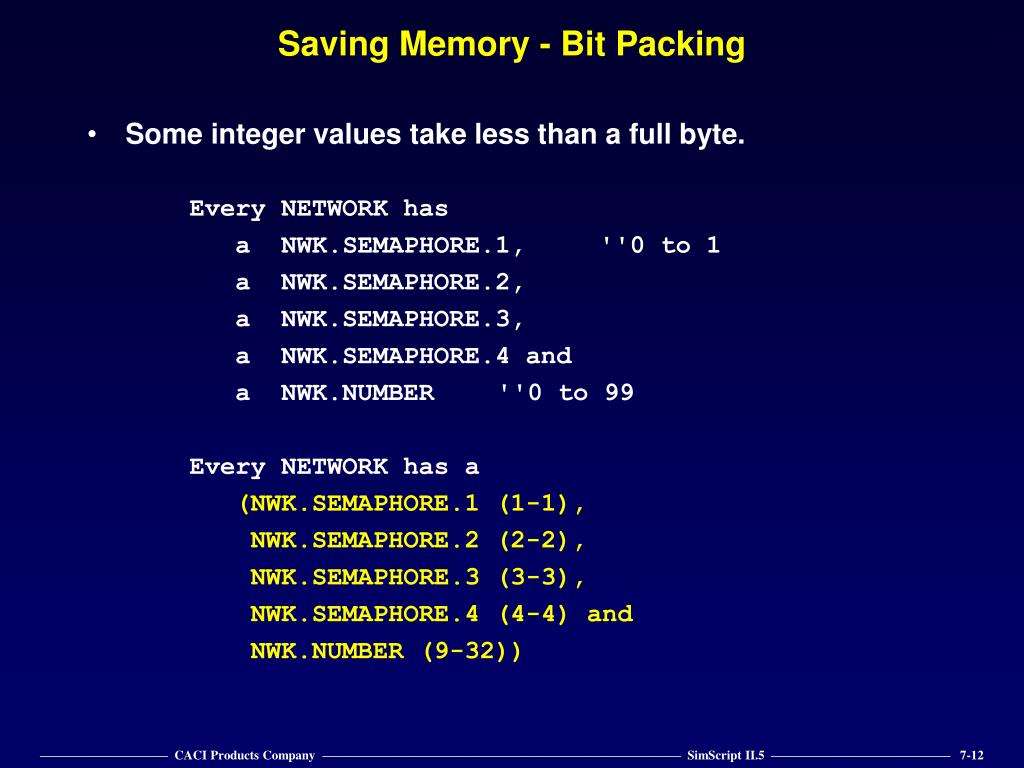

  12. Saving Memory - Bit Packing • Some integer values take less than a full byte. Every NETWORK has a NWK.SEMAPHORE.1, ''0 to 1 a NWK.SEMAPHORE.2, a NWK.SEMAPHORE.3, a NWK.SEMAPHORE.4 and a NWK.NUMBER ''0 to 99 Every NETWORK has a (NWK.SEMAPHORE.1 (1-1), NWK.SEMAPHORE.2 (2-2), NWK.SEMAPHORE.3 (3-3), NWK.SEMAPHORE.4 (4-4) and NWK.NUMBER (9-32)) —————————— CACI Products Company ———————————————————————————— SimScript II.5 —————————————— 7-12

  13. Saving Memory - Intrapacking • You can pack attributes of permanent entities in a manner similar to that for field packing. Every AIRPORT has an APT.STATUS (*/4) ''O OR C —————————— CACI Products Company ———————————————————————————— SimScript II.5 —————————————— 7-13

  14. Saving Memory - Eliminating Attributes and Routines • Every set definition • Assigns 3 attributes to the owner • Assigns 3 attributes to each member • Copies 7 routines for filing and removing members • File first (FF) • File last (FL) • File before (FB) • File after (FA) • Remove first (RF) • Remove last (RL) • Remove specific (RS) —————————— CACI Products Company ———————————————————————————— SimScript II.5 —————————————— 7-14

  15. Saving Memory - Eliminating Attributes and Routines (continued) • Suppose you have a set where you file members, never remove them and always search the set from start to finish -- a read only FIFO set. • You don't need the predecessor and membership attributes nor the remove routines. Further, you only need the file last routine. Every SHIP belongs to a FLEET Define FLEET as a FIFO set without P and M attributes and without FF, FB, FA and R routines —————————— CACI Products Company ———————————————————————————— SimScript II.5 —————————————— 7-15

  16. Saving Memory - Equivalencing • Suppose a ship can be in a dock waiting line or a tug waiting line but never at the same time. Every SHIP has a P.DOCK.WAITING.LINE in word 1, a P.TUG.WAITING.LINE in word 1, a S.DOCK.WAITING.LINE in word 2, a S.TUG.WAITING.LINE in word 2, a M.DOCK.WAITING.LINE in word 3, a M.TUG.WAITING.LINE in word 3, belongs to a DOCK.WAITING.LINE and belongs to a TUG.WAITING.LINE • This makes P.DOCK.WAITING.LINE and P.TUG.WAITING.LINE synonyms or equivalent. —————————— CACI Products Company ———————————————————————————— SimScript II.5 —————————————— 7-16

  17. Section 7 - Simulation Control Part 3 - Monitoring —————————— CACI Products Company ———————————————————————————— SimScript II.5 —————————————— 7-17

  18. Monitoring • When something is about to happen or has just happened, SIMSCRIPT II.5 can intercept control and pass it to a subroutine that you write. When done, control returns to where it came from. Accumulate or tally Graphics Entities Variables • Suppose a communications center keeps a number of circuits in reserve. When the number of waiting messages exceeds a certain level, it brings another circuit up. —————————— CACI Products Company ———————————————————————————— SimScript II.5 —————————————— 7-18

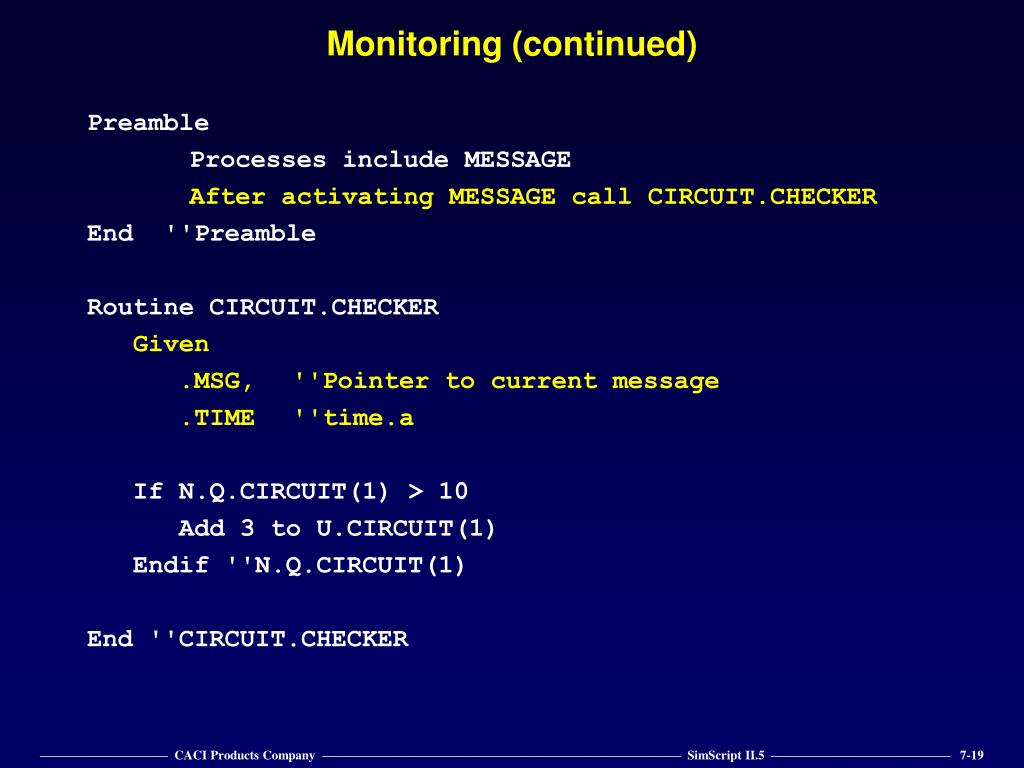

  19. Monitoring (continued) Preamble Processes include MESSAGE After activating MESSAGE call CIRCUIT.CHECKER End ''Preamble Routine CIRCUIT.CHECKER Given .MSG, ''Pointer to current message .TIME ''time.a If N.Q.CIRCUIT(1) > 10 Add 3 to U.CIRCUIT(1) Endif ''N.Q.CIRCUIT(1) End ''CIRCUIT.CHECKER —————————— CACI Products Company ———————————————————————————— SimScript II.5 —————————————— 7-19

  20. Monitoring (continued) • Can use before or after with create or destroy entities activate or cancel processes file or remove from sets • but not before create or after destroy • SIMSCRIPT II.5 passes arguments to the routine including the address of the process notice. (See p. 80 in Reference Manual for details – Page 98 of the acrobat reader) —————————— CACI Products Company ———————————————————————————— SimScript II.5 —————————————— 7-20

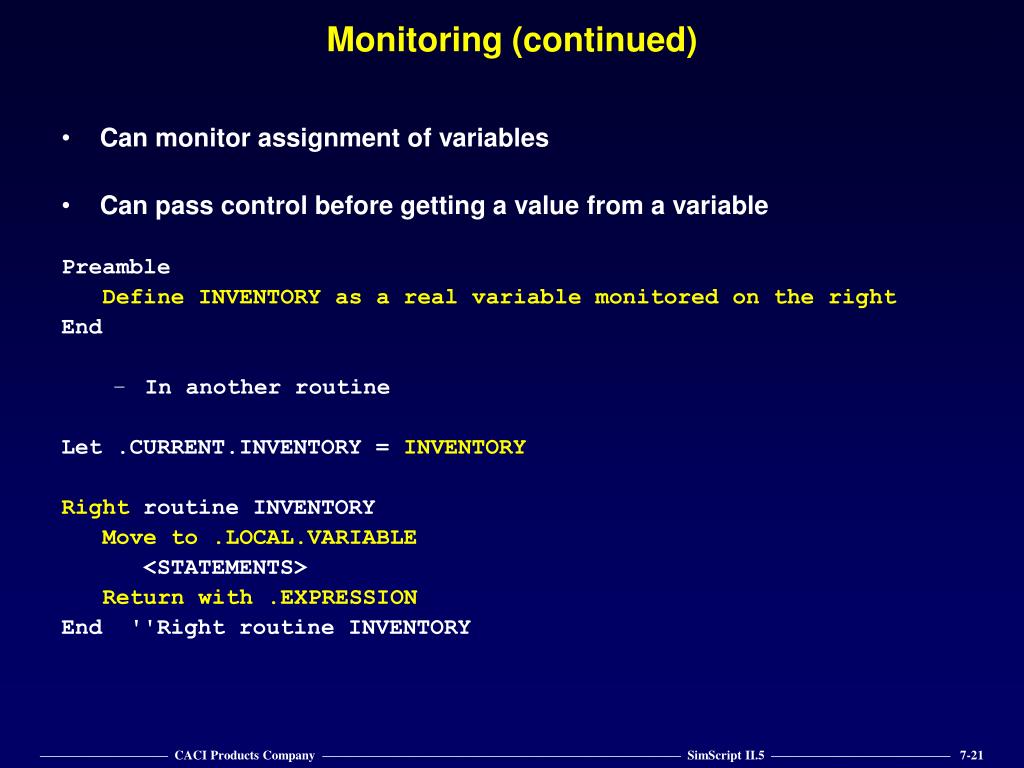

  21. Monitoring (continued) • Can monitor assignment of variables • Can pass control before getting a value from a variable Preamble Define INVENTORY as a real variable monitored on the right End • In another routine Let .CURRENT.INVENTORY = INVENTORY Right routine INVENTORY Move to .LOCAL.VARIABLE <STATEMENTS> Return with .EXPRESSION End ''Right routine INVENTORY —————————— CACI Products Company ———————————————————————————— SimScript II.5 —————————————— 7-21

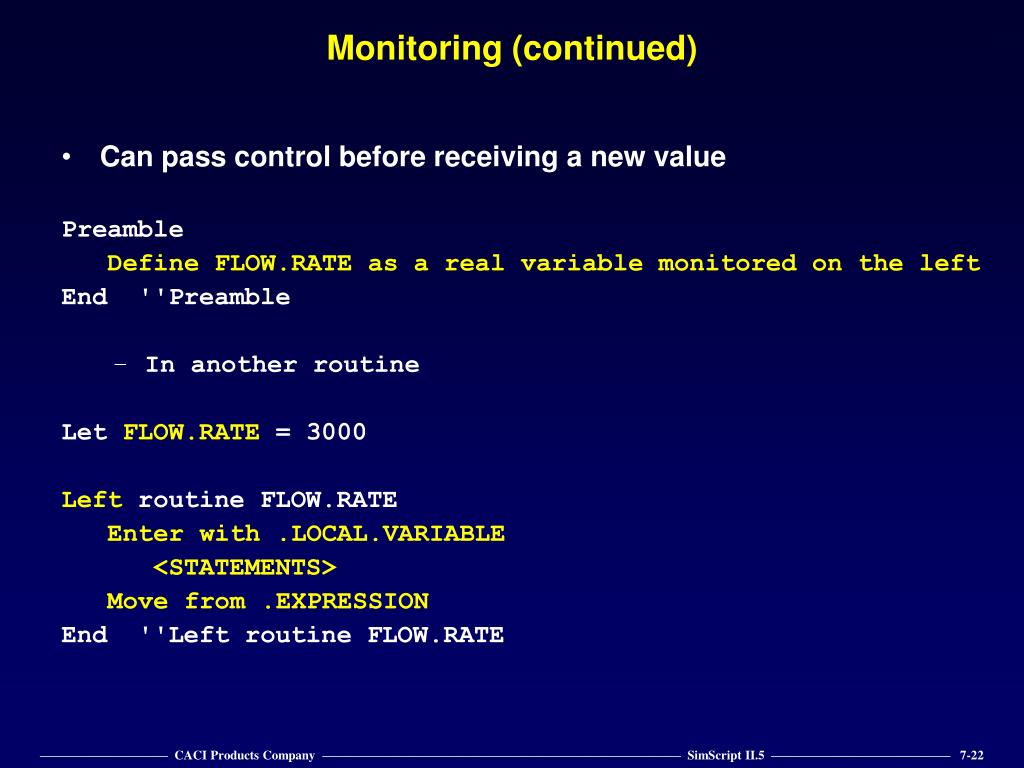

  22. Monitoring (continued) • Can pass control before receiving a new value Preamble Define FLOW.RATE as a real variable monitored on the left End ''Preamble • In another routine Let FLOW.RATE = 3000 Left routine FLOW.RATE Enter with .LOCAL.VARIABLE <STATEMENTS> Move from .EXPRESSION End ''Left routine FLOW.RATE —————————— CACI Products Company ———————————————————————————— SimScript II.5 —————————————— 7-22

  23. Section 7 - Simulation Control Part 4 - User-Defined Distributions —————————— CACI Products Company ———————————————————————————— SimScript II.5 —————————————— 7-23

  24. Arbitrary Probability Distributions Message Priority Probability of Occurrence 5 .05 4 .20 3 .40 2 .30 1 .05 —————————— CACI Products Company ———————————————————————————— SimScript II.5 —————————————— 7-24

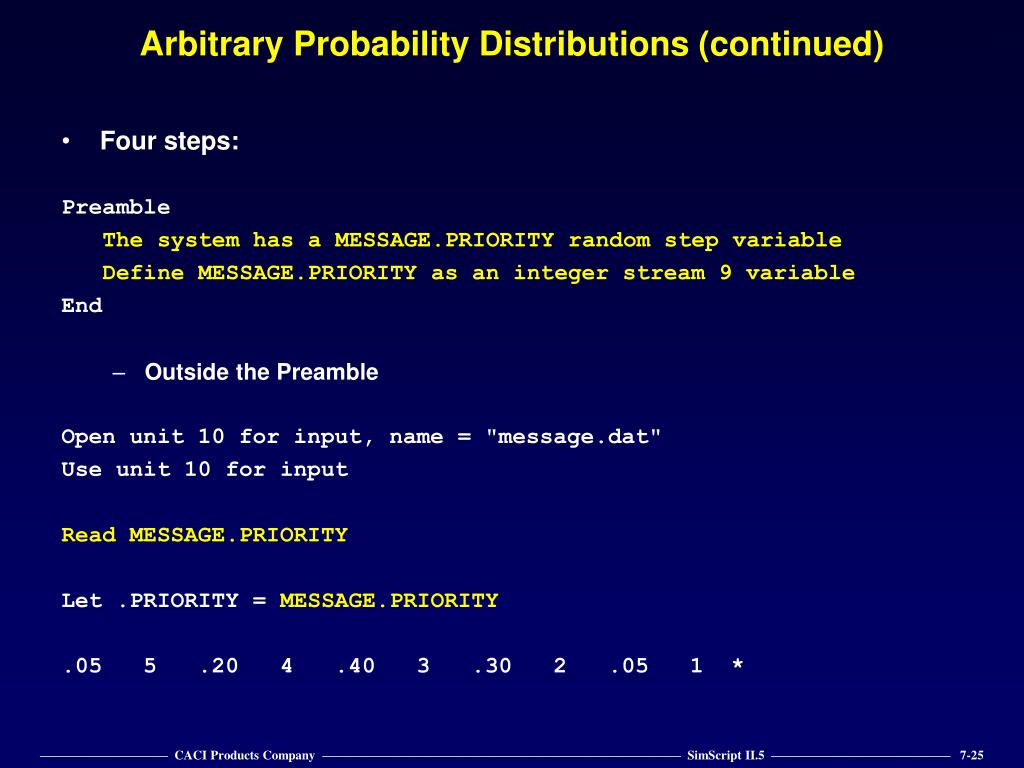

  25. Arbitrary Probability Distributions (continued) • Four steps: Preamble The system has a MESSAGE.PRIORITY random step variable Define MESSAGE.PRIORITY as an integer stream 9 variable End • Outside the Preamble Open unit 10 for input, name = "message.dat" Use unit 10 for input Read MESSAGE.PRIORITY Let .PRIORITY = MESSAGE.PRIORITY .05 5 .20 4 .40 3 .30 2 .05 1 * —————————— CACI Products Company ———————————————————————————— SimScript II.5 —————————————— 7-25

  26. Arbitrary Probability Distributions (continued) f.message.priority random.e prob.a .05 ivalue.a 5 s.message.priority .25 4 If MESSAGE.PRIORITY were real ivalue.a would become rvalue.a .65 3 Probabilities are stored a cumulative values Probabilities can safely sum to 1.0 + or - .005 .95 2 1.0 1 —————————— CACI Products Company ———————————————————————————— SimScript II.5 —————————————— 7-26

  27. Arbitrary Probability Distributions (continued) Salary Probability of Occurrence 15,000 0.0 20,000 0.10 30,000 0.40 40,000 0.30 50,000 0.15 60,000 0.05 1.0 0 5 15 25 35 45 55 65 —————————— CACI Products Company ———————————————————————————— SimScript II.5 —————————————— 7-27

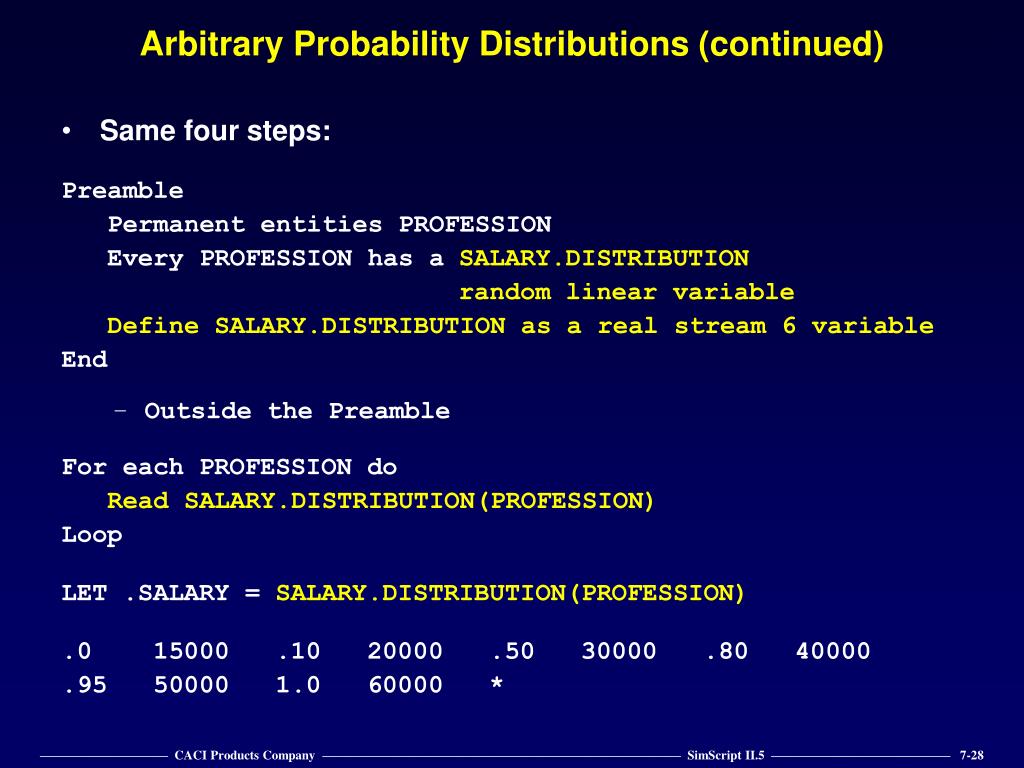

  28. Arbitrary Probability Distributions (continued) • Same four steps: Preamble Permanent entities PROFESSION Every PROFESSION has a SALARY.DISTRIBUTION random linear variable Define SALARY.DISTRIBUTION as a real stream 6 variable End • Outside the Preamble For each PROFESSION do Read SALARY.DISTRIBUTION(PROFESSION) Loop LET .SALARY = SALARY.DISTRIBUTION(PROFESSION) .0 15000 .10 20000 .50 30000 .80 40000 .95 50000 1.0 60000 * —————————— CACI Products Company ———————————————————————————— SimScript II.5 —————————————— 7-28

  29. Section 7 - Simulation Control Part 5 - Interrupting Processes —————————— CACI Products Company ———————————————————————————— SimScript II.5 —————————————— 7-29

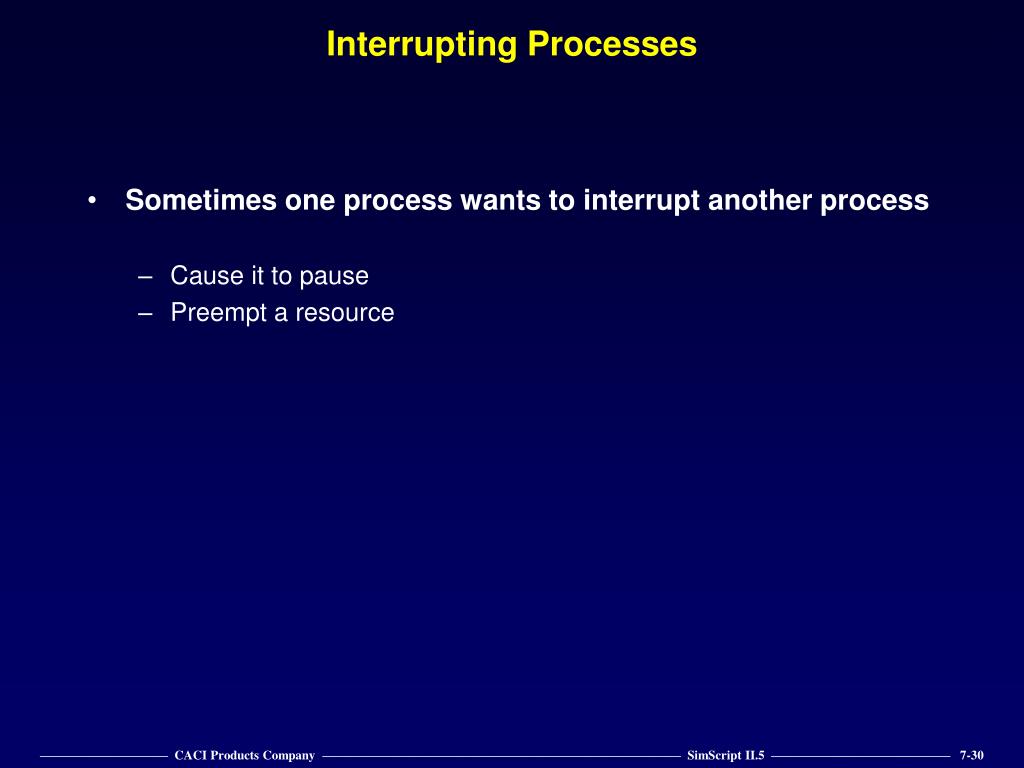

  30. Interrupting Processes • Sometimes one process wants to interrupt another process • Cause it to pause • Preempt a resource —————————— CACI Products Company ———————————————————————————— SimScript II.5 —————————————— 7-30

  31. Interrupting Processes (continued) Process MESSAGE For each .OLD.MESSAGE in the MESSAGE.SET with STATUS(.OLD.MESSAGE) = ..IN.TRANSMISSION do Compute .MIN.MSG as the minimum(.OLD.MESSAGE) of PRIORITY(.OLD.MESSAGE) Loop ''each .OLD.MESSAGE in the MESSAGE.SET If PRIORITY(.MIN.MSG) < PRIORITY(MESSAGE) Interrupt MESSAGE called .MIN.MSG Call TRANSMIT.MESSAGE Resume the MESSAGE called .MIN.MSG Endif ''PRIORITY(.MIN.MSG) < PRIORITY(MESSAGE) —————————— CACI Products Company ———————————————————————————— SimScript II.5 —————————————— 7-31

  32. Interrupt & Resume • Interrupt • The process being interrupted must be in the event set (work, wait or activate) • User must be file interrupted process in another set because interrupt will remove the process notice from the event set • System will change time.a to the time remaining until the next activity • Let time.a = time.a - time.v • Resume • System will reset time.a = time.a + time.v • Refiles the process notice in the event set —————————— CACI Products Company ———————————————————————————— SimScript II.5 —————————————— 7-32

  33. Suspend & Reactivate Processes If PRIORITY(.MIN.MSG) >= PRIORITY(MESSAGE) Let STATUS(MESSAGE) = ..WAITING File MESSAGE in MESSAGE.SET Suspend Call TRANSMIT.MESSAGE Endif ''PRIORITY(.MIN.MSG) >= PRIORITY(MESSAGE) End ''MESSAGE • In another routine where suspended messages can be identified: Reactivate the MESSAGE now —————————— CACI Products Company ———————————————————————————— SimScript II.5 —————————————— 7-33

  34. Suspend & Reactivate Processes (continued) • Suspend: • Process is active • Process notice is not in event set • Process notice was filed in a set before suspending itself • Another process reactivated it -- put it back in event set —————————— CACI Products Company ———————————————————————————— SimScript II.5 —————————————— 7-34

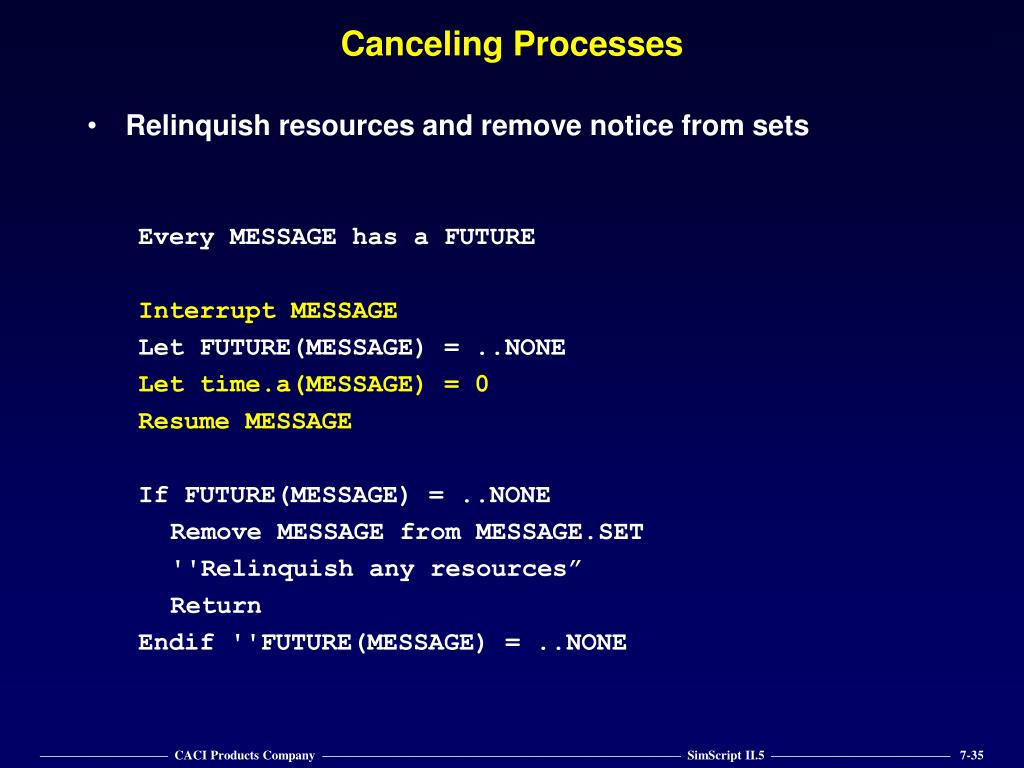

  35. Canceling Processes • Relinquish resources and remove notice from sets Every MESSAGE has a FUTURE Interrupt MESSAGE Let FUTURE(MESSAGE) = ..NONE Let time.a(MESSAGE) = 0 Resume MESSAGE If FUTURE(MESSAGE) = ..NONE Remove MESSAGE from MESSAGE.SET ''Relinquish any resources” Return Endif ''FUTURE(MESSAGE) = ..NONE —————————— CACI Products Company ———————————————————————————— SimScript II.5 —————————————— 7-35

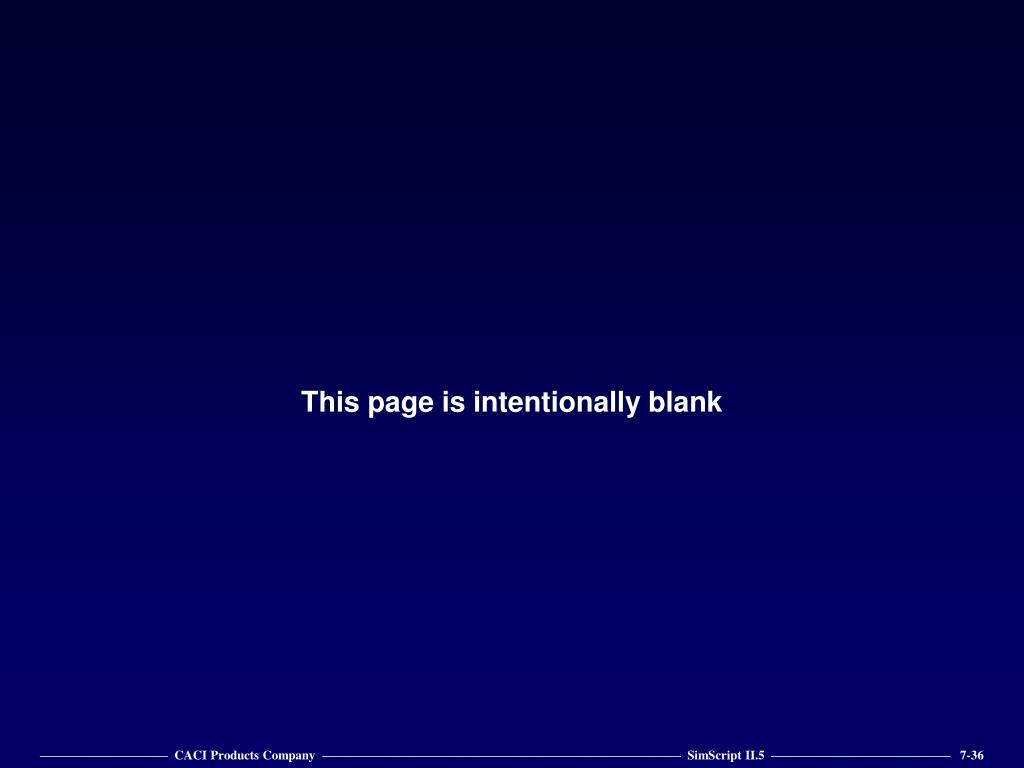

  36. This page is intentionally blank —————————— CACI Products Company ———————————————————————————— SimScript II.5 —————————————— 7-36

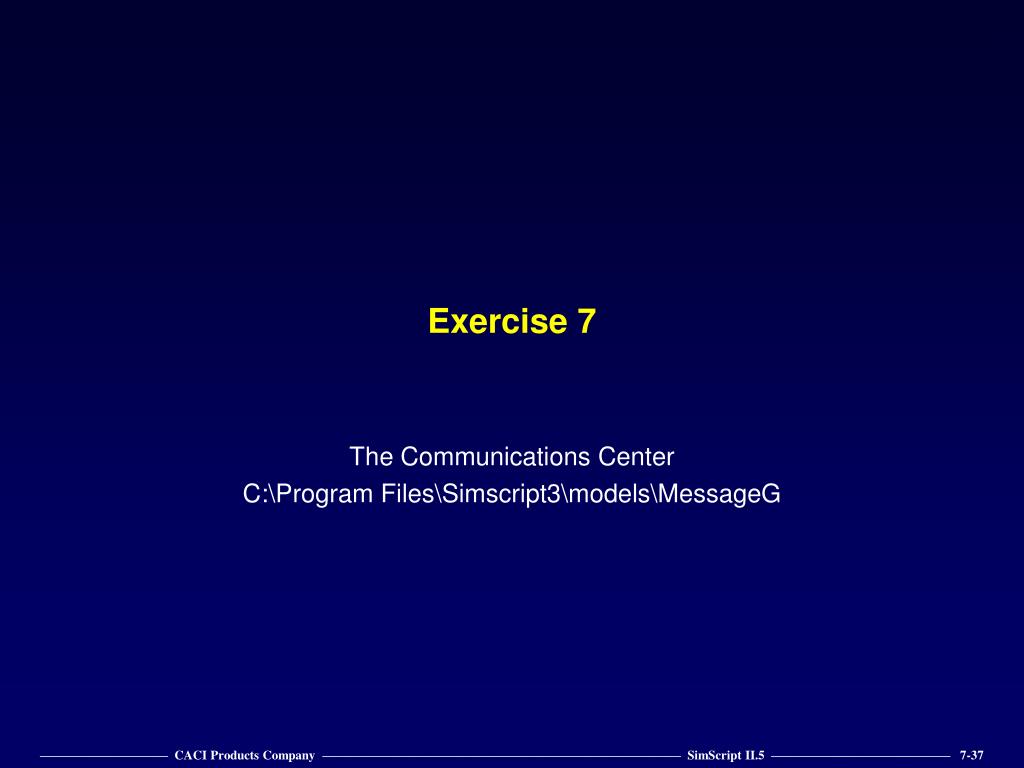

  37. Exercise 7 The Communications Center C:\Program Files\Simscript3\models\MessageG —————————— CACI Products Company ———————————————————————————— SimScript II.5 —————————————— 7-37

  38. The Communications Center • Project located in MessageG subdirectory • Messages arrive at a communications center about 15 seconds apart. • If a circuit is free, the message is sent. If a circuit is not free and if the message priority is flash or immediate, the center will look for a message of lower priority and interrupt it to send the higher priority message. The interrupted message will be retransmitted in its entirety. • If a message cannot interrupt another message, it waits to be transmitted. • Modifications • Make sure you understand how the user interface is set up. Try improving the graphics by modifying the clock • Why does the graph end at 30 for messages created and interrupted, but not for waiting messages? —————————— CACI Products Company ———————————————————————————— SimScript II.5 —————————————— 7-38

  39. 1 Preamble 2 3 '' The Communications Center Model - CACI Products Company 4 '' Demonstrates the use of Interrupt and Suspend 5 '' Graphics version of program demonstrating trace plot, level meter, clock 6 '' files: MESSAGEG.SRC, MESSAGE.DAT, MENU.FRM, 7 '' MESSAGES.GRF, BUSY.GRF, CLOCK.GRF 8 9 Normally mode is undefined 10 11 The system has a MESSAGE.PRIORITY random step variable 12 Define MESSAGE.PRIORITY as an integer stream 9 variable 13 14 Permanent entities 15 Every COMM.CENTER owns a MESSAGE.SET 16 17 Processes include 18 MESSAGE.GENERATOR 19 20 Every MESSAGE has 21 a PRIORITY, 22 a LENGTH, 23 a STATUS and 24 belongs to a MESSAGE.SET 25 26 Define PRIORITY, STATUS as integer variables 27 Define LENGTH as a real variable 28 Define MESSAGE.SET as a set ranked by high PRIORITY 29 30 Define RUN.LENGTH, 31 NUMBER.BUSY.CIRCUITS, 32 NUMBER.OF.MESSAGES, 33 NUMBER.OF.MESSAGES.INTERRUPTED, 34 TOTAL.NUMBER.OF.CIRCUITS 35 as integer variables —————————— CACI Products Company ———————————————————————————— SimScript II.5 —————————————— 7-39

  40. 36 37 Define CLOCKTIME as a real variable 38 39 Display variables include 40 CLOCKTIME, 41 NUMBER.BUSY.CIRCUITS, 42 NUMBER.OF.MESSAGES, 43 NUMBER.OF.MESSAGES.INTERRUPTED, 44 N.MESSAGE.SET 45 46 Define ..FLASH to mean 5 47 Define ..IMMEDIATE to mean 4 48 Define ..PRIORITY to mean 3 49 Define ..ROUTINE to mean 2 50 Define ..DEFERRED to mean 1 51 52 Define ..IN.TRANSMISSION to mean 1 53 Define ..SUSPENDED to mean 2 54 Define ..INTERRUPTED to mean 3 55 56 Define minutes to mean units 57 Define seconds to mean /60 minutes 58 59 Define ..TEXT.PAUSE to mean Read as / using unit 5 60 61 End ''Preamble —————————— CACI Products Company ———————————————————————————— SimScript II.5 —————————————— 7-40

  41. 1 Main 2 3 Call INITIALIZE 4 Call SET.GRAPHICS 5 6 Activate a MESSAGE.GENERATOR now 7 Start simulation 8 Call REPORT 9 ..TEXT.PAUSE 10 11 End ''Main 1 Routine INITIALIZE 2 3 Open unit 10 for input, name "MESSAGE.DAT" 4 Use unit 10 for input 5 Read MESSAGE.PRIORITY 6 7 Create every COMM.CENTER(1) 8 Let COMM.CENTER = 1 9 10 End ''INITIALIZE —————————— CACI Products Company ———————————————————————————— SimScript II.5 —————————————— 7-41

  42. 1 Routine SET.GRAPHICS 2 3 Define .FORM as a pointer variable 4 Define .FIELD as a text variable 5 6 Show .FORM with "MENU.FRM" 7 Let .FIELD = accept.f(.FORM, 'FORM.CTRL') 8 9 Show CLOCKTIME with "CLOCK.GRF" 10 Show NUMBER.BUSY.CIRCUITS with "BUSY.GRF" 11 Show NUMBER.OF.MESSAGES, 12 N.MESSAGE.SET, 13 NUMBER.OF.MESSAGES.INTERRUPTED 14 with "MESSAGES.GRF" 15 16 Let .FIELD = .FIELD 17 18 Let timesync.v = 'CLOCK.UPDATE' 19 Let timescale.v = 100 20 21 End ''SET.GRAPHICS 1 Routine CLOCK.UPDATE 2 Given 3 .PROPOSED.TIME.V 4 Yielding 5 .NEW.TIME.V 6 7 Define .PROPOSED.TIME.V and 8 .NEW.TIME.V 9 as double variables 10 11 Let .NEW.TIME.V = .PROPOSED.TIME.V 12 Let CLOCKTIME = .PROPOSED.TIME.V 13 14 End ''CLOCK.UPDATE —————————— CACI Products Company ———————————————————————————— SimScript II.5 —————————————— 7-42

  43. 1 Routine FORM.CTRL 2 3 Given 4 .FIELD.ID, 5 .FORM 6 Yielding 7 .STATUS 8 9 Define .FIELD.ID as a text variable 10 Define .FORM as a pointer variable 11 Define .STATUS as an integer variable 12 13 Select case .FIELD.ID 14 15 Case "RUN" 16 Let TOTAL.NUMBER.OF.CIRCUITS = ddval.a(dfield.f("CIRCUITS", .FORM)) 17 Let RUN.LENGTH = int.f(ddval.a(dfield.f("RUN LENGTH", .FORM))) 18 Return 19 20 Case "QUIT" 21 Stop 22 23 Default 24 25 Endselect ''.FIELD.ID 26 27 Let .STATUS = .STATUS 28 29 End ''FORM.CTRL —————————— CACI Products Company ———————————————————————————— SimScript II.5 —————————————— 7-43

  44. 1 Process MESSAGE.GENERATOR 2 3 Until time.v >= RUN.LENGTH 4 Do 5 6 Activate a MESSAGE now 7 Let PRIORITY(MESSAGE) = MESSAGE.PRIORITY 8 Let LENGTH(MESSAGE) = uniform.f(.25, 4.0, 1) 9 File MESSAGE in the MESSAGE.SET(COMM.CENTER) 10 11 Add 1 to NUMBER.OF.MESSAGES 12 13 Wait exponential.f(15, 2) seconds 14 15 Loop ''time.v >= RUN.LENGTH 16 17 End ''MESSAGE.GENERATOR —————————— CACI Products Company ———————————————————————————— SimScript II.5 —————————————— 7-44

  45. 1 Process MESSAGE 2 3 Define .MIN.MSG, 4 .OLD.MESSAGE as pointer variables 5 6 If NUMBER.BUSY.CIRCUITS < TOTAL.NUMBER.OF.CIRCUITS 7 8 Call TRANSMIT.MESSAGE 9 Given 10 MESSAGE 11 Else 12 13 For each .OLD.MESSAGE in the MESSAGE.SET(COMM.CENTER) 14 with STATUS(.OLD.MESSAGE) = ..IN.TRANSMISSION 15 Do 16 Compute .MIN.MSG as the minimum(.OLD.MESSAGE) of PRIORITY(.OLD.MESSAGE) 17 Loop ''each .MSG in the MESSAGE.SET(COMM.CENTER) 18 19 If PRIORITY(MESSAGE) >= ..IMMEDIATE and 20 PRIORITY(.MIN.MSG) < PRIORITY(MESSAGE) 21 22 Let STATUS(.MIN.MSG) = ..INTERRUPTED 23 Interrupt MESSAGE called .MIN.MSG 24 Add 1 to NUMBER.OF.MESSAGES.INTERRUPTED 25 Subtract 1 from NUMBER.BUSY.CIRCUITS 26 Let time.a(.MIN.MSG) = LENGTH(.MIN.MSG) 27 Call TRANSMIT.MESSAGE 28 Given 29 MESSAGE 30 Else 31 32 Let STATUS(MESSAGE) = ..SUSPENDED 33 Suspend 34 Call TRANSMIT.MESSAGE 35 Given 36 MESSAGE 37 Endif —————————— CACI Products Company ———————————————————————————— SimScript II.5 —————————————— 7-45

  46. 38 39 Endif ''NUMBER.BUSY.CIRCUITS < TOTAL.NUMBER.OF.CIRCUITS 40 41 End ''MESSAGE —————————— CACI Products Company ———————————————————————————— SimScript II.5 —————————————— 7-46

  47. 1 Routine TRANSMIT.MESSAGE 2 Given 3 .NEW.MESSAGE 4 5 Define .NUMBER.CIRCUITS as an integer variable 6 7 Define .NEW.MESSAGE, 8 .OLD.MESSAGE as pointer variables 9 10 Add 1 to NUMBER.BUSY.CIRCUITS 11 Let STATUS(.NEW.MESSAGE) = ..IN.TRANSMISSION 12 Wait LENGTH(.NEW.MESSAGE) minutes 13 14 Subtract 1 from NUMBER.BUSY.CIRCUITS 15 Remove .NEW.MESSAGE from the MESSAGE.SET(COMM.CENTER) 16 17 Let .NUMBER.CIRCUITS = NUMBER.BUSY.CIRCUITS 18 —————————— CACI Products Company ———————————————————————————— SimScript II.5 —————————————— 7-47

  48. 19 For each .OLD.MESSAGE in the MESSAGE.SET(COMM.CENTER) 20 with STATUS(.OLD.MESSAGE) not equal to ..IN.TRANSMISSION 21 while .NUMBER.CIRCUITS < TOTAL.NUMBER.OF.CIRCUITS do 22 23 Select case STATUS(.OLD.MESSAGE) 24 25 Case ..SUSPENDED 26 Reactivate the MESSAGE called .OLD.MESSAGE now 27 28 Case ..INTERRUPTED 29 Resume the MESSAGE called .OLD.MESSAGE 30 Add 1 to NUMBER.BUSY.CIRCUITS 31 Let STATUS(.OLD.MESSAGE) = ..IN.TRANSMISSION 32 33 Default 34 Endselect ''STATUS(.OLD.MESSAGE) 35 Add 1 to .NUMBER.CIRCUITS 36 Loop ''each .OLD.MESSAGE in the MESSAGE.SET(COMM.CENTER) 37 38 End ''TRANSMIT.MESSAGE —————————— CACI Products Company ———————————————————————————— SimScript II.5 —————————————— 7-48

  49. 1 Routine REPORT 2 3 Print 5 lines with NUMBER.OF.MESSAGES, 4 TOTAL.NUMBER.OF.CIRCUITS, 5 RUN.LENGTH, 6 NUMBER.OF.MESSAGES.INTERRUPTED thus *** messages were generated for a message center with ** circuits during a period of ** minutes. *** messages were interrupted. 12 13 End ''REPORT —————————— CACI Products Company ———————————————————————————— SimScript II.5 —————————————— 7-49

  50. The Communications Center —————————— CACI Products Company ———————————————————————————— SimScript II.5 —————————————— 7-50
