  1. Shoulder Evaluation

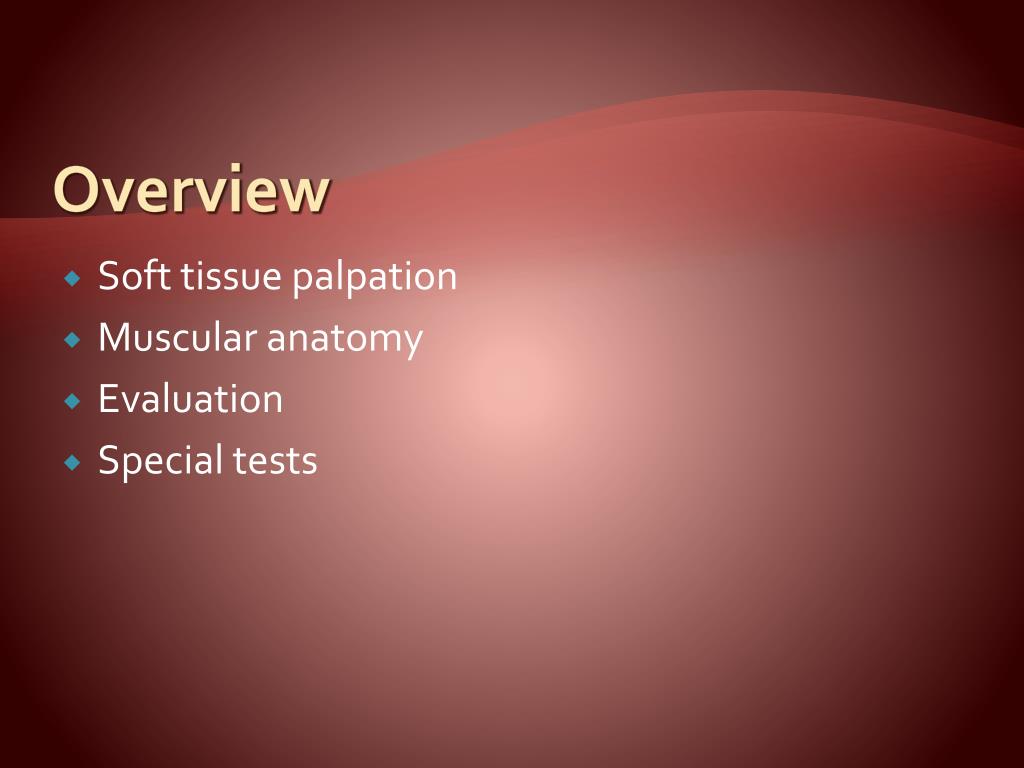

  2. Overview • Soft tissue palpation • Muscular anatomy • Evaluation • Special tests

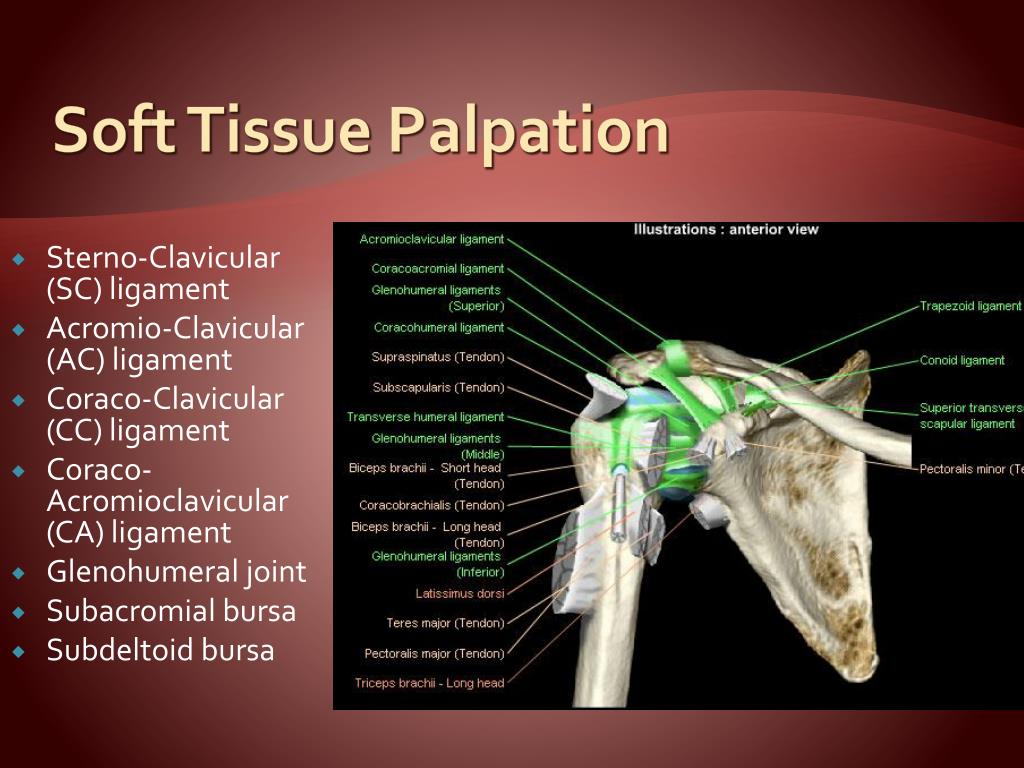

  3. Soft Tissue Palpation • Sterno-Clavicular (SC) ligament • Acromio-Clavicular (AC) ligament • Coraco-Clavicular (CC) ligament • Coraco-Acromioclavicular (CA) ligament • Glenohumeral joint • Subacromial bursa • Subdeltoid bursa

  4. Muscular Anatomy • Supraspinatus • Infraspinatus • Teres minor • Subscapularis • Pectoralis major • Pectoralis minor • Scalenes • Teres major • Latissimus dorsi • Serratus anterior • Biceps brachii • Triceps brachii • Rhomboid major & minor • Deltoid

  5. Intrinsic Musculature: Supraspinatus • O: Supraspinous fossa • I: Superior greater trochanter • A:? • N: Suprascapular nerve

  6. Intrinsic Musculature: Infraspinatus • O: Infraspinous fossa • I: Posterior greater tubercle • A: ? • N: Suprascapular nerve

  7. Intrinsic Musculature: TeresMinor • O: Lateral scapula • I: Posterior greater tubercle • A: ? • N: Axillary nerve

  8. Intrinsic Musculature: Subscapularis • O: Anterior surface of scapula (subscapular fossa) • I: Lesser tubercle of humerus • A: ? • N: Subscapular

  9. PectoralisMajor • O: Clavicle, sternum, and ribs • I: Intertubercular groove of humerus • A: Int. rot, horiz. add, flex, add below 90, abd above 90 • N: pectoral

  10. Pectoralis Minor • O: Anterior surfaces of ribs 3-5 • I: Coracoid process • A: Abd, Down rot, dep • N: Medial pectoral

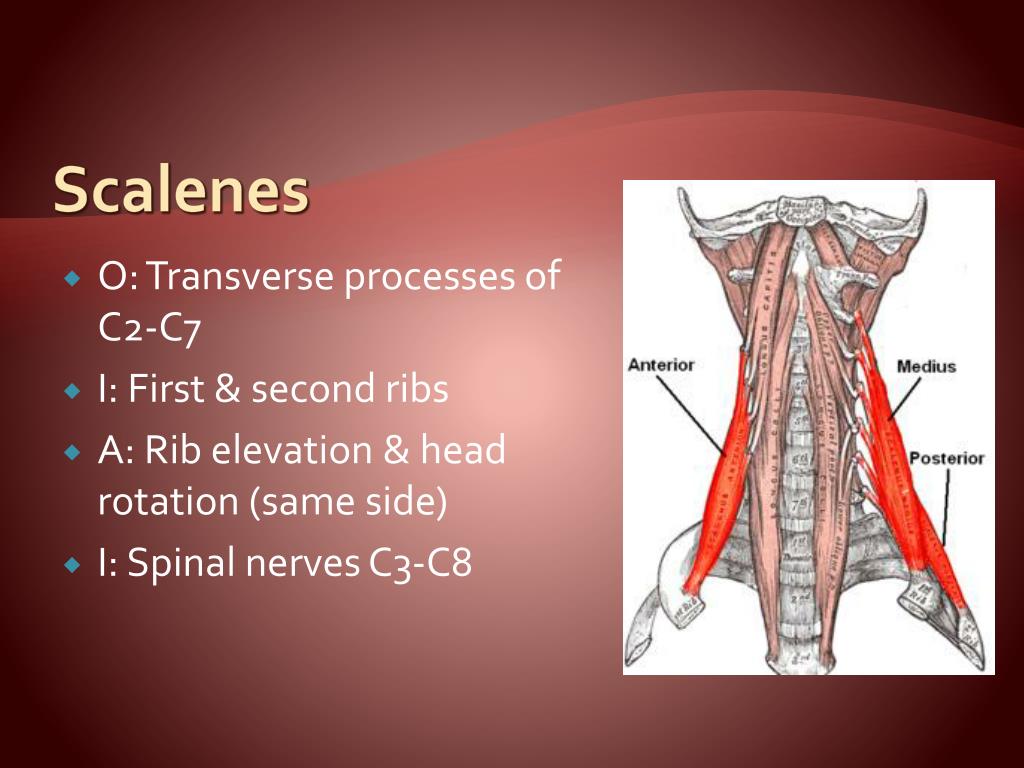

  11. Scalenes • O: Transverse processes of C2-C7 • I: First & second ribs • A: Rib elevation & head rotation (same side) • I: Spinal nerves C3-C8

  12. Teres Major • O: Inferior 1/3 of lateral border of scapula • I: Medial intertubercular groove of humerus • A: Ext, add, IR • N: Lower subscapular

  13. LatissimusDorsi • O: Ilium, sacrum, lumbar vertebrae, and lower 6 thoracic vertebrae • I: Anterior humerus • A: Add, in rot, ext • N: Thoracodorsal

  14. Serratus Anterior • O: Ribs 1-9 on lateral thorax • I: Medial border of scapula • A: Abduction, up rot • I: Long thoracic nerve

  15. Biceps Brachii • O: LH-Superior glenoid ; SH-Coracoid • I: Radial tuberosity • A: Elbow flexion & supination, shoulder flexion • N: Musculocutaneous

  16. Triceps Brachii • O: LoH- infraglenoid lip of scapula; LaH- posterior humerus; MH- medial posterior humerus • I: Olecranon process • A: Elbow extension, shoulder extension • N: Radial

  17. Rhomboids • O: Spinous processes of C5-T5 • I: Medial border of scapula • A: Adduction, down rot, elev • N: Dorsal scapular nerve

  18. Deltoid • O: Clavicle, acromion, & scapular spine • I: Lateral humerus • A: flex, ext, in rot, ex rot, add, abd, horiz add, horiz abd (everything!) • N: Axillary

  19. Evaluation Passive/Active ROM (Shoulder): • Flexion • Extension • Abduction • Adduction • External rotation • Internal rotation

  20. Evaluation Passive/Active ROM (Scapula): • Elevation • Depression • Abduction (protraction) • Adduction (retraction) • Internal rotation • External rotation • Circumduction • Apley scratch test

  21. Special Tests (31) • Fracture/sprain test (1) • Rotator cuff tests (6) • Glenohumeral instability tests (11) • Biceps tendon tests (6) • Impingement tests (3) • Thoracic outlet tests (4)

  22. AC-SC Stress Test (fracture/sprain) • The examiner palpates the patient’s clavicle and manipulates it inferiorly, superiorly, medially, and laterally • Pain or crepitus indicates a positive test for possible clavicular fracture

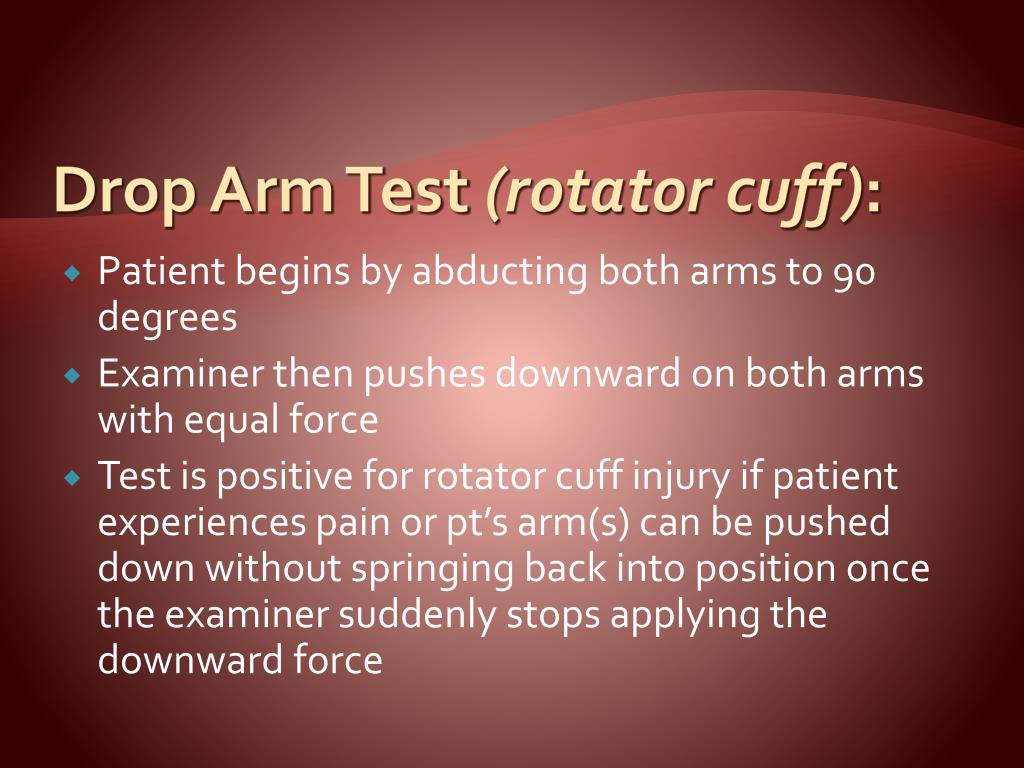

  23. Drop Arm Test (rotator cuff): • Patient begins by abducting both arms to 90 degrees • Examiner then pushes downward on both arms with equal force • Test is positive for rotator cuff injury if patient experiences pain or pt’s arm(s) can be pushed down without springing back into position once the examiner suddenly stops applying the downward force

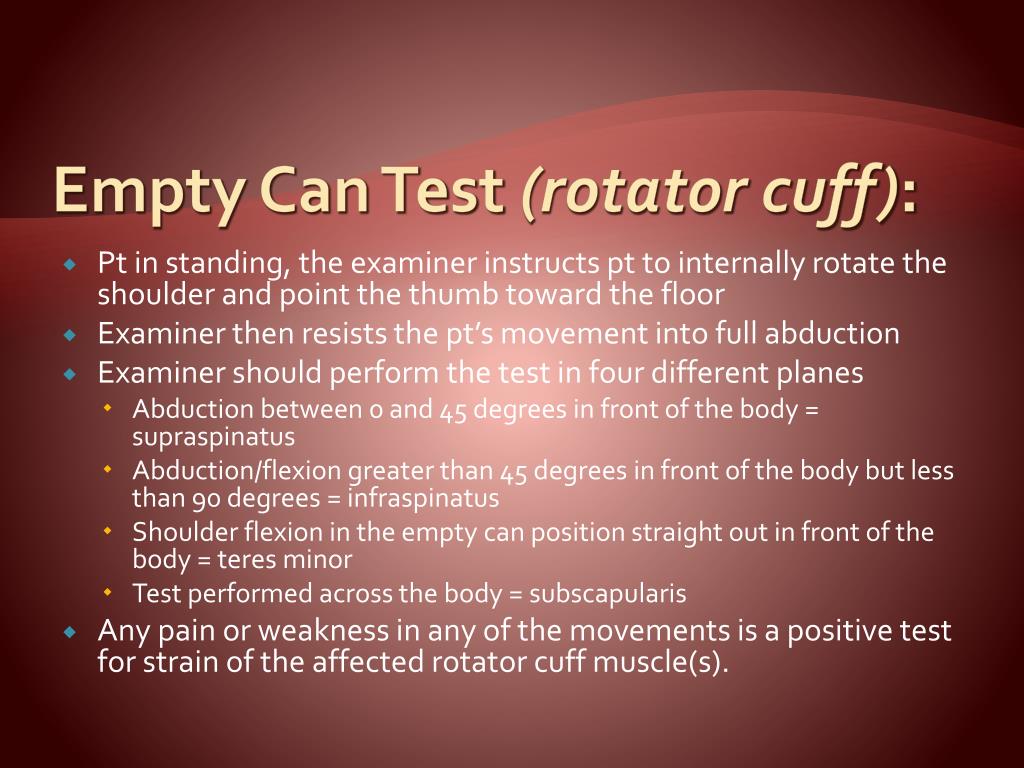

  24. Empty Can Test (rotator cuff): • Pt in standing, the examiner instructs pt to internally rotate the shoulder and point the thumb toward the floor • Examiner then resists the pt’s movement into full abduction • Examiner should perform the test in four different planes • Abduction between 0 and 45 degrees in front of the body = supraspinatus • Abduction/flexion greater than 45 degrees in front of the body but less than 90 degrees = infraspinatus • Shoulder flexion in the empty can position straight out in front of the body = teres minor • Test performed across the body = subscapularis • Any pain or weakness in any of the movements is a positive test for strain of the affected rotator cuff muscle(s).

  25. Arms Over Head (rotator cuff): • Pt in standing, the examiner instructs the pt to externally rotate the shoulders and actively lift both arms overhead • Test positive for rotator cuff strain if the pt notes pain and/or is unable to perform the movement

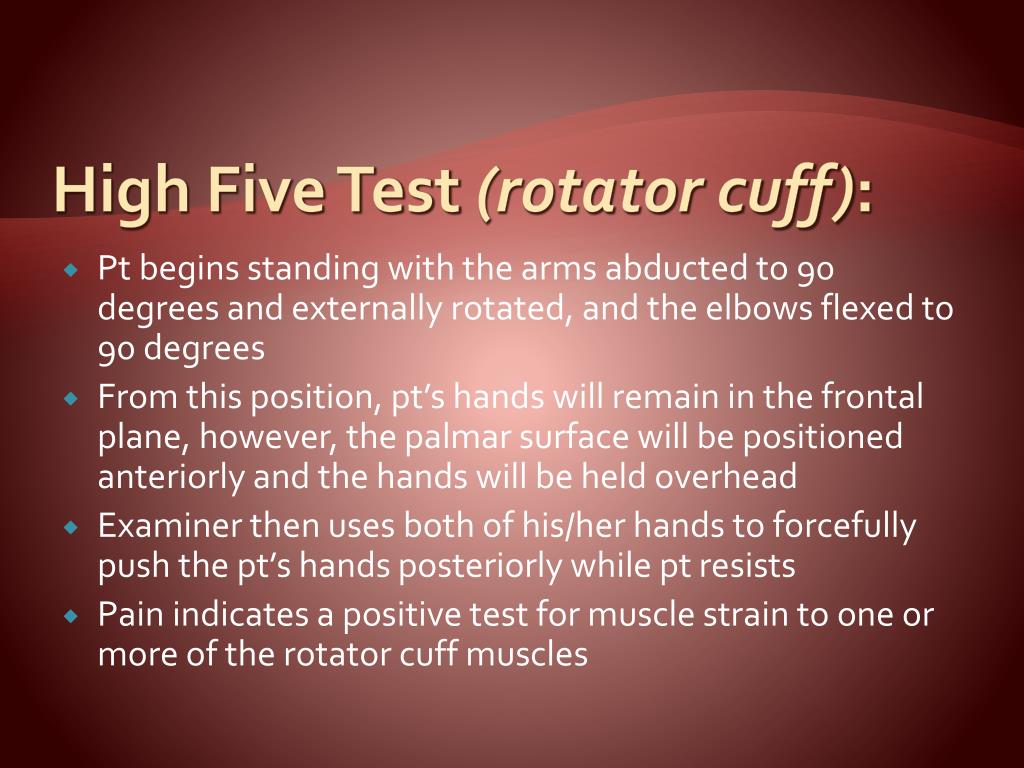

  26. High Five Test (rotator cuff): • Pt begins standing with the arms abducted to 90 degrees and externally rotated, and the elbows flexed to 90 degrees • From this position, pt’s hands will remain in the frontal plane, however, the palmar surface will be positioned anteriorly and the hands will be held overhead • Examiner then uses both of his/her hands to forcefully push the pt’s hands posteriorly while pt resists • Pain indicates a positive test for muscle strain to one or more of the rotator cuff muscles

  27. Lift Off Sign (rotator cuff): • The examiner prepositions the pt with dorsal surface of pt’s hand over the lumbar spine (end range shoulder internal rotation) • Examiner applies resistance as pt attempts to lift the hand off the spine and push posteriorly • Weakness indicates a positive test for subscapularis muscular injury

  28. Resisted Pull Test (tendinitis vs. bursitis): • Examiner stabilizes the pt’s involved upper arm and resists active shoulder external rotation and/or abduction • Pt is asked to rate his/her pain • Obvious pain is a positive sign for rotator cuff tendon pathology and/or subacromial bursitis • Examiner then applies a caudal pull to the upper arm, resulting in a traction force at the glenohumeral joint • During the pull, pt is instructed to repeat the resisted active shoulder external rotation and/or abduction • If pain was present when the test was performed with no pull, reduced pain with a pull is indicative of subacromial bursitis, while no change or increased pain is indicative of rotator cuff pathology.
