  1. ECE 477 Design ReviewTeam 14Spring 2012 Matt Finn Brian Crone Samuel Oshin YonathanFeleke

  2. Outline Project overview Project-specific success criteria Block diagram Component selection rationale Packaging design Schematic and theory of operation PCB layout Software design/development status Project completion timeline Questions / discussion

  3. Project Overview • Future Cash Register • Designed to make credit card transactions entirely paperless by using NFC • Voice recognition to facilitate orders

  4. Project-Specific Success Criteria Ability to customize the inventory via the user interface (Atom) Ability to communicate with an NFC device (dSPIC30) Ability to interface with an IR sensor to detect the presence of a user (dSPIC30) Ability to display prompts to user through LCD (dSPIC30) Ability to aid cashier by highlighting menu choices while placing order with voice recognition (Atom)

  5. Block Diagram

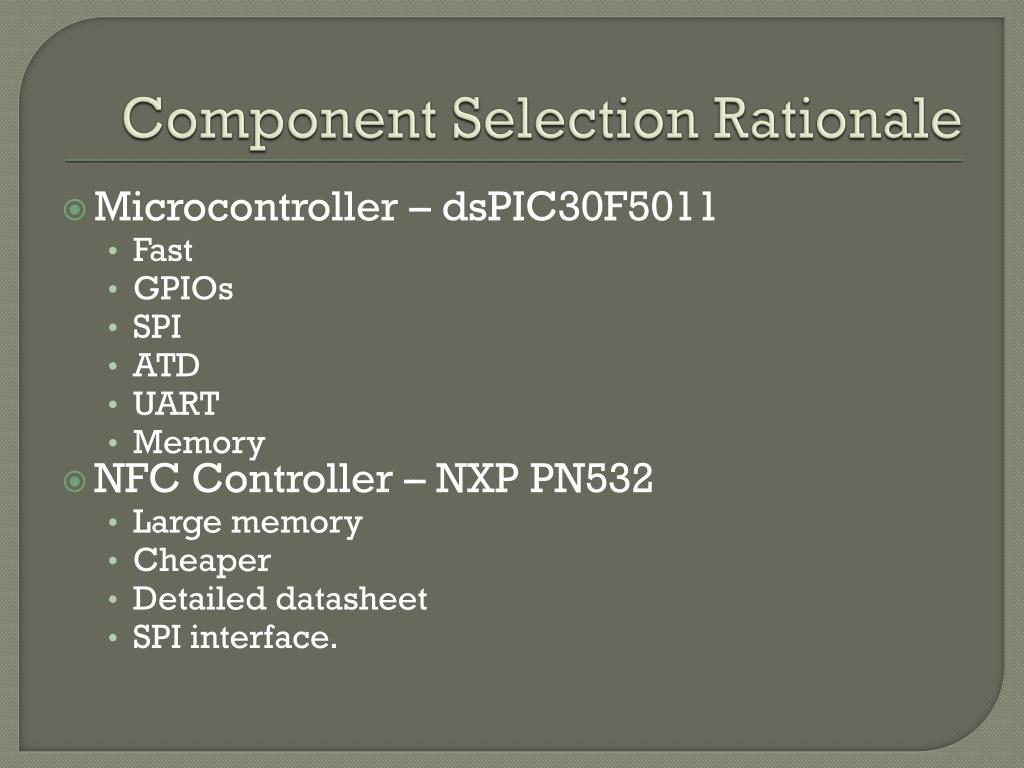

  6. Component Selection Rationale • Microcontroller – dsPIC30F5011 • Fast • GPIOs • SPI • ATD • UART • Memory • NFC Controller – NXP PN532 • Large memory • Cheaper • Detailed datasheet • SPI interface.

  7. Component Selection Rationale • Touch screen – Planar PX2230MW • Large screen • Great resolution • Money to size ratio • Interfacing • Support. • IR sensor – GP2Y0A02YK0F • Long range • LCD Display – C-51847NFJ-SLW-ADN • 80 character • Easy to interface • Cheap

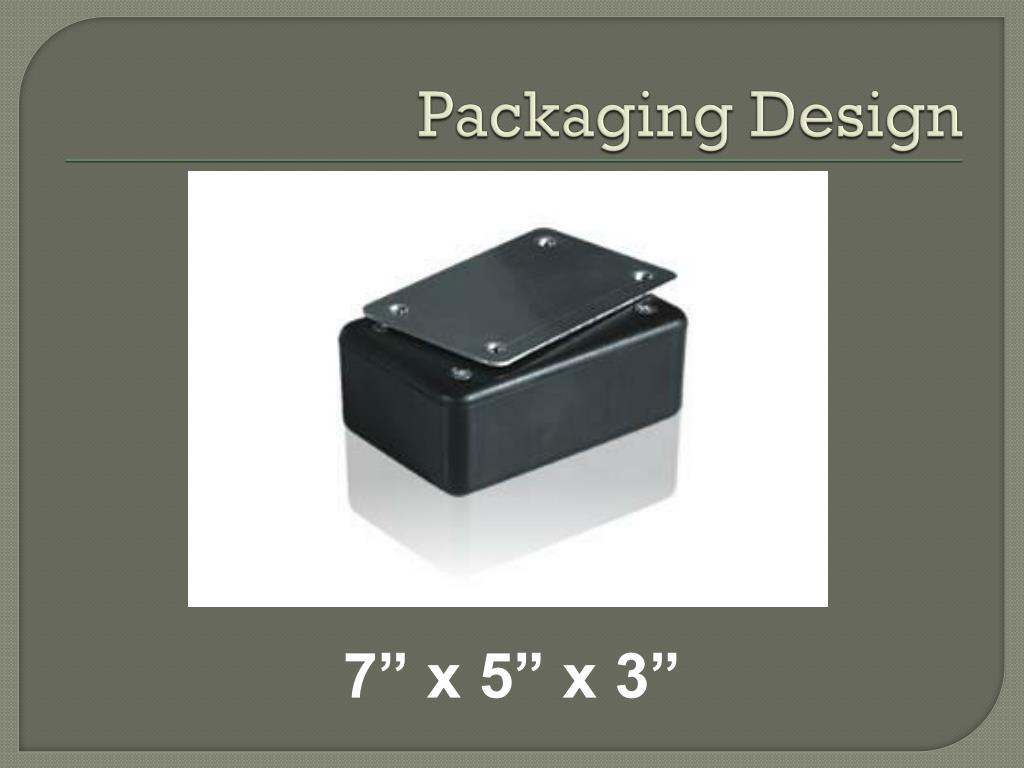

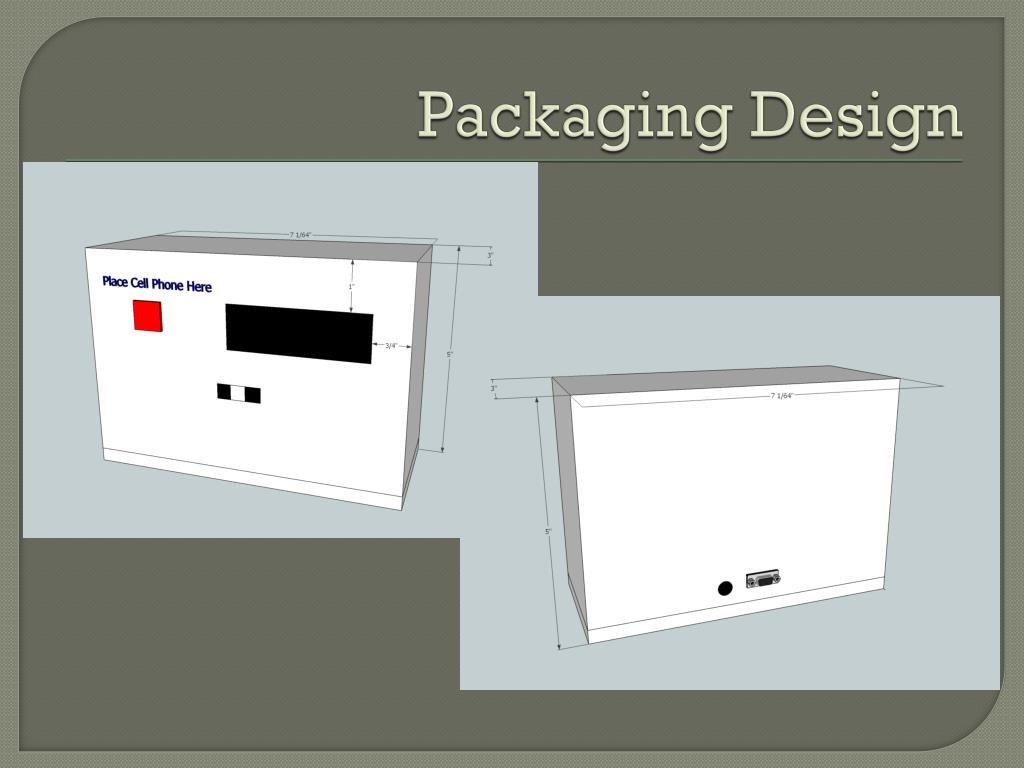

  8. Packaging Design 7” x 5” x 3”

  9. Packaging Design

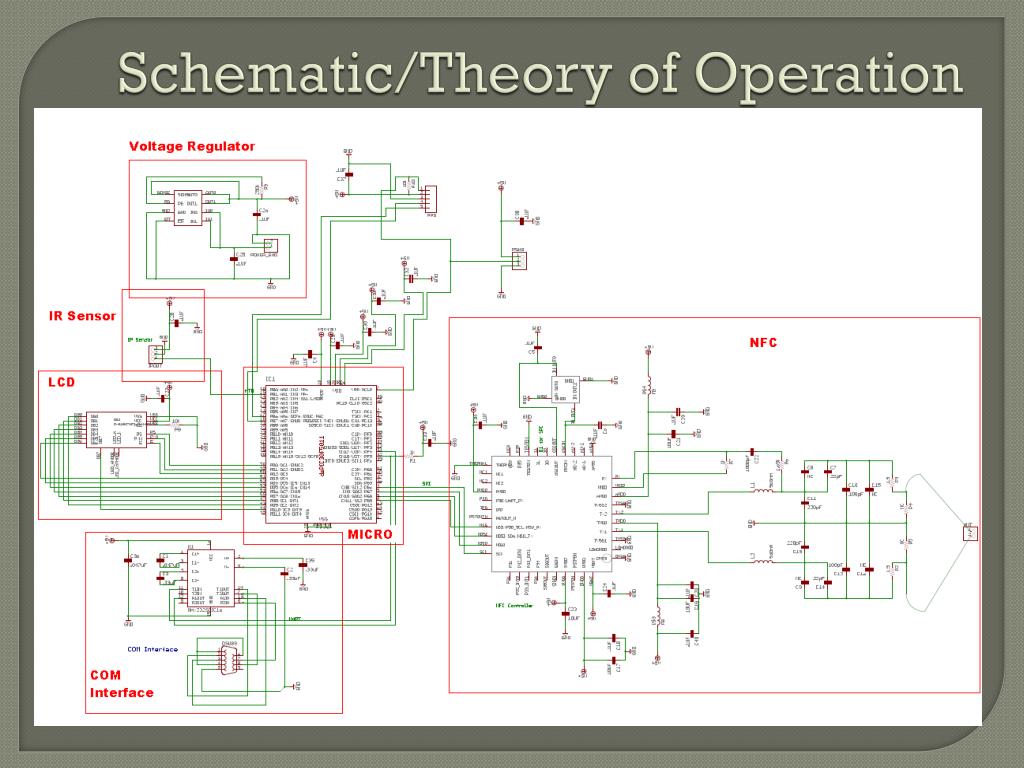

  10. Schematic/Theory of Operation

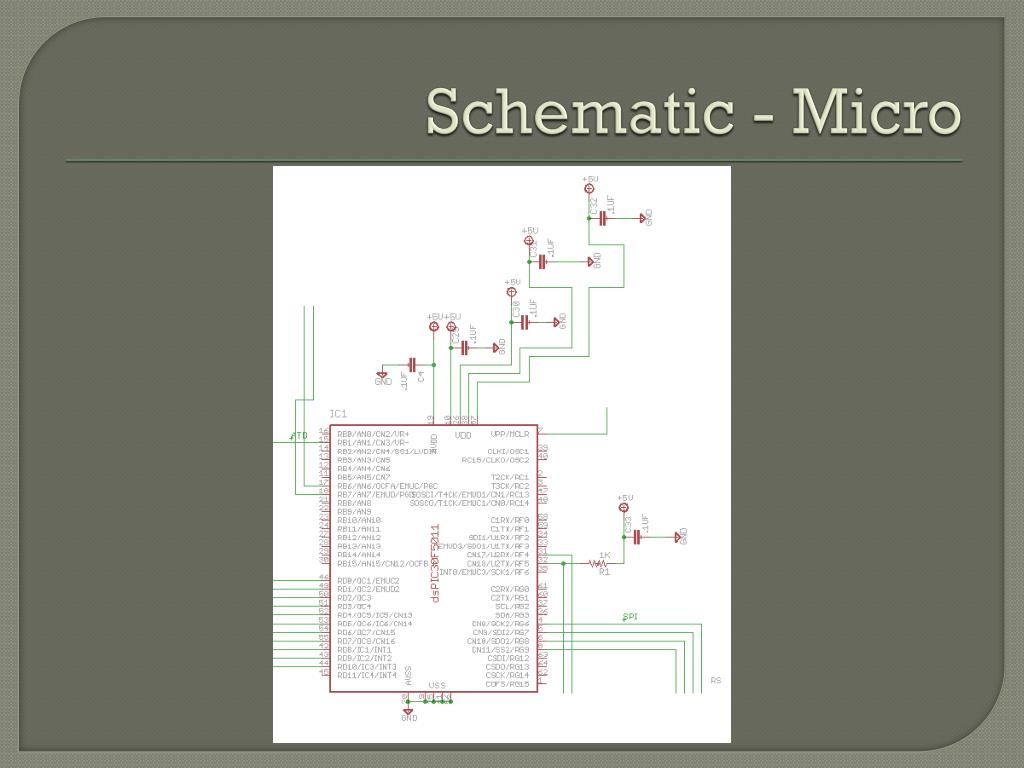

  11. Schematic - Micro

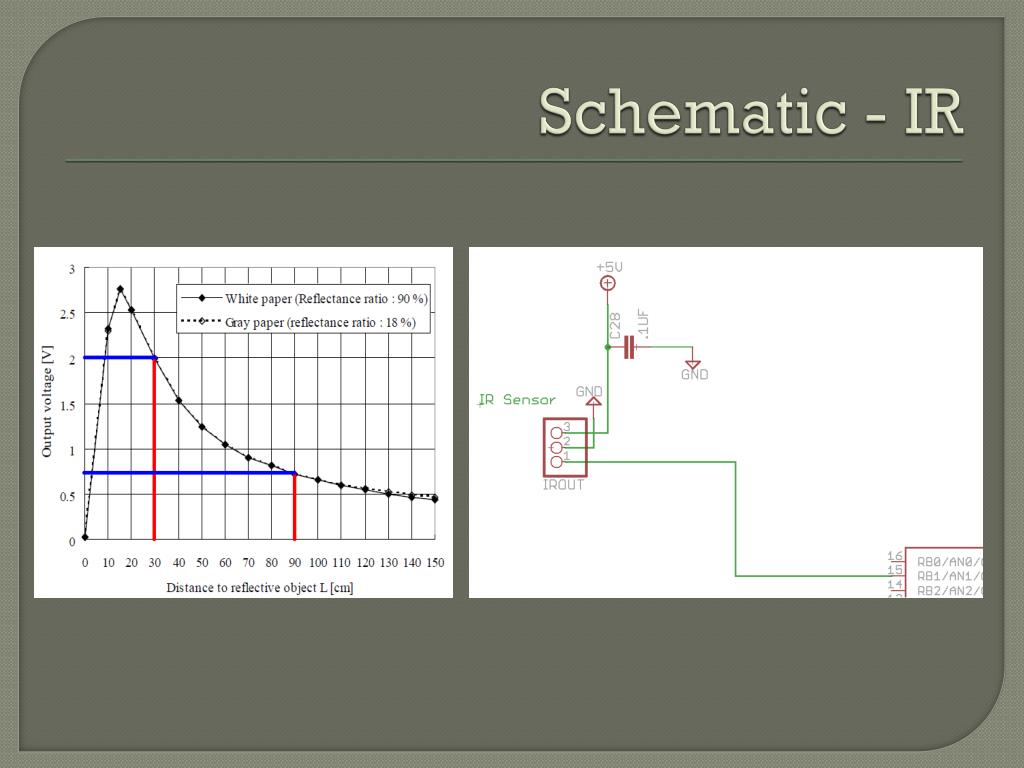

  12. Schematic - IR

  13. Schematic - LCD

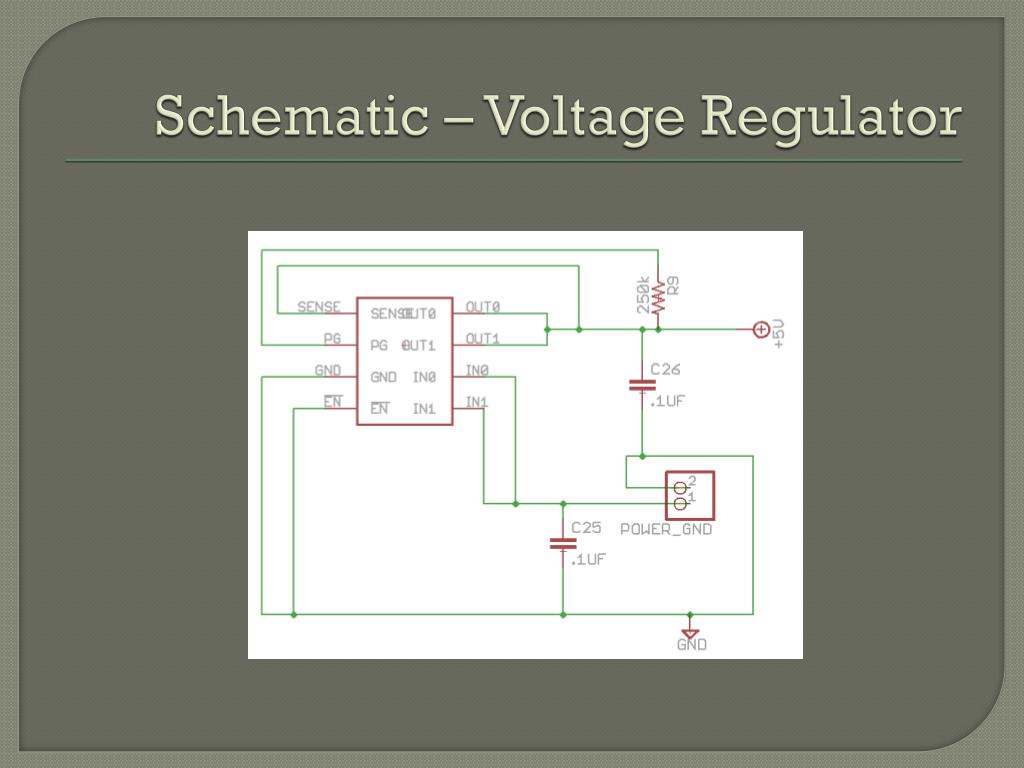

  14. Schematic – Voltage Regulator

  15. Schematic – NFC

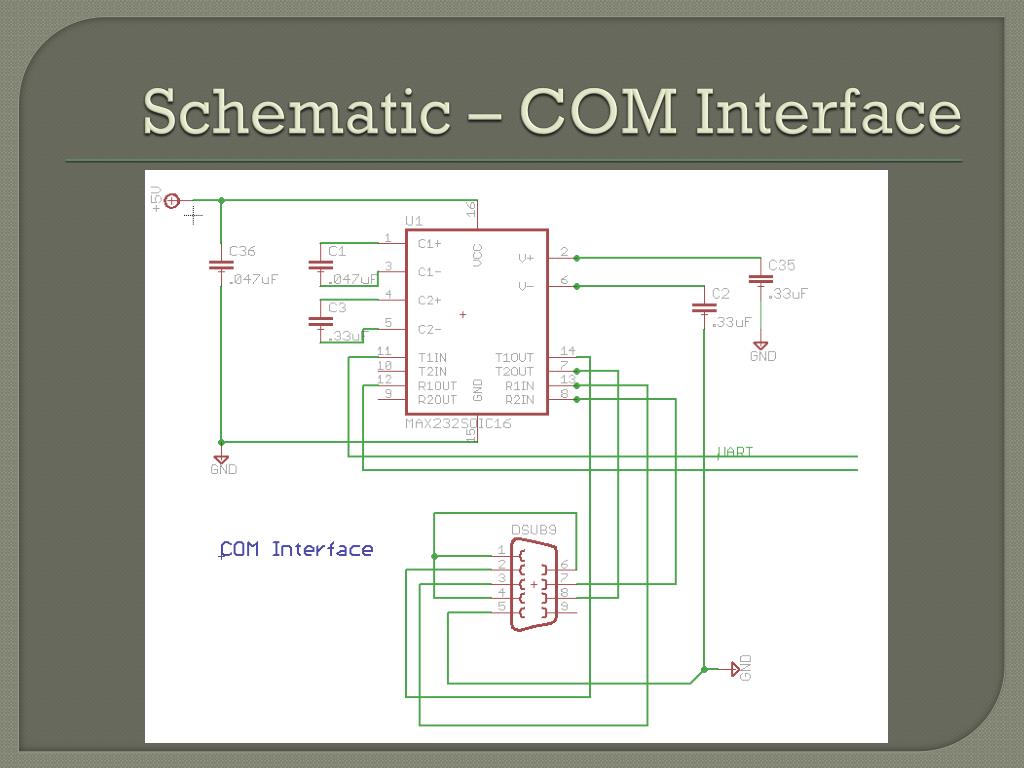

  16. Schematic – COM Interface

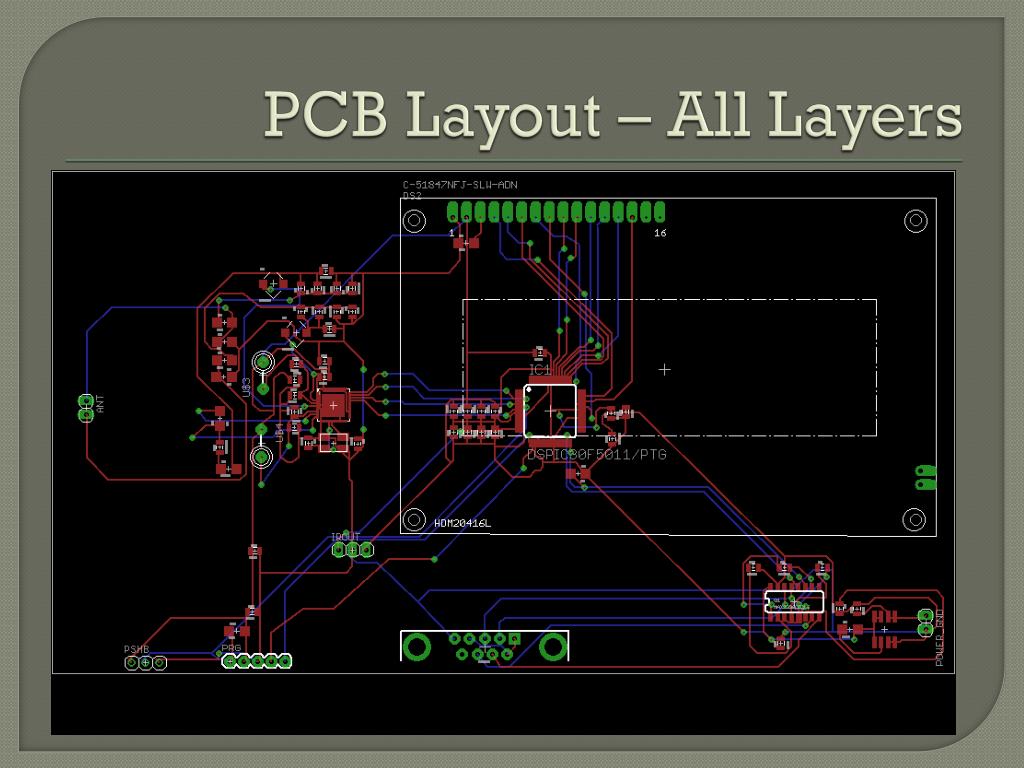

  17. PCB Layout – All Layers

  18. PCB Layout – Bottom Layer

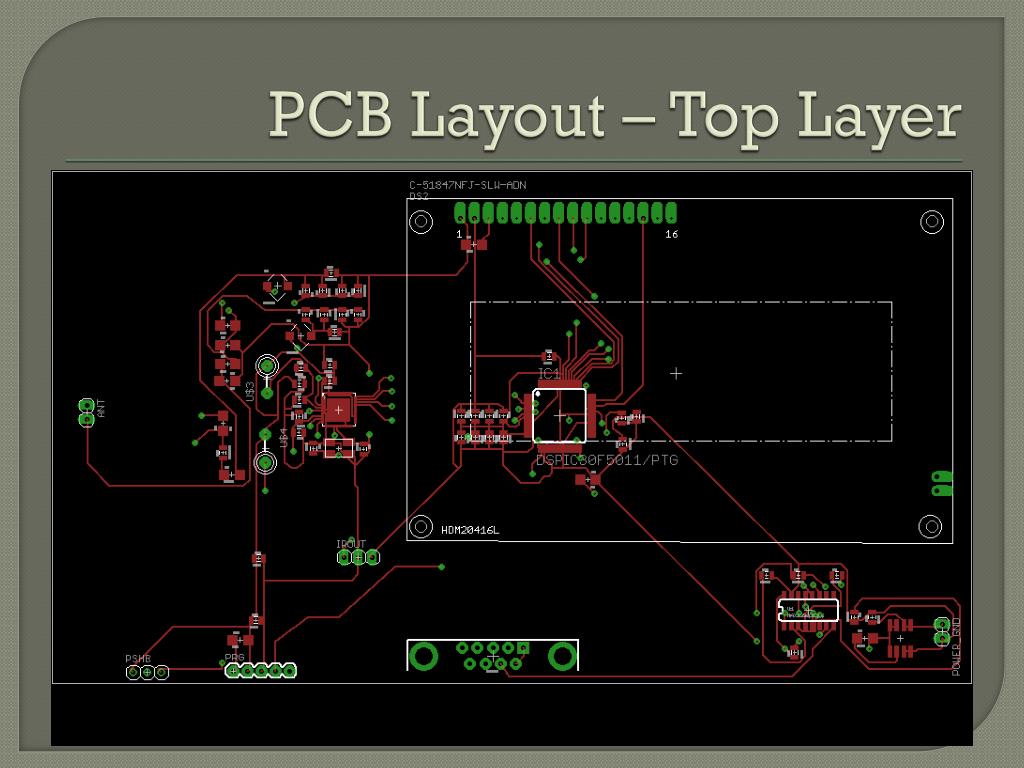

  19. PCB Layout – Top Layer

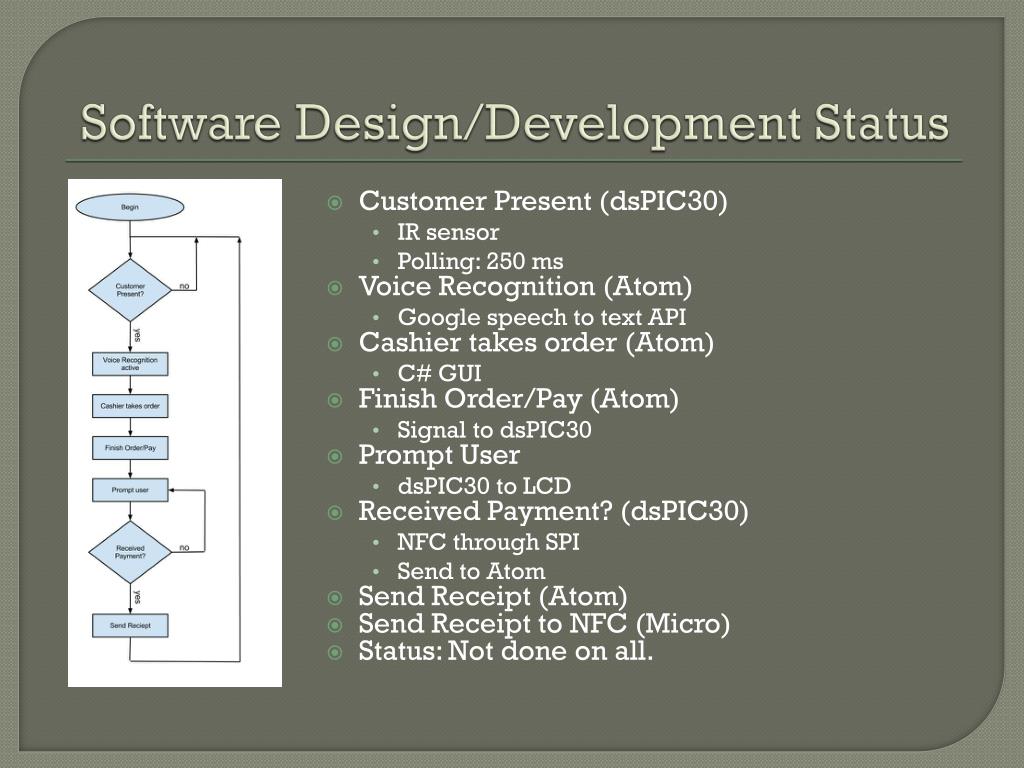

  20. Software Design/Development Status • Customer Present (dsPIC30) • IR sensor • Polling: 250 ms • Voice Recognition (Atom) • Google speech to text API • Cashier takes order (Atom) • C# GUI • Finish Order/Pay (Atom) • Signal to dsPIC30 • Prompt User • dsPIC30 to LCD • Received Payment? (dsPIC30) • NFC through SPI • Send to Atom • Send Receipt (Atom) • Send Receipt to NFC (Micro) • Status: Not done on all.

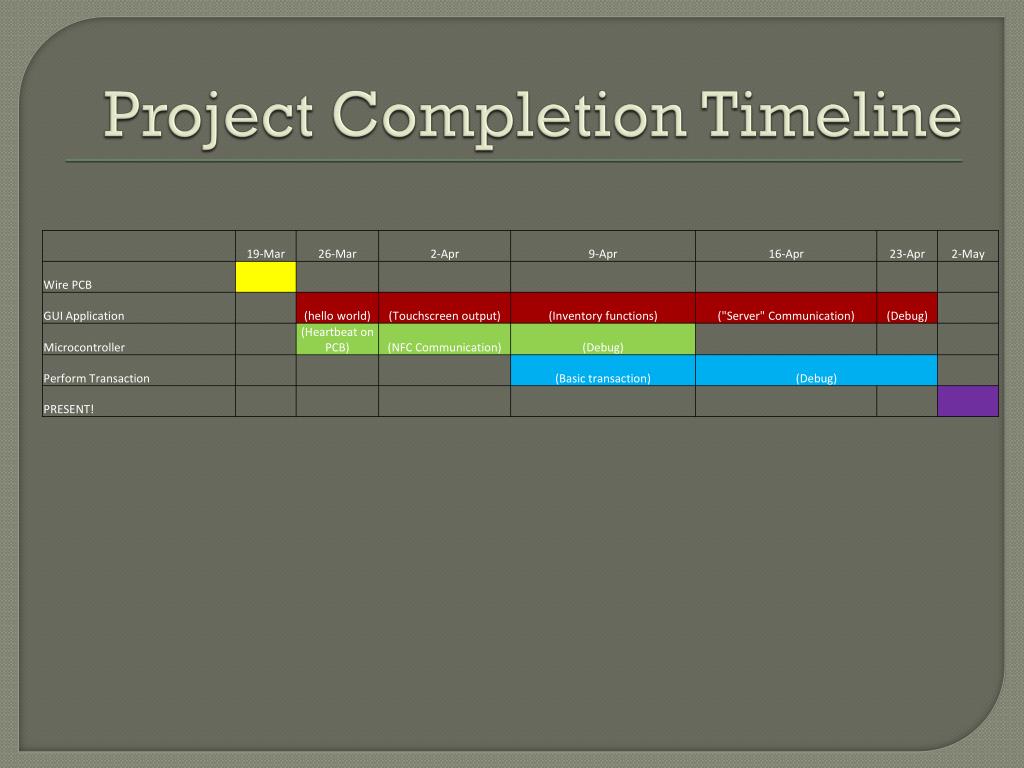

  21. Project Completion Timeline

  22. Questions?
