  1. Fluids

  2. Buoyant Force • The pressure force on the sides of the volume balances the weight of fluid in the volume. • The force remains even without the original fluid. • This is the buoyant force. • Equals the fluid weight • Directed upward • Acts on the volume Fb = mg

  3. Sinking and Rising • An object in a fluid displaces a volume that had some mass. • If the object is heavier than the fluid it sinks. • If the object is lighter it rises. Fb = rVg Fb = rVg W= mg W= mg

  4. Archimedes’ Principle • An object suspended in a fluid has less apparent weight due to buoyancy. FT = mg - rVg Fb = rVg W= mg

  5. An iceberg has an average density of 86% of seawater. What fraction of the iceberg is underwater? The buoyant force is the weight of water displaced by the iceberg: Fb = rwaterVsubg. The weight is the total weight of the ice: Wi = riceViceg. Find the ratio of Vsub/Vice We know the ratio rice/rwater rwaterVsubg = riceViceg Vsub/Vice = rice/rwater = 0.86 Iceberg

  6. Flow Rate • Streamlines in a fluid represent the path of a particle in the fluid. • Groups for fluid flow • Cross sectional area • The flow rate measures fluid movement. • mass per time • density times area times velocity

  7. Conservation of Mass • The mass into a tube must flow out at the same rate. • This is called the continuity equation. • For constant density it only requires the area and velocity.

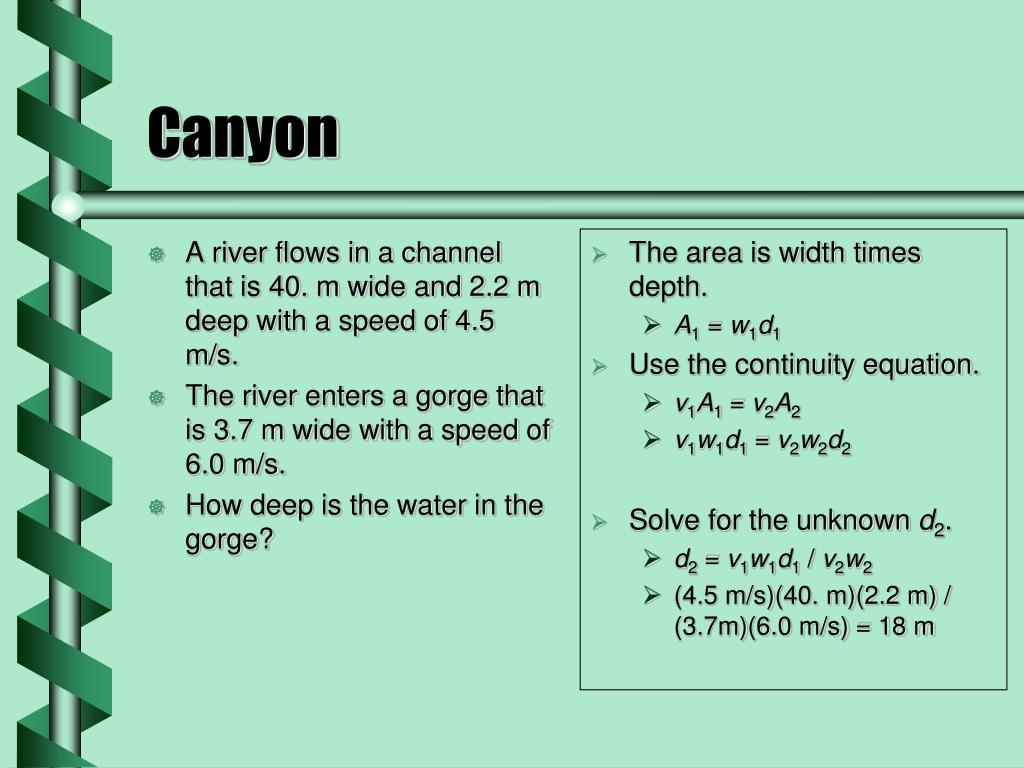

  8. A river flows in a channel that is 40. m wide and 2.2 m deep with a speed of 4.5 m/s. The river enters a gorge that is 3.7 m wide with a speed of 6.0 m/s. How deep is the water in the gorge? The area is width times depth. A1 = w1d1 Use the continuity equation. v1A1 = v2A2 v1w1d1 = v2w2d2 Solve for the unknown d2. d2 = v1w1d1 / v2w2 (4.5 m/s)(40. m)(2.2 m) / (3.7m)(6.0 m/s) = 18 m Canyon

  9. Fluid Energy • The kinetic energy in a fluid is the same as for any other mass: K = ½ mv2. • The change in potential energy is: U = mgh. • The work done on a fluid is due to pressure. • Pressure acting on a volume: W = PADx = PV. • From the work energy principle:

  10. Bernoulli’s Equation • The volume element is somewhat arbitrary in a moving fluid. • Mass divided by volume is density • Divide by volume and separate states on each end • Bernoulli’s equation is equivalent to conservation of energy for fluids.

  11. Lift • If the height doesn’t change much, Bernoulli becomes: • Where speed is higher, pressure is lower. • Speed is higher on the long surface of the wing – creating a net force of lift. FL
