  1. Tracking the Invisible:Learning Where the Object Might be Helmut Grabner1, Jiri Matas2, Luc Van Gool1,3, Philippe Cattin4 1ETH-Zurich, 2Czech Technical University, Prague, 3K.U. Leuven, 4University of Basel

  2. Outline • 1. Introduction • 2. Learning the Motion Couplings • 3. Practical Implementation • 4. Experimental Results • 5. Conclusion

  3. Outline • 1. Introduction

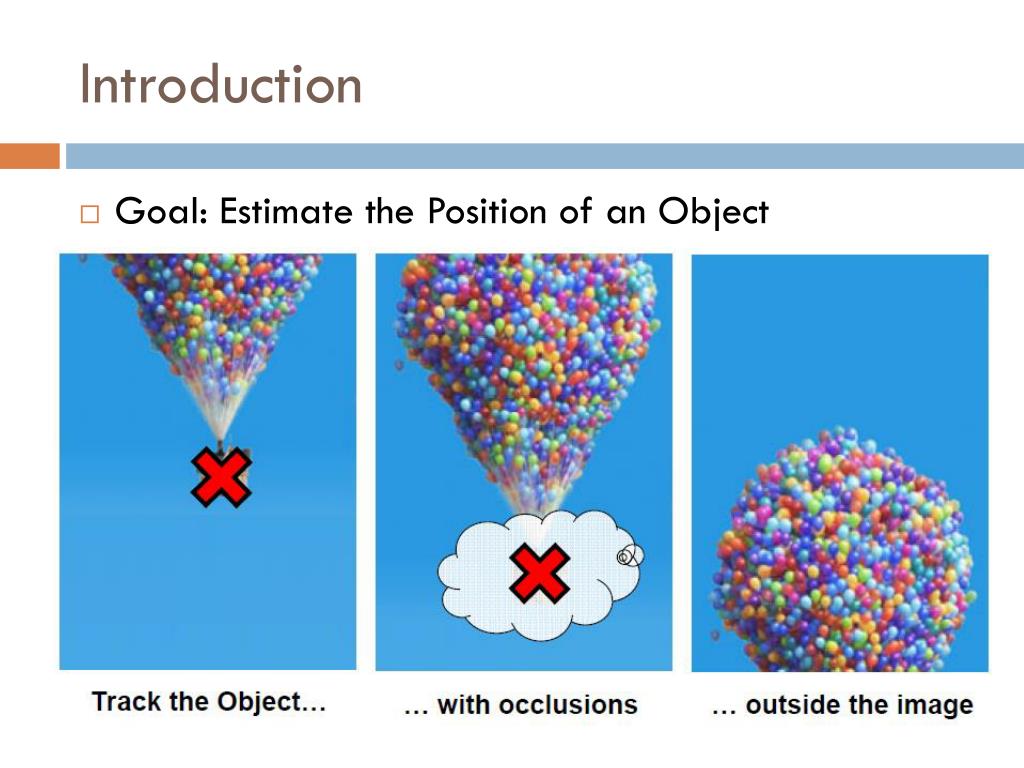

  4. Introduction • Goal: Estimate the Position of an Object

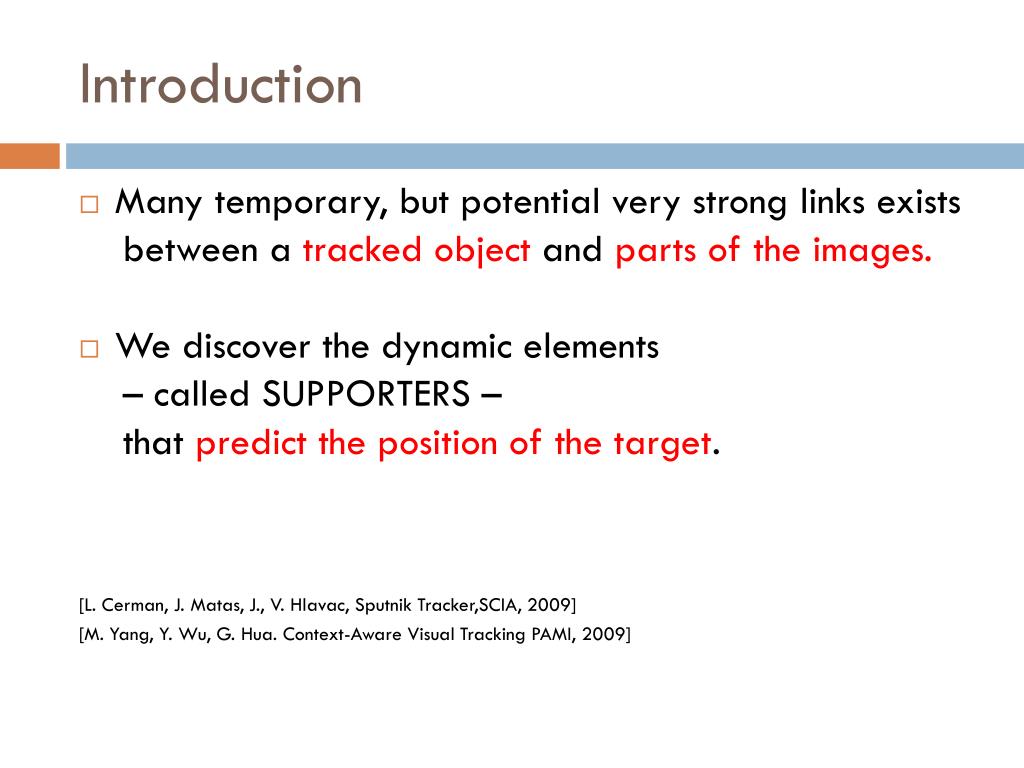

  5. Introduction • Many temporary, but potential very strong links exists between a tracked objectand parts of the images. • We discover the dynamic elements – called SUPPORTERS – that predict the position of the target. [L. Cerman, J. Matas, J., V. Hlavac, Sputnik Tracker,SCIA, 2009] [M. Yang, Y. Wu, G. Hua. Context-Aware Visual Tracking PAMI, 2009]

  6. SUPPORTERS • 1. Came with different strength. • 2. Changeover time. • SUPPORTERS help Tracking of objects which change there appearance very quickly and occludedobjects or object outside the image.

  7. Tracking Carl • Given the position of the object of interest in the frame. • Local image features from the whole image are extracted (yellow points). Image features: our implementation uses Harris points [5] and describe them by a SIFT inspired descriptor [10].

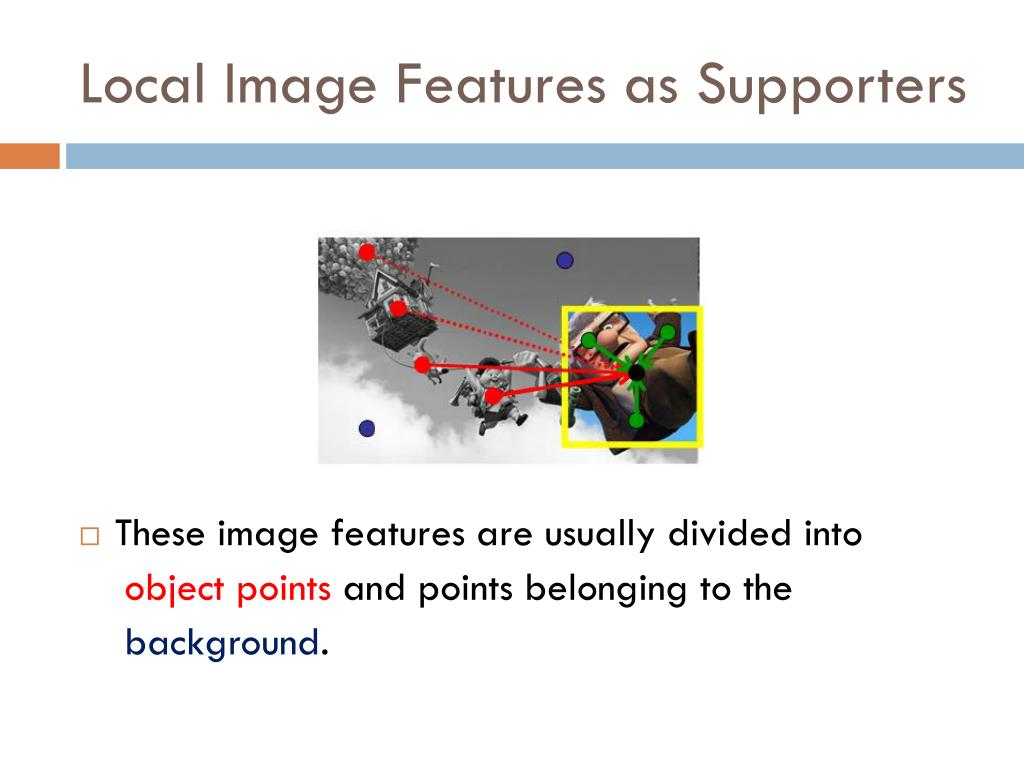

  8. Local Image Features as Supporters • These image features are usually divided into object points and points belonging to the background.

  9. Local Image Features as Supporters • Object points lie on the object surface and thus always have a strong correlation to the object motion (green points)

  10. Local Image Features as Supporters • The object gets occluded or changed its appearance, the supporters can help infer its position.

  11. Discovering the Supporters

  12. Outline • 2. Learning the Motion Couplings

  13. Problem Formulation • We want to learn a model of P(x|I), predicting the position xof an object in the image I.

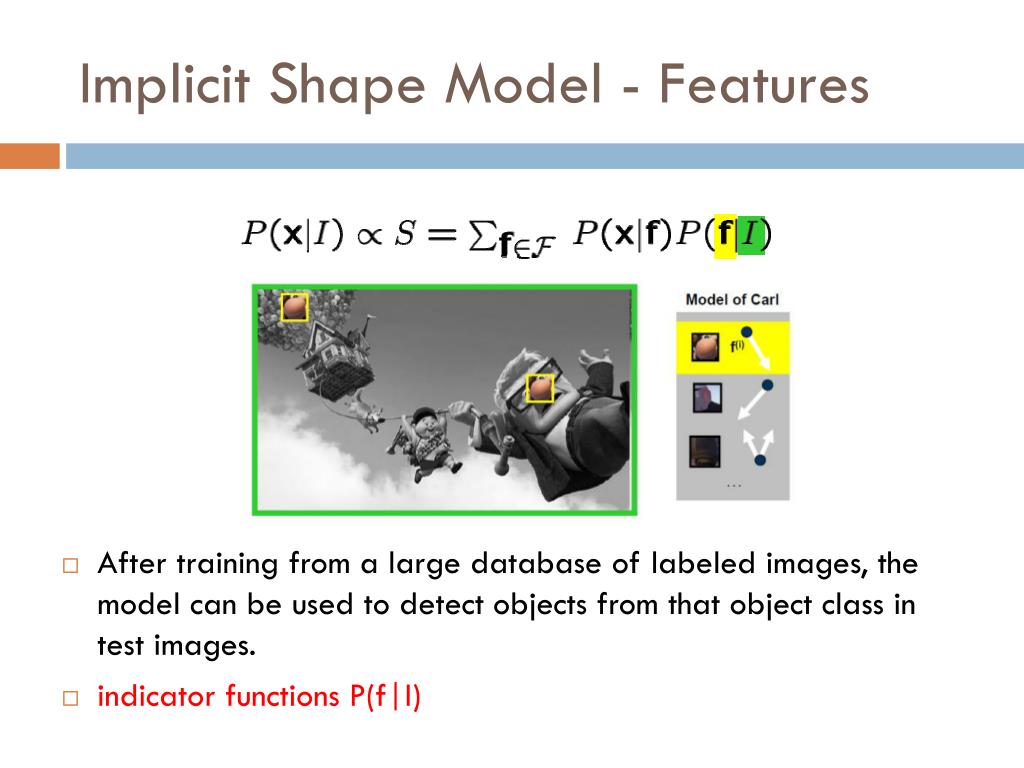

  14. Implicit Shape Model - Features • After training from a large database of labeled images, the model can be used to detect objects from that object class in test images. • indicator functionsP(f|I)

  15. Implicit Shape Model – Object Displacement Each feature subsequently casts probabilistic votes for possible object positions, where the hypothesis score is obtained as a sum over all votes. P(x|f):votes for the object position x.

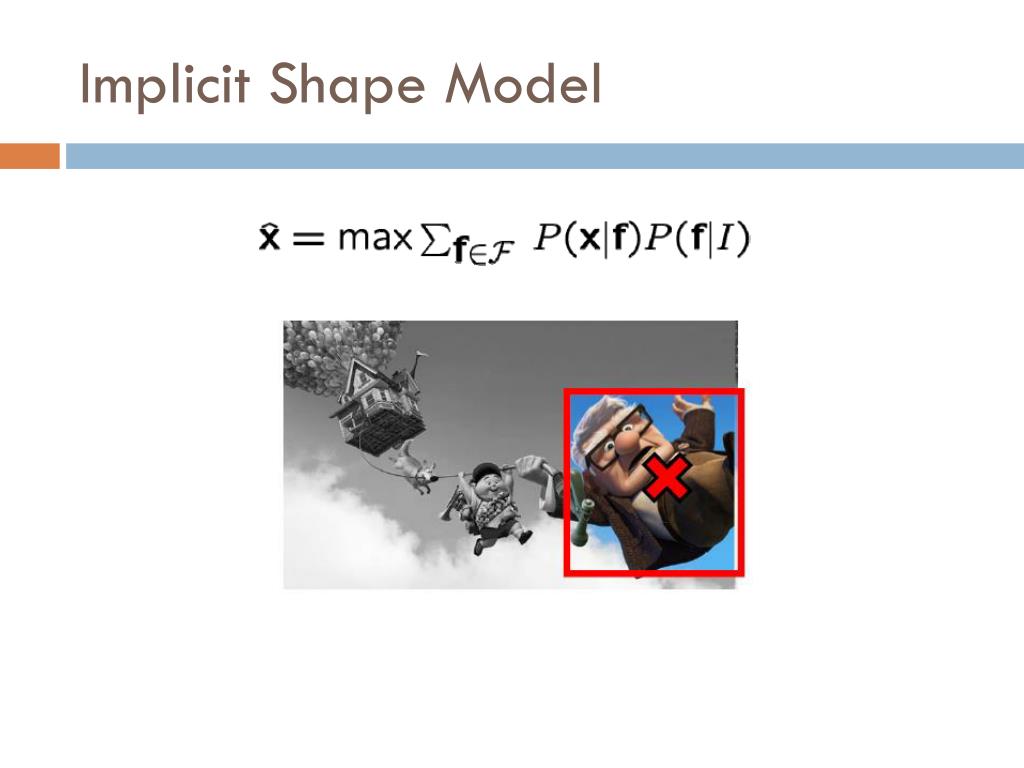

  16. Implicit Shape Model

  17. Implicit Shape Model

  18. Implicit Shape Model

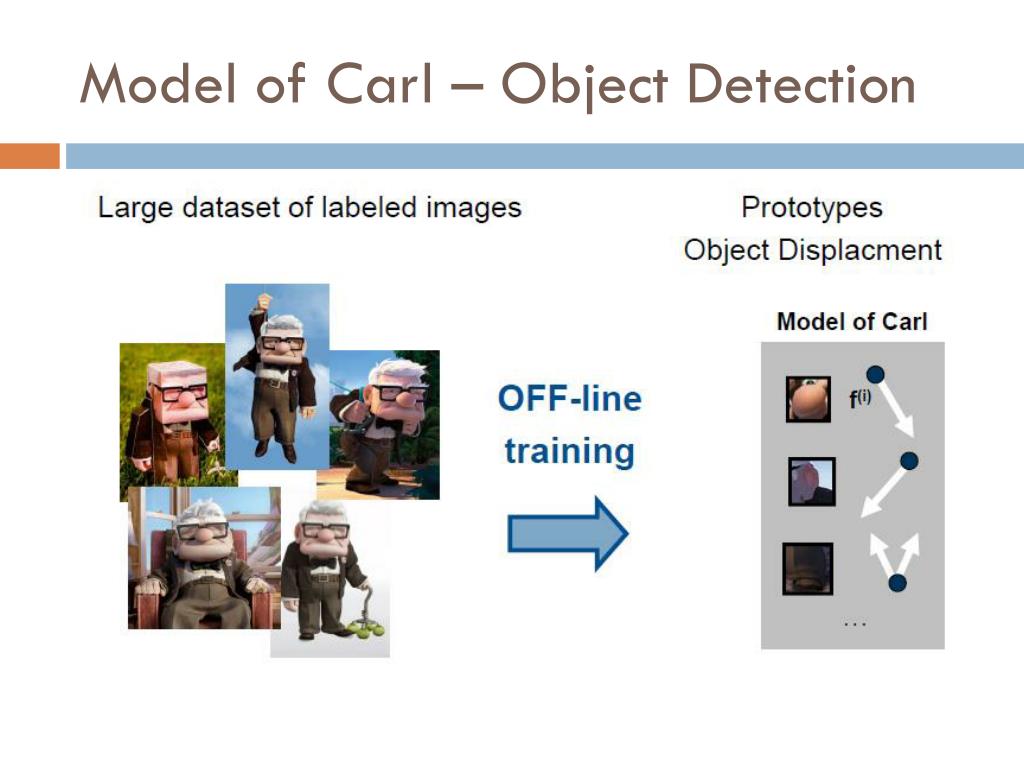

  19. Model of Carl – Object Detection

  20. Model of Supporters

  21. Voting Where μis the mean and Σis the covariance matrix.

  22. Reliable Information & Motion Coupling feature point x(i) = (x(i), y(i)) associated with a feature f(i) and the position x* = (x*, y*) of the target. • where parameter αϵ [0, 1] determines the weighting of the past estimates. • The current image It and the object position Xt*is included using p(f|It), • the indicator of feature f in the current image; • and p(Xt*-Xt(i)|f), the current relative object position.

  23. Implementation angle Ф distance r covariance matrix Σ Store all detected feature points in a database DB. The entries (d ,r ,Ф ,Σ ) store the descriptor and the estimated voting vector, encoded by radius, angle and covariance matrix.

  24. Updates Adjust the voting vector, the radius r and the relative angle Ф Update the covariance matrix Σ

  25. Outline • 3. Practical Implementation

  26. Algorithm : Determination of Position

  27. Outline • 4. Experimental Results

  28. ETH-Cup: Supporters

  29. [11] S. Stalder, H. Grabner, and L. V. Gool. Beyond semisupervised tracking: Tracking should be as simple as detection,butnot simpler than recognition. In Proc. IEEE WS on On-line Learning for Computer Vision, 2009.

  30. Experimental Results

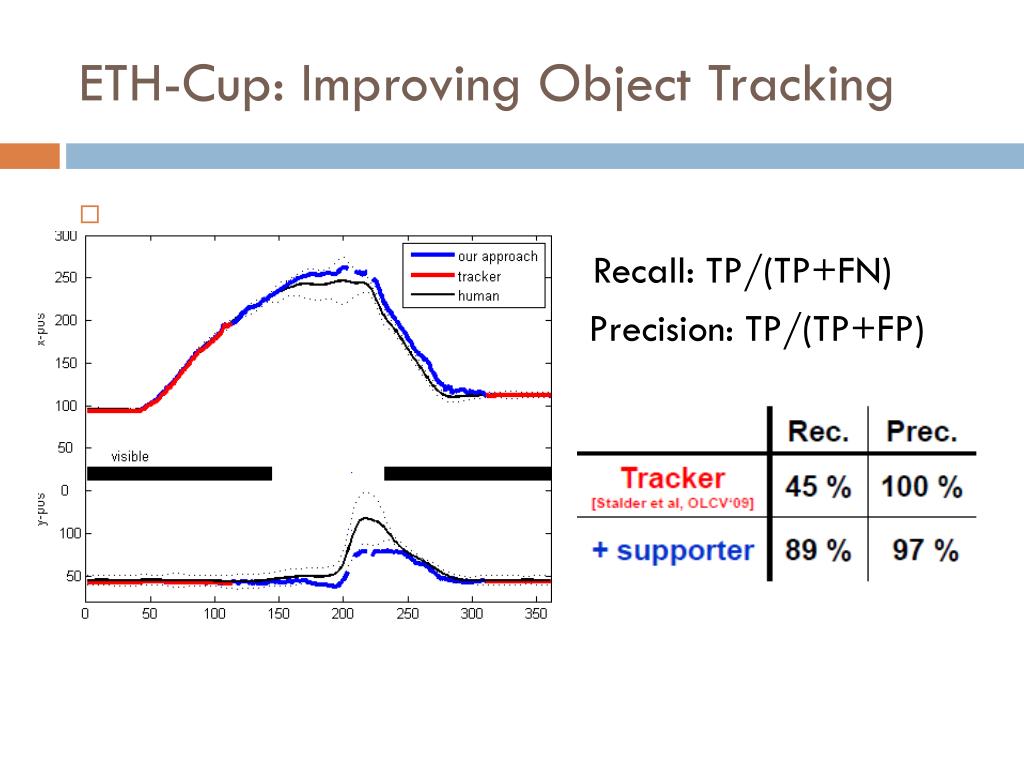

  31. ETH-Cup: Improving Object Tracking • Recall: TP/(TP+FN) • Precision: TP/(TP+FP)

  32. Medical Application • (a) Manually labeled valve positions, (b-f) the found valve positions in 5 cardiac phases. As the confidence of the voting space was too low, in cardiac phase 16, the valve positions were interpolated (indicated by the dotted lines) from neighboring images.

  33. Outline • 5. Conclusion

  34. Conclusion • SUPPORTERS help Tracking of objects which 1.Change thereappearance very quickly. 2.Occluded objects or object outside the image.
