Conductive paste using CNTs

Application area of CNT paste. Conductive paste?. Conductive paste using CNTs. Conductive materials for electric contacting devices that perform mechanically switching and contacting the electric circuit. Printed Circuit Board (PCB). Electrospinning (fiber). conditions.

yama
Télécharger la présentation

Conductive paste using CNTs

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

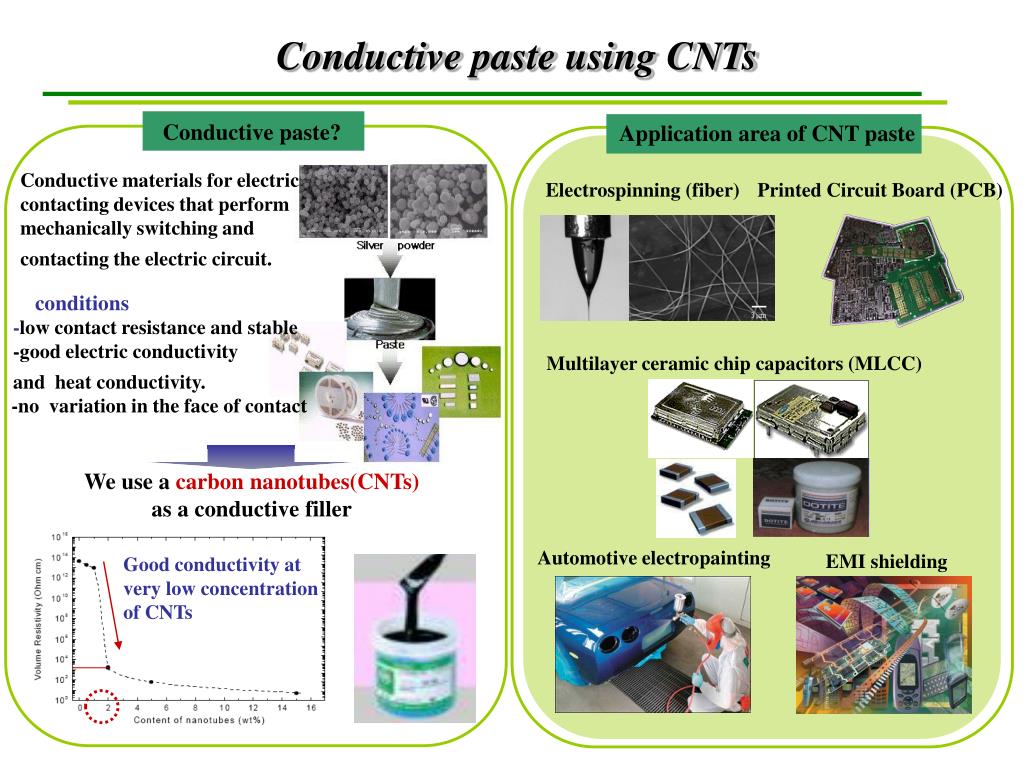

  1. Application area of CNT paste Conductive paste? Conductive paste using CNTs Conductive materials for electric contacting devices that perform mechanically switching and contacting the electric circuit. Printed Circuit Board (PCB) Electrospinning (fiber) conditions -low contact resistance and stable -good electric conductivity and  heat conductivity. Multilayer ceramic chip capacitors (MLCC) -no  variation in the face of contact We use a carbonnanotubes(CNTs) as a conductive filler Automotive electropainting EMI shielding Good conductivity at very low concentration of CNTs

  2. dispersion of acid treated MWNTs in ① DI water and ②PEDOT solution 30 min sonication (300 W) concentration of acid treated MWNTs : 0.01 ~ 0.1wt% spray or dipping at high temperature (90oC) on a glass (onto hot plate) dry (air condition) Measurement (SEM, 4-point probe, UV-visible spectrometry..) Coating method hot plate Transparent Conductive Film using CNTs specification (used PEDOT) -Color: dark green solution -Solvent: alcohol -Powder : <2 wt% PEDOTpoly(ethylenethioxythiophene) -Thermal stability: 300℃ -Sheet resistance: < 108 Transparent conductive film on the glass substrates. spray dipping

  3. Transparent display Flexible display Future electronic device PCB board E-paper Application of Transparent Conductive Film
