Monte Carlo Simulation

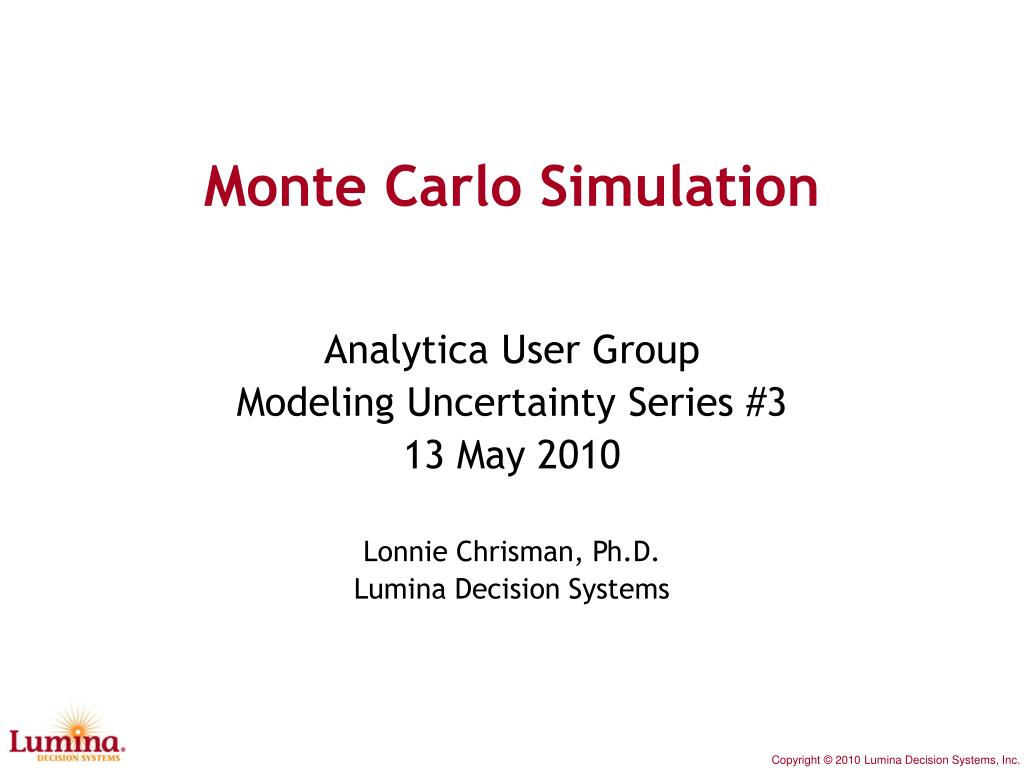

1. Monte Carlo Simulation Analytica User Group Modeling Uncertainty Series #3 13 May 2010 Lonnie Chrisman, Ph.D. Lumina Decision Systems

2. Course Syllabus(tentative) Over the coming weeks: • What is uncertainty? Probability. • Probability Distributions • Monte Carlo Sampling (today) • Measures of Risk and Utility • Common parametric distributions • Assessment of Uncertainty • Risk analysis for portfolios • (risk management) • Hypothesis testing

3. Today’s Outline • LogNormal exercise (review) • Another way to represent uncertainty • The representative sample • Computing result uncertainty • The Run index and Sample(..) • Sample error • Latin Hypercube • Viewing uncertainty • Evaluation modes

4. Modeling Exercise A mining company obtains rights to extract a gold deposit during a one-week window next year, before a construction project starts on the site. Extracting the deposit will cost $900K. The size of the deposit: LogNormal(Mean:1K,Stddev:300) oz. The price of gold next year: LogNormal(Mean:$1K, stddev:$500) What is the expected value of these mining rights? Compare to result ignoring uncertainty. Hint: The price of gold next year becomes known before the decision to proceed with extraction.

5. Another representation of Uncertainty:A Representative Sample • 10 possible prices for gold next year (in $ per oz): $411/oz $548 $650 $746 $843 $949 $1,073 $1,230 $1,459 $1,945 ~$100/oz spacing This “sample” is a way to representour uncertainty about the quantity. It captures the range of possibilities. ~$500/ozspacing

6. How uncertain is a computed result? { The model’s result } • Profit := f(Price) • Compute each “scenario” separately. • The result is a representative sample for Profit. • This sample becomes our representation for the uncertainty in the result. • This method works when computing any function!

7. Multiple Uncertain Inputs Oops: The computed results here are not representative. Why? • bad Each line hereis a separate“scenario”. Mean(profit)=394K

8. Multiple Uncertain Inputs • bad Each line hereis a separate“scenario”. Shuffle eachsample separately. (They are independent) Mean(profit)=232K

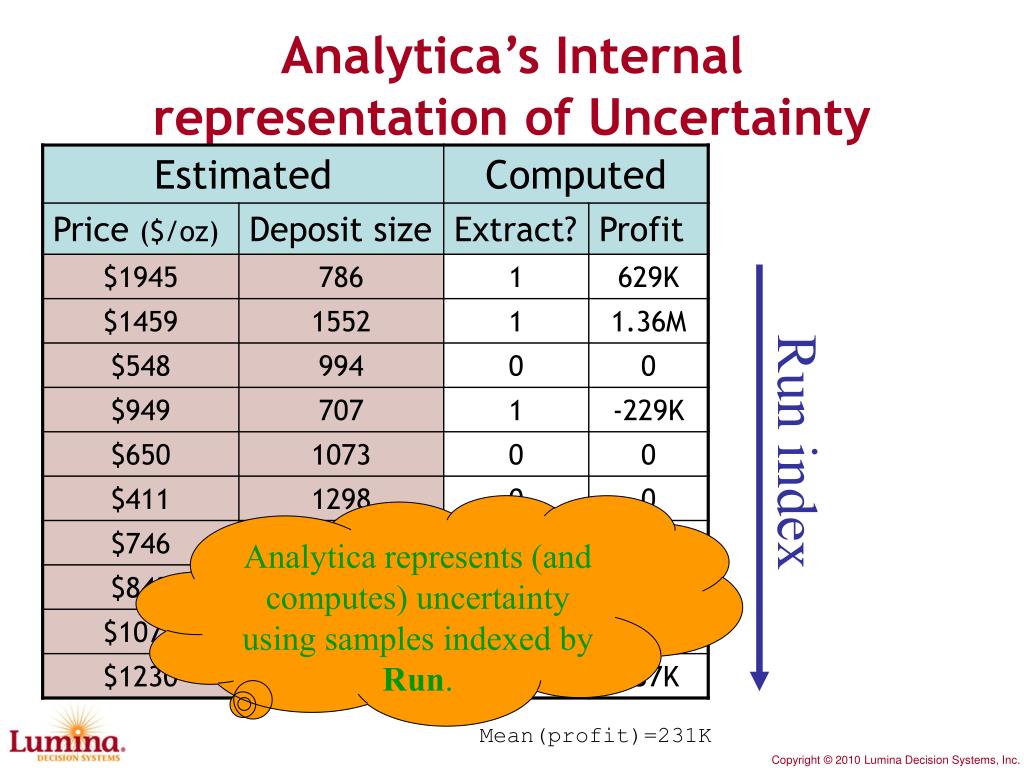

9. Analytica’s Internal representation of Uncertainty • bad Run index Analytica represents (and computes) uncertainty using samples indexed by Run. Mean(profit)=231K

10. Analytica Generates the Sample for you Leak rate Definition: LogNormal(mean:10K,stddev:8K) Sample(Leak_rate): Array(Run,[3.5K,18.3K,12.1K,…]) • We usually encode uncertainty assessments using distribution functions (for convenience). • Analytica generates sample from the distribution and uses these for computations. • We can, however, supply the sample directly if we want (e.g., if we have measurements).

11. Exercise • Try this in Analytica: Mean( Normal(0,1) * Normal(0,1) ) • Is the computed result correct? Why not? • (use SampleSize=100) • Theoretical answer = 0.0 • Computed result: e.g., 0.083 • (your result will vary, due to randomness in sample generation)

12. Sample Error • A sample is an approximate representation of the analytic distribution. • Computations based on the this sample end up with some error as a result of the approximation. • This error is called “Sample Error”. • Sample error reduces with larger sample size.

13. Sample Error:Precision of computed mean • You compute the mean for an uncertain result. • You want to be 95% sure that: • Guaranteed when: Where σ =SDeviation(y) is estimated first by using a small sample. Notice: Reference: Appendix A, Analytica Users Guide

14. Precision required for Mean(Normal(0,1) * Normal(0,1)) • Computed mean should be within 0.05 of the correct mean. (Δ=0.05) • How many samples do we need? • StdDev  1.2 • sampleSize > (4.8/0.05)2 = 9216

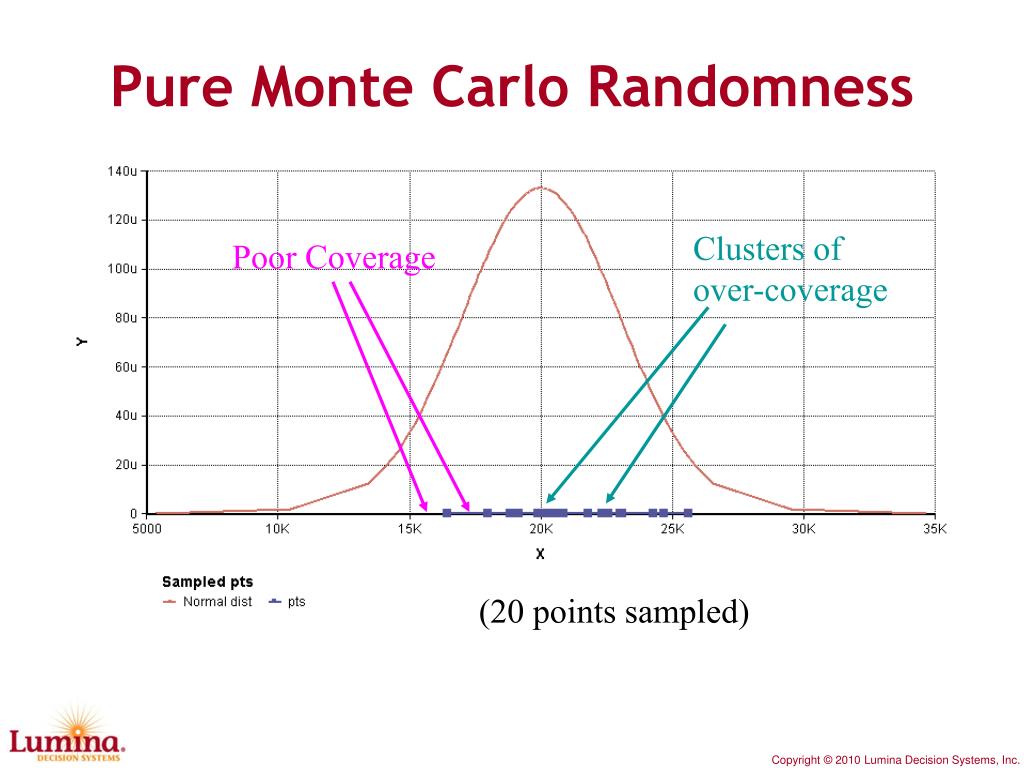

15. Pure Monte Carlo Randomness Clusters of over-coverage Poor Coverage (20 points sampled)

16. Pure Monte Carlo Randomness Clusters of over-coverage Poor Coverage (20 points sampled)

17. Pure Monte Carlo Randomness Clusters of over-coverage Poor Coverage (20 points sampled)

18. Latin Hypercube Sampling • Every 5% of area has one point. Vertical green lines every 10%. Two points always in each 10% region.

19. Latin Hypercube Sampling • CDF of same sample Vertical green lines every 10%. Two points always in each 10% region.

20. +1 Area of circle = π y -1 -1 x +1 Area of square = 4 Exercise • Compute π by sampling. • Use SampleSize=100 • Compare precision for: • Pure Monte Carlo • Median Latin Hypercube • Random Latin Hypercube • Here’s how: • x,y ~ Uniform(-1,1) • Probability(x^2+y^2<1) is π/4

21. Uncertainty Views • All uncertainty viewsare computed fromthe sample. • Mean Value • Statistics • Bands • PDF • CDF • Sample

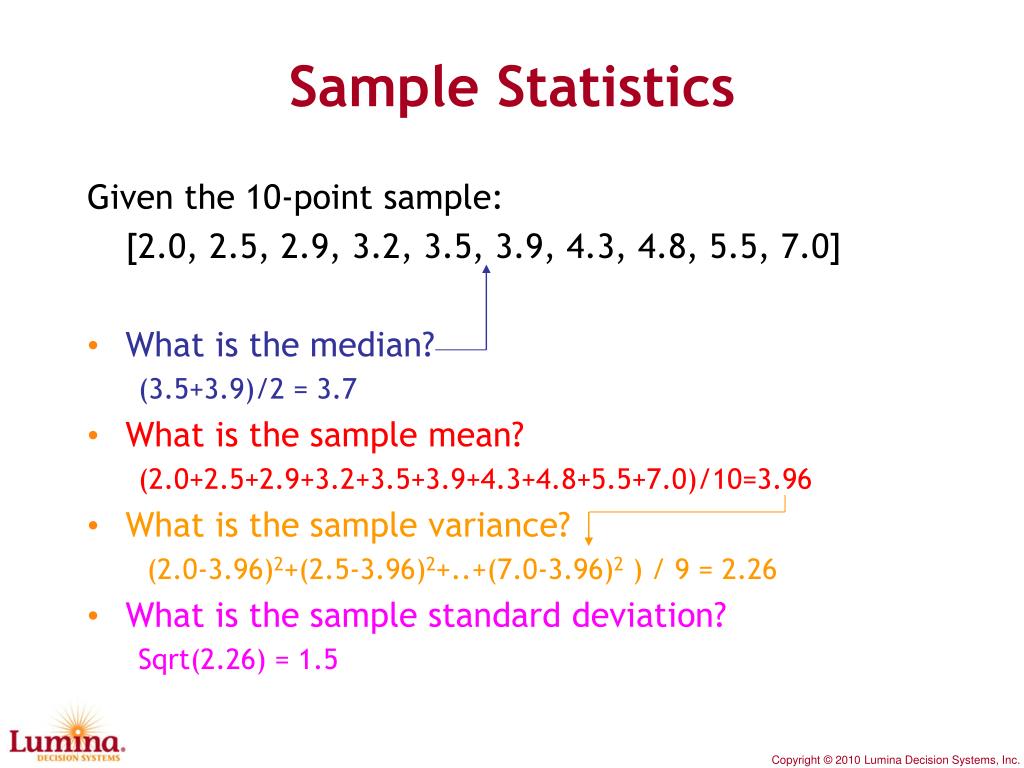

22. Sample Statistics Given the 10-point sample: [2.0, 2.5, 2.9, 3.2, 3.5, 3.9, 4.3, 4.8, 5.5, 7.0] • What is the median? (3.5+3.9)/2 = 3.7 • What is the sample mean? (2.0+2.5+2.9+3.2+3.5+3.9+4.3+4.8+5.5+7.0)/10=3.96 • What is the sample variance? (2.0-3.96)2+(2.5-3.96)2+..+(7.0-3.96)2 ) / 9 = 2.26 • What is the sample standard deviation? Sqrt(2.26) = 1.5

23. 20% 10% 30% 40% 50% 60% 70% 80% 90% 100% 0% Fractiles (percentiles, Probability Bands) Given the 10-point sample: [2.0, 2.5, 2.9, 3.2, 3.5, 3.9, 4.3, 4.8, 5.5, 7.0] • What is the 25% fractile? • Answer: 2.9 • What is the 60% fractile? • Answer: 4.1

24. Tricks for SmoothingProbability Density Plots • Sample Size • Samples per PDF step •  1.6 * 2.5^logten(sampleSize) • Equal P vs. Equal X • Line style • Histo vs. line • Manual axis scaling • (when extremes present)

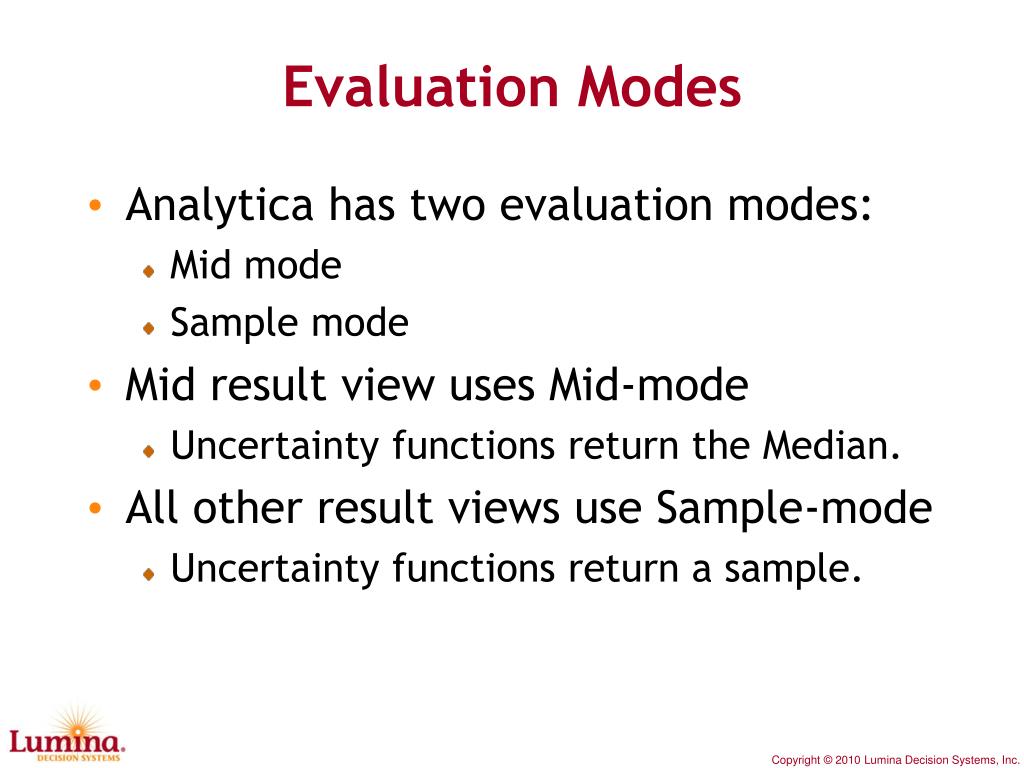

25. Evaluation Modes • Analytica has two evaluation modes: • Mid mode • Sample mode • Mid result view uses Mid-mode • Uncertainty functions return the Median. • All other result views use Sample-mode • Uncertainty functions return a sample.

26. Summary • A Sample is a way of representing an arbitrary distribution of uncertainty. • Enables uncertainty analysis for arbitrary computations (Monte Carlo). • Analytica’s Run index associates scenarios between the samples of different variables. • All result uncertainty views are derived from the computed sample.
