Chapter 5. Math Review. Work. Conservation of Energy can never get more work out than you put in trade-off between force and distance. W in = W out F e × d e = F r × d r. Efficiency. Efficiency measure of how completely work input is converted to work output.

yetta-owen
Télécharger la présentation

Chapter 5

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

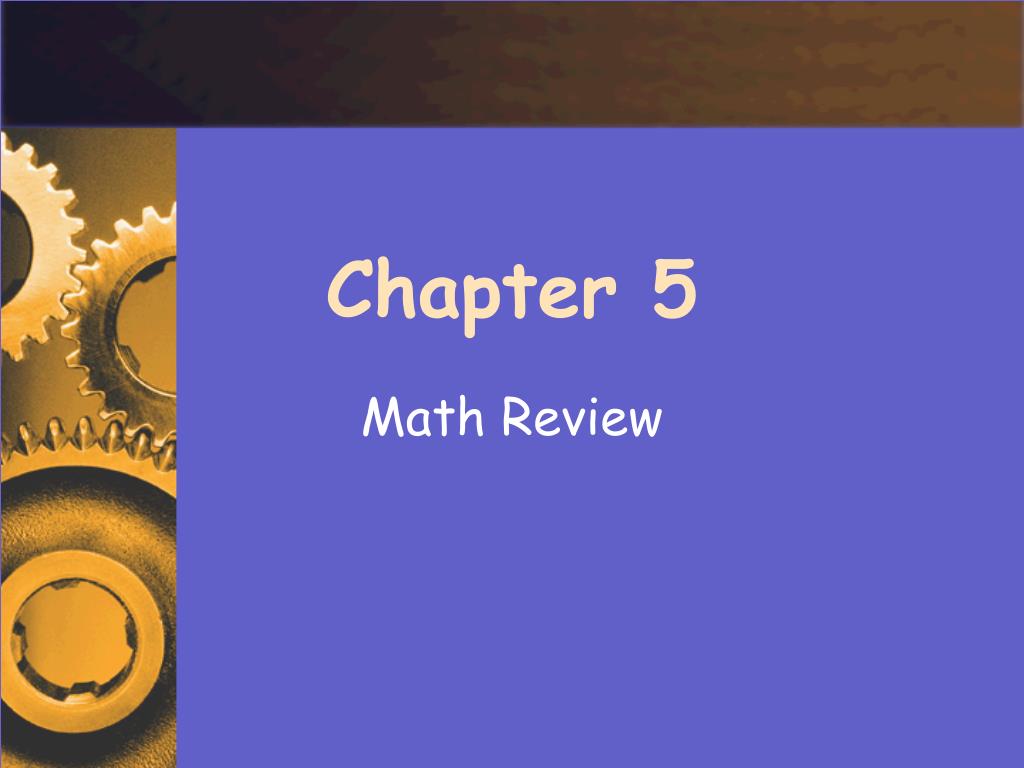

  1. Chapter 5 Math Review

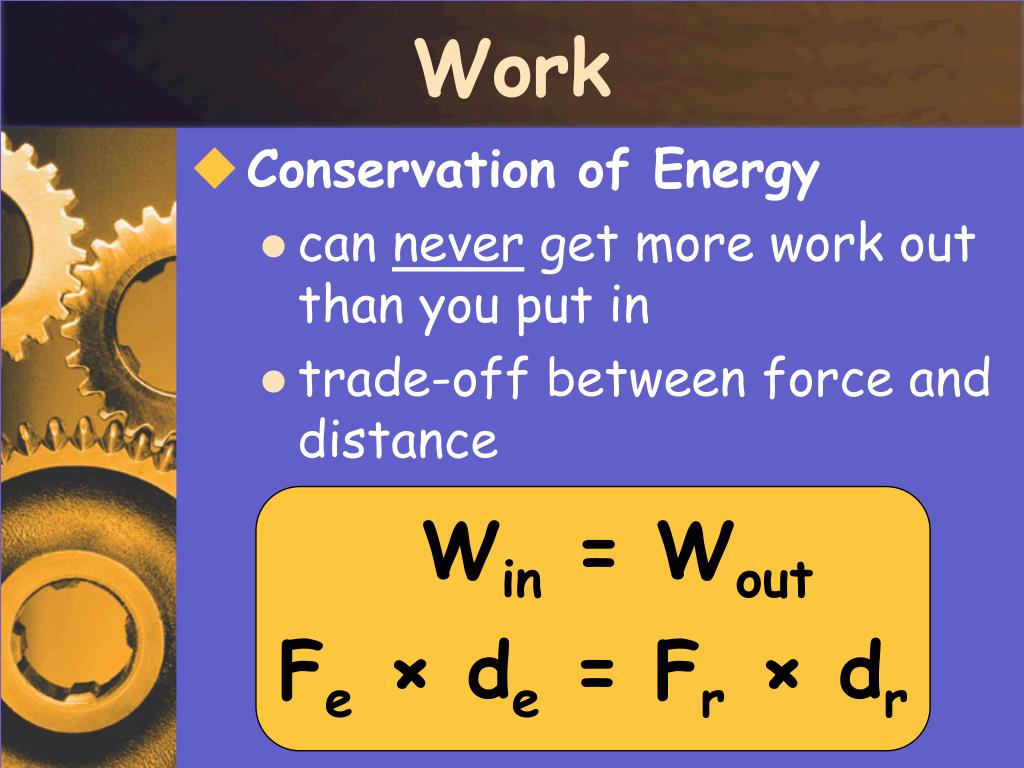

  2. Work • Conservation of Energy • can never get more work out than you put in • trade-off between force and distance Win = Wout Fe × de = Fr × dr

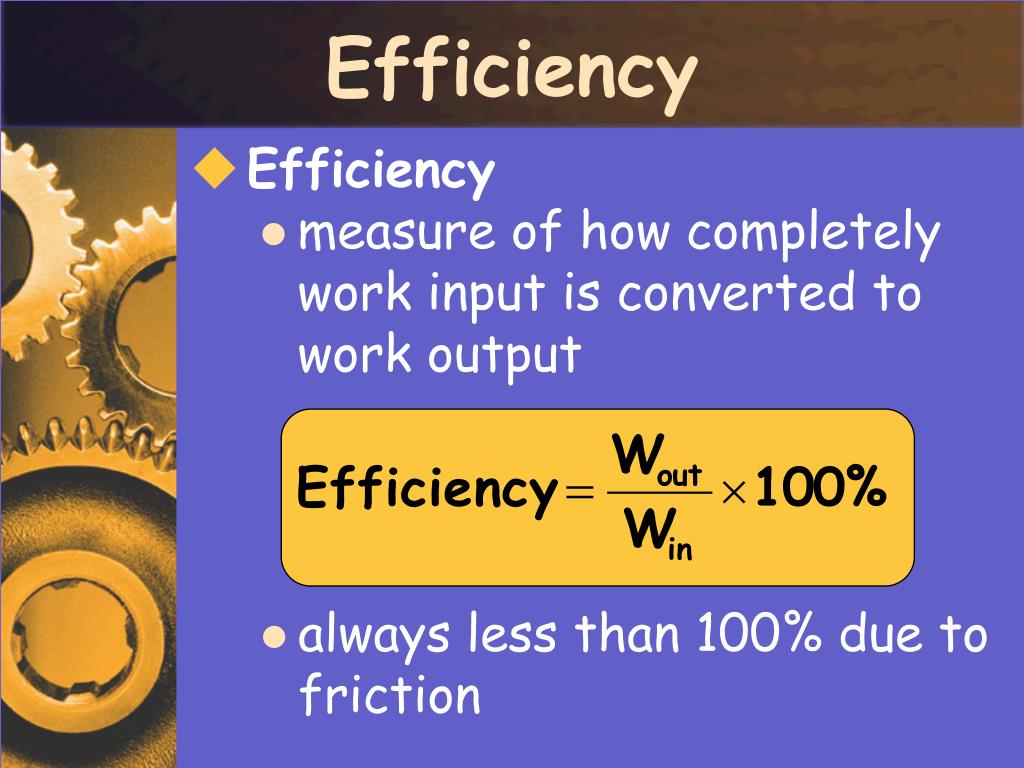

  3. Efficiency • Efficiency • measure of how completely work input is converted to work output • always less than 100% due to friction

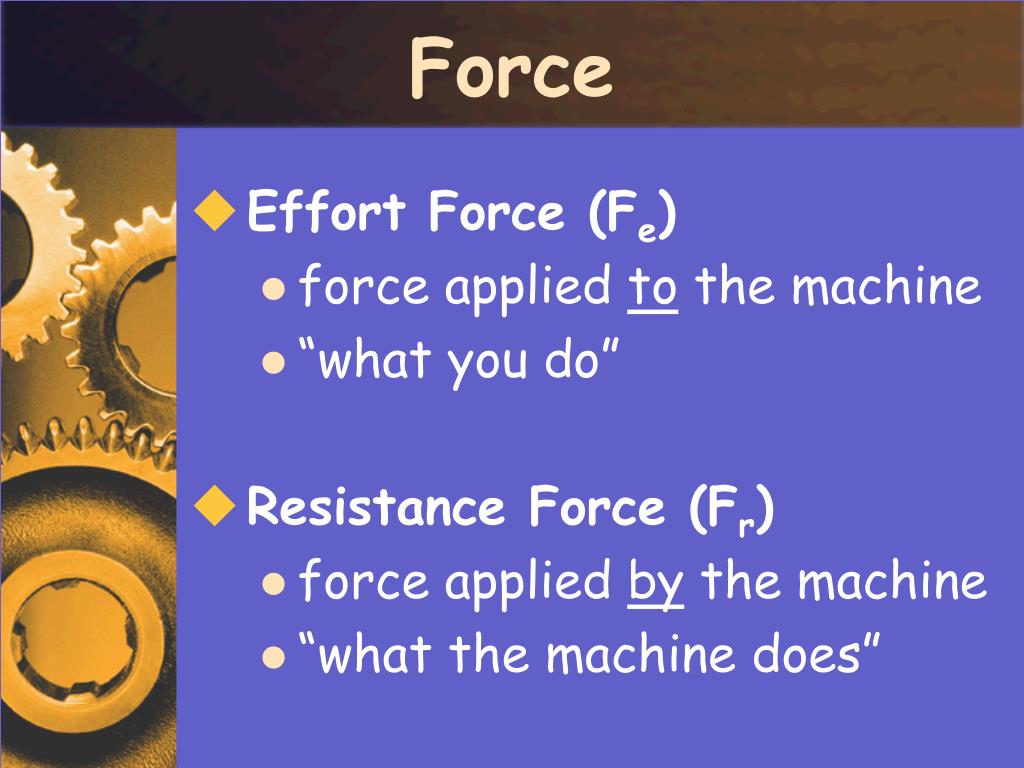

  4. Force • Effort Force (Fe) • force applied to the machine • “what you do” • Resistance Force (Fr) • force applied by the machine • “what the machine does”

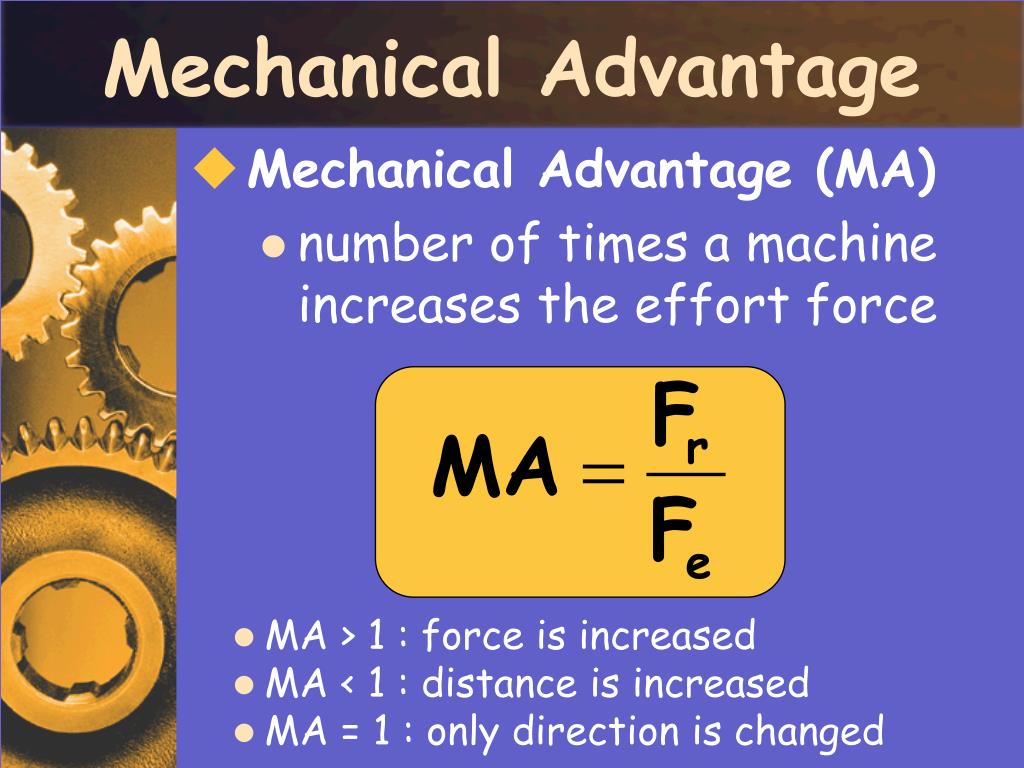

  5. Mechanical Advantage • Mechanical Advantage (MA) • number of times a machine increases the effort force • MA > 1 : force is increased • MA < 1 : distance is increased • MA = 1 : only direction is changed

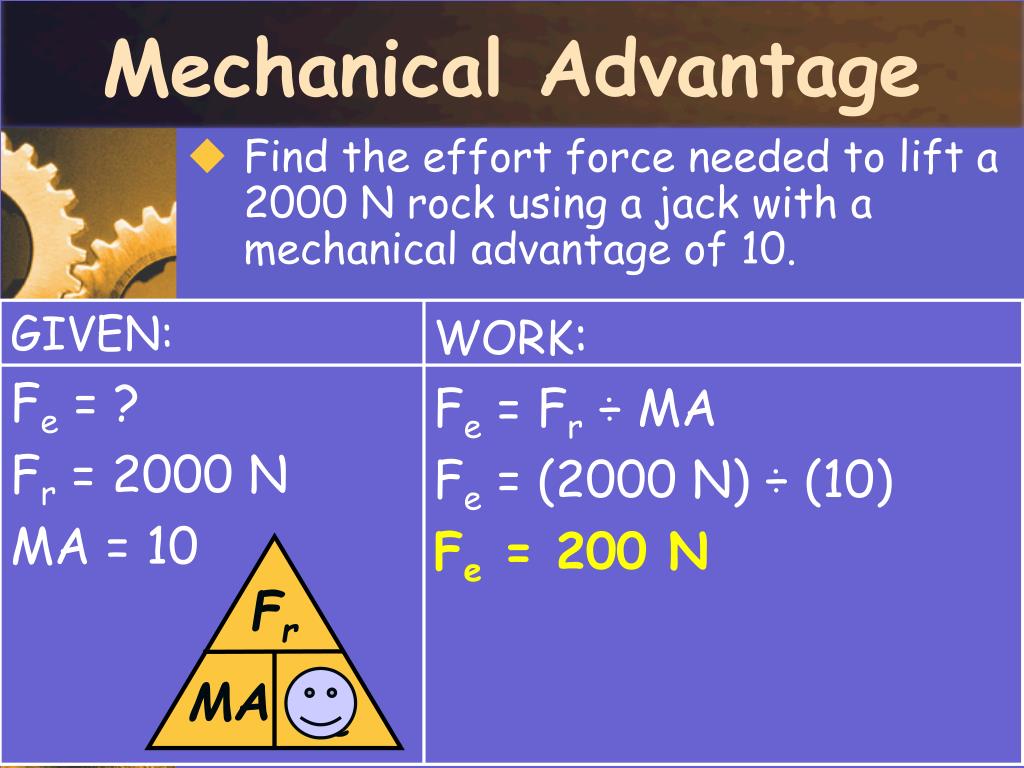

  6. Fr Fe MA Mechanical Advantage • Find the effort force needed to lift a 2000 N rock using a jack with a mechanical advantage of 10. GIVEN: Fe = ? Fr = 2000 N MA = 10 WORK: Fe = Fr ÷ MA Fe = (2000 N) ÷ (10) Fe = 200 N

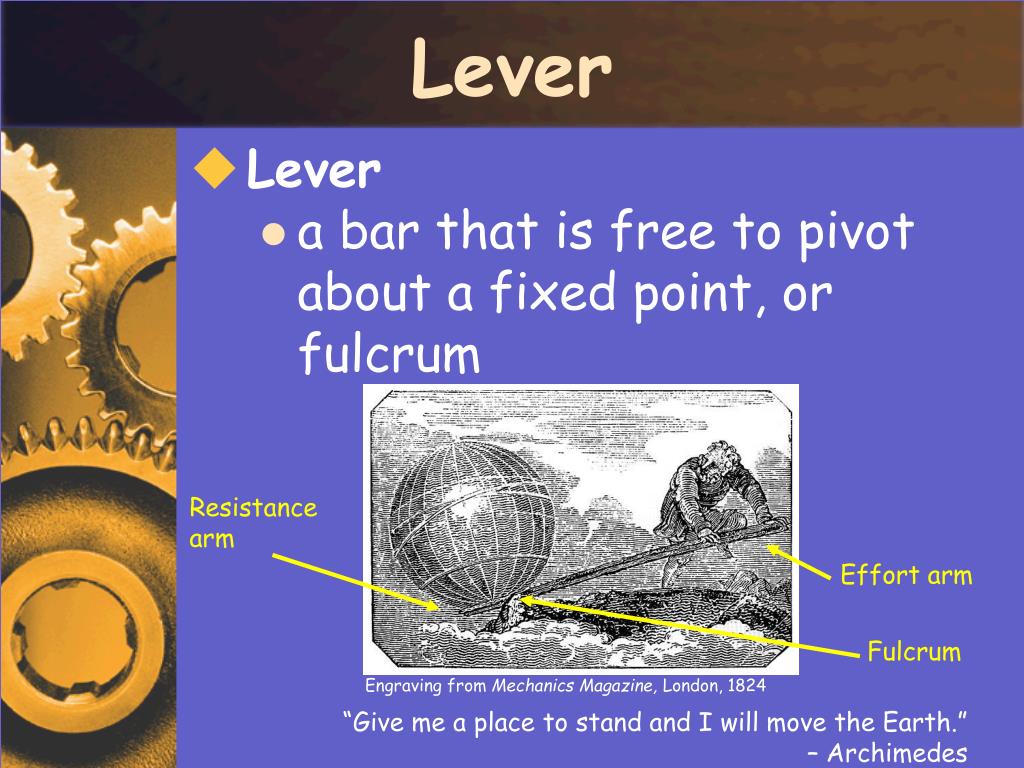

  7. Resistance arm Effort arm Fulcrum Engraving from Mechanics Magazine, London, 1824 “Give me a place to stand and I will move the Earth.” – Archimedes Lever • Lever • a bar that is free to pivot about a fixed point, or fulcrum

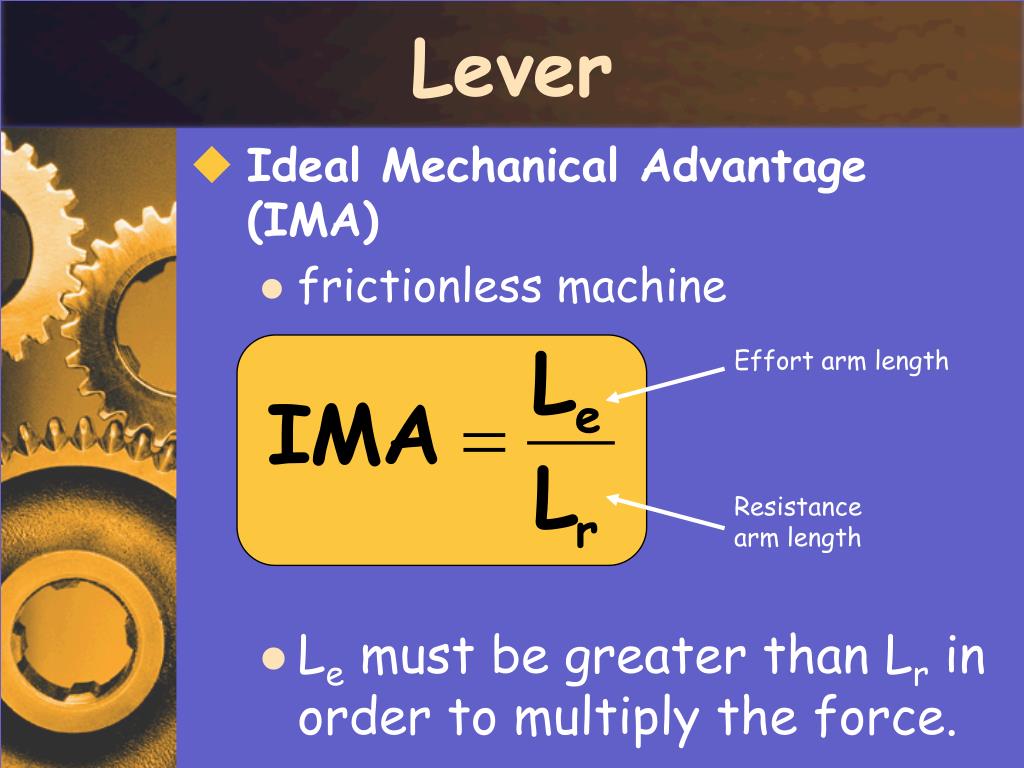

  8. Effort arm length Resistance arm length Lever • Ideal Mechanical Advantage (IMA) • frictionless machine • Le must be greater than Lrin order to multiply the force.

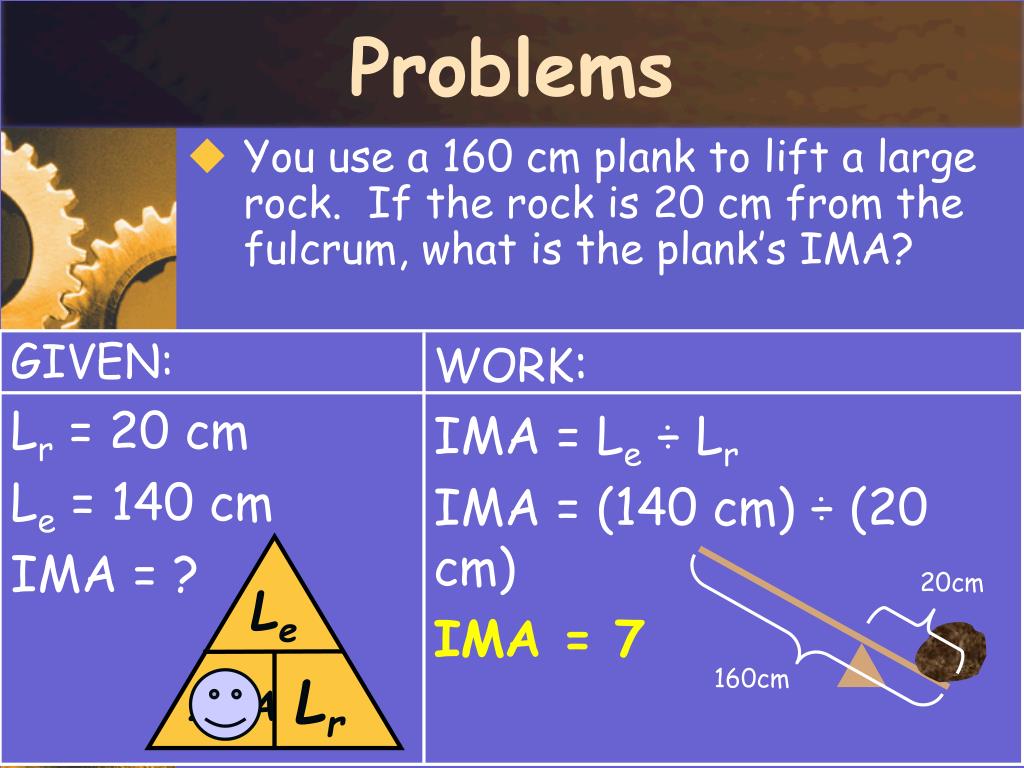

  9. 20cm Le 160cm Lr IMA Problems • You use a 160 cm plank to lift a large rock. If the rock is 20 cm from the fulcrum, what is the plank’s IMA? GIVEN: Lr = 20 cm Le = 140 cm IMA = ? WORK: IMA = Le ÷ Lr IMA = (140 cm) ÷ (20 cm) IMA = 7

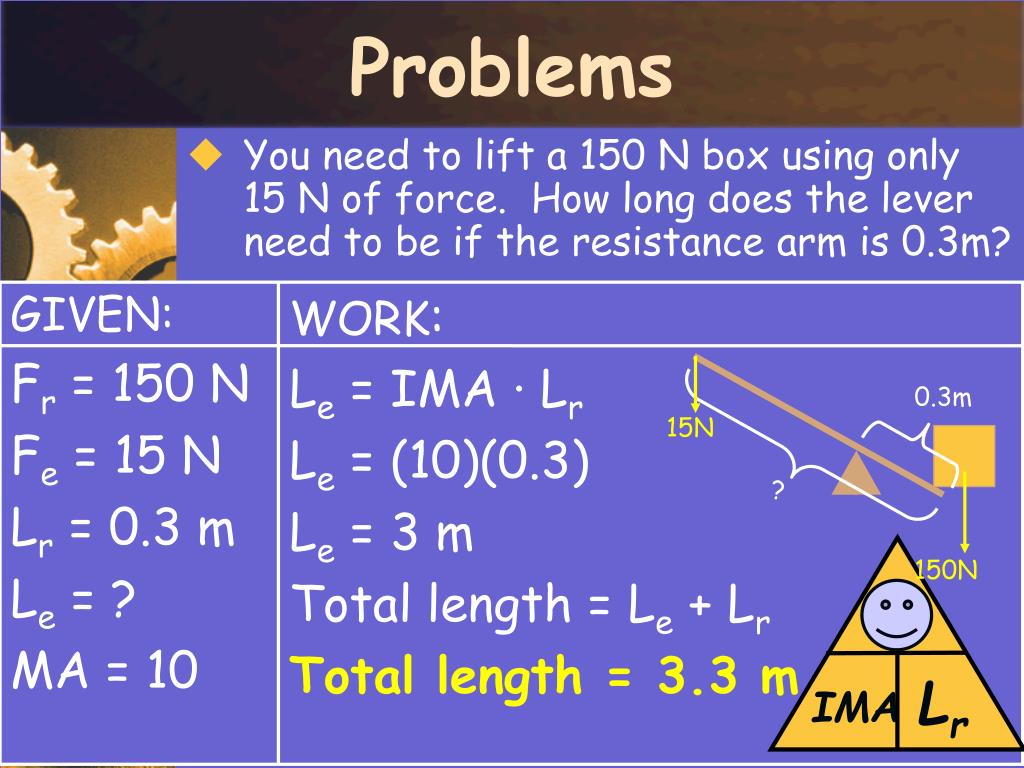

  10. 15N ? 0.3m 150N Le Lr IMA Problems • You need to lift a 150 N box using only 15 N of force. How long does the lever need to be if the resistance arm is 0.3m? GIVEN: Fr = 150 N Fe = 15 N Lr = 0.3 m Le = ? MA = 10 WORK: Le = IMA · Lr Le = (10)(0.3) Le = 3 m Total length = Le + Lr Total length = 3.3 m

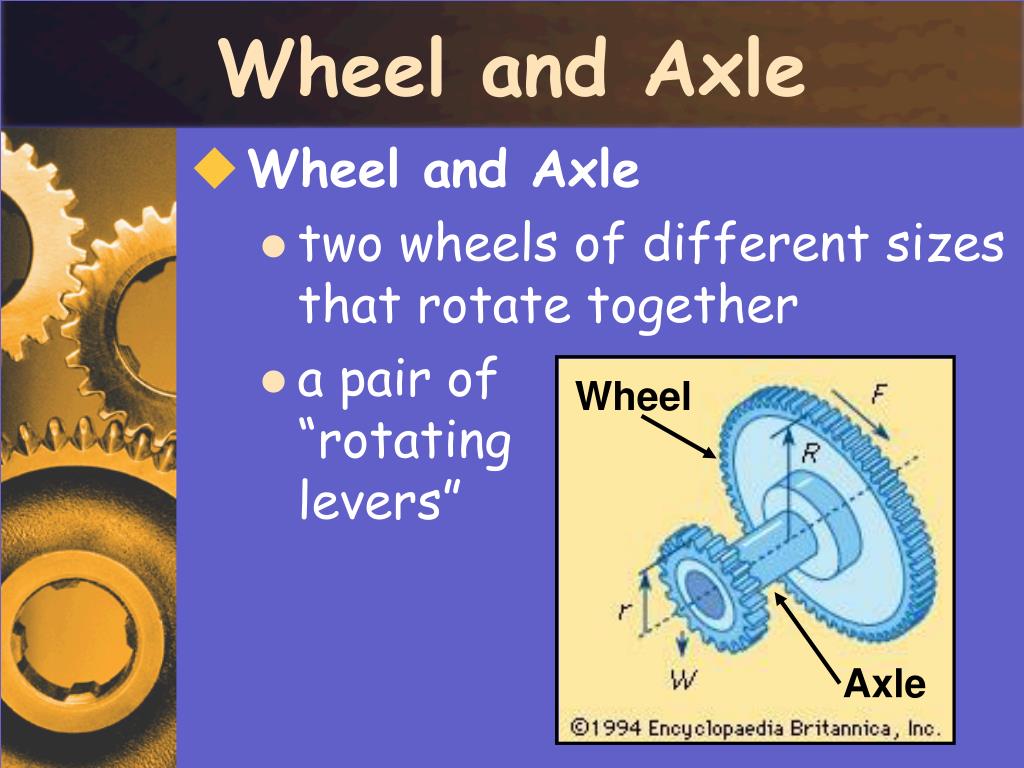

  11. Wheel and Axle • Wheel and Axle • two wheels of different sizes that rotate together • a pair of “rotating levers” Wheel Axle

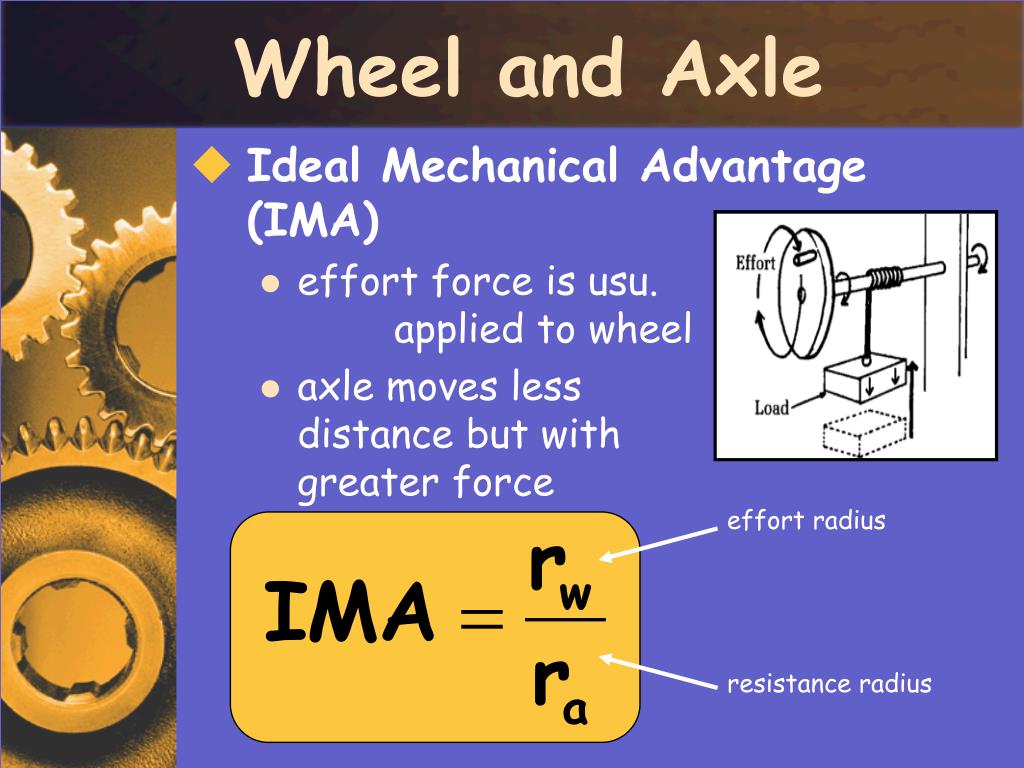

  12. effort radius resistance radius Wheel and Axle • Ideal Mechanical Advantage (IMA) • effort force is usu. applied to wheel • axle moves less distance but with greater force

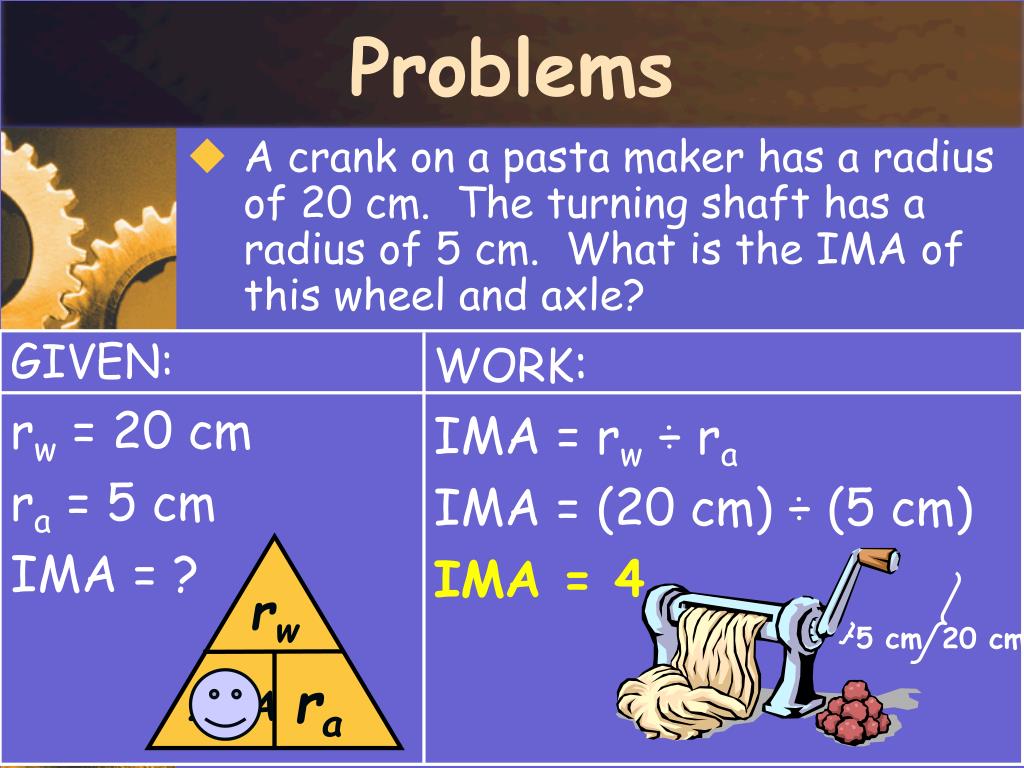

  13. rw 5 cm 20 cm ra IMA Problems • A crank on a pasta maker has a radius of 20 cm. The turning shaft has a radius of 5 cm. What is the IMA of this wheel and axle? GIVEN: rw = 20 cm ra = 5 cm IMA = ? WORK: IMA = rw ÷ ra IMA = (20 cm) ÷ (5 cm) IMA = 4

  14. rw ra IMA Problems • A steering wheel requires a mechanical advantage of 6. What radius does the wheel need to have if the steering column has a radius of 4 cm? GIVEN: IMA = 6 rw = ? ra = 4 cm WORK: rw = IMA · ra rw = (6)(4 cm) rw = 24 cm rw ra

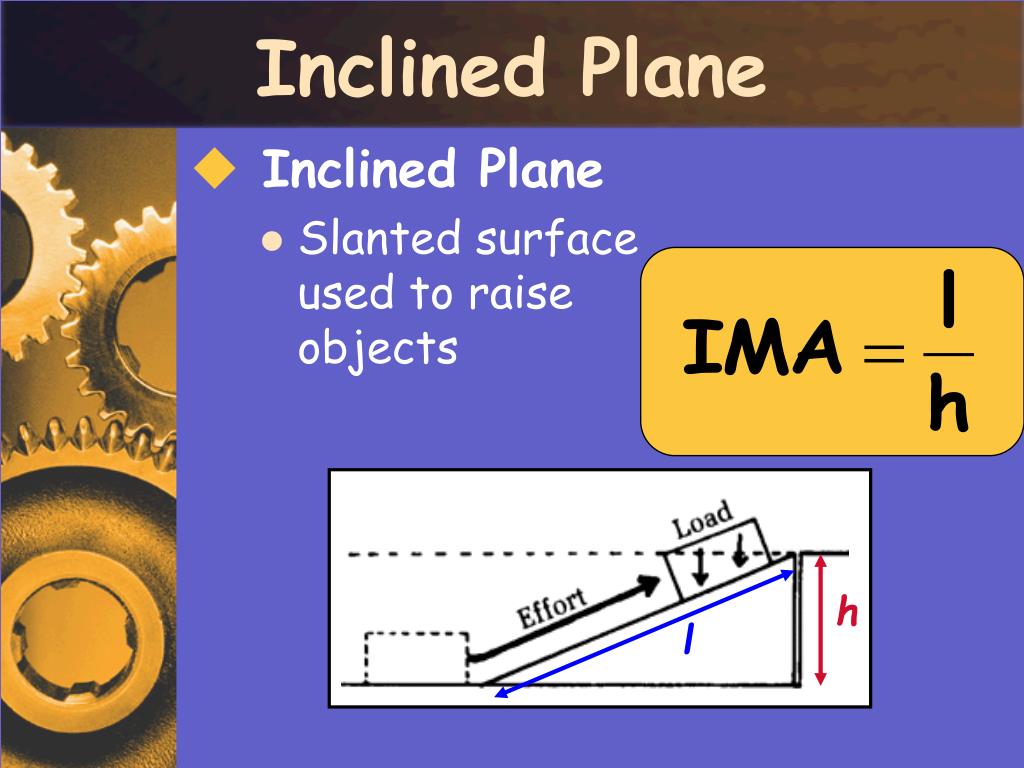

  15. h l Inclined Plane • Inclined Plane • Slanted surface used to raise objects

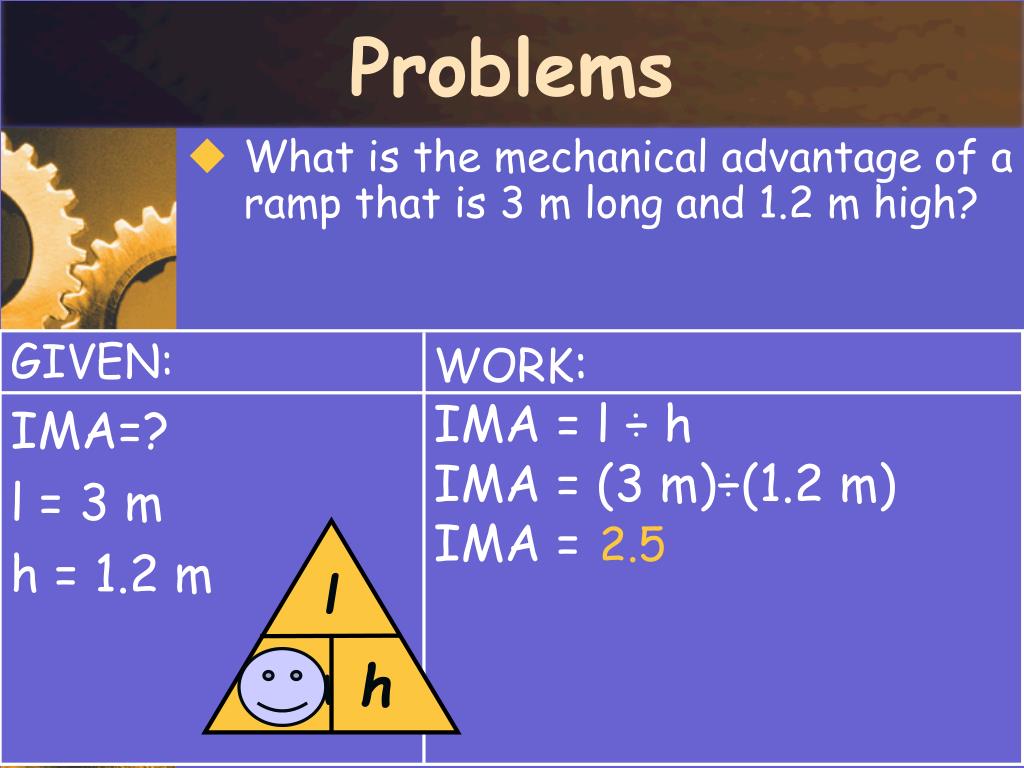

  16. l h IMA Problems • What is the mechanical advantage of a ramp that is 3 m long and 1.2 m high? GIVEN: IMA=? l = 3 m h = 1.2 m WORK: IMA = l ÷ h IMA = (3 m)÷(1.2 m) IMA = 2.5
