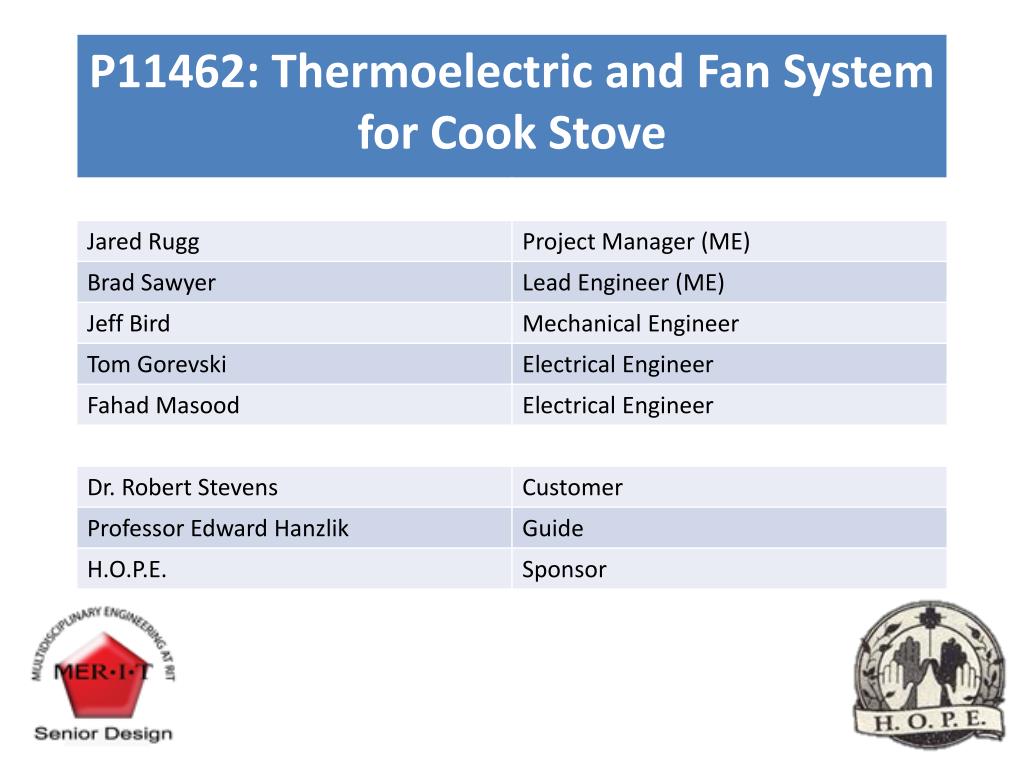

Development of Thermoelectric Power System for First Generation RIT Cook Stove

DESCRIPTION

The project aims to develop a thermoelectric generation (TEG) power system for the first generation of the RIT cook stove, specifically designed for a Haitian vendor. The system targets a reliable output of 4W at a 200°C temperature difference and incorporates controllable air flow into the stove for efficient cooking with settings for boiling and simmering. It also aims to charge USB devices. Current design improvements are needed to enhance efficiency, cost-effectiveness, and lifespan. Future work includes optimizing fan design, investigating new materials, and refining electrical systems for improved performance.

1 / 12

Télécharger la présentation

Development of Thermoelectric Power System for First Generation RIT Cook Stove

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Project Description • Goal: Develop a thermoelectric (TEG) power system for the first generation of RIT cook stove (project P10461) • End user: Haitian Vendor • Key needs and specs: • Use of TEG • 4 W output at 200 °C temp difference • Provide controllable air flow into stove • Flow Rate 0.3-0.7 kg/min • 2 Control Settings (Boil, Simmer) • Charge an auxiliary device • Power 5 V USB device

  2. System Architecture

  3. Design Concept Fan Electrical system Heat conduction beam Heat sink TEG (sandwiched between beam and heat sink) Bypass

  4. High Risk Assessment • Insufficient TEG cooling • TEG producing too little power • Heat conduction rod produces too little heat • Electrical system consumes too much power • Product cost

  5. Current State of Design - Performance • Design meets customer needs except: • 5 year life-span • Well packaged system • Ability to charge auxiliary device • Fan runs at start-up • Design meets engineering specs except: • Unit price • Product life span • Replaceable component life span • Aux charging • Volume • Time to reach peak performance

  6. Current State of Design – Budget/Schedule • Budget = $500 • Total Amount Spent = $601 • Total Cost of System = Unknown at this point • 3 weeks behind schedule

  7. System Testing Results • Maximum hot side temp = 250 °C • Maximum ΔT achieved = 150 °C • Maximum power = 3 W • Unable to start fans with batteries • Switching works • Charging works but not to specification • Not enough power for USB • Buck-boost produces ~9-9.5 V rather than 12 V

  8. MSD I Schedule • Week 2 • Part Arrival • Week 4 • Integrate mechanical system • Integrate electrical system • Week 5 • Integrate all systems • Life cycle calculations • Week 6 • Test variations • Engineering spec verification • Week 7-8 • Write plan to apply to P11461’s stove • Work on 10,000 unit BOM

  9. MSD II Milestones • Week 3 • Mechanical system functional • Week 6 • All parts in house • Electrical system completed • System Integrated • Week 9 • Functional demo • Poster finalized • Week 10 • Documentation finalized: Paper, Website

  10. Project Evaluation • Successes • Able to power fan off of TEG semi-continuously • Able to provide enough flow into fire • Able to control air flow into fire • Failures • No USB functionality • Fan unable to be powered off of batteries • Batteries charge slower than expected • Aesthetic packaging

  11. Future Work • Mechanical • Adapt fan size and housing to next generation of stove • Look into effect of gradient across TEG • Investigate new rod designs • Resize rod and heat sink for new stove • Better characterize effect of bypass • Investigate heat effect on spring life • Electrical • Locate more efficient circuits • Explore microcontroller integration for peak power point tracking and battery charging • Determine why buck boost behaves differently than expected • Determine why battery pack does not power boost converter • Explore and characterize the effect of an inductive load on the boost converter
