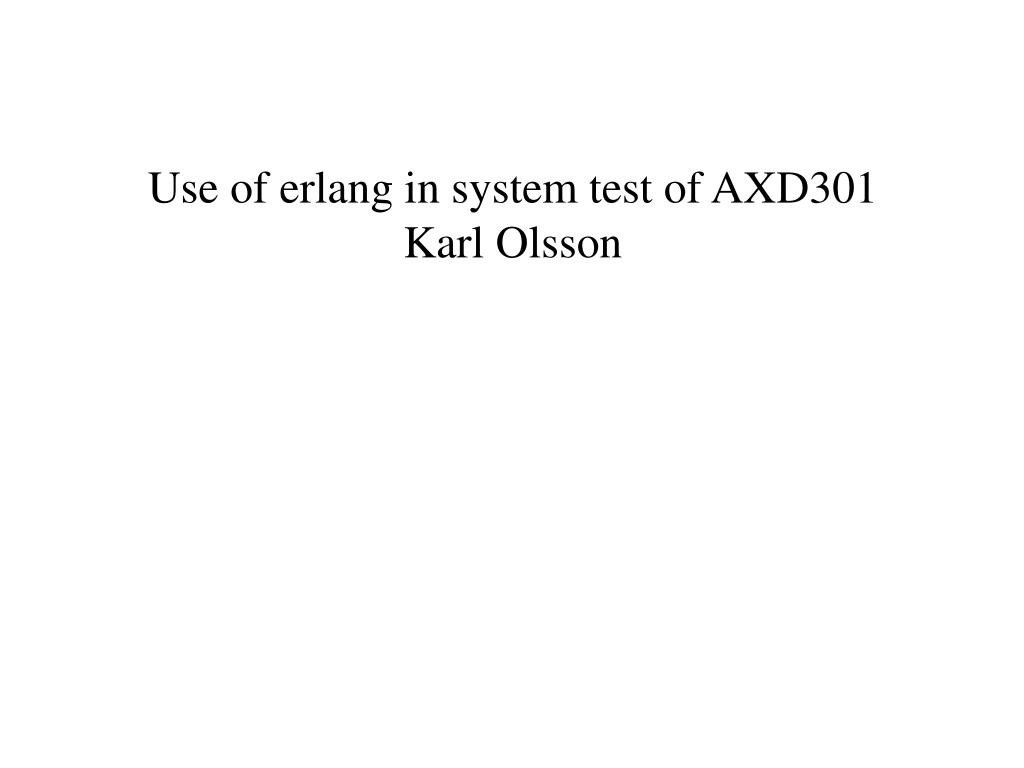

  1. Use of erlang in system test of AXD301 Karl Olsson

  2. Erlang distribution Tools conf Configuration tool sssg UNI traffic generator xAXE AXE 10 traffic simulator/generator xMG Media gateway simulator OTP test server Automatic test tool dbg loading of modules

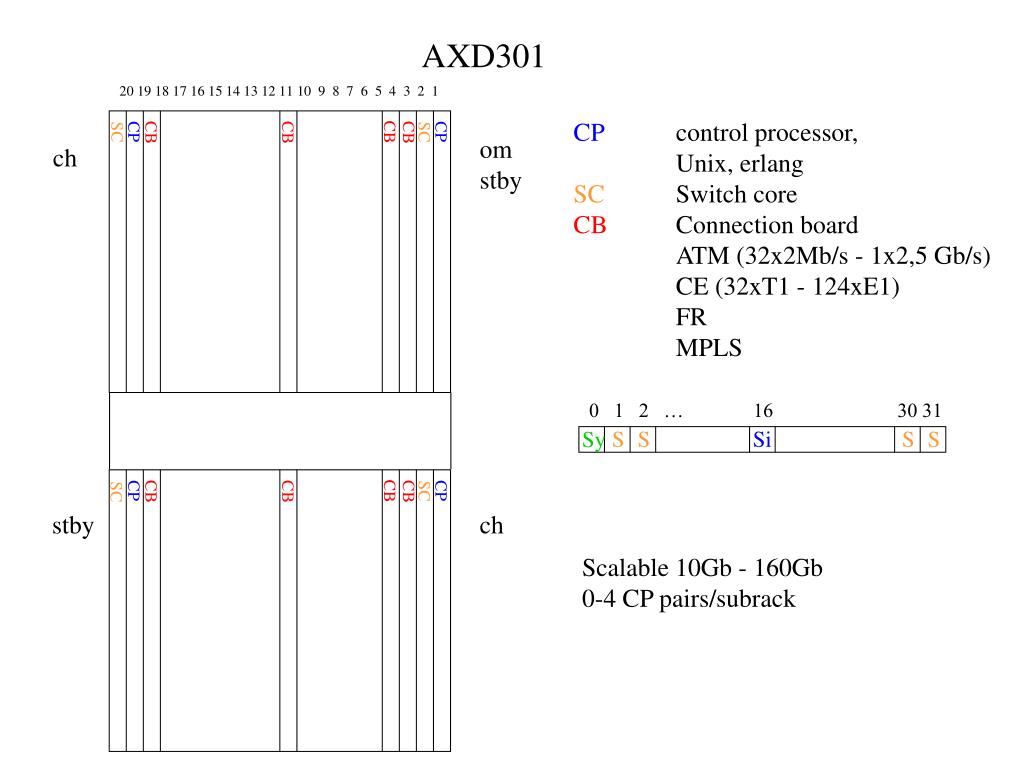

  3. AXD301 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 CP CP CB SC SC CB CB CB CP control processor, Unix, erlang SC Switch core CB Connection board ATM (32x2Mb/s - 1x2,5 Gb/s) CE (32xT1 - 124xE1) FR MPLS om stby ch 0 1 2 … 16 30 31 CP CP CB SC CB CB CB SC S S Si S S Sy stby ch Scalable 10Gb - 160Gb 0-4 CP pairs/subrack

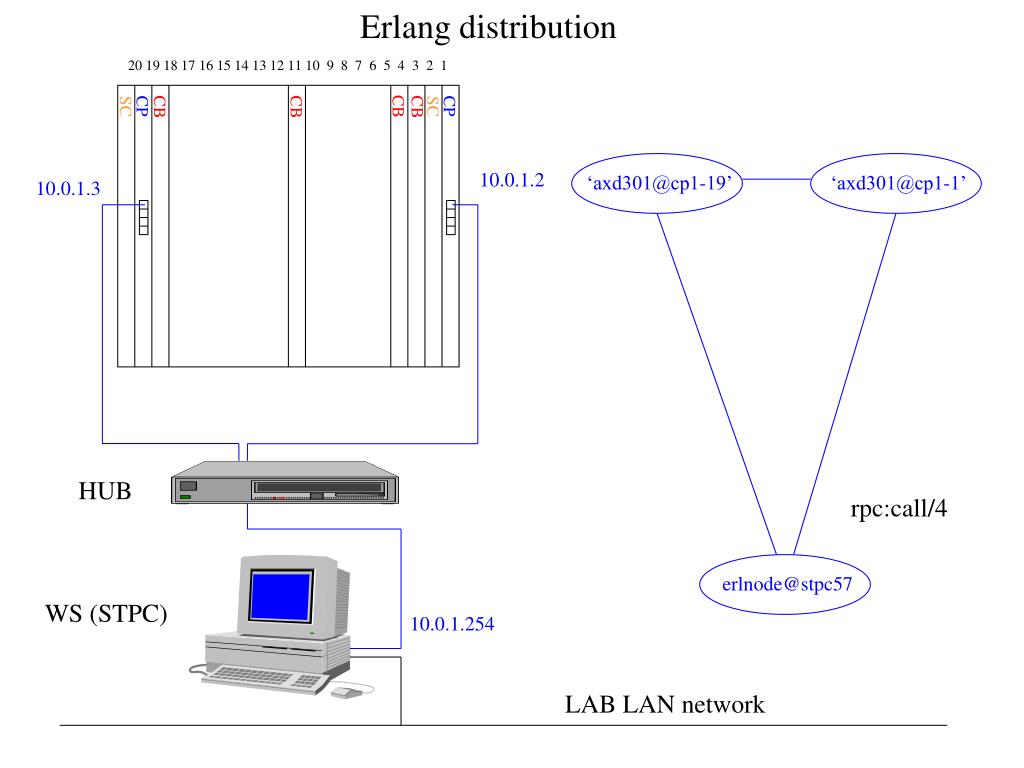

  4. Erlang distribution 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 CP CP CB SC SC CB CB CB 10.0.1.2 10.0.1.3 ‘axd301@cp1-19’ ‘axd301@cp1-1’ erlnode@stpc57 HUB rpc:call/4 WS (STPC) 10.0.1.254 LAB LAN network

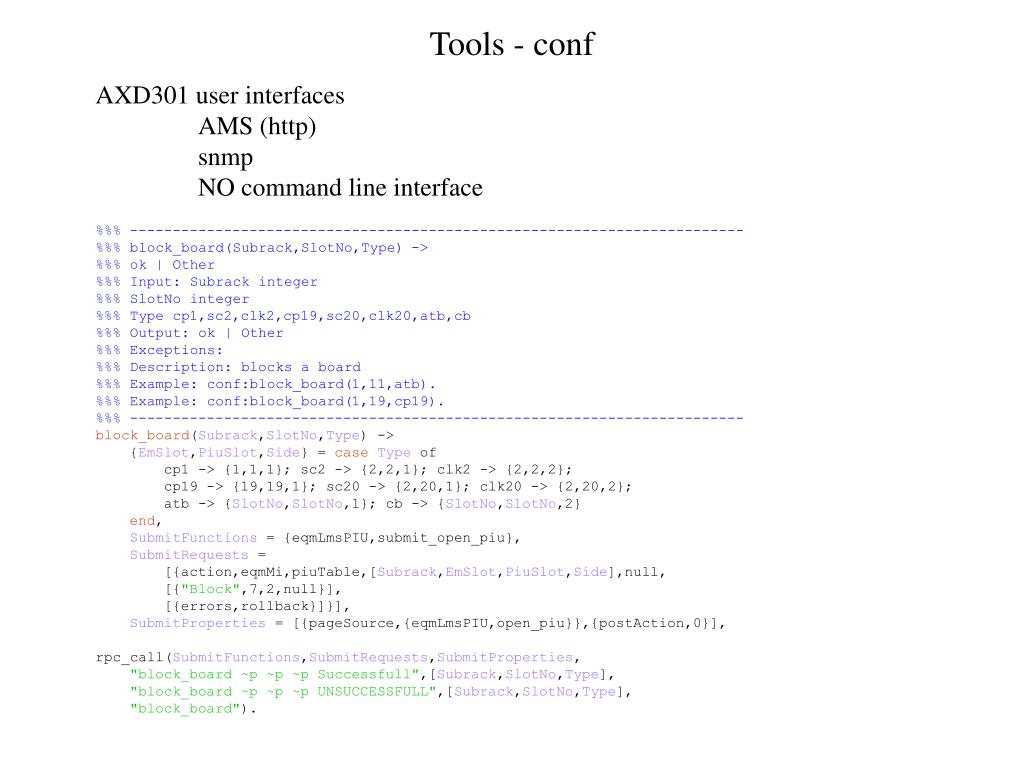

  5. Tools - conf AXD301 user interfaces AMS (http) snmp NO command line interface %%% ------------------------------------------------------------------------%%% block_board(Subrack,SlotNo,Type) ->%%% ok | Other%%% Input: Subrack integer%%% SlotNo integer%%% Type cp1,sc2,clk2,cp19,sc20,clk20,atb,cb%%% Output: ok | Other%%% Exceptions: %%% Description: blocks a board %%% Example: conf:block_board(1,11,atb).%%% Example: conf:block_board(1,19,cp19).%%% ------------------------------------------------------------------------block_board(Subrack,SlotNo,Type) -> {EmSlot,PiuSlot,Side} = caseType of cp1 -> {1,1,1}; sc2 -> {2,2,1}; clk2 -> {2,2,2}; cp19 -> {19,19,1}; sc20 -> {2,20,1}; clk20 -> {2,20,2}; atb -> {SlotNo,SlotNo,1}; cb -> {SlotNo,SlotNo,2}end,SubmitFunctions = {eqmLmsPIU,submit_open_piu},SubmitRequests = [{action,eqmMi,piuTable,[Subrack,EmSlot,PiuSlot,Side],null, [{"Block",7,2,null}], [{errors,rollback}]}],SubmitProperties = [{pageSource,{eqmLmsPIU,open_piu}},{postAction,0}],rpc_call(SubmitFunctions,SubmitRequests,SubmitProperties,"block_board ~p ~p ~p Successfull",[Subrack,SlotNo,Type],"block_board ~p ~p ~p UNSUCCESSFULL",[Subrack,SlotNo,Type],"block_board").

  6. Tools - sssg sssg WS with SUN ATM board UNI UNI sssg1 sssg2 ‘axd301@cp1-19’ ‘axd301@cp1-1’ erlnode@stpc sssg1@sahix sssg2@sahiy HUB AXD301 STPC LAB LAN network ATM ethernet

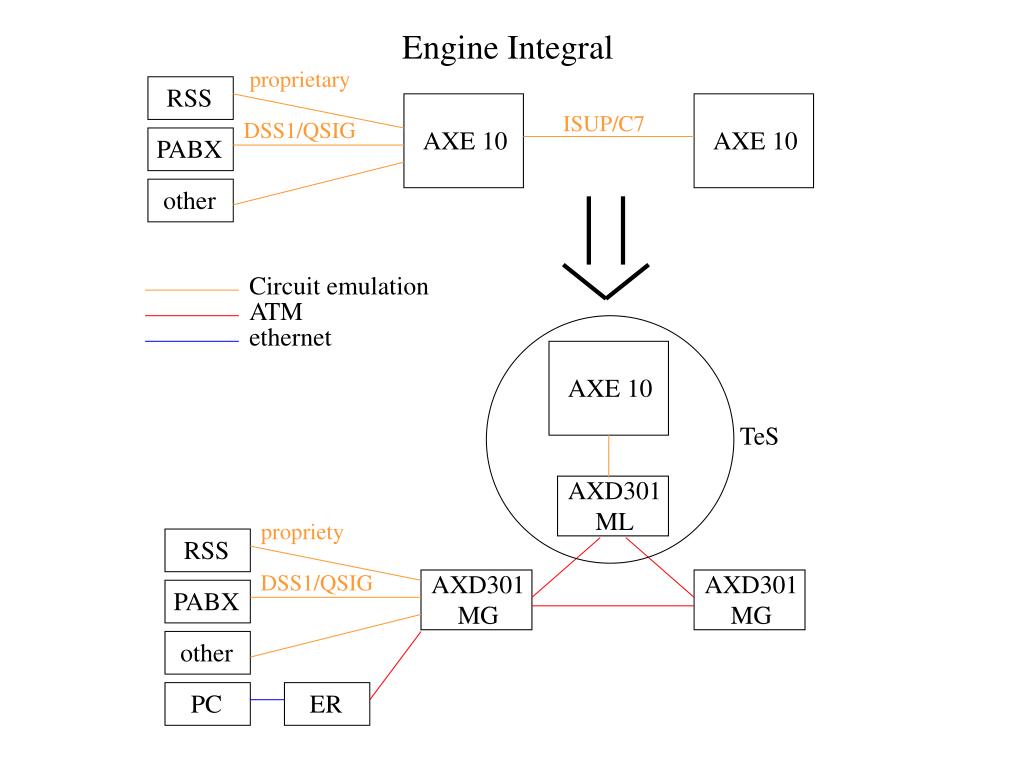

  7. Engine Integral proprietary PABX PABX other other RSS RSS ER PC ISUP/C7 DSS1/QSIG AXE 10 AXE 10 AXE 10 ATM TeS Circuit emulation propriety DSS1/QSIG AXD301 ML AXD301 MG AXD301 MG ethernet

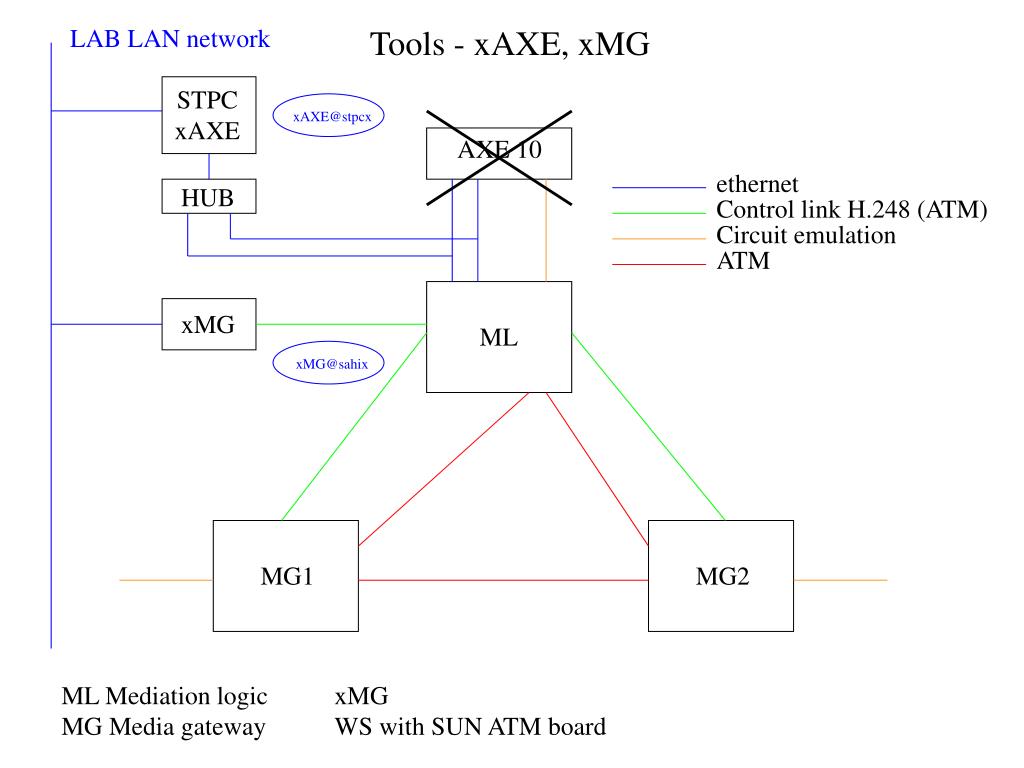

  8. LAB LAN network STPC xAXE AXE 10 HUB MG1 MG2 ML xAXE@stpcx xMG@sahix xMG ATM Circuit emulation ethernet ML Mediation logic MG Media gateway Control link H.248 (ATM) xMG WS with SUN ATM board Tools - xAXE, xMG

  9. ‘axd301@cp1-19’ ‘axd301@cp1-19’ ‘axd301@cp1-19’ testserver@stpcx ‘axd301@cp2-1’ ‘axd301@cp1-1’ ‘axd301@cp1-1’ slave@stpcy HUB HUB rpc:call/4 rpc:call/4 gen_tcp STPCx STPCy LAB LAN network OTP test server

  10. STPCml xMG ML MG1 MG2 ‘axd301@cp1-19’ ‘axd301@cp1-19’ ‘axd301@cp1-19’ ‘axd301@cp1-1’ ‘axd301@cp1-1’ ‘axd301@cp1-1’ slave@stpcmg1 slave@stpcmg2 xAXE@stpcml xMG@sahiy sssg@sahix ATM sssg Circuit emulation testserver@stpcml ethernet STPCmg1 STPCmg2 STPCmg2 STPCmg2 Control link H.248 LAB LAN network Distribution conf/snmp sssg xAXE xMG Erlang logs
