  1. Bringing External Connectivity and Experimenters to GENI Nick Feamster

  2. Cluster • Goal: Bring external connectivity to experiments through seamless integration with experiments on virtual networks

  3. Session Background: BGP Autonomous Systems Route Advertisement Traffic

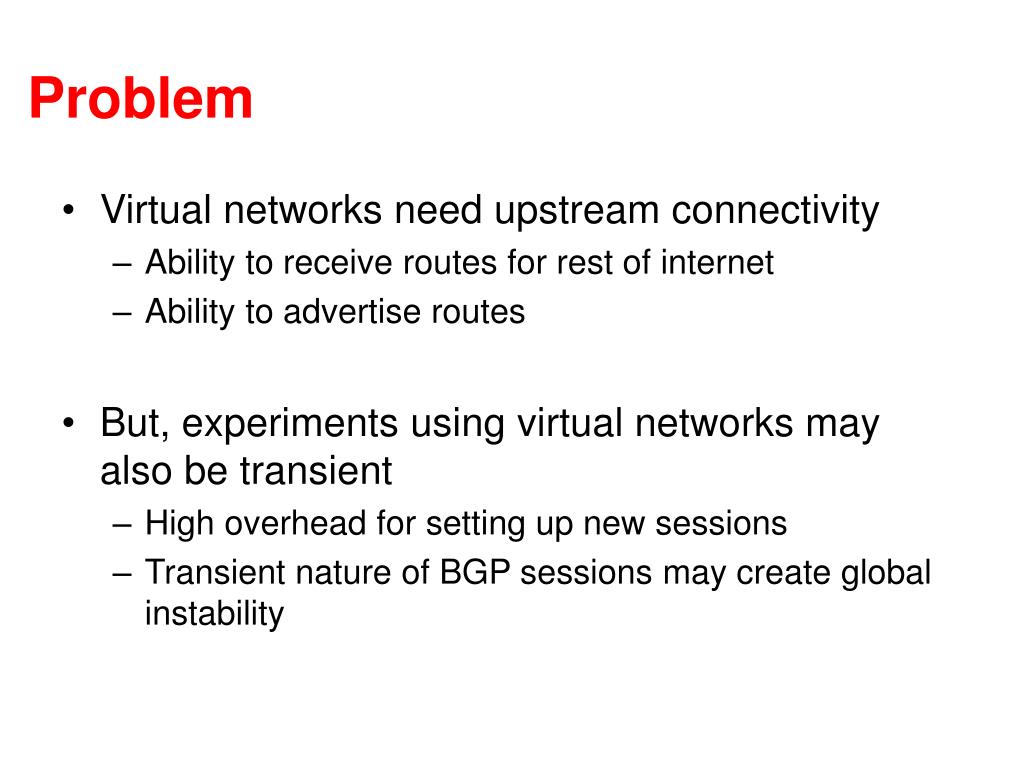

  4. Problem • Virtual networks need upstream connectivity • Ability to receive routes for rest of internet • Ability to advertise routes • But, experiments using virtual networks may also be transient • High overhead for setting up new sessions • Transient nature of BGP sessions may create global instability

  5. Individual Sessions Not Scalable AS1 AS2 BGP Sessions GENI, ProtoGENI, VINI Virtual AS1 Virtual AS2

  6. Solution: BGP Mux AS1 AS2 BGP-Mux GENI, ProtoGENI, VINI Virtual AS1 Virtual AS2

  7. Design Requirements • Session transparency: BGP updates should appear as they would with direct connection • Session stability: Upstreams should not see transient behavior • Isolation: Individual networks should be able to set their own policies, forward independently, etc. • Scalability: Mux should support many networks

  8. Control-Plane Implementation: Quagga • Quagga Routing Suite • Open-source BGP daemon • Cisco like CLI support • Used by real ISPs • Salient features • Multiple BGP views • Local-AS change • Transparent updates

  9. Configuration AS2 AS1 External IP BGP-Mux Server BGP Instance BGP-View – AS1 BGP-View – AS2 IP1 IP2 Virtual AS2 Virtual AS1

  10. Configuration: Quagga bgp multiple-instance ! router bgp 64512 view Verio bgp router-id 147.28.7.21 network 168.62.16.0/21 neighbor 147.28.0.4 remote-as 3130 neighbor 147.28.0.4 description PSG0 - Verio neighbor 147.28.0.4 route-map BLOCK out ! router bgp 64512 view ATT bgp router-id 147.28.0.212 network 168.62.16.0/21 neighbor 147.28.0.1 remote-as 3130 neighbor 147.28.0.1 description ATT neighbor 147.28.0.1 route-map BLOCK out !

  11. Scaling with Multiple Views AS1 AS2 External IP BGP-Mux Server BGP Server BGP Server BGP Instance BGP-View – AS1 BGP-View – AS2

  12. Work in Progress • VINI Deployment: Two locations • Washington • Virginia • Waiting for upstream connectivity • Test clients in Emulab network • The number of clients • Memory consumption • CPU consumption • Update propagation speed

  13. Next Steps • Internet2/ProtoGENI deployment • Upstream Connectivity • Ability to advertise prefixes (need to get prefixes from I2 for ProtoGENI) • Data Plane Integration • Integration with Emulab/ProtoGENI

  14. Summary • Virtual networks need upstream connectivity • Transparent to experiments • Stable, from the appearance of the upstream ISP • BGP-Mux • Easy to implement • Easy to deploy • Scales

  15. Other Aspect of Project • Ethernet GRE Tunnels within ProtoGENI • Ability to instantiate Ethernet GRE tunnels with • OpenVZ Kernel • Trellis Kernel
