  1. CMPC1M01 Computing Systems 1More HTML: tables and forms

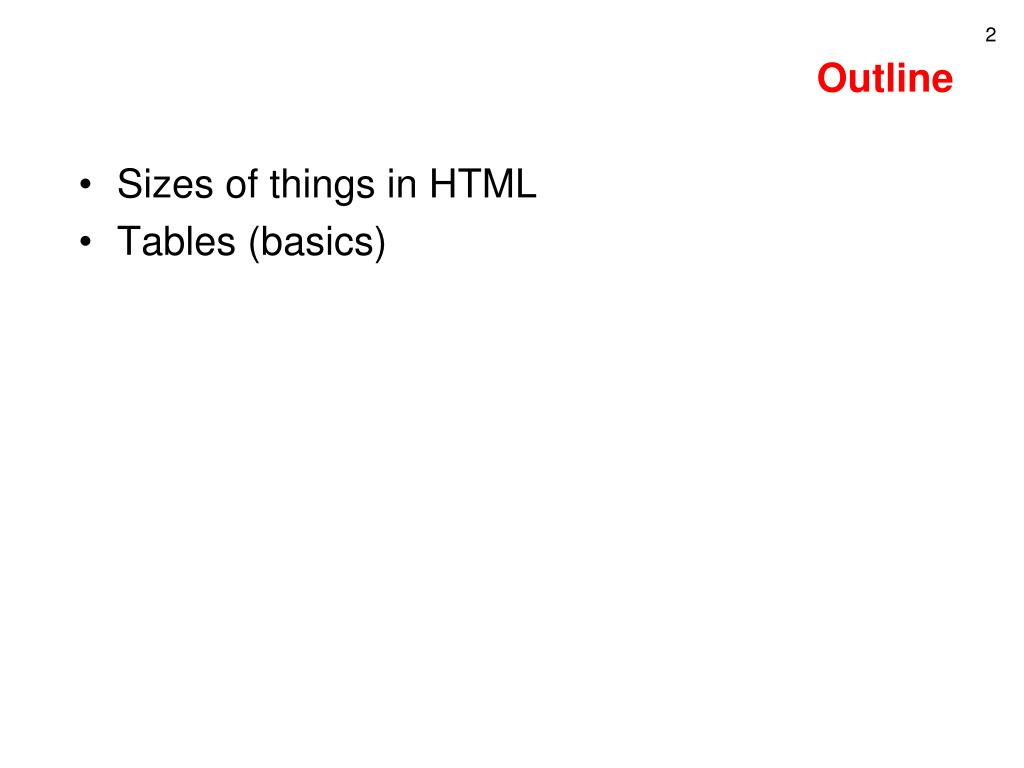

  2. Outline • Sizes of things in HTML • Tables (basics)

  3. Why sizes matter • Sizes can be specified as • fixed • relative • Relative sizes change with screen, font etc., so the layout is preserved • Fixed sizes assume a certain size of display

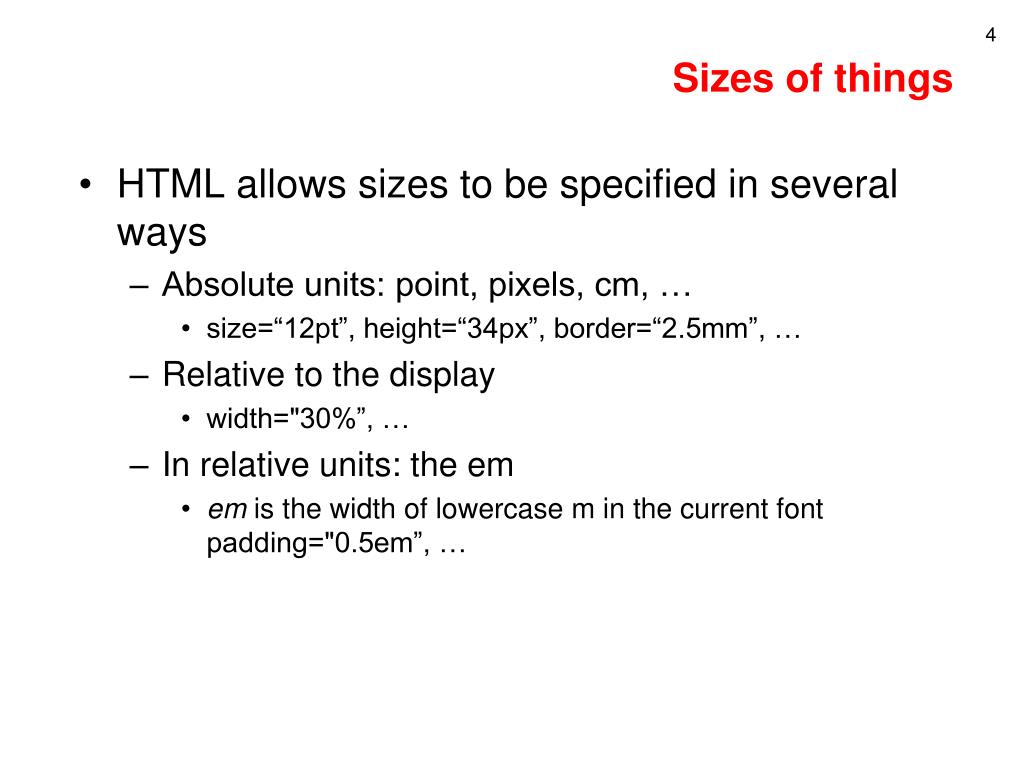

  4. Sizes of things • HTML allows sizes to be specified in several ways • Absolute units: point, pixels, cm, … • size=“12pt”, height=“34px”, border=“2.5mm”, … • Relative to the display • width="30%”, … • In relative units: the em • em is the width of lowercase m in the current fontpadding="0.5em”, …

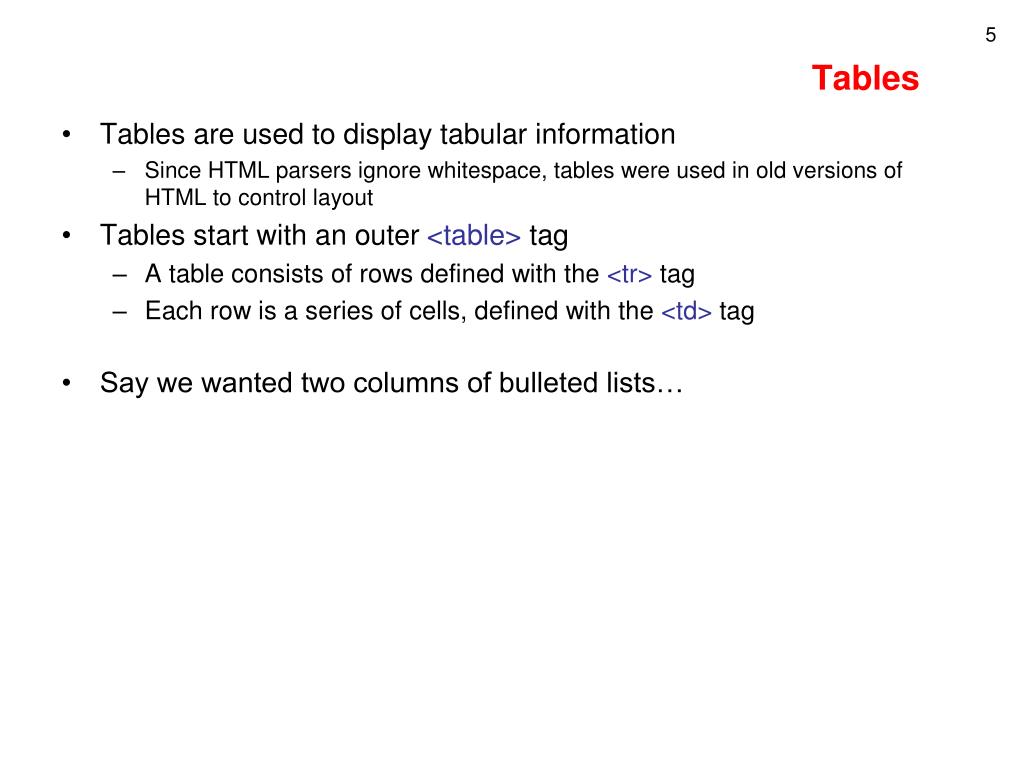

  5. Tables • Tables are used to display tabular information • Since HTML parsers ignore whitespace, tables were used in old versions of HTML to control layout • Tables start with an outer <table> tag • A table consists of rows defined with the <tr> tag • Each row is a series of cells, defined with the <td> tag • Say we wanted two columns of bulleted lists…

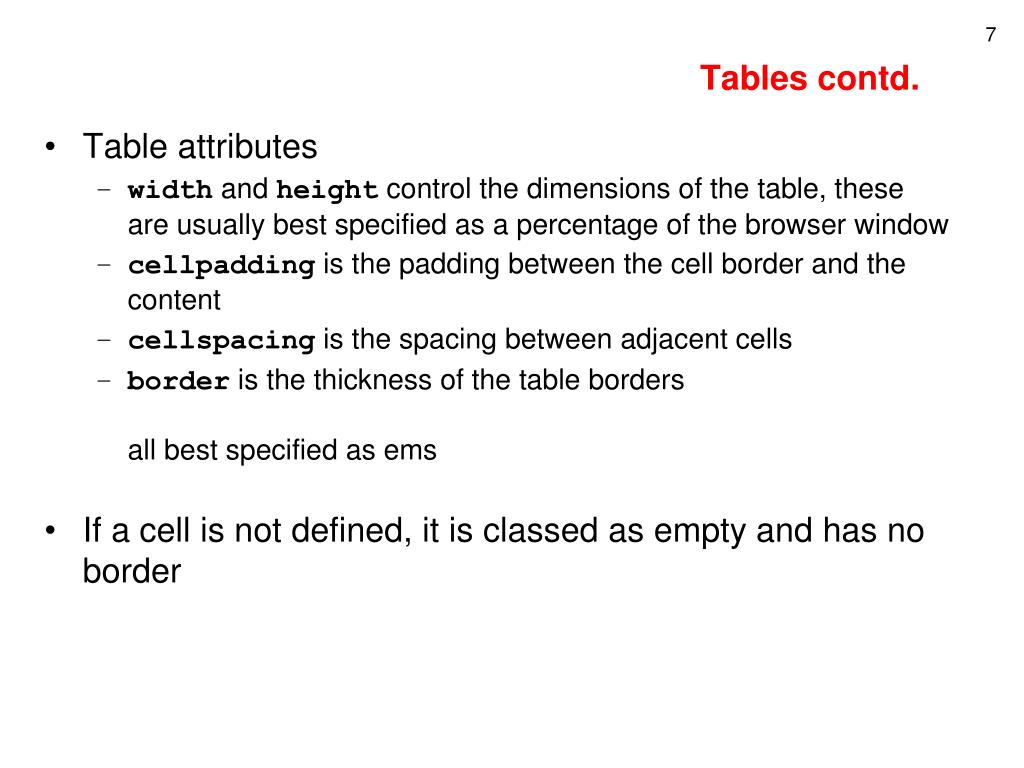

  6. Tables contd. • Table attributes • width and height control the dimensions of the table, these are usually best specified as a percentage of the browser window • cellpadding is the padding between the cell border and the content • cellspacing is the spacing between adjacent cells • border is the thickness of the table bordersall best specified as ems • If a cell is not defined, it is classed as empty and has no border

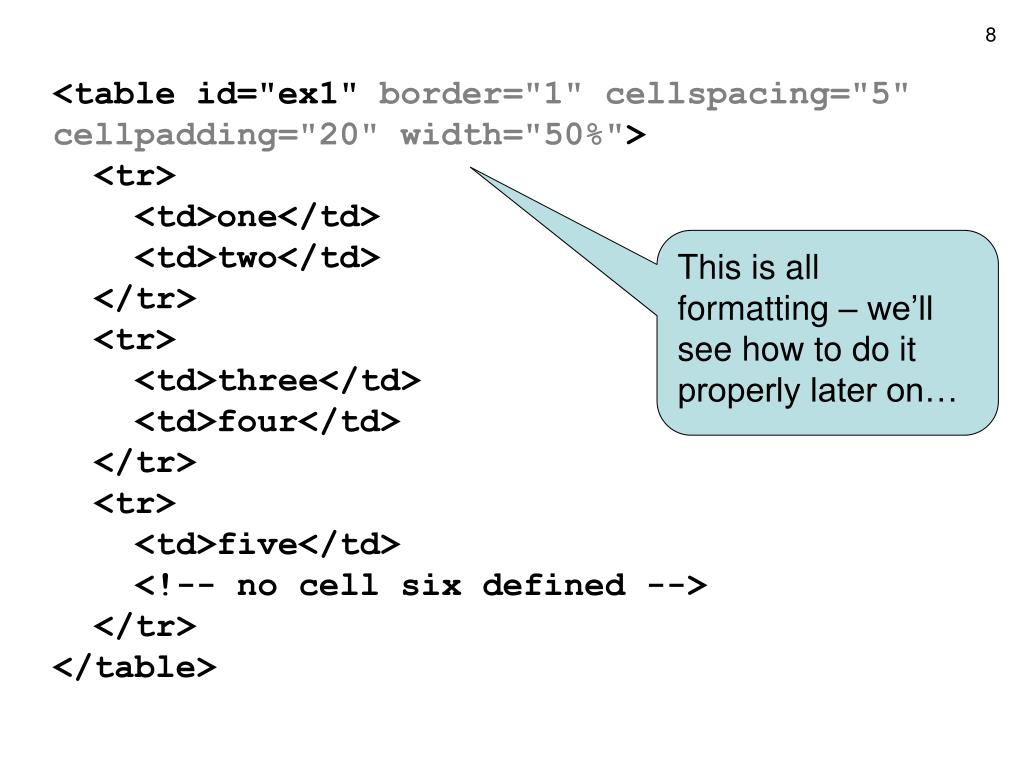

  7. This is all formatting – we’ll see how to do it properly later on…

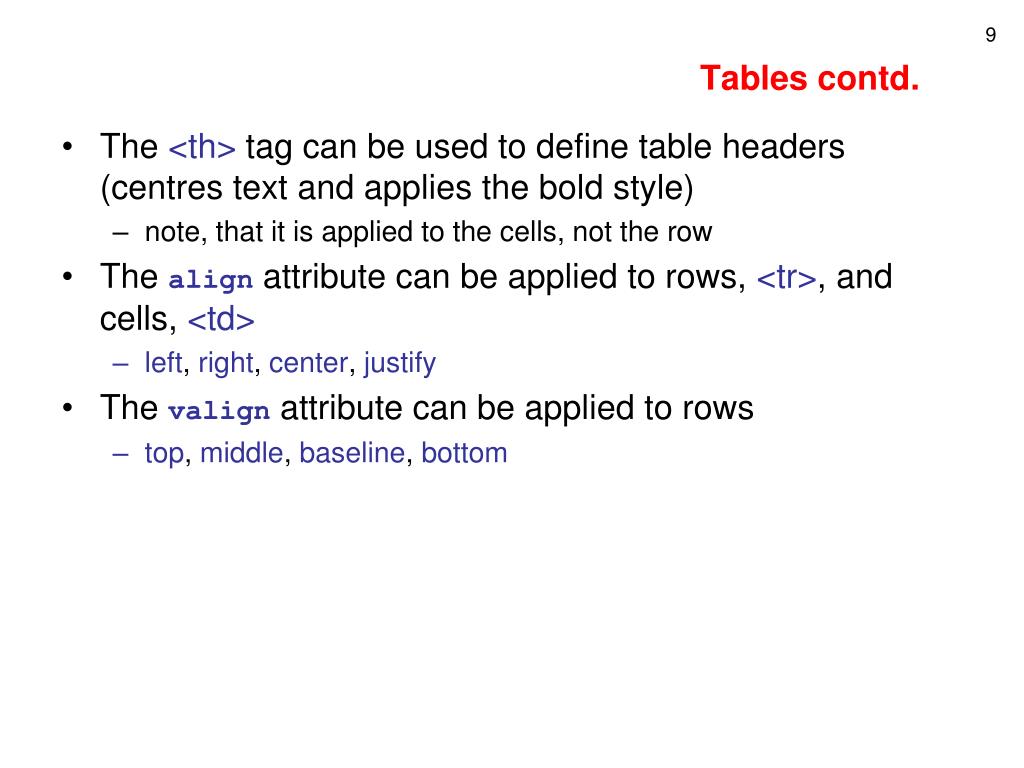

  8. Tables contd. • The <th> tag can be used to define table headers (centres text and applies the bold style) • note, that it is applied to the cells, not the row • The align attribute can be applied to rows, <tr>, and cells, <td> • left, right, center, justify • The valign attribute can be applied to rows • top, middle, baseline, bottom

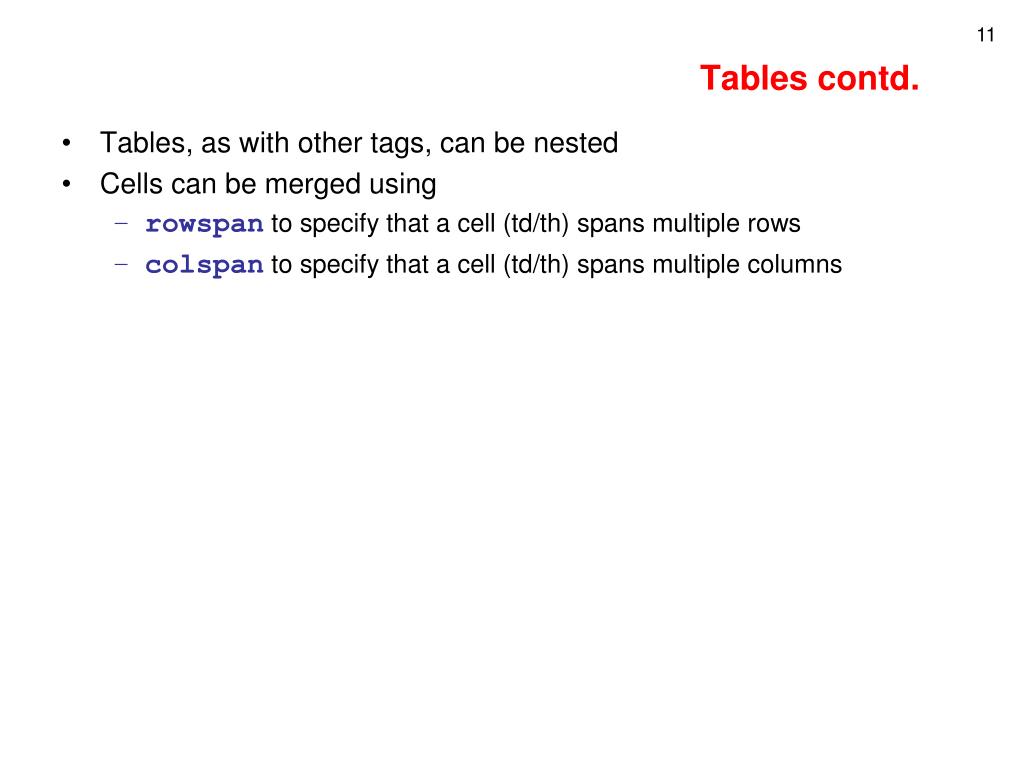

  9. Tables contd. • Tables, as with other tags, can be nested • Cells can be merged using • rowspan to specify that a cell (td/th) spans multiple rows • colspan to specify that a cell (td/th) spans multiple columns

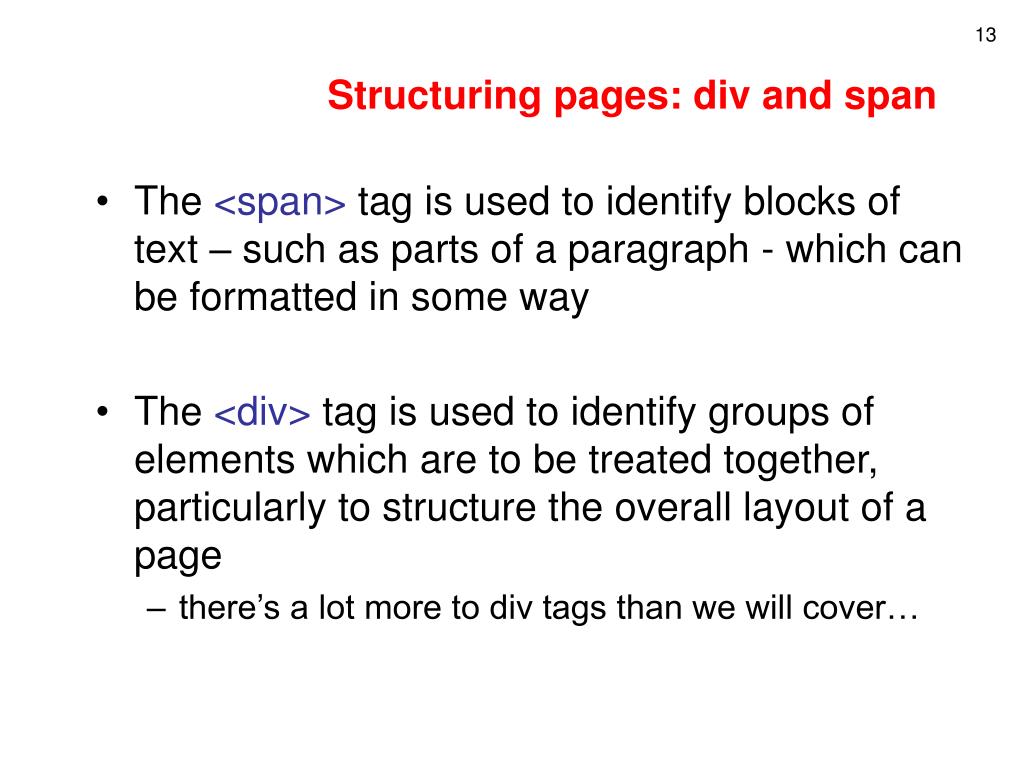

  10. Structuring pages: div and span • The <span> tag is used to identify blocks of text – such as parts of a paragraph - which can be formatted in some way • The <div> tag is used to identify groups of elements which are to be treated together, particularly to structure the overall layout of a page • there’s a lot more to div tags than we will cover…

  11. Frames • Frames can be used to split the contents of the browser window • much better formatting now available • mentioned only because they have been widely used • Frame syntax • <frameset> defines the structure of the window splits • <frame src="…"> lists the frame contents • framesets can be nested and head/body tags not required • Deprecated • not part of XHTML • not part of HTML5

  12. Forms • The <form> tag defines an HTML form which can collect input from the user and send back to the server • can include formatting tags, text and browser input controls • The method parameter determines how the data is sent to the server • GET: form data is appended to the action URL forming a query string, e.g. processform.jsp?name=1M01&year=2010 • POS: form data is included in the HTTP headers when the action URL page is requested • The action parameter determines where the data is sent, and hence how a server will decide how to process the data • send to another web page to process, this may include saving to a database or performing calculations • email data using address

  13. Forms – Input controls • Text box • <input type="text"> • specify name and size (in characters) • use the value attribute to specify a default value • Submit button • used to submit the form data (according to action in <form>) • <input type="submit"> • specify name and value (button label) • Reset button • resets the data in the form to the default values • specify name and value (button label) • Check box • specify name and value to be sent to server if checked • box is checked using the checked attribute

  14. Forms – Input controls • Text area • specify name, number of rows and number of cols • text between start/end tags is the value submitted to server • Radio/Options control • <input type="radio"> • specify name, buttons are grouped together using this value • used checked attribute to select default value • the value attribute is the value submitted to the server • the <input> tag only defines the radio button, the text for each button is specified by normal HTML

  15. Forms – Input controls • Lists <select> • specify nameand size • if size = 1, list becomes a drop-down list (combo-box) • if size > 1, list is a normal list box • add multiple attribute to allow multiple selections • List value <option> • text between tag define what appears in list, by default this is the value of the option • to override the value sent to the server, use the value attribute • use the selected attribute to set the default value(s)
