Section 2.7 – Absolute Value

Section 2.7 – Absolute Value. The table shows the numbers of hours students spent online the day before a test and the scores on the test. Make a scatter plot. How would you describe the correlation?

zahir-best
Télécharger la présentation

Section 2.7 – Absolute Value

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Section 2.7 – Absolute Value The table shows the numbers of hours students spent online the day before a test and the scores on the test. Make a scatter plot. How would you describe the correlation? How much would you expect to pay for electricity if the average temperature was 70 degrees? Explain.

  2. Section 2.7 – Absolute Value There is a family of functions related to the one you represented in the Solve It.

  3. Section 2.7 – Absolute Value Essential Understanding Just as the absolute value of x is its distance from 0, the absolute value of f(x), or |f(x)|, gives the distance from the line y = 0 for each value of f(x).

  4. Section 2.7 – Absolute Value The simplest example of an absolute value function is f(x) = |x|. The graph of the absolute value of a linear function in two variables is V-shaped and symmetric about a vertical line called the axis of symmetry. Such a graph has either a single maximum point or a single minimum point, called the vertex.

  5. Section 2.7 – Absolute Value

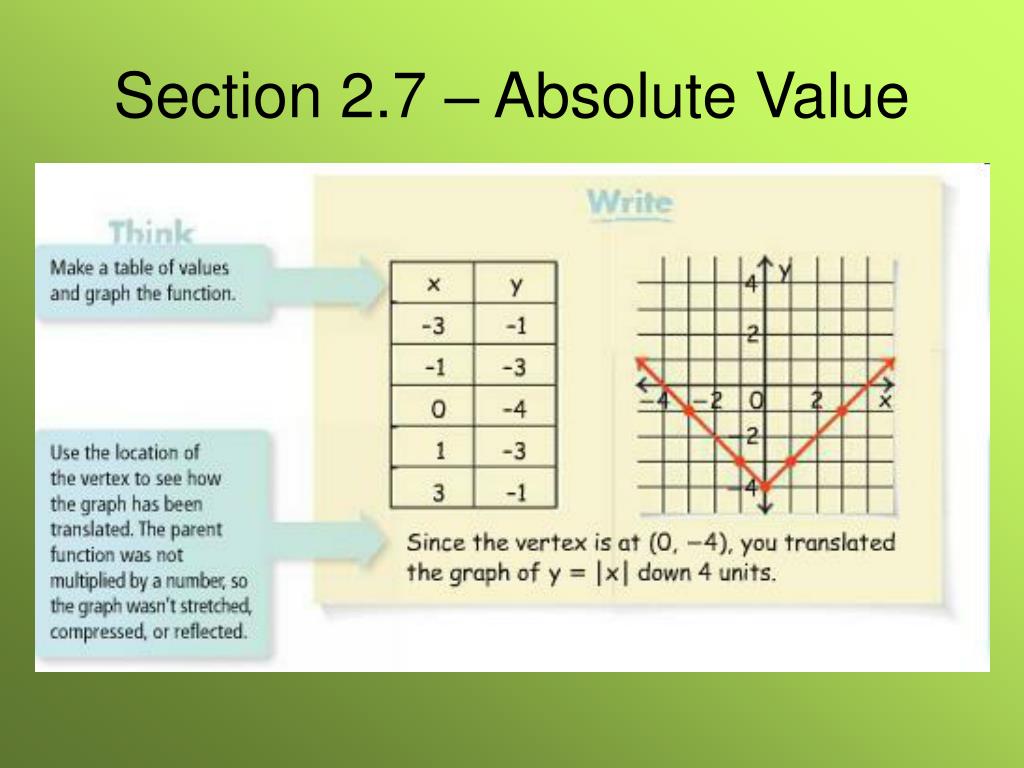

  6. Section 2.7 – Absolute Value Problem 1: What is the graph of the absolute value function y = |x| - 4? How is this graph different from the graph of the parent function f(x) = |x|?

  7. Section 2.7 – Absolute Value

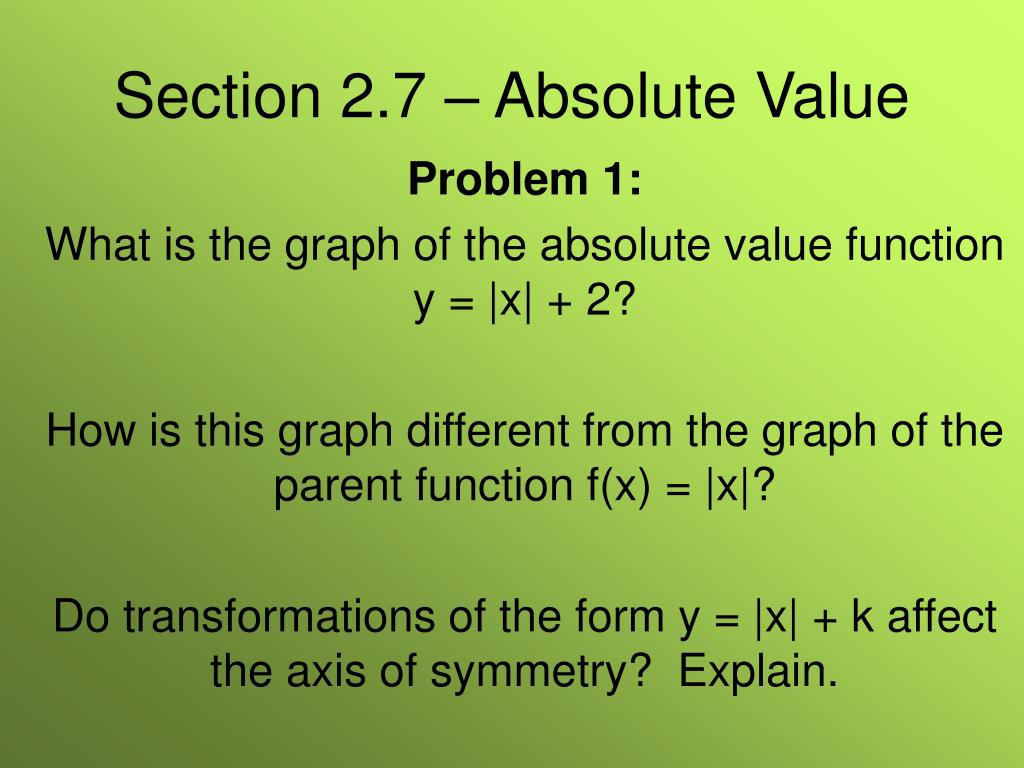

  8. Section 2.7 – Absolute Value Problem 1: What is the graph of the absolute value function y = |x| + 2? How is this graph different from the graph of the parent function f(x) = |x|? Do transformations of the form y = |x| + k affect the axis of symmetry? Explain.

  9. Section 2.7 – Absolute Value

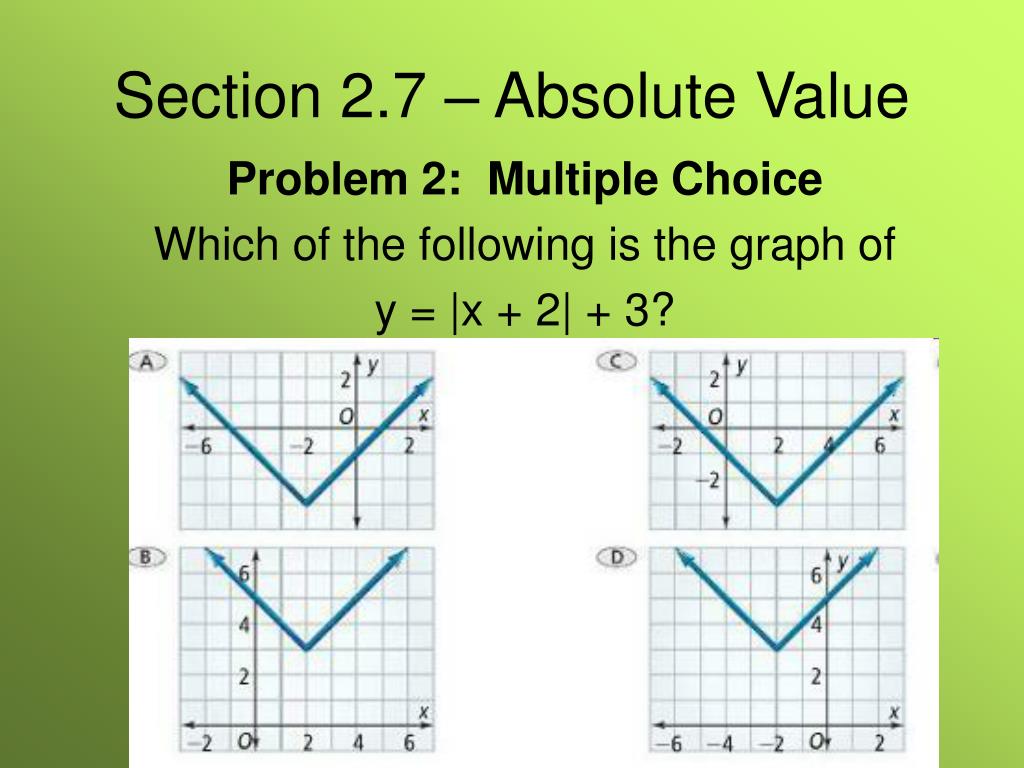

  10. Section 2.7 – Absolute Value Problem 2: Multiple Choice Which of the following is the graph of y = |x + 2| + 3?

  11. Section 2.7 – Absolute Value Problem 2: What is the graph of y = |x - 2| + 1?

  12. Section 2.7 – Absolute Value The right branch of the graph of y = |x| has slope of 1. The graph of y = a|x|, a > 0, is a stretch or compression of the graph y = |x|. Its right branch has a slope a. The graph of y = -a|x| is a reflection of y = a|x| in the x-axis and its right branch has a slope of –a.

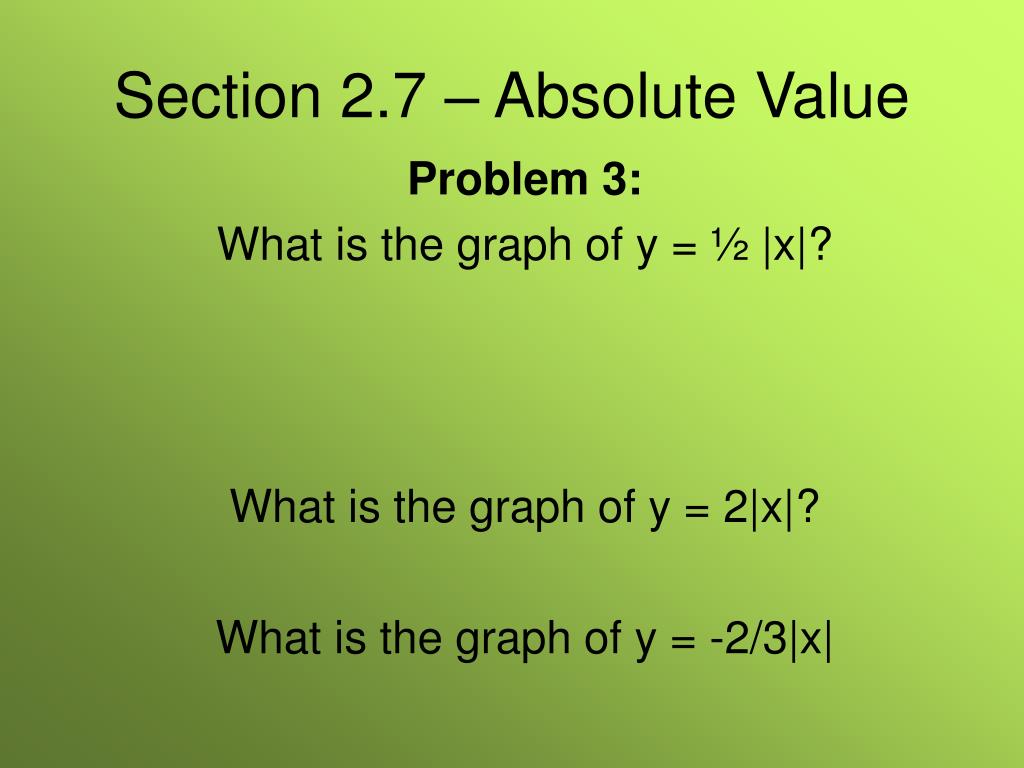

  13. Section 2.7 – Absolute Value Problem 3: What is the graph of y = ½ |x|? What is the graph of y = 2|x|? What is the graph of y = -2/3|x|

  14. Section 2.7 – Absolute Value

  15. Section 2.7 – Absolute Value Problem 4: Without graphing, what are the vertex and axis of symmetry of the graph of y = 3|x – 2| + 4? How is the parent function transformed?

  16. Section 2.7 – Absolute Value Problem 4: Without graphing, what are the vertex and axis of symmetry of the graph of y = -2|x – 1| - 3? How is the parent function transformed?

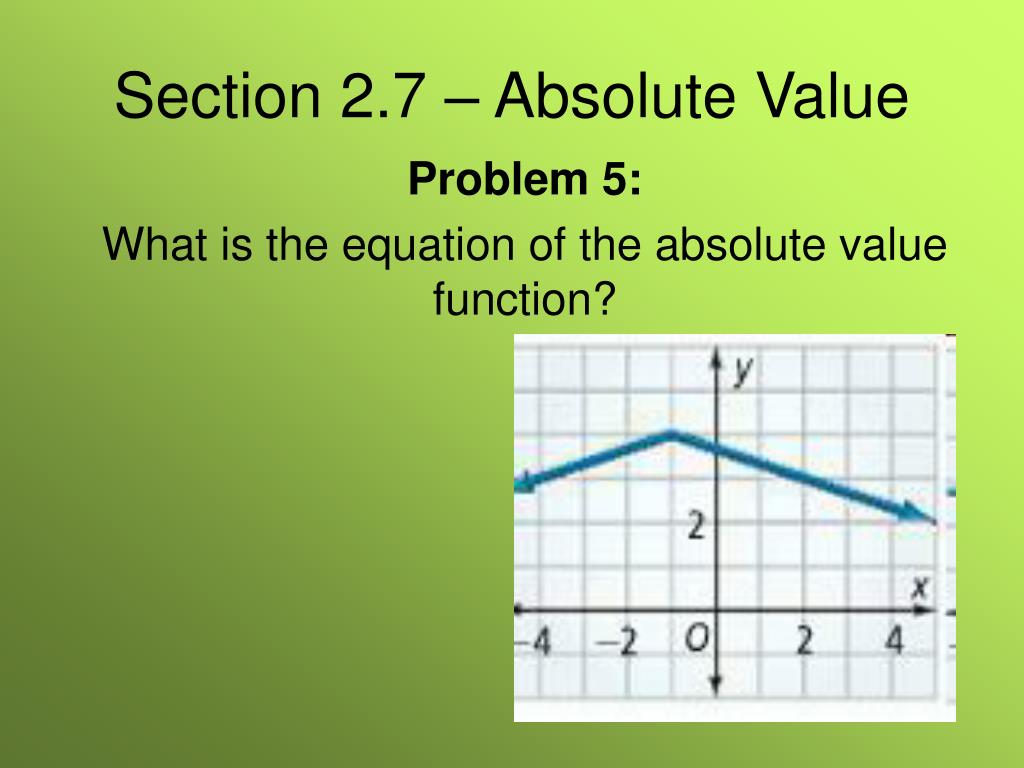

  17. Section 2.7 – Absolute Value Problem 5: What is the equation of the absolute value function?

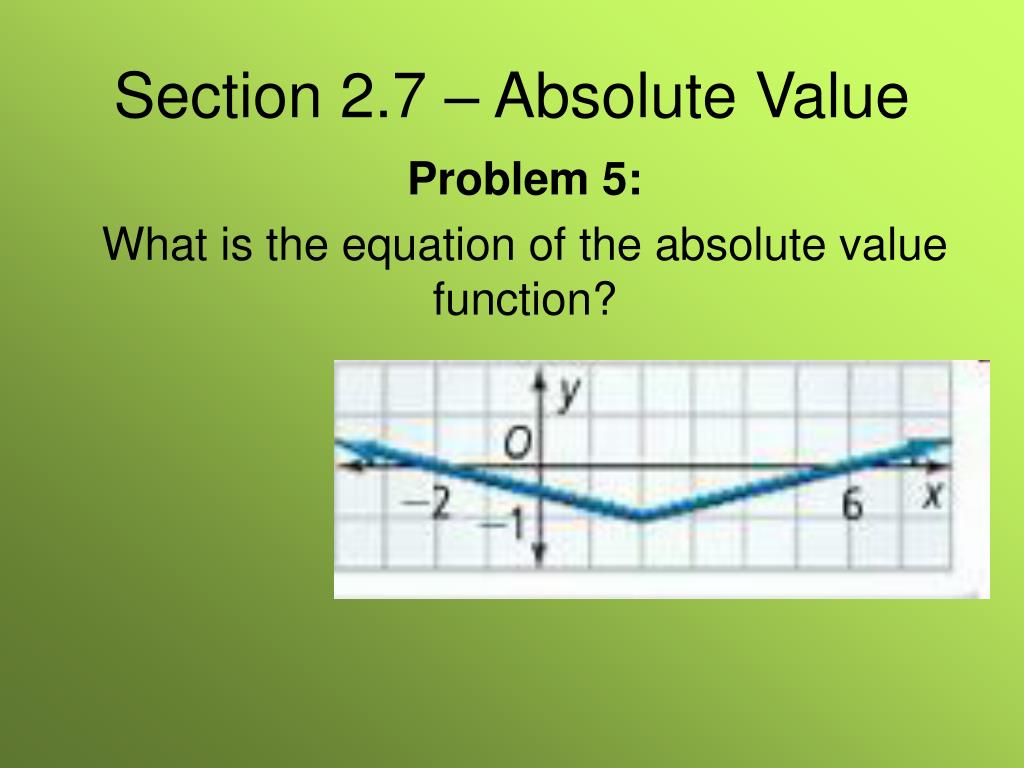

  18. Section 2.7 – Absolute Value Problem 5: What is the equation of the absolute value function?

  19. Section 2.7 – Absolute Value Problem 6: Graph the function: y = |-¼x – 1|

  20. Section 2.7 – Absolute Value Problem 6: Graph the function: y = 6 - |3x|

  21. Section 2.7 – Absolute Value Problem 6: Graph the function: y = 6 - |3x+1|

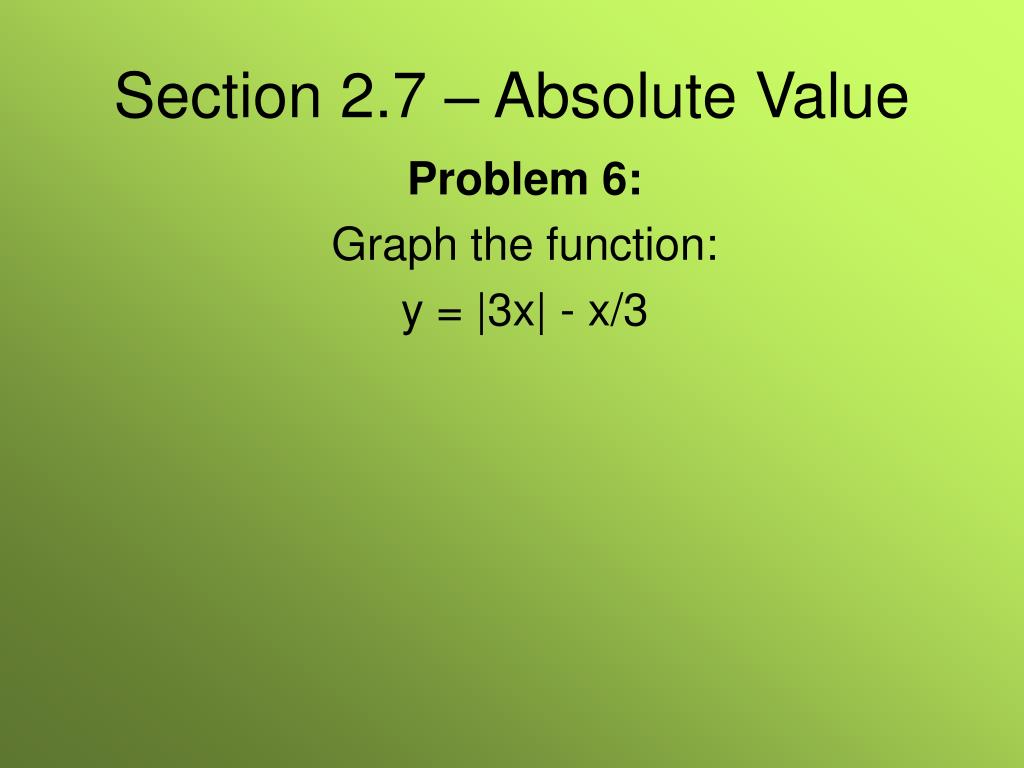

  22. Section 2.7 – Absolute Value Problem 6: Graph the function: y = |3x| - x/3

  23. Section 2.7 – Absolute Value Problem 6: Graph the function: y = ½|x| + 4|x – 1|

  24. Section 2.7 – Absolute Value Lesson Check

  25. Section 2.7 – Absolute Value Lesson Check
