  1. Hash Tables Asst. Prof. Dr. İlker Kocabaş

  2. Overview Hash Tables Collisions Linear Probing Problems with Linear Prob Chaining • Information Retrieval • Binary Search Trees • Hashing. • Applications. • Example. • Hash Functions.

  3. Example: Bibliography • R. Kruse, C. Tondo, B. Leung, “Data Structures and Program Design in C”, 1991, Prentice Hall. • E. Horowitz, S. Salini, S. Anderson-Freed, “Fundamentals of Data Structures in C”, 1993, Computer Science Press. • R. Sedgewick, “Algorithms in C”, 1990, Addison-Wesley. • A. Aho, J. Hopcroft, J. Ullman, “Data Structures and Algorithms”, 1983, Addison-Wesley. • T.A. Standish, “Data Structures, Algorithms & Software Principles in C”, 1995, Addison-Wesley. • D. Knuth, “The Art of Computer Programming”, 1975, Addison-Wesley. • Y. Langsam, M. Augenstein, M. Fenenbaum, “Data Structures using C and C++”, 1996, Prentice Hall.

  4. Insert the information into a Binary Search Tree, using the first author’s surname as the key

  5. Kruse Horowitz Sedgewick Aho Knuth Langsam Standish Insert the information into a Binary Search Tree, using the first author’s surname as the key

  6. Complexity • Inserting • Balanced Trees O(log(n)) • Unbalanced Trees O(n) • Searching • Balanced Trees O(log(n)) • Unbalanced Trees O(n)

  7. Hashing hash table 0 hash function 1 key pos 2 3 : : TABLESIZE - 1

  8. Example: hash table 0 hash function 1 “Kruse” 5 2 3 4 Kruse 5 6

  9. Hashing • Each item has a unique key. • Use a large array called a Hash Table. • Use a Hash Function.

  10. Applications • Databases. • Spell checkers. • Computer chess games. • Compilers.

  11. Operations • Initialize • all locations in Hash Table are empty. • Insert • Search • Delete

  12. Hash Function • Mapskeys to positions in the Hash Table. • Be easy to calculate. • Use all of the key. • Spread the keys uniformly.

  13. Example: Hash Function #1 unsigned hash(char* s) { int i = 0; unsigned value = 0; while (s[i] != ‘\0’) { value = (s[i] + 31*value) % 101; i++; } return value; }

  14. value = (s[i] + 31*value) % 101; Example: Hash Function #1 • A. Aho, J. Hopcroft, J. Ullman, “Data Structures and Algorithms”, 1983, Addison-Wesley. ‘A’ = 65 ‘h’ = 104 ‘o’ = 111 value = (65 + 31 * 0) % 101 = 65 value = (104 + 31 * 65) % 101 = 99 value = (111 + 31 * 99) % 101 = 49

  15. Example: Hash Function #1 value = (s[i] + 31*value) % 101; Hash Key Value Aho 49 Kruse 95 Standish 60 Horowitz 28 Langsam 21 Sedgewick 24 Knuth 44 resulting table is “sparse”

  16. value = (s[i] + 1024*value) % 128; Example: Hash Function #2 Hash Key Value Aho 111 Kruse 101 Standish 104 Horowitz 122 Langsam 109 Sedgewick 107 Knuth 104 likely to result in “clustering”

  17. Example: Hash Function #3 value = (s[i] + 3*value) % 7; Hash Key Value Aho 0 Kruse 5 Standish 1 Horowitz 5 Langsam 5 Sedgewick 2 Knuth 1 “collisions”

  18. Insert • Apply hash function to get a position. • Try to insert key at this position. • Deal with collision.

  19. Example: Insert Aho, Kruse, Standish, Horowiz, Langsam, Sedgewick, Knuth hash table Aho 0 Hash Function 1 Aho 0 2 3 4 5 6

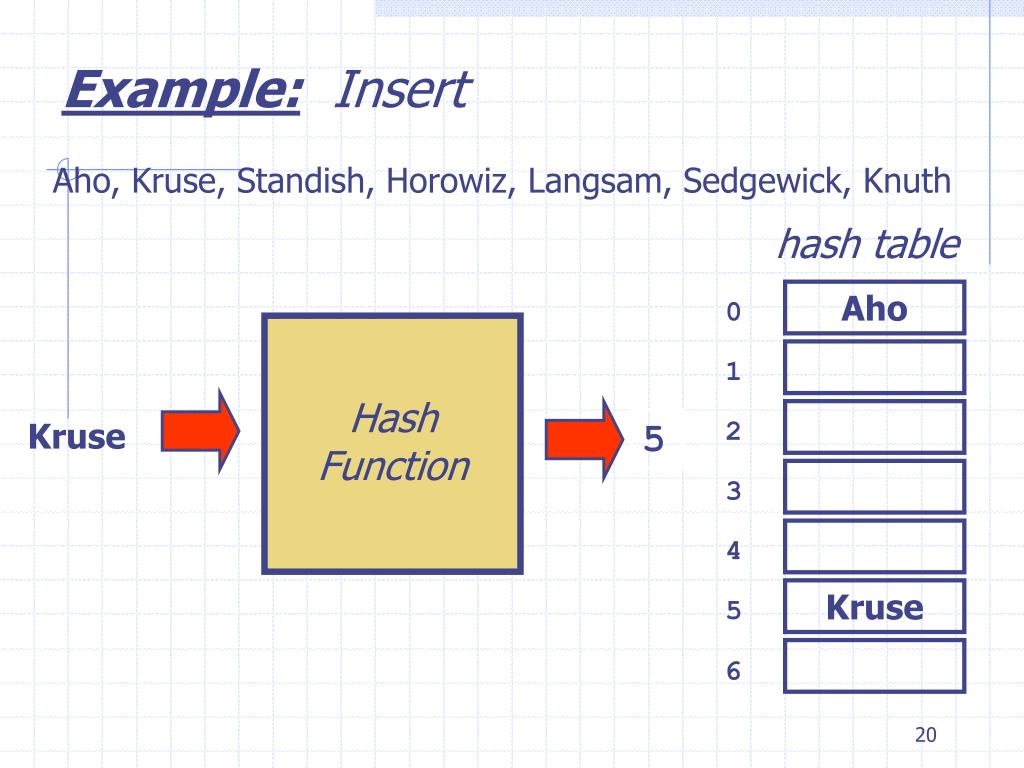

  20. Example: Insert Aho, Kruse, Standish, Horowiz, Langsam, Sedgewick, Knuth hash table Aho 0 Hash Function 1 Kruse 5 2 3 4 Kruse 5 6

  21. Example: Insert Aho, Kruse, Standish, Horowiz, Langsam, Sedgewick, Knuth hash table Aho 0 Hash Function Standish 1 Standish 1 2 3 4 Kruse 5 6

  22. Search • Apply hash function to get a position. • Look in that position. • Deal with collision.

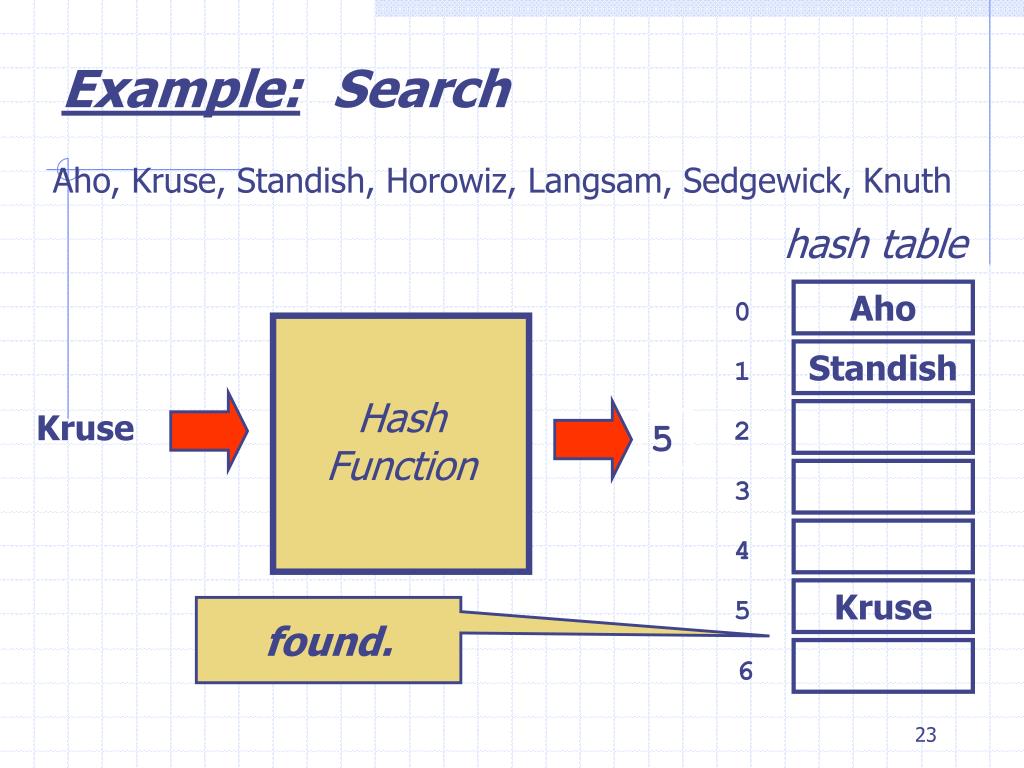

  23. Example:Search Aho, Kruse, Standish, Horowiz, Langsam, Sedgewick, Knuth hash table Aho 0 Hash Function Standish 1 Kruse 5 2 3 4 Kruse 5 found. 6

  24. Example:Search Aho, Kruse, Standish, Horowiz, Langsam, Sedgewick, Knuth hash table Aho 0 Hash Function Standish 1 Sedgwick 2 2 3 4 Kruse 5 Not found. 6

  25. Hash Tables:Collision Resolution

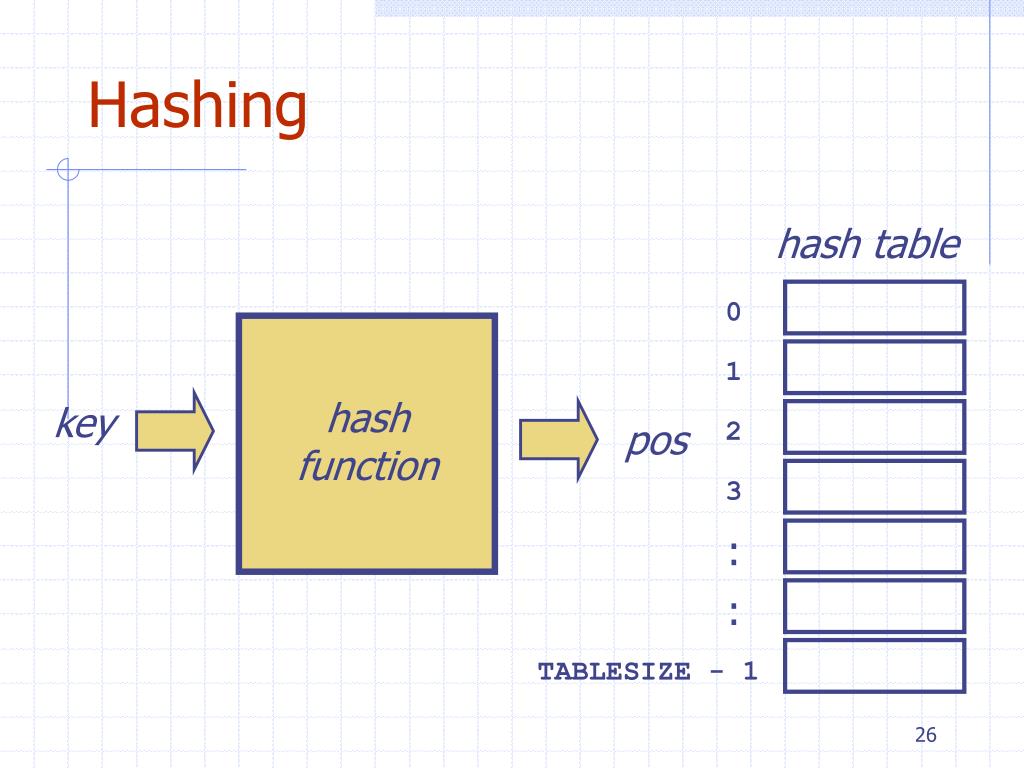

  26. Hashing hash table 0 hash function 1 key pos 2 3 : : TABLESIZE - 1

  27. Example: hash table 0 hash function 1 “Kruse” 5 2 3 4 Kruse 5 6

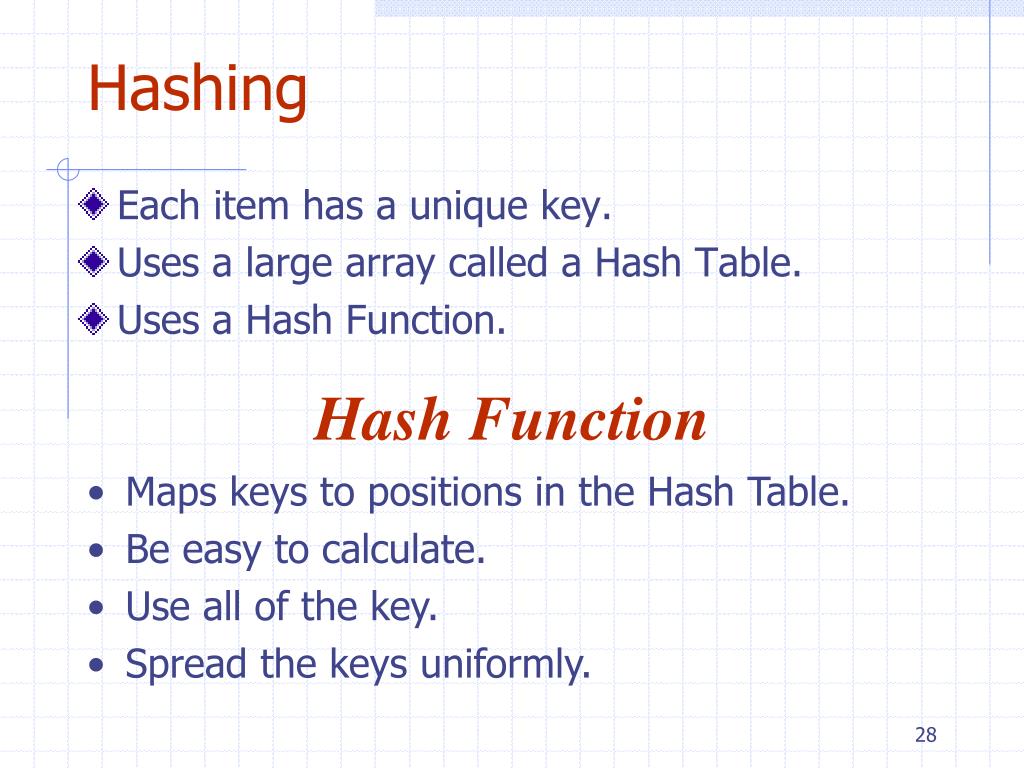

  28. Hash Function • Maps keys to positions in the Hash Table. • Be easy to calculate. • Use all of the key. • Spread the keys uniformly. Hashing • Each item has a unique key. • Uses a large array called a Hash Table. • Uses a Hash Function.

  29. Hash Table Operations • Initialize • all locations in Hash Table are empty. • Insert • Search • Delete

  30. Example: Hash Function #3 value = (s[i] + 3*value) % 7; Hash Key Value Aho 0 Kruse 5 Standish 1 Horowitz 5 Langsam 5 Sedgewick 2 Knuth 1 “collisions”

  31. Birthdays Number of People Probability 10 20 30 40 50 60 70 0.1169 0.4114 0.7063 0.8912 0.9704 0.9941 0.9992 Collision • When two keys are mapped to the same position. • Very likely.

  32. Collision Resolution • Two methods are commonly used: • Linear Probing. • Chaining.

  33. Linear Probing • Linear search in the array from the position where collision occurred.

  34. Insert with Linear Probing • Apply hash function to get a position. • Try to insert key at this position. • Deal with collision. • Must also deal with a full table!

  35. Example: Insert with Linear Probing Aho, Kruse, Standish, Horowiz, Langsam, Sedgewick, Knuth hash table Aho 0 Hash Function 1 Aho 0 2 3 4 5 6

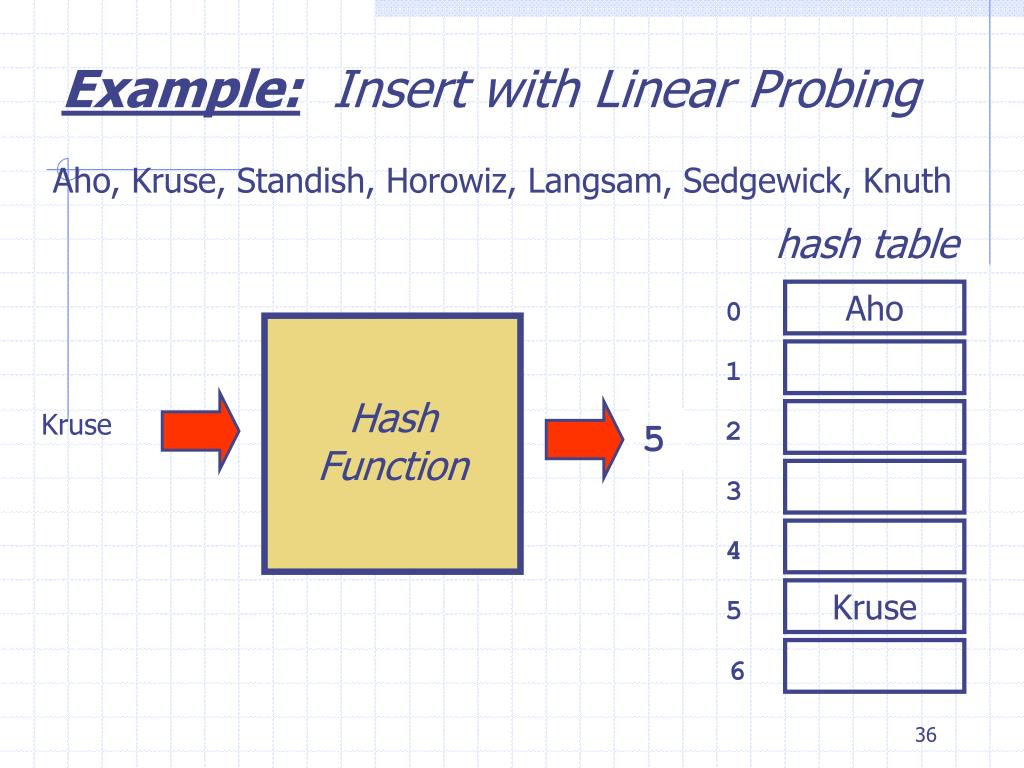

  36. Example: Insert with Linear Probing Aho, Kruse, Standish, Horowiz, Langsam, Sedgewick, Knuth hash table Aho 0 Hash Function 1 Kruse 5 2 3 4 Kruse 5 6

  37. Example: Insert with Linear Probing Aho, Kruse, Standish, Horowiz, Langsam, Sedgewick, Knuth hash table Aho 0 Hash Function Standish 1 Standish 1 2 3 4 Kruse 5 6

  38. Example: Insert with Linear Probing Aho, Kruse, Standish, Horowiz, Langsam, Sedgewick, Knuth hash table Aho 0 Hash Function Standish 1 Horowitz 5 2 3 4 Kruse 5 Horowitz 6

  39. Example: Insert with Linear Probing Aho, Kruse, Standish, Horowiz, Langsam, Sedgewick, Knuth hash table Aho 0 Hash Function Standish 1 Langsam Langsam 5 2 3 4 Kruse 5 Horowitz 6

  40. module linearProbe(item) { position = hash(key of item) count = 0 loop { if (count == hashTableSize) then { output “Table is full” exit loop } if (hashTable[position] is empty) then { hashTable[position] = item exit loop } position = (position + 1) % hashTableSize count++ } }

  41. Search with Linear Probing • Apply hash function to get a position. • Look in that position. • Deal with collision.

  42. Example:Search with Linear Probing Aho, Kruse, Standish, Horowiz, Langsam, Sedgewick, Knuth found. hash table Aho 0 Hash Function Standish 1 Langsam Langsam 5 2 3 4 Kruse 5 Horowitz 6

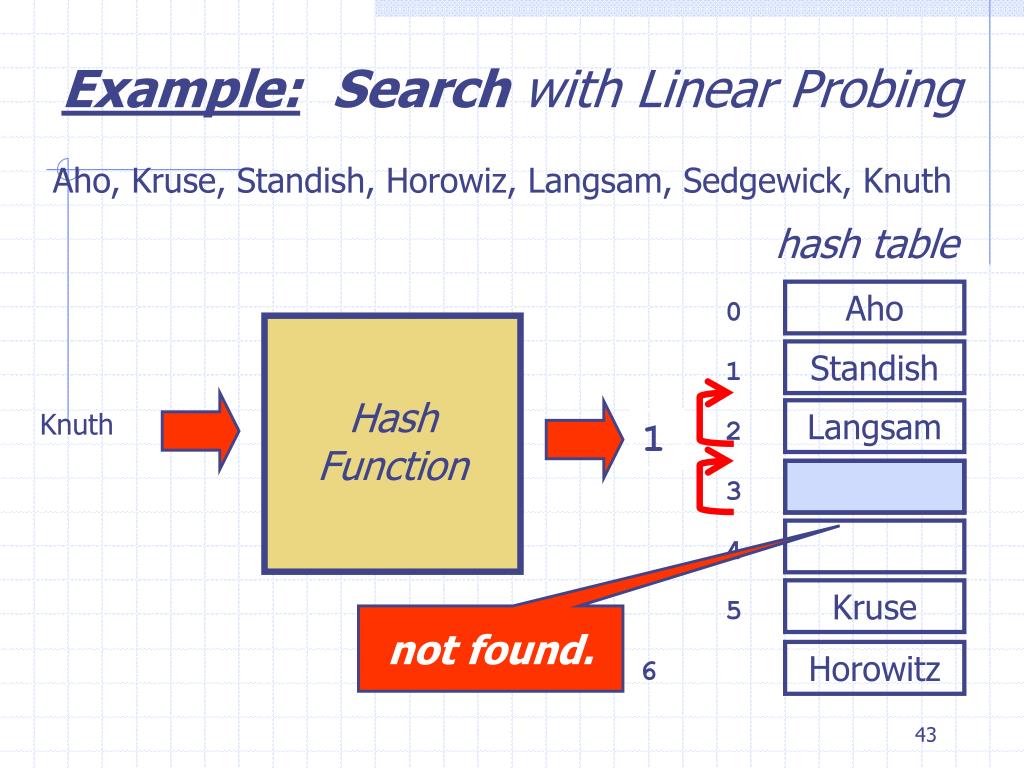

  43. Example:Search with Linear Probing Aho, Kruse, Standish, Horowiz, Langsam, Sedgewick, Knuth hash table Aho 0 Hash Function Standish 1 Langsam Knuth 1 2 3 4 Kruse 5 not found. Horowitz 6

  44. module search(target) { count = 0 position = hash(key of target) loop { if (count == hashTableSize) then { output “Target is not in Hash Table” return -1. } else if (hashTable[position] is empty) then { output “Item is not in Hash Table” return -1. } else if (hashTable[position].key == target) then { return position. } position = (position + 1) % hashTableSize count++ } }

  45. Delete with Linear Probing • Use the search function to find the item • If found check that items after that also don’t hash to the item’s position • If items after do hash to that position, move them back in the hash table and delete the item. Very difficult and time/resource consuming!

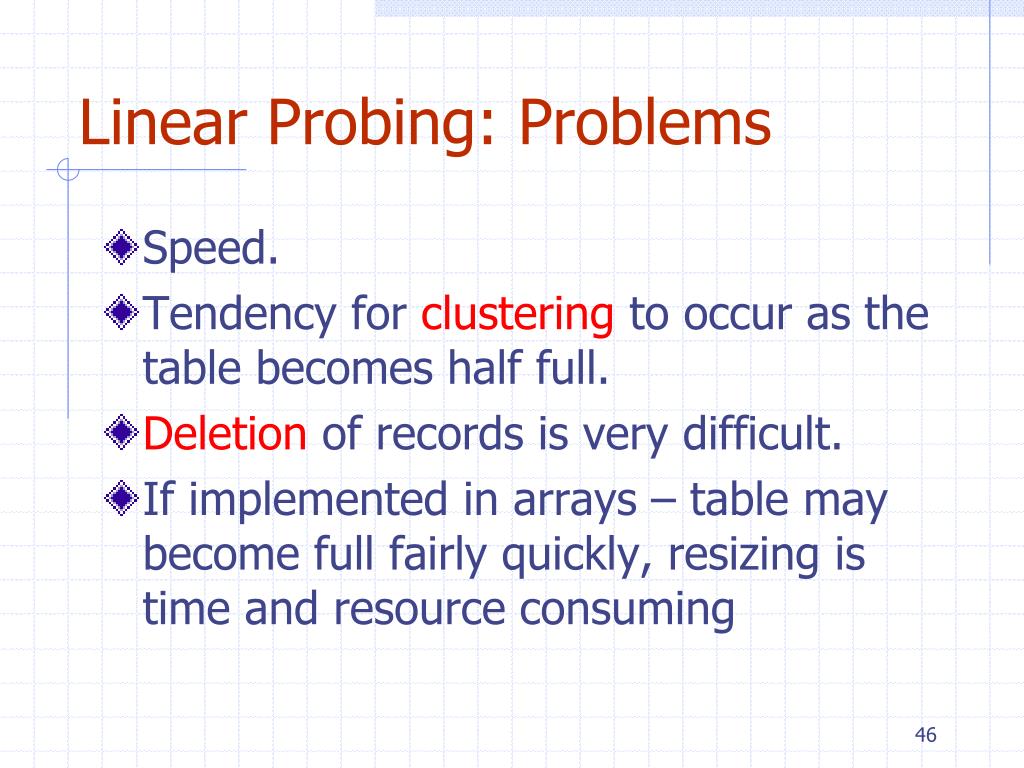

  46. Linear Probing: Problems • Speed. • Tendency for clustering to occur as the table becomes half full. • Deletion of records is very difficult. • If implemented in arrays – table may become full fairly quickly, resizing is time and resource consuming

  47. Chaining • Uses a Linked List at each position in the Hash Table. • Linked list at a position contains all the items that ‘hash’ to that position. • May keep linked lists sorted or not.

  48. hash table 0 1 2 3 : :

  49. Example: Chaining Aho, Kruse, Standish, Horowiz, Langsam, Sedgwick, Knuth 0, 5, 1, 5, 5, 2, 1 Aho 1 0 2 Knuth Standish 1 1 2 Sedgewick 0 3 0 4 3 Horowitz Langsam Kruse 5 0 6

  50. Hashtable with Chaining • At each position in the array you have a list: List hashTable[MAXTABLE]; • You must initialise each list in the table. 1 0 2 1 2 1 :
