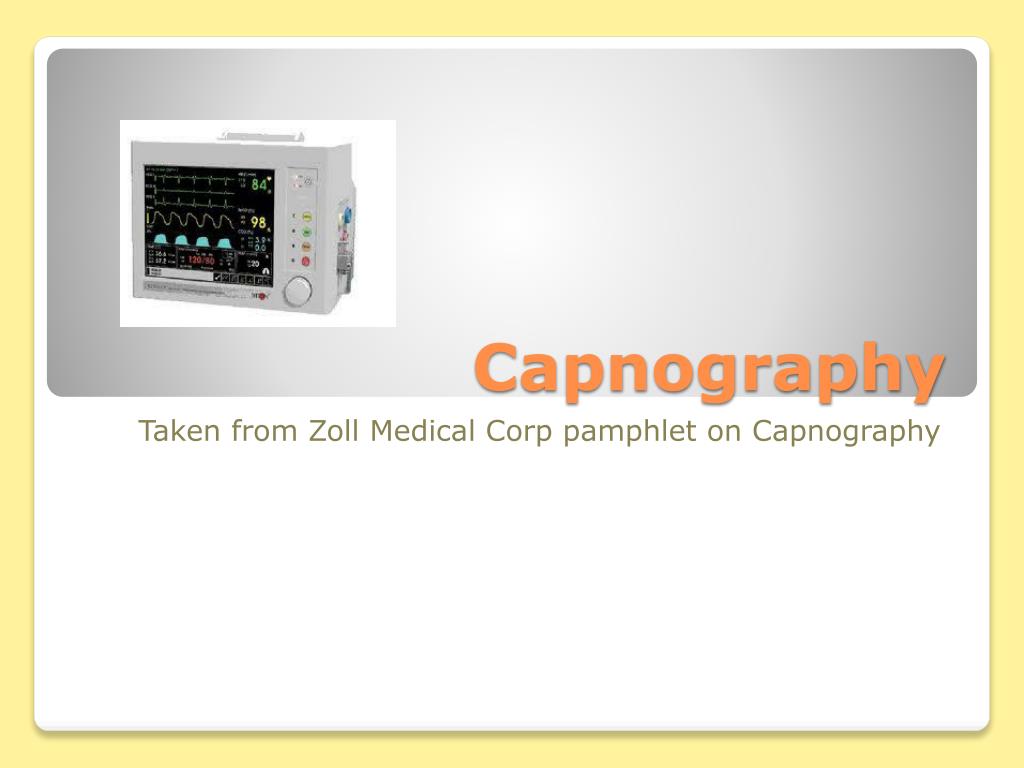

  1. Capnography Taken from Zoll Medical Corp pamphlet on Capnography

  2. Odorless, colorless gas • Gives carbonated drinks their fizz • Used to extinguish fires • Created as a byproduct of cellular metabolism Co2

  3. Produced in our tissues • Diffuses into our venous blood • Travels through the right side of the heart • Eventually reaches the lungs where it is exchanged for oxygen Once Metabolized

  4. Co2 levels peak at the end of exhalation • This is when it is at maximum concentration • Can be measured quickly and noninvasively with Capnography End Tidal Co2

  5. Capnography uses infrared technology to provide a continuous waveform called a capnogram • It also provides a digital readout of Exhaled Co2 How it works

  6. Pulse Ox • Measures oxygen saturation levels • 30-60 second delay in detecting deterioration • Can be affected by temperature and carbon monoxide • Capnography • Reflects actual ventilations • Changes are seen rapidly and in as little as a half second *the 2 should always be used together Why not just a pulse ox?

  7. Although Capnography is the gold standard for intubated patients, it is also good for: • Conscious sedations • Patients with acute respiratory events Not just for intubation

  8. A reading between 35-45 mmHg is generally considered normal • Levels greater than 45 indicate respiratory acidosis which may be due to inadequate ventilations or over sedation • Levels less than 35 signal respiratory alkalosis typically caused by hyperventilation What is normal?

  9. Can verify placement of the ET tube • Can provide feedback regarding ventilations • Can indicate adequate or inadequate perfusion The intubated patient

  10. Can be an early indicator of bronchospasms in Asthma patients, COPD exacerbations or Anaphylaxis • Can indicate hypoventilation from chronic heart failure, drug intoxication, respiratory failure or circulatory compromise The Non-Intubated Patient

  11. 2011 Zoll Medical Corporation • Capnography in Resuscitation: Peaks, Valleys, And Trends-Do They Signal the End? • Mike Chumpner, BS MBA, CHF, NREMT-P Reference
