How Computers Work Lecture 6 Finite State Machines. PC Q. XADDR. RA1 Memory RD1. JMP(R31,XADDR,XP). ISEL. 0. 1. 31:26. 25:21. 20:5. 9:5. 4:0. OPCODE. RA. C. RB. RC. +1. 0. 1. OPCODE. Register File. RA1 RD1. Register File. RA2 RD2. SEXT. ASEL. BSEL. 0. 1.
E N D
PC Q XADDR RA1 Memory RD1 JMP(R31,XADDR,XP) ISEL 0 1 31:26 25:21 20:5 9:5 4:0 OPCODE RA C RB RC +1 0 1 OPCODE Register File RA1 RD1 Register File RA2 RD2 SEXT ASEL BSEL 0 1 2 1 0 A ALU B ALUFN A op B Z RA2 Memory RD2 PCSEL 0 1 0 1 2 WDSEL D PC WD Memory WA WD Register File WA RC WE WEMEM WE WERF One FSM: The Beta

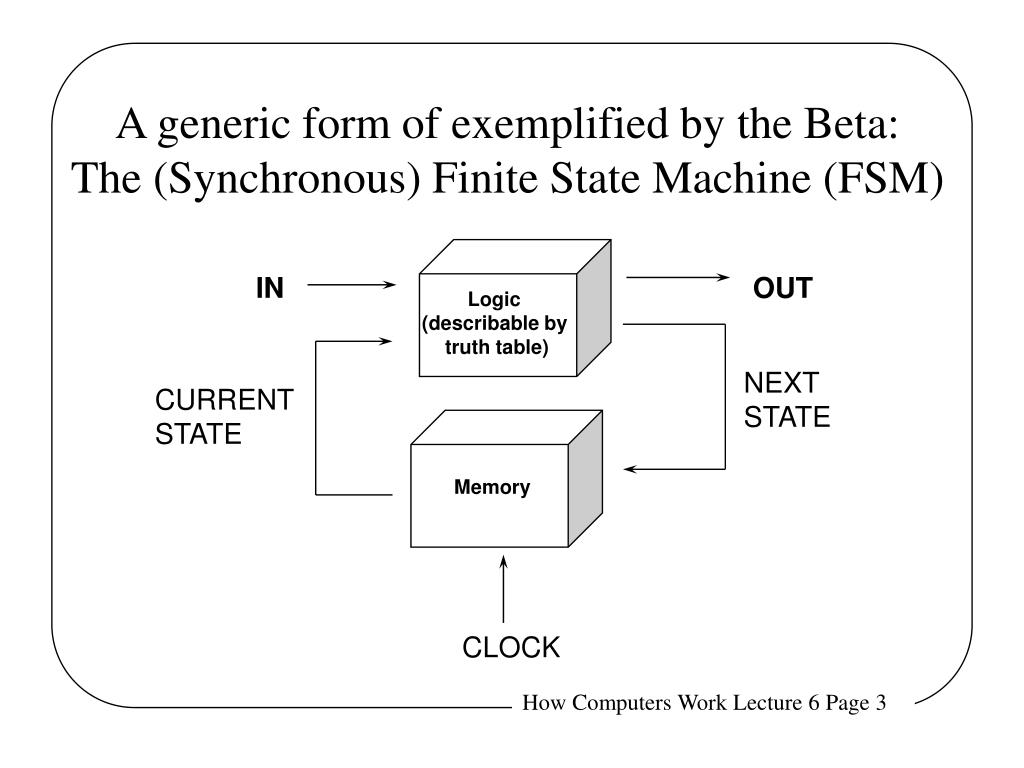

A generic form of exemplified by the Beta:The (Synchronous) Finite State Machine (FSM) IN OUT Logic (describable by truth table) NEXT STATE CURRENT STATE Memory CLOCK

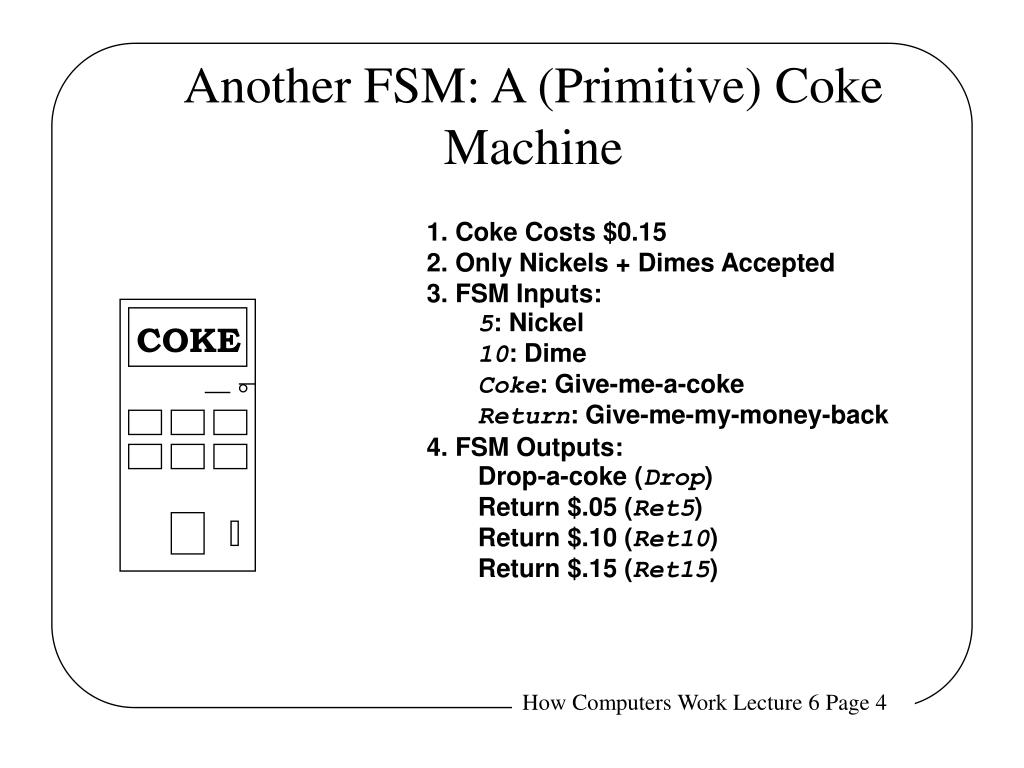

Another FSM: A (Primitive) Coke Machine • 1. Coke Costs $0.15 • 2. Only Nickels + Dimes Accepted • 3. FSM Inputs: • 5: Nickel • 10: Dime • Coke: Give-me-a-coke • Return: Give-me-my-money-back • 4. FSM Outputs: • Drop-a-coke (Drop) • Return $.05 (Ret5) • Return $.10 (Ret10) • Return $.15 (Ret15) COKE
Rules for DesigningFSM State Diagrams • Arcs out of a state must be mutually exclusive • Arcs out of a state must be exhaustive (use * to make this job easier) • The starting state should be defined • All possible states should be defined, with transitions to starting state • S states requires 2 ^ S state variables

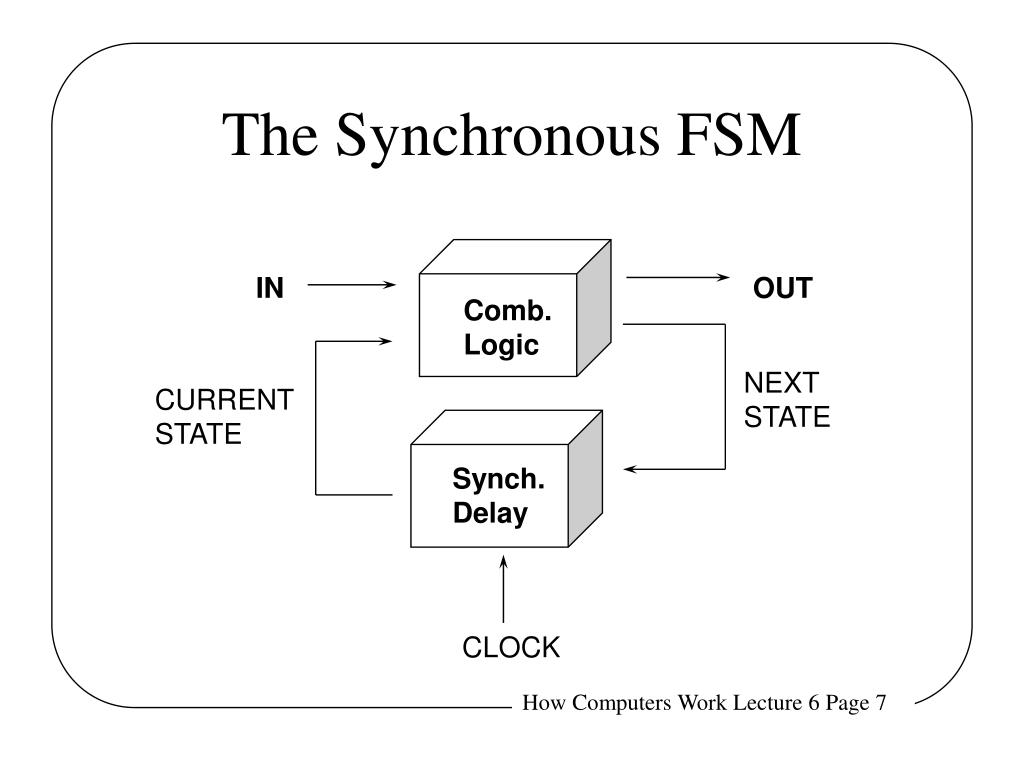

The Synchronous FSM IN OUT Comb. Logic NEXT STATE CURRENT STATE Synch. Delay CLOCK
MEALY MOORE in out in out current state next state current state next state Q D Q D clk clk i21 i21,o21 s1 s2 s1,o1 s2,o2 i11,o11 i22,o22 i11 i22 i12 i12,o12 Mealy vs. Moore

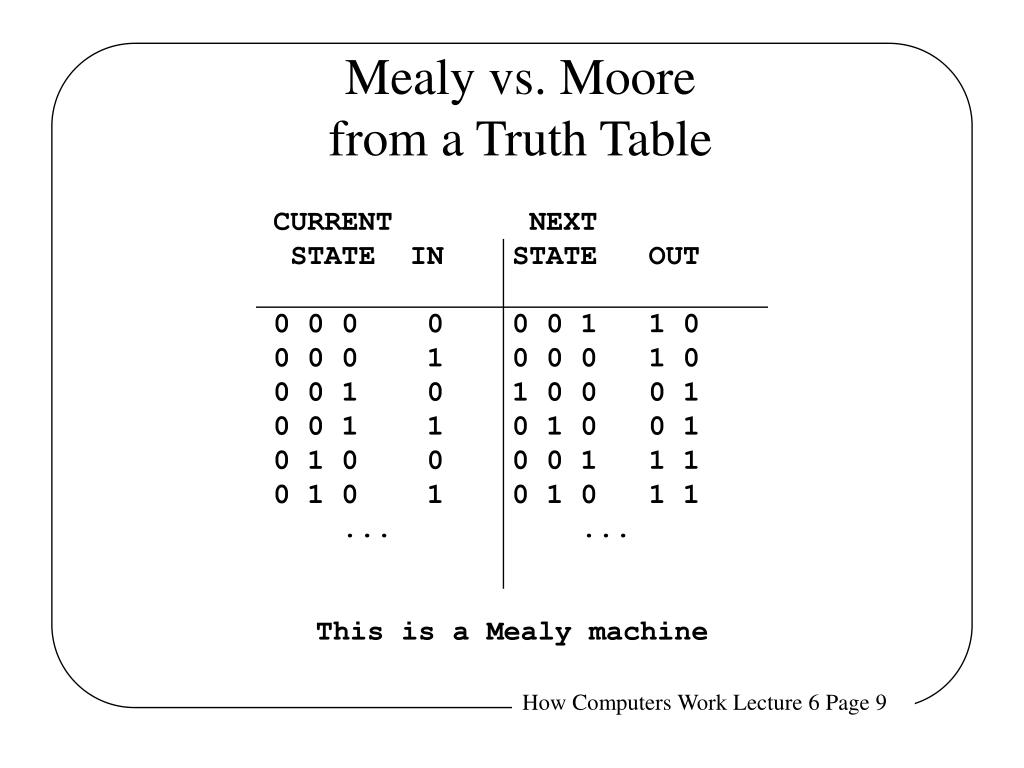

Mealy vs. Moorefrom a Truth Table CURRENT NEXT STATE IN STATE OUT 0 0 0 0 0 0 1 1 0 0 0 0 1 0 0 0 1 0 0 0 1 0 1 0 0 0 1 0 0 1 1 0 1 0 0 1 0 1 0 0 0 0 1 1 1 0 1 0 1 0 1 0 1 1 ... ... This is a Mealy machine

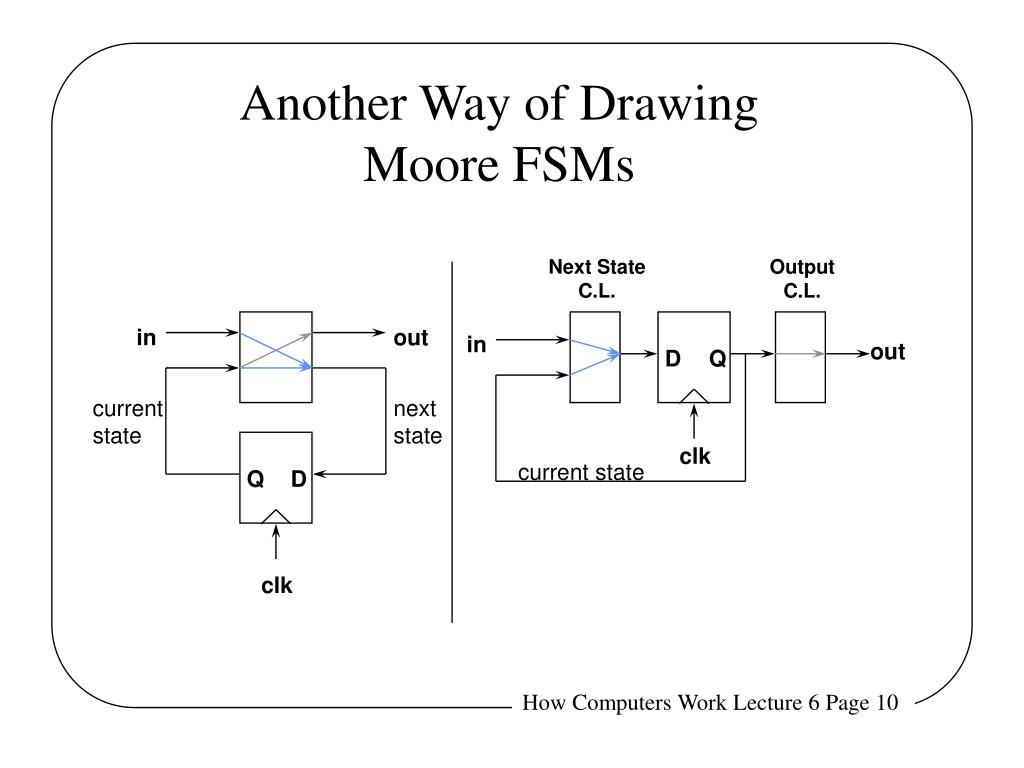

Next State C.L. Output C.L. in out in out D Q current state next state clk current state Q D clk Another Way of DrawingMoore FSMs

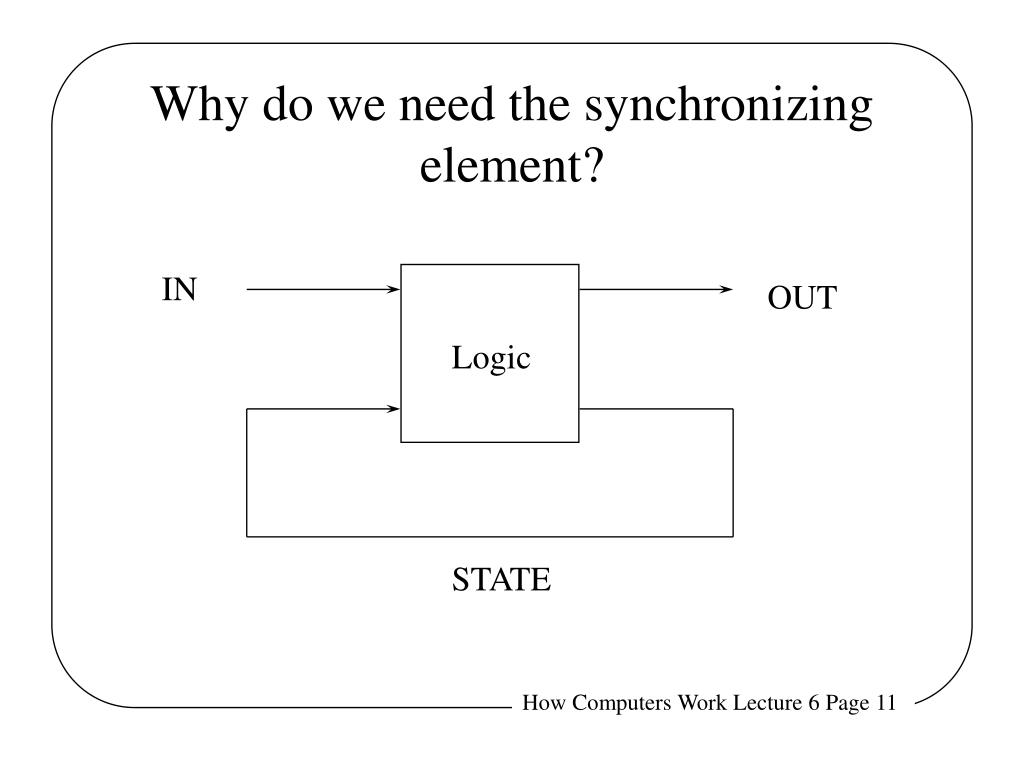

Why do we need the synchronizing element? IN OUT Logic STATE

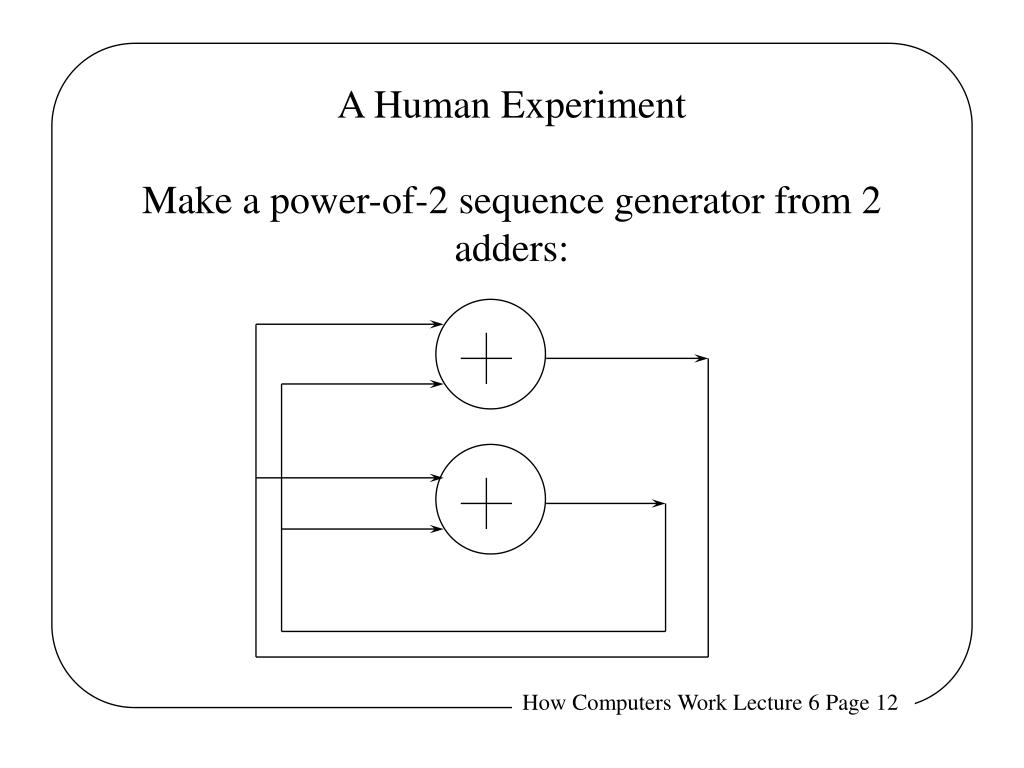

A Human ExperimentMake a power-of-2 sequence generator from 2 adders:
Experiment 1 • Wait your turn • Immediately Look at the two numbers on the board • Immediately Erase the number in front of you • Immediately Add them in your head • Immediately Write the result in front of you • Walk away • Experiment 2 • Follow the instructions of your sergeant / lecturer

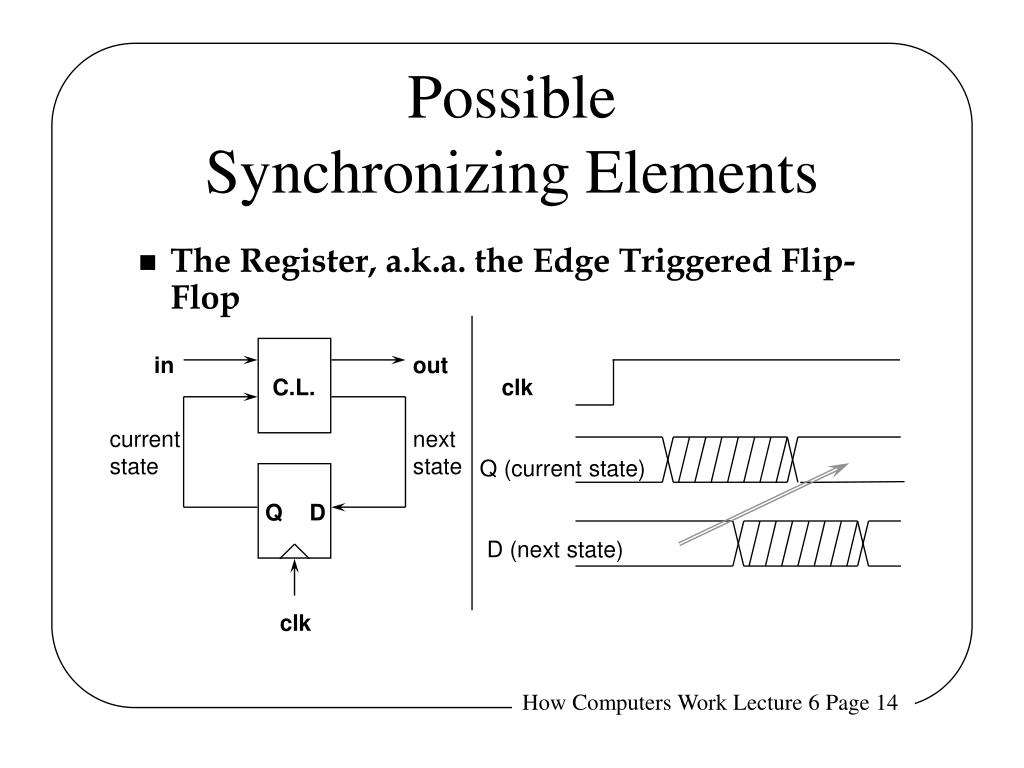

in out C.L. clk current state next state Q (current state) Q D D (next state) clk PossibleSynchronizing Elements • The Register, a.k.a. the Edge Triggered Flip-Flop
Edge-Triggered F-F Input Timing D CLK Th = Hold Time Ts = Setup Time

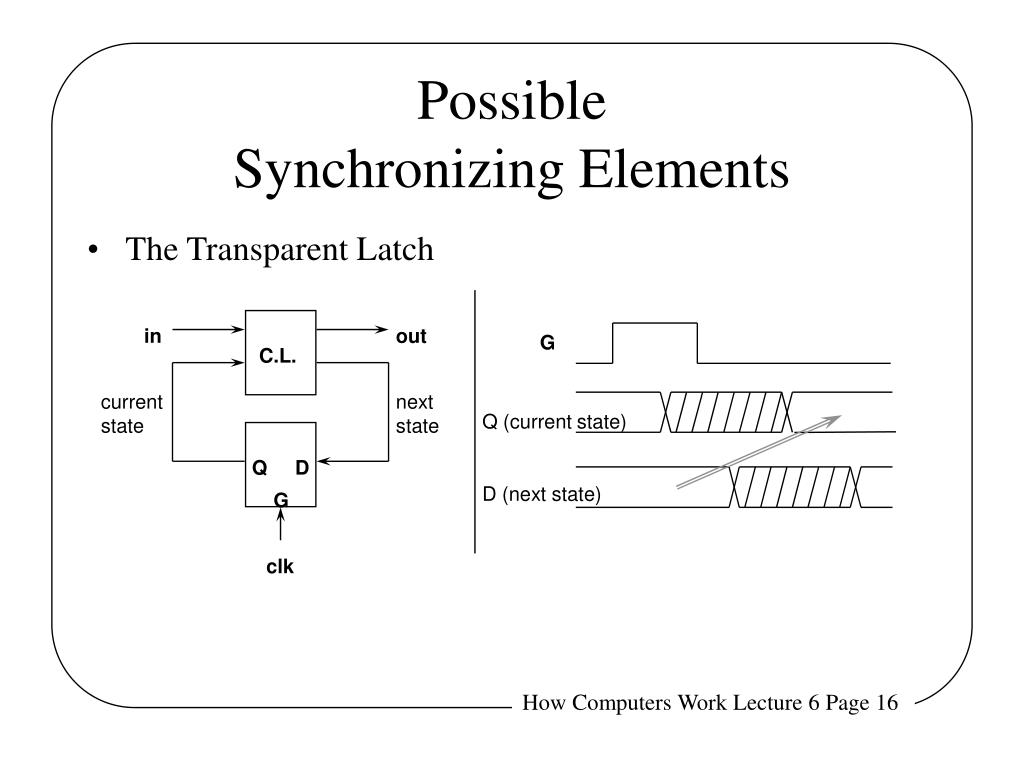

in out G C.L. current state next state Q (current state) Q D D (next state) G clk PossibleSynchronizing Elements • The Transparent Latch
0 Q D 1 G MUX Implementation of the Transparent Latch D G Q

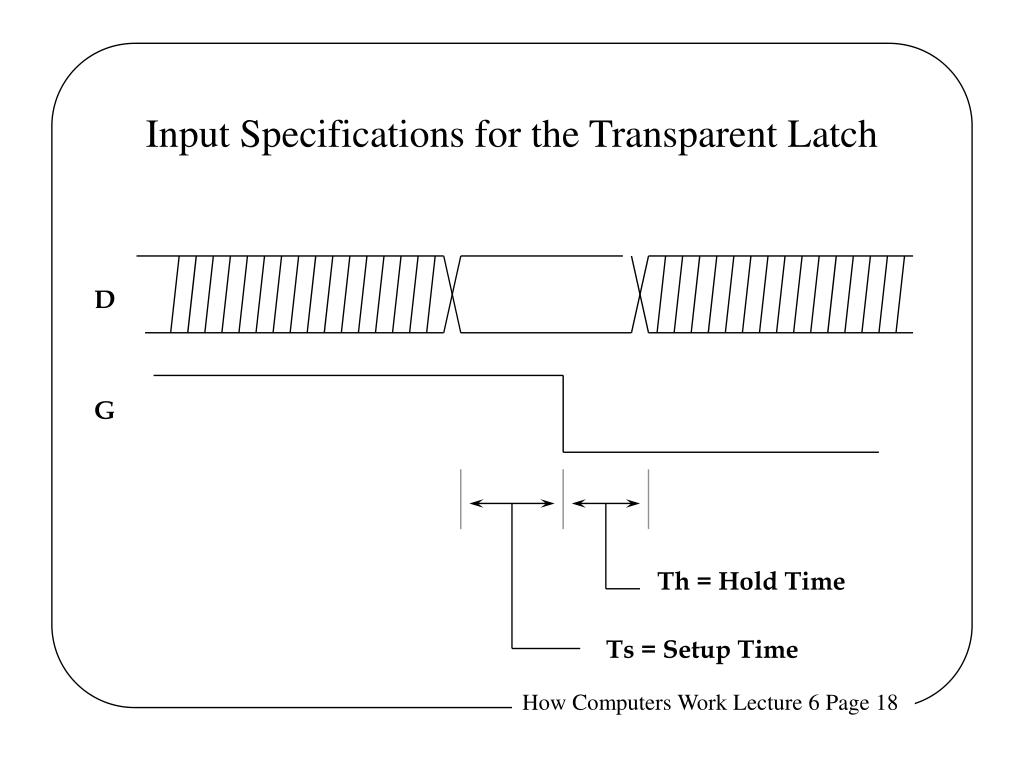

Input Specifications for the Transparent Latch D G Th = Hold Time Ts = Setup Time

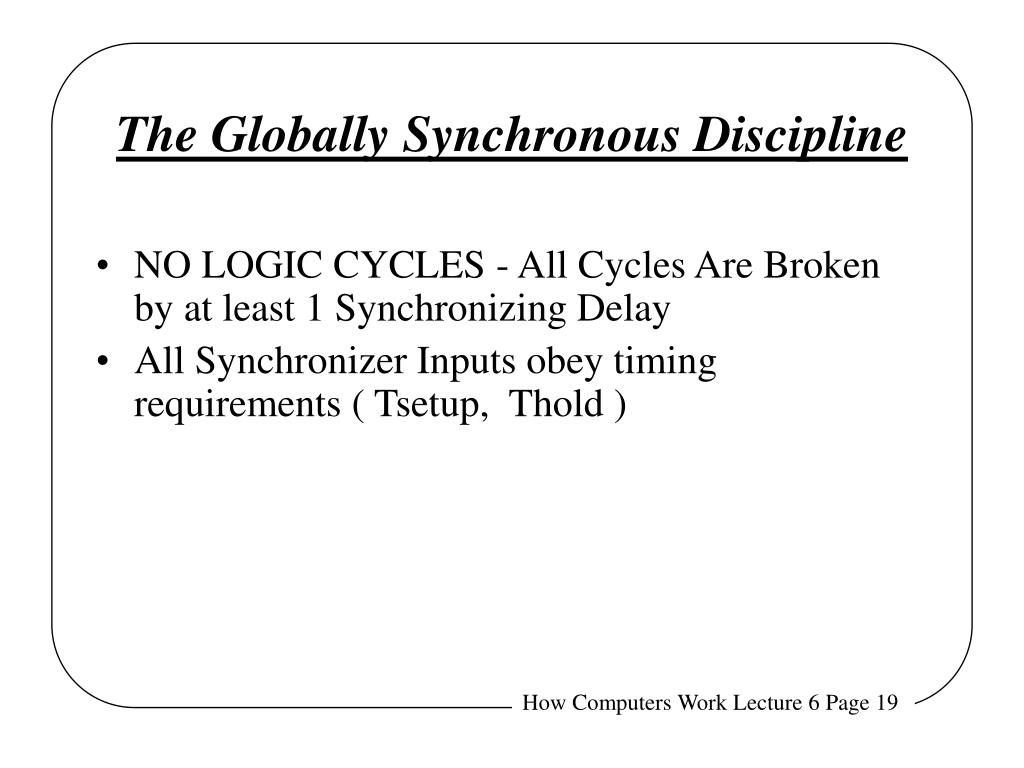

The Globally Synchronous Discipline • NO LOGIC CYCLES - All Cycles Are Broken by at least 1 Synchronizing Delay • All Synchronizer Inputs obey timing requirements ( Tsetup, Thold )

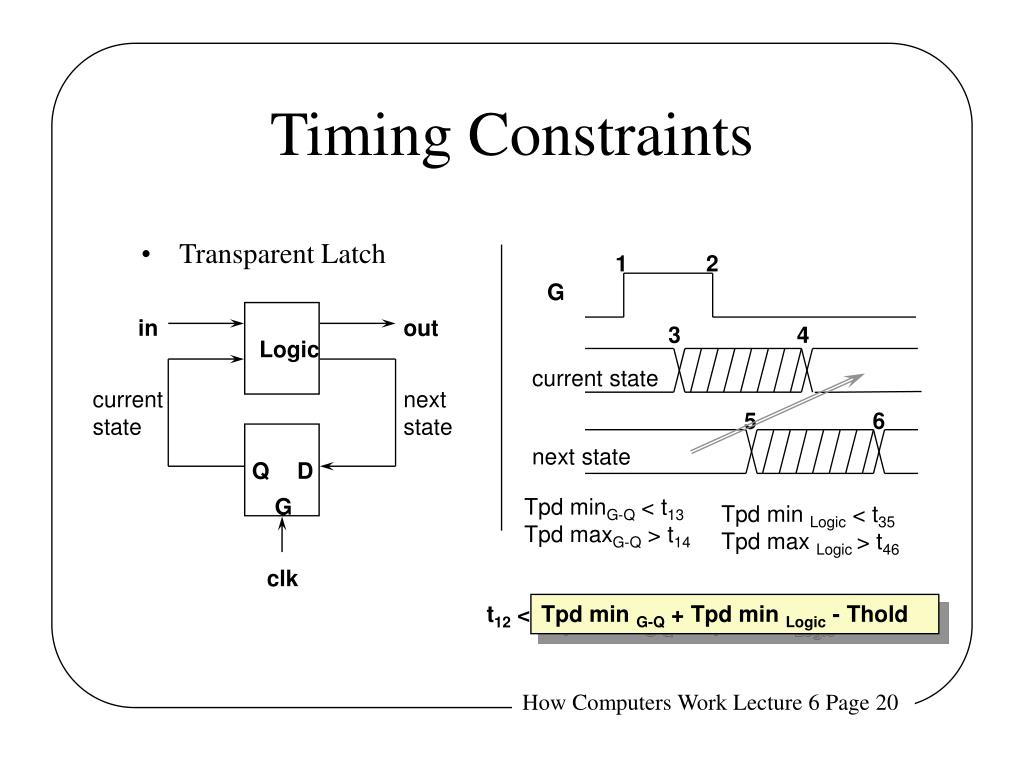

1 2 3 4 5 6 Timing Constraints • Transparent Latch G in out Logic current state current state next state next state Q D G Tpd minG-Q < t13 Tpd maxG-Q > t14 Tpd min Logic < t35 Tpd max Logic > t46 clk t12 < Tpd min G-Q + Tpd min Logic - Thold
Edge Triggered Flip-Flop 1 clk in out 3 4 C.L. current state current state next state 5 6 next state Q D clk Thold < Tpd minC-Q + Tpd minC.L. Timing Constraints Tpd minG-Q < t13 Tpd maxG-Q > t14 Tpd min Logic < t35 Tpd max Logic > t46

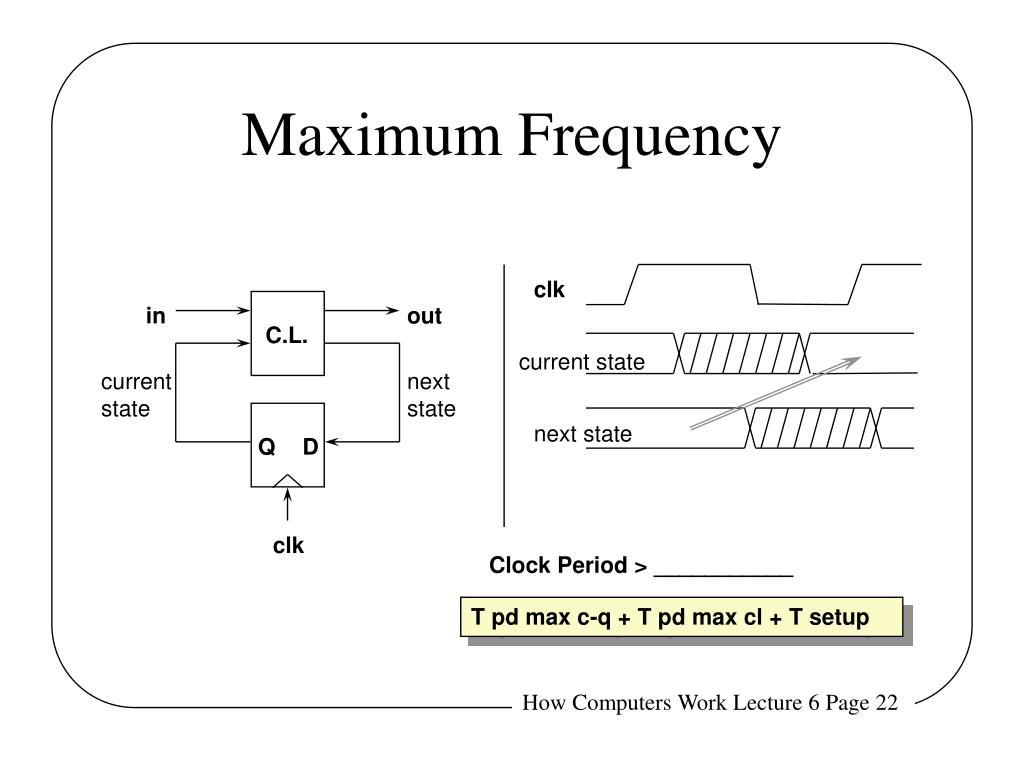

clk in out C.L. current state current state next state next state Q D clk Clock Period > ___________ Maximum Frequency T pd max c-q + T pd max cl + T setup
C.L. Skew D Q D Q clk1 clk2 T cd c-q + T cd cl - T hold Tskew < _______________________________
A Few Details • What Happens if the Logic has Glitchy Outputs? in out current state next state Q D clk

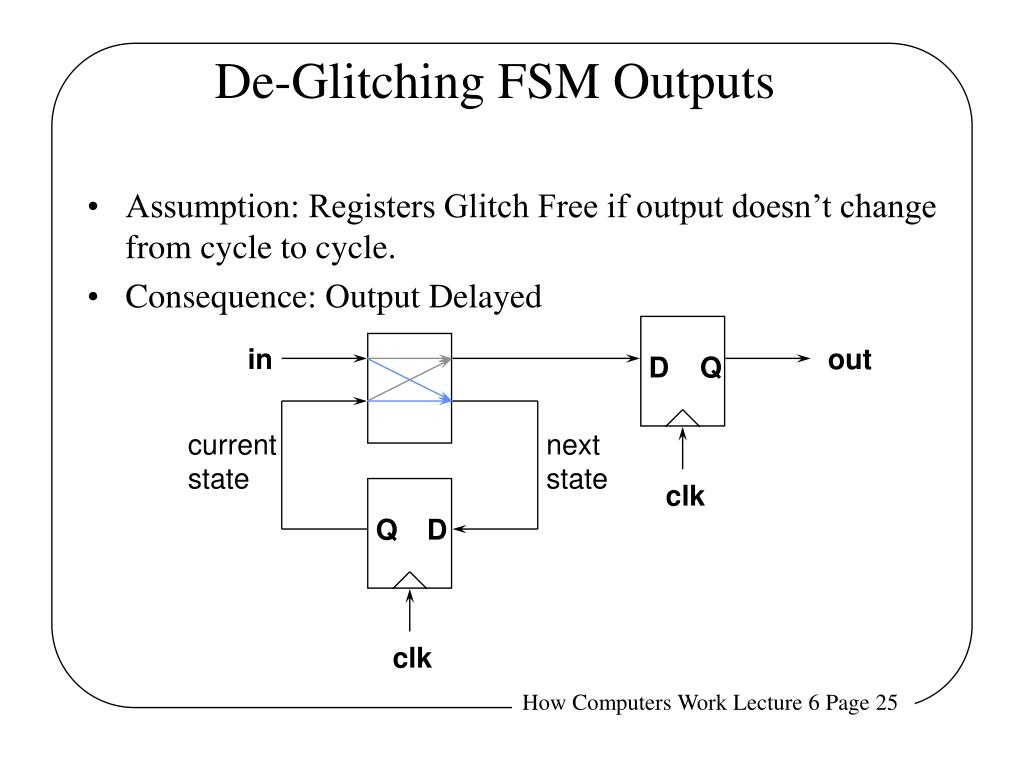

in out D Q current state next state clk Q D clk De-Glitching FSM Outputs • Assumption: Registers Glitch Free if output doesn’t change from cycle to cycle. • Consequence: Output Delayed
Summary • Today’s Lecture • Every modern computer is a finite state machine • There is a straightforward art to designing FSMs • Timing is important, but there is a discipline for insuring correct operation. • Recitation • Practical Practice designing and implementing FSMs
