  1. Welcome page No. 1 for gas safety equipment and gas control equipment LEAK-MASTER Leak_master_praes_uk_30722

  2. security for packaging features LEAK-MASTER • Micro-leak detection system for packages based on CO2 • non destructive detection even of smallest leaks • no need for costly Helium • minimal response time • quick product change • for flexible and rigid packages • no calibration required

  3. features security for packaging LEAK-MASTER • operator friendly - data and process parameter entry by means of touch screen or keyboard • easy-to-use intuitive system - no special skills required • convenient data administration and evaluation for customer oriented quality documentation • various chamber sizes • independent from CO2-levels in the ambient air • easy installation and start-up • stainless steel cabinet (chamber and PC) • features WITT Leak-LOGGER administration • of up to 99 users and 9,999 products

  4. screens security for packaging LEAK-MASTER OXYBABY  V LEAK MASTER WITT- LOGGER • start screen • please select the user • please enter the user • password for authorisation

  5. products security for packaging LEAK-MASTER OXYBABY  V • Product administration • leak level • measurement time • vacuum in mbar • need to be set by the • administrator before testing • please see the instruction manual for an exact explanation

  6. login security for packaging LEAK-MASTER OXYBABY  V User selection with the user selection each user can log in individually. User Identification is a very important security feature. User selection is made safe by the entering the personalised password

  7. product search security for packaging LEAK-MASTER OXYBABY  V • Product Selection • Once the user has identified himself the next step is to choose the product to be tested. That can be done very conveniently either per • touch screen, • mouse click or • keyboard

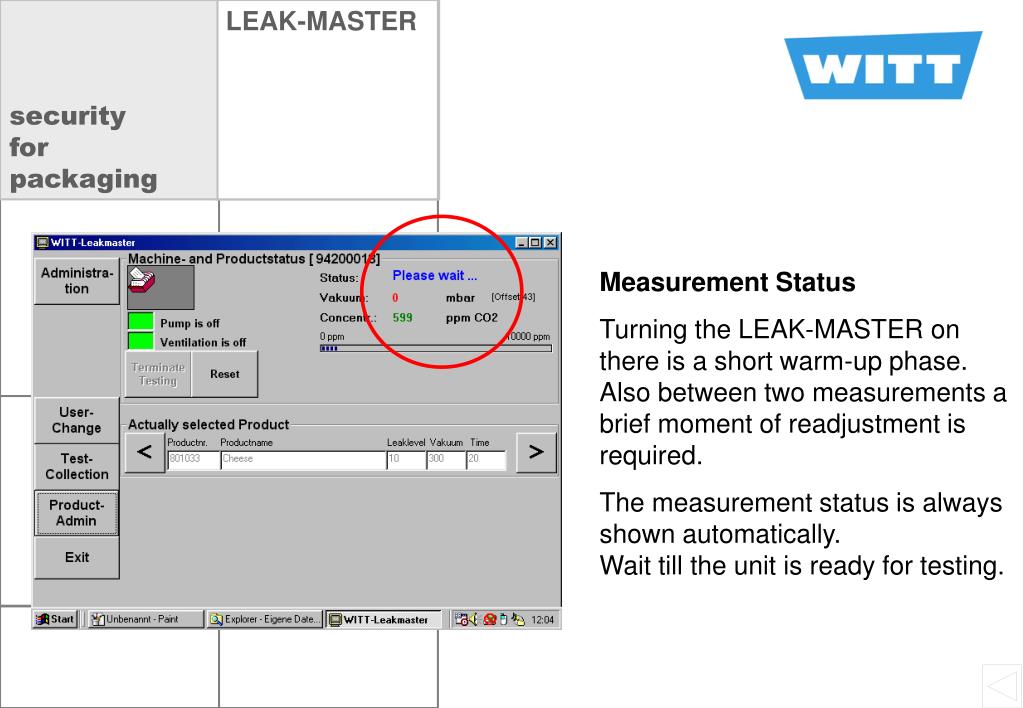

  8. testing security for packaging LEAK-MASTER OXYBABY  V Measurement Status Turning the LEAK-MASTER on there is a short warm-up phase. Also between two measurements a brief moment of readjustment is required. The measurement status is always shown automatically.Wait till the unit is ready for testing.

  9. insert security for packaging LEAK-MASTER OXYBABY  V • Preparation for testing • after the unit has indicated it is ready for testing, the sample is placed in the chamber • according to the size of the sample the chamber´s volume can be adapted (blocks)

  10. testing security for packaging LEAK-MASTER OXYBABY  V Testing • close the lid • push lid lightly • place the lever on top > the unit creates a vacuum, and shows the results on the monitor after the predefined time

  11. results security for packaging LEAK-MASTER OXYBABY  V Test results after the measurement time the result is shown on the monitor status of measurement status of measurement time

  12. product admin security for packaging LEAK-MASTER OXYBABY  V Product administration All data regarding the tested products may be exported or simply be printed using a standard printer Product administration also allows to conveniently add, delete or even search stored product data

  13. docu security for packaging LEAK-MASTER OXYBABY  V Data documentation Test result may again be exported for further evaluation (e.g with Excel) or simply be printed using a standard printer all recorded data

  14. key facts summary quickerresults smallest packages easy operation no calibrationrequired securehandling LEAKMASTER 1.     quick results – saving time and money 2.     variable analysis of various package sizes – only one unit for all packages It is also possible, for example, to check 2 packages in one test run 3.     memory for 9999 test results, with 99 users 4.     comfortable data interface to printer or PC – no manual data documentation needed - saves costly time 5. easy, professional and tamper proof administration of data for e.g. Quality Control 6.     stationary use - also available with trolly on request 7.     multilingual graphic display for true type text – minimal training, no special skills required 8. robust housing made of stainless steel - applicable for food and easy to clean 9. chamber size can be made to customers wishes 10. Standard power supply: 230VAC u. 380 VAC, other on request 11. No calibration of the CO2-Sensor necessary, easy operation 12. Control via industry PC with touch screen (optional with keyboard and mouse) 13. attractive unit package

  15. more information security for packaging LEAK-MASTER OXYBABY  V for more information please click here: technical data

  16. thank you Thank you ! www.wittgas.com
