  1. Covalent Bonding and IMF Unit 2

  2. 12.1 Types of Chemical Bonds • What is a bond and what holds it together? • What are the two types of bonds?

  3. 12.2 Electronegativity • How does electronegativity affect the bond type?

  4. 12.2 Electronegativity • Which elements will form each type of bond?

  5. 12.3 Bond Polarity and Dipole Moments • When will a dipole moment occur within a compound?

  6. 12.3 Bond Polarity and Dipole Moments • When will binary compound have a dipole moment? • When will a polyatomic compound have a dipole moment?

  7. 12.6 Lewis Structures • It is a representation of a molecule that shows how the valence electrons are arranged among the atoms in the molecule. The valence electrons are represented by “dots”. • Guidelines for drawing: • Determine total number of valence electrons that the compound has available for sharing. • Bonded atoms will share a pair or more pairs of electrons. • Each atom must have a full valence share (OCTET RULE). • Exceptions to the octet rule:

  8. 12.6 Lewis Structures • Practice: • Binary • Polyatomic • Lewis Structure Lingo: • Lone Pair • Bonding Pair

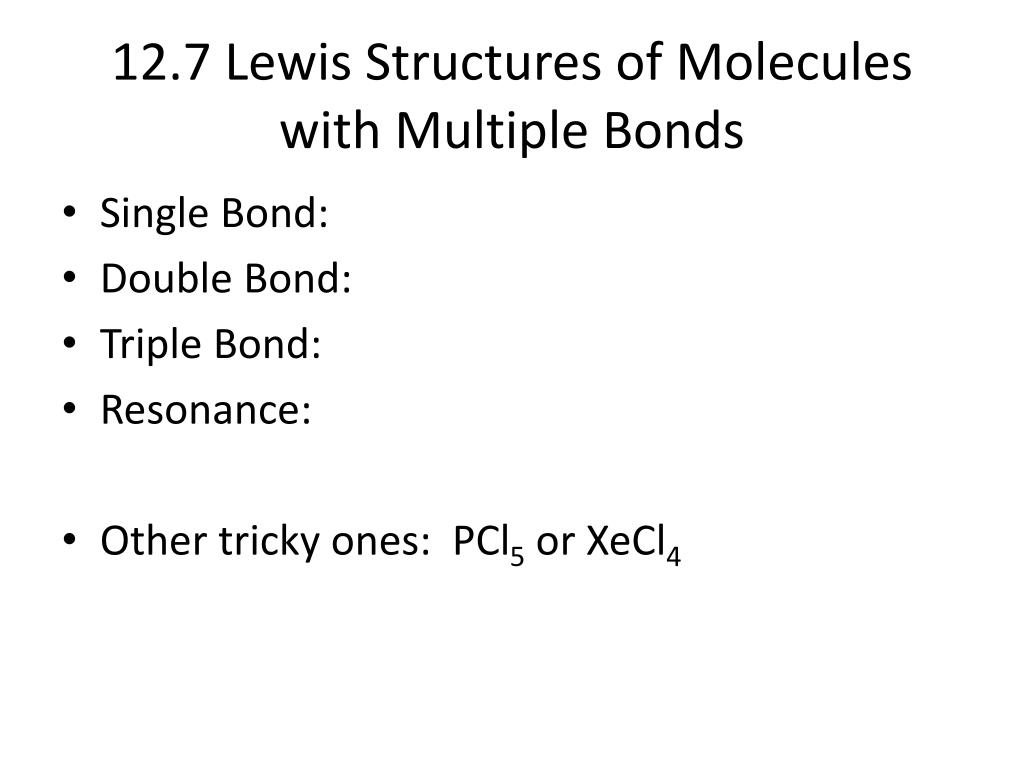

  9. 12.7 Lewis Structures of Molecules with Multiple Bonds • Single Bond: • Double Bond: • Triple Bond: • Resonance: • Other tricky ones: PCl5or XeCl4

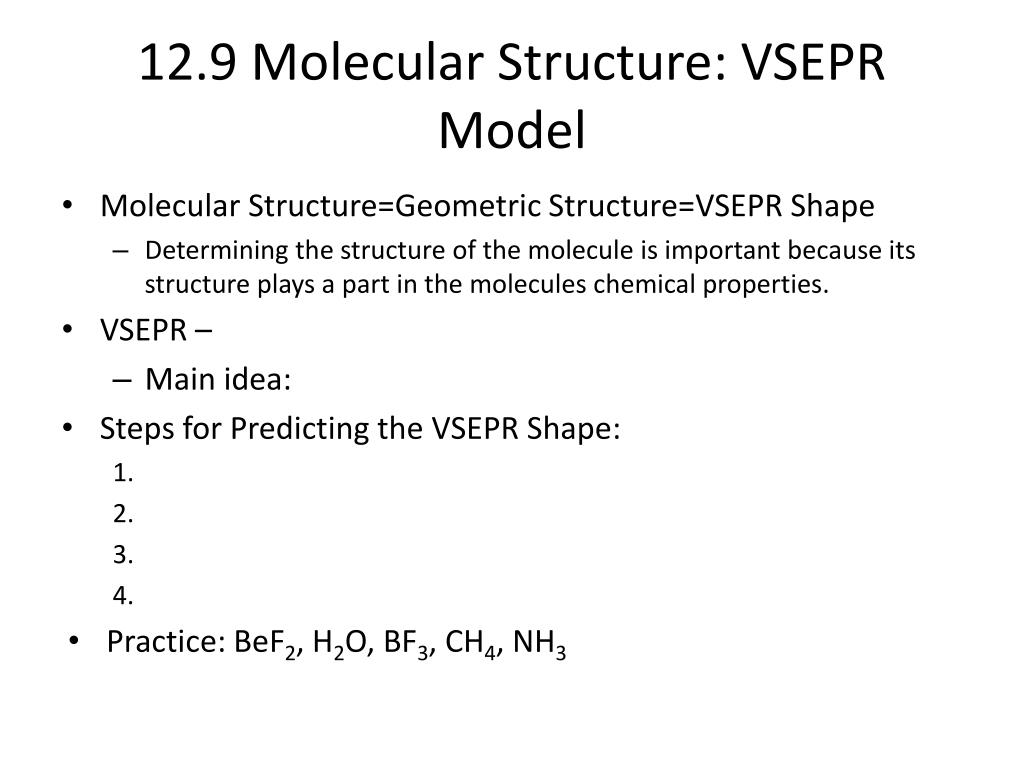

  10. 12.9 Molecular Structure: VSEPR Model • Molecular Structure=Geometric Structure=VSEPR Shape • Determining the structure of the molecule is important because its structure plays a part in the molecules chemical properties. • VSEPR – • Main idea: • Steps for Predicting the VSEPR Shape: • Practice: BeF2, H2O, BF3, CH4, NH3

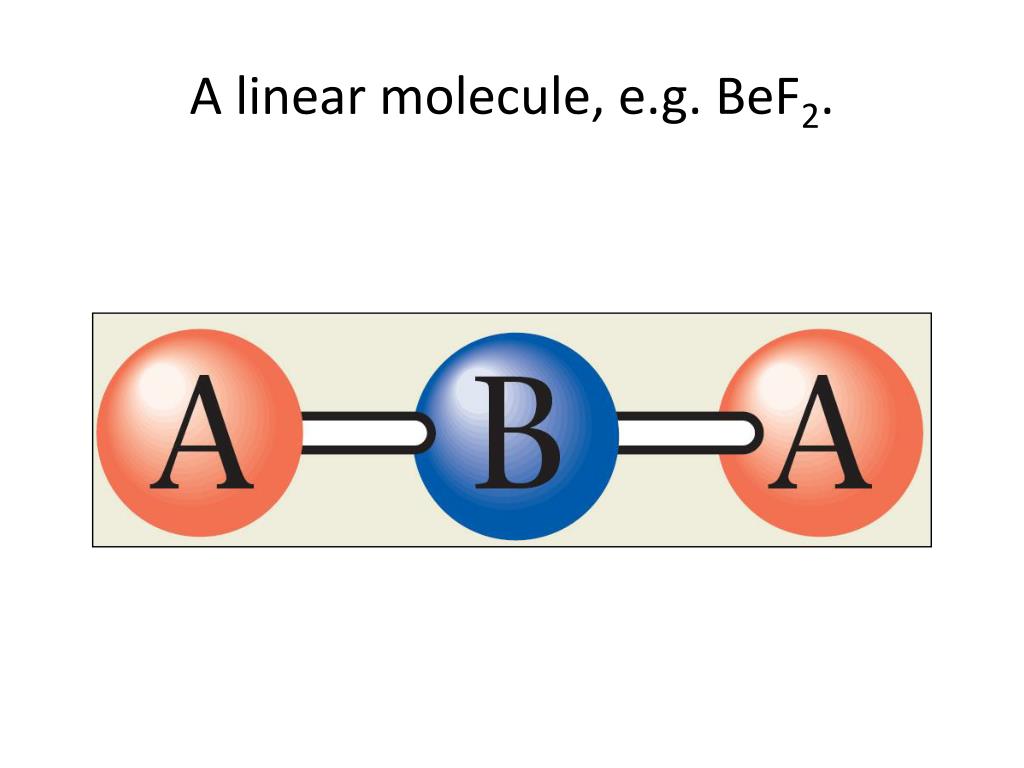

  11. A linear molecule, e.g. BeF2.

  12. A bent or V-shaped molecule, e.g. H2O.

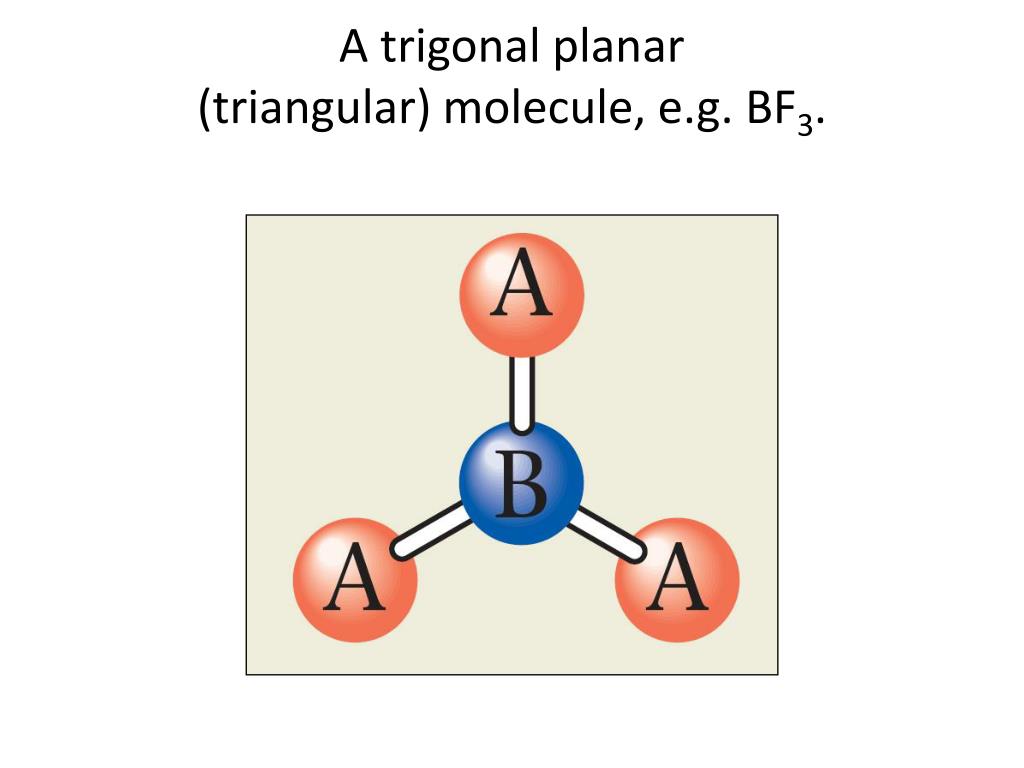

  13. A trigonal planar (triangular) molecule, e.g. BF3.

  14. A tetrahedral molecule, e.g. CH4.

  15. A trigonal pyramid, e.g. NH3.

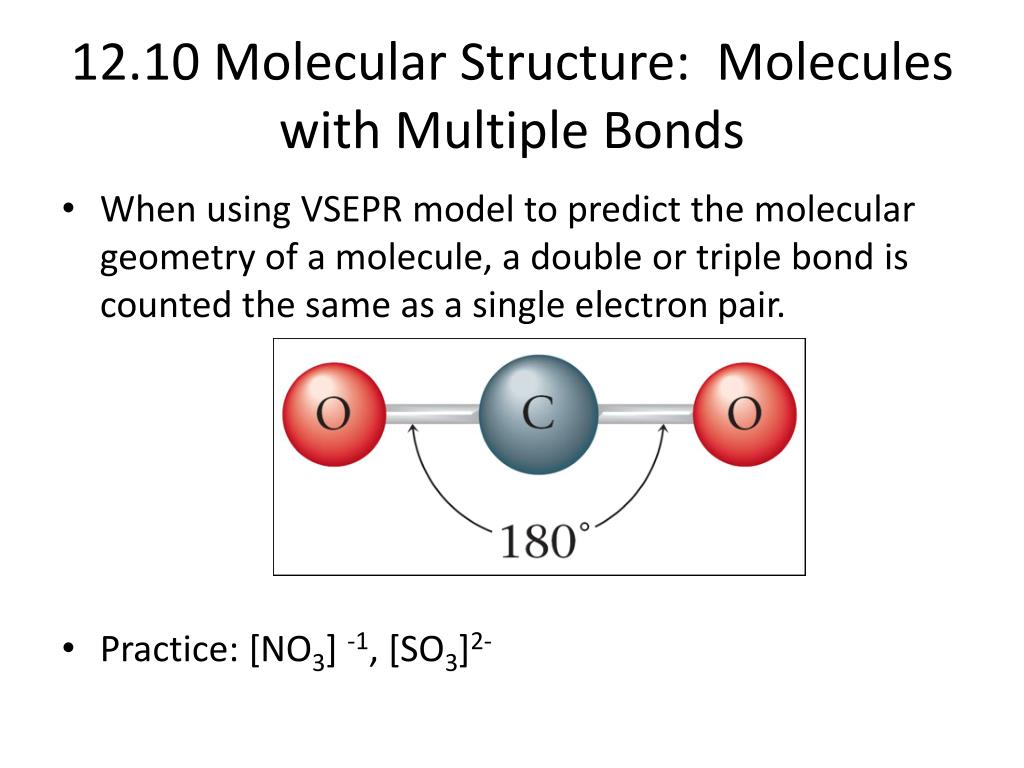

  16. 12.10 Molecular Structure: Molecules with Multiple Bonds • When using VSEPR model to predict the molecular geometry of a molecule, a double or triple bond is counted the same as a single electron pair. • Practice: [NO3] -1, [SO3]2-

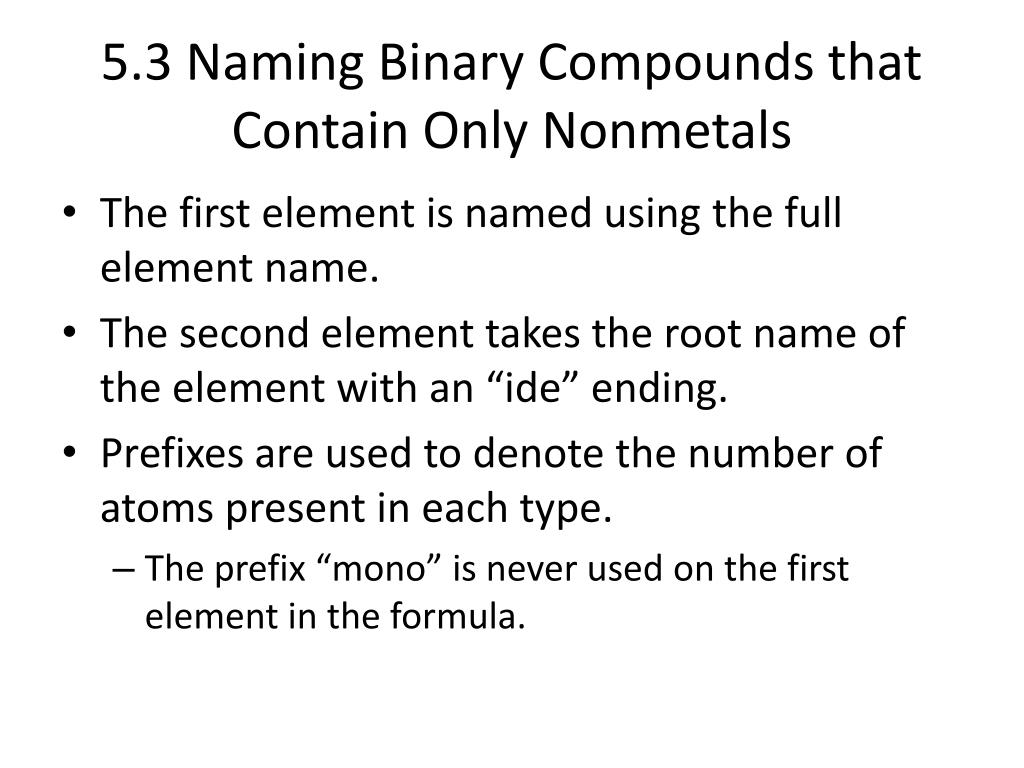

  17. 5.3 Naming Binary Compounds that Contain Only Nonmetals • The first element is named using the full element name. • The second element takes the root name of the element with an “ide” ending. • Prefixes are used to denote the number of atoms present in each type. • The prefix “mono” is never used on the first element in the formula.

  18. Prefixes

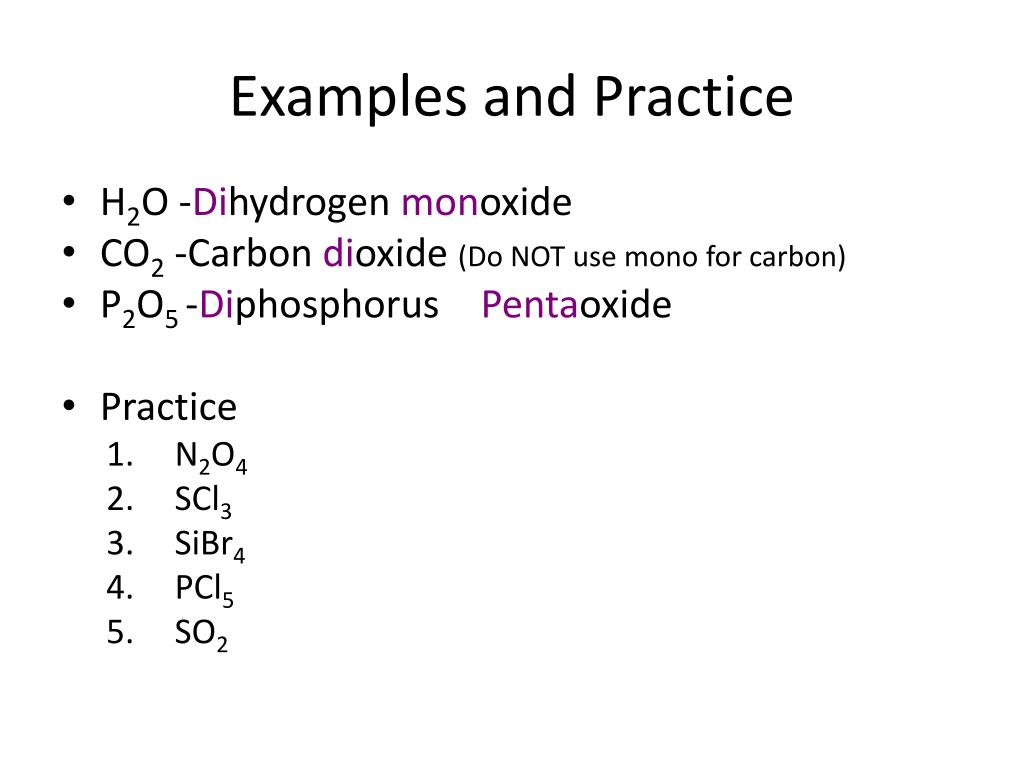

  19. Examples and Practice • H2O -Dihydrogenmonoxide • CO2 -Carbon dioxide (Do NOT use mono for carbon) • P2O5 -DiphosphorusPentaoxide • Practice • N2O4 • SCl3 • SiBr4 • PCl5 • SO2

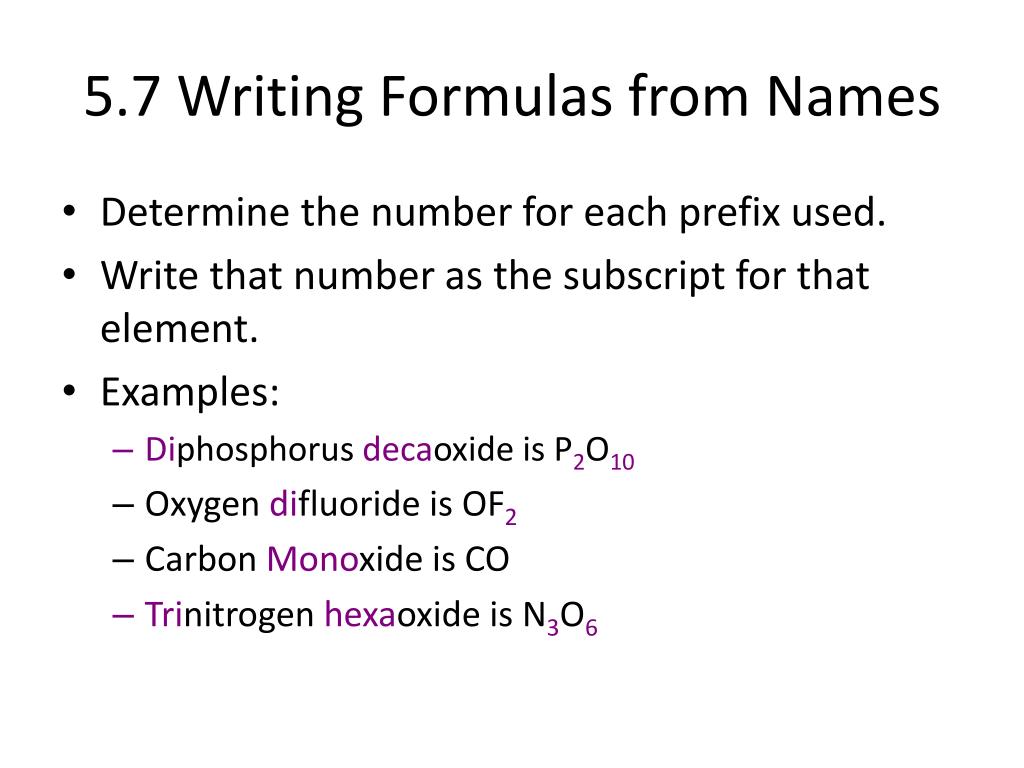

  20. 5.7 Writing Formulas from Names • Determine the number for each prefix used. • Write that number as the subscript for that element. • Examples: • Diphosphorusdecaoxide is P2O10 • Oxygen difluoride is OF2 • Carbon Monoxide is CO • Trinitrogenhexaoxide is N3O6

  21. Practice • Diphosphorustetraoxide • Sulfur dibromide • Phosphorus trichloride • Dinitrogenoctaoxide • Oxygen dichloride

  22. 14.3 Intermolecular Forces • INTRAmolecular vs. INTERmolecular Forces • Intermolecular forces in covalent compounds is the result of shared electrons. • Dipole-dipole attraction (polar compounds) • Hydrogen bonding (between H and NOF) • London dispersion forces (exist in all molecules including nonpolar compounds and noble gases)

  23. IMF • Dipole-Dipole • Weaken as distance increases • Due to the close proximity of solid molecules, there is a repulsion factor to consider.

  24. IMF • Hydrogen Bonding • Hydrogen is bound to highly electronegative atom • A particularly strong type of dipole-dipole because: • Great polarity of the bond itself • Proximity of dipoles due to small size of hydrogen • Results in the unusually high boiling point of water

  25. IMF • London Dispersion (weakest IMF) • Since all substances exist in the liquid and solid state, we know molecules without dipole moments must exert a force on each other. • Electrons are constantly moving and may become unevenly distributed. • This creates a temporary dipolar arrangement. • This instantaneous dipole can induce a similar dipole in a neighboring atom. • These forces become stronger with more electrons.

  26. 14.5 The Solid State: Types of Solids • Crystalline solids: regular arrangement of components • Molecular solids are comprised of molecules. • Polar molecules held together by H bonding or dipole-dipole AND London Dispersion • Nonpolar molecules held together by London Dispersion • Atomic solids are comprised of one element covalently bound to each other. • Diamonds are covalently bound carbon atoms.

  27. 14.6 Bonding in Solids • Molecular solids: • The weaker the force, the easier that the solid will melt (they generally have low melting points). • If dissolved in water, the solid splits into individual molecules and will not conduct electricity. • Atomic solids: • Properties depend on the atoms themselves. • Metals have a “sea of electrons” that determine their properties. • Allotropes of Carbon

  28. 20.1 Carbon Bonding • Silicon (geological world): • Carbon (biological world):

  29. 20.2 Alkanes • Saturated Hydrocarbons • VSEPR Shape: • General Formula:

  30. Prefixes • Methane (1) • Ethane (2) • Propane (3) • Butane (4) • Pentane (5) • Hexane (6) • Heptane (7) • Octane (8) • Nonane (9) • Decane (10)

  31. Properties of Alkanes

  32. 20.4 Naming Alkanes • For nomenclature rules see pg. 616 • Identify LONGEST chain of carbons • Name that chain. • Circle all alkyl groups and halogens attached to the chain • Number the chain • Name these functional groups

  33. 20.7 Alkenes and Alkynes Alkenes (CnH2n) • VSEPR Shape

  34. Nomenclature is similar to alkanes except: • Root changes from “ane” to “ene”. • Location of the double bond is indicated by the lowest-numbered carbon involving the bond. DOUBLE BOND MOST IMPORTANT! • 1-butene (not 3 butene) • 2-butene

  35. 20.7 Alkenes and Alkynes • Alkynes • VSEPR Shape: • General Formula: • Nomenclature is similar to alkanes except: • Root changes from “ane” to “yne” • Location of the triple bond is indicated by the lowest-numbered carbon involving the bond.

  36. 20.8 Aromatic Hydrocarbons • C6H6 Benzene • Resonance structures • Six delocalized electrons

  37. Substituted Benzene Rings • Ortho (o) • 1, 2 substituted • Meta (m) • 1, 3 substituted • Para (p) • 1, 4 substituted

  38. 20.10 Functional Groups • Alcohols (R-OH) • Ethers (R-O-R’) • Aldehydes (R-COH) • Ketones (R-CO-R’) • Carboxylic acids (R-COOH) • Esters (R-COO-R’) • Amines (R-NH2)

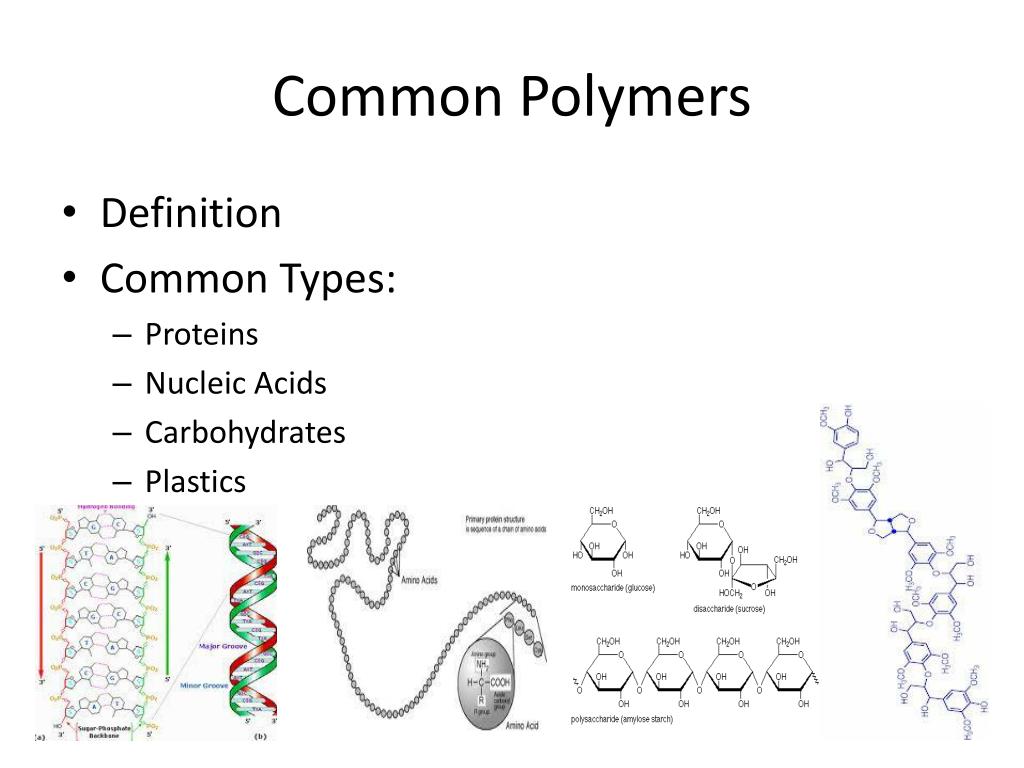

  39. Common Polymers • Definition • Common Types: • Proteins • Nucleic Acids • Carbohydrates • Plastics
