  1. Genes and How They Work Computer Filename: genes1.ppt Developed by Hugh B. Fackrell

  2. Overview • Genes are composed of DNA within the chromosome • Genes code for proteins • DNA is transcripted into RNA • RNA is translated into protein by ribosomes • Genes regulated by control of RNA production

  3. Lecture Outline • Genetic Code • Gene Expression transcription translation • Protein Synthesis • Gene Regulation • Gene Architecture Genes and How They Work

  4. Concepts from OAC • Structure & Function of DNA & RNA • Genetic code • Transcription & translation • Protein synthesis • Gene Regulation: operators, promotors , repressors

  5. Background Terms & Concepts • Structure of DNA & RNA • Ribosomes • Enzymes • Structure of Eukaryotic chromosomes

  6. The Genetic Code • Genetic information is stored in DNA sequences found in • Chromosomes • Mitochondria: 16 KB, 13 genes • Chloroplasts: 120-160 KB, 120 genes

  7. Structure of the Genetic Code • DNA : sequences of four nucleotides A,T,G,C • CODONS : blueprint for the polypeptide • Start & Stop Signals: Where to read the blueprint • Regulatory Sequences: When to read the blueprint • promotors • operators • enhancers

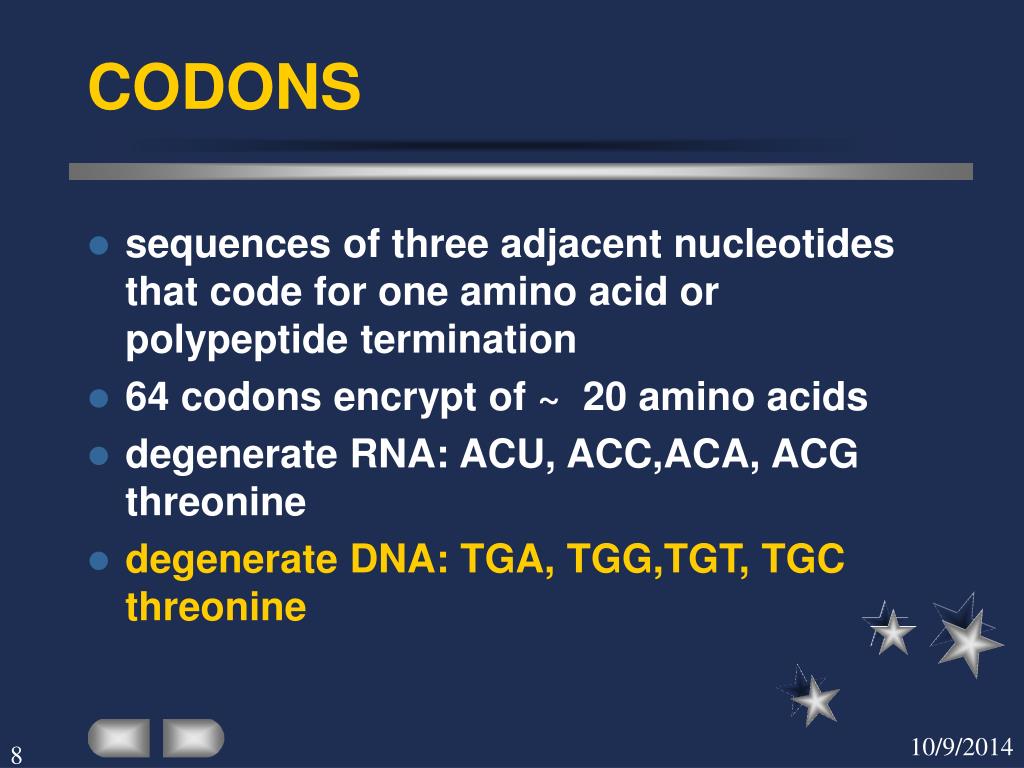

  8. CODONS • sequences of three adjacent nucleotides that code for one amino acid or polypeptide termination • 64 codons encrypt of ~ 20 amino acids • degenerate RNA: ACU, ACC,ACA, ACG threonine • degenerate DNA: TGA, TGG,TGT, TGC threonine

  9. Start Codon • RNA: AUG • DNA: TAC • also codes for methionine

  10. Stop Codon • Nonsense Codons • RNA: UAA,UAG,UGA • DNA: ATT, ATC, ACT

  11. Alternate Genetic Codes Sequence Chromosome Mitochondrion TGA Stop Trypt ATA Isoleucine Methionine AGA Arginine Stop AGG Arginine Stop

  12. Interpreting the Genetic Code • Two step process : • Transcription DNA --> RNA • Translation RNA--> protein

  13. RNA • Ribosomal RNA • Transfer RNA • Messenger RNA

  14. Ribosomal RNA • called rRNA • found in Ribosomes • probably catalytic site • provides site for protein assembly • ribosomal structure different in eukaryotes and prokaryotes

  15. Prokaryotic Ribosomal RNA • large subunit 5s(120), 23s (2900) • Small subunit 16s (1540)

  16. Eukaryotic Ribosomal RNA • Large subunit 5s(120) 28s (4700) 5.8s (160) • Small subunit 18s(1900) Ribosomal RNA 18 S 5.8 S 28 S Transcribed Spacer RNA

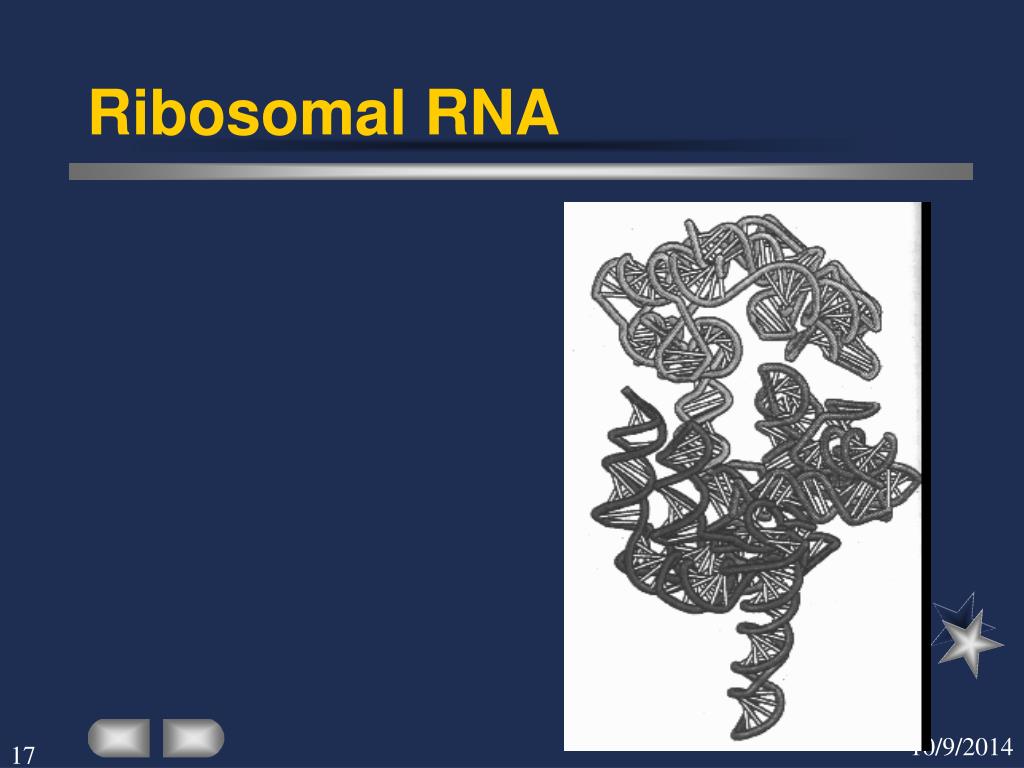

  17. Ribosomal RNA

  18. Transfer RNA • called tRNA • Smaller than mRNA or rRNA • found in cytoplasm • 40 different kinds of tRNA • transports amino acids to ribosome • positions amino acids on elongating polypeptide

  19. tRNA

  20. Messenger RNA • called mRNA • long single strand of RNA • copy of the DNA to be decoded • transfers information from the nucleus to the cytoplasm for decoding

  21. Transcription Production of an RNA copy of the gene • occurs in nucleus of eukaryotes • cytoplasm of prokaryotes • DNA unravels- single strand • RNA Polymerase binds to Promotor site • Reads from start sequence(TAC) • assembles complementary single strand of RNA (primary RNA) • Disengages when reaches stop codon

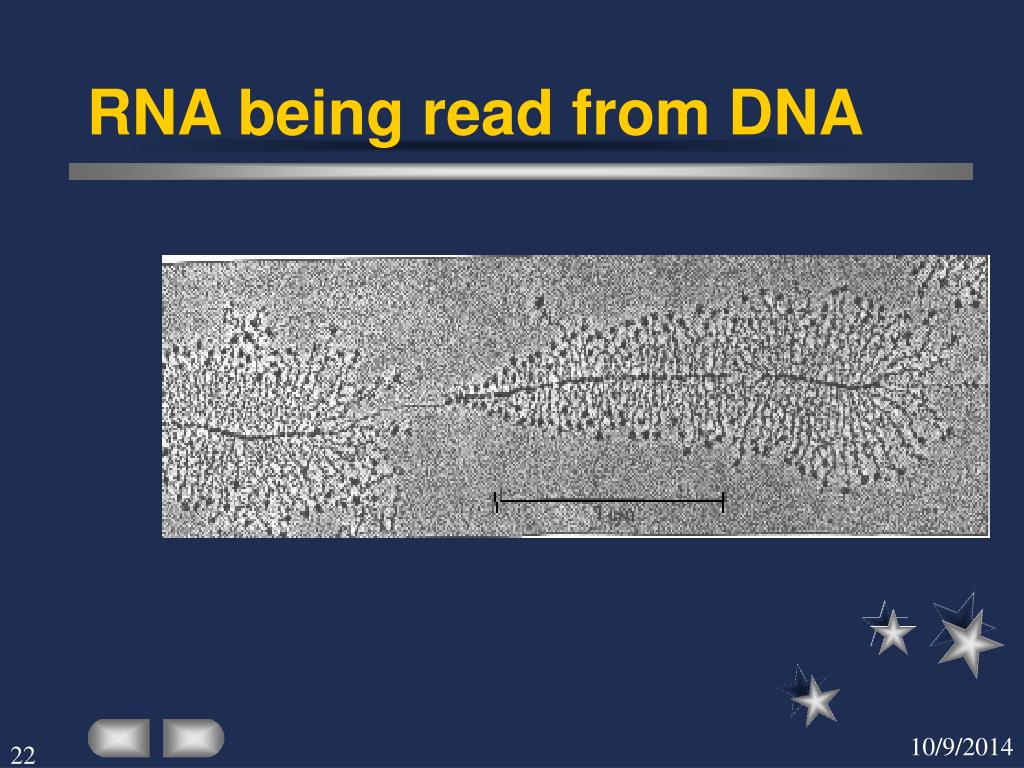

  22. RNA being read from DNA

  23. Prokaryotic Transcription and Translation

  24. Antibody Structure

  25. Eukaryotic Transcription & Translation

  26. Intron Splicing • Regulated at DNA level by restriction endonucleases • Regulated at RNA level by SPLICEOSOMES • GU....AG sequences • thalassemia syndromes

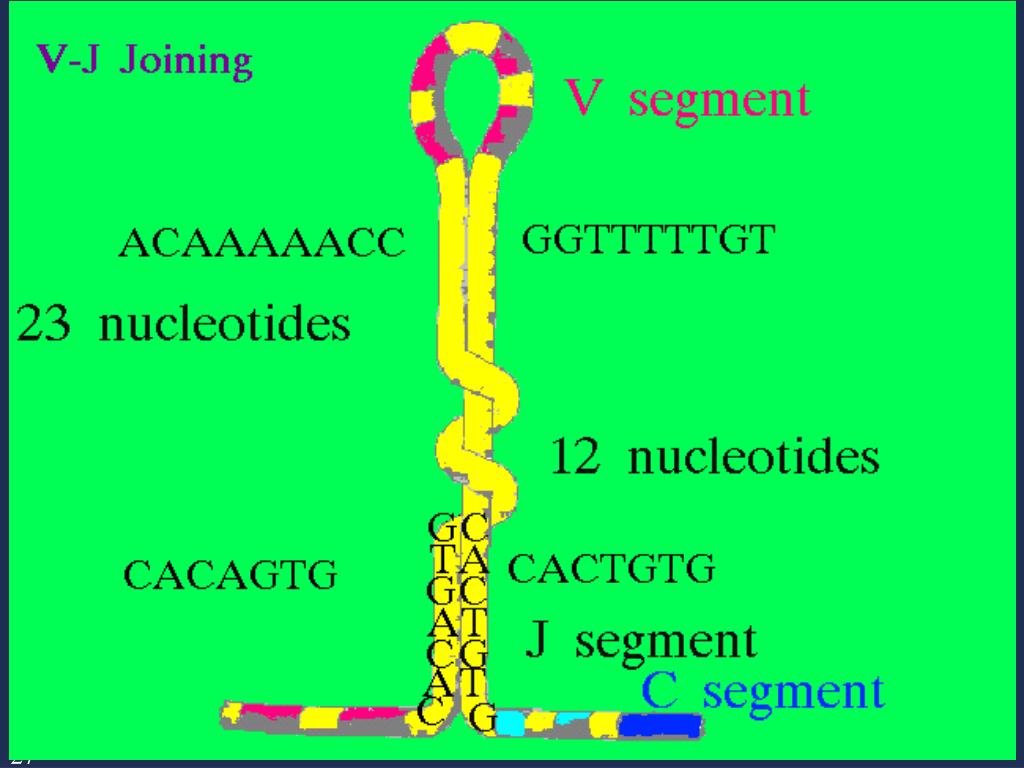

  27. Splicing of DNA

  28. Gene Rearrangement & Processing

  29. mRNA Splicing

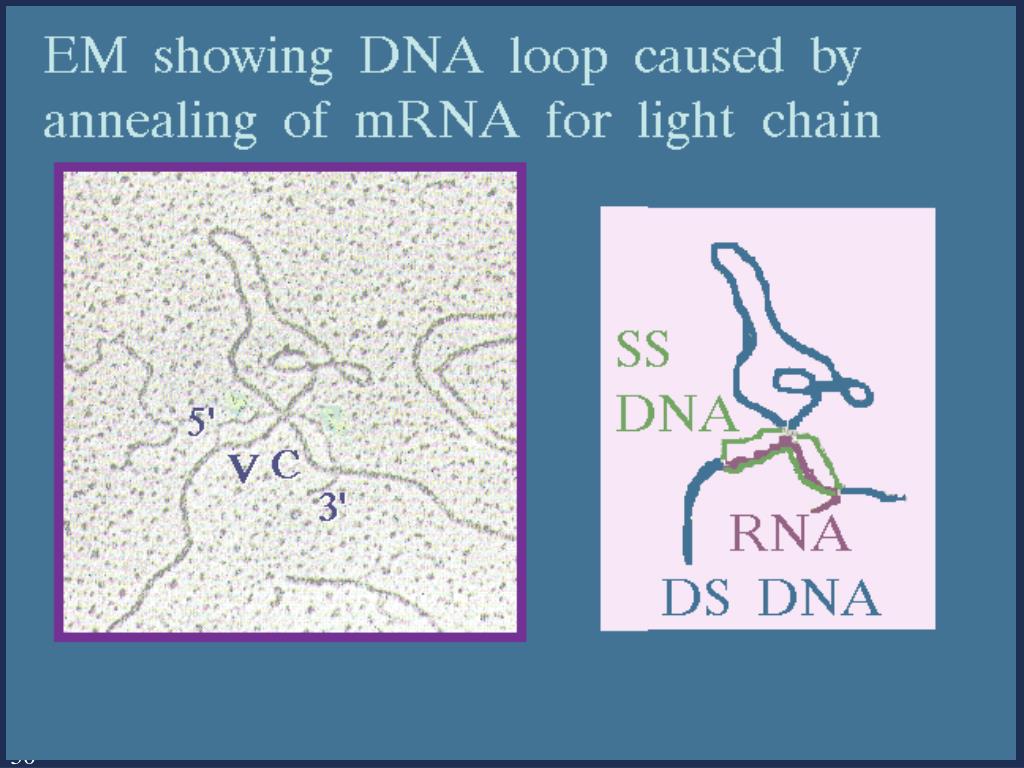

  30. DNA Loops
