Predictably Low-Leakage ASIC Design using Leakage-immune Standard Cells

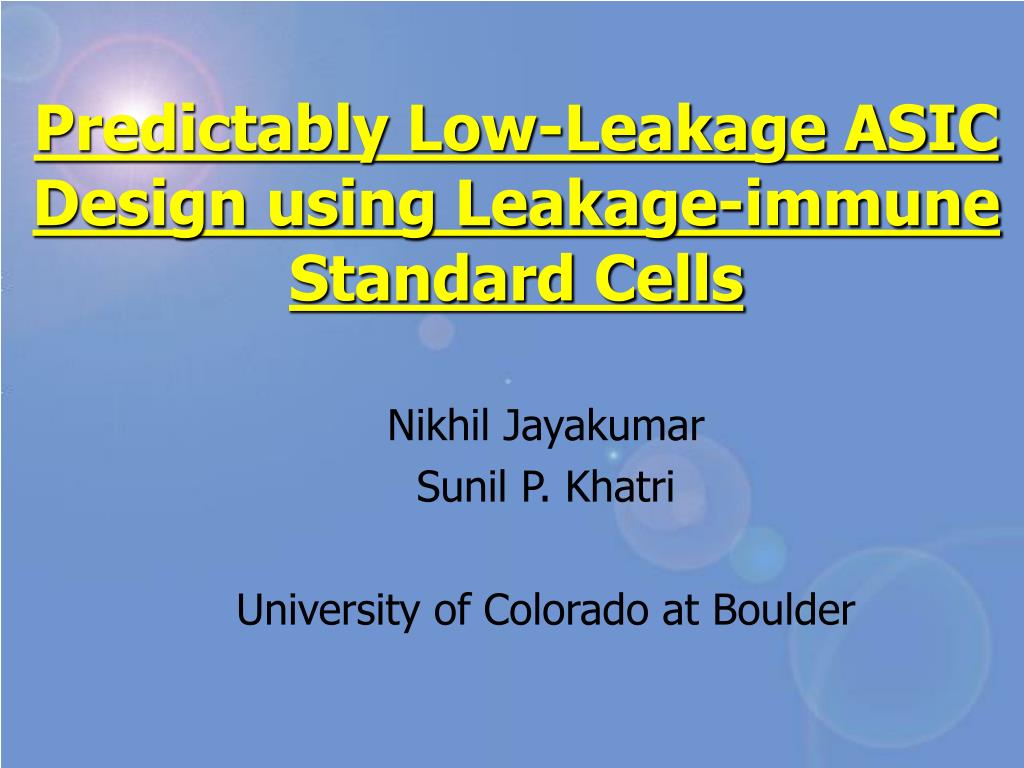

1. Predictably Low-Leakage ASIC Design using Leakage-immune Standard Cells Nikhil Jayakumar Sunil P. Khatri University of Colorado at Boulder

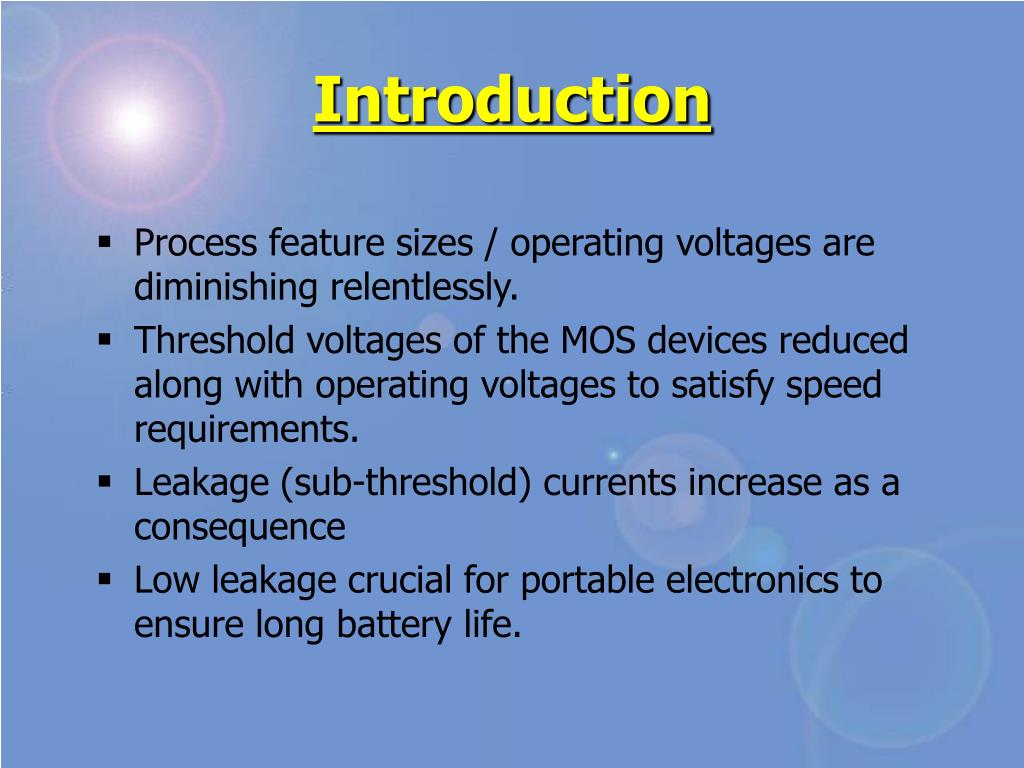

2. Introduction • Process feature sizes / operating voltages are diminishing relentlessly. • Threshold voltages of the MOS devices reduced along with operating voltages to satisfy speed requirements. • Leakage (sub-threshold) currents increase as a consequence • Low leakage crucial for portable electronics to ensure long battery life.

3. Introduction…2 • Saturation Current Equation: Ids = K(W/L)(Vgs –VT)2(1+ Vds) ………….(1) • Sub-threshold Current Equation: Ids =(W/L)I0e(Vgs-VT-Voff/vT)(1-e(-Vds/VT))….(2) • From equation(1): need to reduce threshold voltage VT with supply voltage to maintain Ids • From equation(2): decreasing VT increases leakage current exponentially.

4. Previous Work • DTMOS: Dynamic Threshold MOS. Device gate connected to bulk (Assaderaghi et. al.) • Results in high-speed switching and low-leakage through body effect control. • Drawback: • Applicable only when VDD lower than the diode turn-on voltage. • Increased gate capacitance slows the device down. • Proposed for partially depleted SOI designs. • Not easily modified to work for other processes

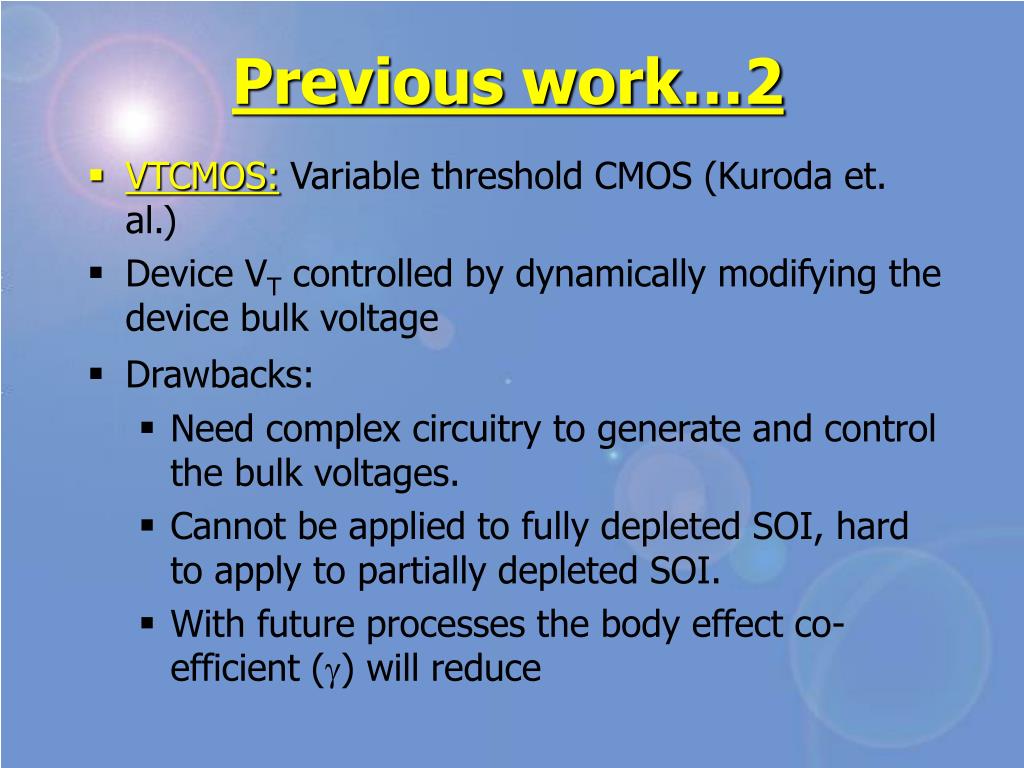

5. Previous work…2 • VTCMOS: Variable threshold CMOS (Kuroda et. al.) • Device VT controlled by dynamically modifying the device bulk voltage • Drawbacks: • Need complex circuitry to generate and control the bulk voltages. • Cannot be applied to fully depleted SOI, hard to apply to partially depleted SOI. • With future processes the body effect co-efficient () will reduce

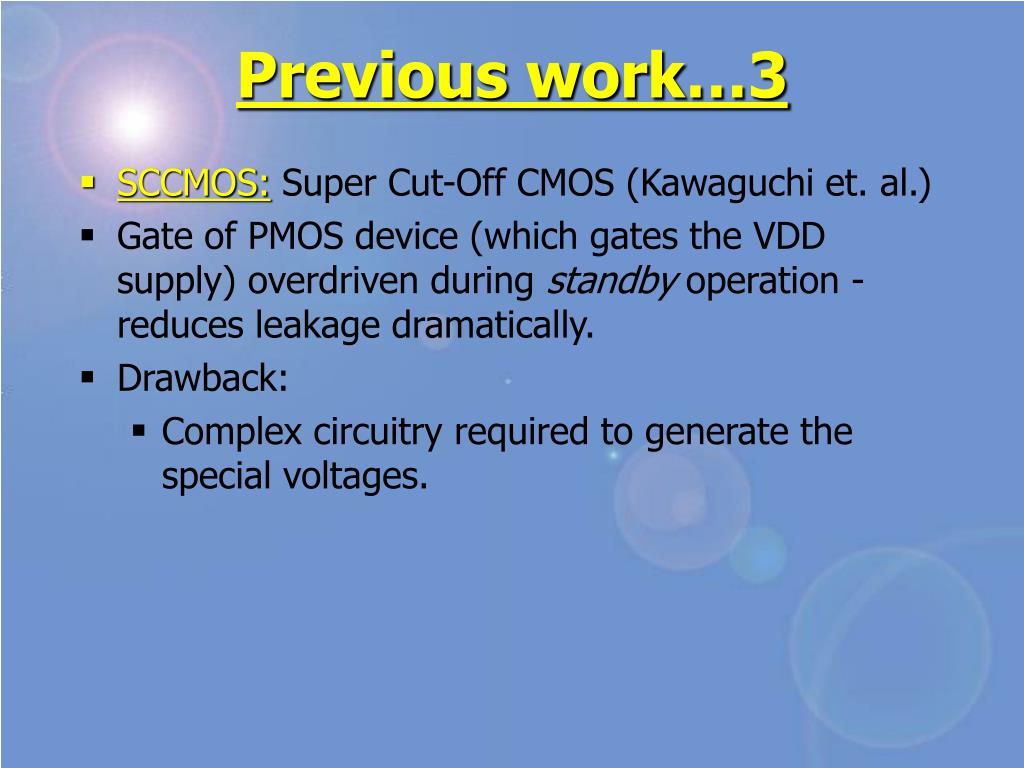

6. Previous work…3 • SCCMOS: Super Cut-Off CMOS (Kawaguchi et. al.) • Gate of PMOS device (which gates the VDD supply) overdriven during standby operation - reduces leakage dramatically. • Drawback: • Complex circuitry required to generate the special voltages.

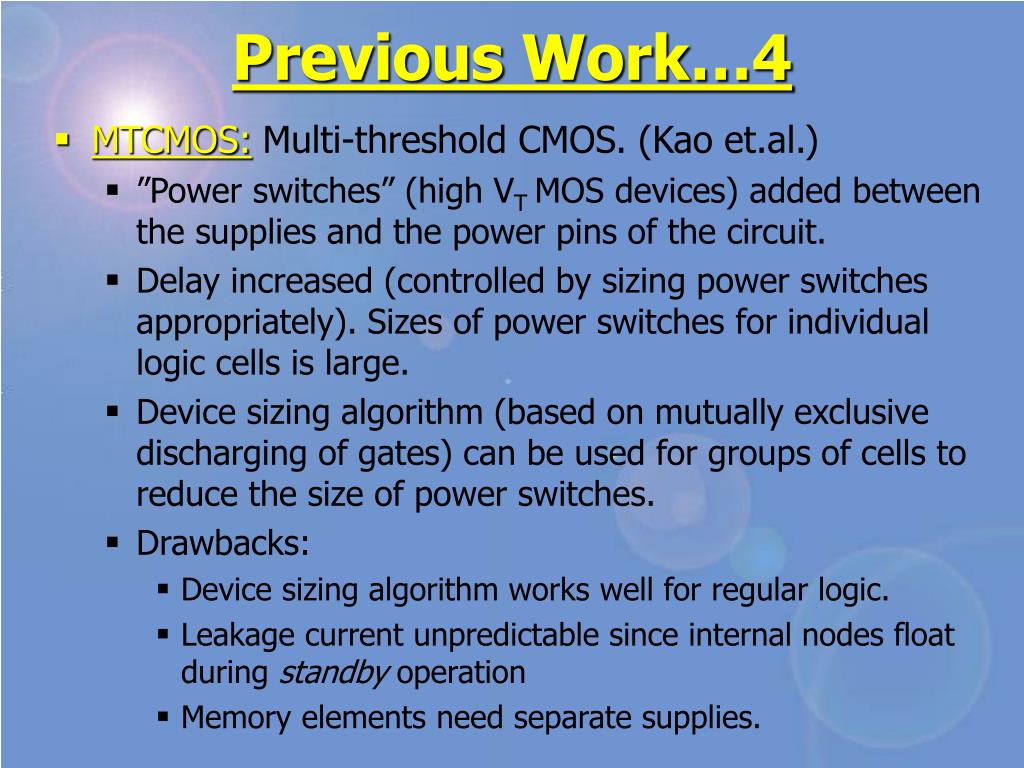

7. Previous Work…4 • MTCMOS: Multi-threshold CMOS. (Kao et.al.) • ”Power switches” (high VT MOS devices) added between the supplies and the power pins of the circuit. • Delay increased (controlled by sizing power switches appropriately). Sizes of power switches for individual logic cells is large. • Device sizing algorithm (based on mutually exclusive discharging of gates) can be used for groups of cells to reduce the size of power switches. • Drawbacks: • Device sizing algorithm works well for regular logic. • Leakage current unpredictable since internal nodes float during standby operation • Memory elements need separate supplies.

8. Our Approach • Ensure that supply voltage applied across more than one deviceand at least one of them is high VT. • Ensure that output of each cell is either logic-0 or logic-1 in standby. • No floating internal nodes. • Allows precise estimation of circuit leakage. • If input vector to gate (in standby) is known: • We know which stack (pull-up / pull-down) is leaking. • Only one power switch device (PMOS or NMOS) required.

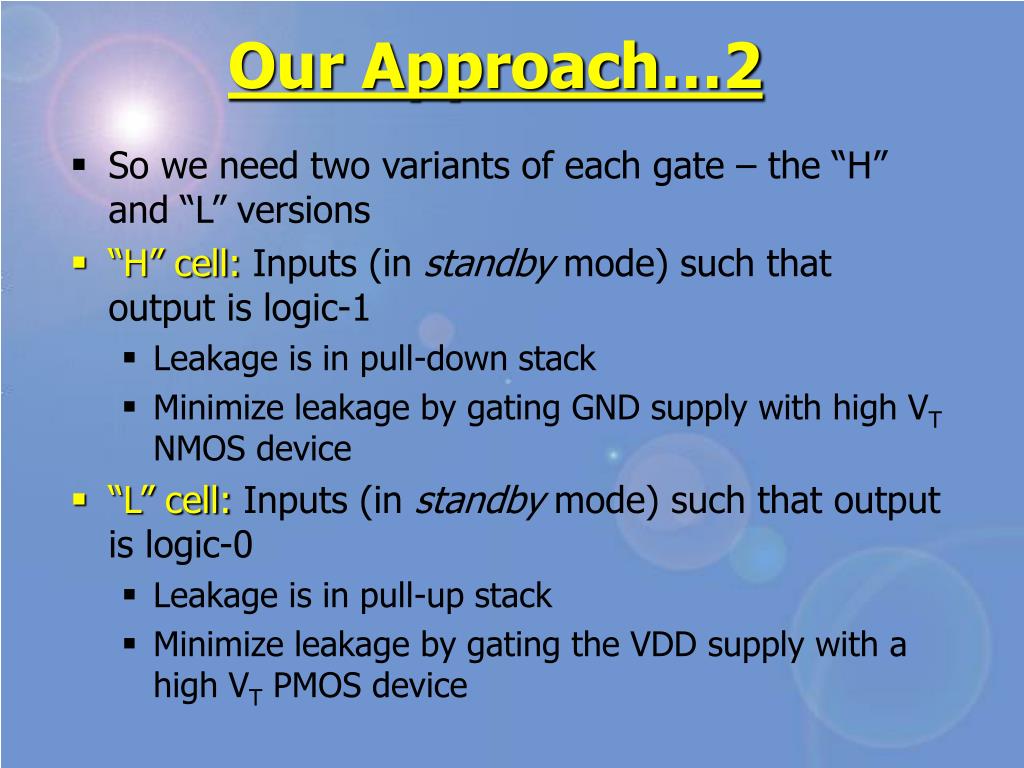

9. Our Approach…2 • So we need two variants of each gate – the “H” and “L” versions • “H” cell: Inputs (in standby mode) such that output is logic-1 • Leakage is in pull-down stack • Minimize leakage by gating GND supply with high VT NMOS device • “L” cell: Inputs (in standby mode) such that output is logic-0 • Leakage is in pull-up stack • Minimize leakage by gating the VDD supply with a high VT PMOS device

10. Example – NAND3

11. NAND3 (H, L variants)

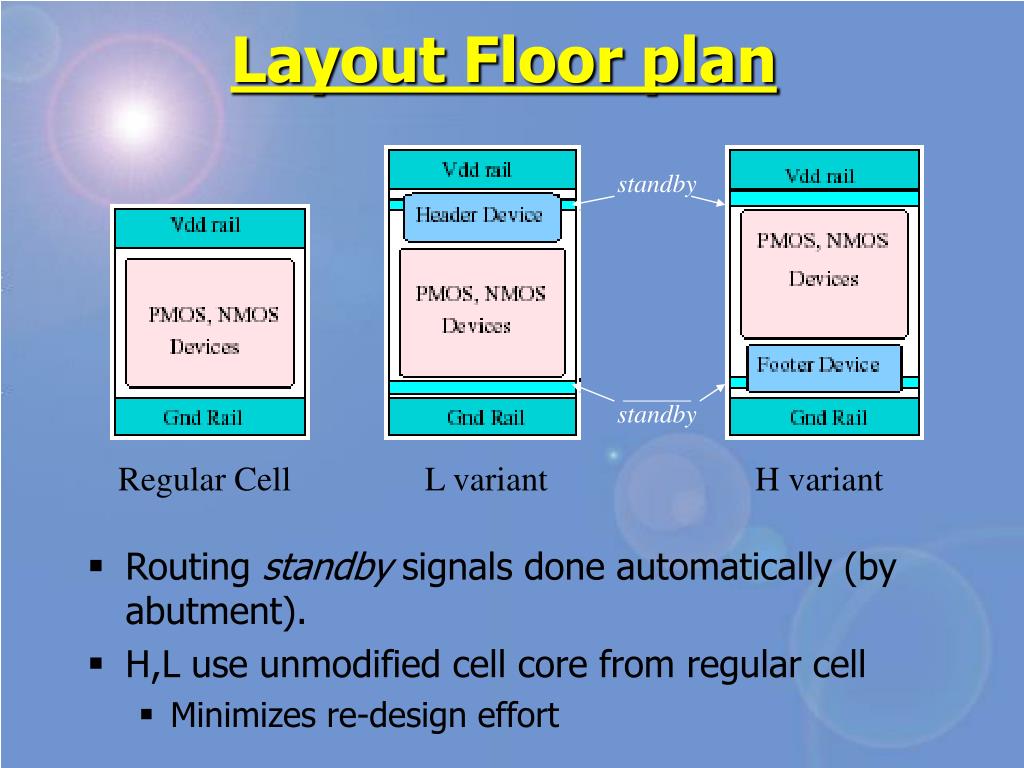

12. Layout Floor plan standby standby Regular Cell L variant H variant • Routing standby signals done automatically (by abutment). • H,L use unmodified cell core from regular cell • Minimizes re-design effort

13. Sample layout (NAND3-L) VDD rail standby standby GND rail

14. Process parameters and sizing • Used bsim100 predictive 0.1um model cards for our experiments • SPICE and MAGIC used for cell design and layout • For MTCMOS and H/L gates, the supply gating transistors sized such that delay penalty less than 15% (over the unmodified cell) • Up-sizing transistors inside cell core can result in smaller delay and area penalties. • We did not modify cell core

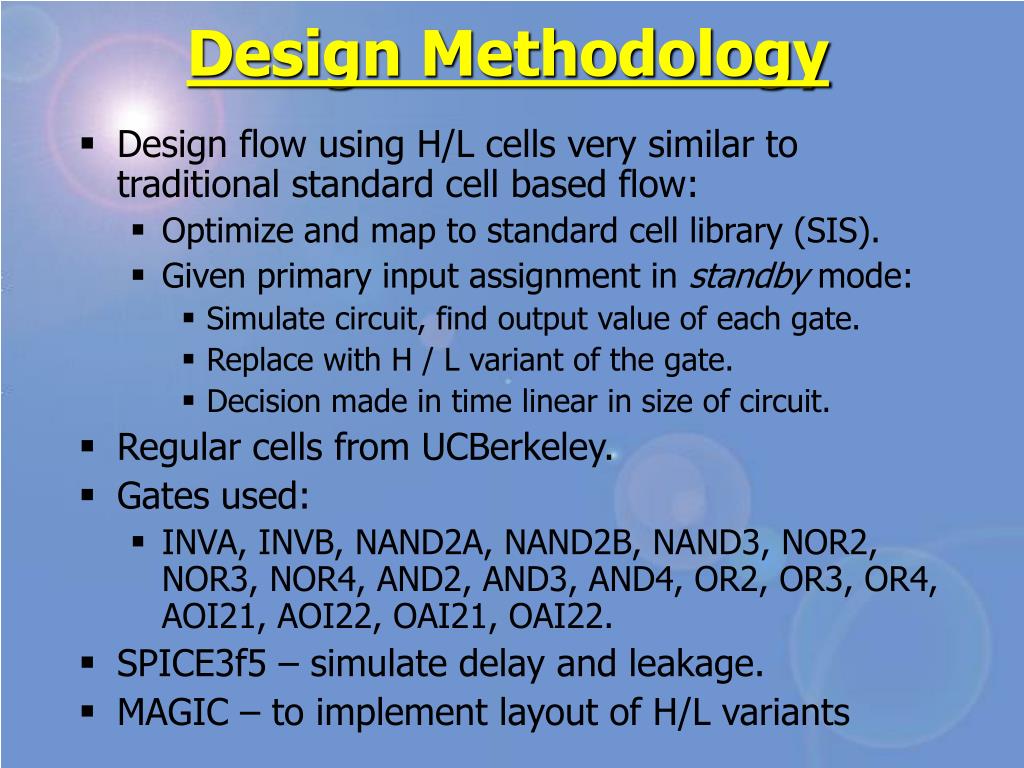

15. Design Methodology • Design flow using H/L cells very similar to traditional standard cell based flow: • Optimize and map to standard cell library (SIS). • Given primary input assignment in standby mode: • Simulate circuit, find output value of each gate. • Replace with H / L variant of the gate. • Decision made in time linear in size of circuit. • Regular cells from UCBerkeley. • Gates used: • INVA, INVB, NAND2A, NAND2B, NAND3, NOR2, NOR3, NOR4, AND2, AND3, AND4, OR2, OR3, OR4, AOI21, AOI22, OAI21, OAI22. • SPICE3f5 – simulate delay and leakage. • MAGIC – to implement layout of H/L variants

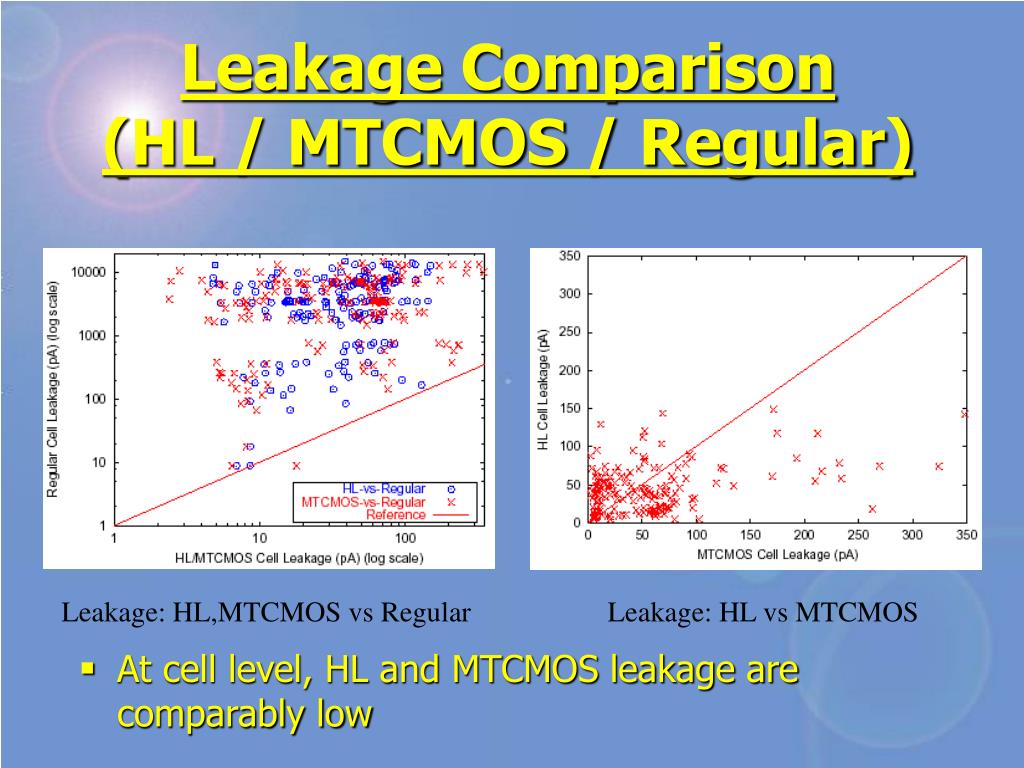

16. Leakage Comparison (HL / MTCMOS / Regular) Leakage: HL,MTCMOS vs Regular Leakage: HL vs MTCMOS • At cell level, HL and MTCMOS leakage are comparably low

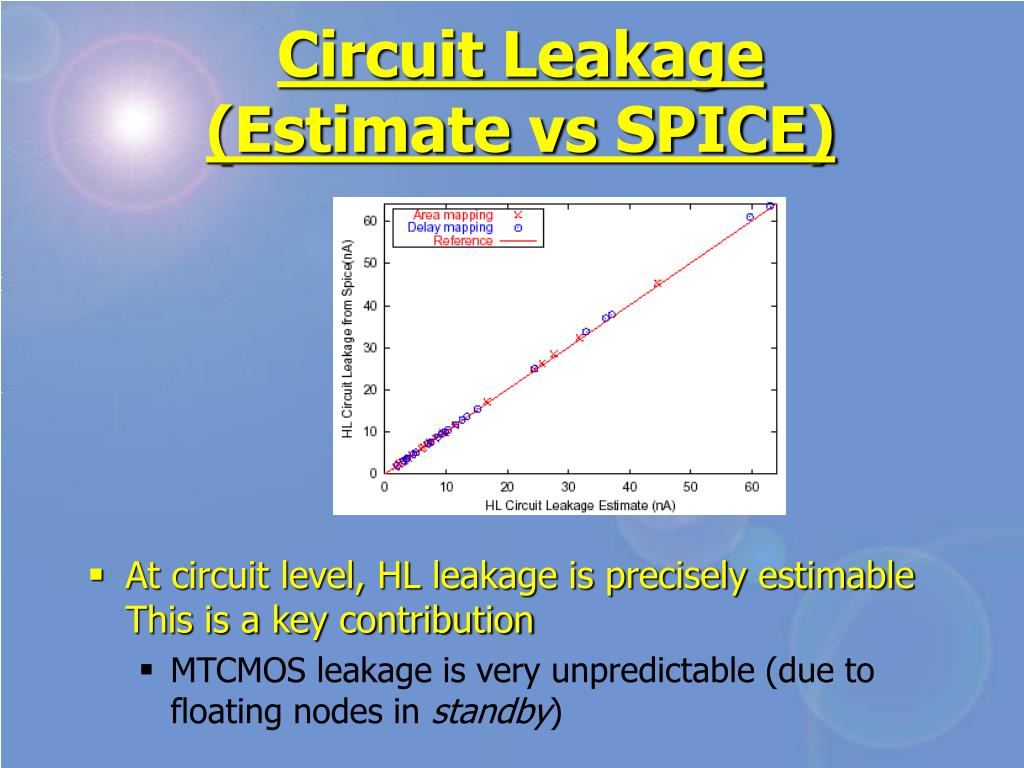

17. Circuit Leakage(Estimate vs SPICE) • At circuit level, HL leakage is precisely estimable This is a key contribution • MTCMOS leakage is very unpredictable (due to floating nodes in standby)

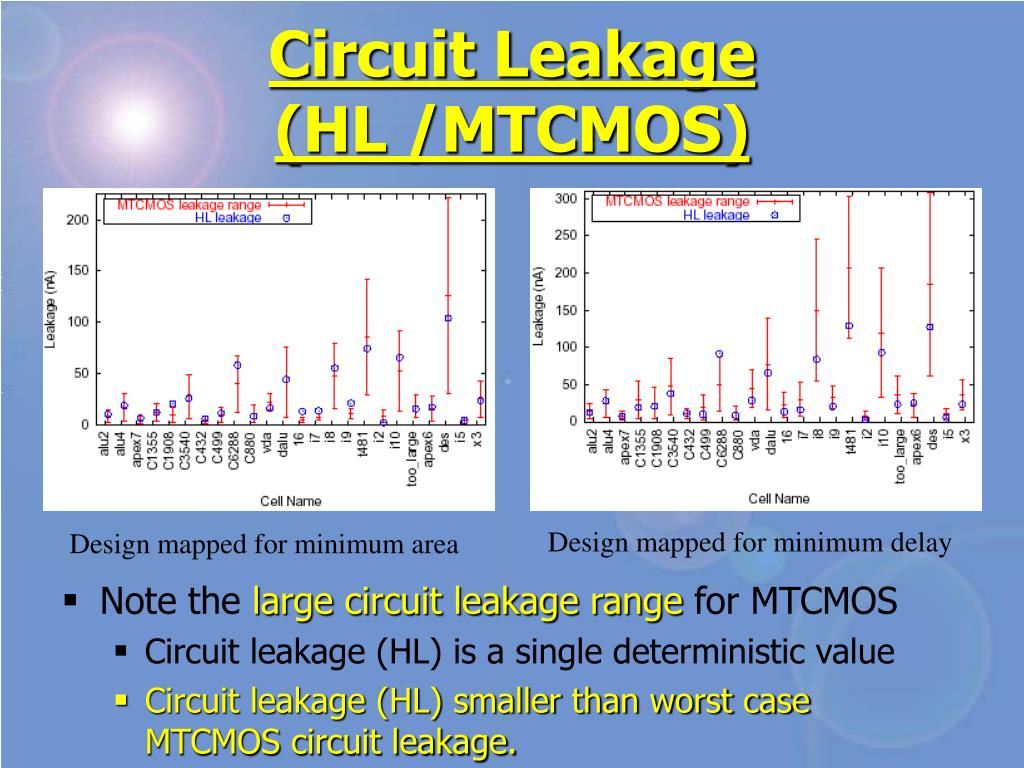

18. Circuit Leakage (HL /MTCMOS) Design mapped for minimum delay Design mapped for minimum area • Note the large circuit leakage range for MTCMOS • Circuit leakage (HL) is a single deterministic value • Circuit leakage (HL) smaller than worst case MTCMOS circuit leakage.

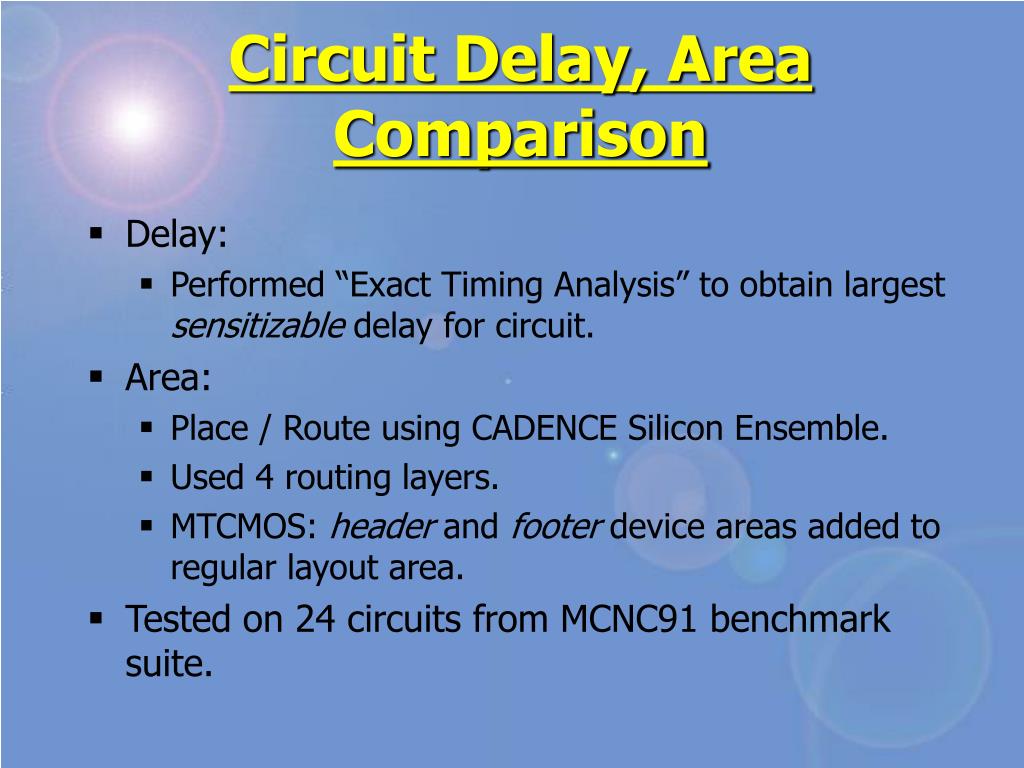

19. Circuit Delay, Area Comparison • Delay: • Performed “Exact Timing Analysis” to obtain largest sensitizable delay for circuit. • Area: • Place / Route using CADENCE Silicon Ensemble. • Used 4 routing layers. • MTCMOS: header and footer device areas added to regular layout area. • Tested on 24 circuits from MCNC91 benchmark suite.

20. Delay comparison • Circuits mapped for minimum delay (SIS) • Similar results if circuits mapped for minimum area (see paper) • HL delay less than MTCMOS delay • Only 1 transition slower in HL (both in MTCMOS)

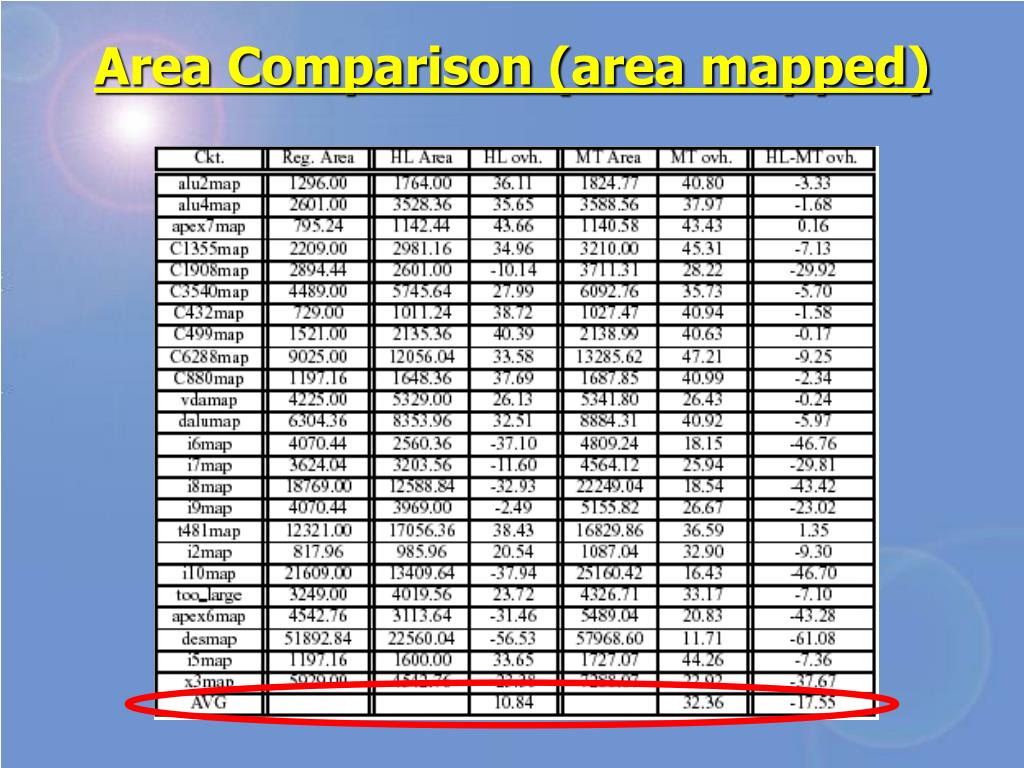

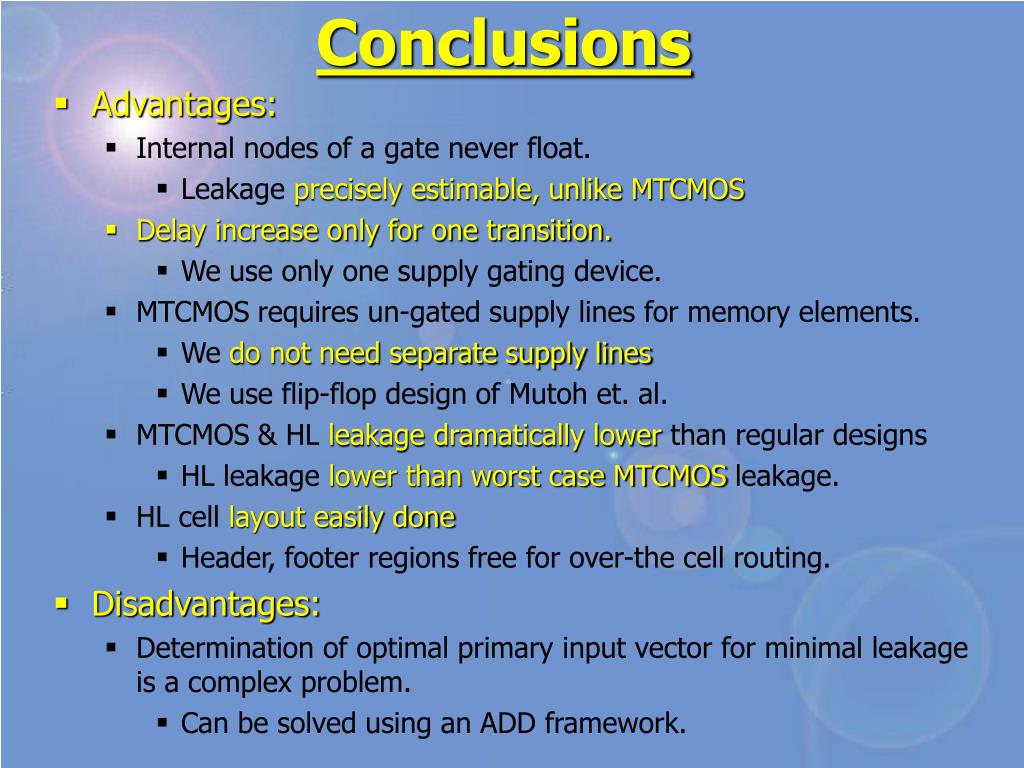

21. Area Comparison (area mapped)

22. Conclusions • Advantages: • Internal nodes of a gate never float. • Leakage precisely estimable, unlike MTCMOS • Delay increase only for one transition. • We use only one supply gating device. • MTCMOS requires un-gated supply lines for memory elements. • We do not need separate supply lines • We use flip-flop design of Mutoh et. al. • MTCMOS & HL leakage dramatically lower than regular designs • HL leakage lower than worst case MTCMOS leakage. • HL cell layout easily done • Header, footer regions free for over-the cell routing. • Disadvantages: • Determination of optimal primary input vector for minimal leakage is a complex problem. • Can be solved using an ADD framework.
