Engineering Drawing Sketching Skills GSMST

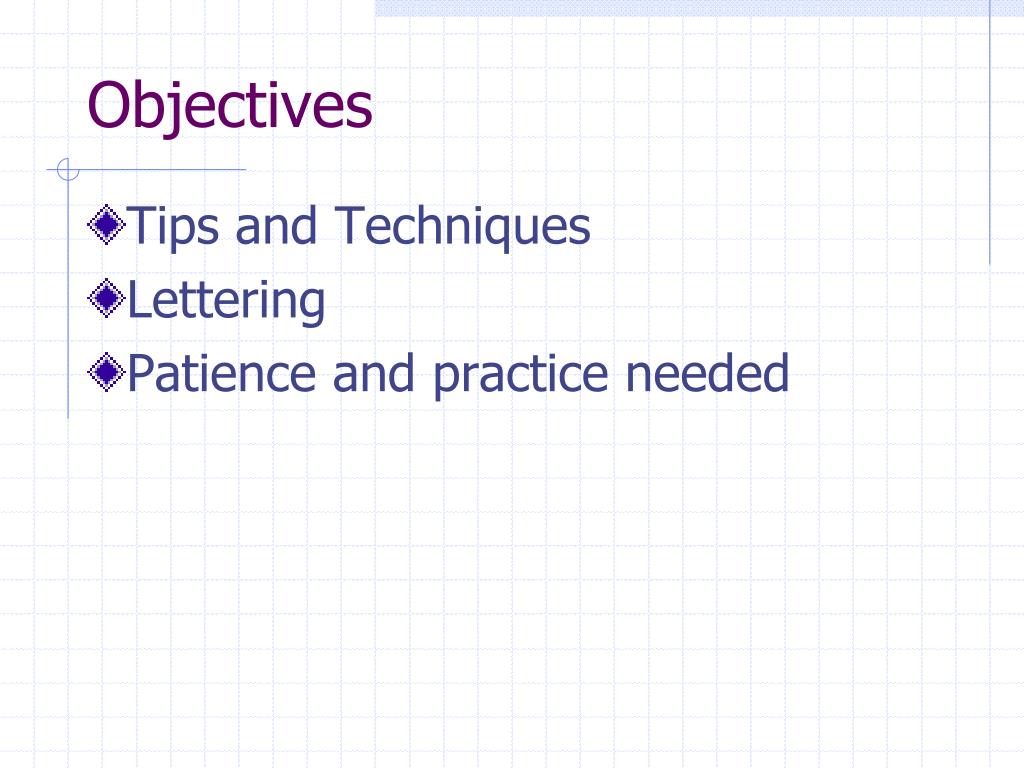

Objectives • Tips and Techniques • Lettering • Patience and practice needed

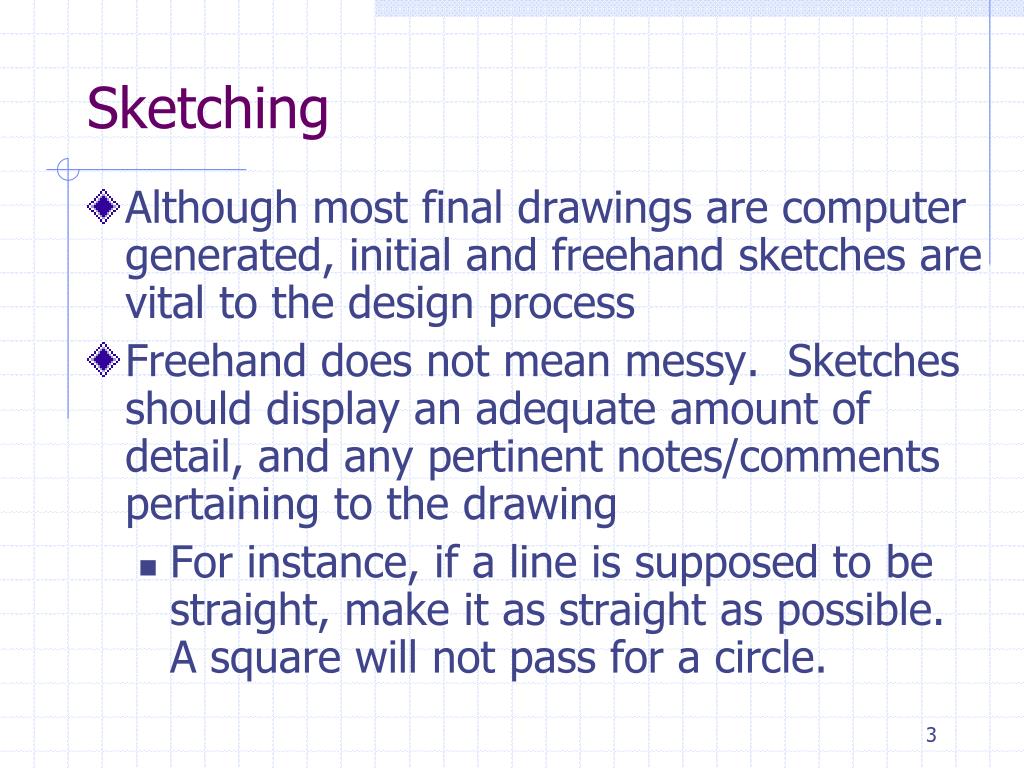

Sketching • Although most final drawings are computer generated, initial and freehand sketches are vital to the design process • Freehand does not mean messy. Sketches should display an adequate amount of detail, and any pertinent notes/comments pertaining to the drawing • For instance, if a line is supposed to be straight, make it as straight as possible. A square will not pass for a circle.
Sketching • Sketching is a rapid, freehand method of drawing without the use of drawing instruments. Sketching is also a thinking process and a method of communication.

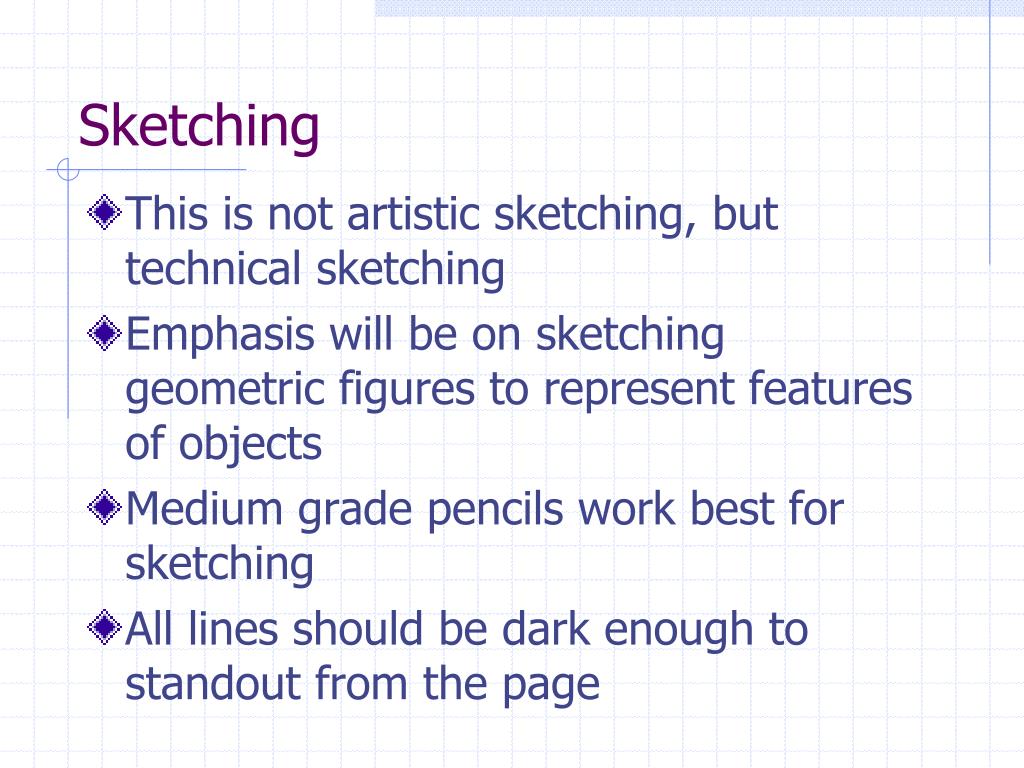

Sketching • This is not artistic sketching, but technical sketching • Emphasis will be on sketching geometric figures to represent features of objects • Medium grade pencils work best for sketching • All lines should be dark enough to standout from the page
Engineering Drawing Rules • Always use a Pencil. • Make all lettering the same size. • Use Engineering or Drafting Paper.
Pencil Techniques • The best pencil for lettering on most surfaces are the H, F, and HB grades. • Hold your pencil in the position shown. It should make approximately a 60o angle with the paper.
Pencil Lead Designation • Note: Reverse order below
Sketching Tips: General • Relax and draw in a direction comfortable to you • Mark end points of the lines to be sketched and draw between them • Draw long lines as a series of short ones • Use grid paper when available • Follow sketching and text conventions • Do NOT use a straight edge to draw lines!

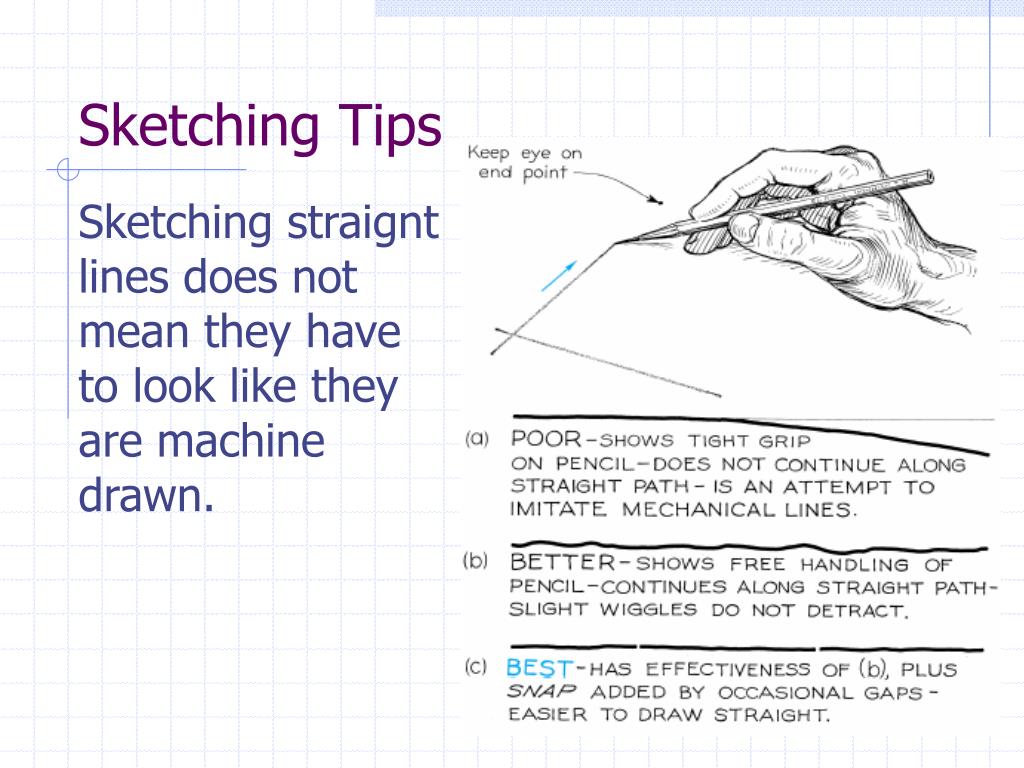

Sketching Tips Sketching straignt lines does not mean they have to look like they are machine drawn.
Sketching Tips: Construction Lines • Use construction lines • Begin by drawing bounding boxes with construction lines • Make construction lines much lighter and thinner than finished lines • Identify the major features and overall dimensions • Leave construction lines on the sketch
Drawing Circles • Two methods for sketching circles • Box in diameter and mark radius • Draw center-point lines and mark radius
Sketching Tips: Miscellaneous • Do not shade the drawing – this is not pencil sketching • Title information is required • Keep views aligned (very important) • Draw neat circles – change page orientation if needed

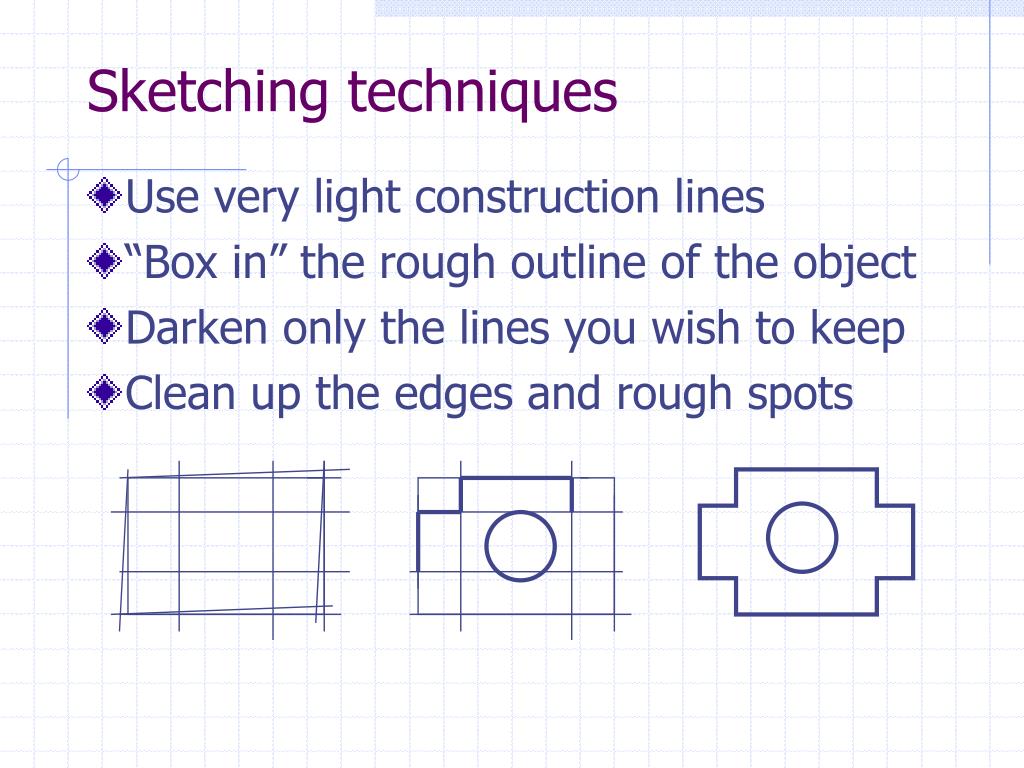

Sketching techniques • Use very light construction lines • “Box in” the rough outline of the object • Darken only the lines you wish to keep • Clean up the edges and rough spots

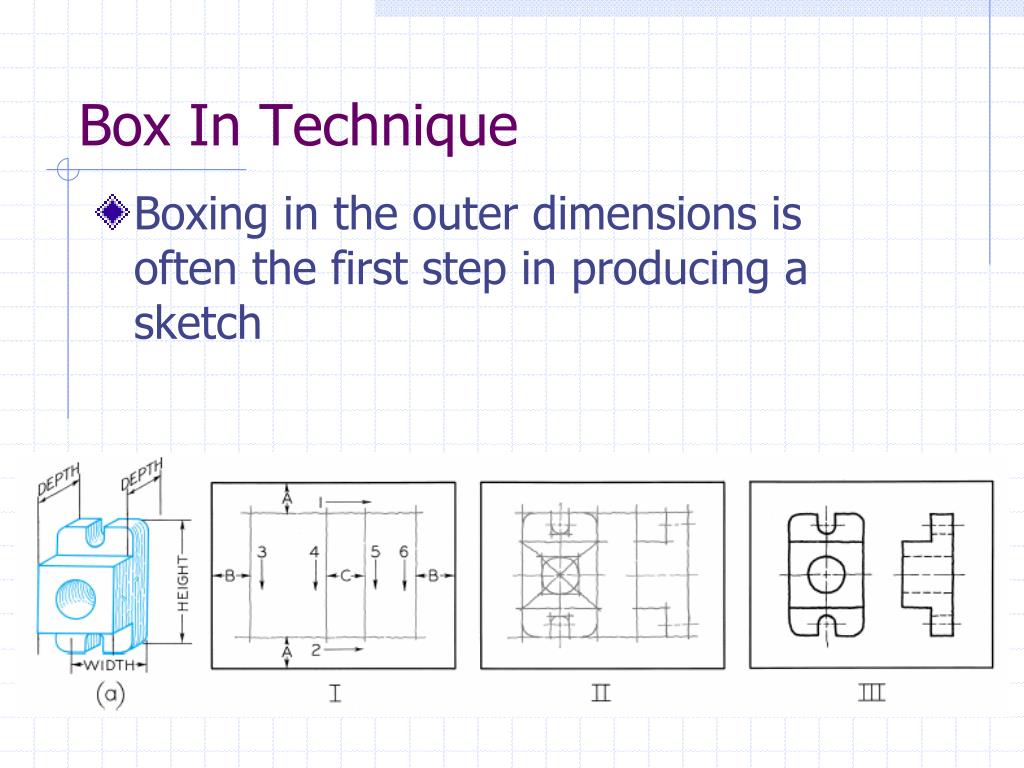

Box In Technique • Boxing in the outer dimensions is often the first step in producing a sketch

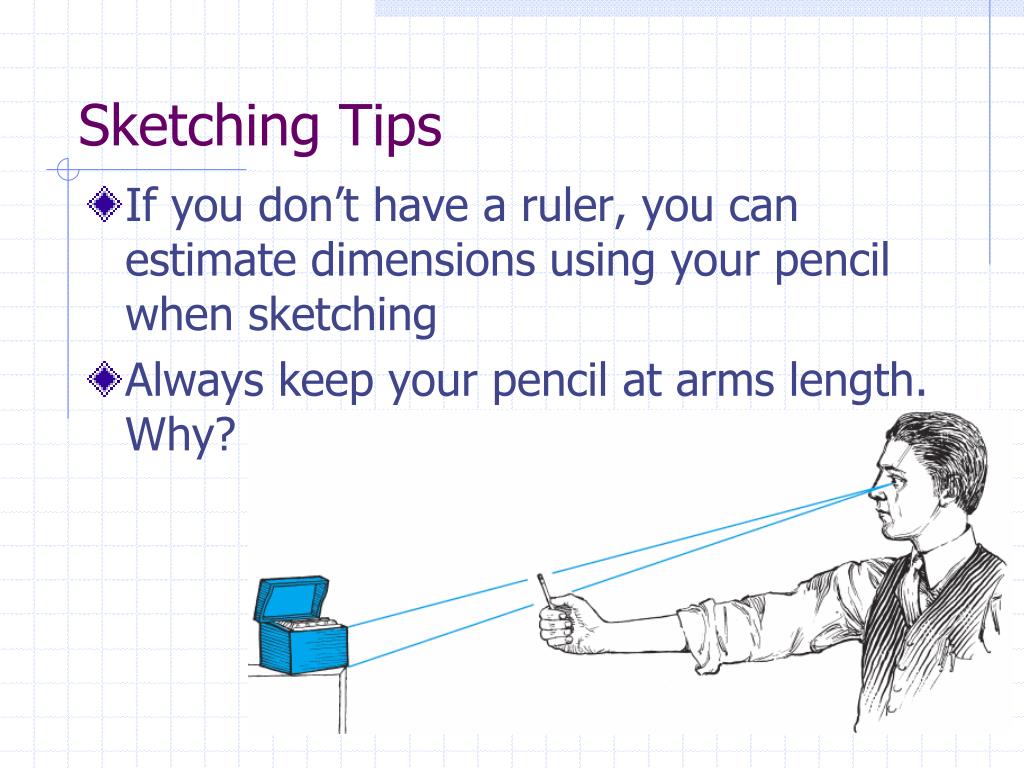

Sketching Tips • If you don’t have a ruler, you can estimate dimensions using your pencil when sketching • Always keep your pencil at arms length. Why?
Sketching Tips • Layout of drawing using your pencil for dimensional reference

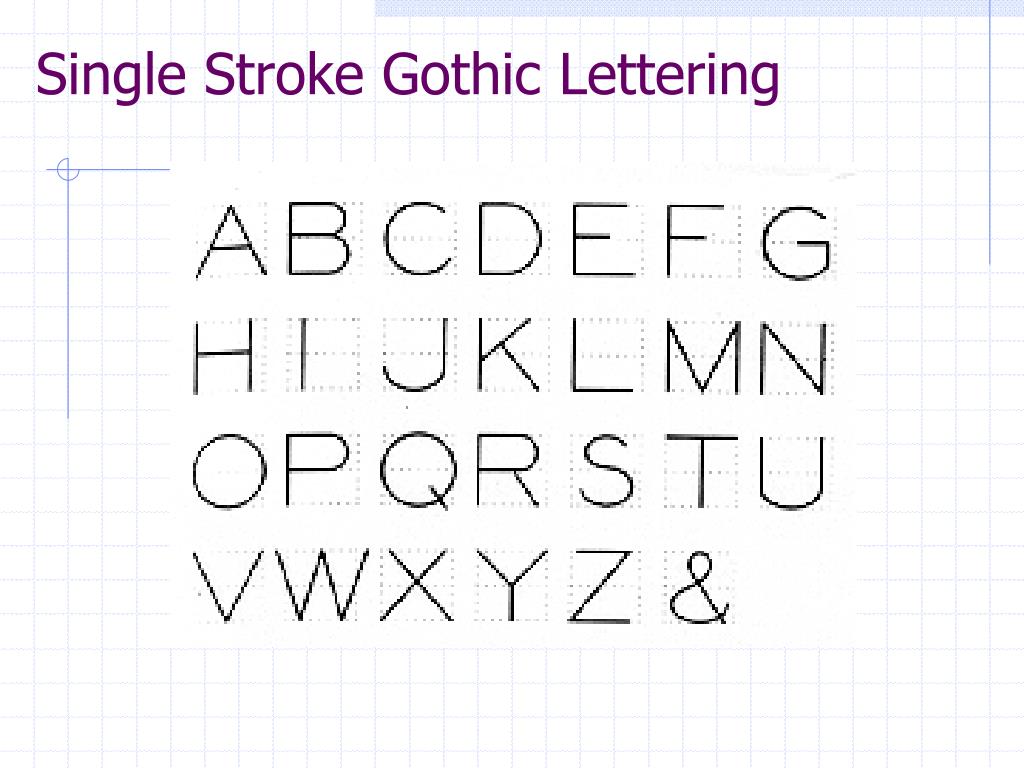

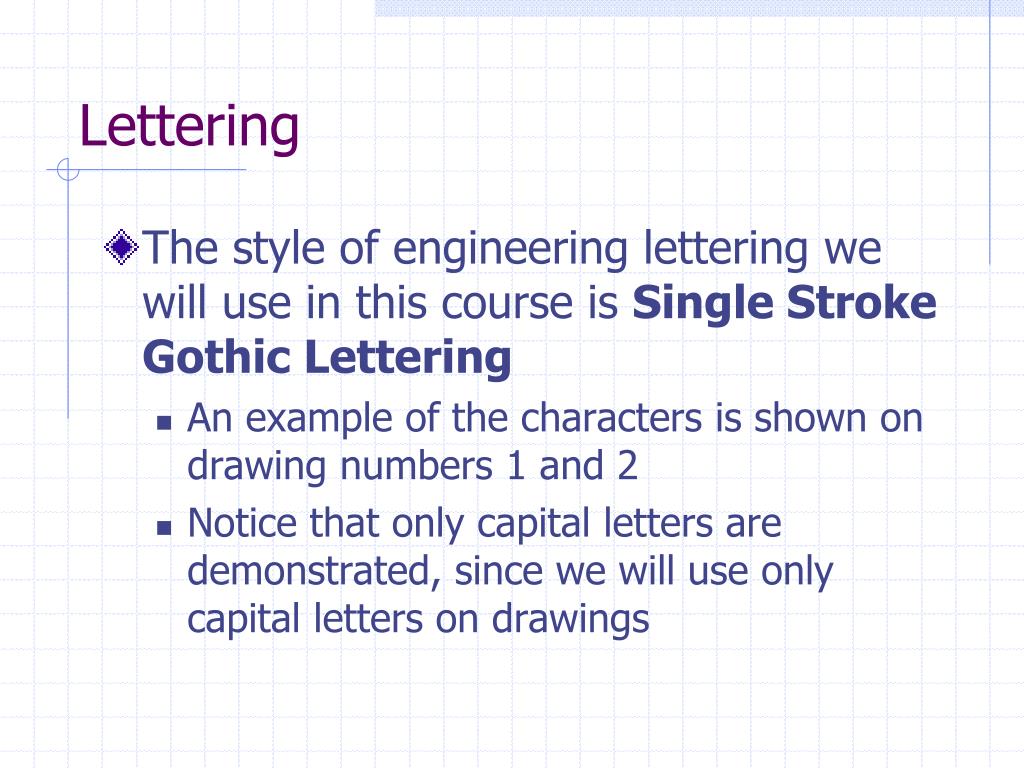

Lettering • The style of engineering lettering we will use in this course is Single Stroke Gothic Lettering • An example of the characters is shown on drawing numbers 1 and 2 • Notice that only capital letters are demonstrated, since we will use only capital letters on drawings

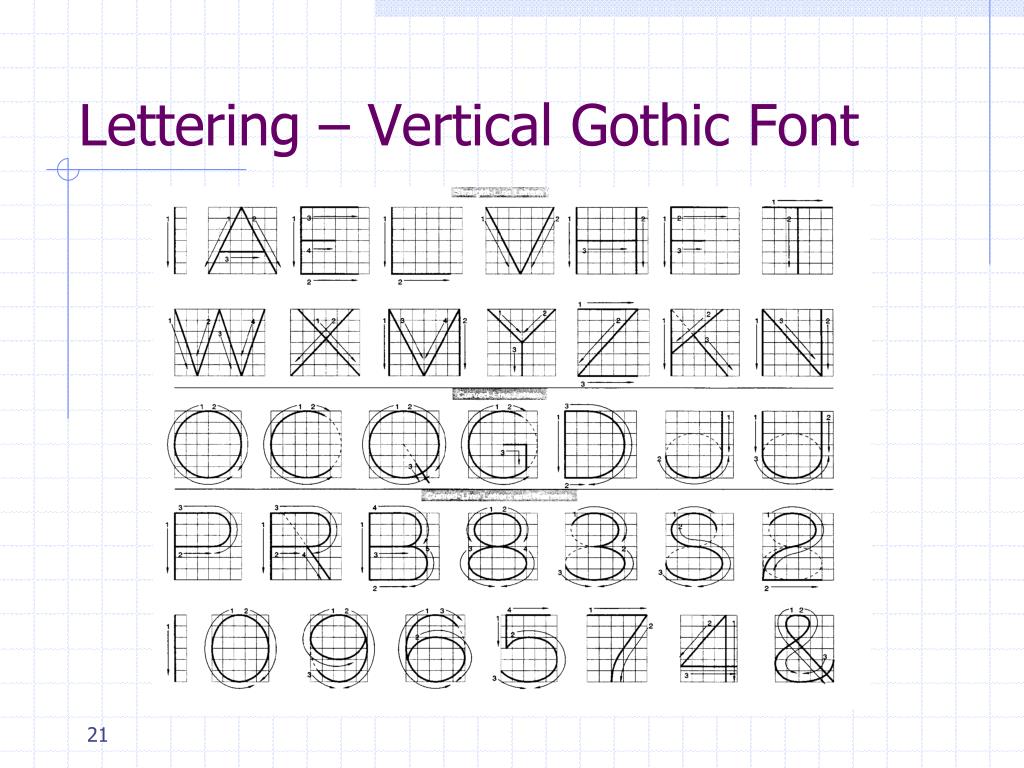

Lettering Notes • Lettering Guidelines – Handout • Lettering Styles • Shape of Letters • Order of Drawing Lines • Character Uniformity • Spacing
