  1. DIRECT READING INSTRUMENTS Hershey Entertainment and Resorts Company Revised 2006 29 CFR 1910.

  2. Reasons to Monitor • Provide current, direct information regarding the type and relative quantity of the hazards present • Assess the environmental risk to workers, responders, general public, and the environment

  3. Reasons to Monitor • Help in selecting the appropriate PPE, equipment, and areas for workplace and mitigation perimeter control • Hot, Warm, and Cold Zones

  4. Other Reasons • Regulates the effectiveness of mitigation techniques • Assess the efficiency of emission controls and to determine the need for specific medical monitoring for exposures • Demonstrates a safe work site

  5. Location of the release Type & Configuration of the container Labels or Placards Shipping Papers Material Safety Data Sheets (MSDS) Information from site workers / bystanders Clues for Unidentified Hazards

  6. Looking at %LEL Readings • Most measure in the % of the Lower Explosive Limit (LEL) • It is a safety meter • Designed to detect hazardous concentrations of gases and vapors (up to a meter reading of 100% LEL)

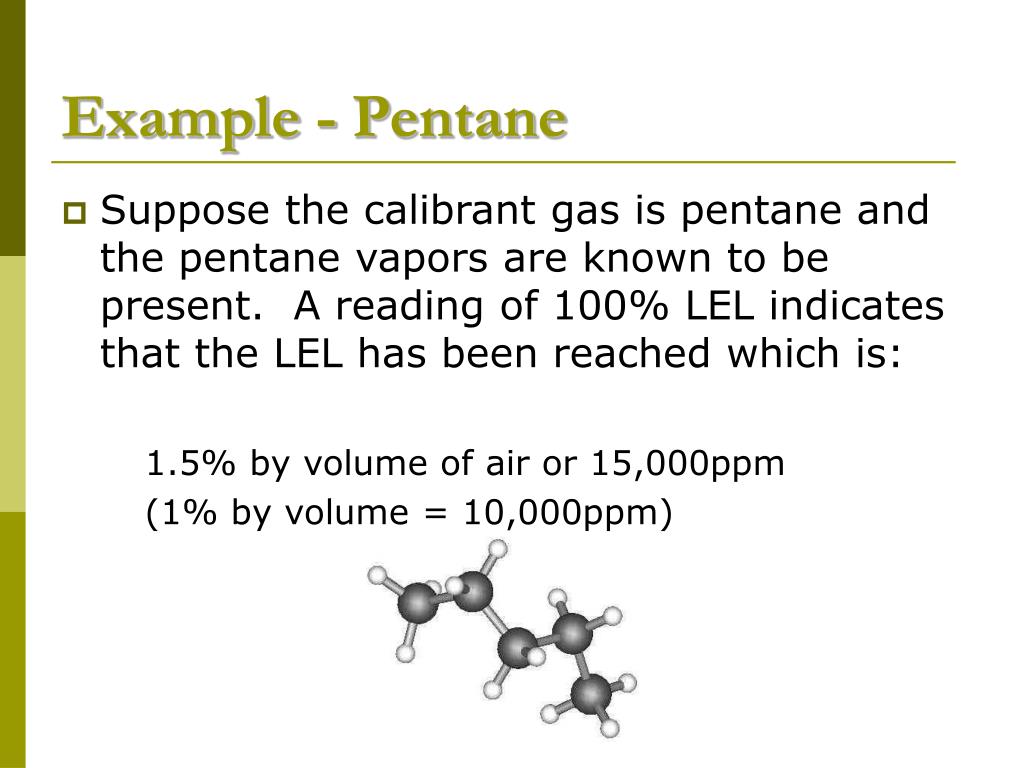

  7. Example - Pentane • Suppose the calibrant gas is pentane and the pentane vapors are known to be present. A reading of 100% LEL indicates that the LEL has been reached which is: 1.5% by volume of air or 15,000ppm (1% by volume = 10,000ppm)

  8. Example - Methane • Suppose we are using a methane calibrated meter and we expose the meter to pentane (The conversion factor for pentane is 0.6) • A reading of 100% LEL now indicates that 60% LEL or 9,000ppm of pentane are present (The LEL of Pentane is 1.5% or 15,000ppm; 0.6 x 15,000ppm= 9,000ppm)

  9. Conversions • Meter Reading x Conversion Factor = Actual Reading • 100% LEL x 0.6 = 60% LEL • LEL x 10,000 = 100% LEL in ppm • 1.5 x 10,000ppm = 15,000ppm • Actual %LEL x LEL in ppm = Actual Concentration Present in ppm • 0.6 x 15,000ppm = 9,000ppm

  10. Remember • % LEL must be converted to a decimal value; it represents a percentage or a fraction of 100% and must always be equal to or less than 1.0: 100% LEL = 100/100 = 1.00 50% LEL = 50/100 = 0.50 10% LEL = 10/100 = 0.10 5% LEL = 5/100 = 0.05

  11. Hint • An easier way to determine the approximate ppm concentration present is to first convert the actual % LEL value to ppm

  12. Example • For methane with an LEL of 6%, the following quick conversions can be done without the aid of a calculator. 100% Actual LEL = LEL x 10,000ppm = LEL in ppm 100% Actual LEL = 60,000ppm 50% Actual LEL = 30,000ppm 25% Actual LEL = 15,000ppm 10% Actual LEL = 6,000ppm 5% Actual LEL = 3,000ppm 1% Actual LEL = 600ppm

  13. Air Quality • Air quality is very important in the workplace • Air monitoring is a means of evaluating the quality of the work environment • Four requirements for good air quality: • Eliminate Tobacco Smoke • Provide Adequate Ventilation • Maintain Ventilation System(s) • Remove Sources of Pollution

  14. Air Quality • There are substances which are linked to lung diseases that can be encountered in the workplace: • Asbestos/other carcinogenic substances • Coal dust • Grain dust/other farm hazards • Silica • Allergens

  15. Air Quality • Some employees are more “at risk” than others • “At risk” employees should have their workplace monitored regularly • Indoor air problems are generated by gas or particle release • Ventilation systems should bring in an adequate amount of outside air to off set these gases and particles

  16. Air Quality • Sources of indoor air pollution: • Oil, gas, kerosene, wood, tobacco • Building materials and furnishings • Wet or damp carpet • Cabinetry or furniture made of pressed wood • Household cleaning and maintenance products • Central heating and cooling systems • Humidification devices • Outdoor sources • Radon • Pesticides • Outdoor Air pollution

  17. Air Quality • The hazard of a source is dependent on the amount of pollutant it emits • Some sources releases pollutant continuously, some only intermittently • High pollutant concentrations can remain in the air for long periods

  18. Air Quality • Particulates • Tiny or fine particles which soil the air and are breathed in • Considered more dangerous than smog, sulphur dioxide and carbon monoxide • Linked as a major contributor to lung cancer

  19. Air Quality • Size • 10 micrometers or less • Same size as bacteria • Invisible to the naked eye • Small enough to be breathed into the lungs • Fine particulates 2.5 micrometers or less • Course particulates 2.5 –10 micrometers • Course particles are too large to travel far into the lungs • Fine particles bury themselves in the air sacs of the lungs and can cause a great deal of damage
