Vacuum Pycnometer

DESCRIPTION

Vacuum Pycnometer is a large capacity unit with 10 L capacity. Designed with strong, rugged-duty vibrator and sturdy base with <br>integral, heavy-duty on/off switches. Features domed transparent cover for easy observation of sample being tested. Equipped with <br>quick-release cam/lock fasteners for quick placement and removal of canister. Heavy duty vibrating table keeps sample material <br>loose for more reliable test results.<br>

Télécharger la présentation

Vacuum Pycnometer

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

Playing audio...

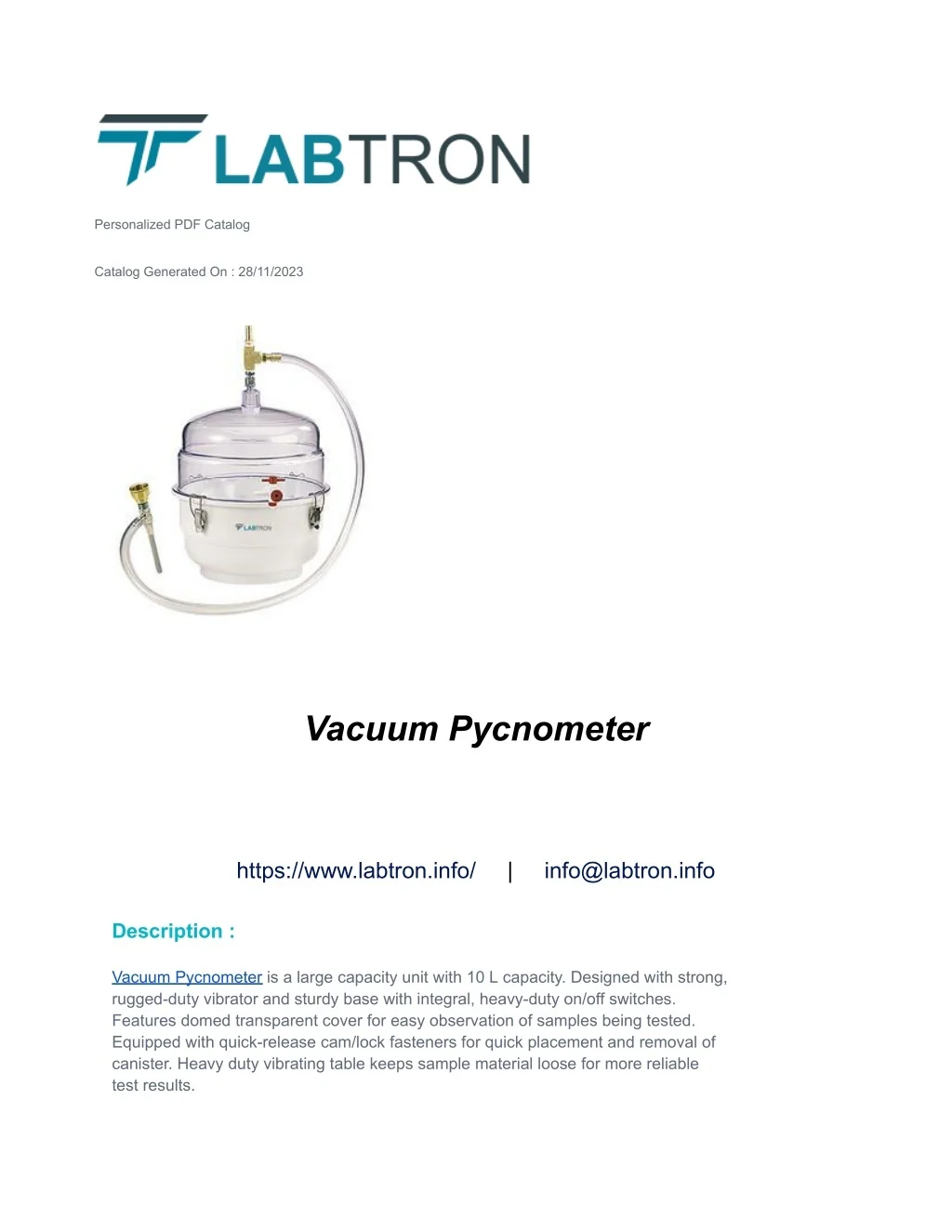

  1. Personalized PDF Catalog Catalog Generated On : 28/11/2023 Vacuum Pycnometer https://www.labtron.info/ | info@labtron.info Description : Vacuum Pycnometer is a large capacity unit with 10 L capacity. Designed with strong, rugged-duty vibrator and sturdy base with integral, heavy-duty on/off switches. Features domed transparent cover for easy observation of samples being tested. Equipped with quick-release cam/lock fasteners for quick placement and removal of canister. Heavy duty vibrating table keeps sample material loose for more reliable test results.

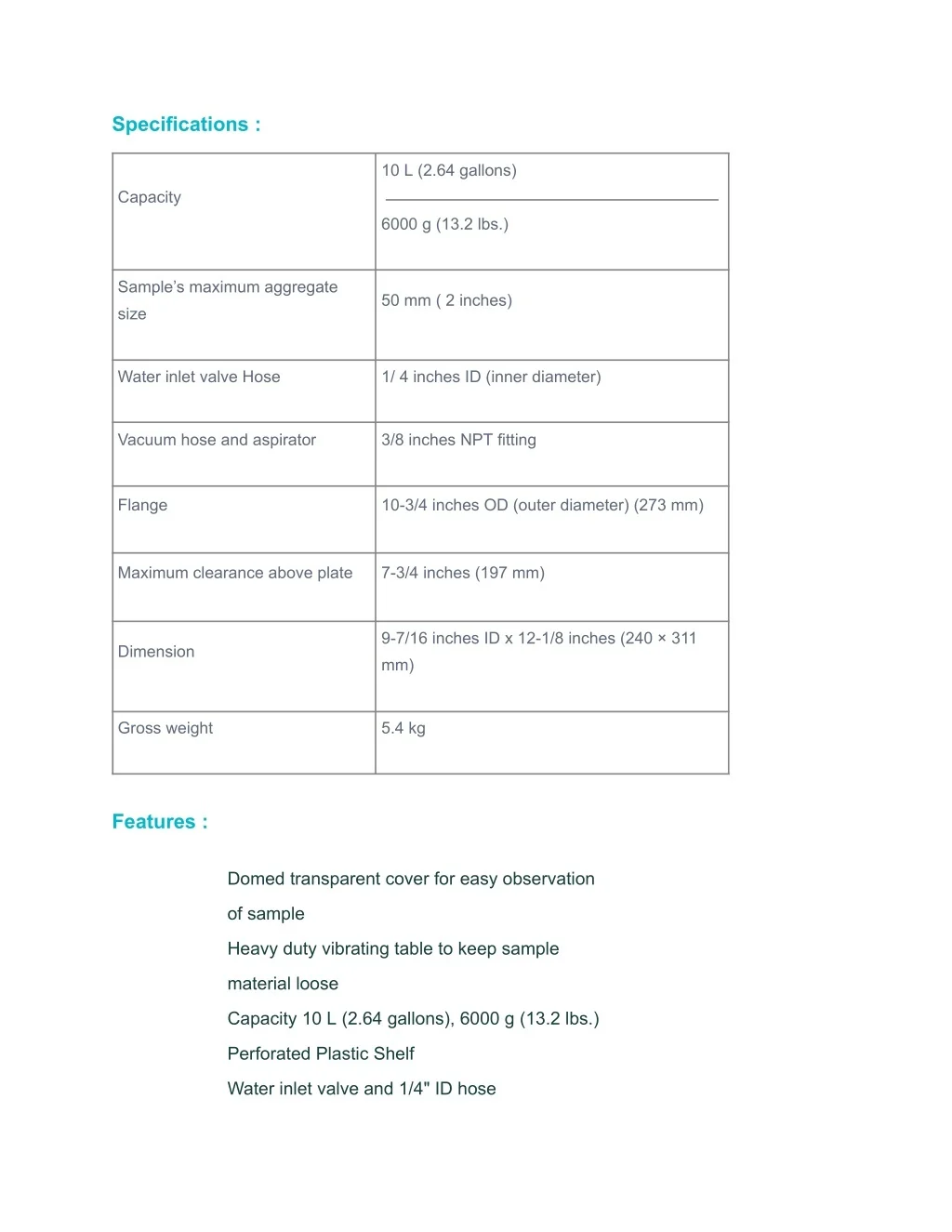

  2. Specifications : 10 L (2.64 gallons) Capacity 6000 g (13.2 lbs.) Sample’s maximum aggregate 50 mm ( 2 inches) size Water inlet valve Hose 1/ 4 inches ID (inner diameter) Vacuum hose and aspirator 3/8 inches NPT fitting Flange 10-3/4 inches OD (outer diameter) (273 mm) Maximum clearance above plate 7-3/4 inches (197 mm) 9-7/16 inches ID x 12-1/8 inches (240 × 311 Dimension mm) Gross weight 5.4 kg Features : Domed transparent cover for easy observation of sample Heavy duty vibrating table to keep sample material loose Capacity 10 L (2.64 gallons), 6000 g (13.2 lbs.) Perforated Plastic Shelf Water inlet valve and 1/4" ID hose

  3. Vacuum Hose and Aspirator with 3/8" NPT fitting Applications : Used primarily in asphalt rice test applications to hold samples under vacuum pressure during a rice test for ASTM D2041 and AASHTO T209 and T283. www.labtron.info Labtron Equipment Ltd. Quatro House, Lyon Way, Camberley, Surrey GU16 7ER United Kingdom Email: info@labtron.info | Website: https://www.labtron.info/ | Phone: +44 2080 043 608
