Presentation Transcript

  1. Composite Analyses of Tropical Convective Systems Prior to Tropical Cyclogenesis Chip Helms Jason Dunion Lance Bosart University at Albany Cyclone Research Group 4 November 2013 Funding through NSF AGS-0849491 and NASA HSRP #NNX12AK63G

  2. Motivation Motivating Questions and Working Hypotheses • Why do some marginal systems develop despite the presence of inhibiting factors? • Why do viable systems fail to develop?

  3. Relating Vorticity and Buoyancy Goal: Include thermodynamics in vorticity tendency without invoking thermal wind balance.

  4. Motivation Genesis Process Hypothesis Shear Tropopause Radiative Cooling/Heating Latent Heat Release Convergence and ascent along wave Concentration of background vorticity produces low-level vortex 500 hPa +PV, + Cooling (Melting, Evaporation, Radiation?) Deep convection fuels formation of stratiformsheilddownshear Deep convection forms along convergence line Surface Wave Axis

  5. Motivation Genesis Process Hypothesis Shear Tropopause Night: -B / Day: +B +/- +/- +/- +/- +B +B -/? Mid-Level Vortex 500 hPa -B Low-Level Vortex Surface +y +x

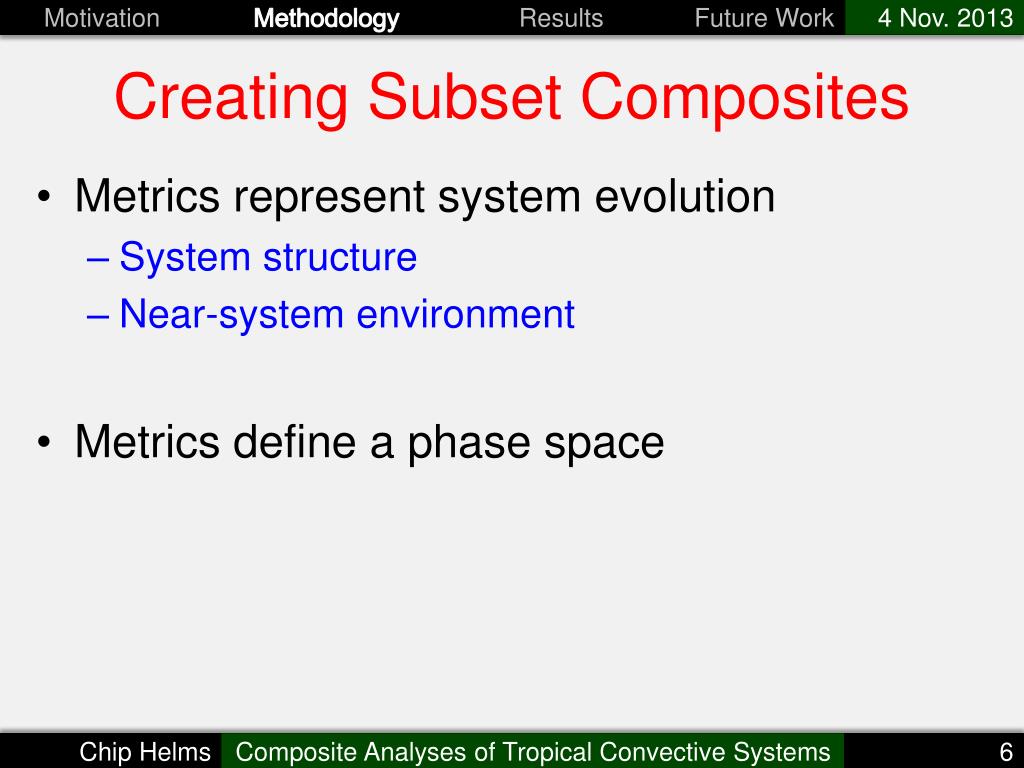

  6. Methodology Creating Subset Composites • Metrics represent system evolution • System structure • Near-system environment • Metrics define a phase space

  7. Methodology Vortex Tracker • Based on NCEP vortex tracker (Marchok2002) • Multiple fields to generate center fix • Link fixes using steering flow and previous motion • Currently using Climate Forecast System Reanalysis (CFSR)

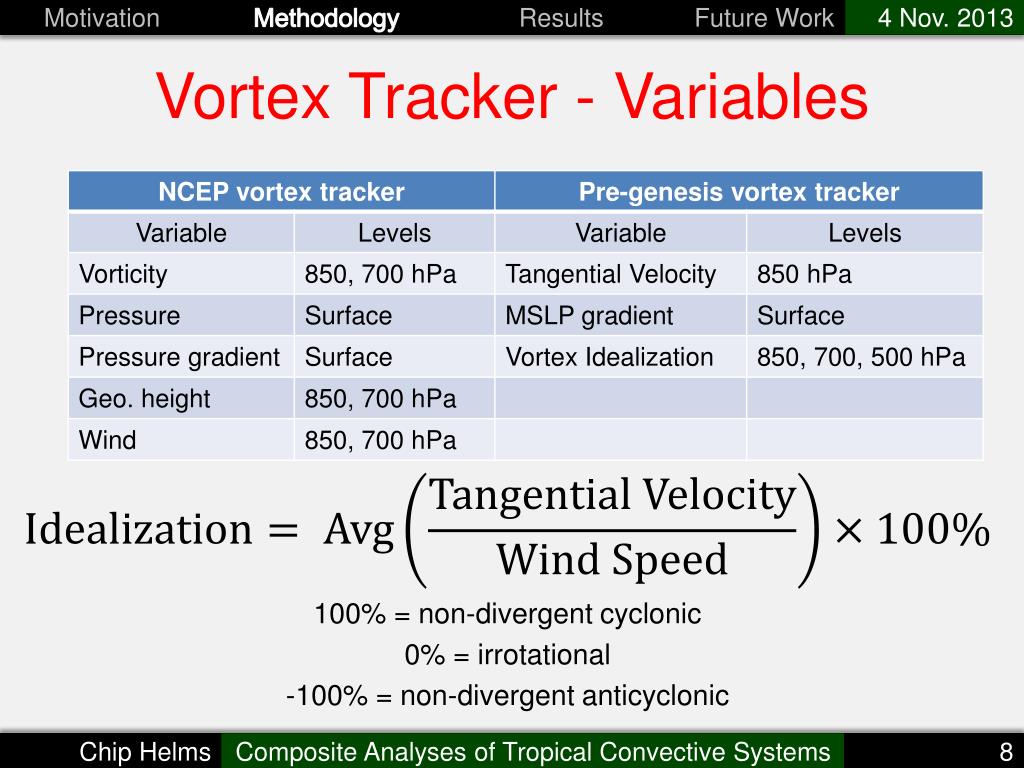

  8. Methodology Vortex Tracker - Variables 100% = non-divergent cyclonic 0% = irrotational -100% = non-divergent anticyclonic

  9. Methodology Idealized Example

  10. Methodology Track Examples Cape Verde TCs Merging Circulations Non-developing System ???? 850 hPa Vortex Idealization

  11. Results Phase Space2010 Atlantic Hurricane SeasonPre-genesis and Non-developing

  12. Future Work Future Data Sources • Reanalyses • ERA-Interim, NCEP/NCAR, MERRA • Operational • GFS, ECMWF, CMC • Observational • CIMSS satellite winds, dropsondes, satellites

  13. Future Work Analysis Goals • Examine differences between dev/non-dev in variety of composites • Kinematic, dynamic, and thermodynamic fields • Examine how parameters vary with phase space location • SST, OHC, MPI (Emanuel 1988), ventilation index (Tang and Emanuel 2012), genesis pathway (McTaggart-Cowan et al. 2008) • Will allow us to explore why viable systems sometimes fail to develop and marginal systems sometimes succeed

  14. END
